B&R X20IF2792 - 二手
说明

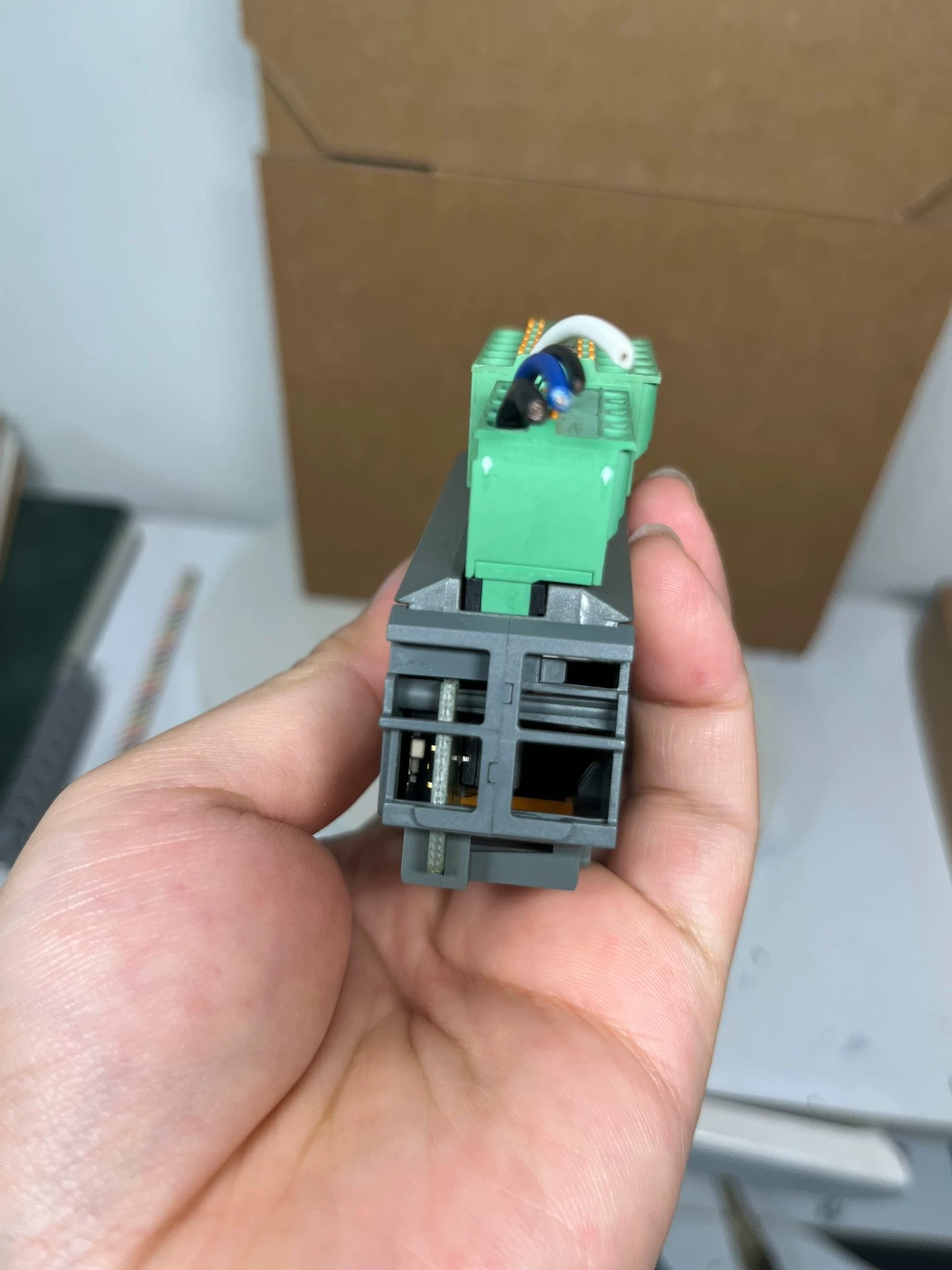

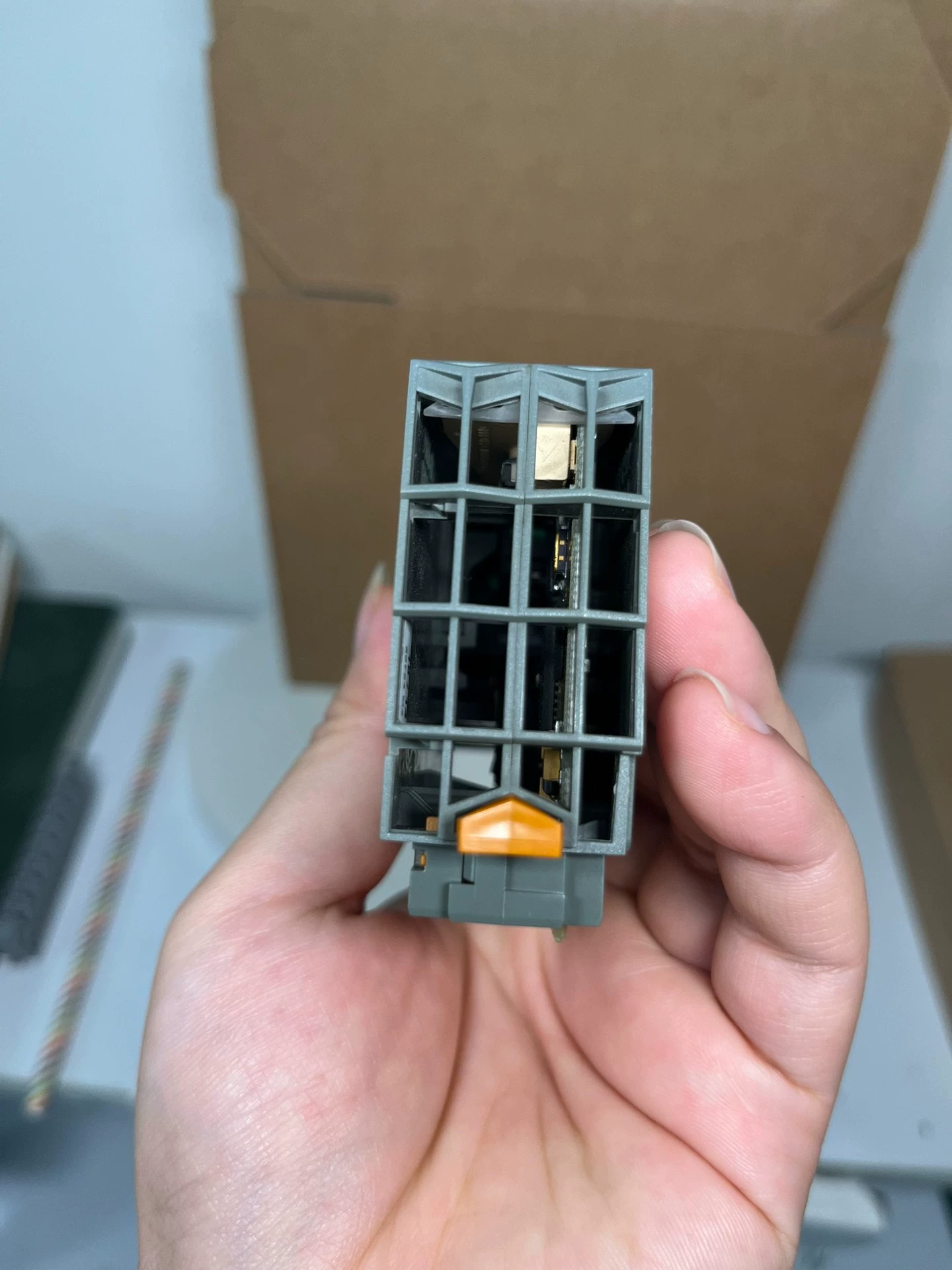

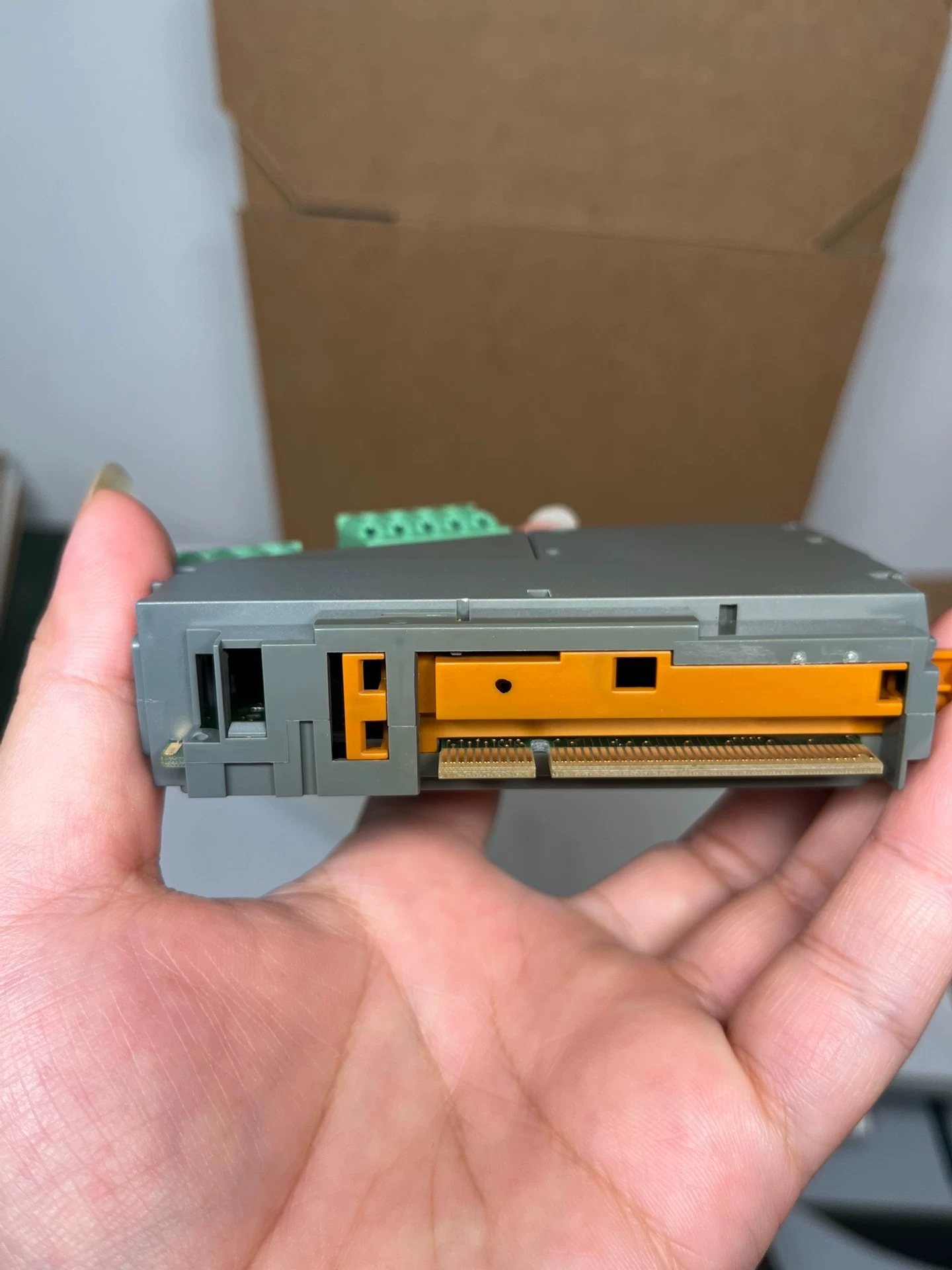

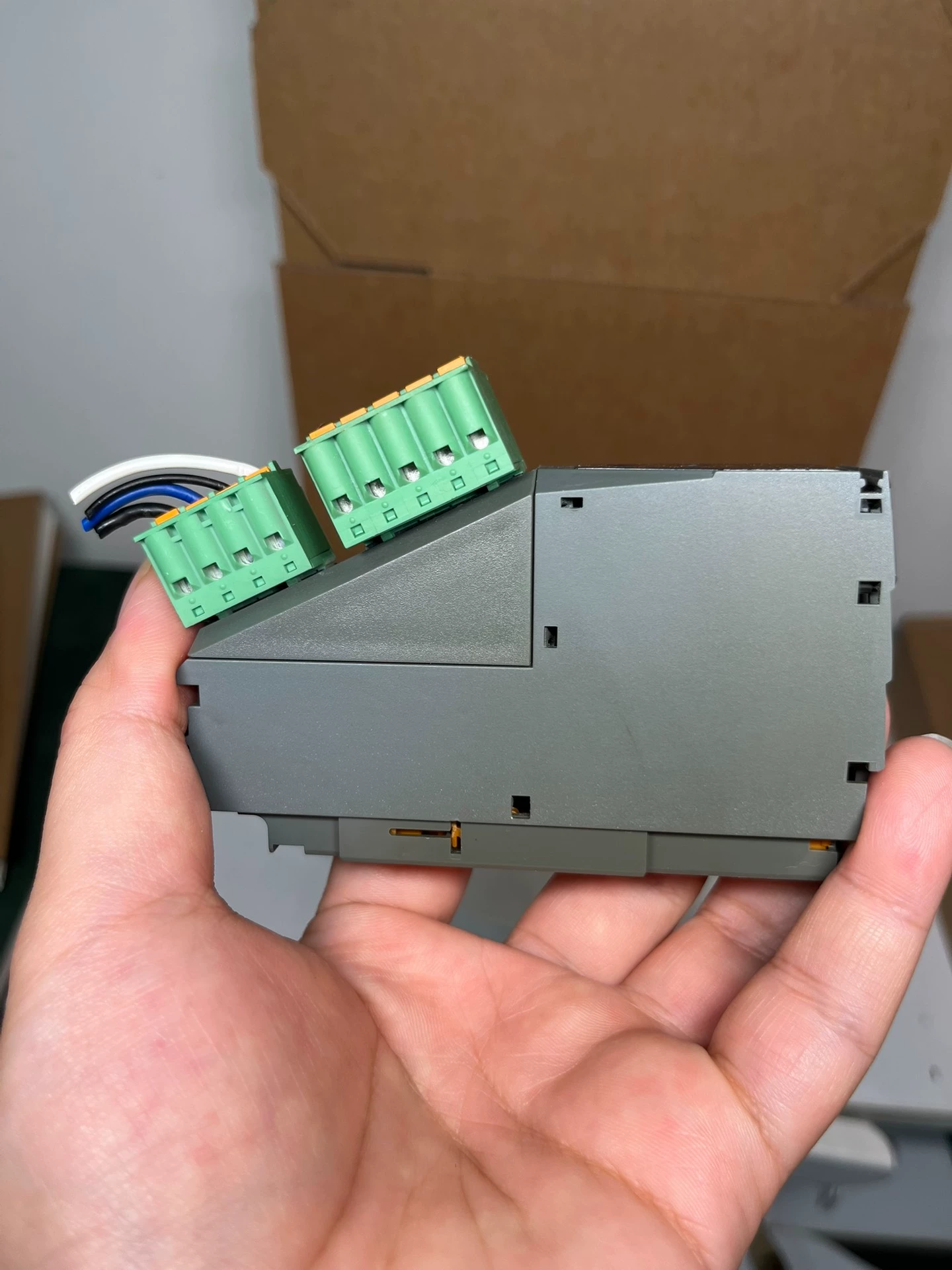

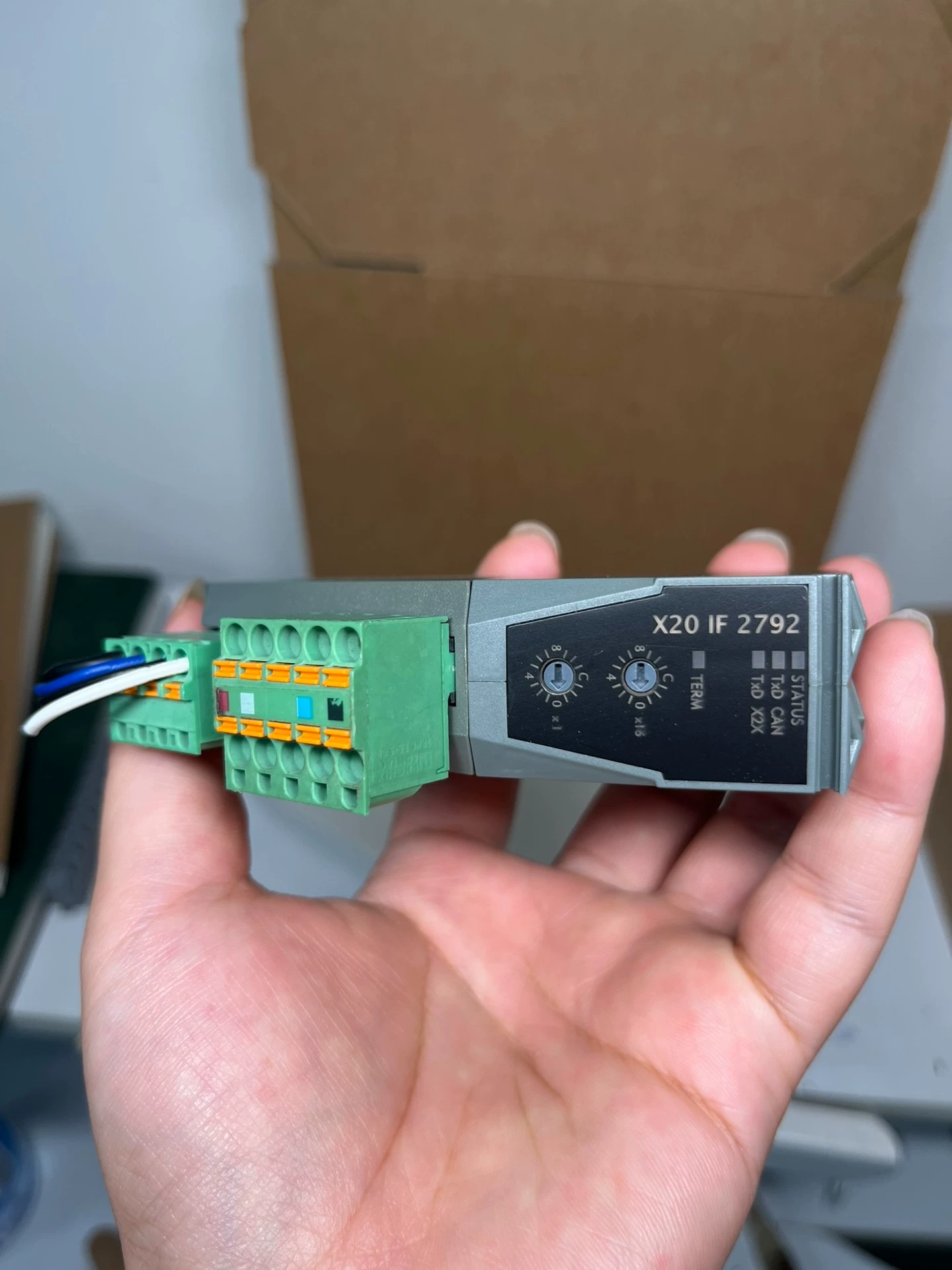

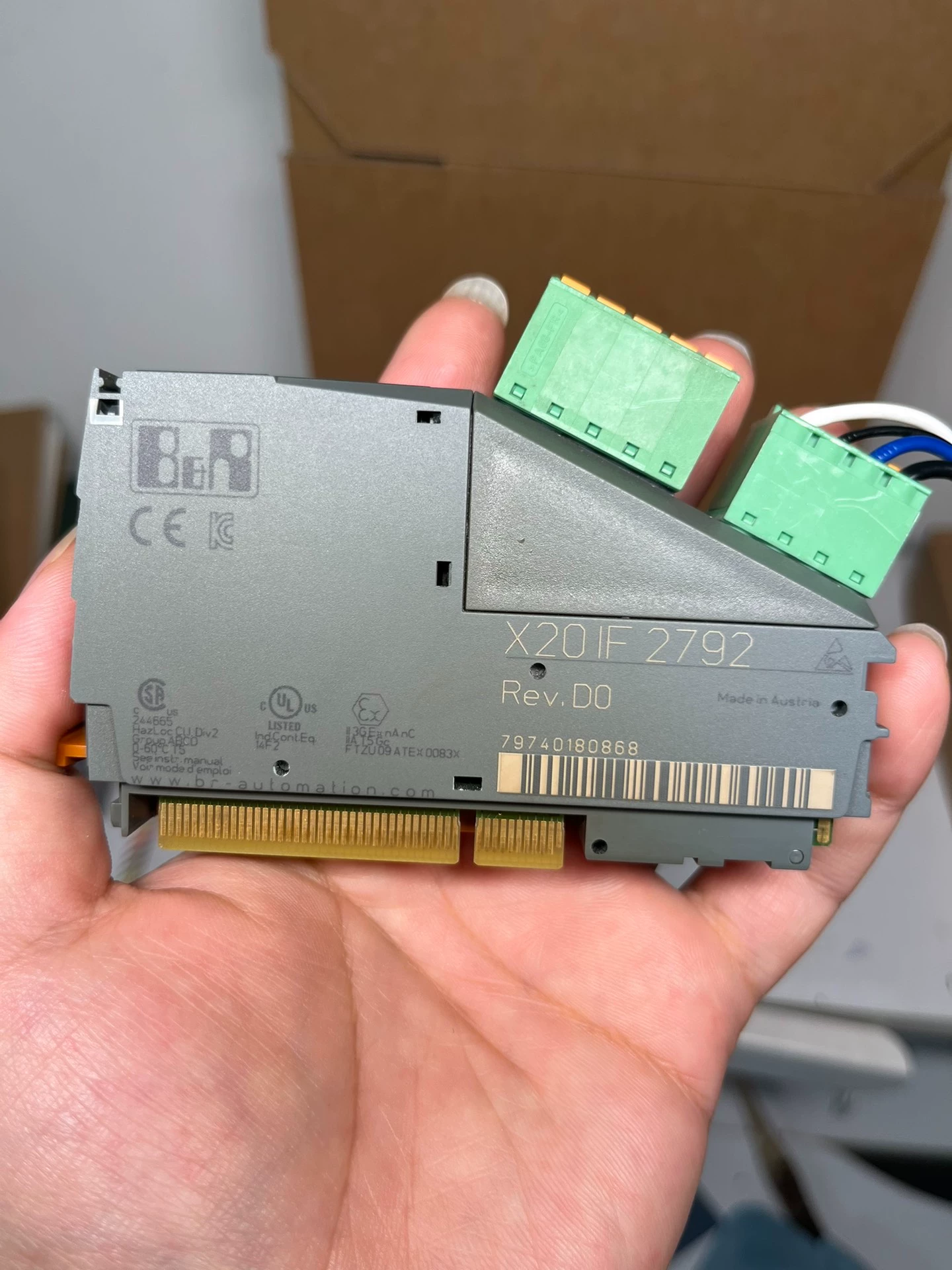

B&R X20IF2792 模块，拆机件，原安装于 1484 主机。
规格参数
| Brand | B&R |
|---|---|
| MPN | X20IF2792 |
| Origin | Austria |
| ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X |
| B&R ID code | 0x1F26 |
| Bus terminating resistor | Internal |
| CE | Yes |
| Controller | SJA 1000 |
| CRA (Cyber Resilience Act) | In preparation |
| Data transfer | Yes, using LED status indicator |
| Electrical isolation | PLC isolated from X2X Link (IF1) and CAN (IF2) and interfaces isolated from each other |
| Fieldbus | X2X Link master |
| HazLoc | cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5 |
| Horizontal | Yes |
| Horizontal mounting orientation | -25 to 60°C |
| Installation elevation above sea level | Reduction of ambient temperature by 0.5°C per 100 m |
| Installation elevation above sea level | No limitation |
| Installation elevation above sea level | IP20 |
| Interfaces | Max. 100 m |
| Internal bus power supply | No |
| KC | Yes |
| Max. distance | 1000 m |
| Module status | Yes, using LED status indicator |
| Network topology | Line |
| Number of stations | Max. 253 |
| Operation | 5 to 95%, non-condensing |
| Power consumption | 1.25 W (rev. |
| Signal | CAN bus |
| Slot | In the X20 PLC |
| Status indicators | Module status, data transfer, terminating resistor |
| Storage | -40 to 85°C |
| Storage | 5 to 95%, non-condensing |
| Terminating resistor | Integrated in module |
| Terminating resistor | Yes, using LED status indicator |
| Transfer rate | Max. 1 Mbit/s |
| Transport | -40 to 85°C |
| Transport | 5 to 95%, non-condensing |
| UKCA | Yes |
| UL | cULus E115267 Industrial control equipment |
| Variant | 4-pin male multipoint connector |
| Variant | 5-pin male multipoint connector |
| Vertical | Yes |
| Vertical mounting orientation | -25 to 50°C |
