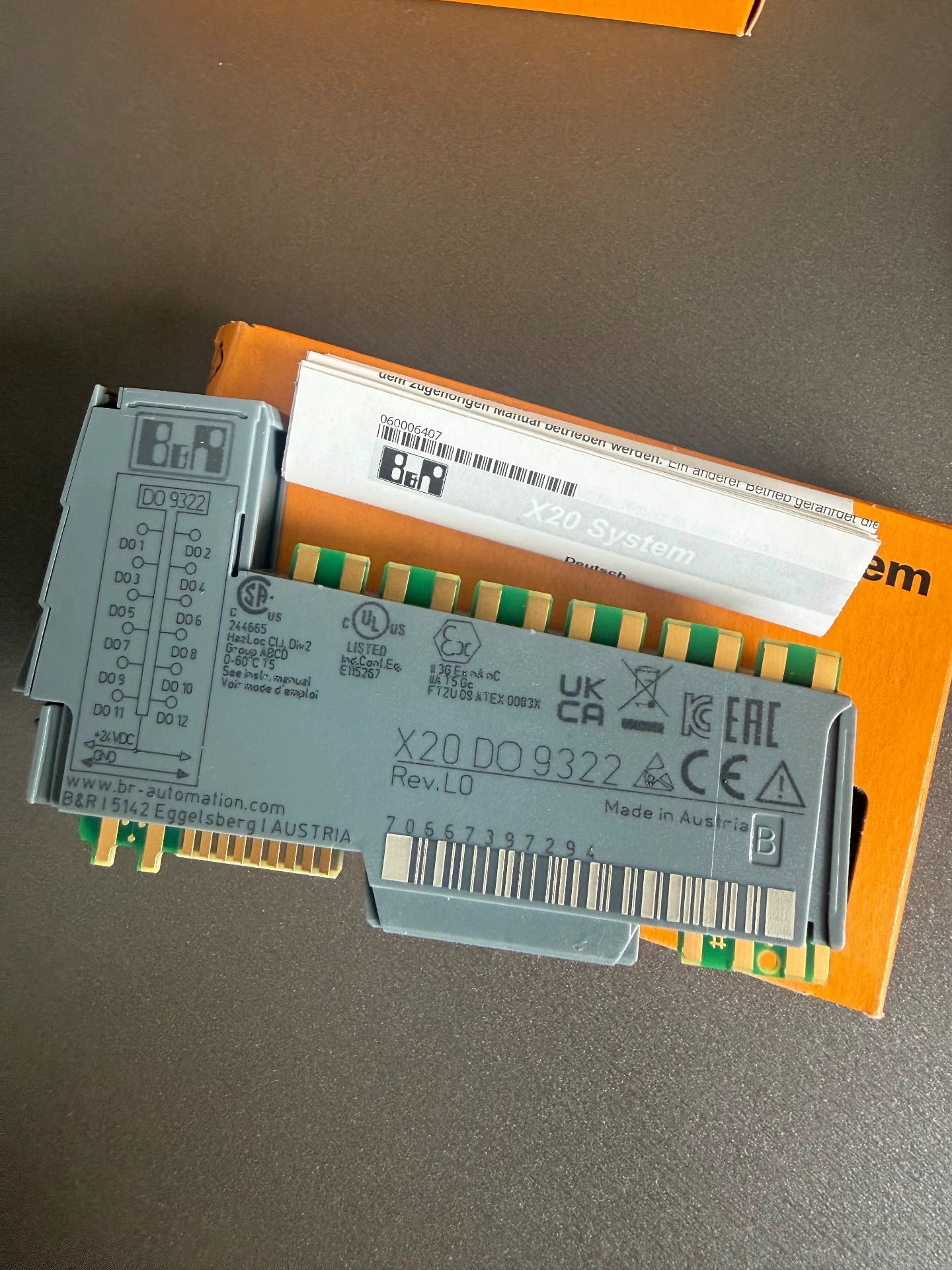

B&R X20 DO 9322 - 全新
说明

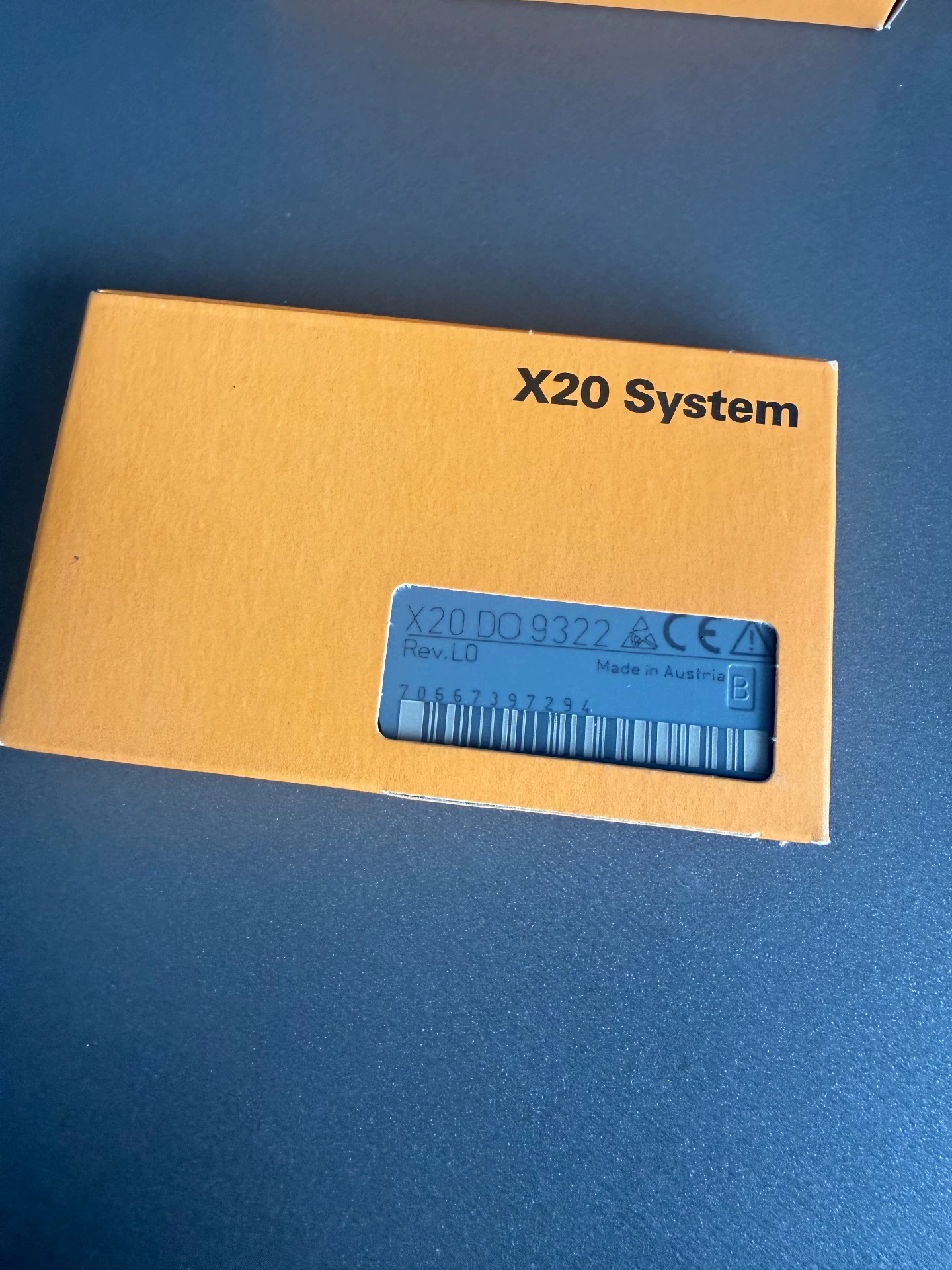

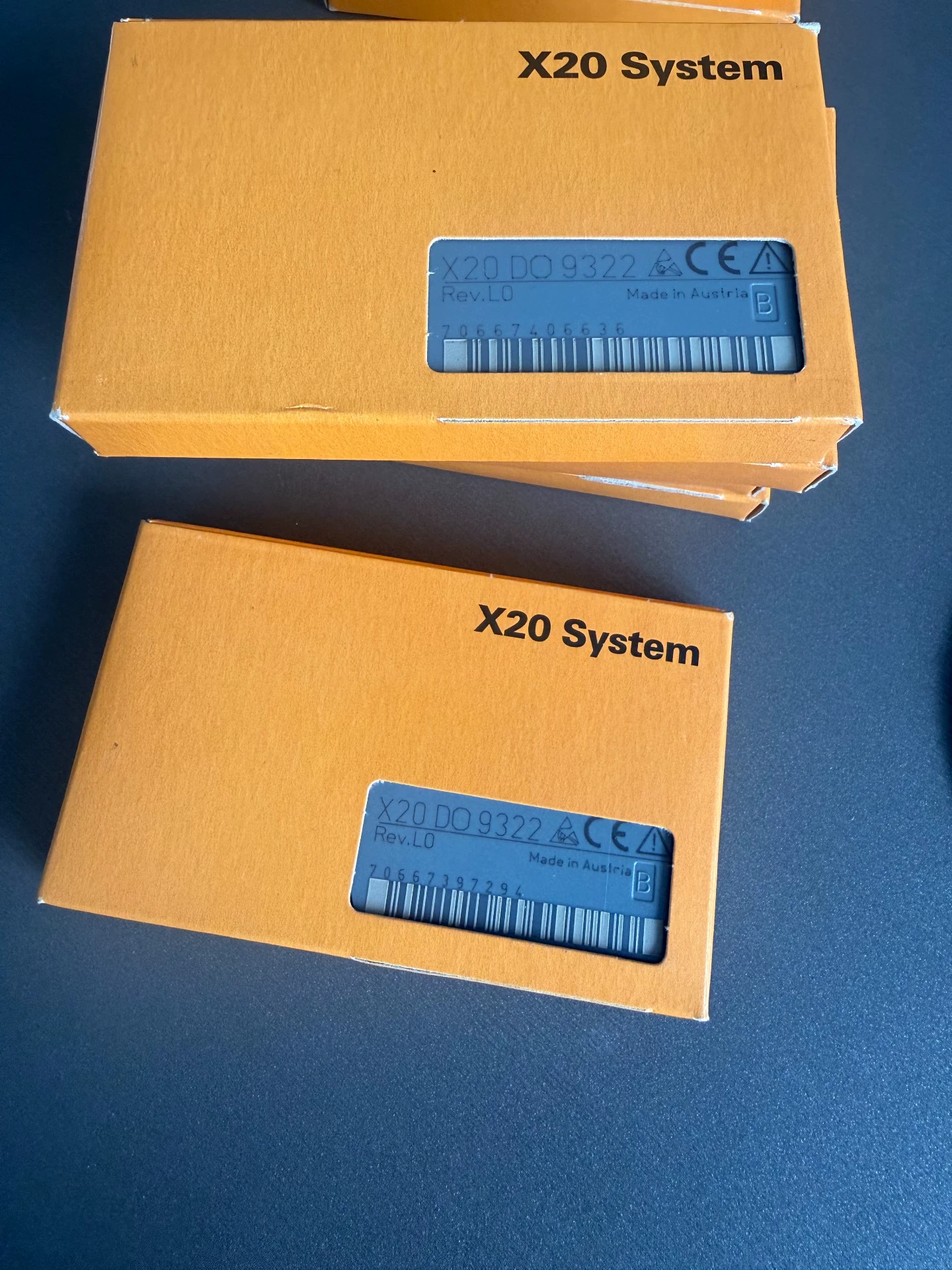

全新 B&R X20 DO 9322，奥地利制造。原包装未开封。
规格参数
| Brand | B&R |
|---|---|
| MPN | X20 DO 9322 |
| Origin | Austria |
| Nominal output current | 0.5 A |
| Nominal voltage | 24 VDC |
| Switching voltage | 24 VDC -15% / +20% |
| Total nominal current | 6 A |
| Output protection | Thermal shutdown in the event of overcurrent or short circuit (see value "Short-circuit peak current") Internal freewheeling diode for switching inductive loads (see section "Switching inductive loads") |
| ABS | Yes |
| Additional power dissipation caused by actuators (resistive) [W] | +0.63 |
| ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X |
| B&R ID code | 0x1B9A |
| Braking voltage when switching off inductive loads | Typ. 50 VDC |
| Bus | 0.26 W |
| BV | EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck |
| CCS | Yes |
| CE | Yes |
| Connection type | 1-wire connections |
| CRA (Cyber Resilience Act) | In preparation |
| Diagnostic status | Output monitoring with 10 ms delay |
| Electrical isolation | Channel isolated from bus Channel not isolated from channel and I/O power supply |
| HazLoc | cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5 |
| Horizontal | Yes |
| Horizontal mounting orientation | -25 to 60°C |
| Installation elevation above sea level | Reduction of ambient temperature by 0.5°C per 100 m |
| Installation elevation above sea level | No limitation |
| Installation elevation above sea level | IP20 |
| Insulation voltage between channel and bus | 500 V eff |
| Internal I/O | 1.15 W |
| KC | Yes |
| KR | Yes |
| Leakage current when the output is switched off | 5 µA |
| LR | ENV1 |
| Module run/error | Yes, using LED status indicator and software |
| Operation | 5 to 95%, non-condensing |
| Output circuit | Source |
| output voltage | 24 VDC |
| Outputs | Yes, using LED status indicator and software (output error status) |
| Pitch | 12.5 +0.2 mm |
| Product Family | X20 System |
| R DS(on) | 210 mΩ |
| Resistive load | Max. 500 Hz |
| Status indicators | I/O function per channel, operating state, module status |
| Storage | -40 to 85°C |
| Storage | 5 to 95%, non-condensing |
| Switch-on in the event of overload shutdown or short-circuit shutdown | Approx. 10 ms (depends on the module temperature) |
| Transport | -40 to 85°C |
| Transport | 5 to 95%, non-condensing |
| UKCA | Yes |
| UL | cULus E115267 Industrial control equipment cULus E537419 Engine generator controller |
| Variant | Current-sourcing FET |
| Vertical | Yes |
| Vertical mounting orientation | -25 to 50°C |
