SICK WLD4FP-213121A0ZZZ 1121472 - New
Request a Quote
Tell us what you need and we will follow up about availability and pricing.
Start requestDescription

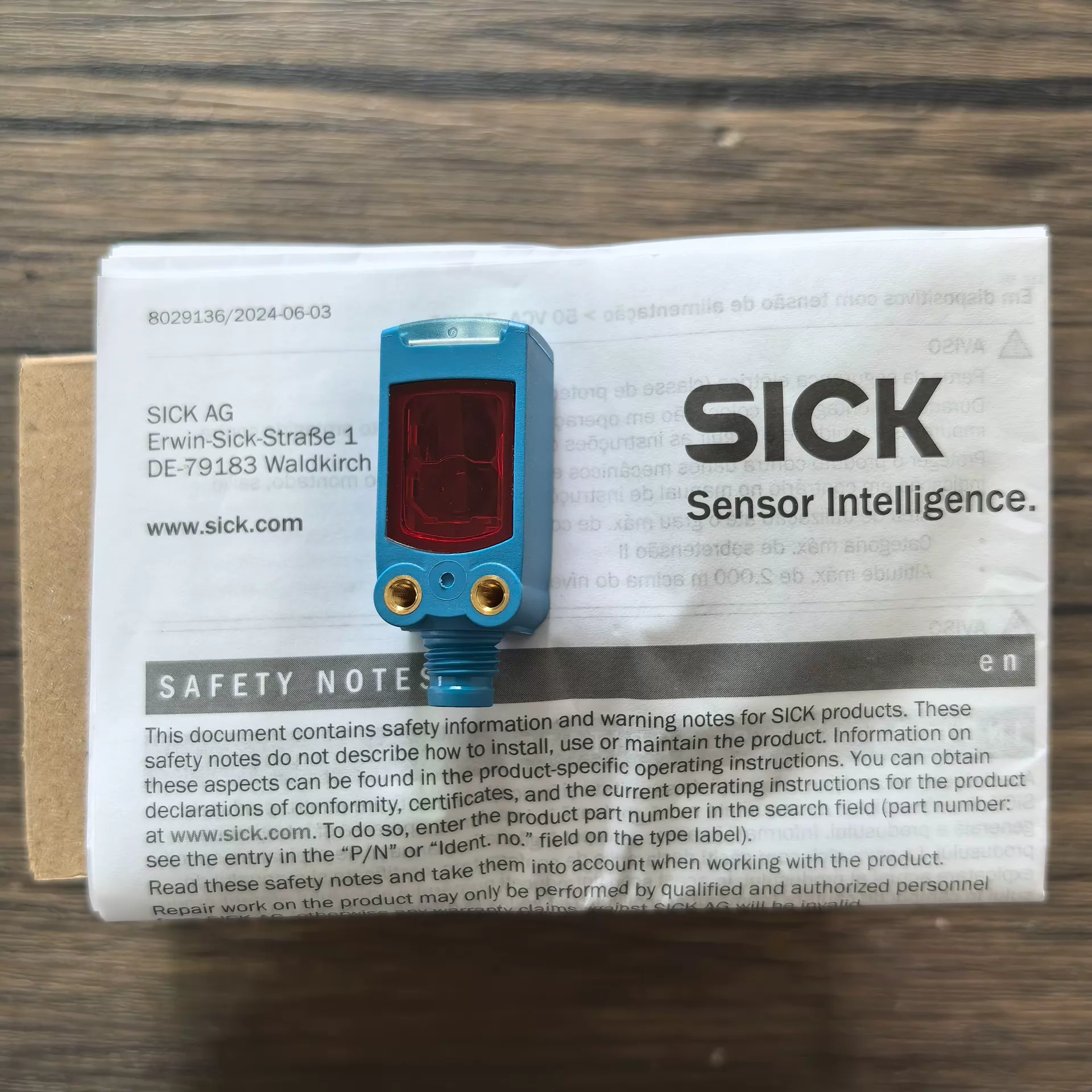

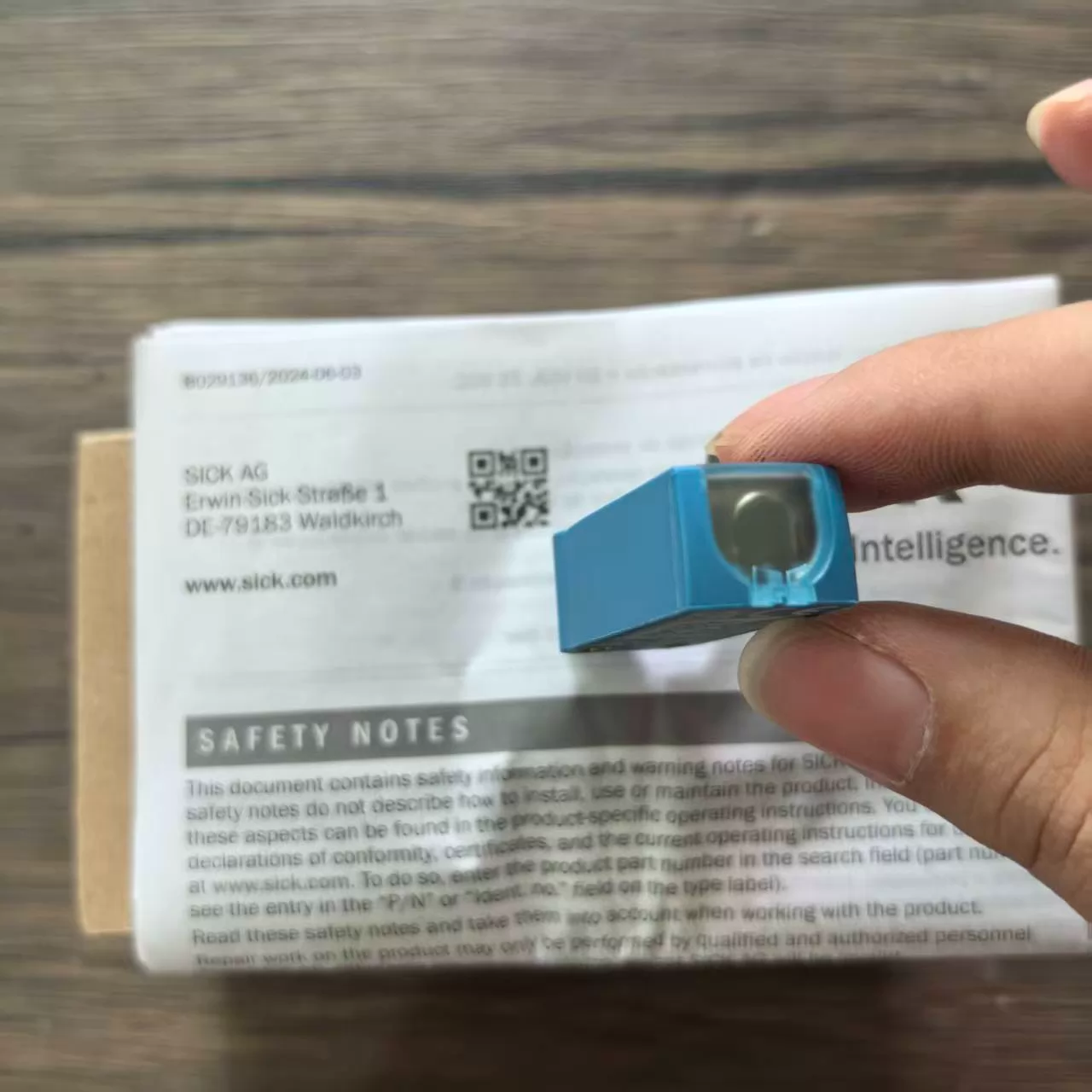

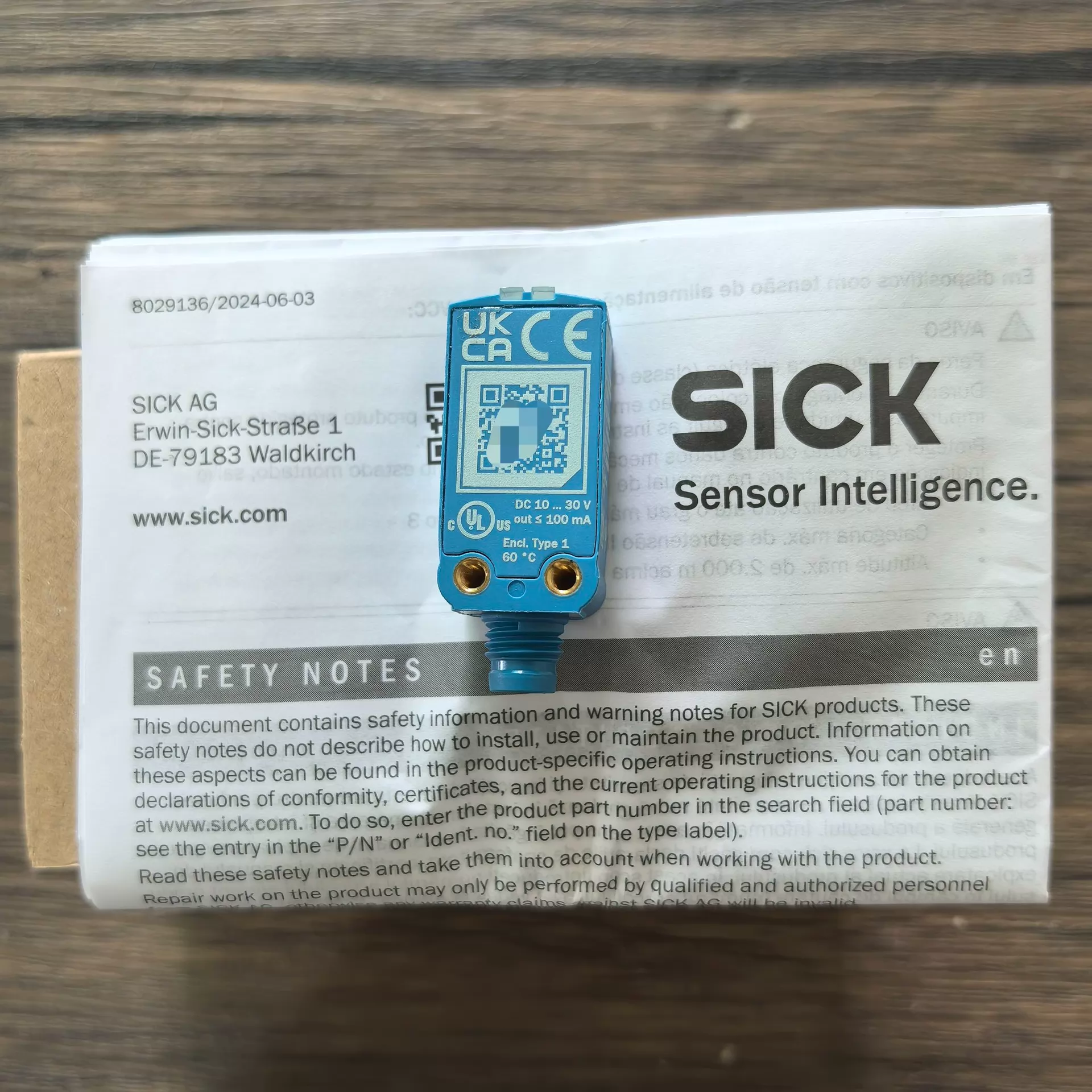

SICK WLD4FP-213121A0ZZZ sensor, part number 1121472. New condition.
Specifications
| Brand | SICK |
|---|---|
| Model | WLD4FP-213121A0ZZZ |
| MPN | 1121472 |
| Origin | Germany |
| DC | 10... 30 V |
| out | ≤ 100 mA |
| Weight | ca. 30 g |
| Housing | rectangular |
| Encl. Type | 1 |
| SICK type | WLD4FP-213121A0ZZZ |
| Light source | LED |
| Response time | ≤ 500 µs |
| Type of light | visible red light |
| Switching mode | Light switching |
| Connection type | male connector |
| Dimension width | 16 mm |
| Dimension length | 40.1 mm |
| Enclosure rating | IP66; IP67; IP69 |
| Switching output | push-pull: PNP/NPN |
| SICK article code | p666211 |
| Object distance max. | 4500 mm |
| Object distance min. | 0 mm |
| Switching frequency | 1000 Hz |
| Functional principle | Photoelectric retro-reflective sensor |

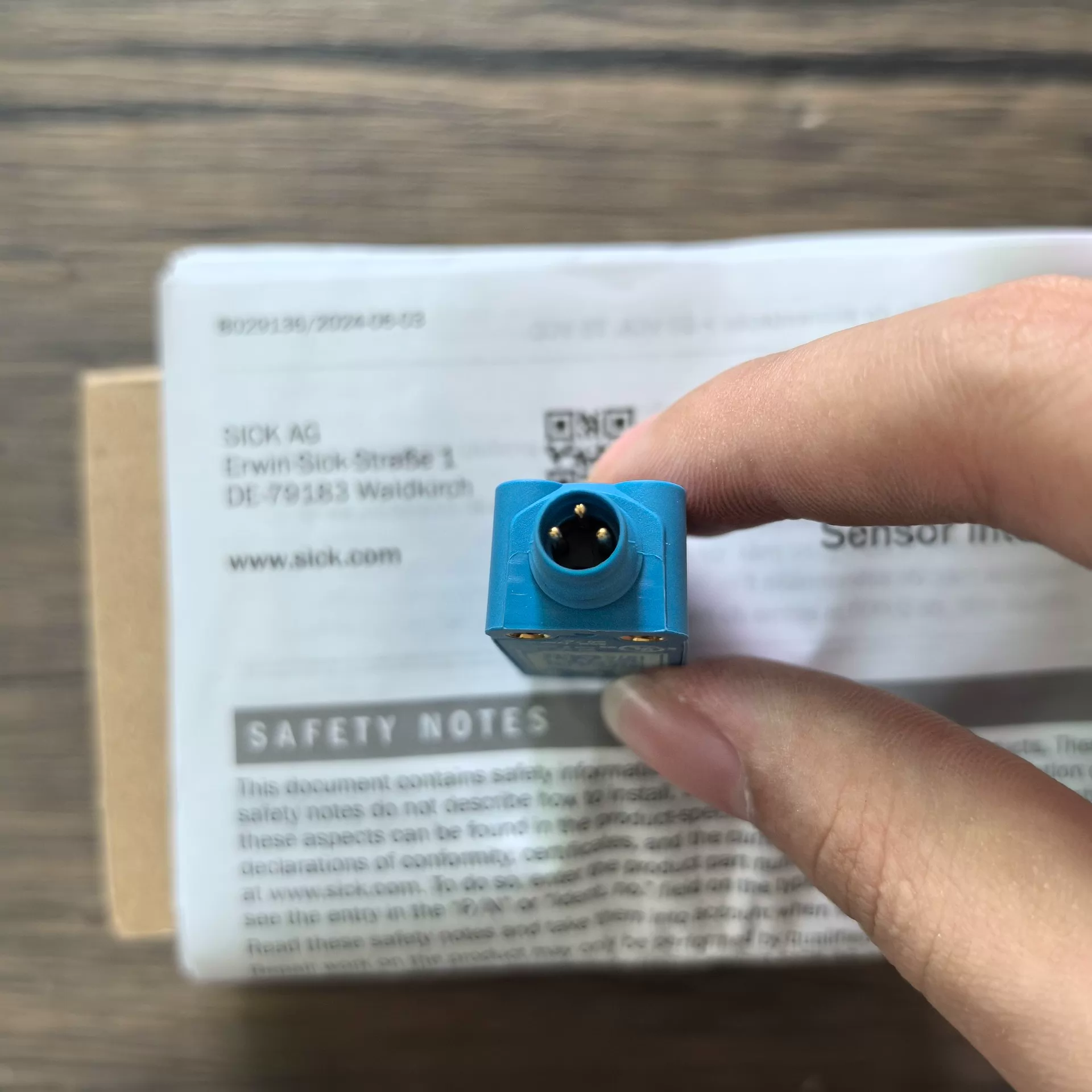

| Connection type detail | Connector M8, 3-pin |
| Housing material detail | VISTAL® |
| Functional principle detail | With minimum distance to reflector (dual lens system) |
| Ambient operation temperature max. | 60 °C |
