Keyence FS-N12N fiber amplifier - Used
Request a Quote
Tell us what you need and we will follow up about availability and pricing.
Start requestDescription

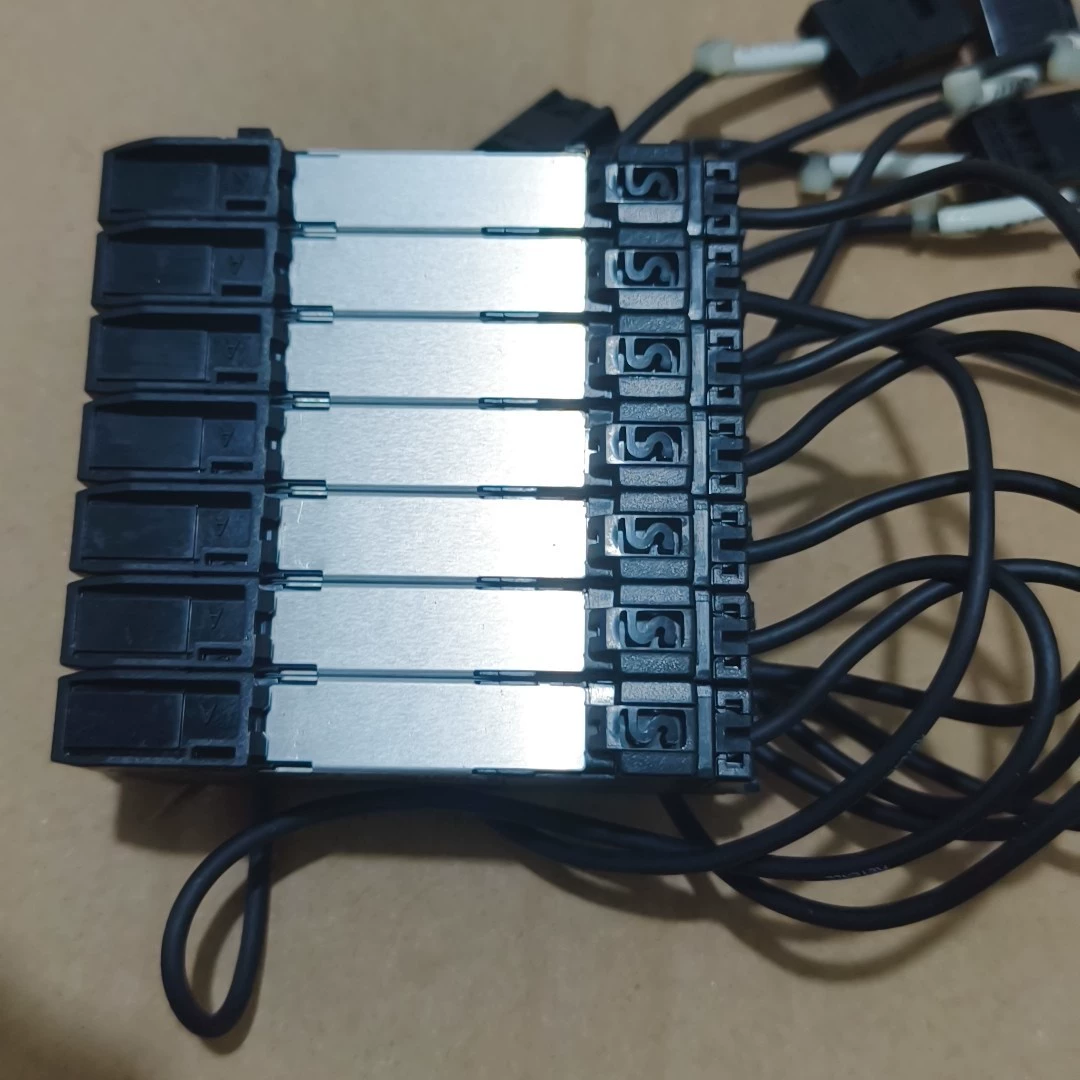

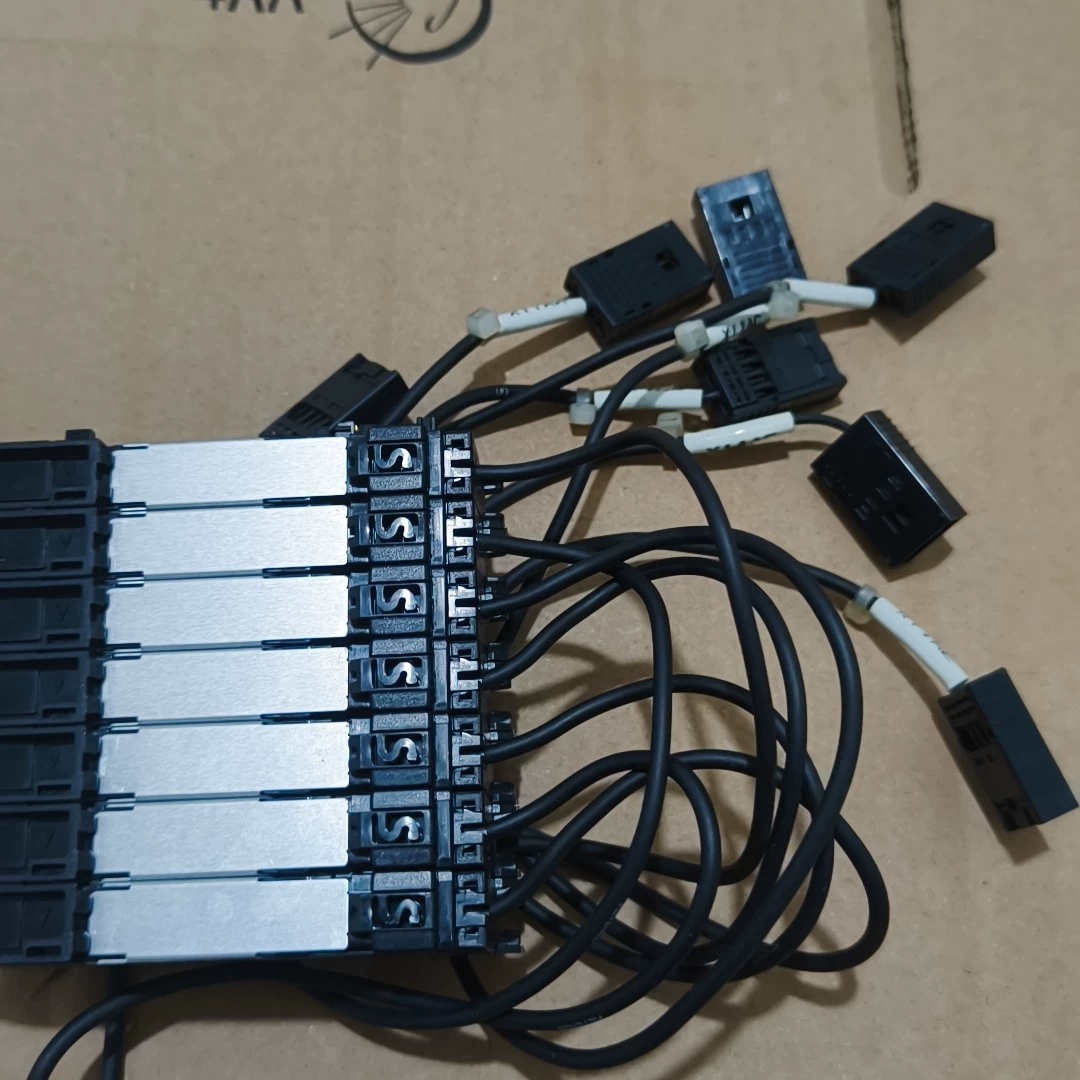

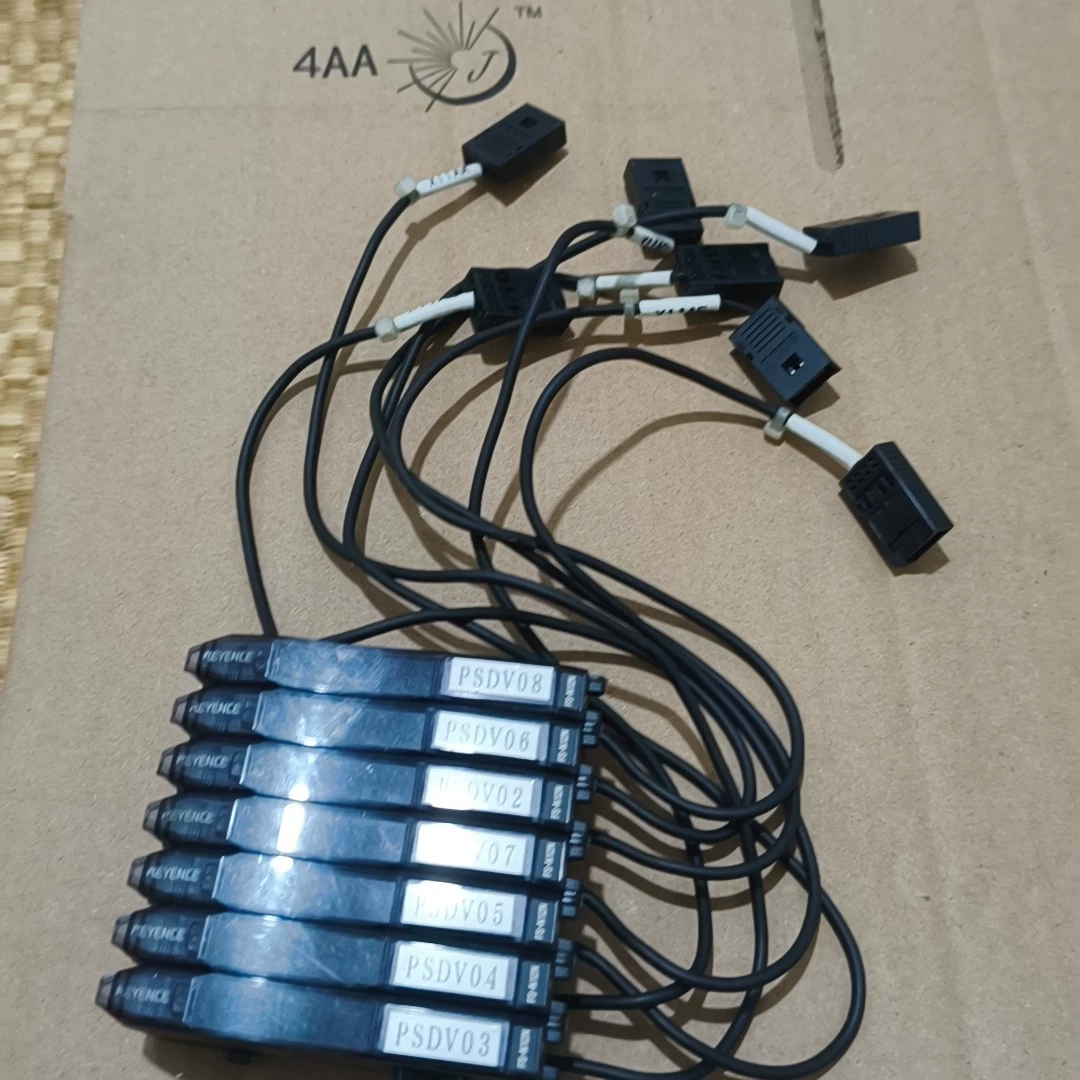

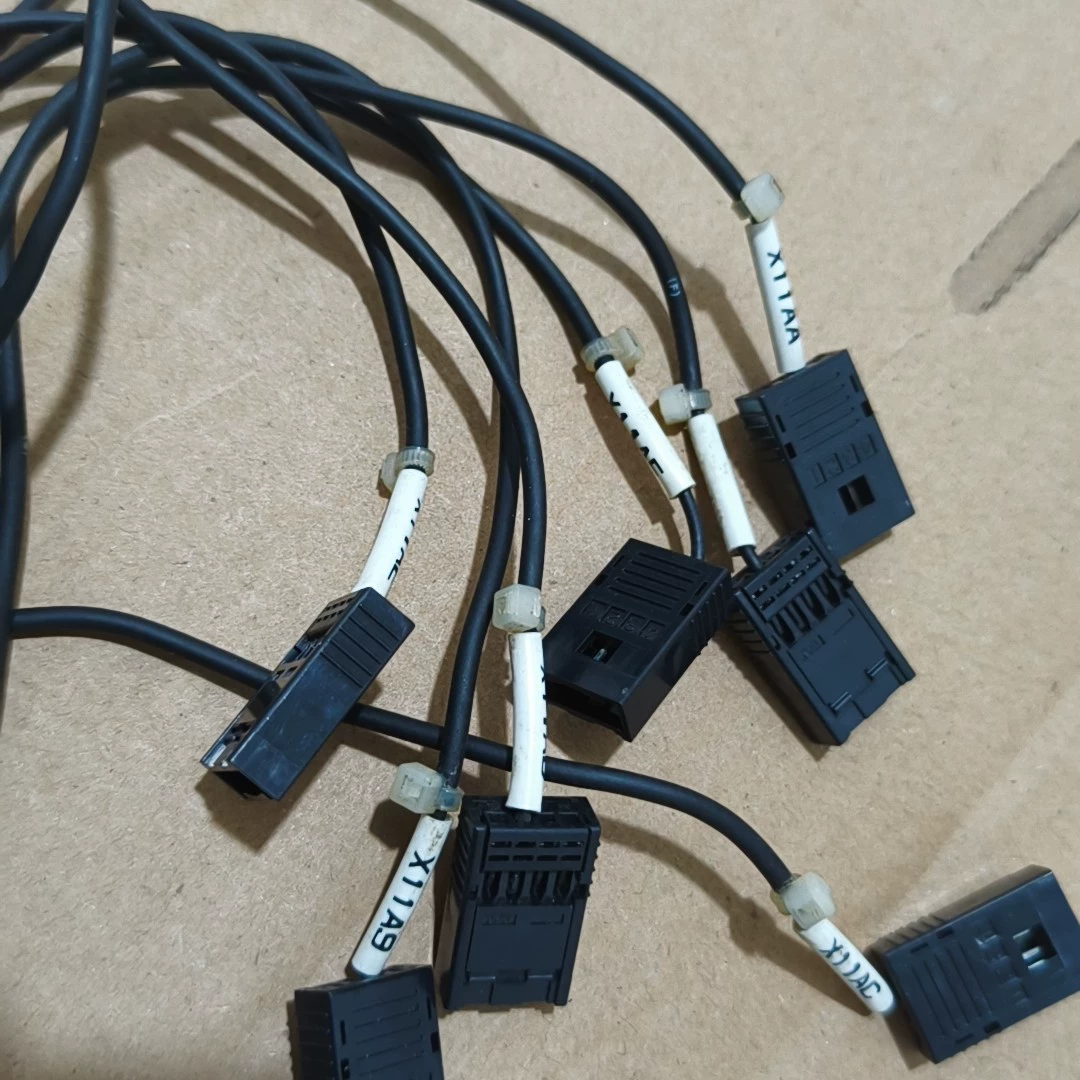

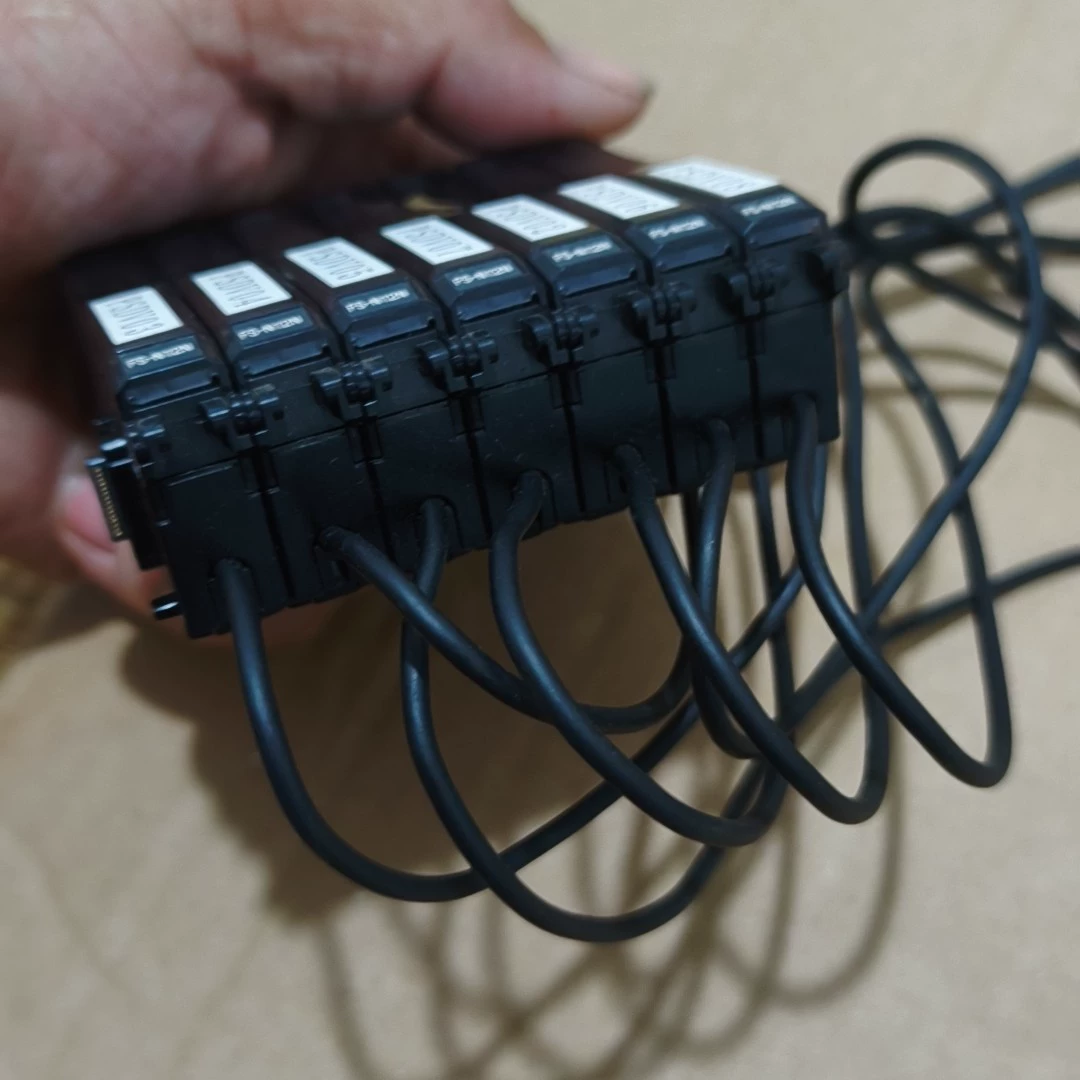

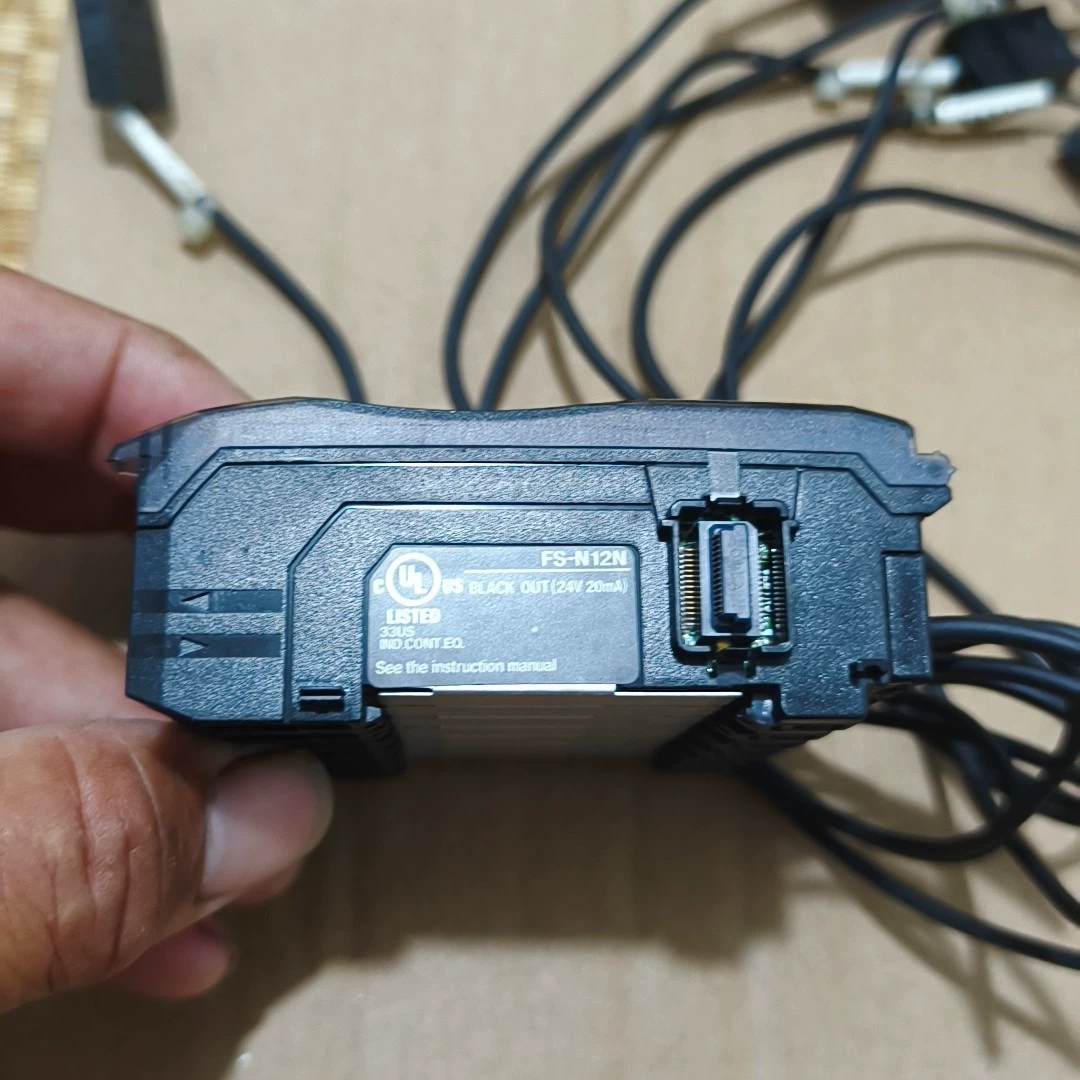

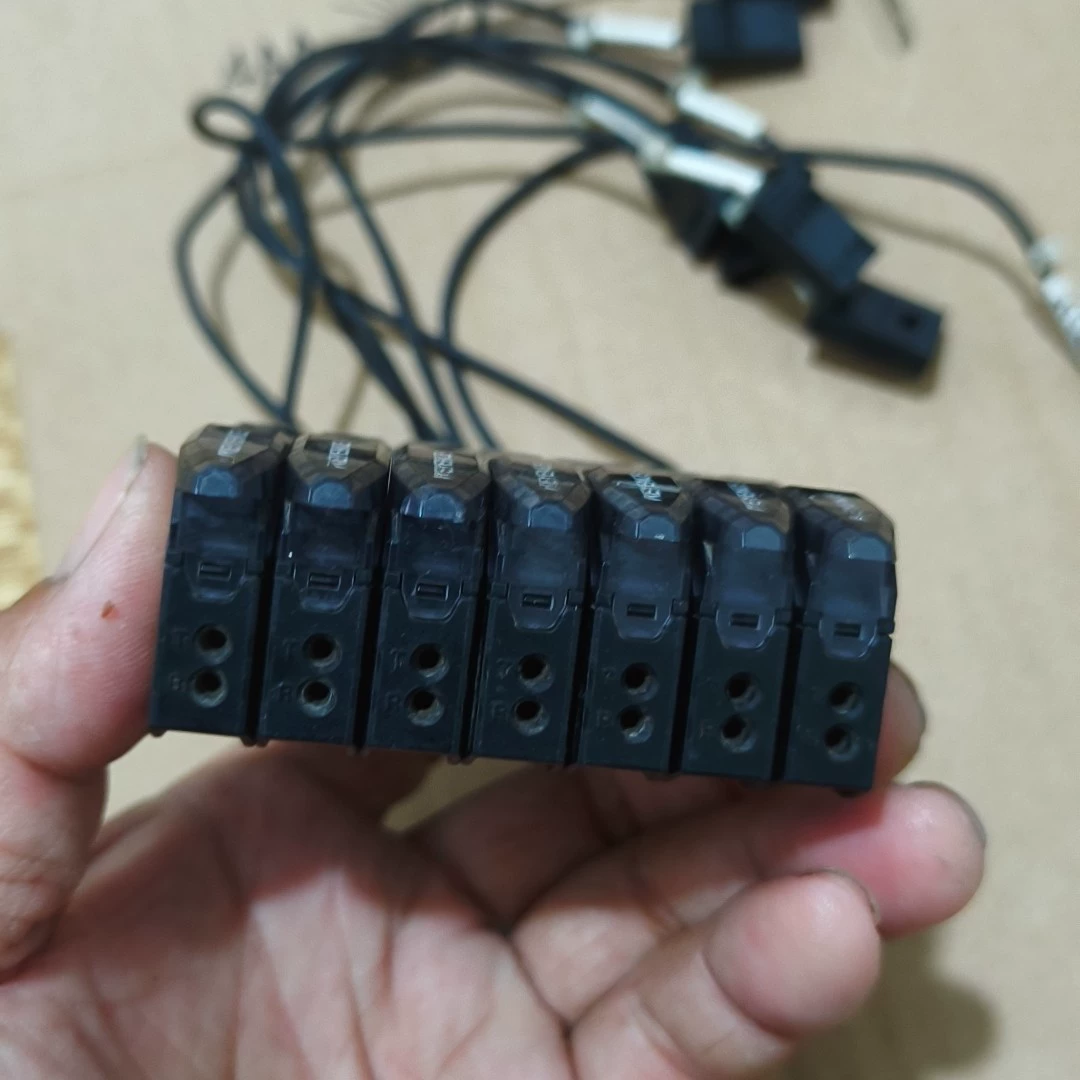

Keyence FS-N12N fiber amplifier. Cosmetic condition: see photos.
Specifications
| Brand | Keyence |
|---|---|
| Model | FS-N12N |
| APC | ON/OFF switchable (Factory setting: OFF) |
| Type | Standard 1 output |
| Cable | Cable type |
| Output | NPN |
| Weight | Approx. 45 g |
| Cable type | Cable |
| Output type | NPN |
| Light source | Red, 4-element LED |
| Ambient light | Incandescent lamp: ≤20,000 lux, Sunlight: ≤30,000 lux |
| Case material | Main and expansion unit housing: Polycarbonate |
| Power voltage | 12 to 24 VDC ±10 %, Ripple (P-P) ≤10 % |
| Response time | HIGH SPEED: 50 µs; FINE: 250 µs; TURBO: 500 µs; SUPER: 1 ms; ULTRA: 4 ms; MEGA: 16 ms |
| Control Output | 1 |
| Unit expansion | Up to 16 connected units (two-output type counts as two units) |
| Light source LED | Red, 4-element LED |
| Shock resistance | 500 m/s²; 3 times each in X, Y, Z directions |
| Relative humidity | 35 to 85 % RH (No condensation) |
| Current consumption | Normal: ≤900 mW (≤36 mA at 24 V, ≤48 mA at 12 V); Eco on: ≤800 mW (≤32 mA at 24 V, ≤39 mA at 12 V); Eco Full: ≤470 mW (≤19 mA at 24 V, ≤23 mA at 12 V) |
| Power voltage (rating) | 12 to 24 VDC ±10 %, Ripple (P-P) ≤10 % |
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm (0.06 in); 2 h each in X, Y, Z directions |
| Ambient temperature | -20 to +55 °C (-4 to +131 °F); no freezing |
| Control Output Details | NPN open collector 24 V; 1 output max: ≤100 mA; 2 output total: ≤100 mA (used stand-alone)/≤20 mA (multiple connections); residual voltage ≤1 V |
| Main unit/expansion unit | Expansion unit |
| Current consumption (Eco on mode) | ≤800 mW (32 mA max. at 24 V, 39 mA max. at 12 V) |
| Current consumption (Normal) | ≤900 mW (≤36 mA at 24 V, ≤48 mA at 12 V) |
| Current consumption (rating) | Normal: ≤900 mW (≤36 mA at 24 V, ≤48 mA at 12 V); Eco on: ≤800 mW (≤32 mA at 24 V, ≤39 mA at 12 V); Eco Full: ≤470 mW (≤19 mA at 24 V, ≤23 mA at 12 V) |
| Current consumption (Eco Full mode) | ≤470 mW (19 mA max. at 24 V, 23 mA max. at 12 V) |
| Number of interference prevention units | 0 for HIGH SPEED; 4 for FINE; 8 for TURBO/SUPER/ULTRA/MEGA (When set to double, the number of interference-prevention units will be doubled.) |
| Number of interference prevention units | HIGH SPEED: 0; FINE: 4; TURBO/SUPER/ULTRA/MEGA: 8; Double setting: number of units is doubled |
