Phoenix Contact IB IL 24 DO 16-PAC/SN 2862961 I/O module - New
Description

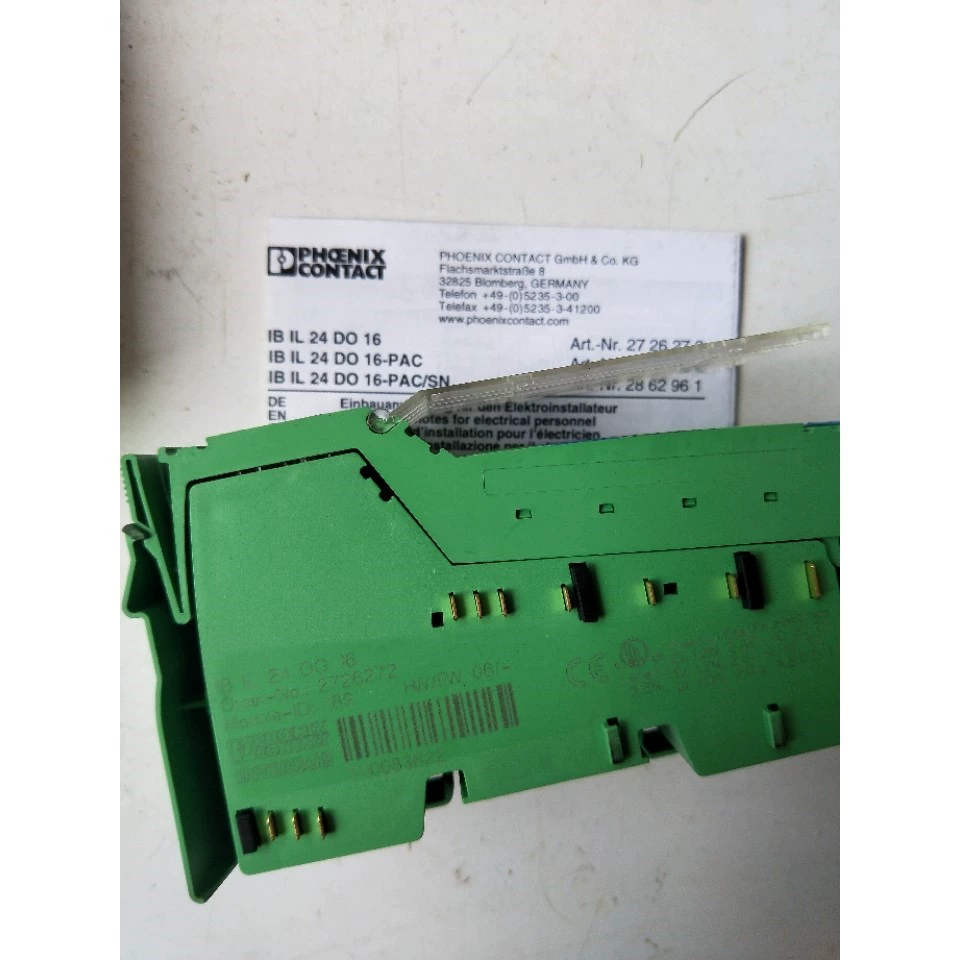

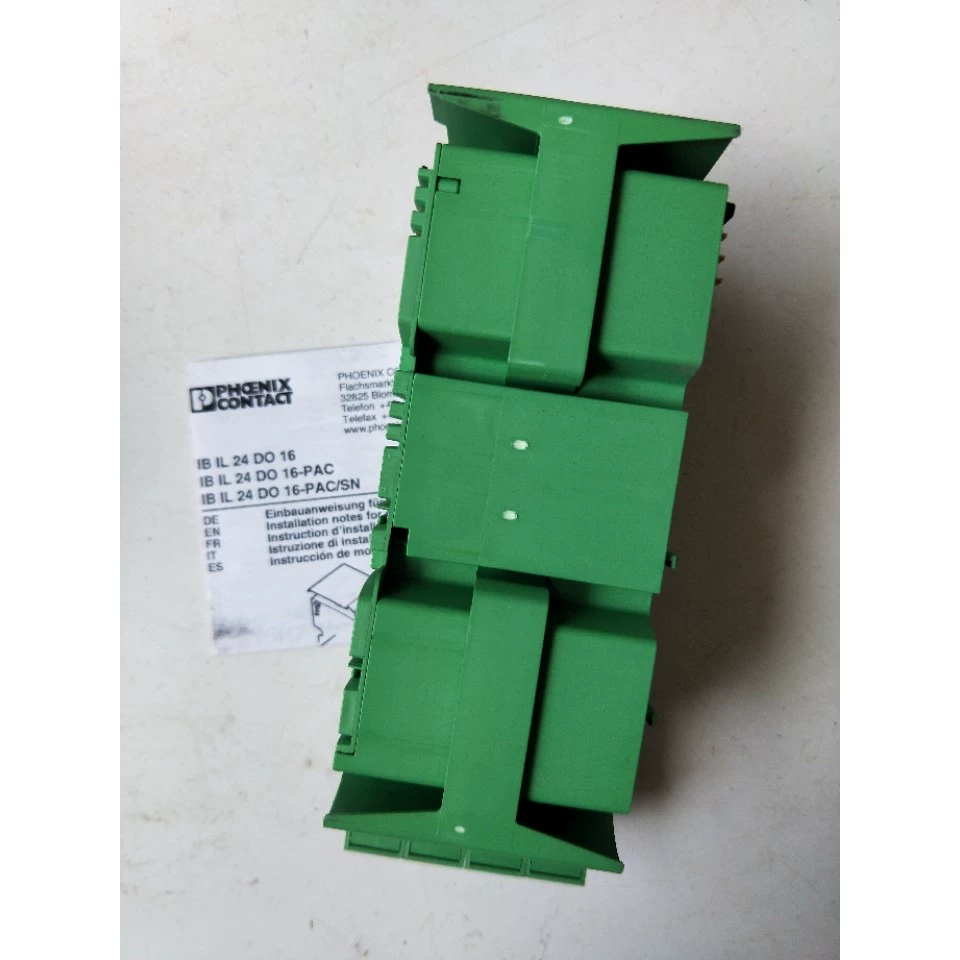

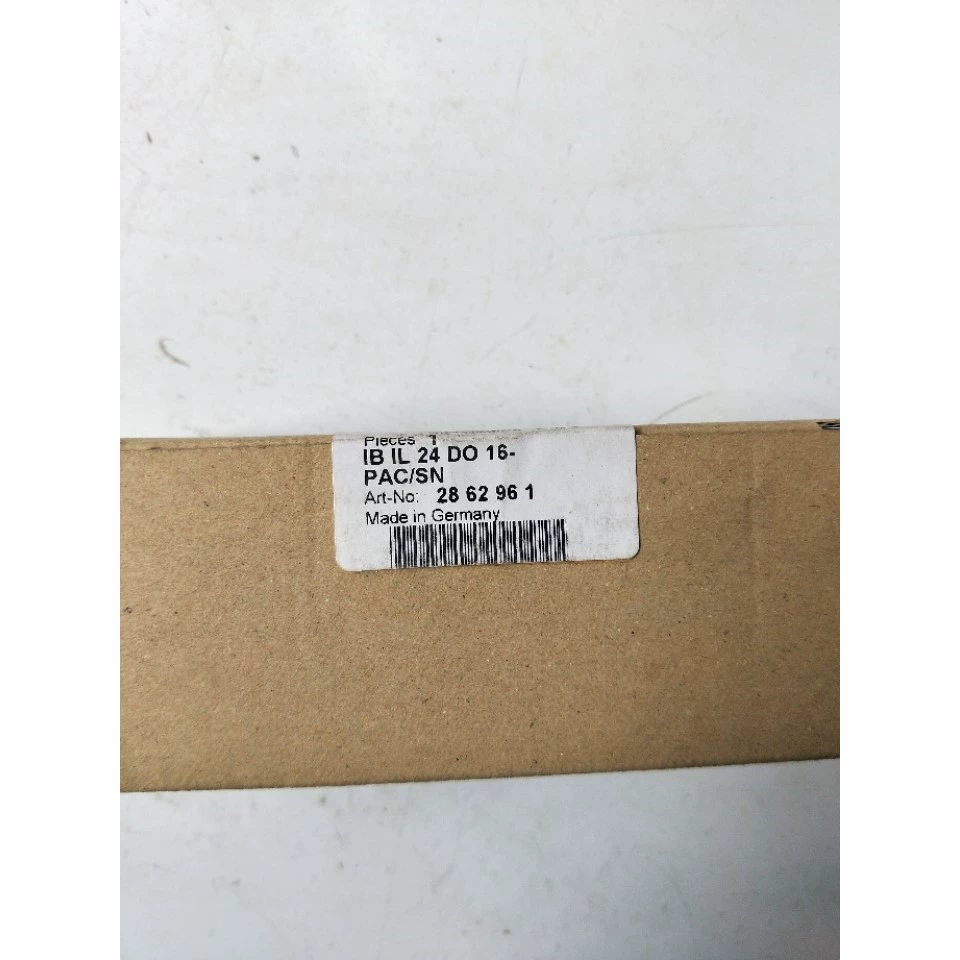

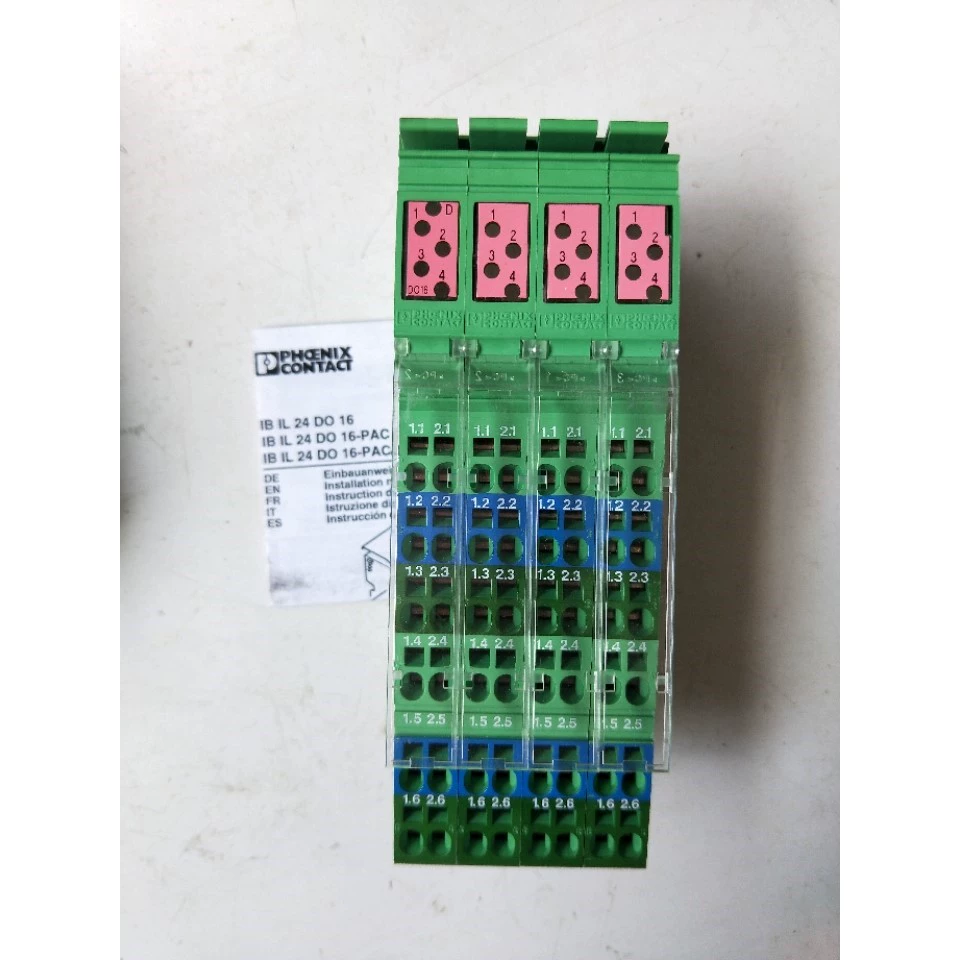

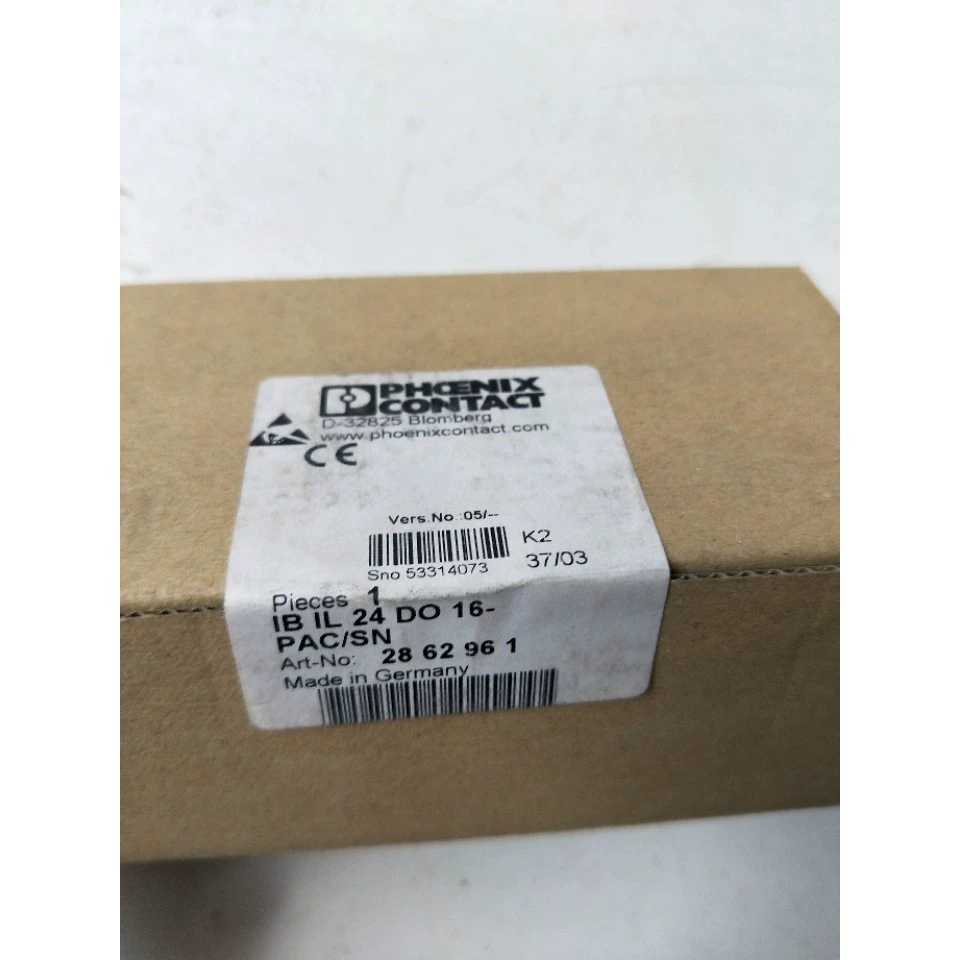

New Phoenix Contact IB IL 24 DO 16-PAC/SN 2862961 I/O module.
Specifications
| Brand | Phoenix Contact |
|---|---|
| Model | IB IL 24 DO 16-PAC/SN |
| MPN | 2862961 |
| Supply voltage | 7.5 V DC (via voltage jumper) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Output current | max. 500 mA (per channel) |
| Maximum inrush current | max. 1.5 A (at nominal lamp load for 20 ms) |
| Nominal output voltage | 24 V DC |
| Resistance to permanent reverse voltage | max. 2 A DC |
| Transmission speed | 500 kbps |
| Degree of protection | IP20 |
| Vibration resistance in accordance with EN 60068-2-6/IEC 60068-2-6 | 5g |
| REACH candidate substance (CAS No.) | Lead (CAS: 7439-92-1) |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Behavior at voltage switch-off | The output follows the power supply without delay |
| Behavior with inductive overload | Output can be destroyed |
| Behavior with overload | Auto restart |
| Color (Housing) | green (RAL 6021) |
| Conductor cross-section AWG | 28 ... 16 |
| Conductor cross-section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross-section, rigid | 0.08 mm² ... 1.5 mm² |
| Connection method | Inline data jumper |
| Connection method | Spring-cage connection |
| Connection name | Inline connector |
| Connection technology | 3-conductor |
| Current draw | max. 90 mA |
| Current draw | max. 8 A |
| Depth | 71.5 mm |
| Design of digital output | Semiconductor |
| Diagnostics messages | Short-circuit or overload of the digital outputs Error message in the diagnostic code (bus) and display (2 Hz) via the LED (D) on the module |
| ECLASS-13.0 | 27242604 |
| ECLASS-15.0 | 27242604 |
| Environment friendly use period (EFUP) | EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required. |
| ETIM 10.0 | EC001599 |
| Exemption | 7(a), 7(a)-I, 7(c)-I |
| Fulfills EU RoHS substance requirements | Yes |
| Height | 140.5 mm |
| ID code (dec.) | 189 |
| Input address area | 0 Byte |
| Length code (dec) | 01 |
| Length code (hex) | 01 |
| Limitation of the voltage induced on circuit interruption | -46 V ... -15 V |
| Maximum operating frequency with inductive nominal load | max. 0.5 Hz (1.2 H, 48 Ω) |
| Maximum operating frequency with lamp nominal load | max. 8 Hz (this switching frequency is limited by the number of bus devices, the structure of the bus, the software used and the control or computer system used) |
| Maximum operating frequency with ohmic nominal load | max. 300 Hz (this switching frequency is limited by the number of bus devices, the structure of the bus, the software used and the control or computer system used) |
| Maximum power dissipation for nominal condition | 3.4 W |
| Minimum order quantity | 1 pc |
| Mounting type | DIN rail mounting |
| No. of channels | 16 |
| Nominal load, inductive | 12 W (1.2 H, 48 Ω) |
| Nominal load, lamp | 12 W |
| Nominal load, ohmic | 12 VA (48 Ω) |
| Number of interfaces | 2 |
| Number of outputs | 16 |
| One-time unsolicited energy | 400 mJ |
| Operating mode | Process data mode with one word |
| Output address area | 2 Byte |
| Output current | max. 8 A (Device) |
| Output current when switched off | max. 300 µA |
| Output current with ground connection interrupt when switched off | max. 25 mA |
| Output data validity | typ. 5 ms (after switching the 24 V voltage supply (power up)) |
| Output name | Digital outputs |
| Output voltage | 24 V DC (U S - 1 V) |
| Output voltage when switched off | max. 2 V |
| Overcurrent shut-down | min. 0.7 A |
| Overvoltage category | II (IEC 60664-1, EN 60664-1) |
| Packing unit | 1 pc |
| Parameter channel (PCP) | 0 bit |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Pollution degree | 2 (IEC 60664-1, EN 60664-1) |
| Process data channel | 16 bit |
| Product key | DRI132 |
| Product type | I/O component |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Protective circuit | Overload protection, short-circuit protection of outputs; electronic |
| Reaction time with short-circuit | ca. 3 s |
| Register length (bus) | 16 bit |
| Required configuration data | 4 Byte |
| Required parameter data | 4 Byte |
| Restart frequency with lamp overload | 400 Hz |
| Restart frequency with ohmic overload | 400 Hz |
| Reverse voltage resistance to short pulses | Reverse voltage proof |
| Scip | 44b176d9-ad0c-4769-9d25-8a8817acc10f |
| Scope of supply | including Inline connectors and marking fields, connectors numbered individually |
| Shock in accordance with EN 60068-2-27/IEC 60068-2-27 | 25g |
| Signal delay when switching off a lamp nominal load | typ. 1 ms |
| Signal delay when switching off an inductive nominal load | typ. 50 ms (1.2 H, 48 Ω) |
| Signal delay when switching off an ohmic nominal load | typ. 1 ms |
| Signal delay when switching on a lamp nominal load | typ. 100 ms (for switching frequencies up to 8 Hz, above this frequency, the lamp load behaves like an ohmic load) |
| Signal delay when switching on an inductive nominal load | typ. 100 ms (1.2 H, 48 Ω) |
| Signal delay when switching on an ohmic nominal load | typ. 500 µs |
| Special properties | The product is being prepared for compliance with the Cyber Resilience Act (CRA) |
| Stripping length | 8 mm |
| Supply voltage | 24 V DC (via voltage jumper) |
| Switching power with ground connection interrupt | typ. 100 mW (at 1 kΩ load resistance) |
| Test voltage | 500 V AC, 50 Hz, 1 min |
| Test voltage | 500 V AC, 50 Hz, 1 min |
| Test voltage | 500 V AC, 50 Hz, 1 min |
| Type | modular |
| UNSPSC 21.0 | 32151600 |
| Weight per piece (excluding packing) | 130 g |
| Weight per piece (including packing) | 236.8 g |
| Width | 48.8 mm |
