B&R X20 AI 1744 X20 System module - New
Request a Quote
Tell us what you need and we will follow up about availability and pricing.
Start requestDescription

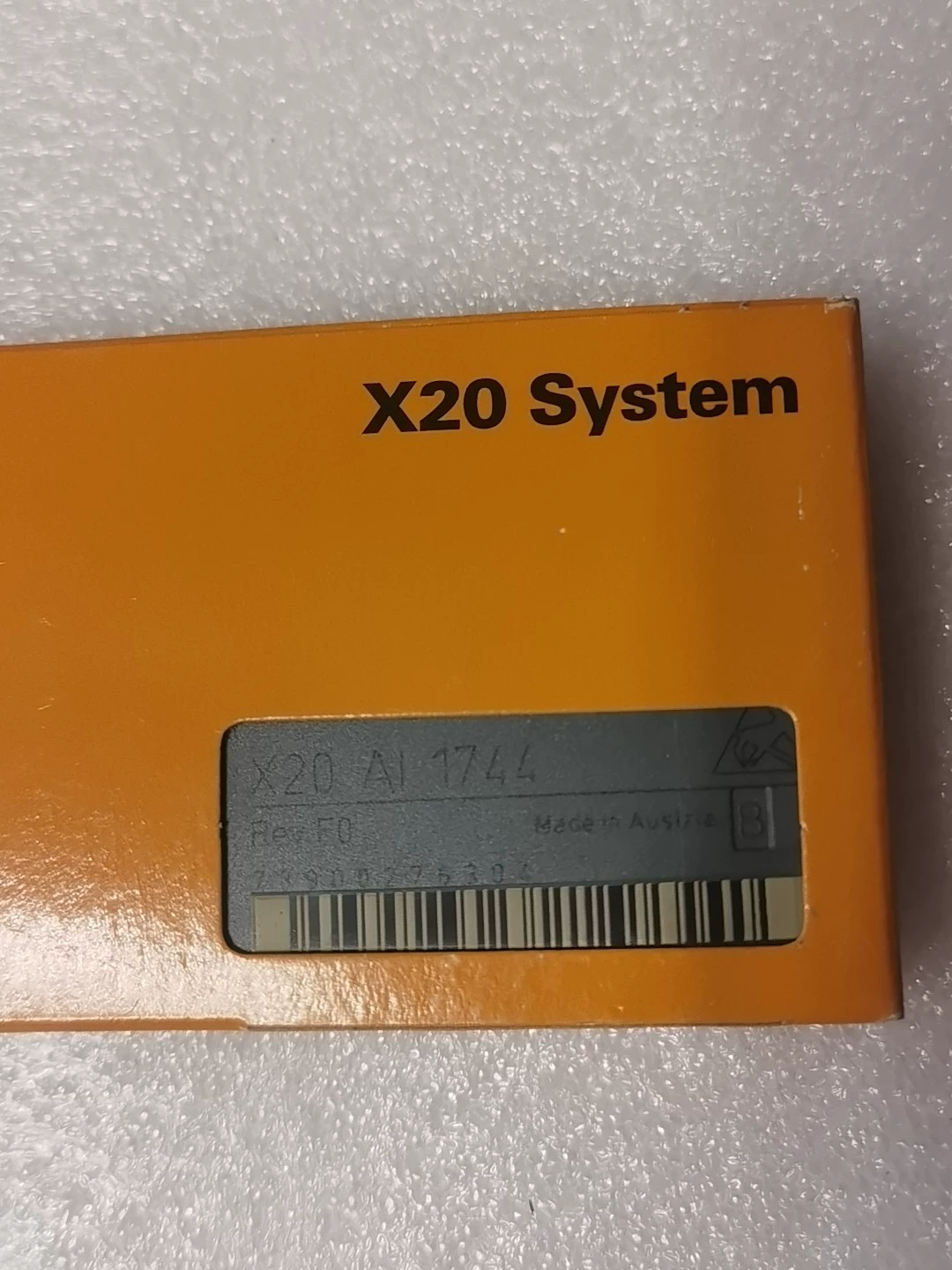

B&R X20 System module X20AI1744 Rev F0, made in Austria. New stock with original packaging.
Specifications
| Brand | B&R |
|---|---|
| Model | X20 AI 1744 |
| MPN | X20 AI 1744 |
| Origin | Austria |
| Pitch | 12.5 +0.2 mm |
| Storage | -40 to 85°C |
| CE | Yes |
| KC | Yes |
| UL | cULus E115267 Industrial control equipment |
| Input | Yes, using LED status indicator and software |
| Transport | -40 to 85°C |
| ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X |
| UKCA | Yes |
| HazLoc | cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5 |
| Bus | 0.01 W |
| Electrical isolation | Bus isolated from analog input and strain gauge supply voltage Channel not isolated from I/O power supply |
| Order | 3 |
| Slope | 60 dB |
| Storage | 5 to 95%, non-condensing |
| Open circuit | Yes, using LED status indicator and software |
| Operation | 5 to 95%, non-condensing |
| Transport | 5 to 95%, non-condensing |
| B&R ID code | 0x1CDE |
| Full-bridge strain gauge | 336 nV |
| Full-bridge strain gauge | 671 nV |
| Full-bridge strain gauge | 1.343 µV |
| Full-bridge strain gauge | 1.31 nV |
| Full-bridge strain gauge | 2.62 nV |
| Full-bridge strain gauge | 5.25 nV |
| Module run/error | Yes, using LED status indicator and software |
| Full-bridge strain gauge | 2.686 µV |
| Full-bridge strain gauge | 5.371 μV |
| Full-bridge strain gauge | 10.74 μV |
| Full-bridge strain gauge | 10.49 nV |
| Full-bridge strain gauge | 20.98 nV |
| Full-bridge strain gauge | 41.96 nV |
| Full-bridge strain gauge | 21.48 μV |
| Full-bridge strain gauge | 42.97 μV |
| Full-bridge strain gauge | 83.92 nV |
| Full-bridge strain gauge | 167.85 nV |
| Internal I/O | 0.5 W |
| Vertical | Yes |
| Connection | 4- or 6-wire connections |
| Input type | Differential, used to evaluate a full-bridge strain gauge |
| Voltage | 5.5 VDC / Max. 65 mA |
| Status indicators | Channel status, operating state, module status |
| Horizontal | Yes |
| Cutoff frequency | 5 kHz |
| Max. gain drift | 12 ppm/°C |
| Conversion time | Depends on the configured data output rate |
| Vertical mounting orientation | -25 to 50°C |
| Data output rate | 0.1 - 7500 samples per second, configurable using software (f DATA ) |
| Input protection | RC protection |
| Max. offset drift | 2 ppm/°C |
| Common-mode range | 0 to 3 VDC Permissible input voltage range (with regard to the electric potential strain gauge GND) on inputs "Input +" and "Input -" |
| CRA (Cyber Resilience Act) | In preparation |
| Horizontal mounting orientation | -25 to 60°C |
| Strain gauge factor | 2 to 256 mV/V, configurable using software |
| Conversion procedure | Sigma-delta |
| Installation elevation above sea level | Reduction of ambient temperature by 0.5°C per 100 m |
| Broken sensor line | Value approaching ±end value (status bit "Line monitoring" is set in register "Module status") |
| ADC filter characteristics | Sigma-delta, see section "Filter characteristics of the sigma-delta A/D converter" |
| Digital converter resolution | 24-bit |
| Valid range of values | 0xFF800001 to 0x007FFFFF (-8,388,607 to 8,388,607) |
| Installation elevation above sea level | No limitation |
| Broken bridge supply line | Value approaching 0 |
| Measurement sensor | 85 to 5000 Ω |
| Short-circuit and overload-proof | Yes |
| Insulation voltage between input and bus | 500 V eff |
| Voltage drop for short-circuit protection | Max. 0.2 VDC at 65 mA and 25°C |
| Installation elevation above sea level | IP20 |
| Additional power dissipation caused by actuators (resistive) [W] | Max. +0.36 |
