ABB ACS580-01-145A-4 Variable Frequency Drive - Used
Request a Quote
Tell us what you need and we will follow up about availability and pricing.
Start requestDescription

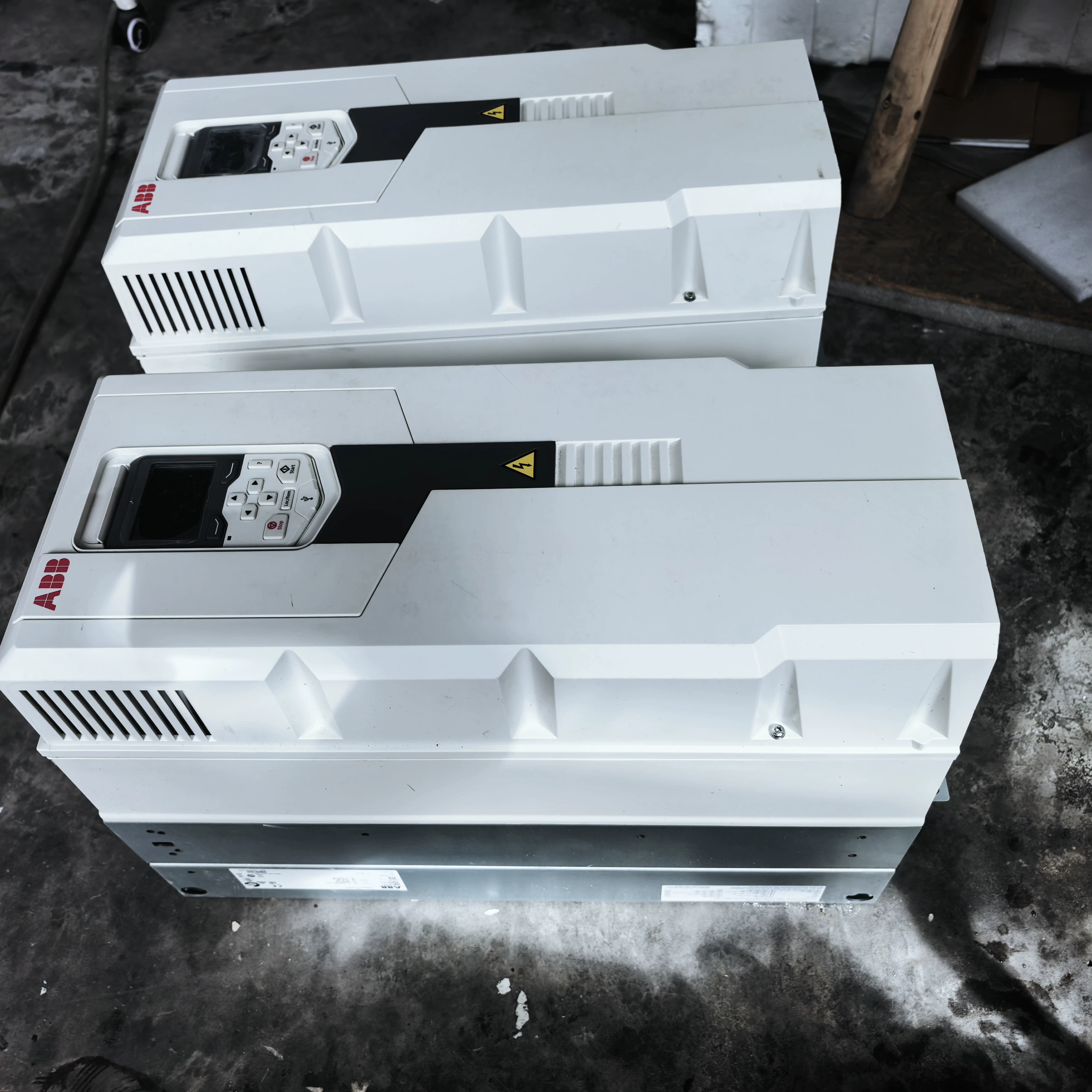

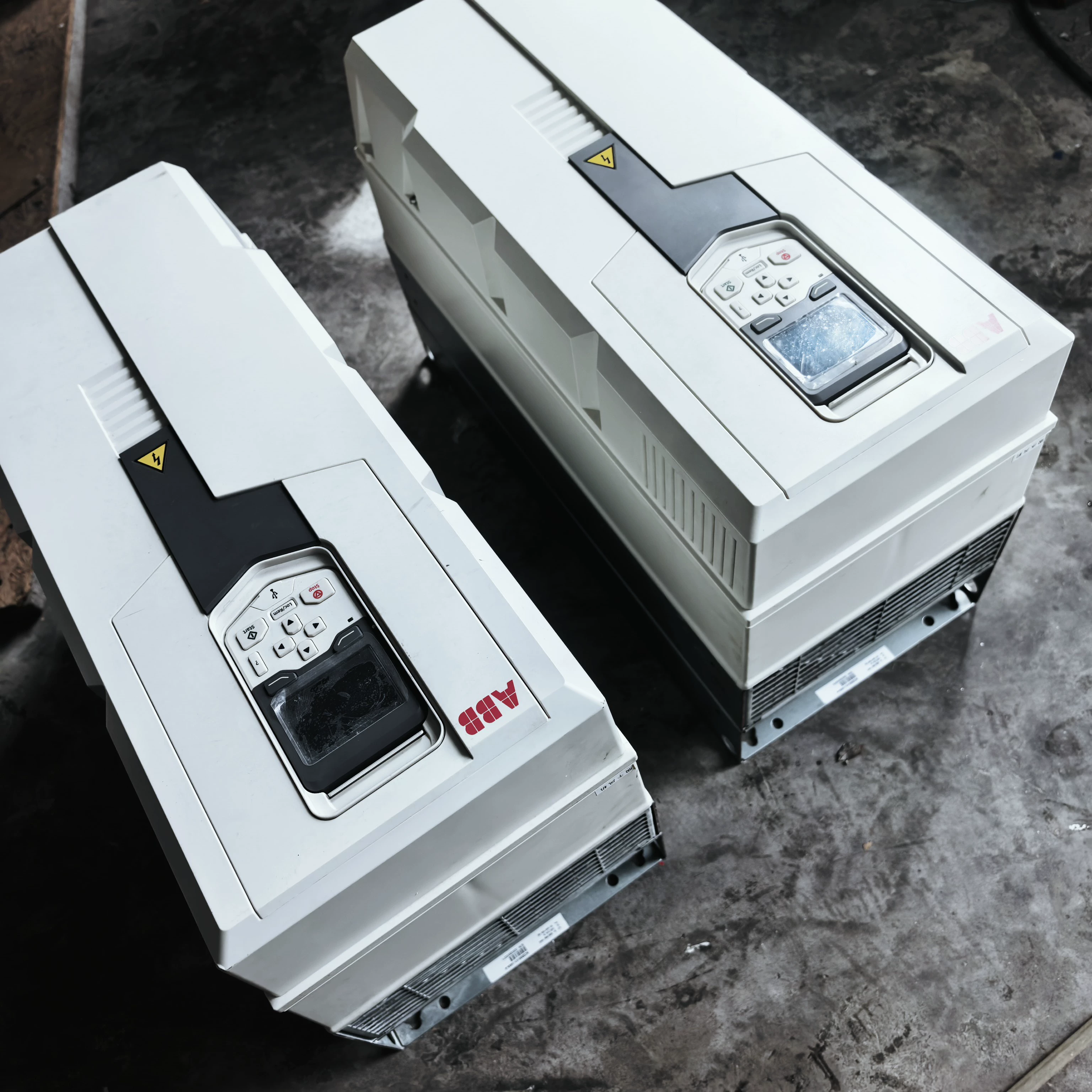

ABB ACS580-01-145A-4 variable frequency drive, model ACS580-01-145A-4. This used unit is removed from equipment, rated 75 kW, three-phase 380 V. It shows minor signs of use.
Specifications
| Brand | ABB |
|---|---|
| MPN | ACS580-01-145A-4 |

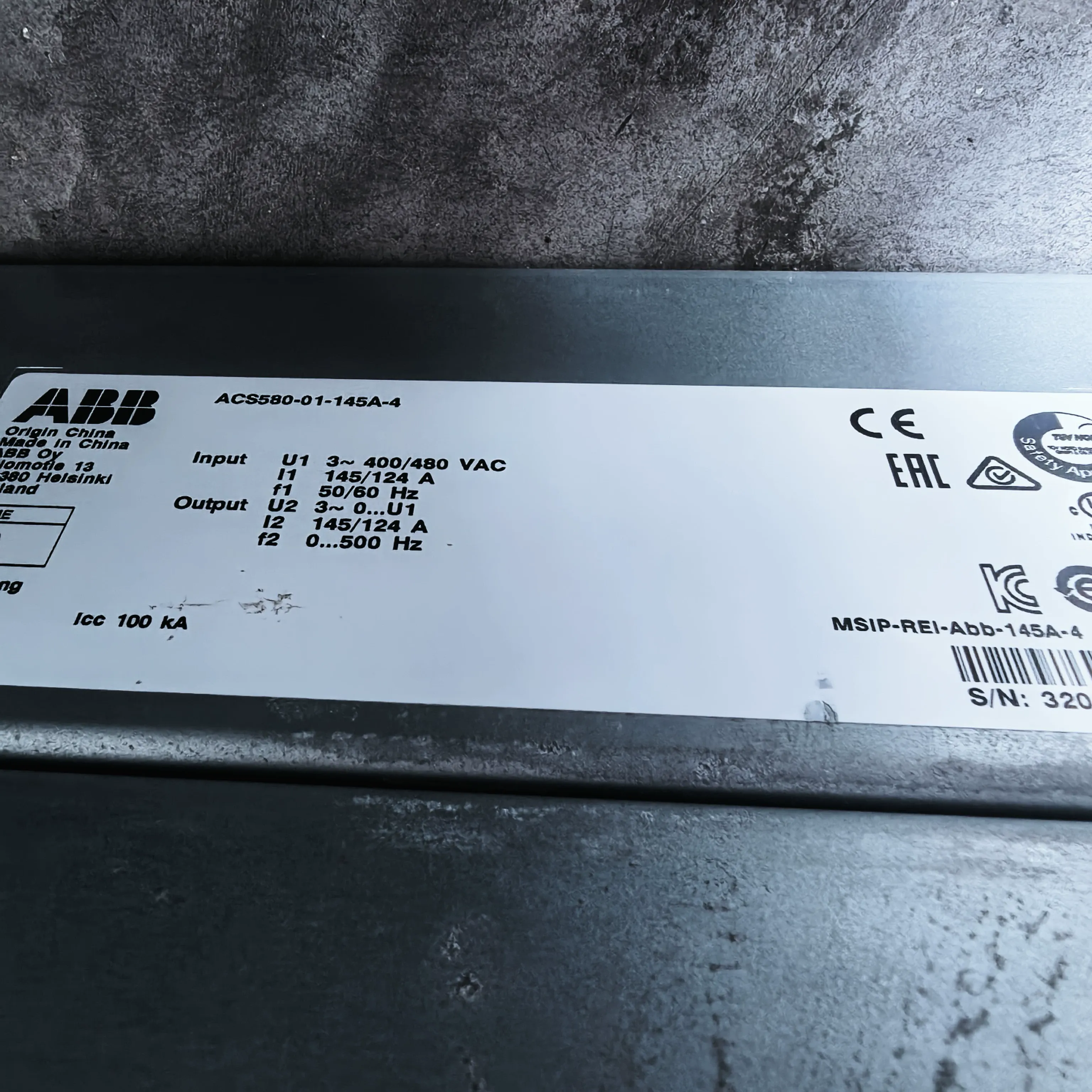

| Icc | 100 kA |
| Supply | 3-phase AC supply, 380-480 V |
| Input f1 | 50/60 Hz |
| Input I1 | 145/124 A |
| Input U1 | 3~ 400/480 VAC |
| Enclosure | IP21/UL Type 1 as standard |
| Output f2 | 0–500 Hz |
| Output I2 | 145/124 A |
| Frame size | R6 |
| Construction | wall-mounted drive |
| Nominal motor power at 400 V | 75 kW |
| Nominal current at 400 V | 145 A |
| Heavy-duty motor power at 400 V | 55 kW |
| Heavy-duty motor power at 480 V | 75 hp |
| Light-duty motor power at 400 V | 75 kW |
| Light-duty motor power at 480 V | 100 hp |
| Heavy-duty current at 400 V | 105 A |
| Heavy-duty current at 480 V | 96 A |
| Light-duty current at 400 V | 138 A |
| Light-duty current at 480 V | 124 A |
| Maximum output current at 400 V | 178 A |
| Maximum output current at 480 V | 178 A |
| IP21 dimensions H1/H2 x W x D | 727/548 x 252 x 369 mm |
| IP21 weight | 42.4 kg |
