Schneider Electric ATV320U15N4C variable frequency drive - Used
Request a Quote
Tell us what you need and we will follow up about availability and pricing.
Start requestDescription

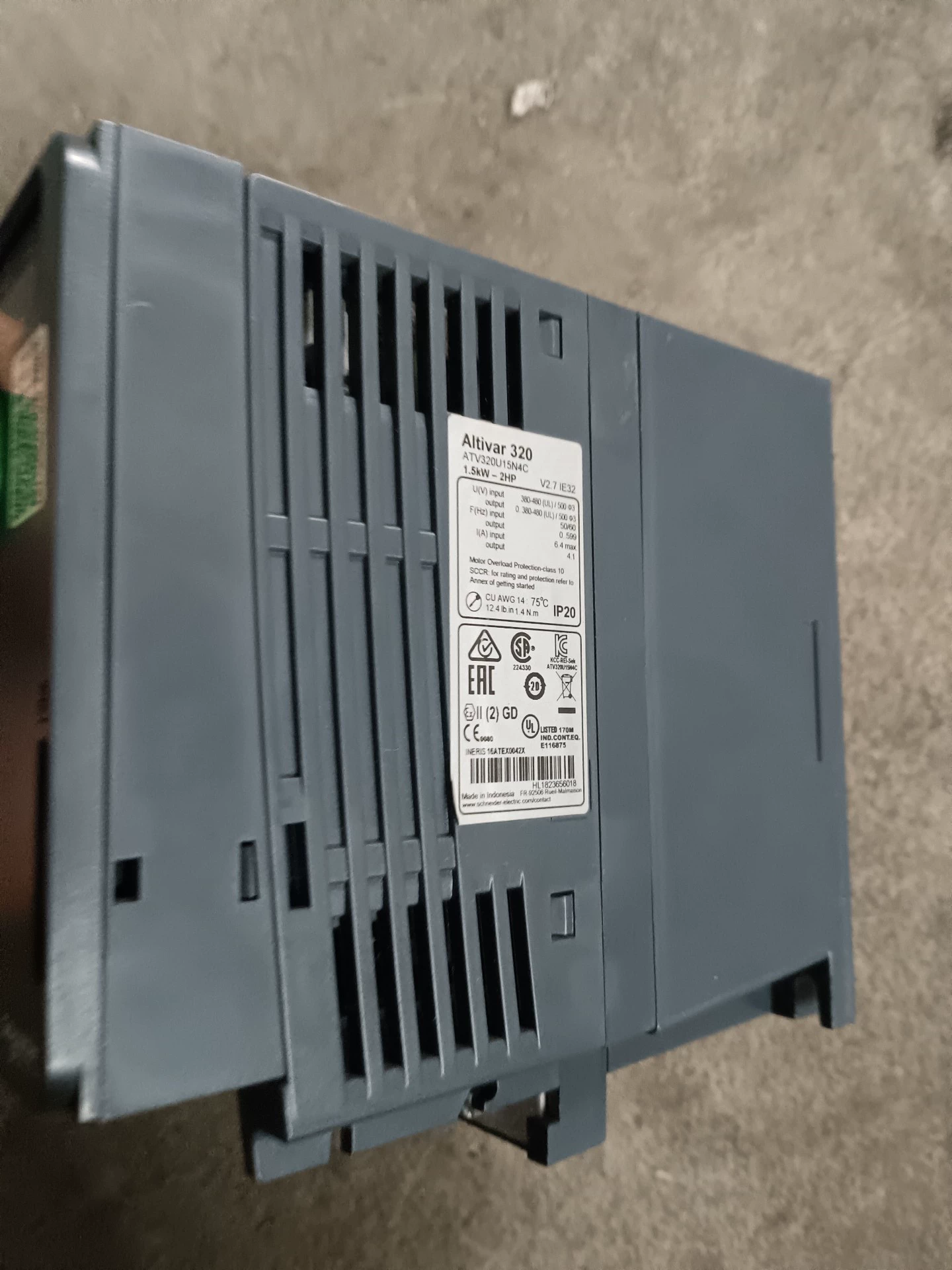

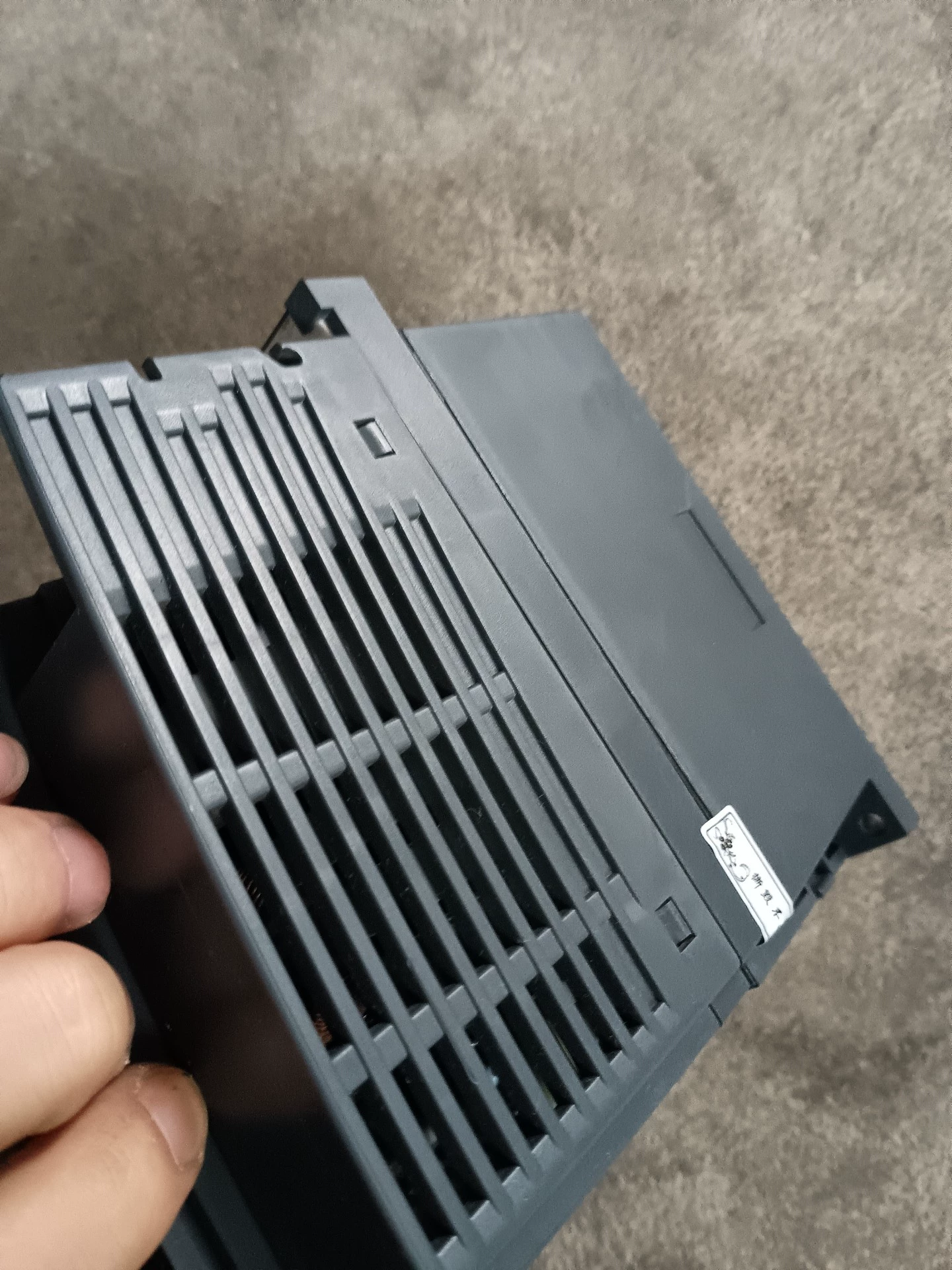

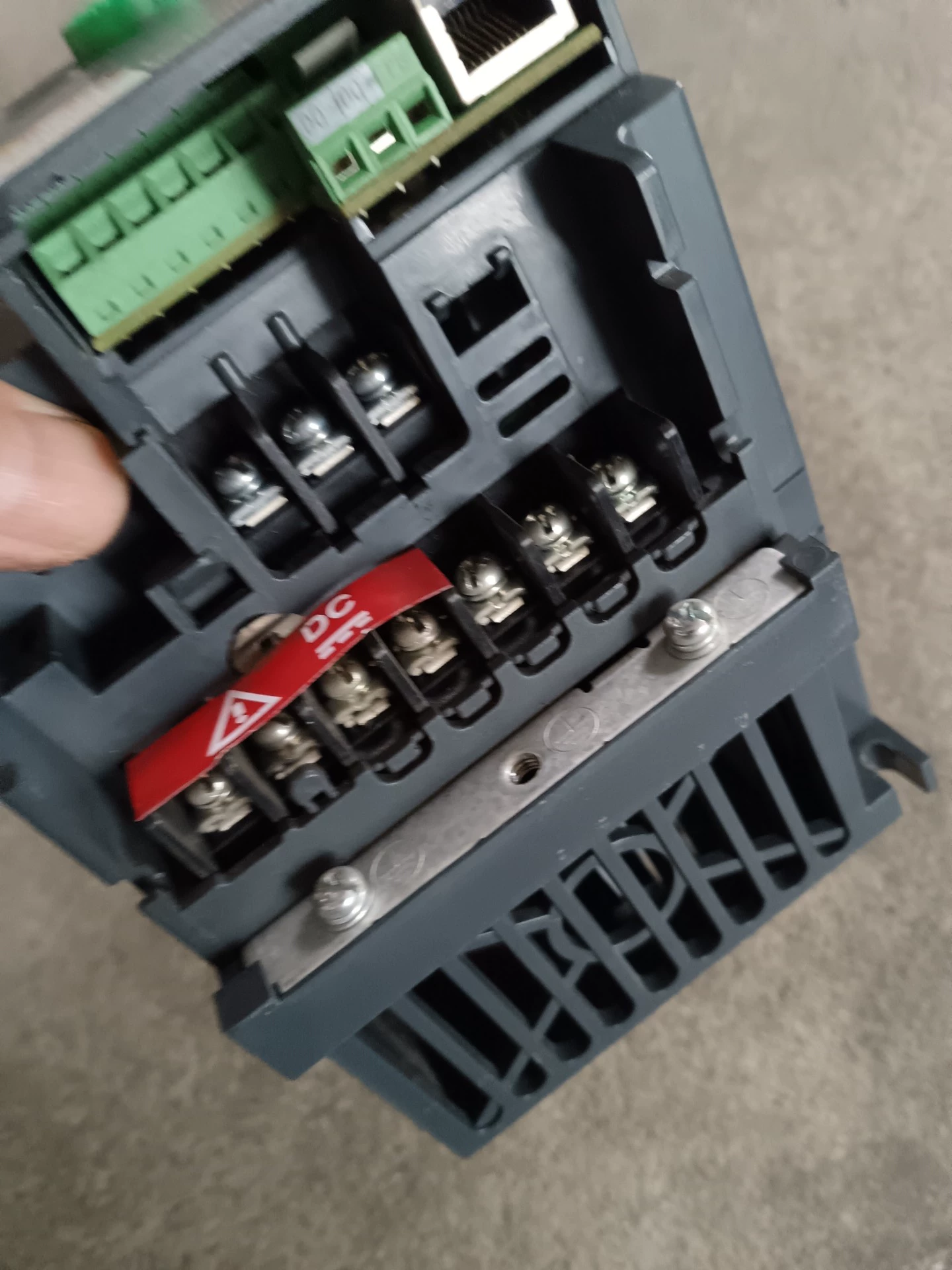

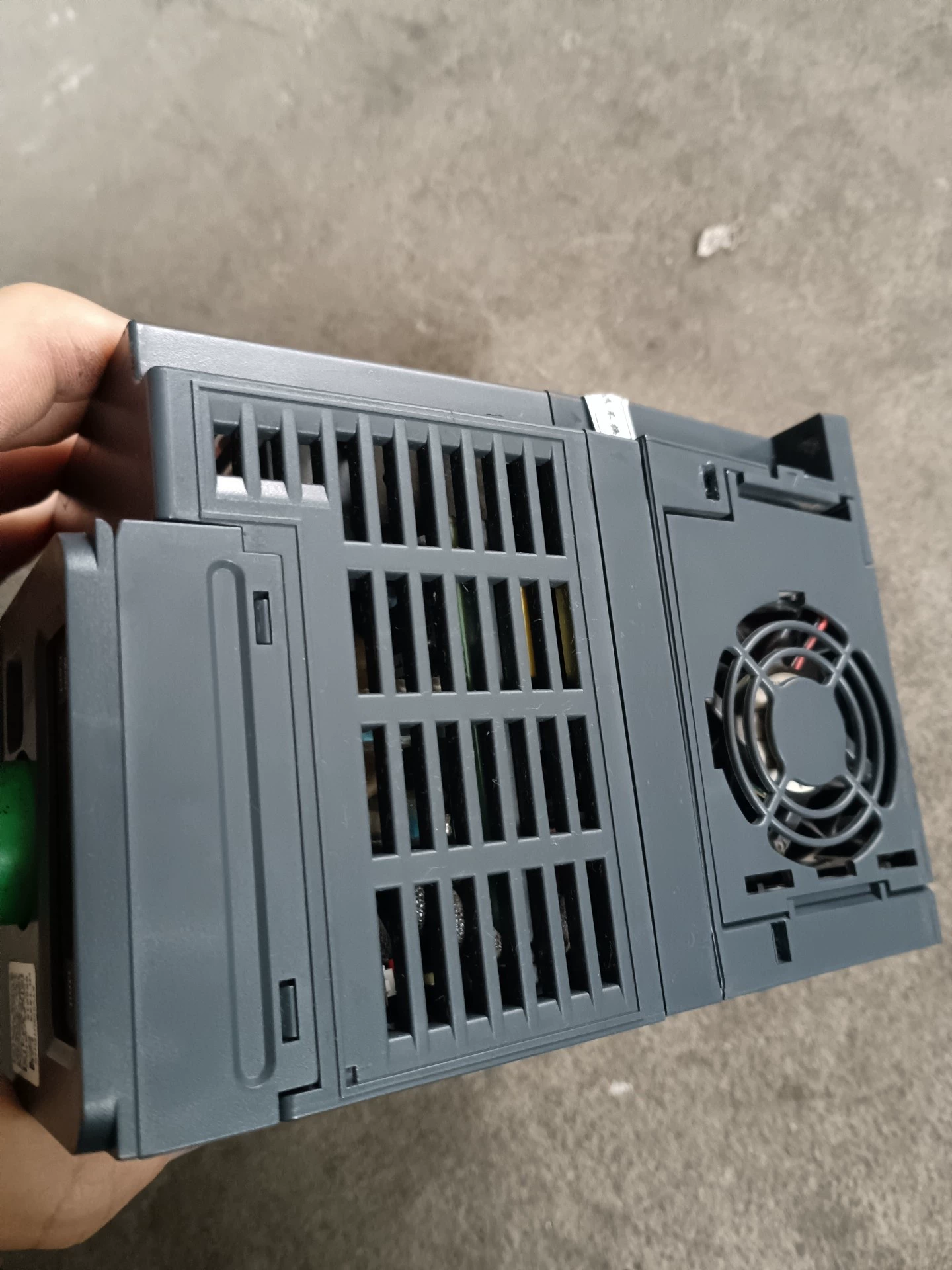

Schneider Electric ATV320U15N4C variable frequency drive, rated 1.5 kW, 380 V three-phase. Used, removed from equipment. Shows light signs of use.
Specifications

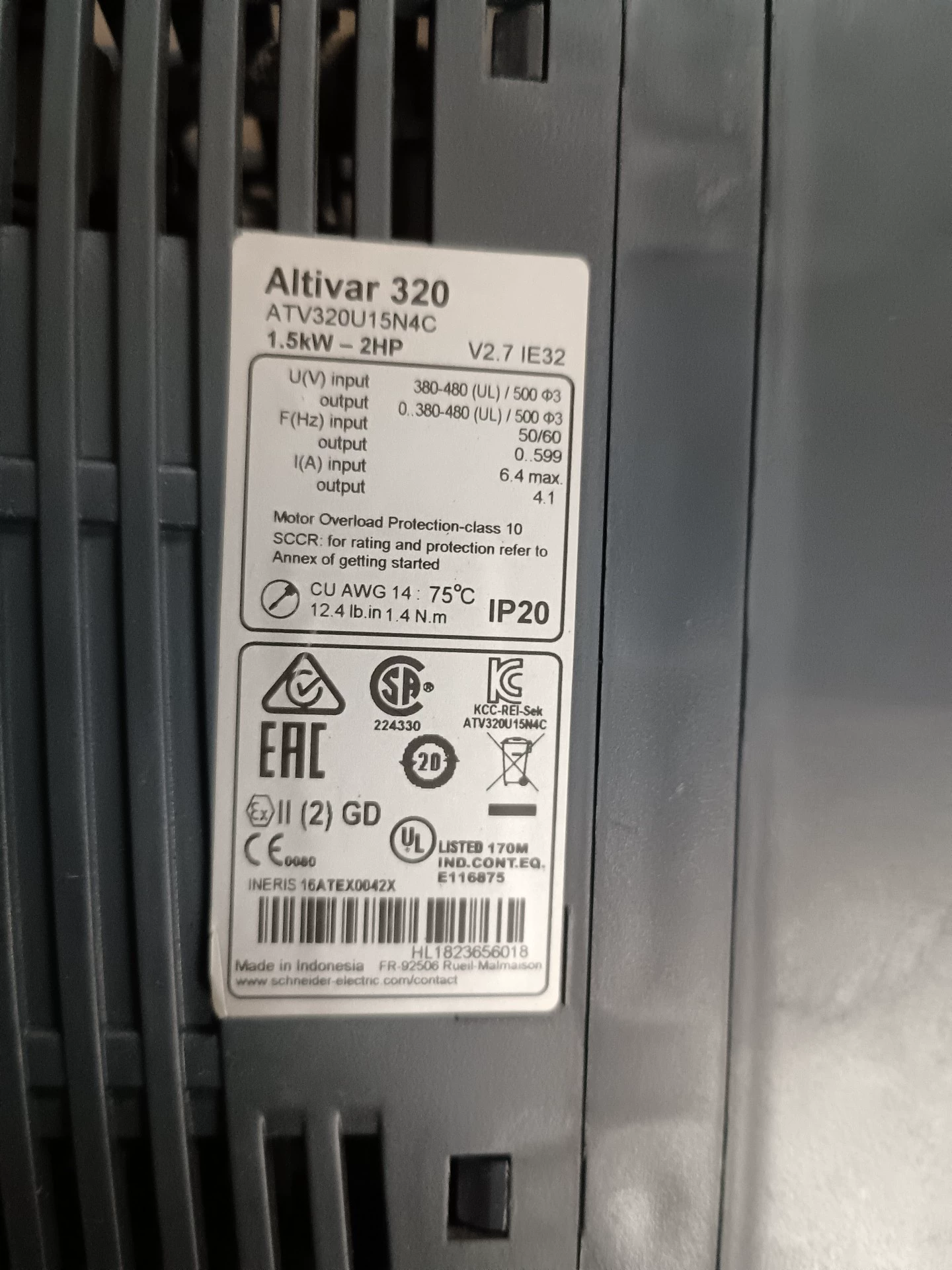

| Brand | Schneider Electric |
|---|---|
| Model | ATV320U15N4C |
| Origin | Indonesia |
| IP | IP20 |
| wire | CU AWG 14: 75℃ |
| phase | 3~ |
| Hardware version | V2.7 IE32 |
| output_voltage | 0–380-480 Φ3 |
| U(V) input | 380-480 (UL) / 500 Φ3 |
| I(A) output | 4.1 |
| U(V) output | 0–380-480 (UL) / 500 Φ3 |
| F(Hz) output | 0–599 |
| rated_power | 1.5 kW - 2 HP |
| Drive format | Compact |
| power_rating | 1.5 kW-2HP |
| input_current | 6.4 max |
| input_voltage | 380-480 (UL) / 500 Φ3 |
| Motor power | 2 hp |
| Motor power | 1.5 kW |
| output_current | 4.1 |
| Supply voltage | 380 to 500 V |
| input_frequency | 50/60 |
| enclosure_rating | IP20 |
| firmware_version | V2.7 IE32 |
| Number of phases | 3 |
| output_frequency | 0–599 |
| protection_class | IP20 |
| tightening_torque | 12.4 lb.in 1.4 N·m |
| Input line voltage | 400/480 Vac three-phase |
| Continuous output current | 4.1 A |
| motor_overload_protection | class 10 |
