Coupleur de bus de terrain DeviceNet WAGO 750-346 - D'occasion
Demander un devis
Indiquez-nous ce dont vous avez besoin et nous vous recontacterons au sujet de la disponibilite et du prix.
Commencer la demandeDescription

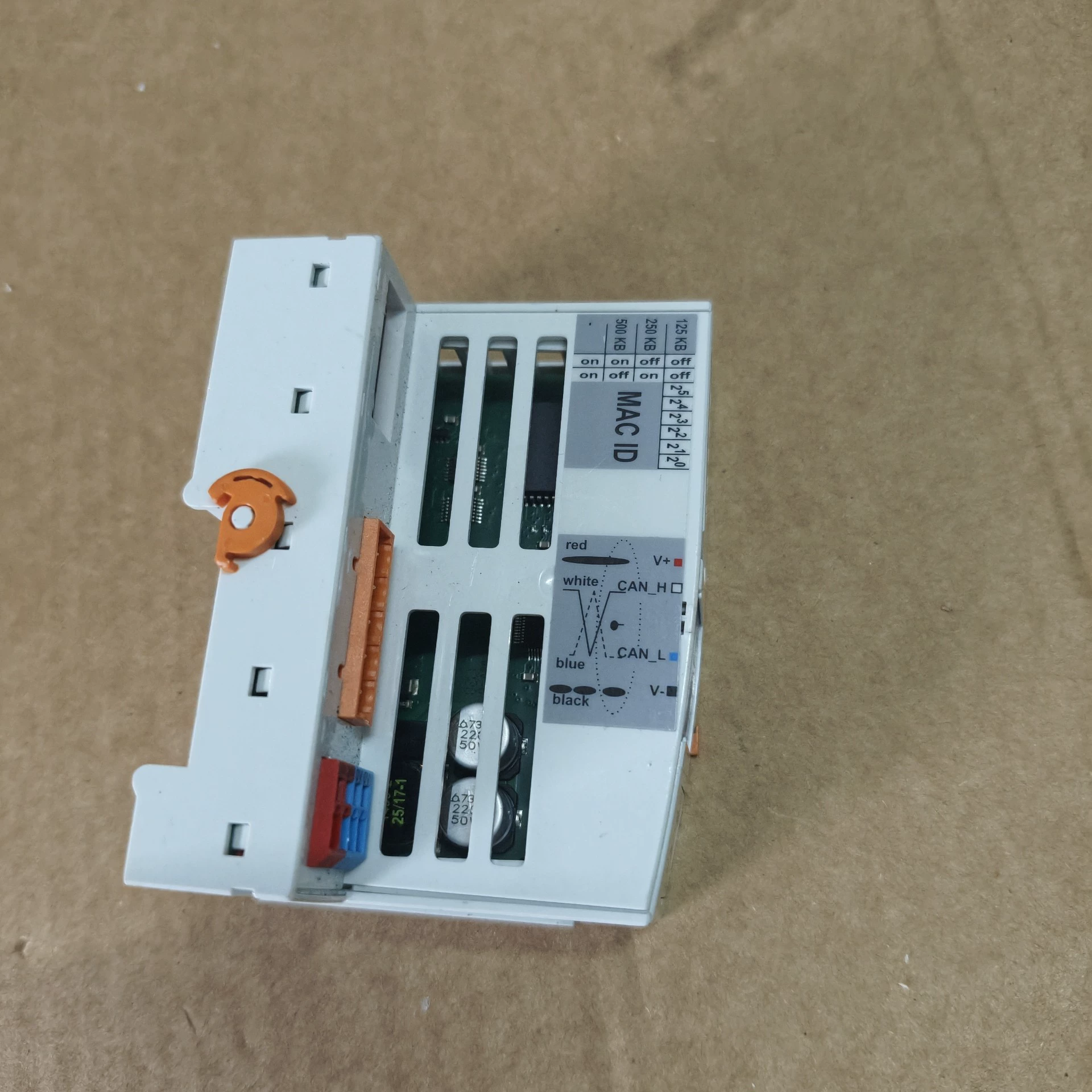

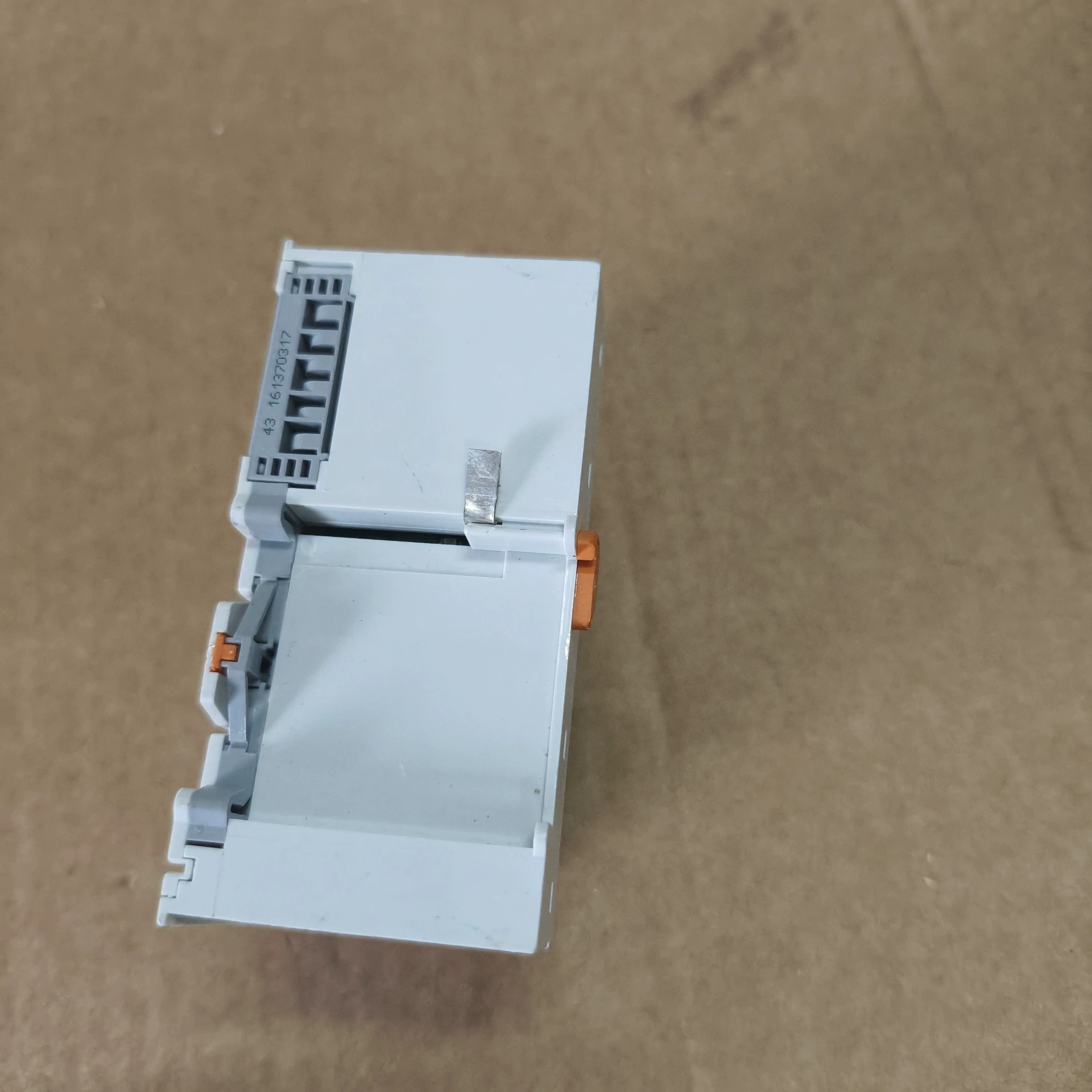

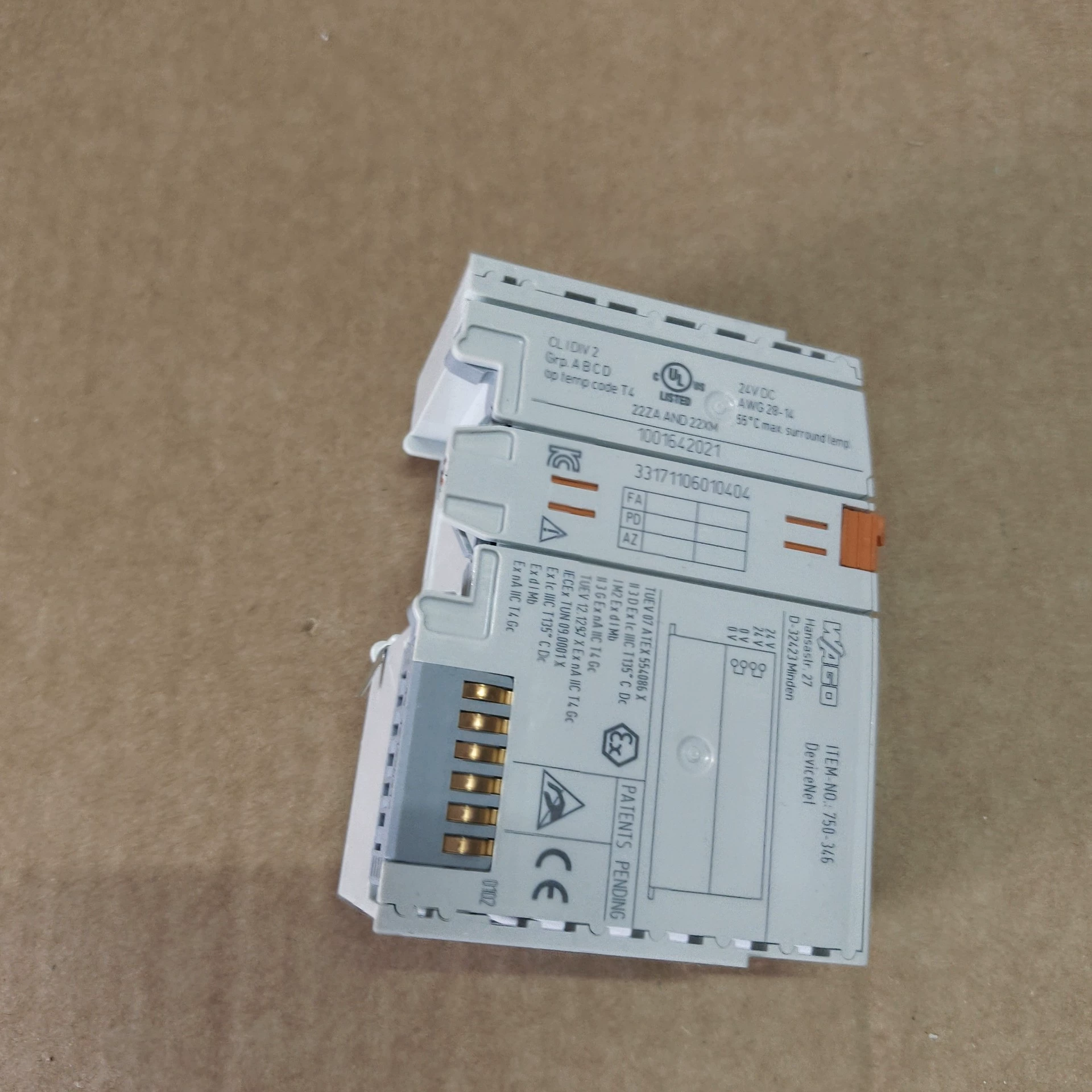

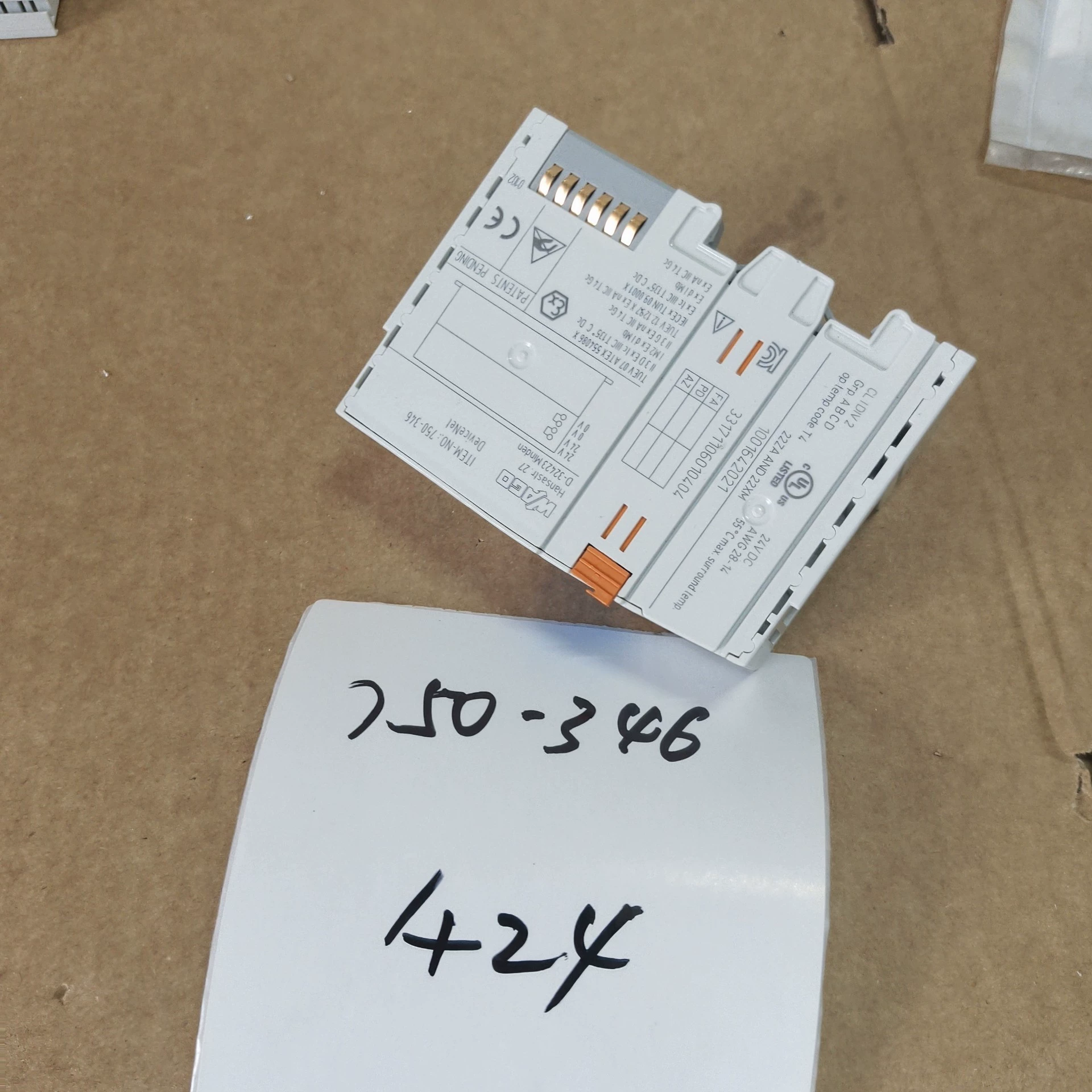

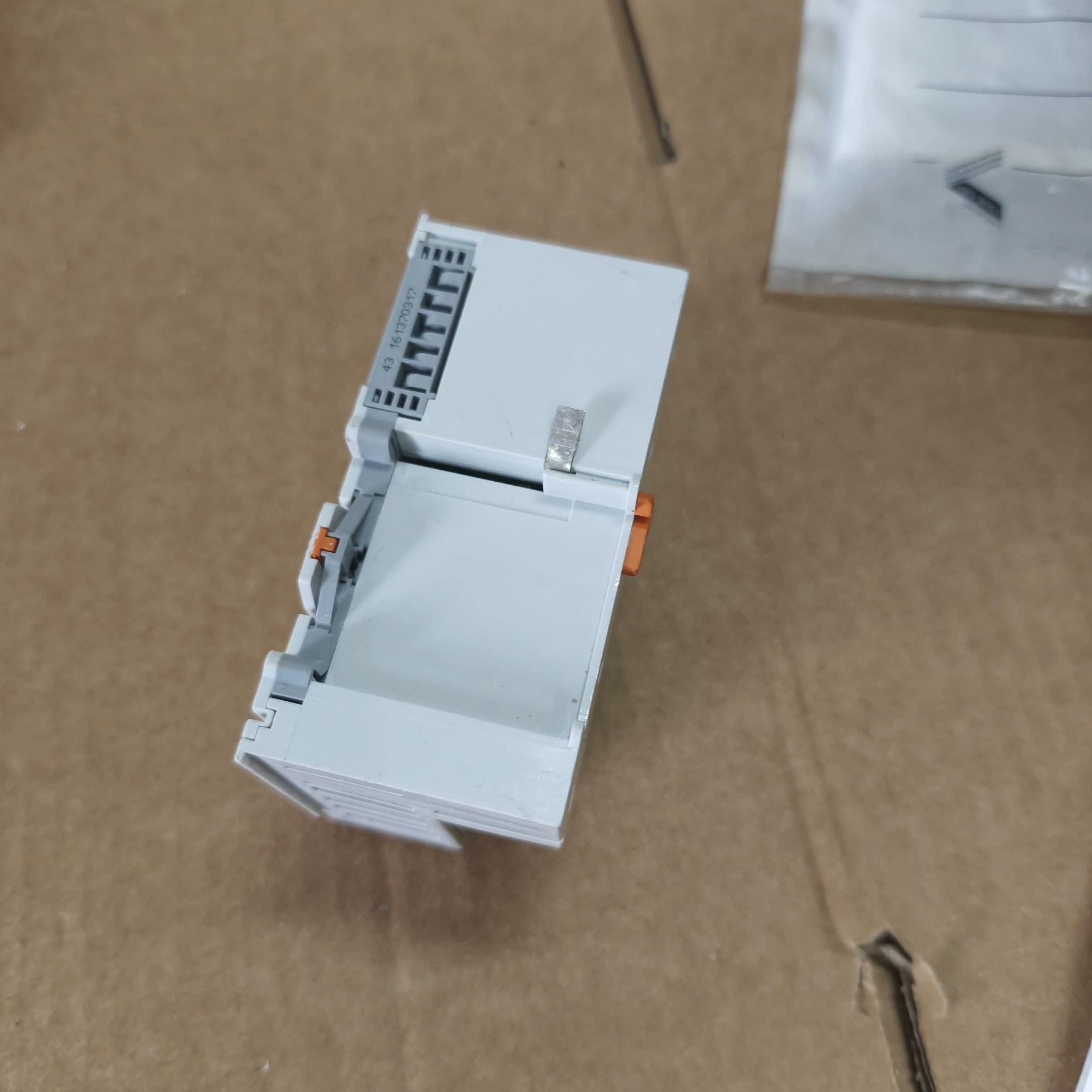

Coupleur de bus de terrain DeviceNet WAGO 750-346 d'occasion, démonté d'un équipement.
Specifications
| Brand | WAGO |
|---|---|
| Model | 750-346 |
| MPN | 750-346 |
| AWG | 28-14 |
| ECCN | NO US CLASSIFICATION |
| Color | light gray |
| Depth | 71.9 mm / 2.831 inches |
| Width | 49.5 mm / 1.949 inches |
| CAS-No. | 12060-00-3; 1303-86-2; 1317-36-8; 7439-92-1; 79-94-7; 80-43-3 |
| Height | 96.8 mm / 3.811 inches |
| PU (SPU) | 1 pcs |
| UNSPSC | 32,151,705 |
| Weight | 115 g |
| Variant | ECO |
| ETIM 9.0 | EC001603 |
| ETIM 10.0 | EC001603 |
| Fire load | 1.719 MJ |
| eCl@ss 9.0 | 27-24-26-07 |
| eCl@ss 10.0 | 27-24-26-07 |
| Product Type | Fieldbus Coupler |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
| Mounting type | DIN-35 rail |
| Communications | DeviceNet |
| Product Family | WAGO I/O System 750/753 |
| Connection type | System supply |
| Protection type | IP20 |
| Solid conductor | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Housing material | Polycarbonate; polyamide 6.6 |
| Pollution degree | 2 per IEC 61131-2 |
| Shock resistance | 15g per IEC 60068-2-27 |
| Fieldbus Protocol | DeviceNet |
| max. surround temp. | 55°C |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Transmission rate | 500 kBd (125 kBd, 250 kBd, 500 kBd) |
| Conformity marking | CE |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Number of I/O points | 6,000 |
| Vibration resistance | Per IEC 60068-2-6 |
| Supply voltage (system) | 24 VDC, SELV/PELV (-25 … +30 %); via wiring interface (CAGE CLAMP® connection); External fuse required: 2 A slow-blow |
| Bus segment length (max.) | 500 m |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| RoHS Compliance Status | Compliant,With Exemption |
| Fine-stranded conductor | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Ambient temperature (storage) | -25 … +85 °C |
| Total current (system supply) | 650 mA |
| EMC emission of interference | per EN 61000-6-4 |
| EMC immunity to interference | per EN 61000-6-2 |
| Ambient temperature (operation) | 0 … +55 °C |
| Number of modules per node (max.) | 64 |
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol; Diboron trioxide; Lead; Lead monoxide; Lead titanium oxide (PbTiO3); Peroxide, bis(1-methyl-1-phenylethyl) |
| Connectable conductor materials | Copper |
| Current consumption (system supply) | 350 mA |
| Depth from upper-edge of DIN-rail | 64.7 mm / 2.547 inches |
| SCIP notification number (Bulgaria) | 755a7b48-5e26-452d-b5bf-f0e16bcfa2cc |
| Connection technology | 4 x CAGE CLAMP® |
| Input current (typ.) at nominal load (24 V) | 260 mA |
| Number of fieldbus nodes on master (max.) | 64 |
| Relative humidity (without condensation) | 95 % |
| SCIP notification number (Czech Republic) | a2d45a90-17ff-49eb-9603-f02ee9c1446c |
| Connection technology | 1 x Male connector; 4-pole |
| Transmission medium (communication/fieldbus) | Shielded Cu cable; Remote bus cable: 2 x 0.82 mm² + 2 x 1.7 mm²; Drop cable: 2 x 0.2 mm² + 2 x 0.32 mm² |
| Input and output process image (fieldbus) max. | 32 bytes/32 bytes |
| Connection technology | DeviceNet: 1 x Male connector; 5-pole |
| Input current via DeviceNet interface at 11 V | 120 mA |
| Number of modules without a bus extension (max.) | 64 |
| Power supply efficiency (typ.) at nominal load (24 V) | 80 % |
| Permissible SO2 contaminant concentration at a relative humidity < 75 % | 25 ppm |
| Permissible H2S contaminant concentration at a relative humidity < 75 % | 10 ppm |
