Keyence LR-ZH500N - D'occasion
Description

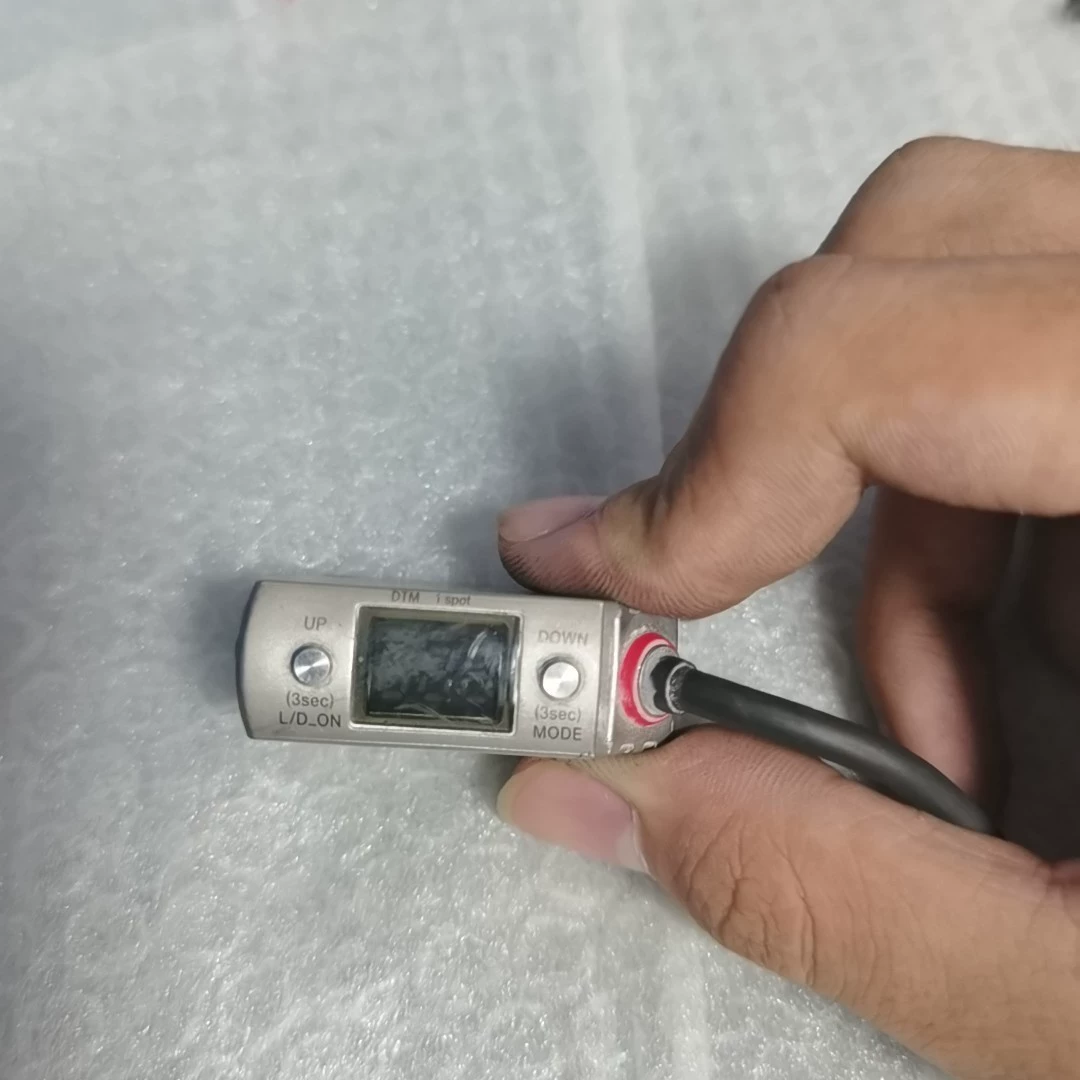

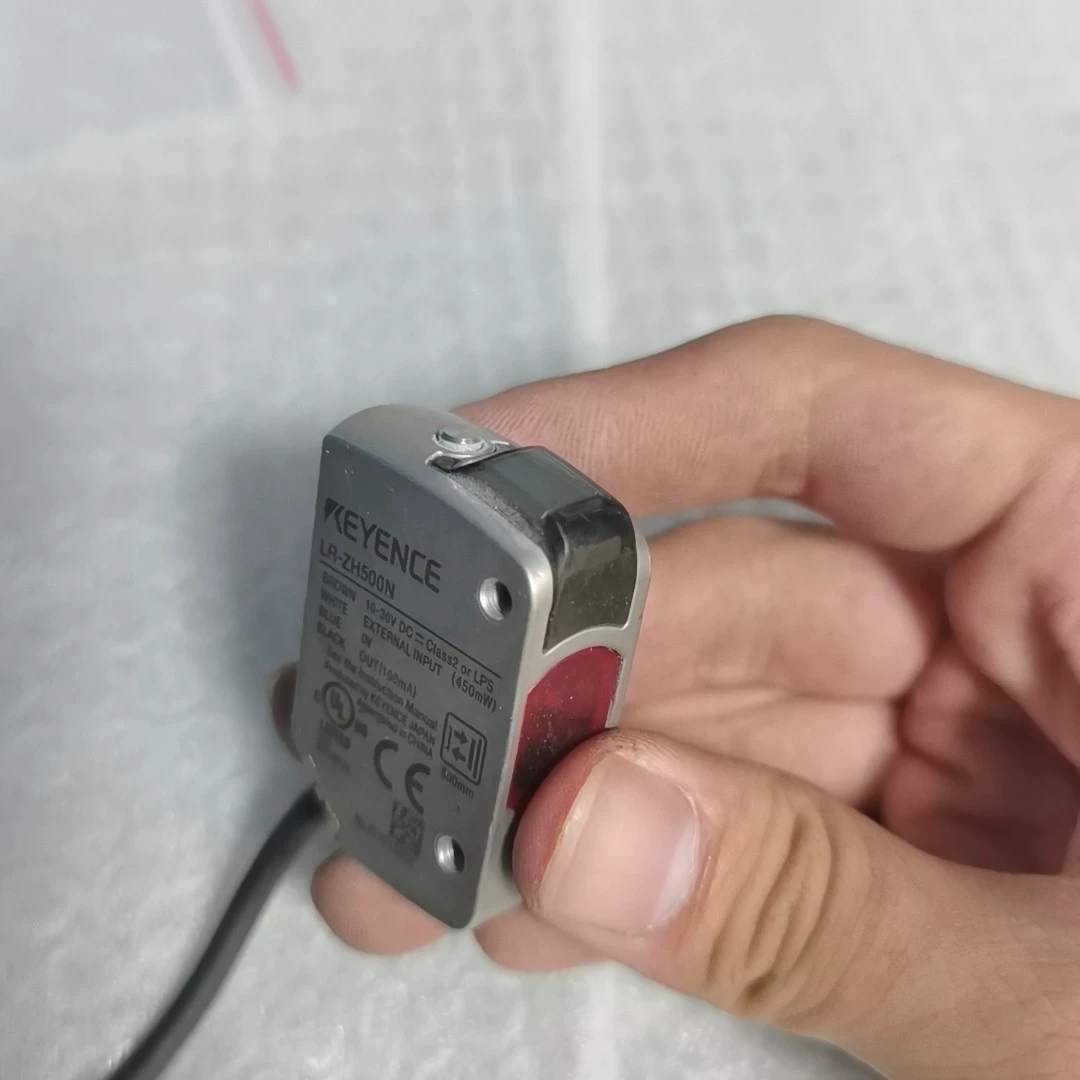

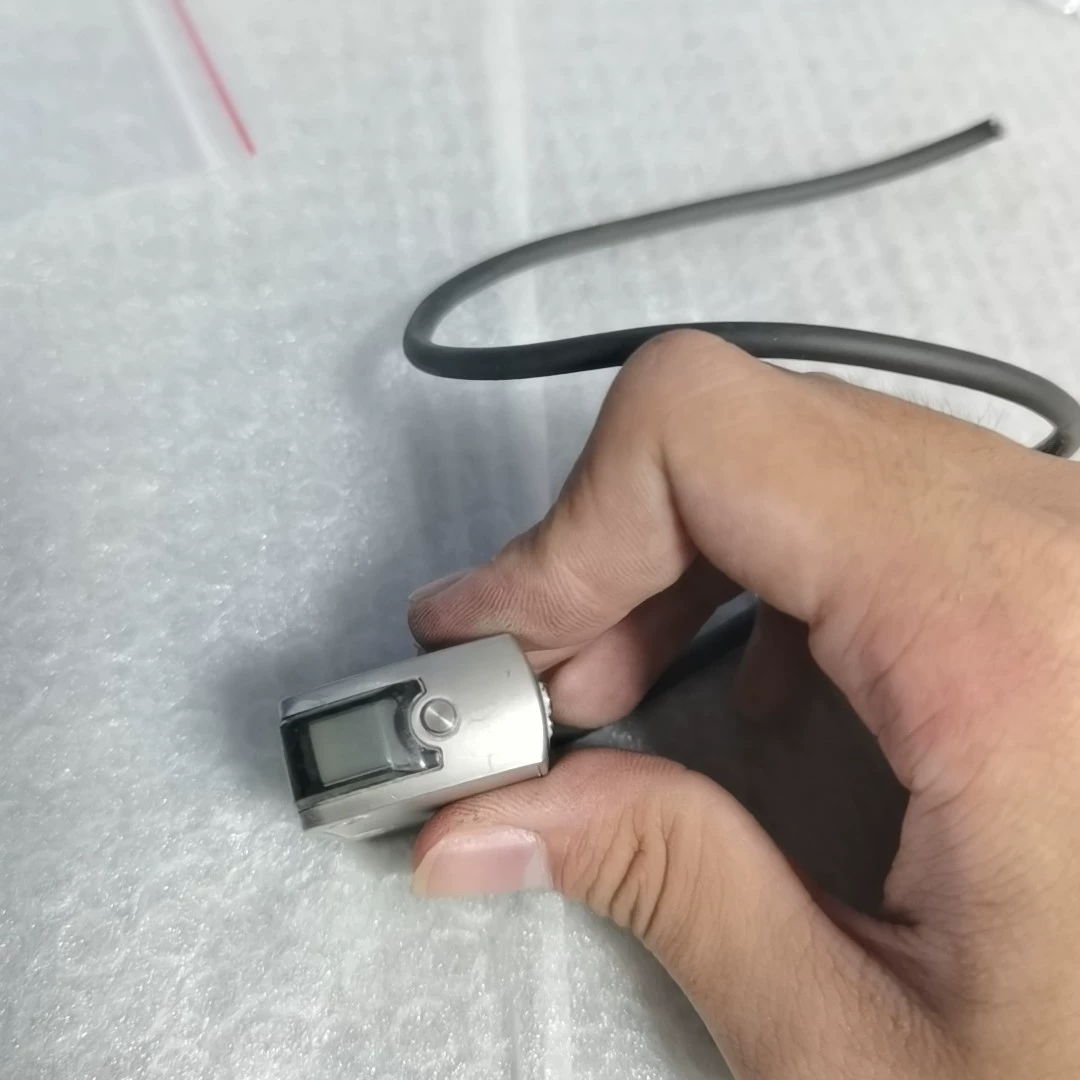

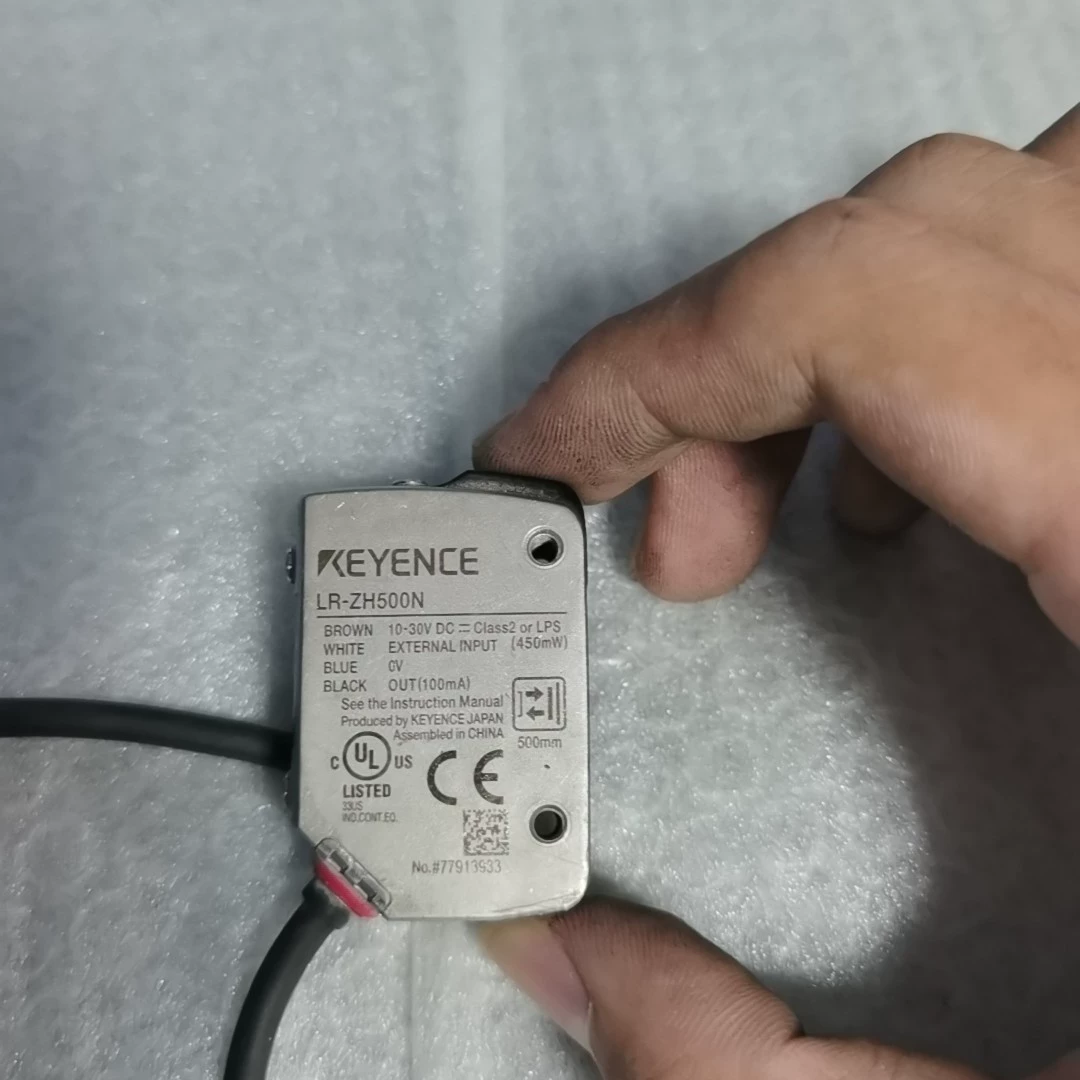

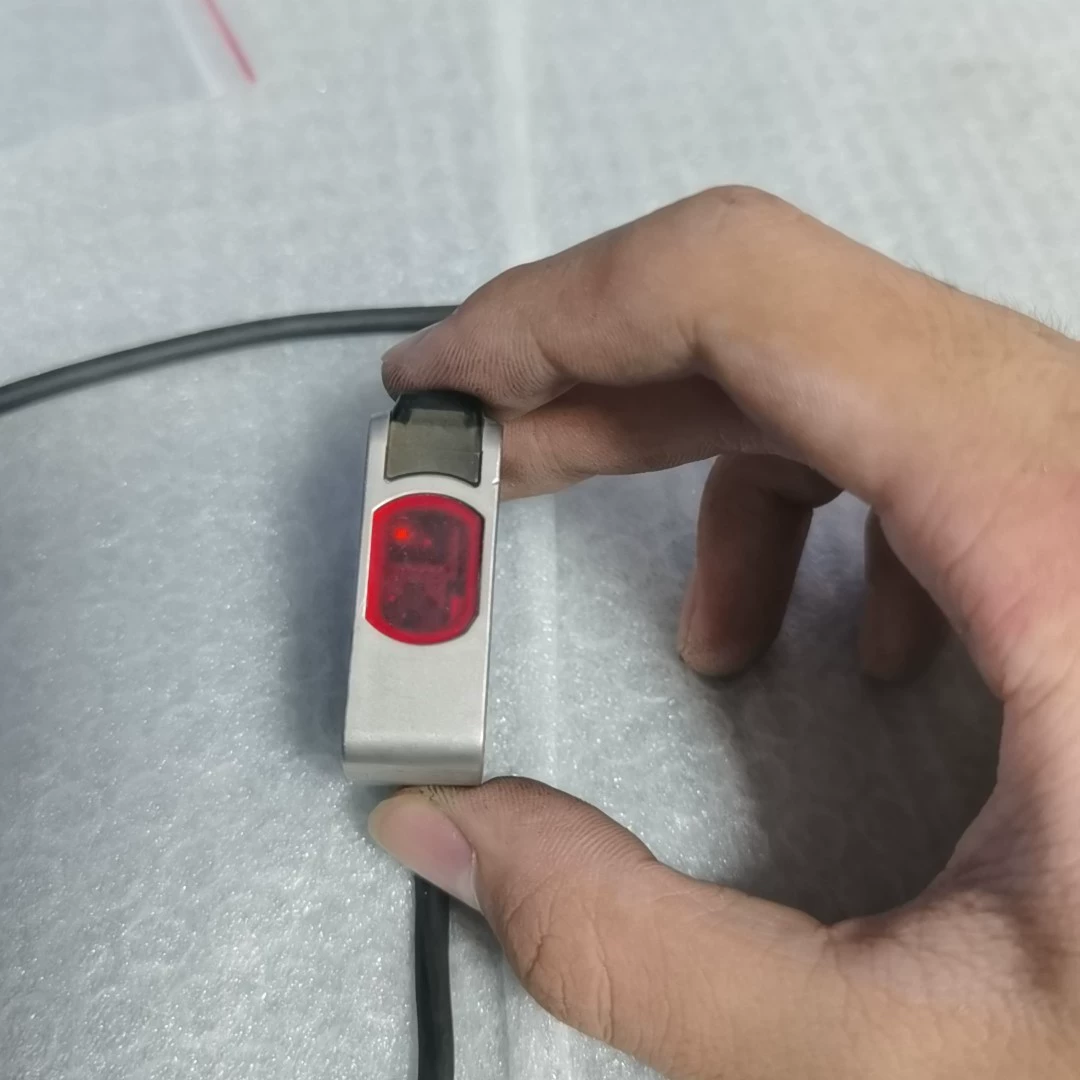

Keyence LR-ZH500N d'occasion.
Specifications
| Brand | Keyence |
|---|---|
| Model | LR-ZH500N |
| Origin | Assembled in CHINA |
| Power Supply | 10-30 V DC Class2 or LPS |
| Response time | 1.5 ms / 10 ms / 50 ms selectable |
| Supply Voltage | 10-30 V DC = Class2 or LPS |
| Output Current | 100 mA |
| Power voltage | 10 to 30 VDC, including 10% ripple (P-P), Class 2 or LPS |
| Withstand voltage | 1,000 VAC, 50/60 Hz, 1 min |
| Weight | Approx. 110 g (Including cable) |
| Ambient temperature | -10 to +50 °C (14 to 122 °F); no freezing |
| Relative humidity | 35 to 85 % RH (No condensation) |
| Storage temperature | -25 to +75 °C -13 to 167 °F (No freezing) |
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm (0.06 in); 2 h each in X, Y, Z directions |
| Ambient light | Incandescent lamp: ≤10,000 lux Sunlight: ≤20,000 lux at 250 mm 9.84" *3 Incandescent lamp: ≤2,000 lux Sunlight: ≤4,000 lux at 500 mm 19.69" *3 |
| Appearance | Rectangular |
| Black Wire | OUT(100mA) |
| Brown Wire | 10-30V DC Class2 or LPS |
| Cable connection | 2 m cable |
| Control output | NPN Open collector, Applied voltage 30 VDC or less, Control current ≤100 mA, Residual voltage ≤1.2 V at ≤10 mA, ≤2 V at 10 to 100 mA |
| Detectable distance | 35 to 500 mm 1.38" to 19.69" (465 to 0) *1 |
| Detection Distance | 500mm |
| Display resolution | 1 to 5 (1 to 5 mm 0.04" to 0.20" ) |
| Enclosure rating | IP68 (IEC60529), IP69K (DIN40050-9), NEMA 4X, 6P, 13 (NEMA250), ECOLAB *2, Diversey *2 |
| External Input | 450mW |
| External input | Input time calibration: 35 ms or more ON, 35 ms or more OFF Laser emission stop: 2 ms or more ON, 20 ms or more OFF Short-circuit current NPN: ≤1 mA/PNP: ≤2 mA |
| Indicator | 3-digit 7-segment display (white), output indicator (yellow), DATUM indicator (orange), 1 spot indicator (green) |
| Insulation resistance | 20 MΩ or more (500 VDC) |
| Laser class | Class 2 laser product (IEC60825-1) Class II Laser product (FDA(CDRH) Part1040.10) |
| Material | Case: SUS316L, Display: PES, Lens cover: PMMA with scratch-resistant coating, Packing/Connector ring: FKM |
| Output | NPN |
| Output operation | Light-ON / Dark-ON selectable |
| Output Rating | 100 mA |
| Power consumption | ≤450 mW (≤18 mA at 24 V, ≤34 mA at 12 V) |
| Protection circuit | Protection against reverse power connection, output overcurrent, output surge, reverse output connection |
| Shock resistance | 1,000 m/s²; 6 times each in X, Y, Z directions |
| Spot size | Approx. ø3 mm ø0.12" |
| Standard detectable deviation | 35 to 180 mm 1.38" to 7.09" : 9 mm 0.35" 180 to 300 mm 7.09" to 11.81" : 25 mm 0.98" 300 to 400 mm 11.81" to 15.75" : 40 mm 1.57" 400 to 500 mm 15.75" to 19.69" : 50 mm 1.97" |
| Timer | OFF/ON delay/OFF delay/One-shot |
| Type | U.C.D. Function Distance based laser sensor |
| Type | Red laser (660 nm) |
| White Wire | EXTERNAL INPUT (450mW) |
