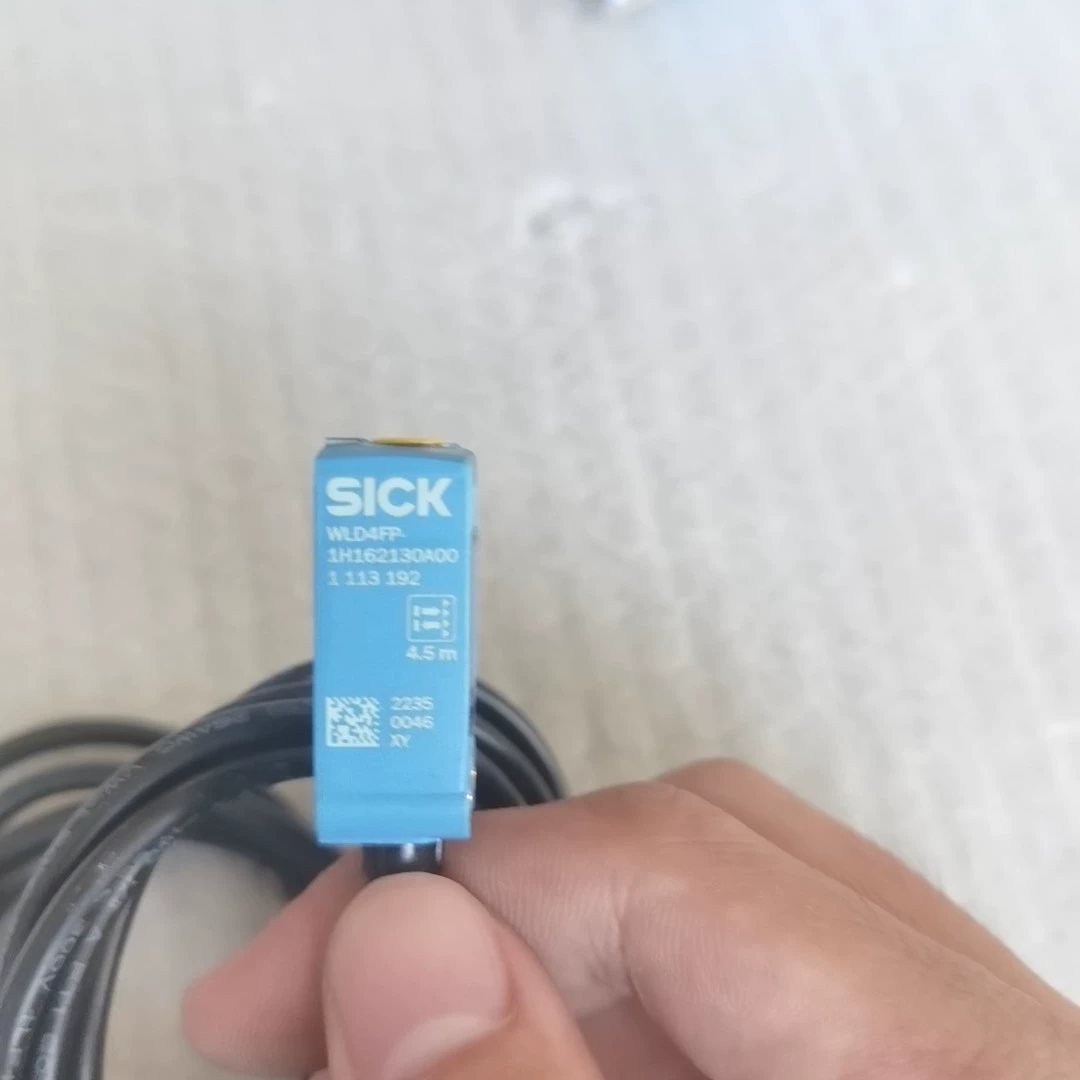

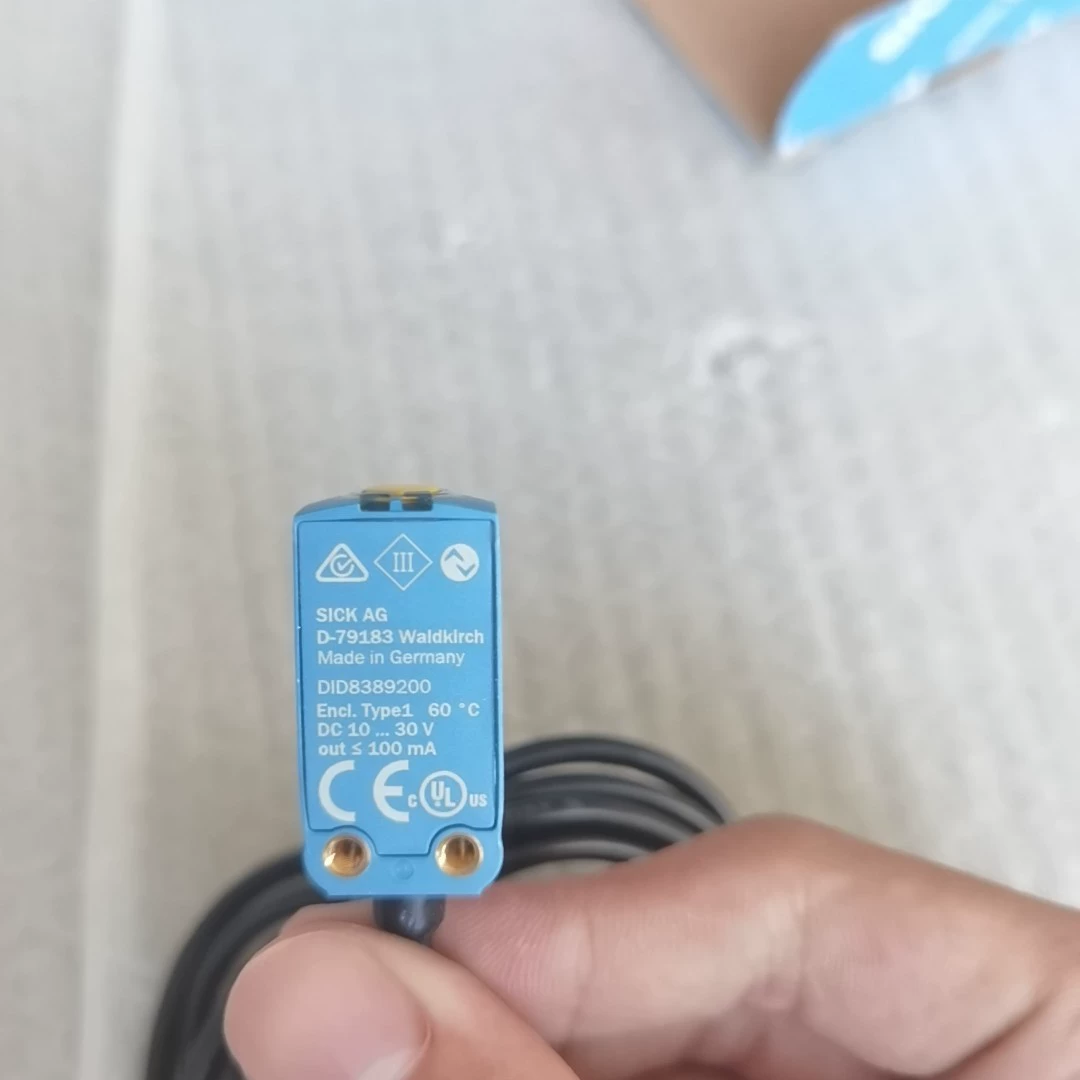

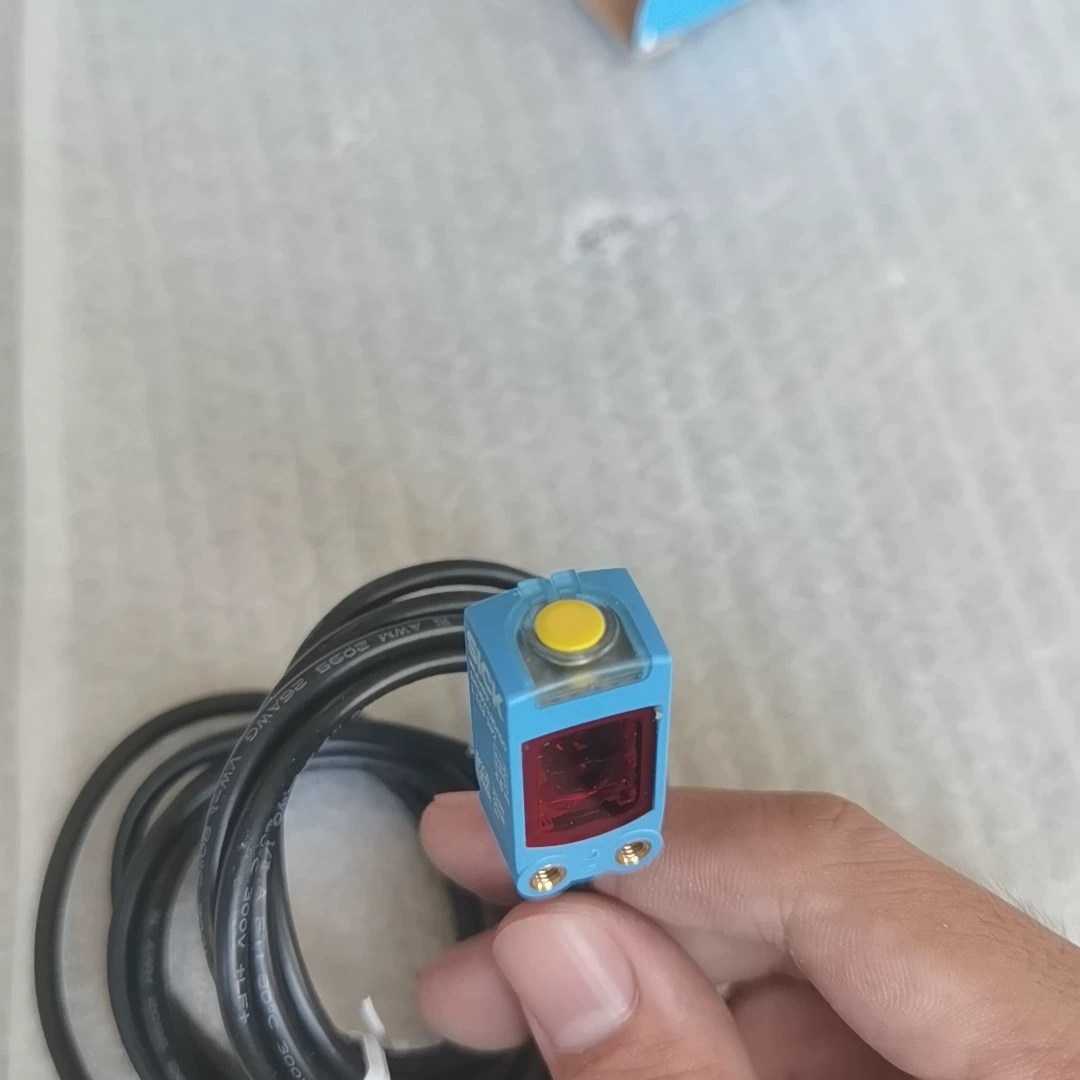

Capteur photoélectrique SICK WLD4FP-1H162130A00 1113192 - D'occasion
Description

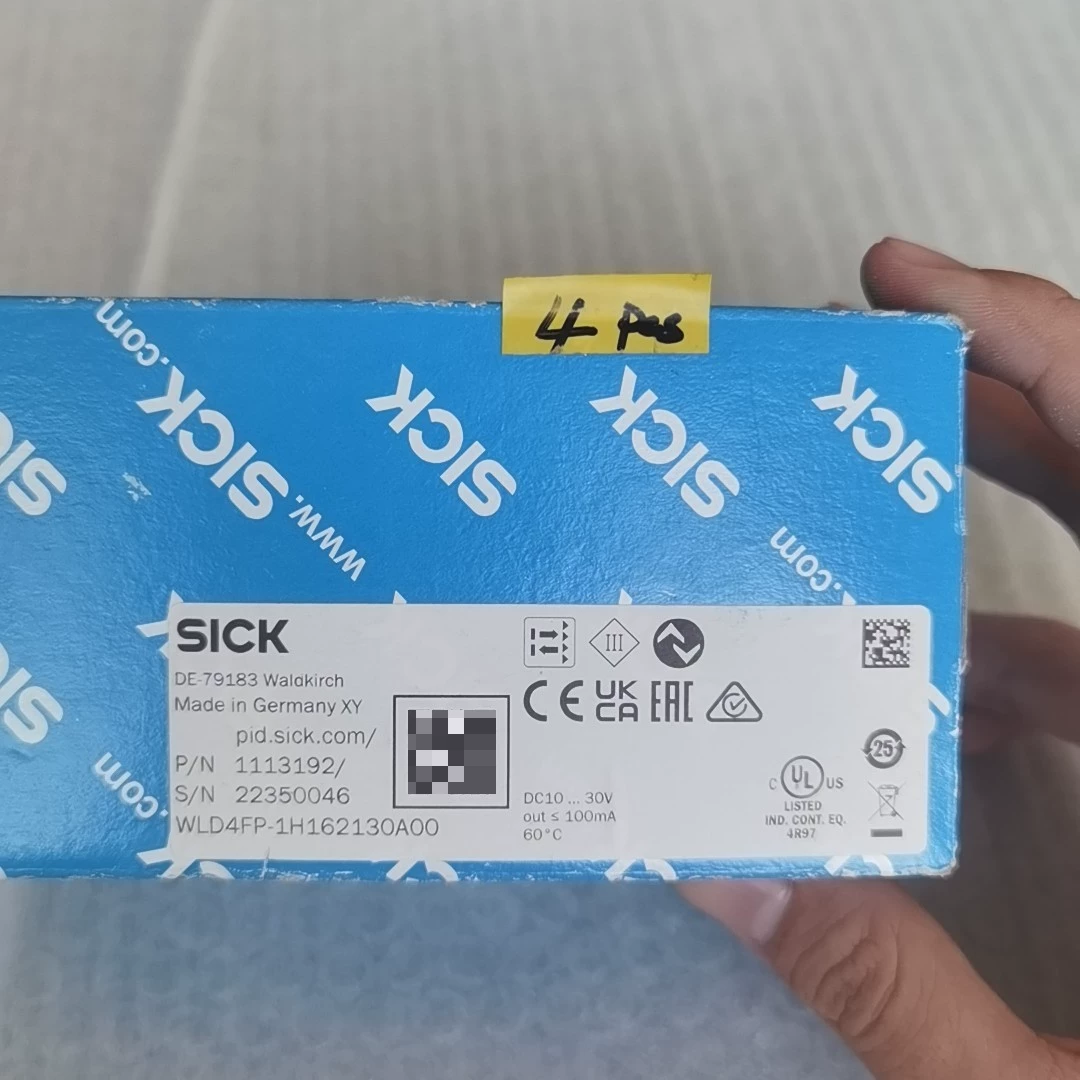

Capteur photoélectrique d'occasion SICK WLD4FP-1H162130A00, MPN 1113192. Prend en charge une alimentation de 10–30 V DC. Livré avec emballage d'origine et câblage complet.
Specifications
| Brand | SICK |
|---|---|
| Model | WLD4FP-1H162130A00 |
| MPN | 1113192 |
| Origin | Germany |
| Connection type | cable |
| Supply Voltage | DC 10–30 V |
| Response time | ≤ 500 µs |
| DC supply voltage | 10 ... 30 V |
| Switching frequency | 1000 Hz |
| Weight | ca. 30 g |
| Enclosure Temperature | 60 °C |
| Ambient operation temperature max. | 60 °C |

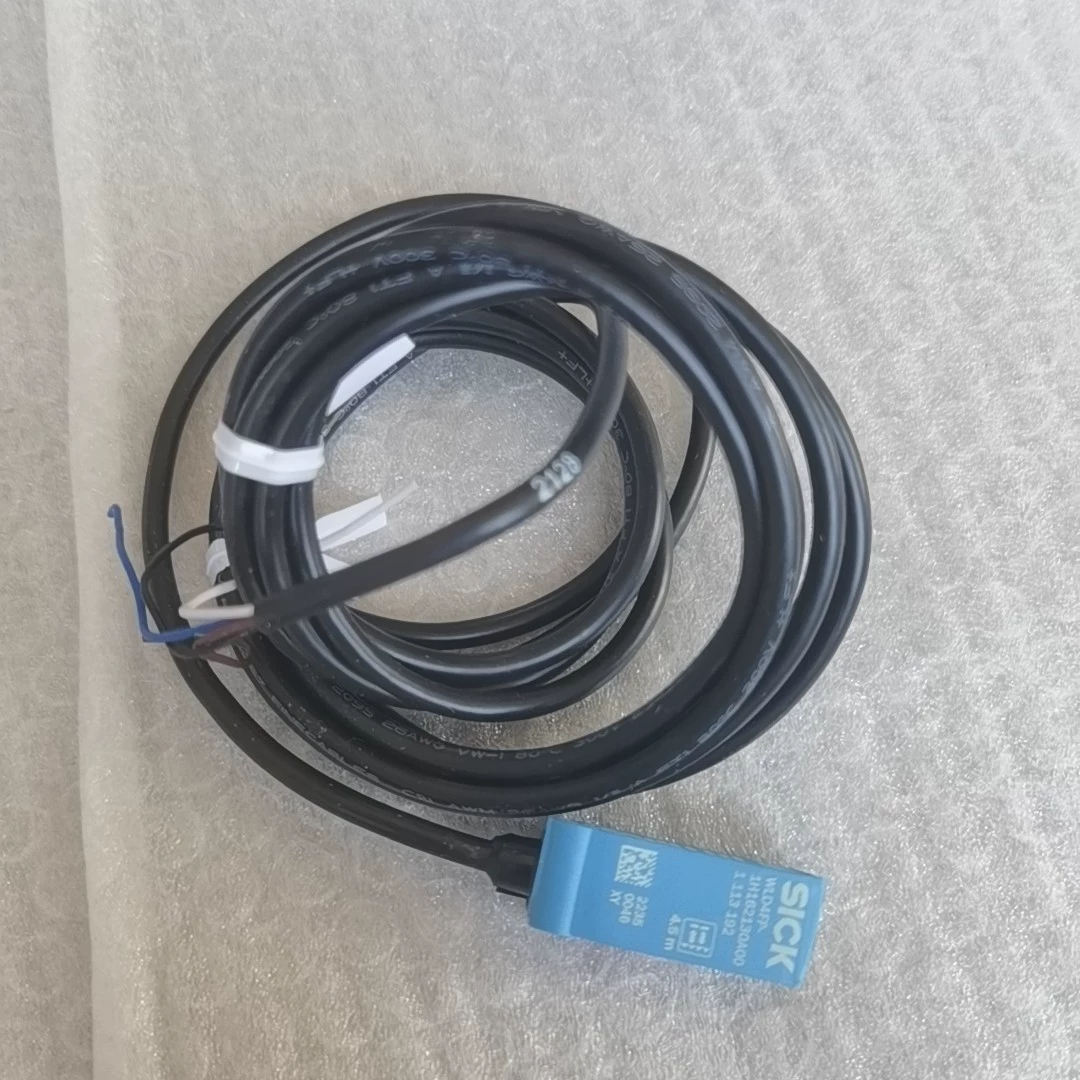

| Connection type detail | Cable, 4-wire |
| Dimension length | 40.1 mm |
| Dimension width | 16 mm |
| Enclosure rating | IP66; IP67 |
| Functional principle | Photoelectric retro-reflective sensor |

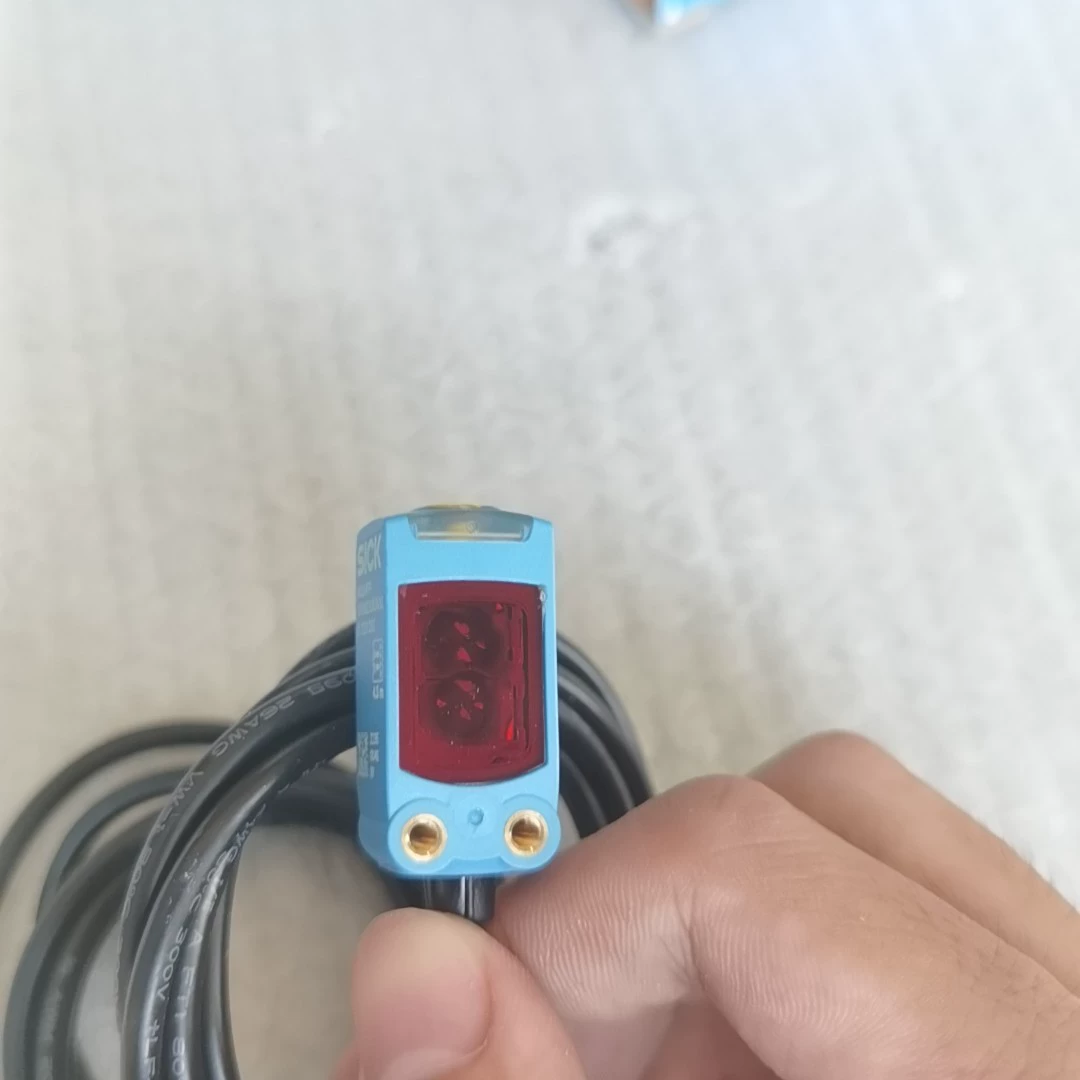

| Functional principle detail | With minimum distance to reflector (dual lens system) |
| Housing | rectangular |
| Housing material detail | VISTAL® |
| Light source | LED |
| Object distance max. | 4500 mm |
| Object distance min. | 0 mm |
| SICK article code | p661424 |
| SICK type | WLD4FP-1H162130A00 |
| Switching mode | Light/dark switching |
| Switching output | push-pull: PNP/NPN |
| Type of light | visible red light |
