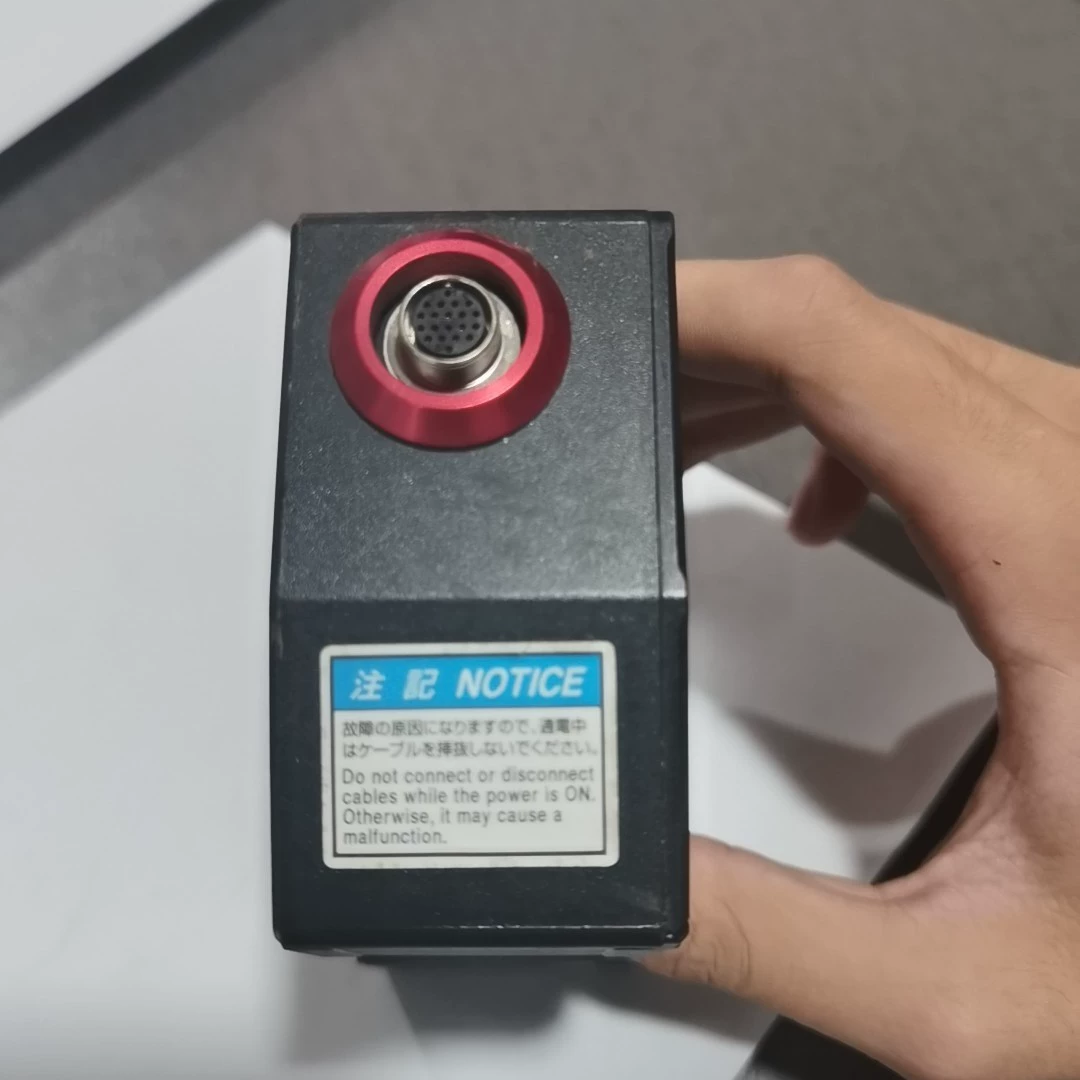

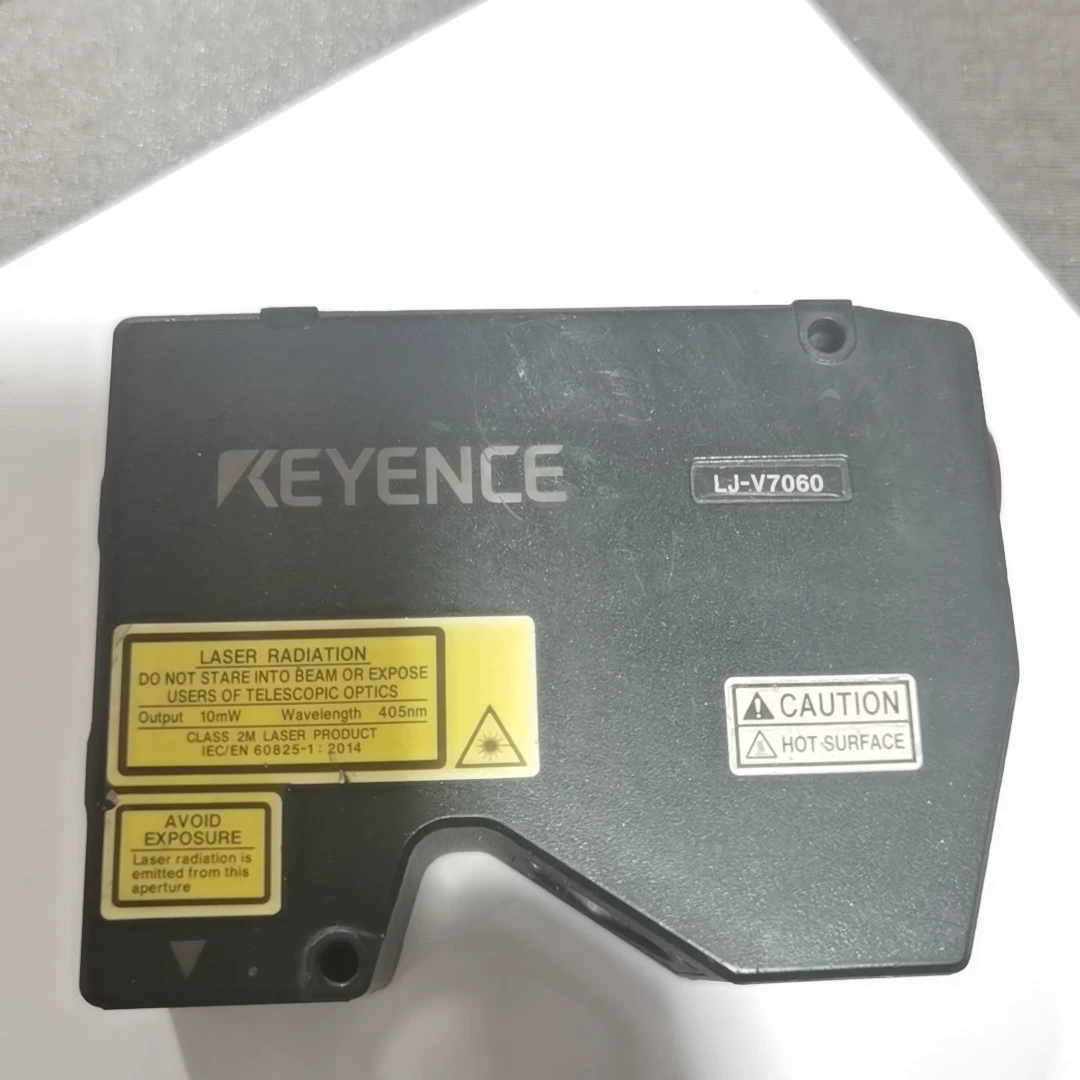

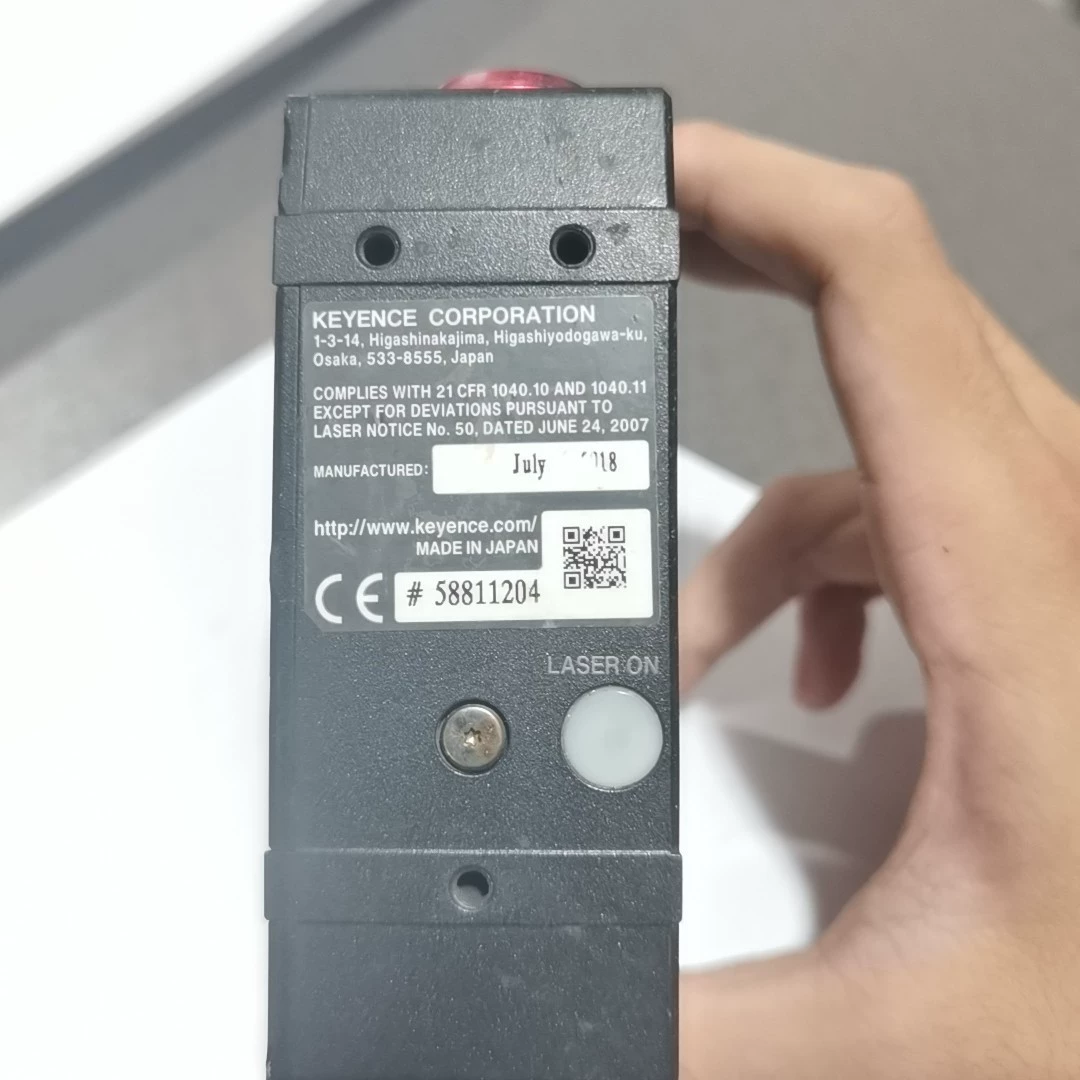

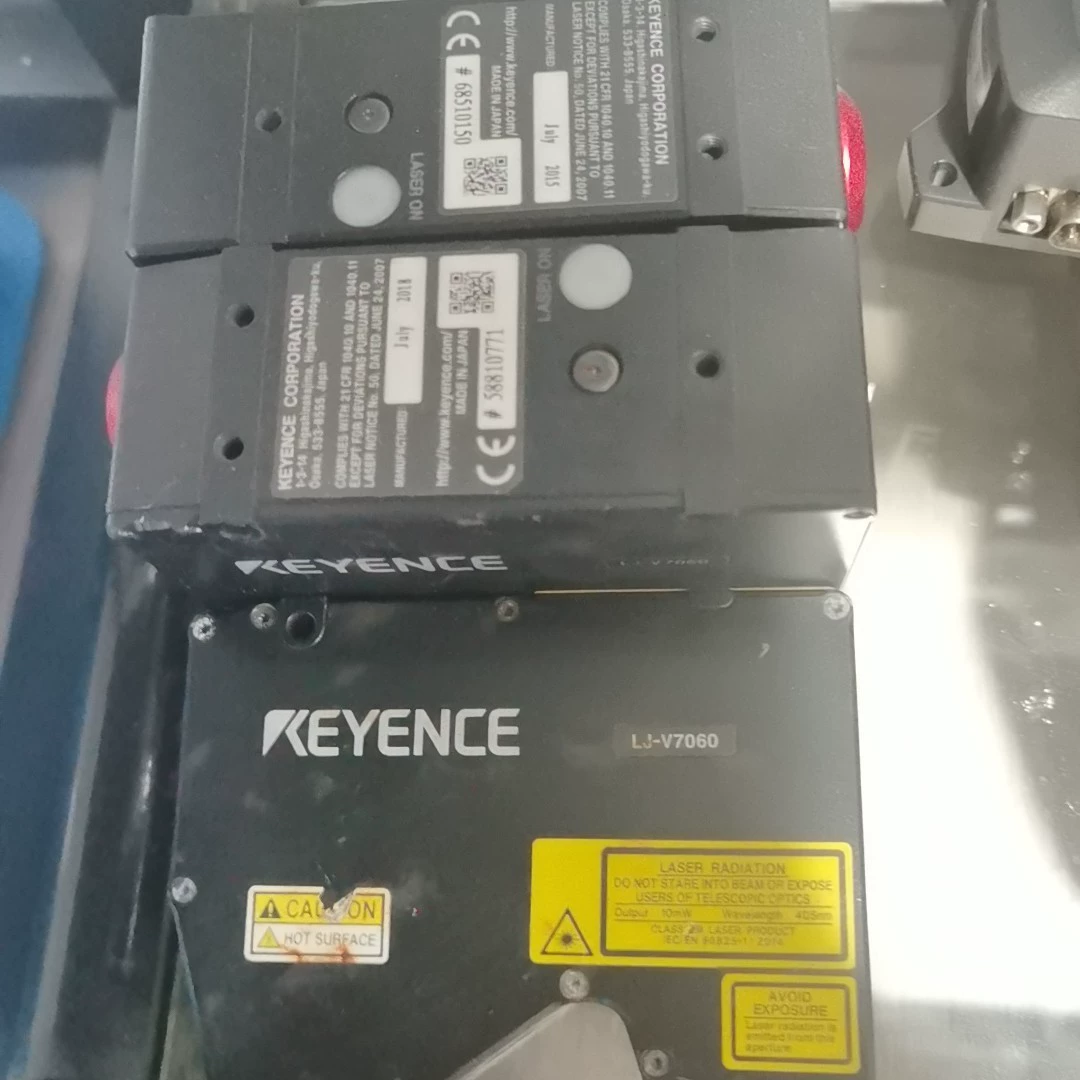

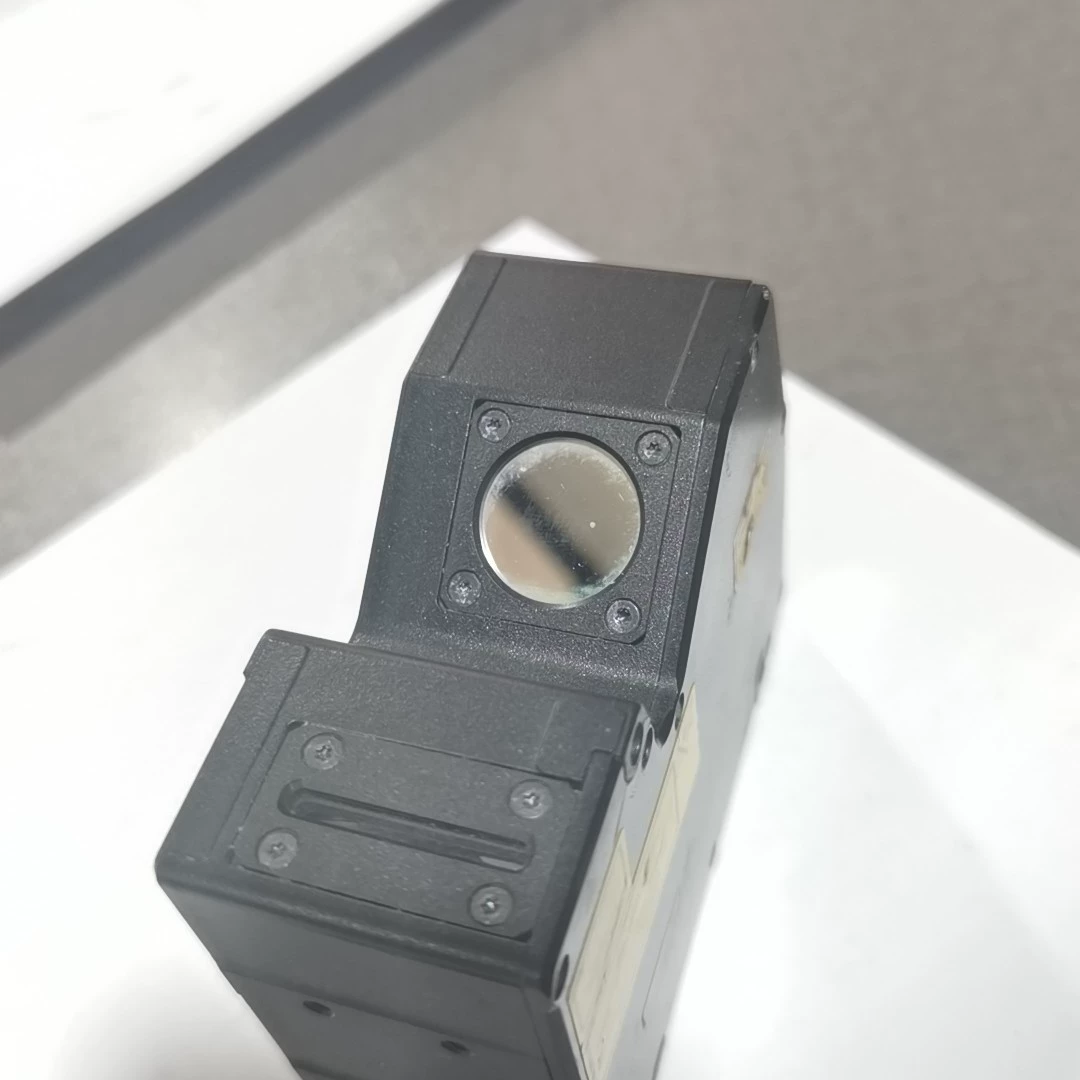

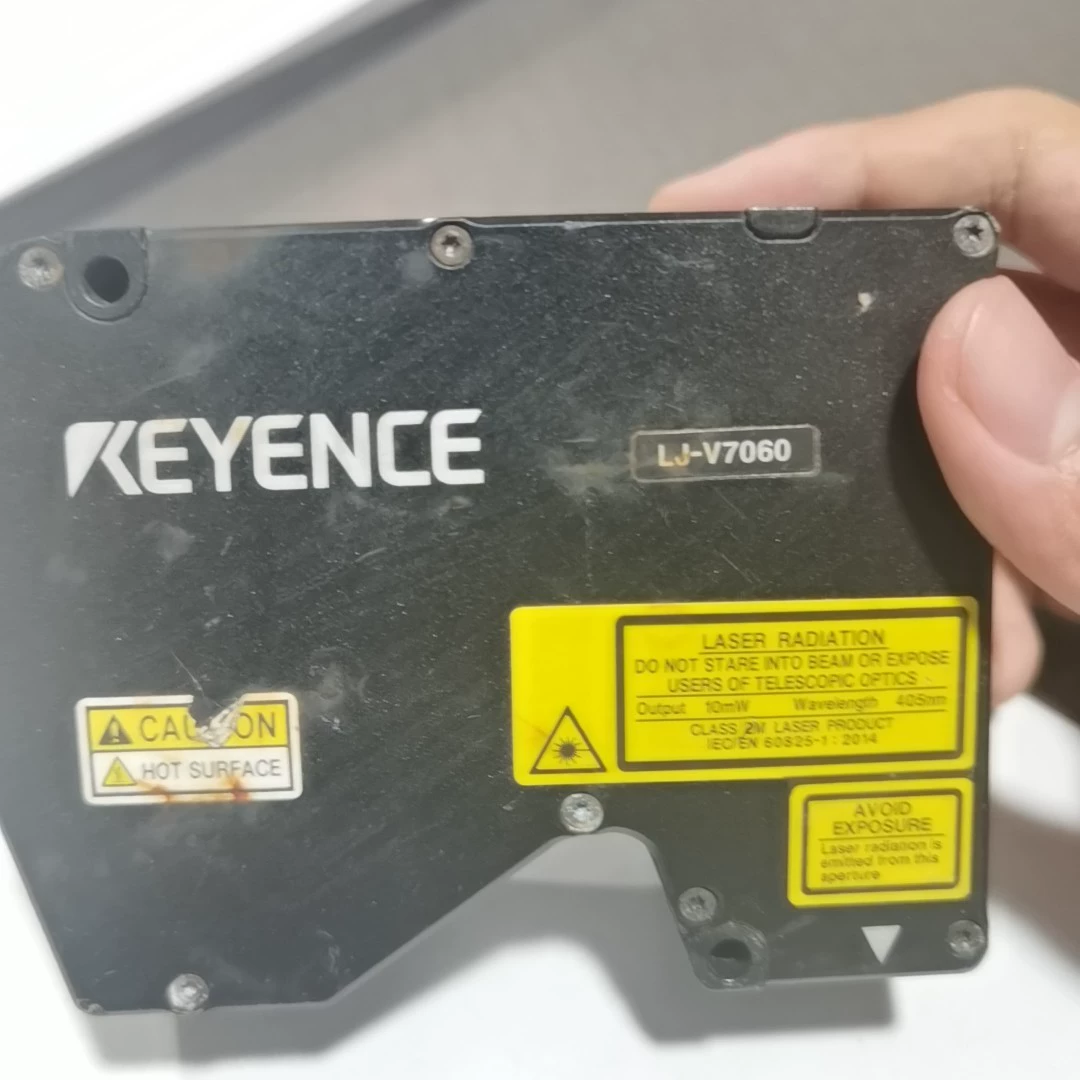

Capteur laser Keyence LJ-V7060 - d'occasion
Description
Capteur laser Keyence LJ-V7060 d'occasion. Déposé d'un équipement d'ingénierie.
Specifications
| Brand | Keyence |
|---|---|
| Model | LJ-V7060 |
| Origin | Japan |
| Far side | 15 mm 0.59" |
| NEAR side | 13.5 mm 0.53" |
| Reference distance | 15 mm 0.59" |
| Z-axis (height) | ±8 mm 0.31" (F.S.=16 mm 0.63" ) |
| Weight | Approx. 450 g |
| Ambient temperature | 0 to +45 °C (32 to 113 °F) |
| Relative humidity | 85% RH or less (no condensation) |
| Vibration resistance | 10 to 57 Hz; double amplitude 1.5 mm (0.06 in); 3 h each in X, Y, Z directions |
| Ambient light | Incandescent lamp: 10,000 lux max. *9 |
| Enclosure rating | IP67 (IEC60529) *8 |
| Laser Class | CLASS 2M LASER PRODUCT |
| Laser class | Class 2M Laser Product *1 (IEC60825-1, FDA(CDRH) Part 1040.10 *2 ) |
| Material | Aluminum |
| Mounting conditions | Diffuse reflection |
| Output | 10 mW |
| Output Power | 10mW |
| Reference distance | 60 mm 2.36" |
| Safety Standard | IEC/EN 60825-1:2014 |
| Sampling cycle (trigger interval) | Top speed: 16 µs (high-speed mode), Top speed: 32 µs (advanced function mode) *7 |
| Shock resistance | 15 G/6 ms |
| Spot size (reference distance) | Approx. 21 mm × 45 µm 0.83" × 0.001772" |
| Temperature characteristics | 0.01% of F.S./°C |
| Type | Blue semiconductor laser |
| Wavelength | 405nm |
| Wavelength | 405 nm (visible beam) |
| X-axis (width) | 5 µm 0.000197" *3 *5 |
| X-axis (width) | 20 µm 0.0008" |
| Z-axis (height) | ±0.1% of F.S. *6 |
| Z-axis (height) | 0.4 µm 0.000016" *3 *4 |
