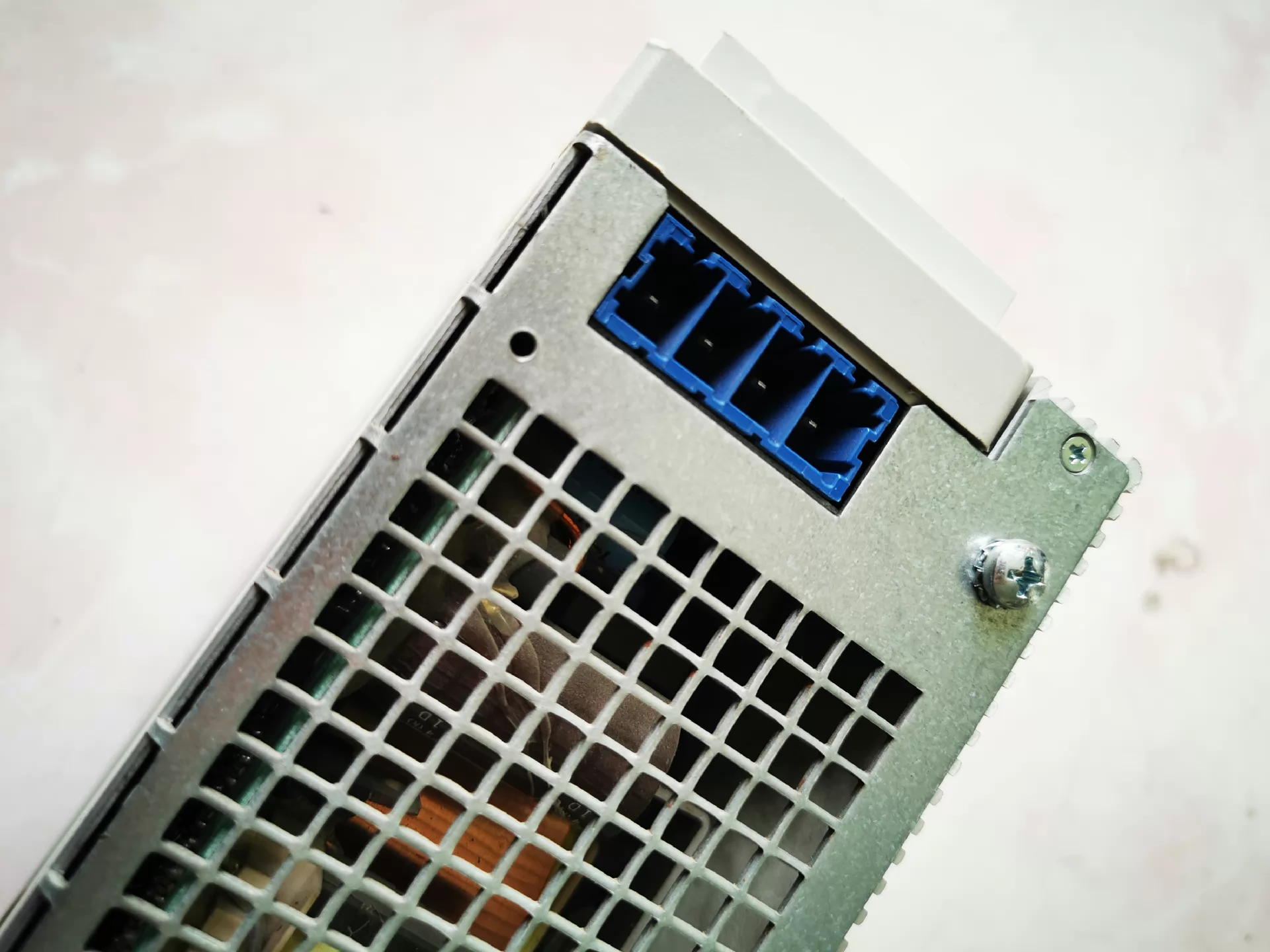

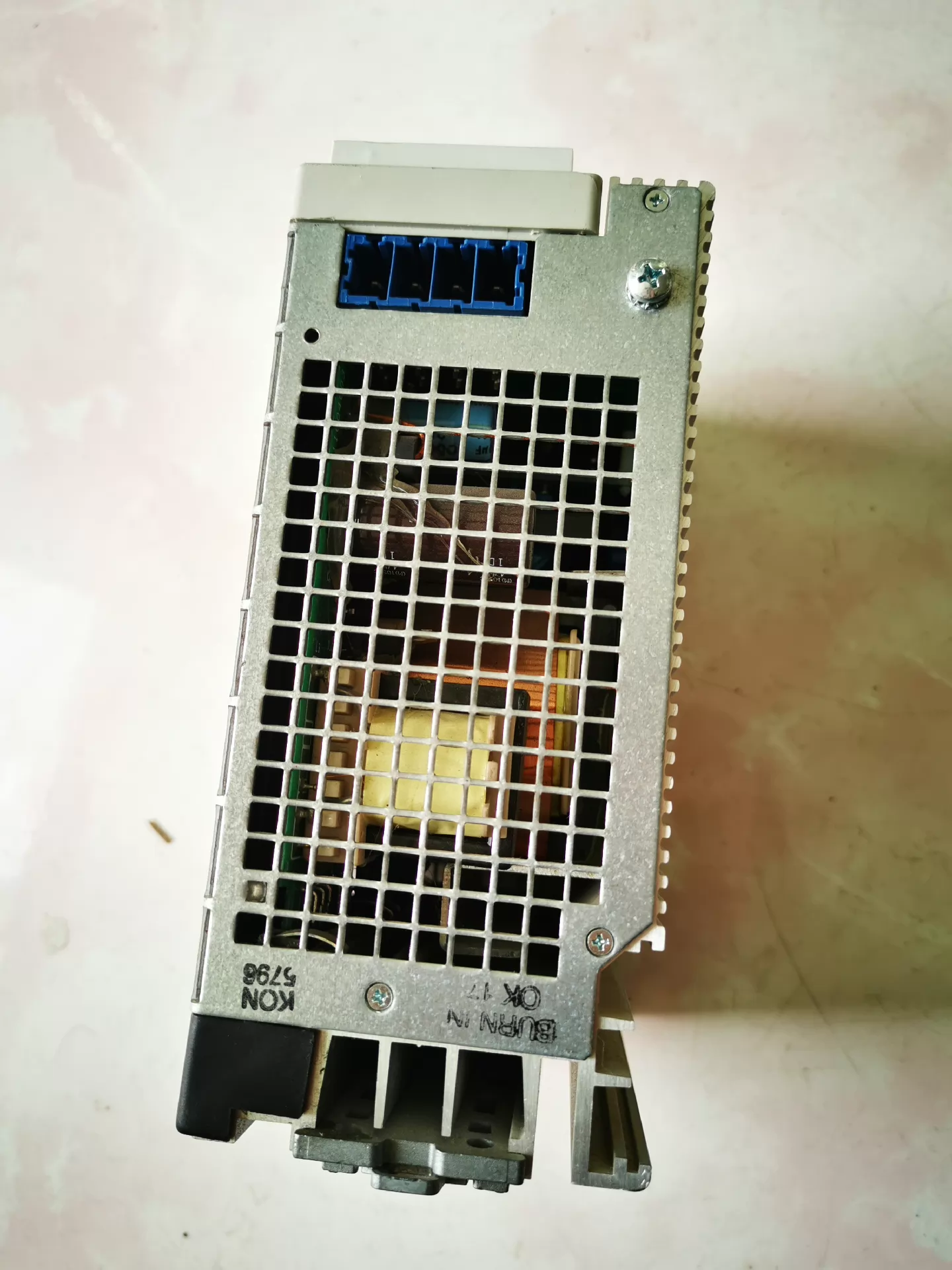

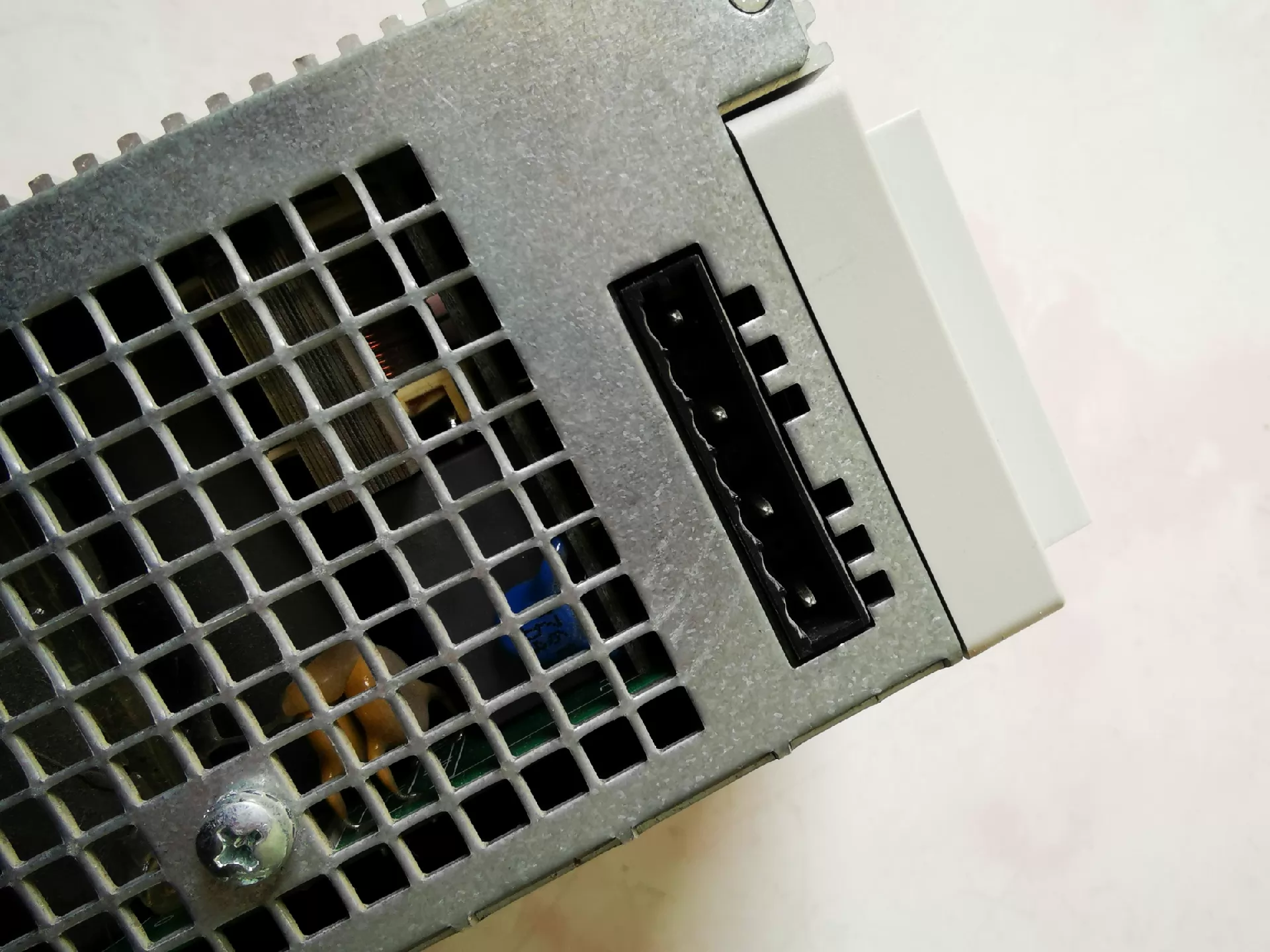

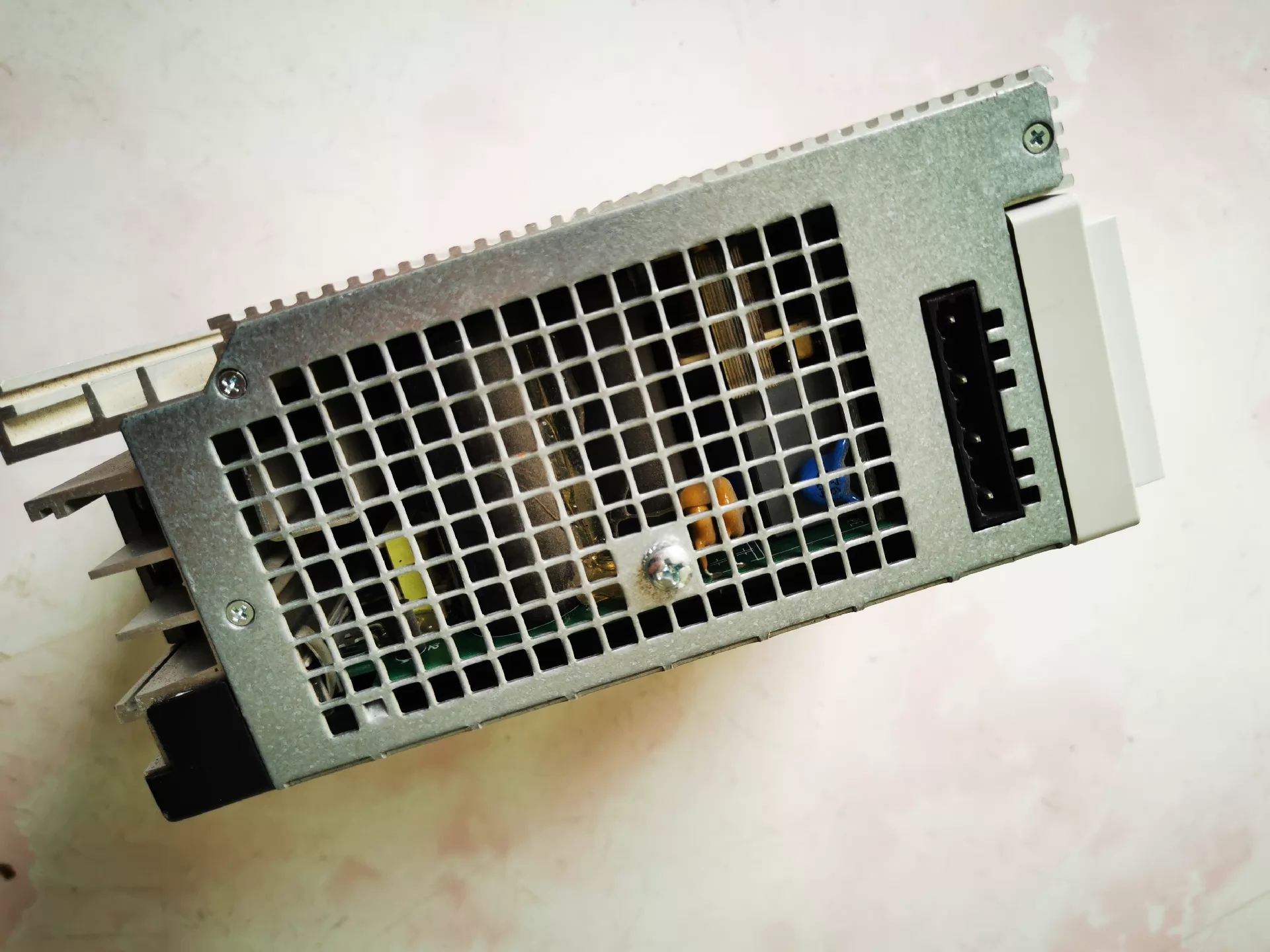

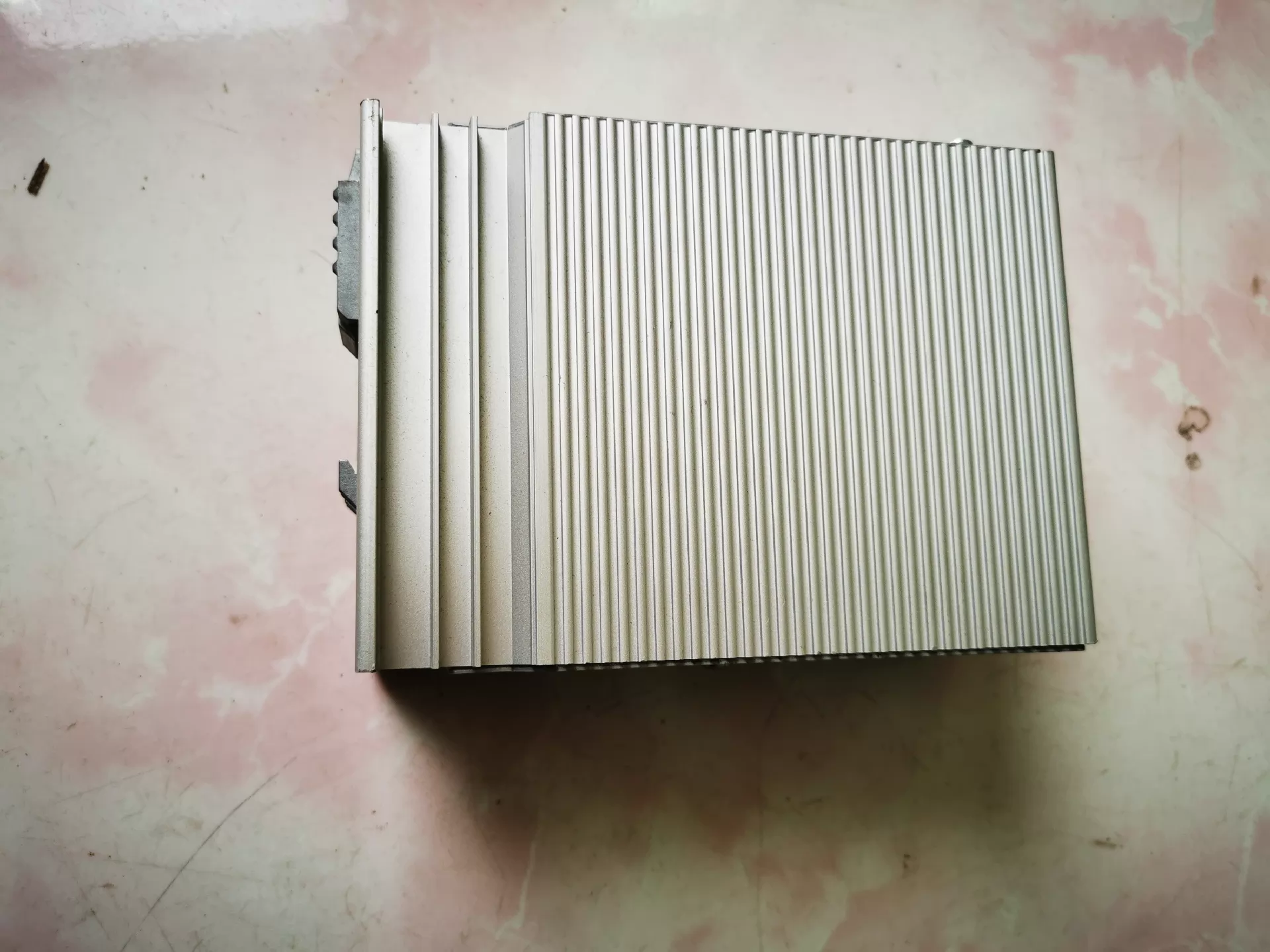

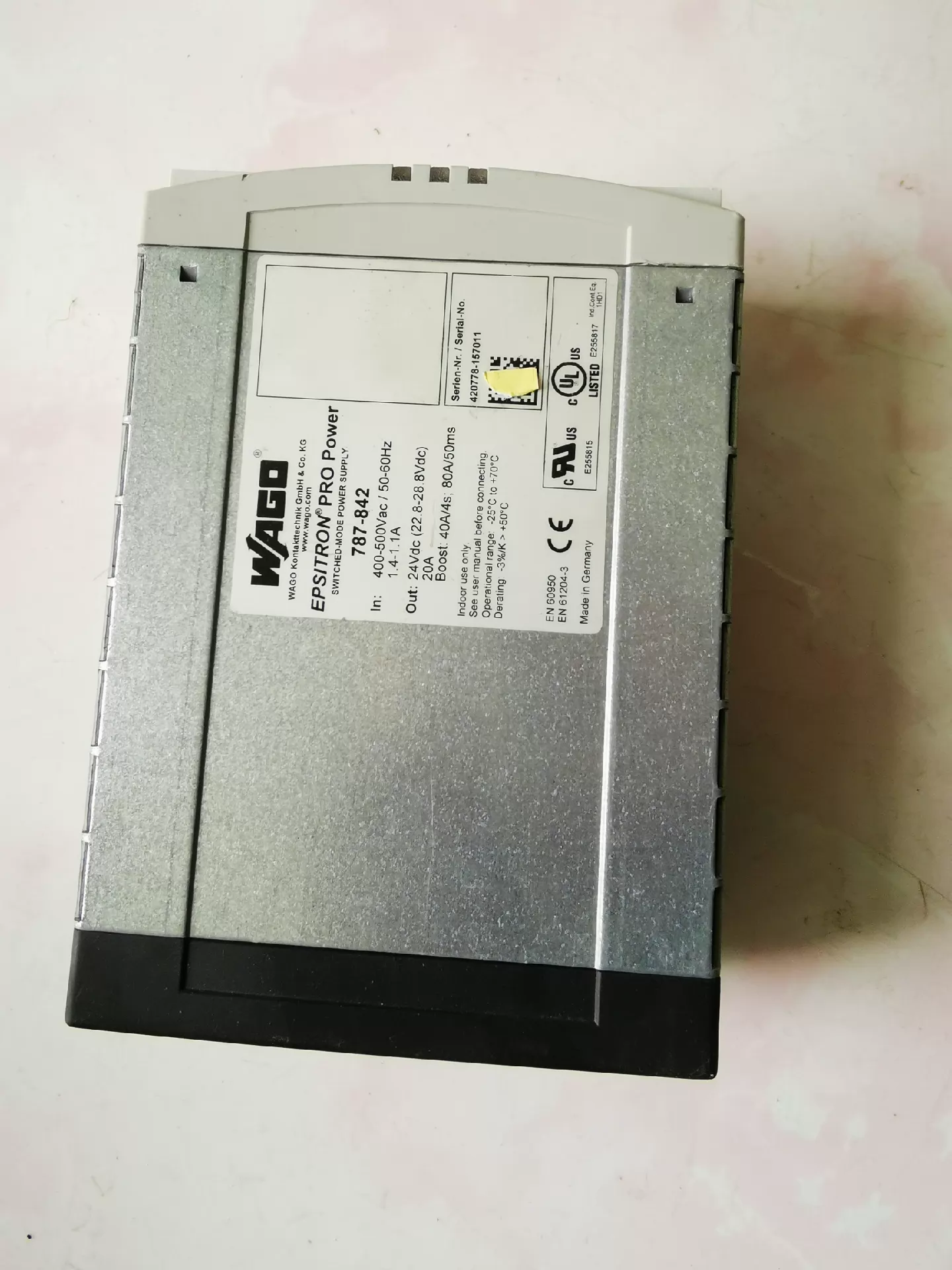

WAGO 787-842 电源
说明
WAGO 787-842 电源。
规格参数

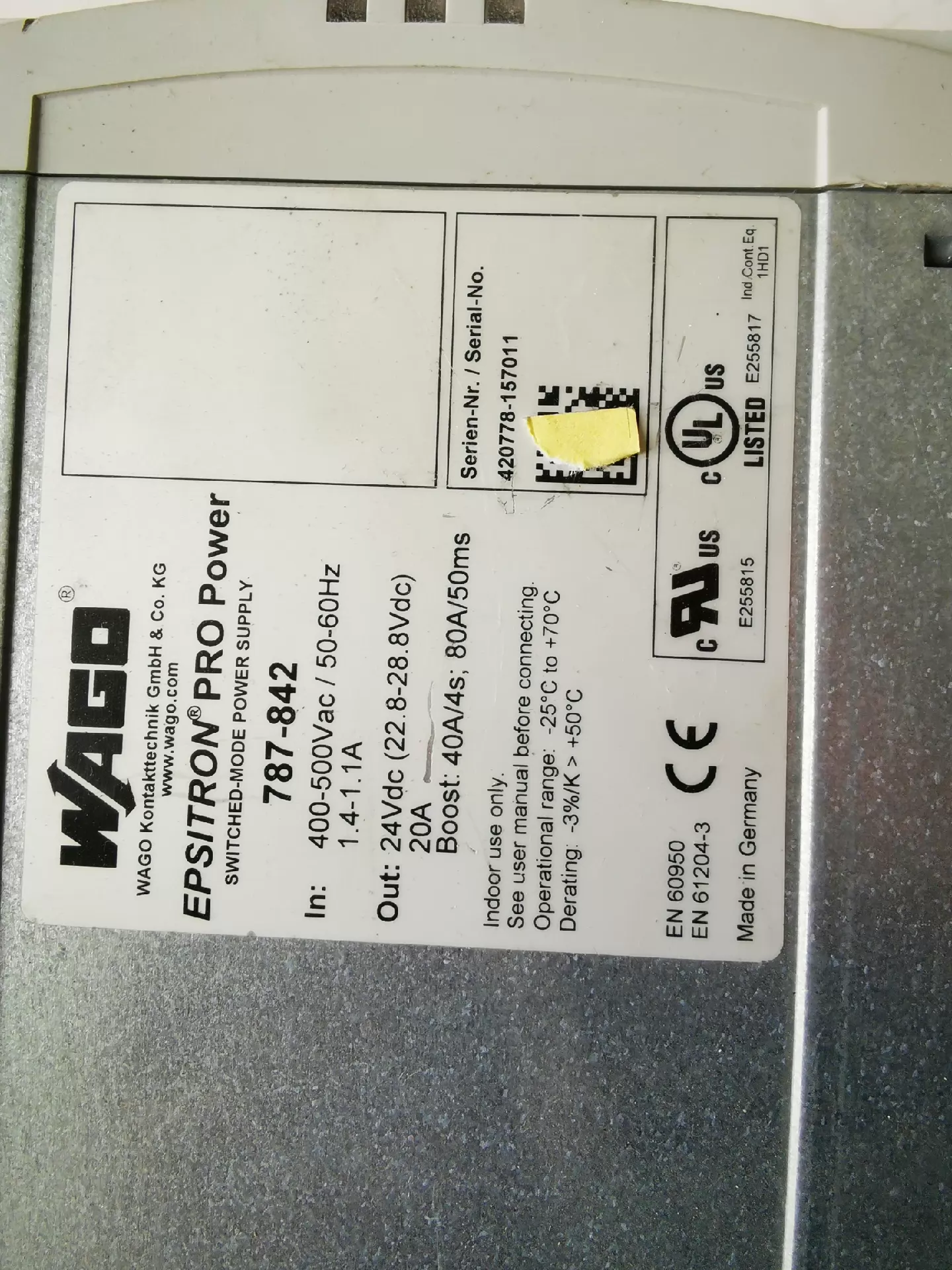

| Brand | WAGO |
|---|---|
| Model | 787-842 |
| Origin | Germany |
| In | 400-500Vac / 50-60Hz |
| Out | 24Vdc (22.8-28.8Vdc) |
| ECCN | NO US CLASSIFICATION |
| MTBF | > 500,000 h (per IEC 61709) |
| Boost | 40A/4s; 80A/50ms |
| Width | 77 mm / 3.031 inches |
| Height | 171 mm / 6.732 inches |
| Phases | 2 / 3 |
| PU (SPU) | 1 pcs |
| UNSPSC | 39,121,004 |
| Weight | 1300 g |
| Derating | -3 %/K (> 50 °C) |
| ETIM 9.0 | EC002540 |
| TopBoost | 80 ADC (50 ms) |
| Deviation | ≤ 1 % |
| ETIM 10.0 | EC002540 |
| Signaling | 1 x DC OK LED (green); 1 x Error LED (red); 1 x Stand-by input; 1 x DC OK relay contact (changeover contact) |
| eCl@ss 9.0 | 27-04-07-01 |
| PowerBoost | 40 ADC (4 s); 30 ADC (16 s) |
| eCl@ss 10.0 | 27-04-07-01 |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Input current | 1.4-1.1 A |
| Internal fuse | 3 x T 2.5 A / 440 VAC |

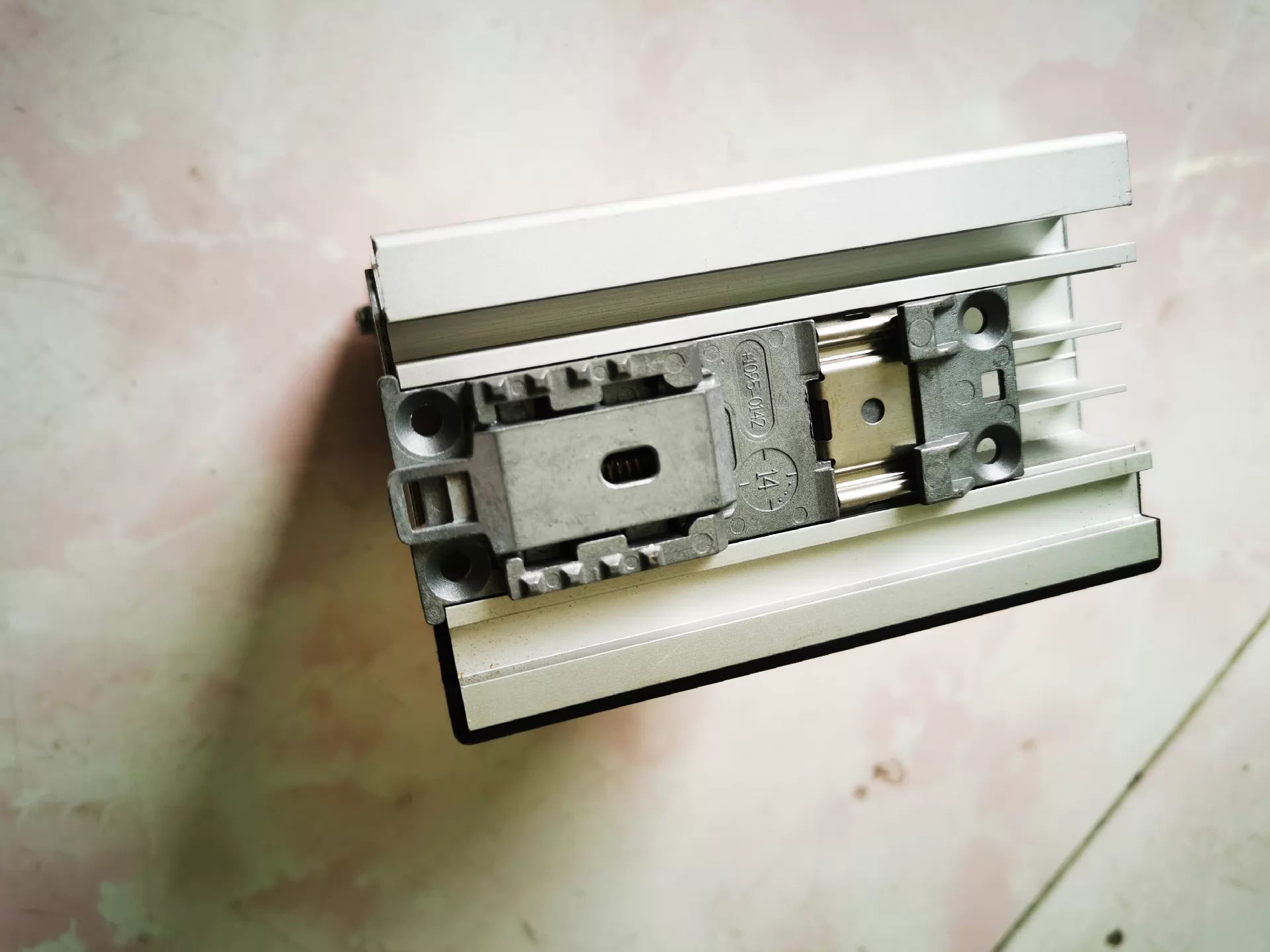

| Mounting type | DIN-35 rail |
| Efficiency (typ.) | 92.9 % |
| Inrush current | ≤ 30 A |
| Output current | 20 A |
| Strip length | 13 … 15 mm / 0.51 … 0.59 inches |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
| WAGO connector | WAGO 231 Series |
| Connection type | Input |
| Default Setting | 24 VDC |
| Protection type | IP20; per EN 60529 |
| Residual ripple | ≤ 70 mV (peak-to-peak) |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Pollution degree | 2 |
| Protection class | I |
| Series operation | Yes |
| WAGO connector | WAGO 831 Series |
| WAGO connector | WAGO 733 Series |
| Climatic category | 3K3 (per EN 60721) |
| Connection type | Output |
| Connection type | Signaling |
| Overload behavior | TopBoost/PowerBoost/Constant current mode |
| Pre-fuse (required) | An external DC fuse is required for the DC input voltage. |
| Relative humidity | 5 … 96 % (no condensation permissible) |
| Solid conductor | 0.5 … 10 mm² / 20 … 8 AWG |
| Solid conductor | 0.08 … 0.5 mm² / 28 … 20 AWG |
| Conformity marking | CE |
| Current limitation | 1.1 x Io nom (typ.) |
| Open-circuit-proof | Yes |
| Parallel operation | Yes |
| Input voltage range | (2 / 3) x 340 … 550 VAC; 480 … 780 VDC |
| Nominal output power | 480 W |
| Output voltage range | 22.8 … 28.8 VDC (adjustable) |
| Overvoltage category | II |
| Connection technology | CAGE CLAMP® |
| Power loss Pl | ≤ 8.3 W; ≤ 34.1 W (nominal load) |
| RoHS Compliance Status | Compliant,No Exemption |
| Backup fuse (recommended) | 3 x Circuit breaker: 6 A, 10 A, 16 A; Tripping characteristic: B or C; Alternative: motor circuit breaker; Setpoint: 2.5 A; Setting range: 2.5 … 4 A |
| Connection technology | Push-in CAGE CLAMP® |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Short-circuit-protected | Yes |
| Isolation voltage (pri.-PE) | 2.2 kVDC |
| Isolation voltage (sec.-PE) | 0.7 kVDC |
| Standards/specifications | EN 61010-1; EN 61010-2-201; EN 61204-3; EN 61558-2-16; UL 60950; UL 508 |
| Fine-stranded conductor | 0.5 … 10 mm² / 20 … 8 AWG |
| Fine-stranded conductor | 0.08 … 0.5 mm² / 28 … 20 AWG |
| Input current Ii | ≤ 3 x 1.1 A (340 VAC; 20 ADC) |
| Isolation voltage (pri.-sec.) | 4.242 kVDC |
| Mains failure hold-up time | ≥ 13 ms (3 x 400 VAC) |
| Operation status indicator | Green LED (DC OK); Red LED (error) |
| Resistance to reverse feed | ≤ 35 VDC |
| Ambient temperature (storage) | -25 … +85 °C |
| Power factor correction (PFC) | Passive |
| Ambient temperature (operation) | -25 … +70 °C (Device starts at -40 °C (type-tested)) |
| Nominal mains frequency range | 50 … 60 Hz; 0 Hz |
| Transient suppression (primary) | Varistor |
| Depth from upper-edge of DIN-rail | 179 mm / 7.047 inches |
| Nominal input voltage Ui nom | (2 / 3) x 400 … 500 VAC |
| Nominal output current Io nom | 20 A (24 VDC) |
| Nominal output voltage Uo nom | 24 VDC (SELV) |
