SICK GTB10-P1212 1065856 - 全新
说明

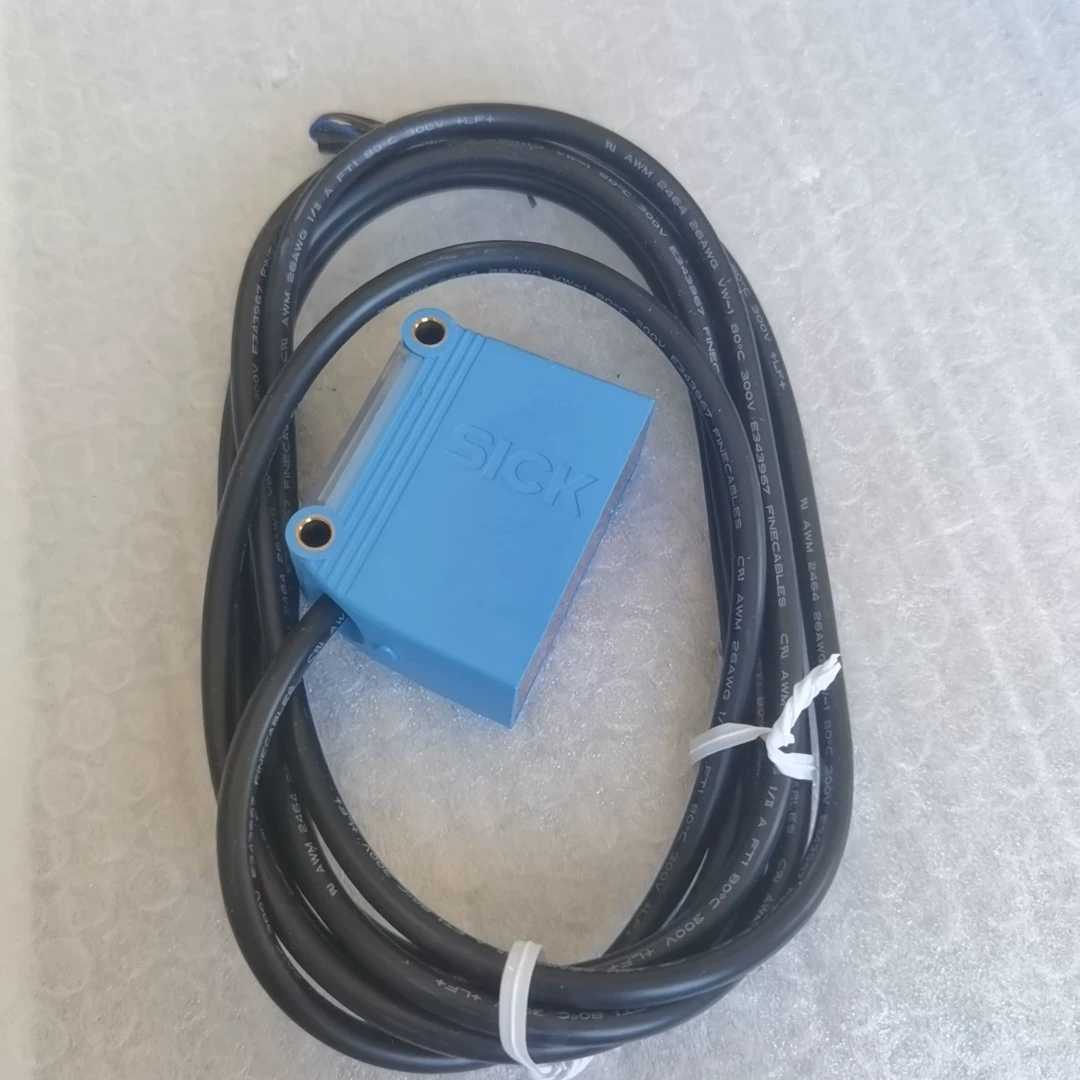

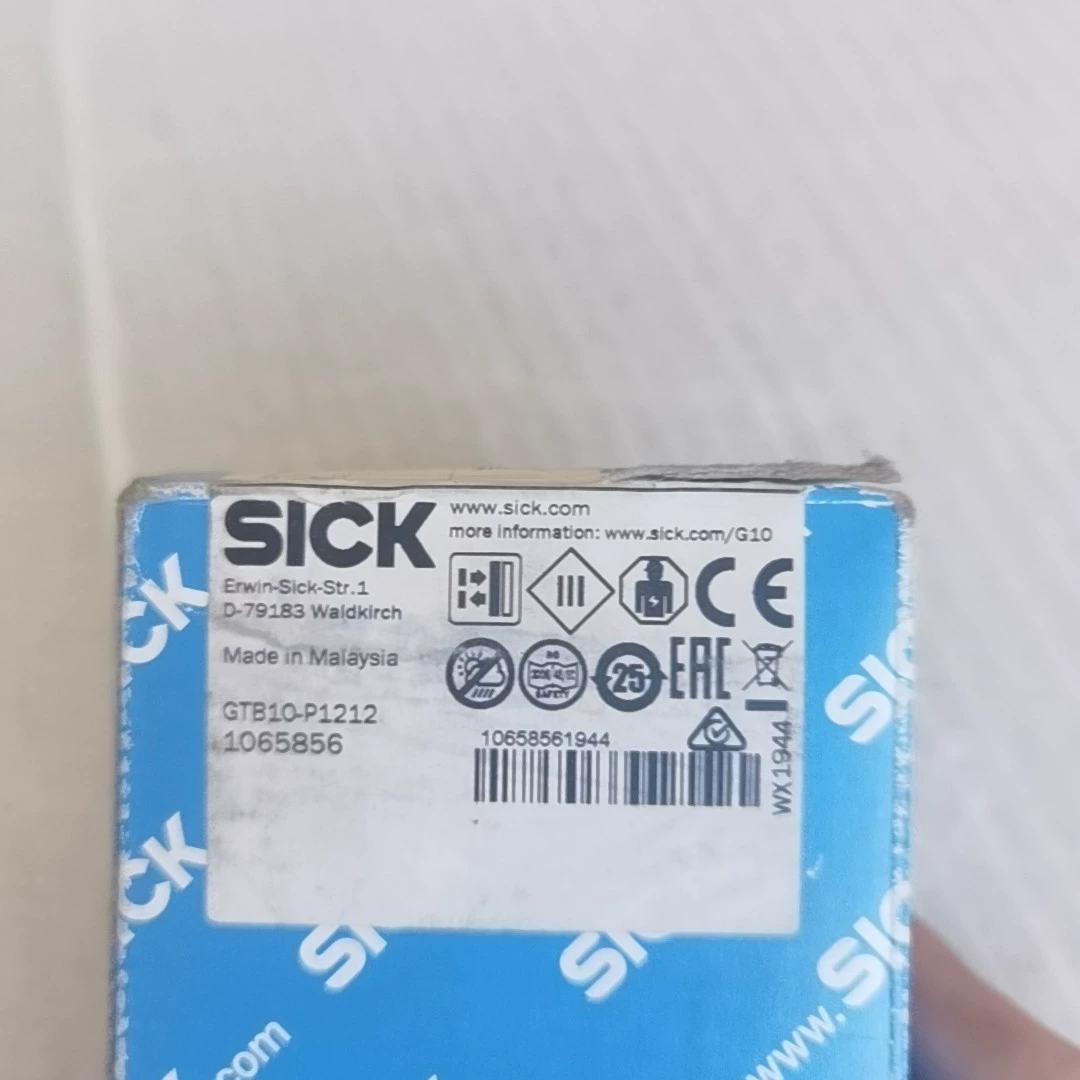

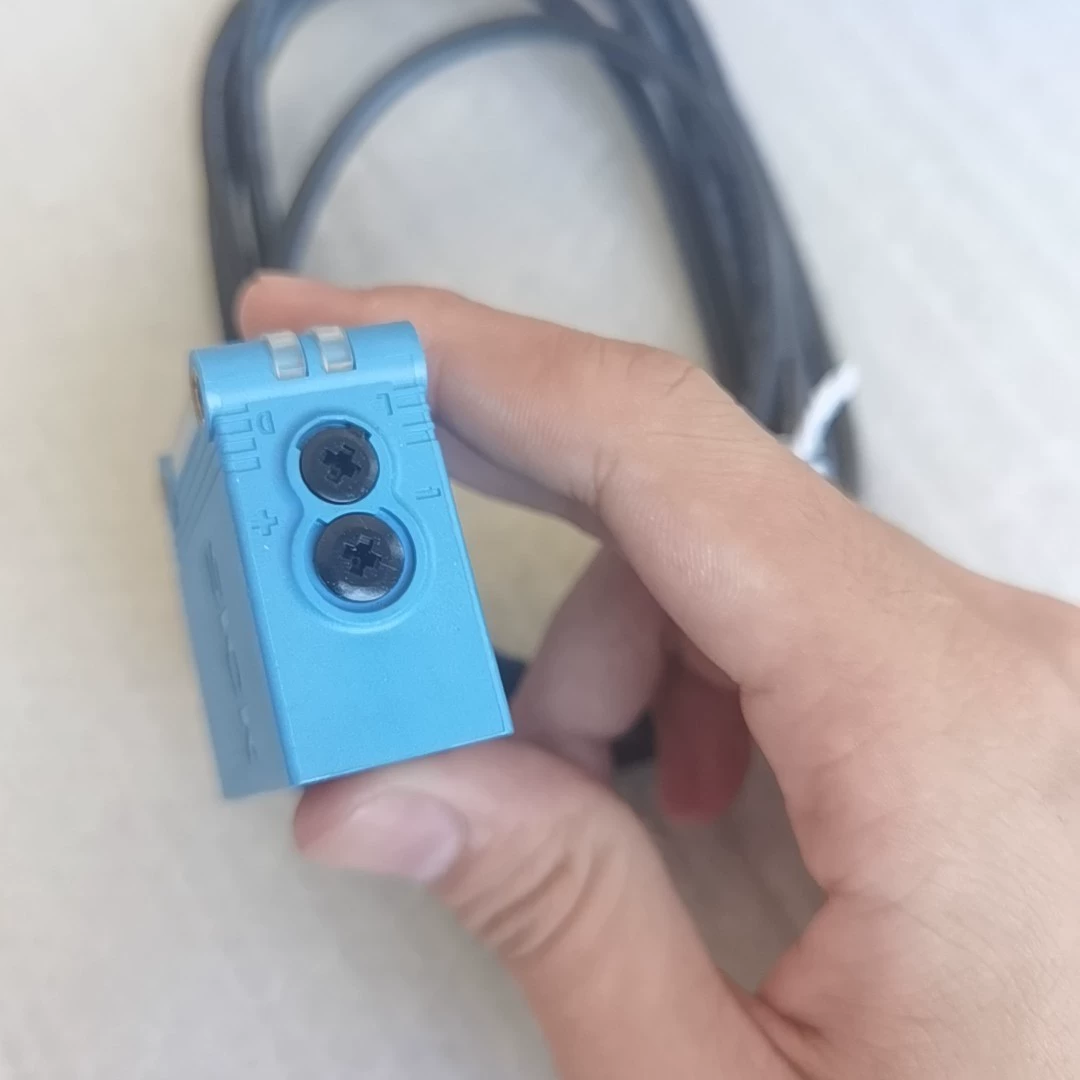

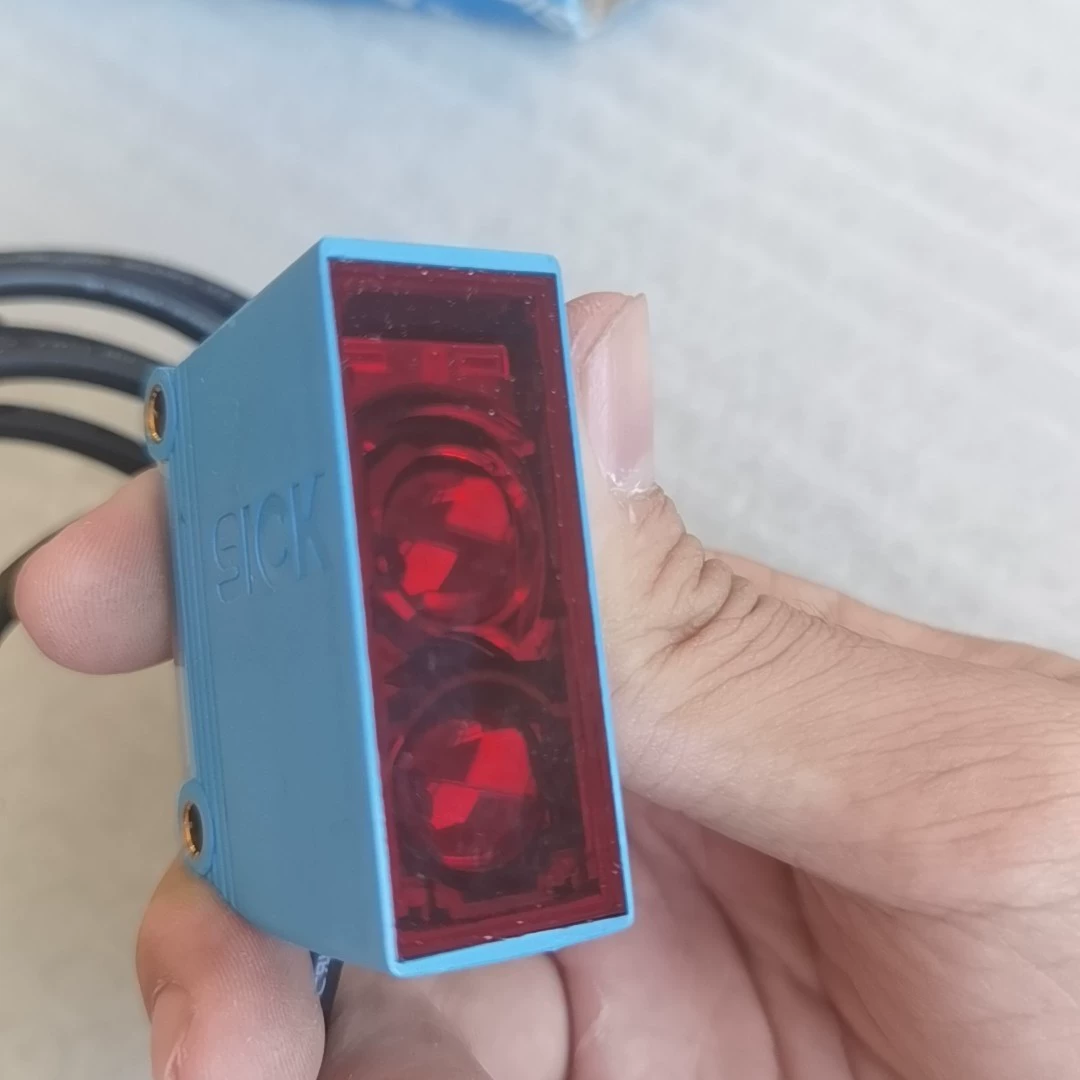

全新 SICK GTB10-P1212 光电传感器，型号 1065856。配有原包装和 2 米电缆。电源电压：10–30 VDC 2 类。
规格参数
| Brand | SICK |
|---|---|
| Model | GTB10-P1212 |
| MPN | 1065856 |
| Origin | Malaysia |
| Connection type | cable |
| Supply Voltage | 10–30 VDC class2 |
| Response time | ≤ 500 µs |
| Continuous Output Current | max. 100 mA |
| Switching frequency | 1000 Hz |
| Weight | 90 g |
| Operating Temperature | -30°C ... +60°C |
| Ambient operation temperature max. | 60 °C |
| Connection type detail | Cable, 3-wire |
| Dimension length | 50 mm |
| Dimension width | 20 mm |
| Enclosure rating | IP67 |
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Housing | rectangular |
| Housing material detail | ABS/PMMA |
| Light source | LED |
| Object distance max. | 950 mm |
| Object distance min. | 20 mm |
| Sensing Range R 6 | 100...525mm |
| Sensing Range R 90 | 100...950mm |
| SICK article code | p342967 |
| SICK type | GTB10-P1212 |
| Switching mode | Light/dark switching |
| Switching output | PNP |
| Type of light | visible red light |
