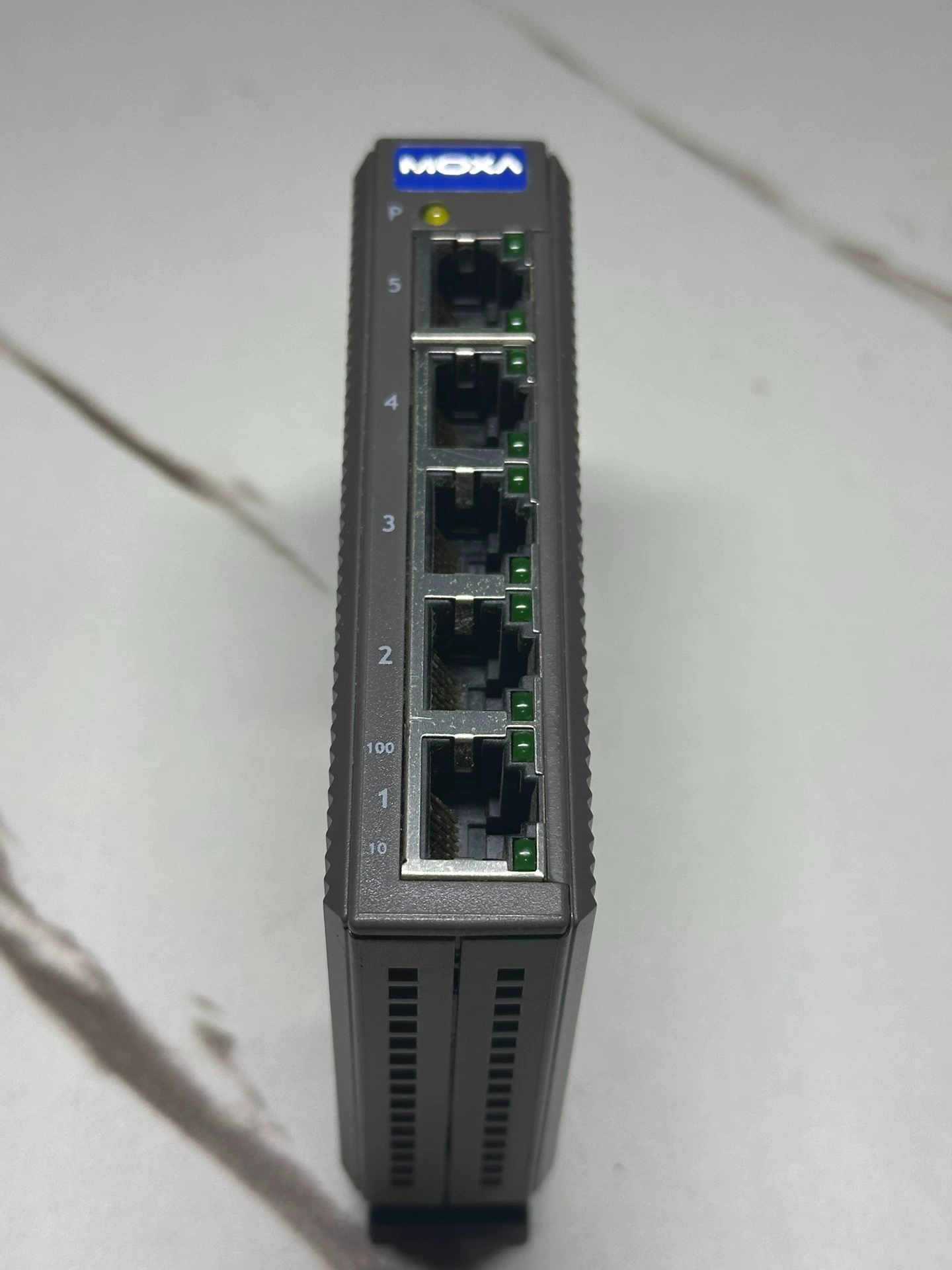

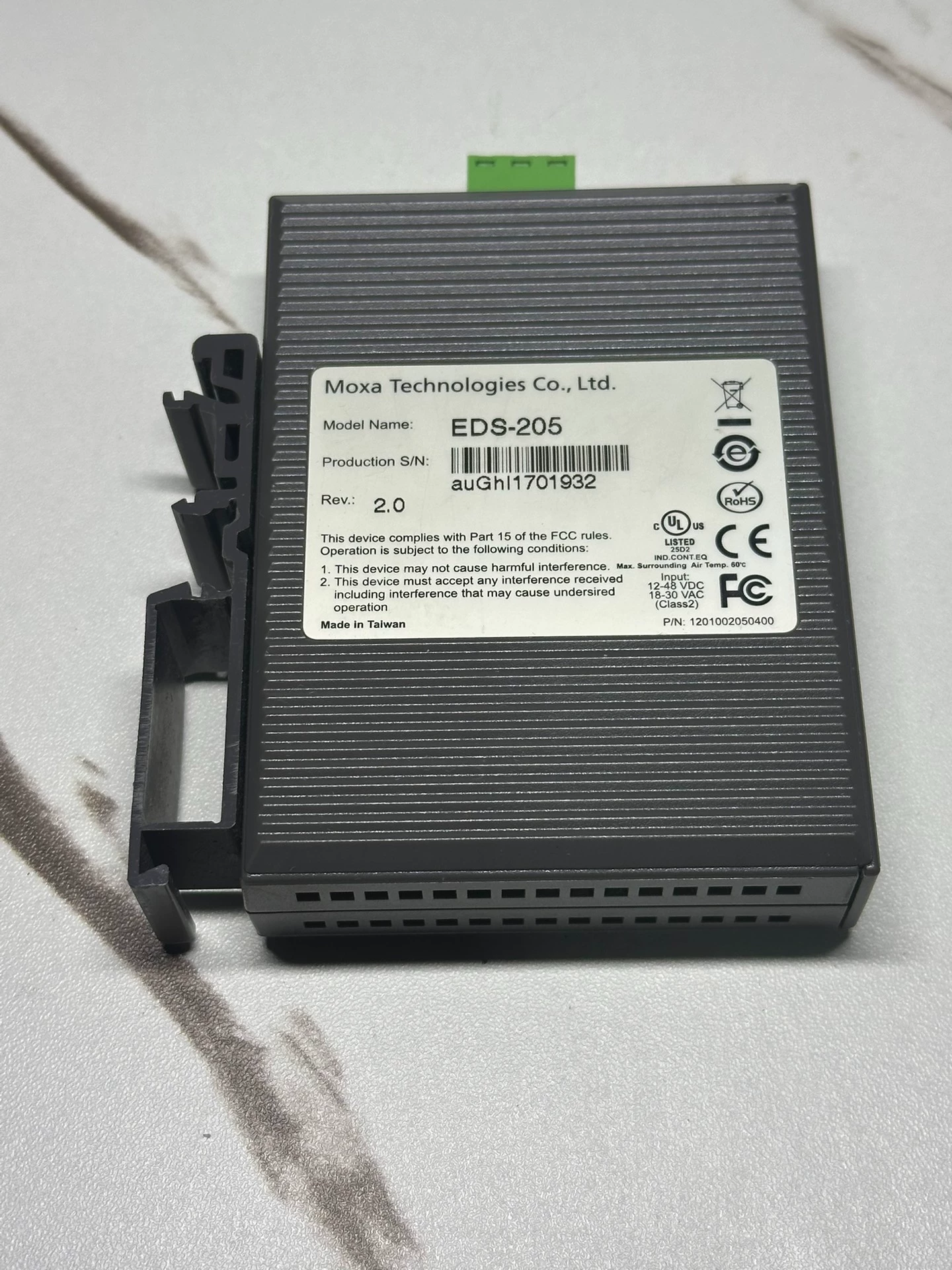

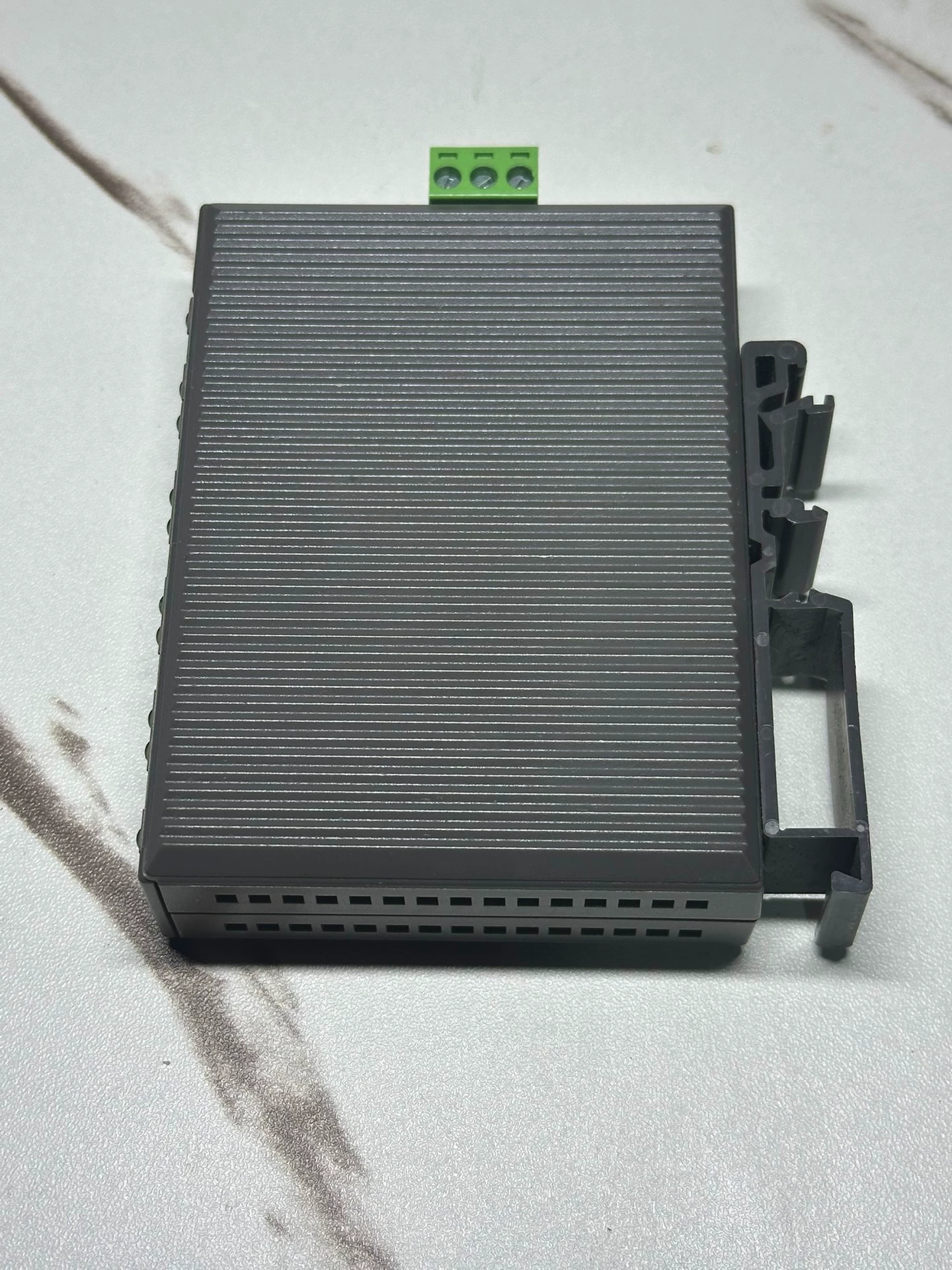

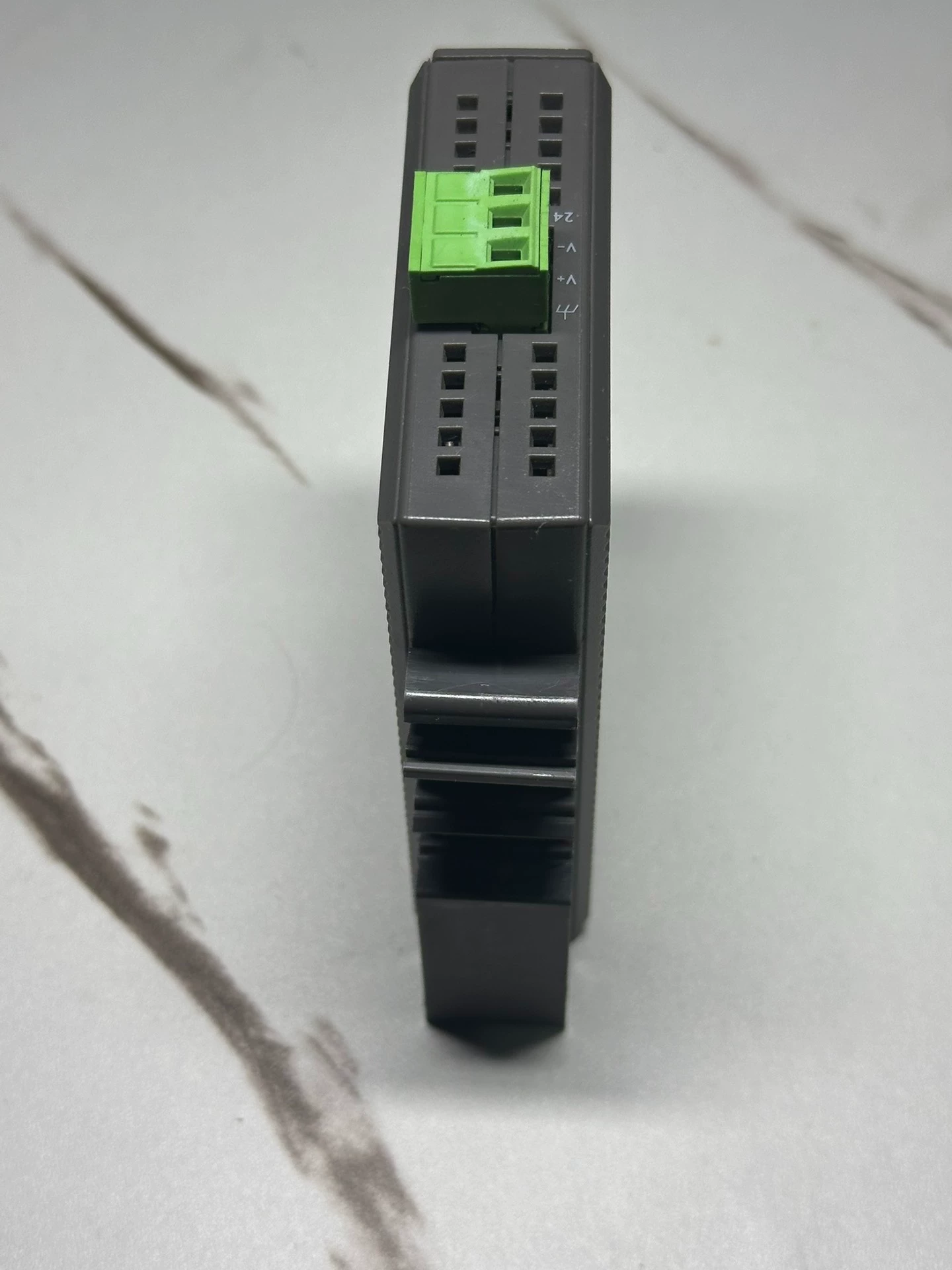

Moxa EDS-205 1201002050400 - 二手
说明
二手Moxa EDS-205 1201002050400。Moxa EDS-205 非网管型工业以太网交换机，零件号 1201002050400。这款 5 端口交换机支持 12 至 48 VDC 输入，功耗最高 5 W。
规格参数
| Brand | Moxa |
|---|---|
| Model | EDS-205 |
| MPN | 1201002050400 |
| HS Code | 851762 |
| Origin | Taiwan |
| Power Consumption | 5 W |
| Input Voltage | 12 to 48 VDC |
| Input Current | 0.12 A @ 24 V |
| Dimensions | 25 x 109 x 88 mm |
| Weight | 135 g |
| Operating Temperature | -10 to 60°C |
| Storage Temperature | -40 to 70°C (-40 to 158°F) |
| Overload Current Protection | 1.1 A |
| Reverse Polarity Protection | Present |
| 10/100BaseT(X) Ports (RJ45 connector) | 5 ports |
| Address Table Size | 1K unicast addresses |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Casing | IP30 protection, plastic housing |
| Connection | Removable 3-contact terminal block |
| Housing Material | Plastic |
| Installation | DIN-rail mounting |
| IP Rating | IP30 |
| Max Surrounding Air Temp | 60 °C |
| Processing Type | Store and Forward, with IEEE802.3x full duplex, non-blocking flow control |
| Revision | 2.0 |
| RJ45 Ports | 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection |
| Standards | IEEE802.3, 802.3u, 802.3x |
