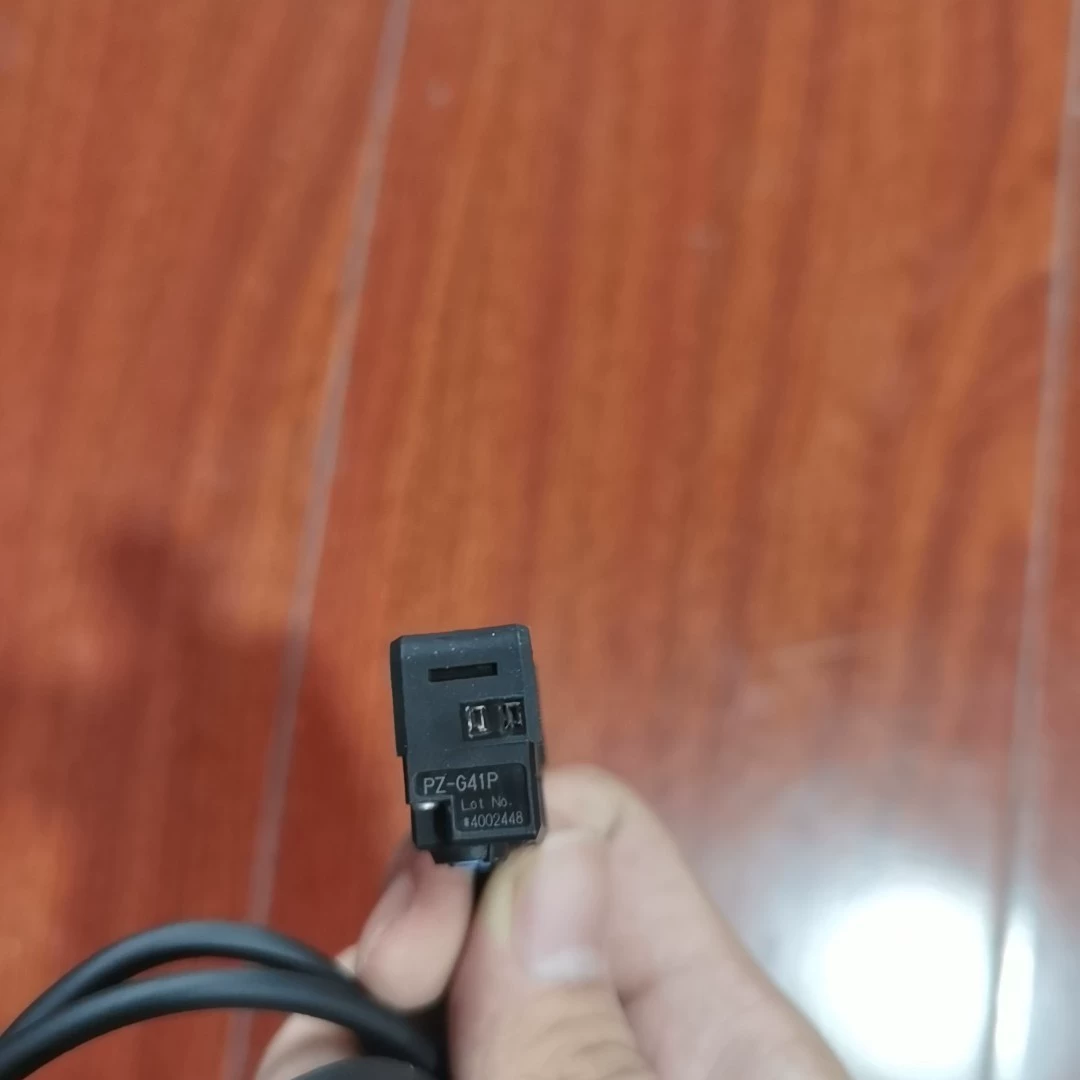

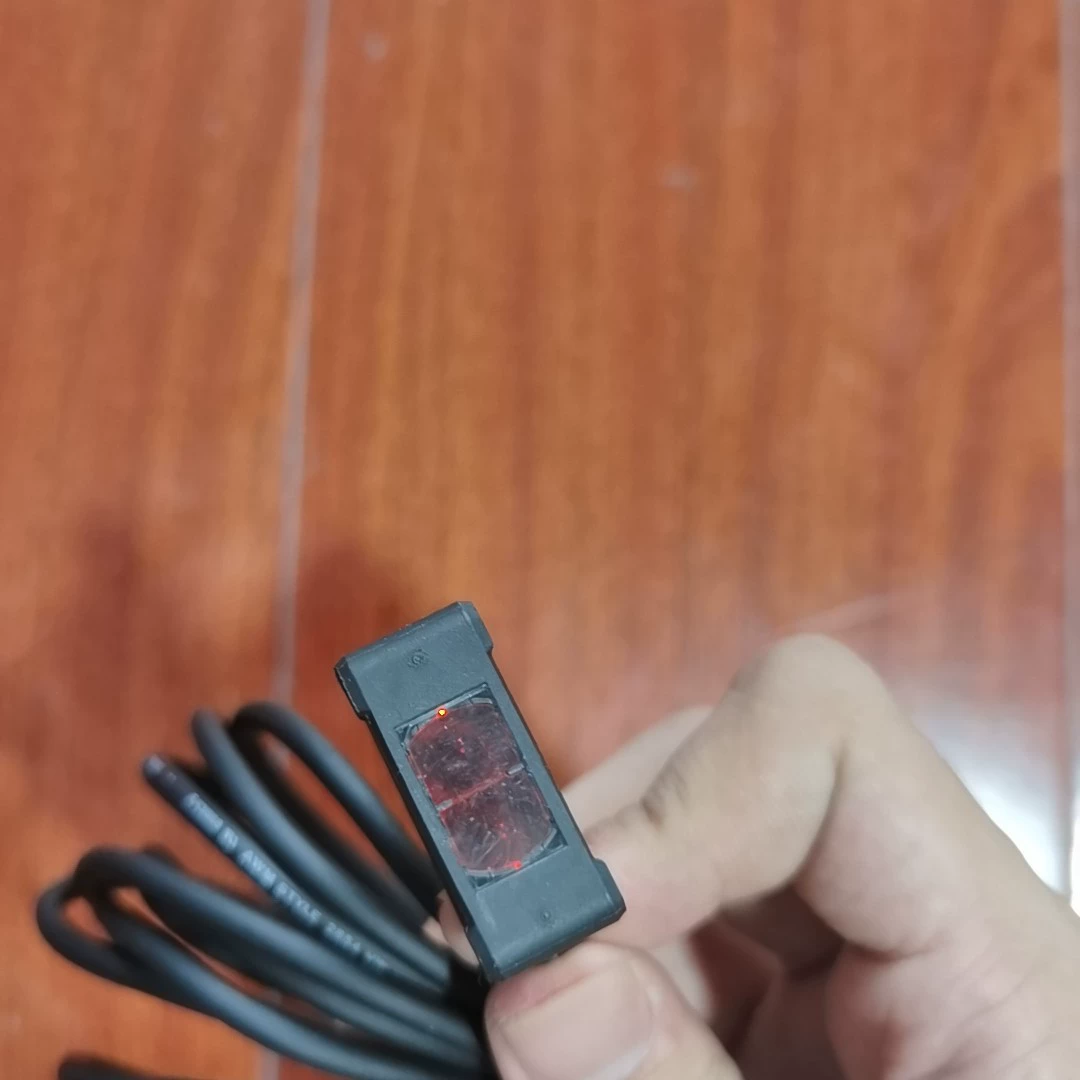

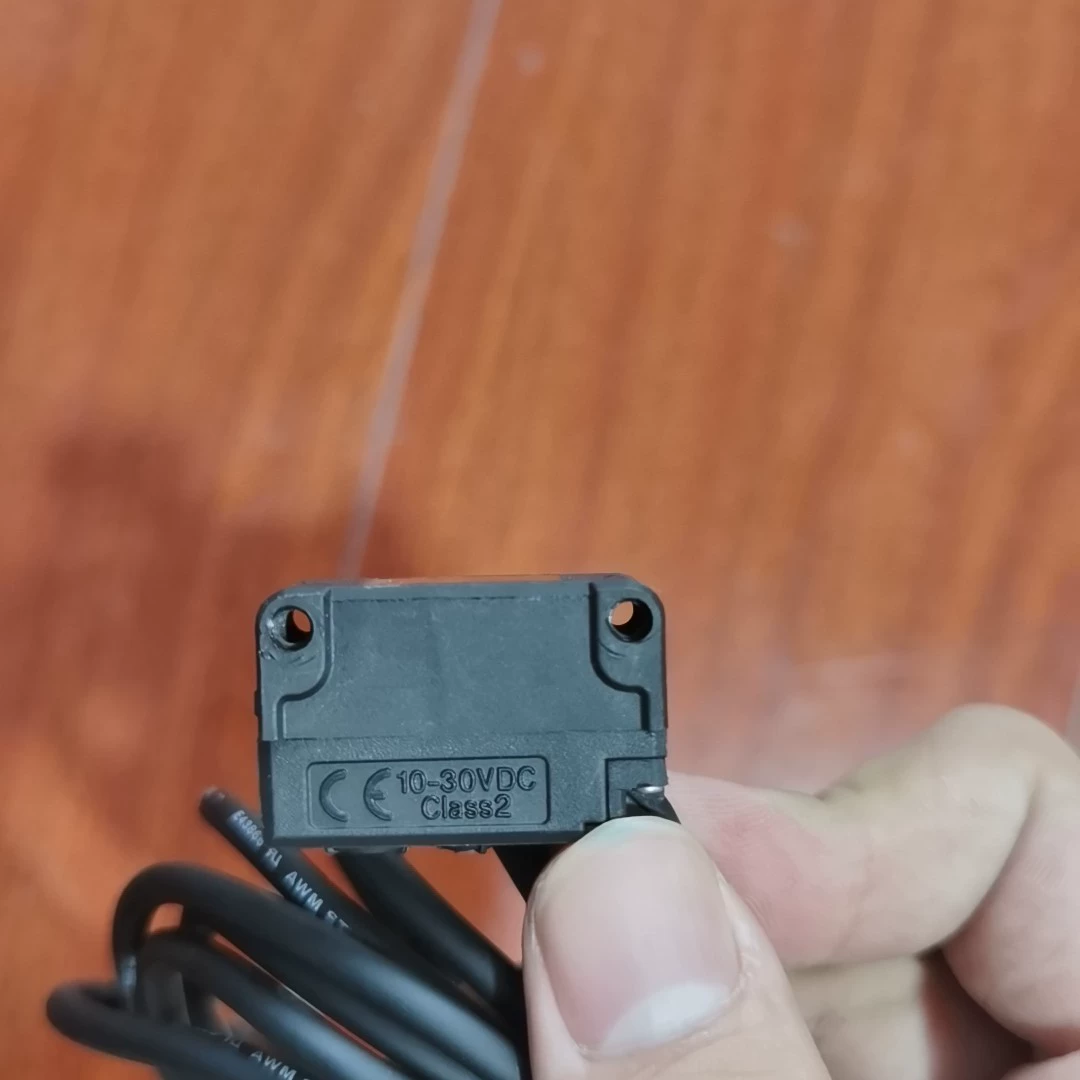

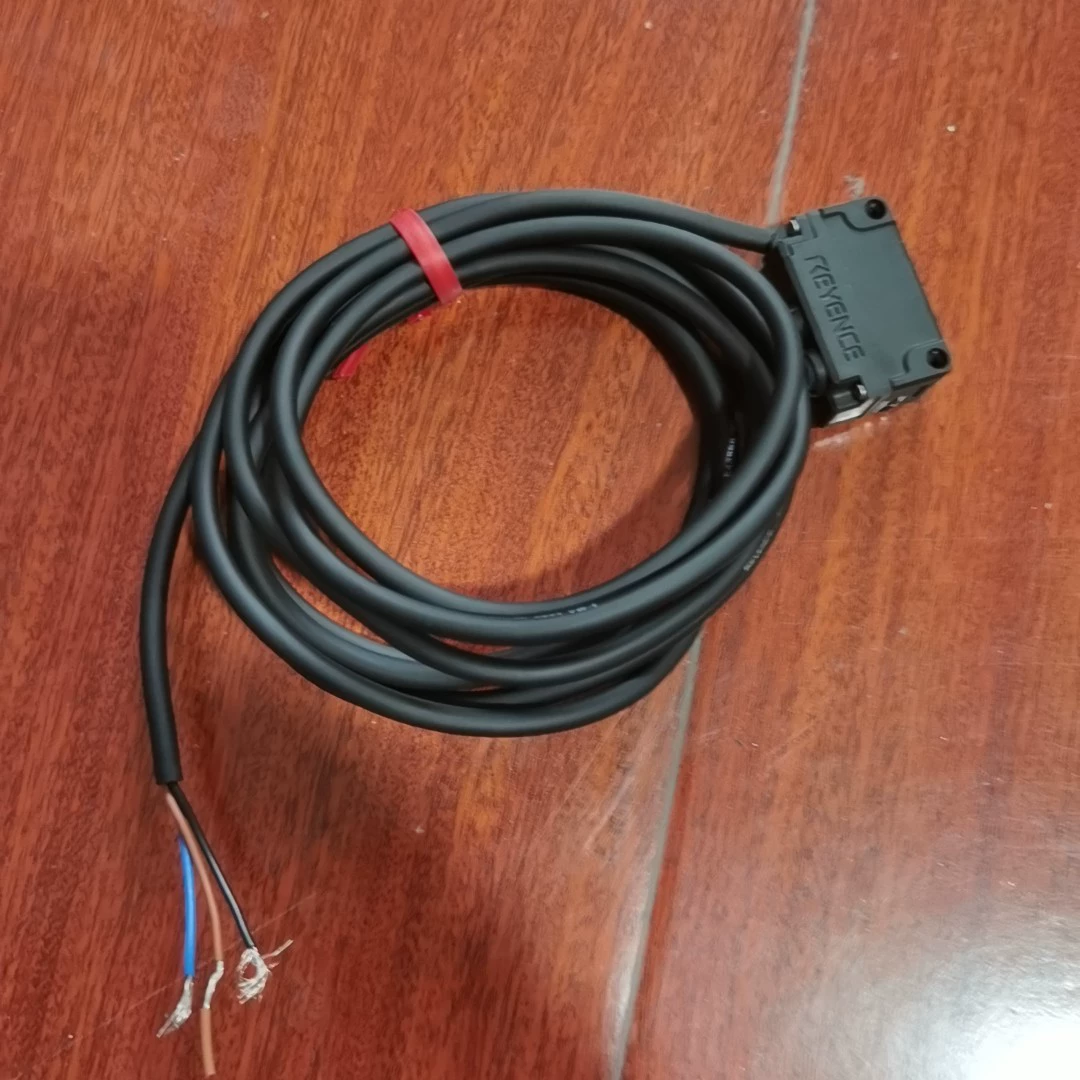

Keyence PZ-G41P 光电传感器 - 二手
说明
Keyence PZ-G41P 二手光电传感器，额定电源电压 10-30 VDC。
规格参数
| Brand | Keyence |
|---|---|
| Model | PZ-G41P |
| Supply Voltage | 10-30 VDC |
| Response time | 500 µs |
| Power voltage (rating) | 10 to 30 VDC, including Ripple (P-P) 10 % |
| Weight | Rectangular cable models: Approx. 60 g (Thrubeam-models transmitter: Approx. 50 g) |
| Ambient temperature | -20 to +55 °C (-4 to 131 °F); no freezing |
| Relative humidity | 35 to 85 % RH (No condensation) |
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm (0.06 in); 2 h each in X, Y, Z directions |
| Ambient light | Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max. |
| Cable (cable models only) | Polyvinyl chloride (PVC) |
| Cable connection | Cable (2 m 78.74" ) *1 |
| Case connection | Screw: Nickel-plated iron and zinc, packing: nitrile butadiene rubber (NBR) |
| Class | Class2 |
| Control output | Open collector output, 30 V max., 100 mA max., Residual voltage: 1 V max. |
| Current consumption | ≤34 mA |
| Detecting distance | 1 m 3.3' (When detecting 30 x 30 cm 11.81"x11.81" white paper) |
| Enclosure rating | IEC: IP67/NEMA: 4A, 6, 12/DIN: IP69K |
| Indicators (LED) | Output: Orange LED, Stable operation: Green LED |
| Interference suppression | Up to 2 units (with the automatic different frequency function) |
| Lens cover | Polyarylate (PAR) |
| Light source | Red LED |
| Material | Glass-fiber reinforced PBT |
| Operation mode | LIGHT-ON/DARK-ON (switch-selectable) |
| Output | PNP |
| Protection circuit | Reversed polarity, overcurrent protection, surge absorber |

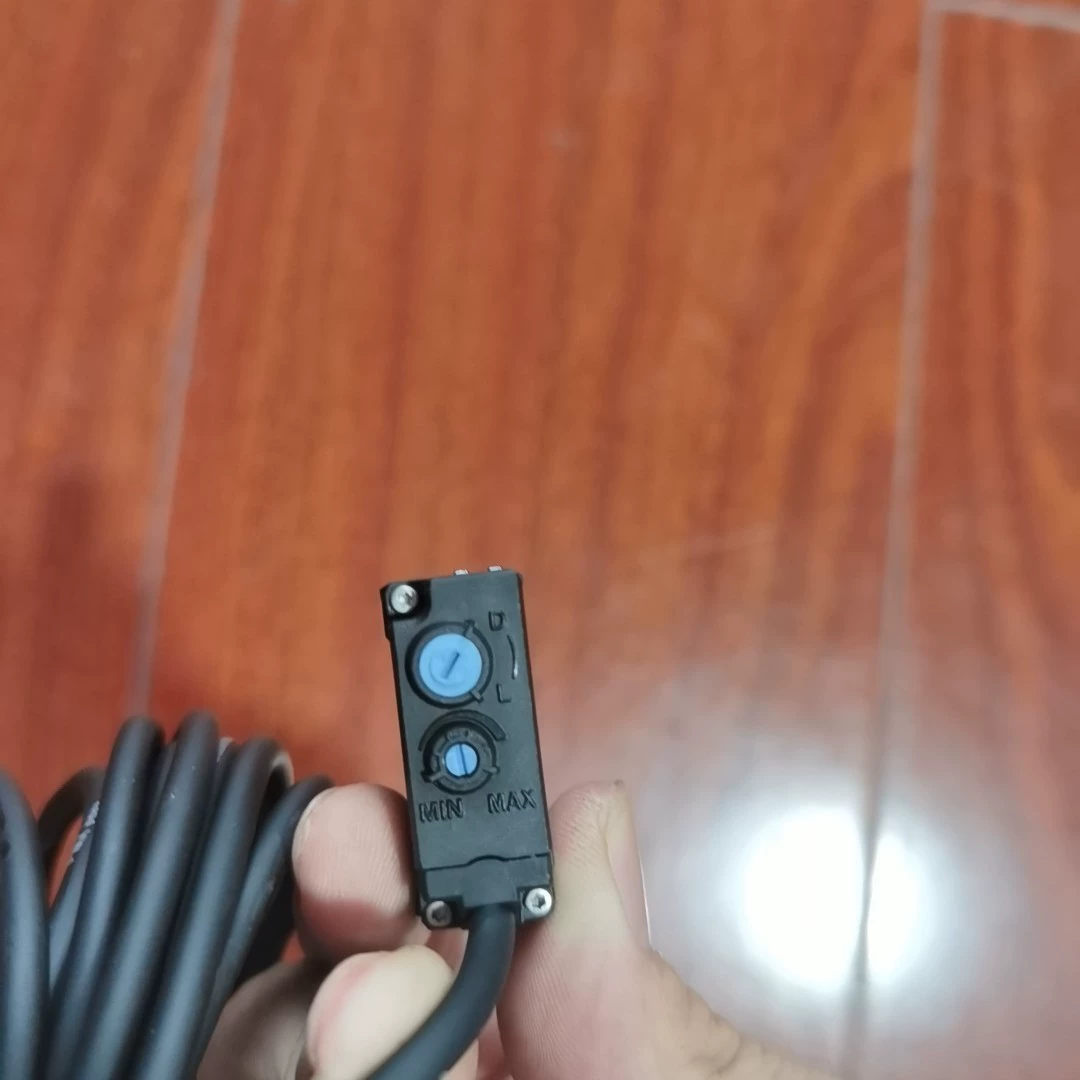

| Sensitivity adjustment | 1-turn trimmer (230°) |
| Shape | Rectangular |
| Shock resistance | 1,000 m/s²; 6 times each in X, Y, Z directions |
| Tightening torque | Rectangular models (Mounting hole part): 0.5 N m max. |
| Trimmer | Glass-fiber reinforced polyamide (PA) |
| Type | Diffuse Reflective Long-range |
