Beckhoff EL9410 - 二手
说明

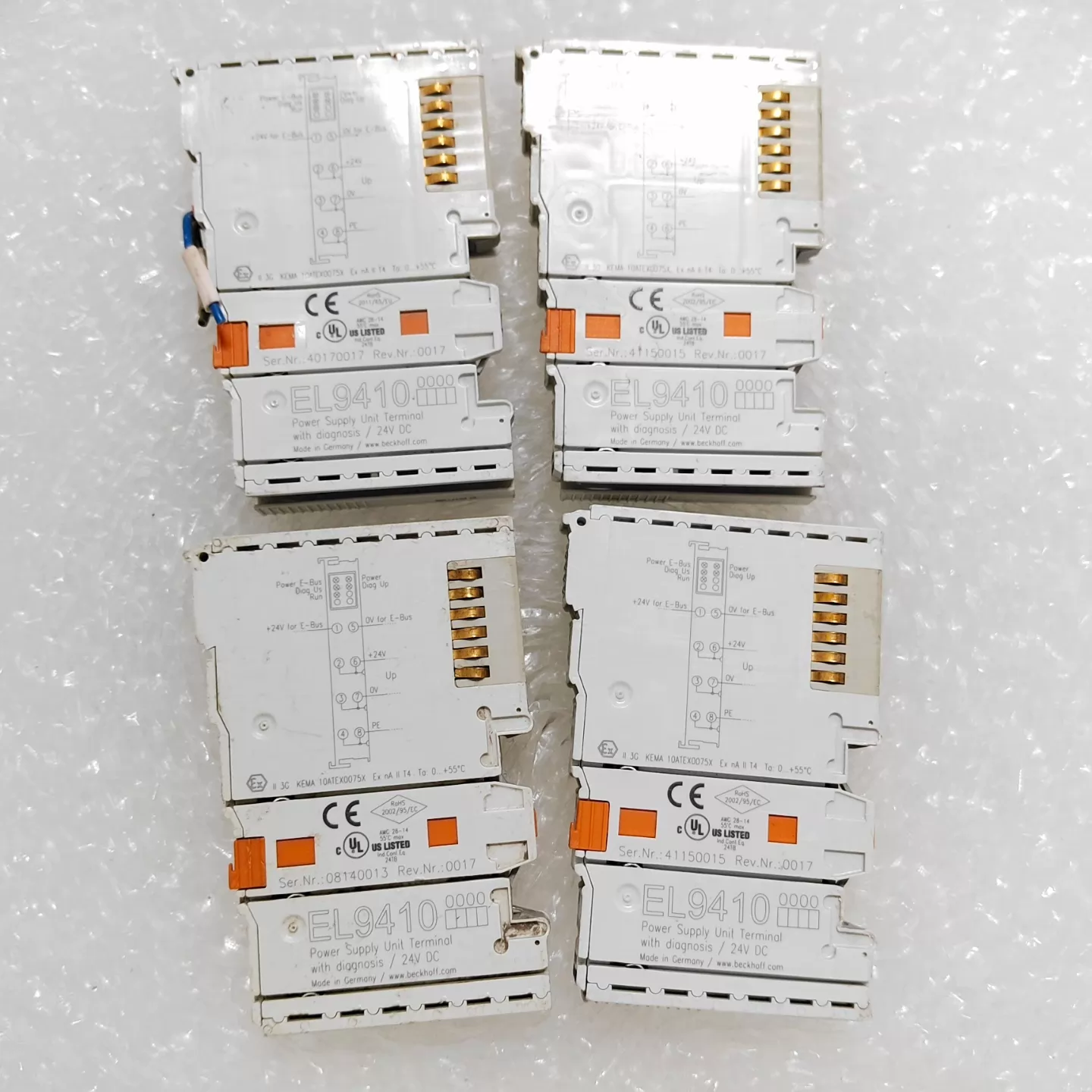

Beckhoff EL9410 二手模块，拆机件。支持 24 V DC 输入（范围 -15%/+20%），输出电流 2 A。有可见使用痕迹。
规格参数
| Brand | Beckhoff |
|---|---|
| MPN | EL9410 |
| Origin | Germany |
| Supply Voltage | 24 V DC |
| Power contacts | max. 24 V DC/max. 10 A |
| Input voltage | 24 V DC (-15%/+20%) |
| Input current | typ. 70 mA + (E-bus/4) |
| Output current | 2 A |
| Weight | approx. 65 g |
| Operating temperature | -25…+55 °C |
| Storage temperature | -40…+85 °C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Ex marking | ATEX: II 3G Ex ec IIC T4 Gc; IECEx: Ex ec IIC T4 Gc; cFMus: Class I, Division 2, Groups A, B, C, D; Class I, Zone 2, AEx ec IIC T4 Gc |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx, DNV, cFMus |
| Current consumption E-bus | – |
| Diagnostics in the process image | yes |
| Electrical isolation | 500 V (E-bus/field potential) |
| Output voltage | 5 V for E-bus supply |
| Pluggable wiring level | for all ESxxxx terminals |
| Protect. rating/installation pos. | IP20/variable |
| Short-circuit proof | yes |
| Special features | standard EL supply |
| Technology | power supply terminal |
