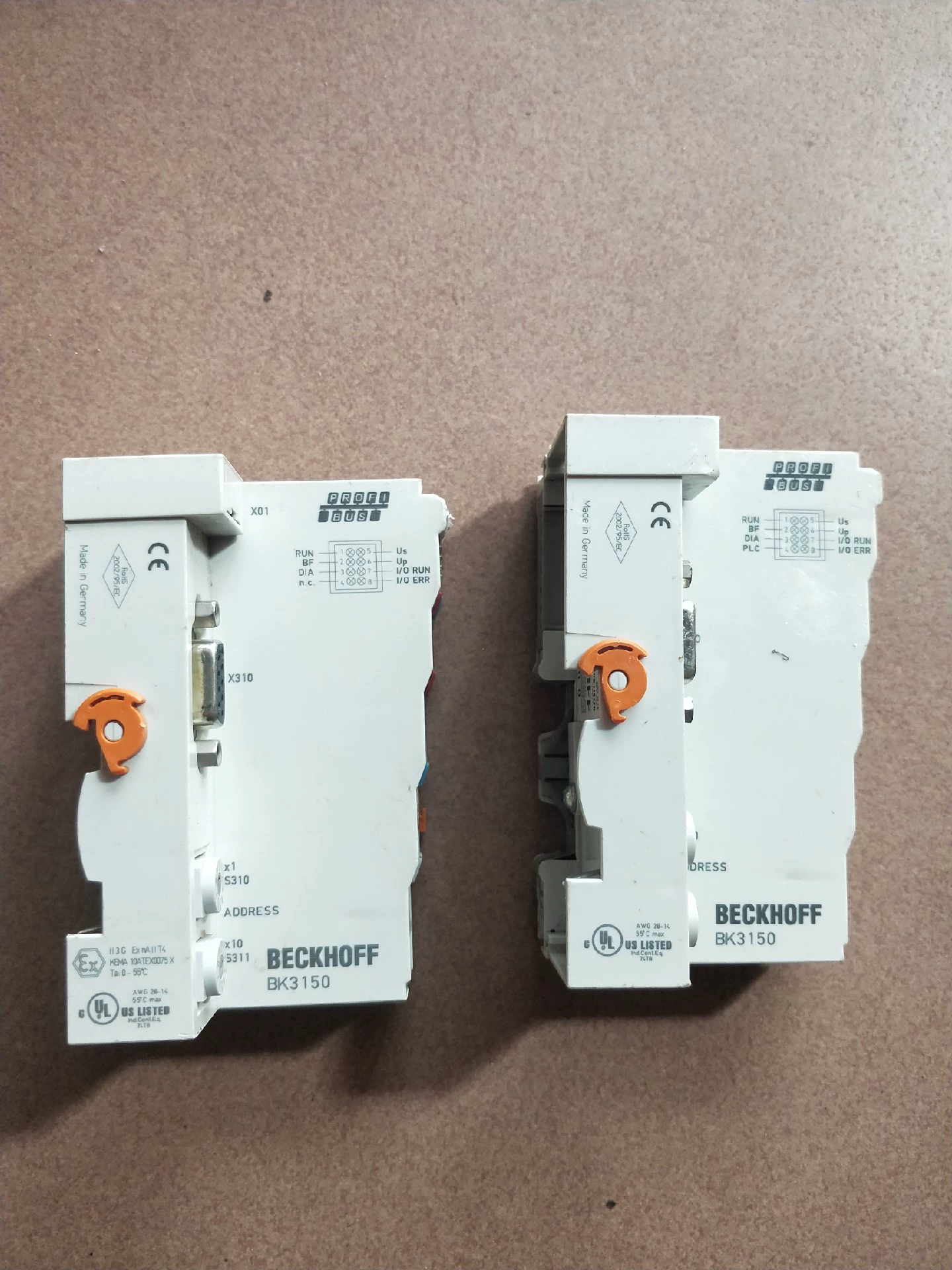

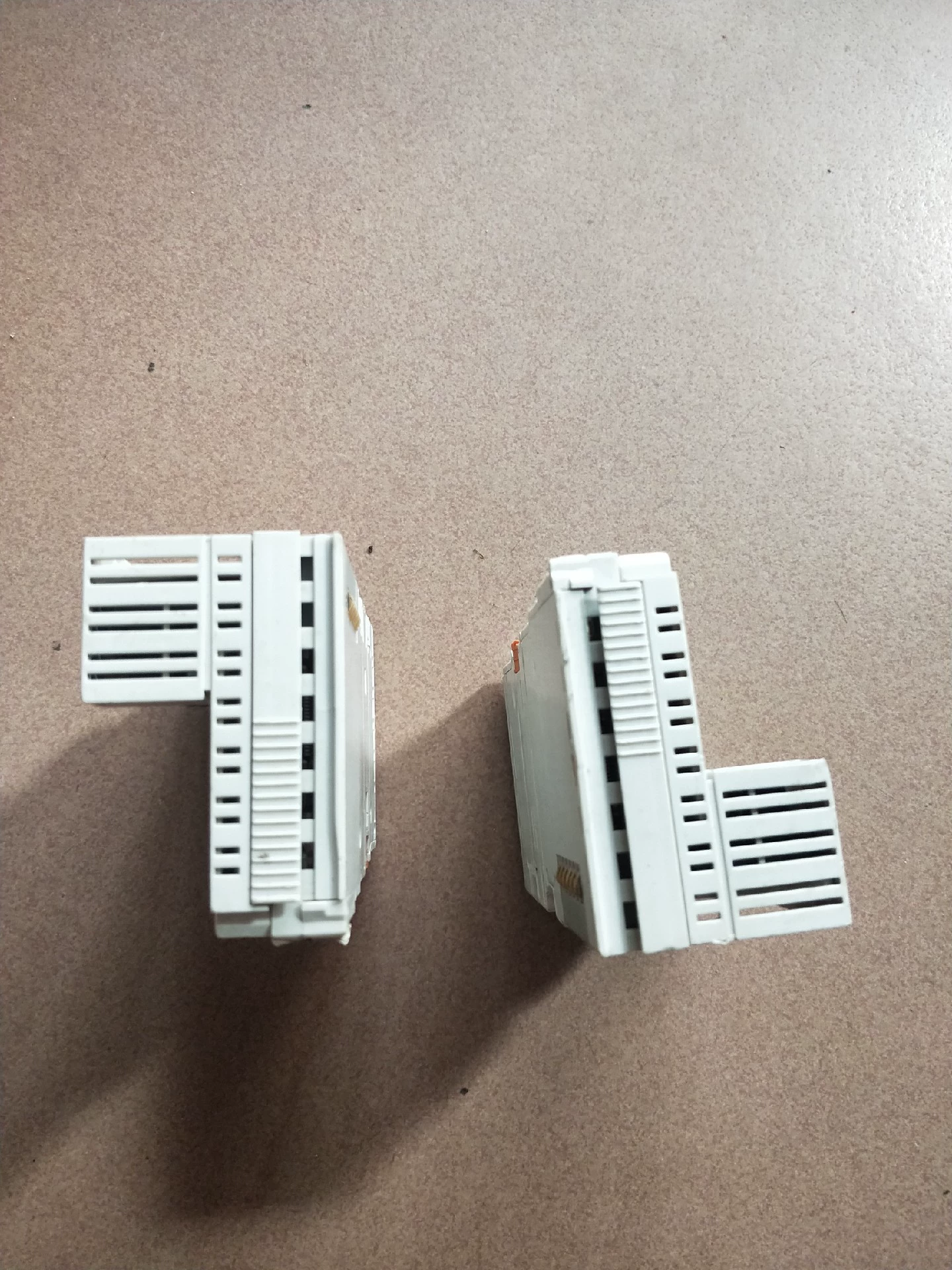

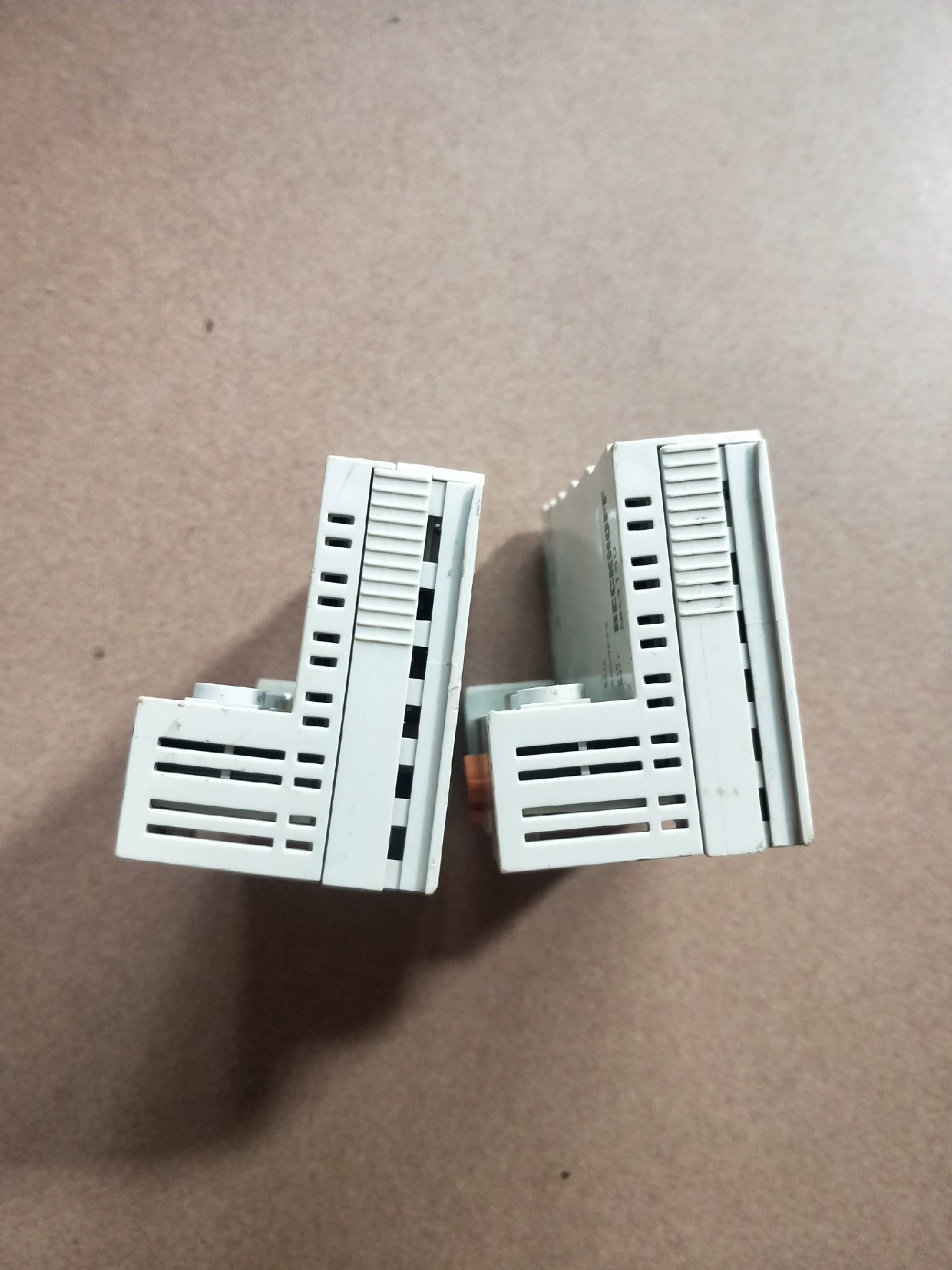

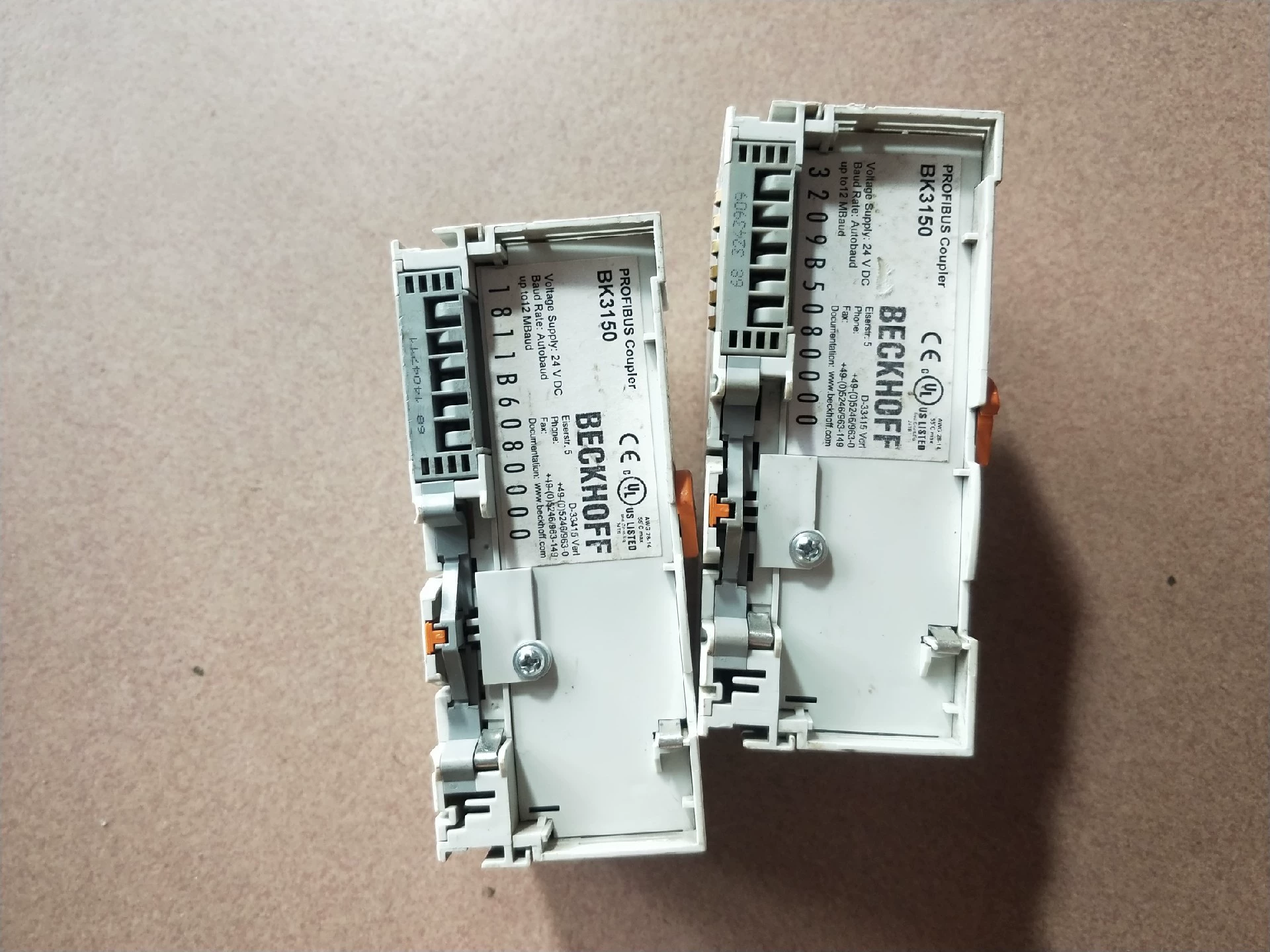

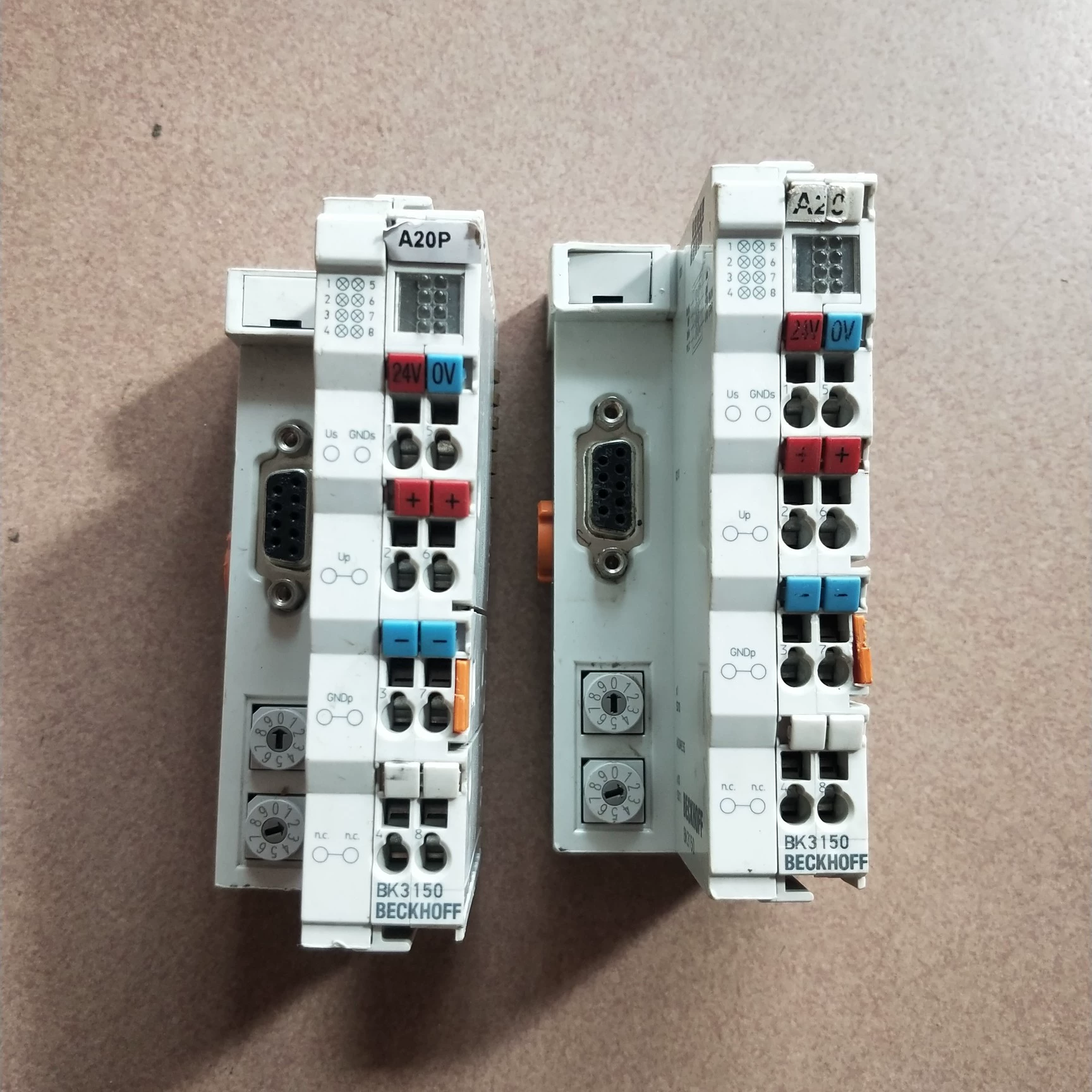

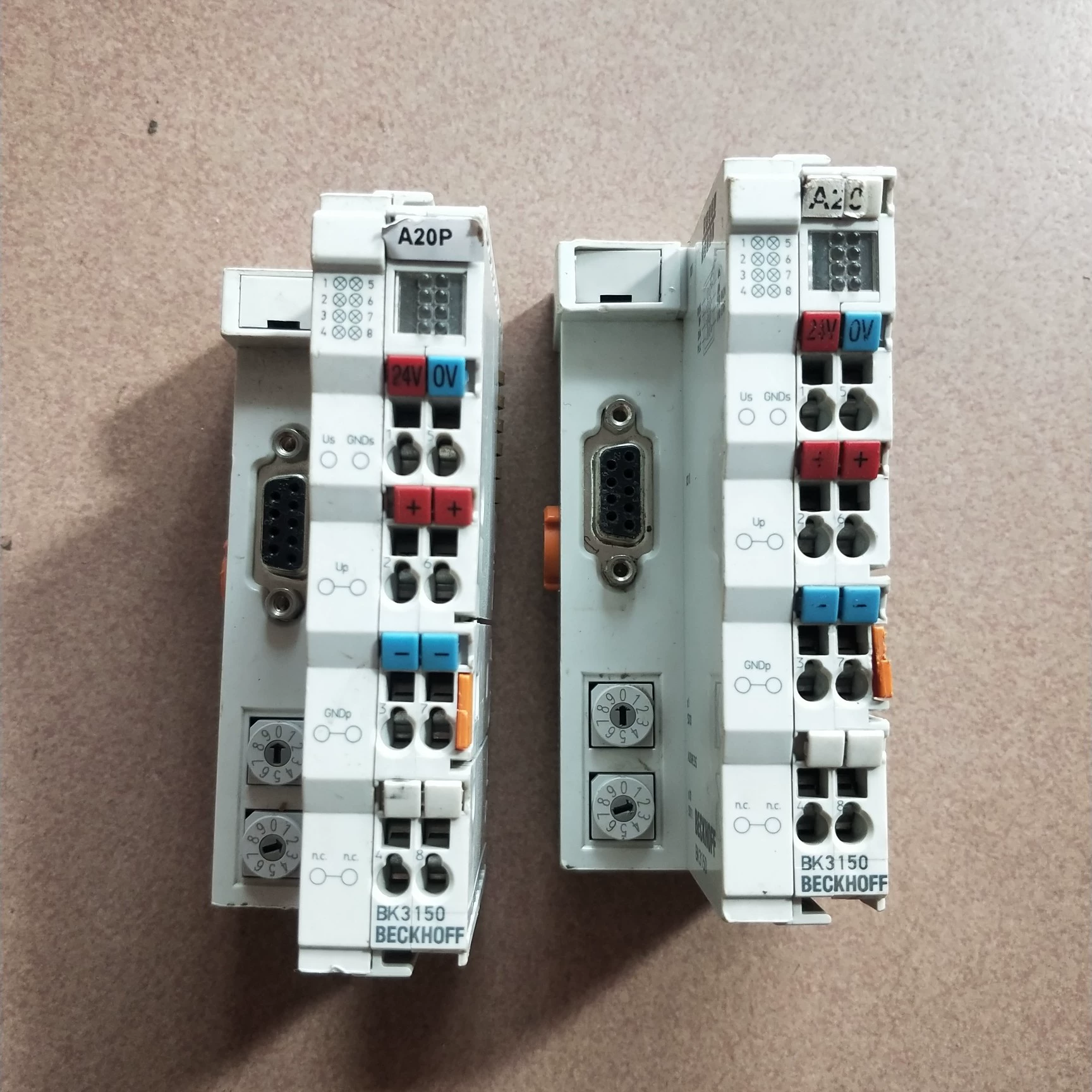

Beckhoff BK3150 - 二手
说明
Beckhoff BK3150 模块，二手，拆机件。电源：24 V DC（-15%/+20%）。
规格参数
| Brand | Beckhoff |
|---|---|
| Model | BK3150 |
| Origin | Germany |
| Bus interface | 1 x D-sub 9-pin socket with shielding |
| Power supply | 24 V DC (-15%/+20%) |
| Transmission rate | automatic detection up to 12 Mbaud |
| Power contacts | max. 24 V DC/max. 10 A |
| Input current | 70 mA + (total K-bus current)/4, 500 mA max. |
| Weight | approx. 100 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Relative humidity | 95%, no condensation |
| Dimensions (W x H x D) | 44 mm x 100 mm x 68 mm |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Ex marking | ATEX: II 3G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx, cFMus |
| Baud Rate | Autobaud |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Current load power contacts | I max: 10 A |
| Current supply K-bus | 1750 mA |
| Design form | compact terminal housing with signal LEDs |
| Electrical isolation | 500 V (power contact/supply voltage/fieldbus) |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Marking | labeling of the BZxxxx series |
| Material | polycarbonate |
| Max. number of bytes fieldbus | 128 byte input and 128 byte output |
| Number of Bus Terminals | 64 (255 with K-bus extension) |
| Protect. rating/installation pos. | IP20/variable |
| Side by side mounting by means of | double slot and key connection |
| Stripping length | 8…9 mm |
| Transmission medium | shielded copper cable, 2 x 0.25 mm² |
| Voltage Supply | 24 V DC |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
