Fonte de alimentação chaveada MEAN WELL DR-120-24 - Usada
Descricao

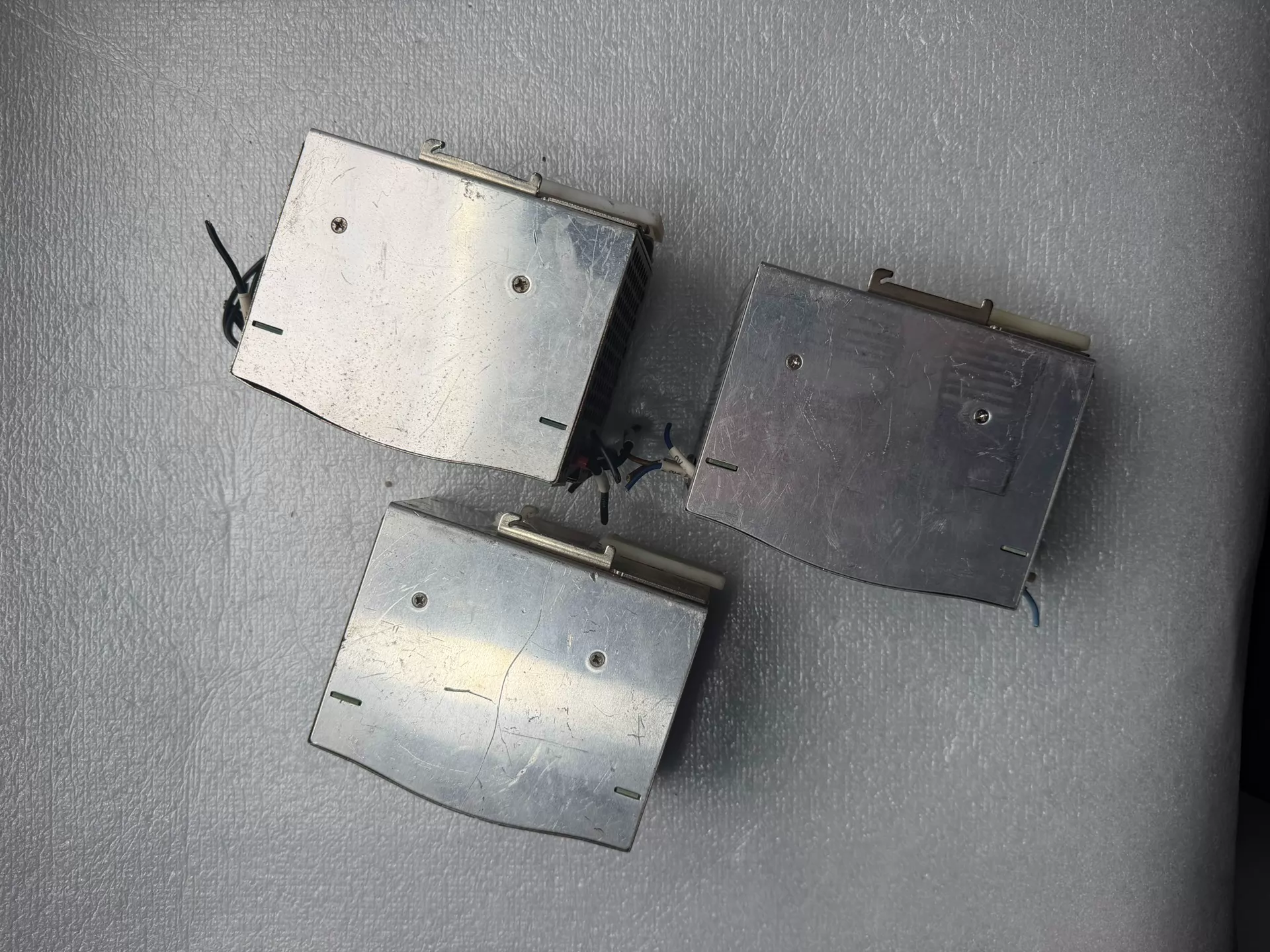

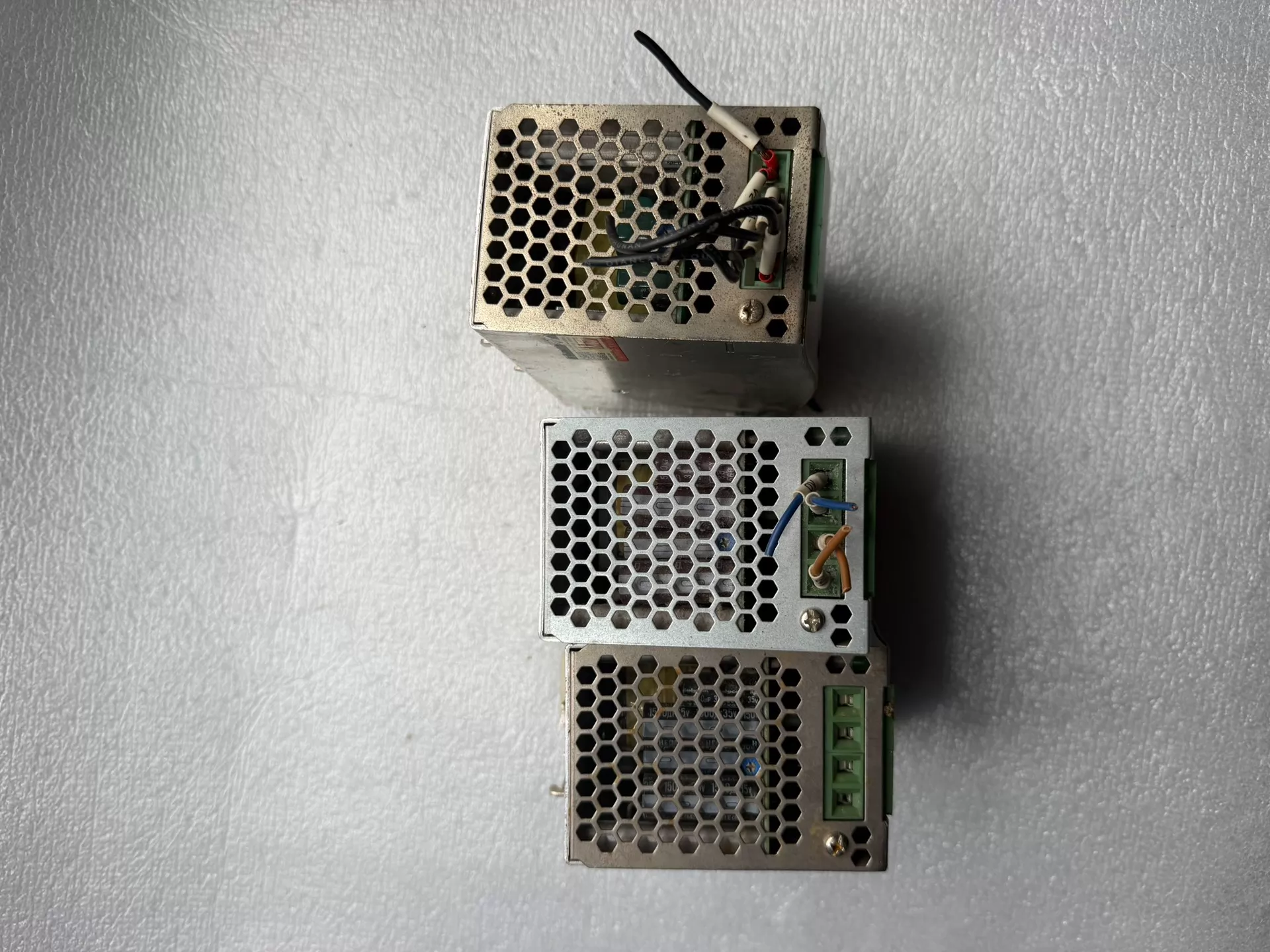

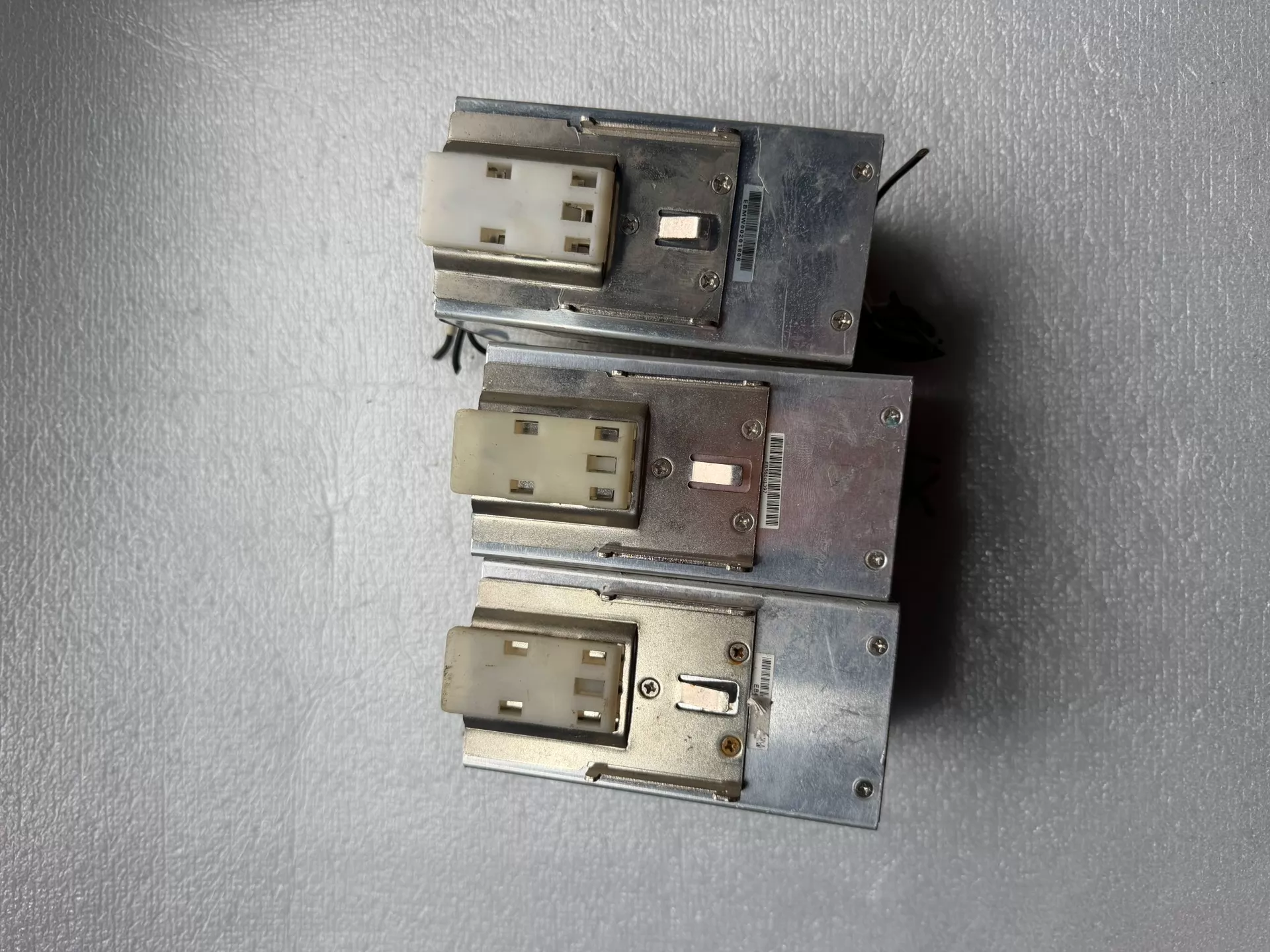

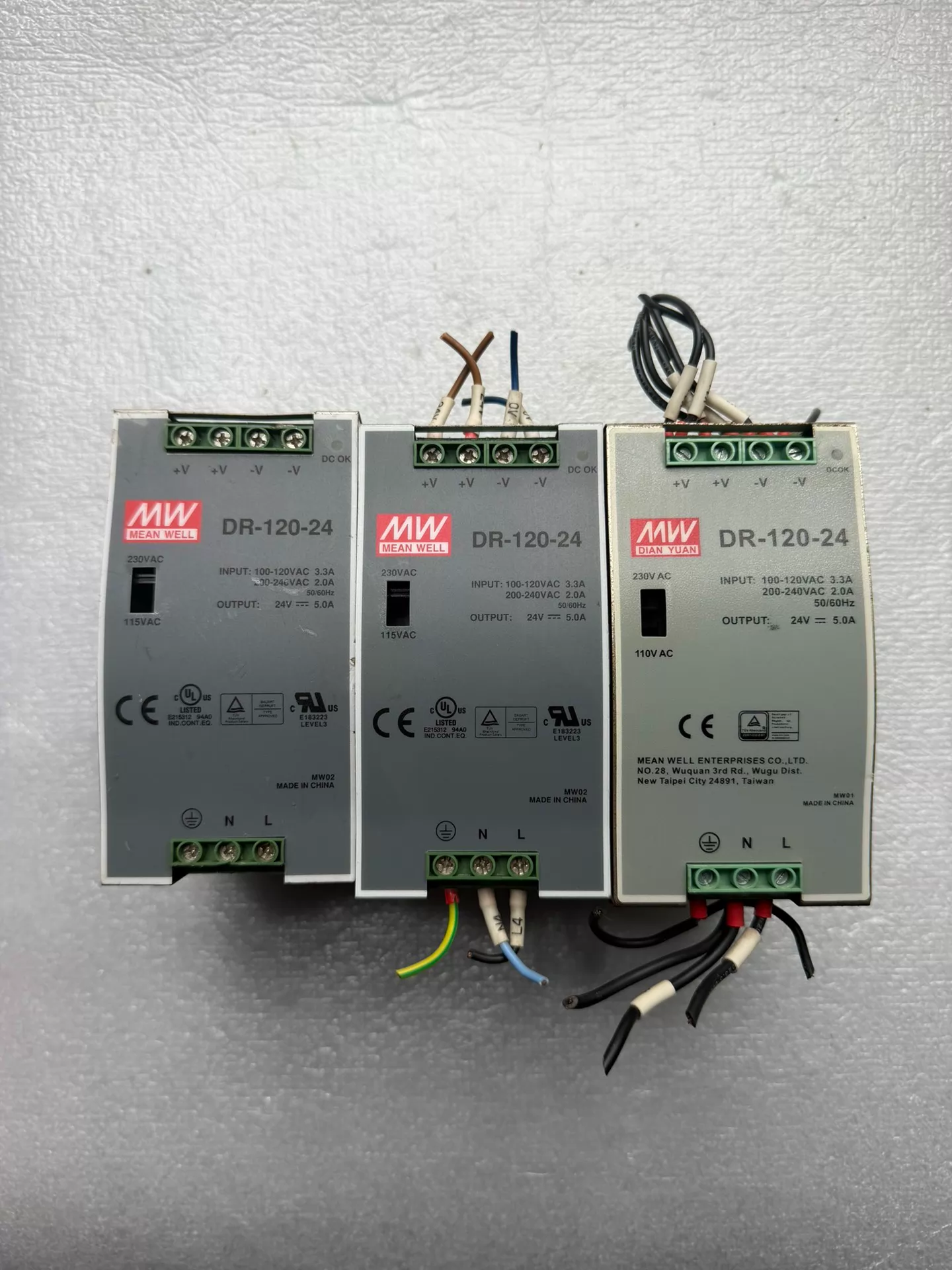

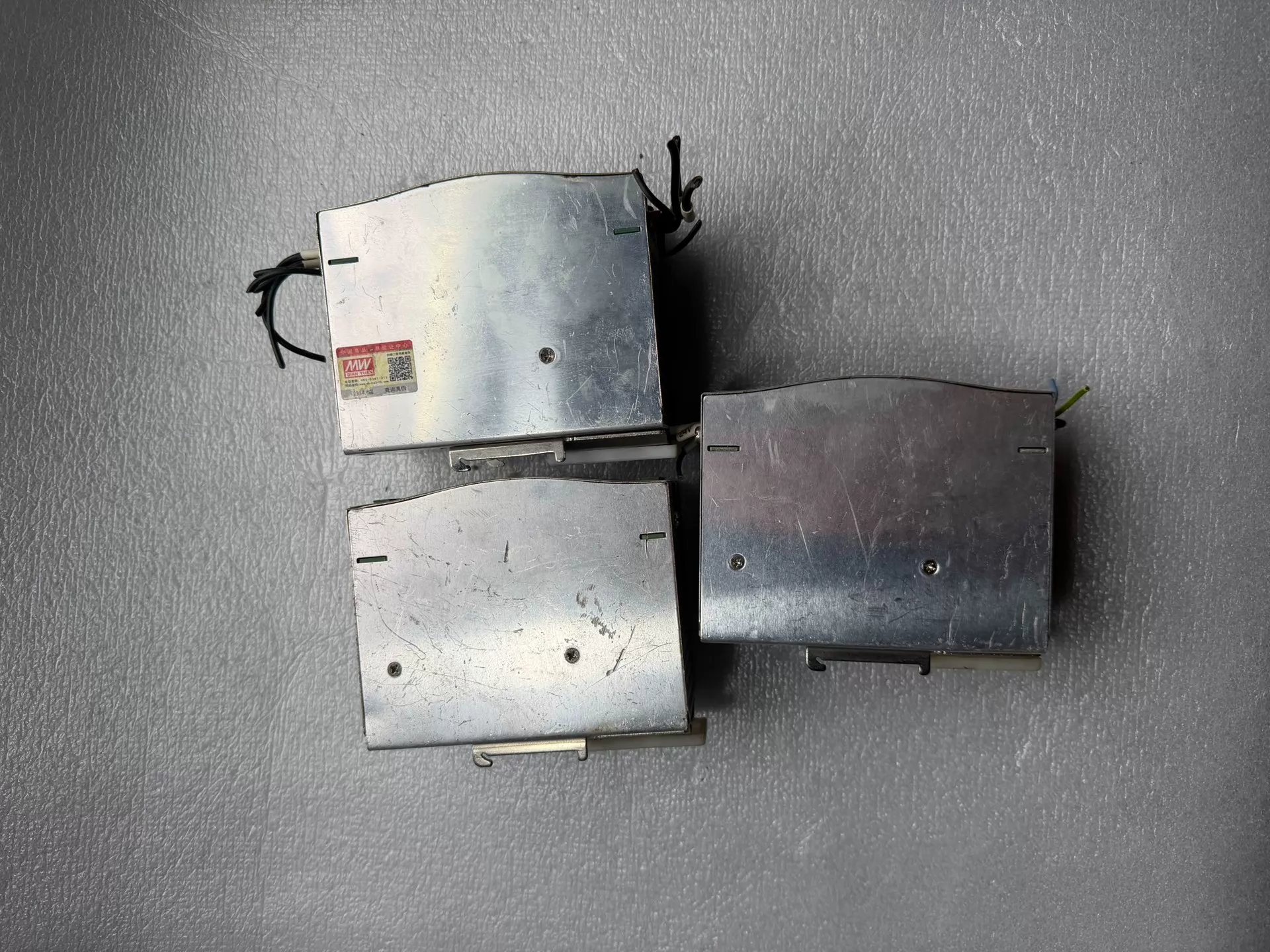

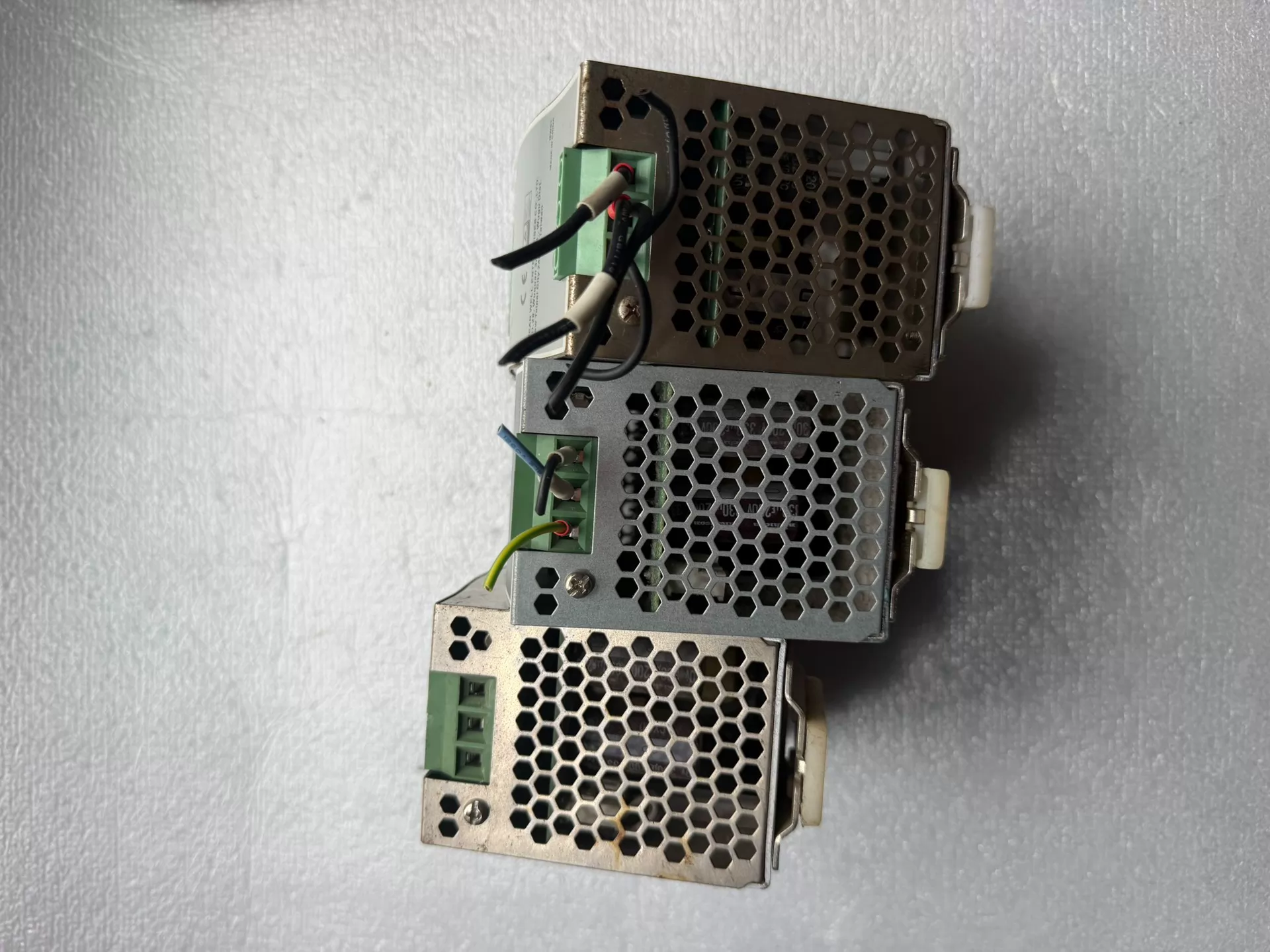

Fonte de alimentação chaveada MEAN WELL DR-120-24 usada, com classificação de 24 V, 5 A, 120 W. Montável em trilho DIN com clipe metálico traseiro. Removida de equipamento, com leves sinais de uso.
Especificacoes
| Brand | MEAN WELL |
|---|---|
| Model | DR-120-24 |
| HS Code | 850440 |
| Rated current | 5 A |
| Frequency | 50/60 Hz |
| Rated power | 120 W |
| Output Current | 5.0 A |
| DC voltage | 24 V |
| Over voltage | 29 ~ 33 V |
| Withstand voltage | I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC |
| Current range | 0 ~ 5 A |
| Frequency range | 47 ~ 63 Hz |
| Output voltage adj. range | 24 ~ 28 V |
| Voltage range | 88 ~ 132 VAC/176 ~ 264 VAC by switch 248 ~ 370 VDC |
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 |
| EMC emission | Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020 |
| EMC immunity | Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020 |
| AC current (Typ.) | 2.6 A/115 VAC 1.6 A/230 VAC |
| Dimension | 65.5*125.2*100mm (W*H*D) |
| Efficiency (Typ.) | 84% |
| Hold up time (Typ.) | 36ms/230VAC 32ms/115VAC at full load |
| Input Current 1 | 3.3 A |
| Input Current 2 | 2.0 A |
| Input Voltage 1 | 100-120 VAC |
| Input Voltage 2 | 200-240 VAC |
| Inrush current (Typ.) | COLD START 20 A/115 VAC 40 A/230 VAC |
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH℃ |
| Line regulation | ±1.0% |
| Load regulation | ±0.5% |
| Mtbf | 432.1Khrs min. MIL-HDBK-217F (25 )℃ |
| Overload | 105 ~ 150% rated output power |
| Packing | 0.79Kg; 20pcs/16.5Kg/1.49CUFT |
| Ripple & noise (max.) | 80mVp-p |
| Safety standards | UL508, UL60950-1, approvedEAC TP TC 004 |
| Setup, rise time | 500ms, 70ms/230VAC 500ms, 70ms/115VAC at full load |
| Storage temp., humidity | -20 ~ +85, 10 ~ 95% RH℃ |
| Temp. coefficient | ±0.03%/ (0 ~ 50 )℃ ℃ |
| Working humidity | 20 ~ 90% RH non-condensing |
| Working temp. | -10 ~ +60 °C |
Documentos
DR-120-20210915.cdr
Ficha tecnica
Abrir
