Módulo de entrada Keyence KV-B16XC - Usado
Descricao

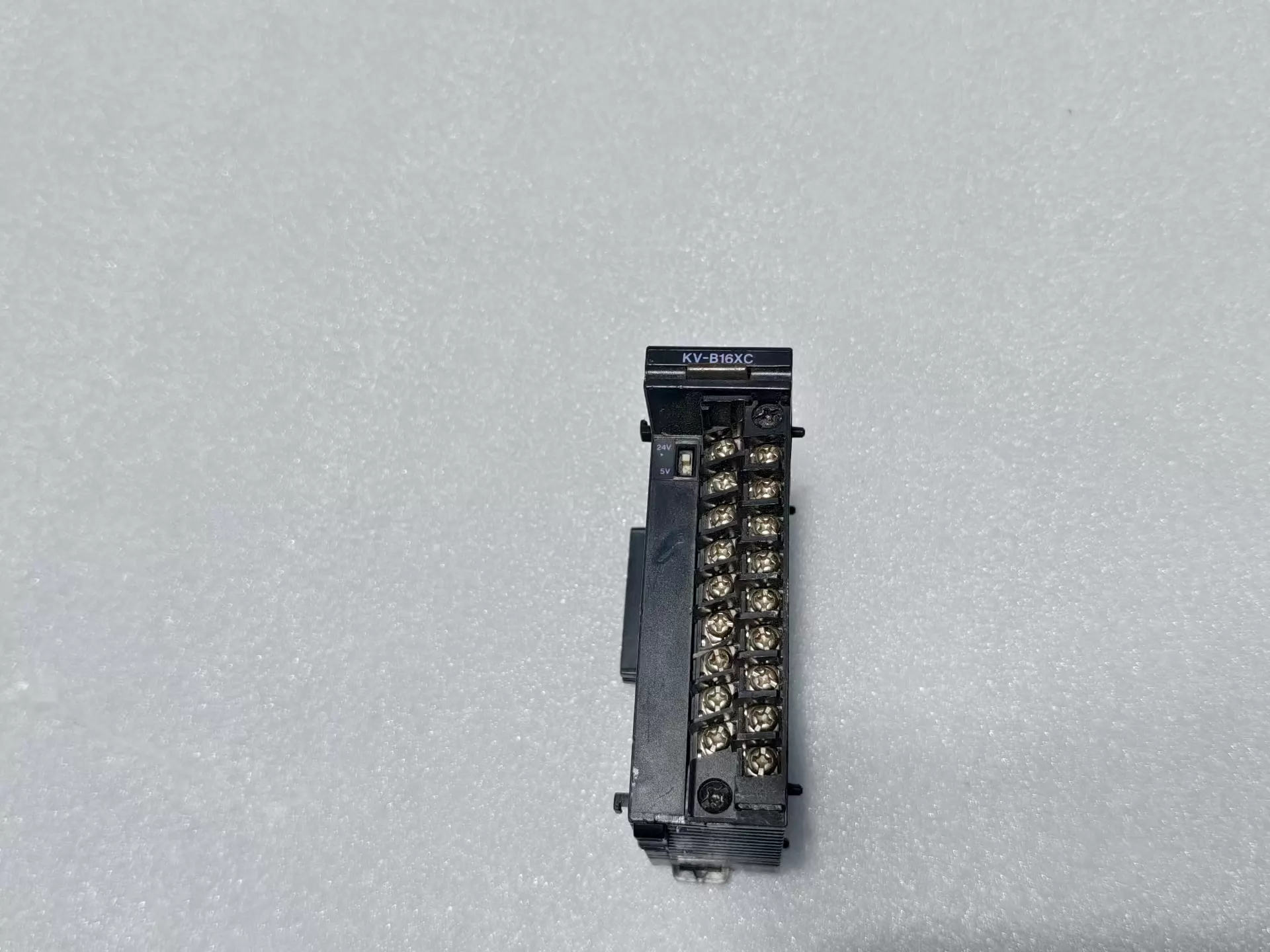

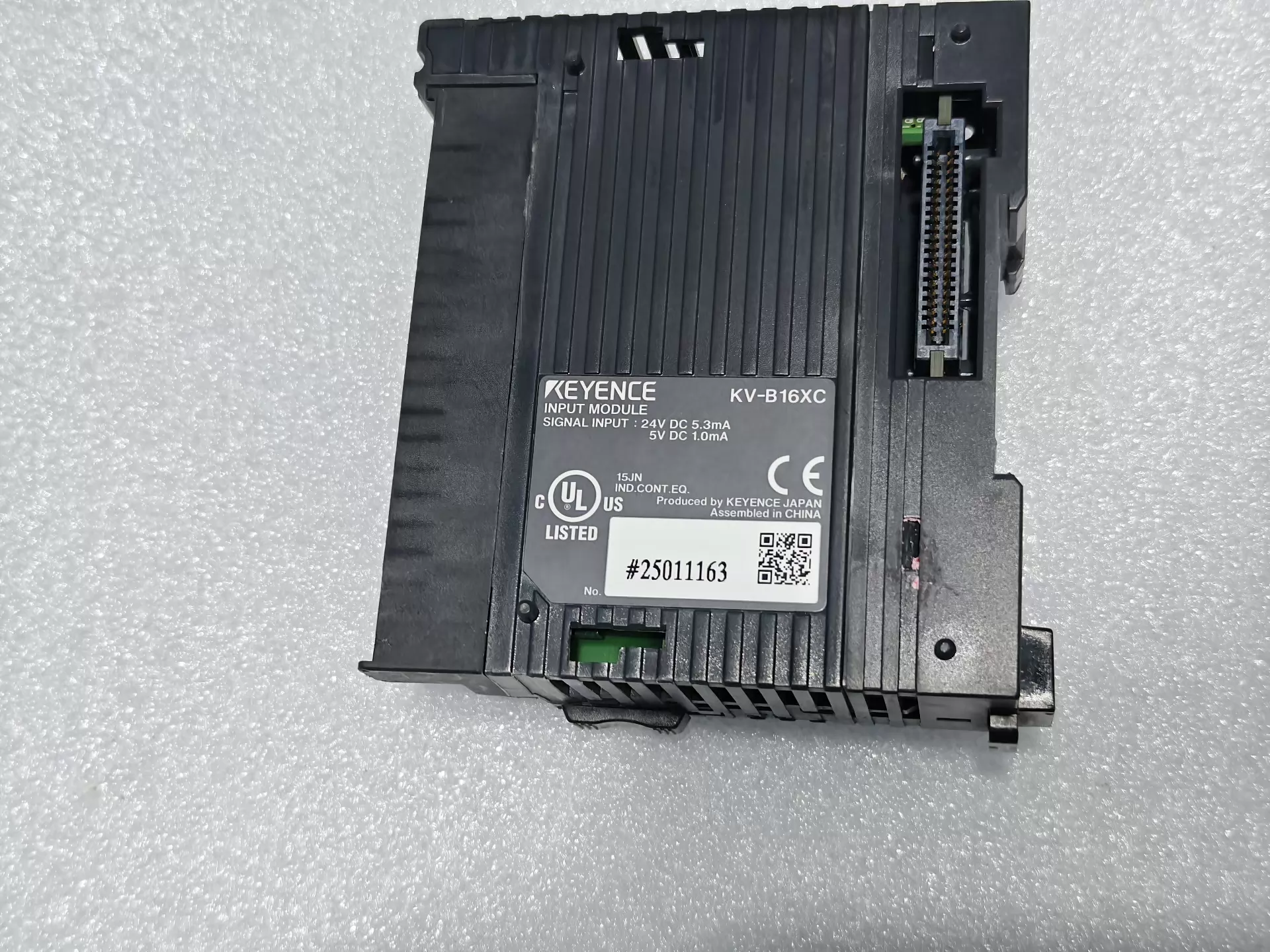

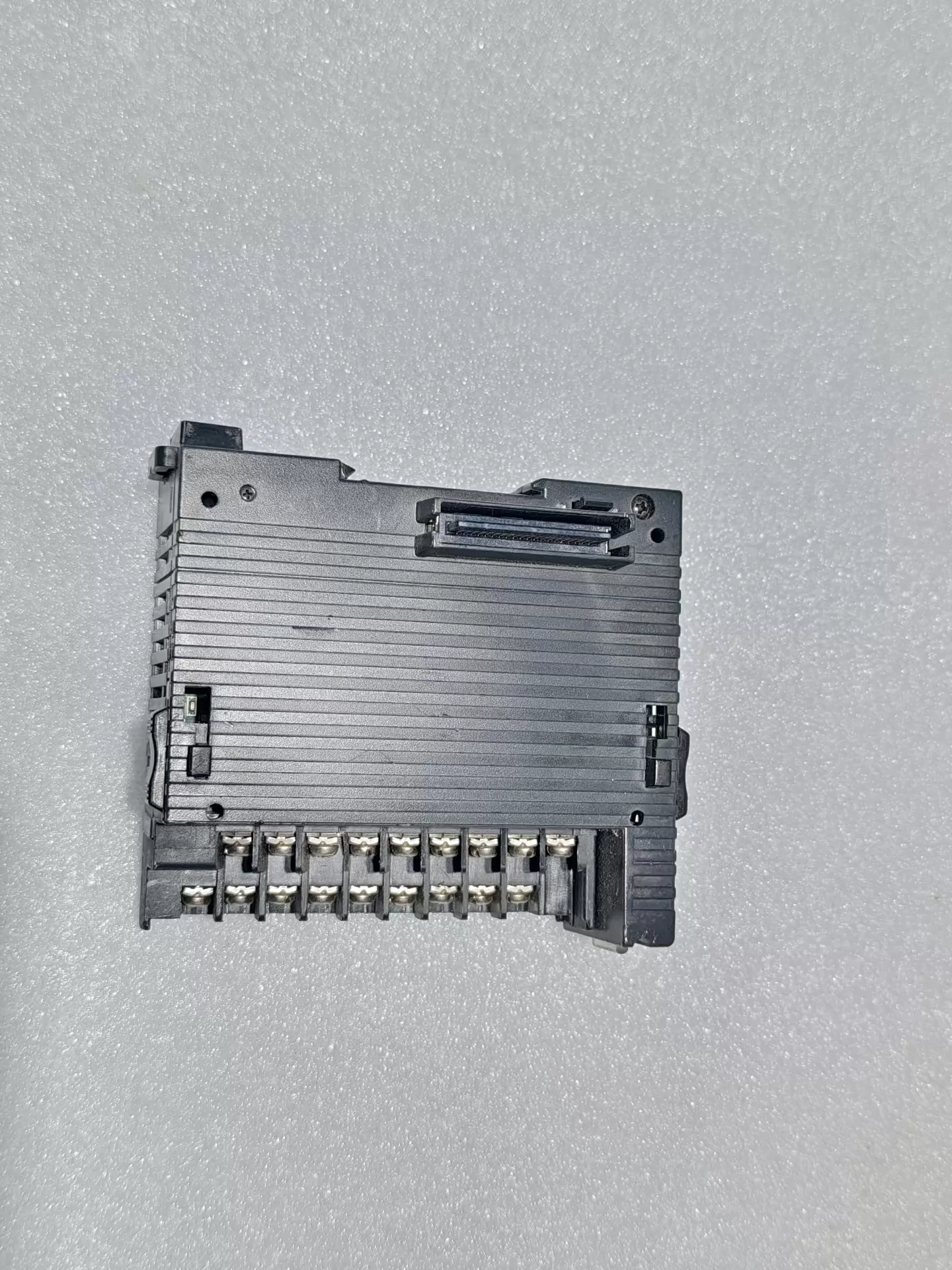

Módulo de entrada Keyence KV-B16XC, usado.
Especificacoes
| Brand | Keyence |
|---|---|
| Model | KV-B16XC |
| Maximum input voltage | 26.4 VDC |
| Maximum OFF current | 24 VDC mode: 1.5 mA |
| Maximum OFF voltage | 5 VDC mode: 1.5 V |
| Minimum ON voltage | 24 VDC mode: 19 V, 5 VDC mode: 3.5 V |
| Rated input voltage | 24 VDC mode: 24 VDC, 5.3 mA, 5 VDC mode: 5 VDC, 1 mA |
| Weight | Approx. 120 g |
| Common method | 16 points/1 common (2 terminals) *1 |
| External connection method | Removable terminal block |
| Input impedance | 4.3 kΩ |
| Input mode | 24 VDC mode, 5 VDC mode |
| Internal current consumption | ≤15 mA |
| Number of inputs | 16 points |
| Type | Input Unit |
