Keyence GT2-H12K - Usado
Descricao

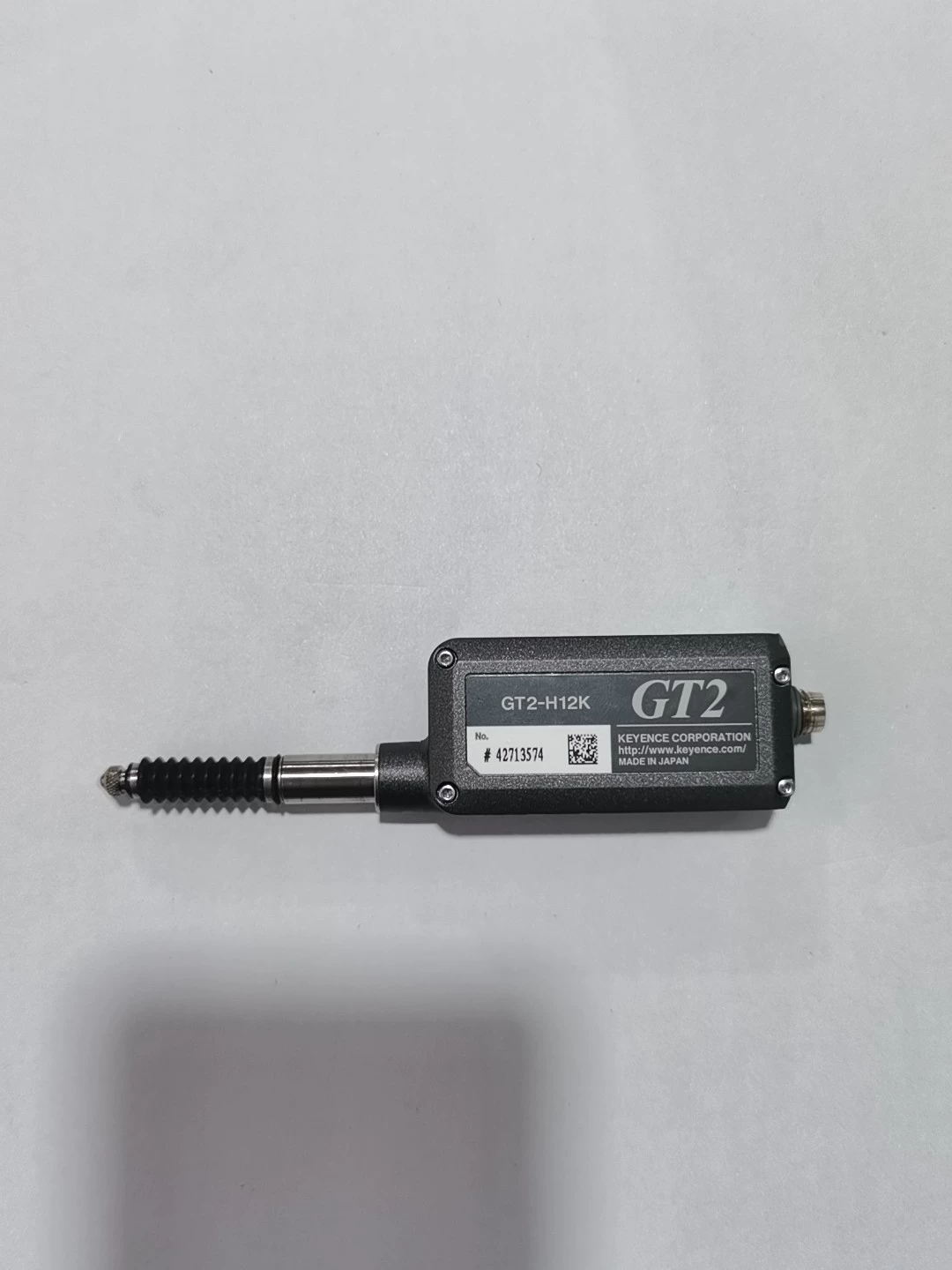

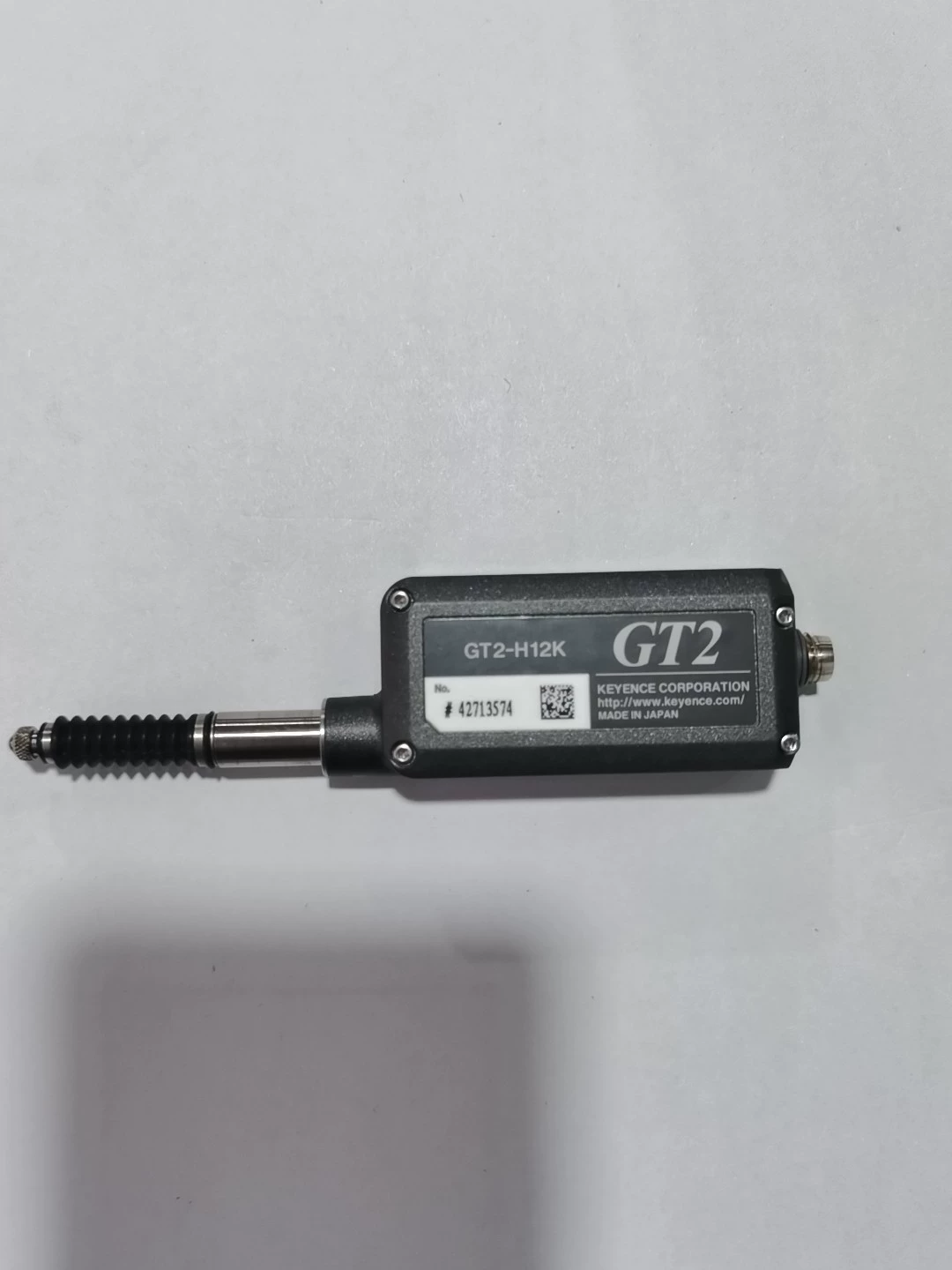

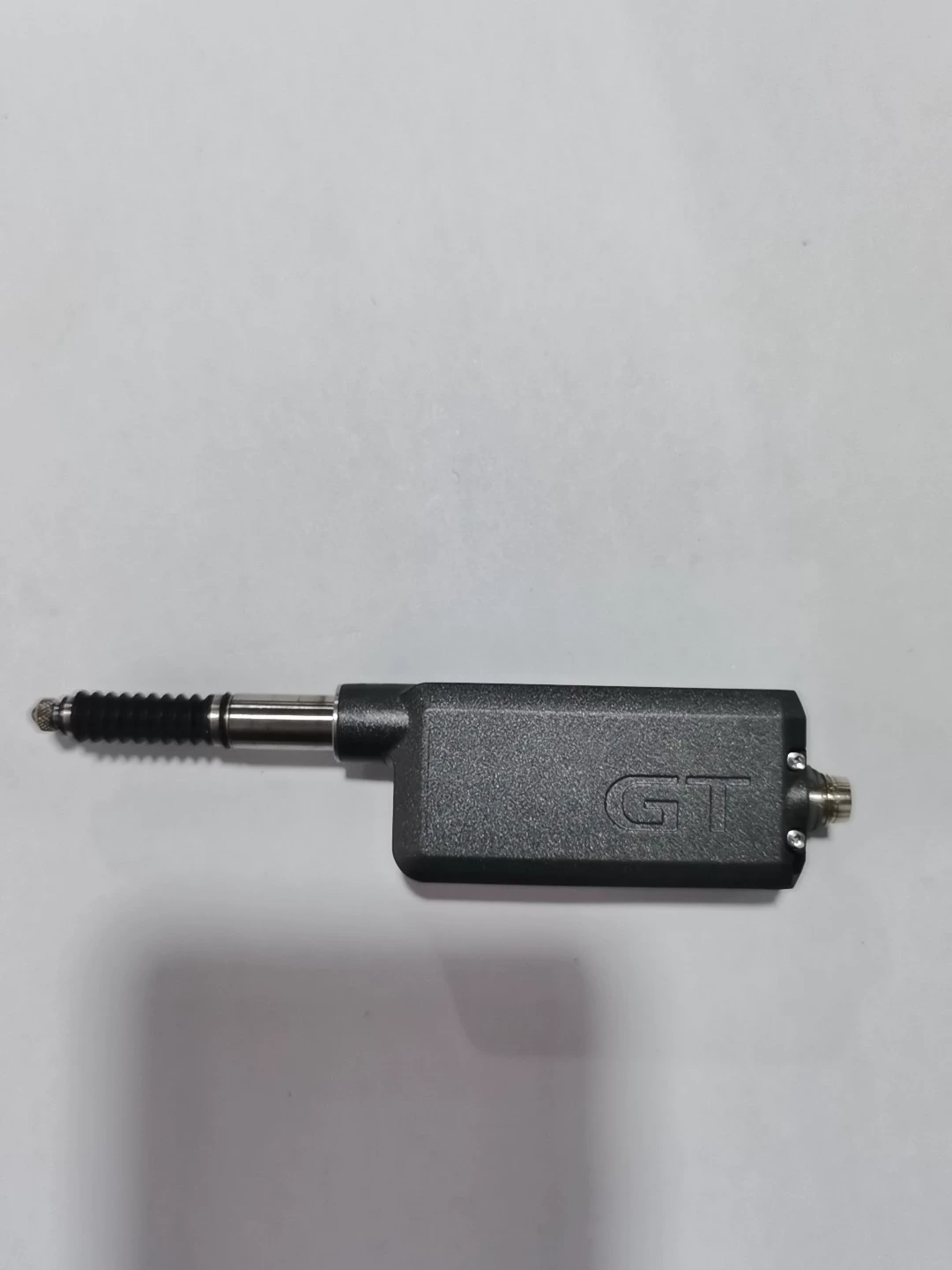

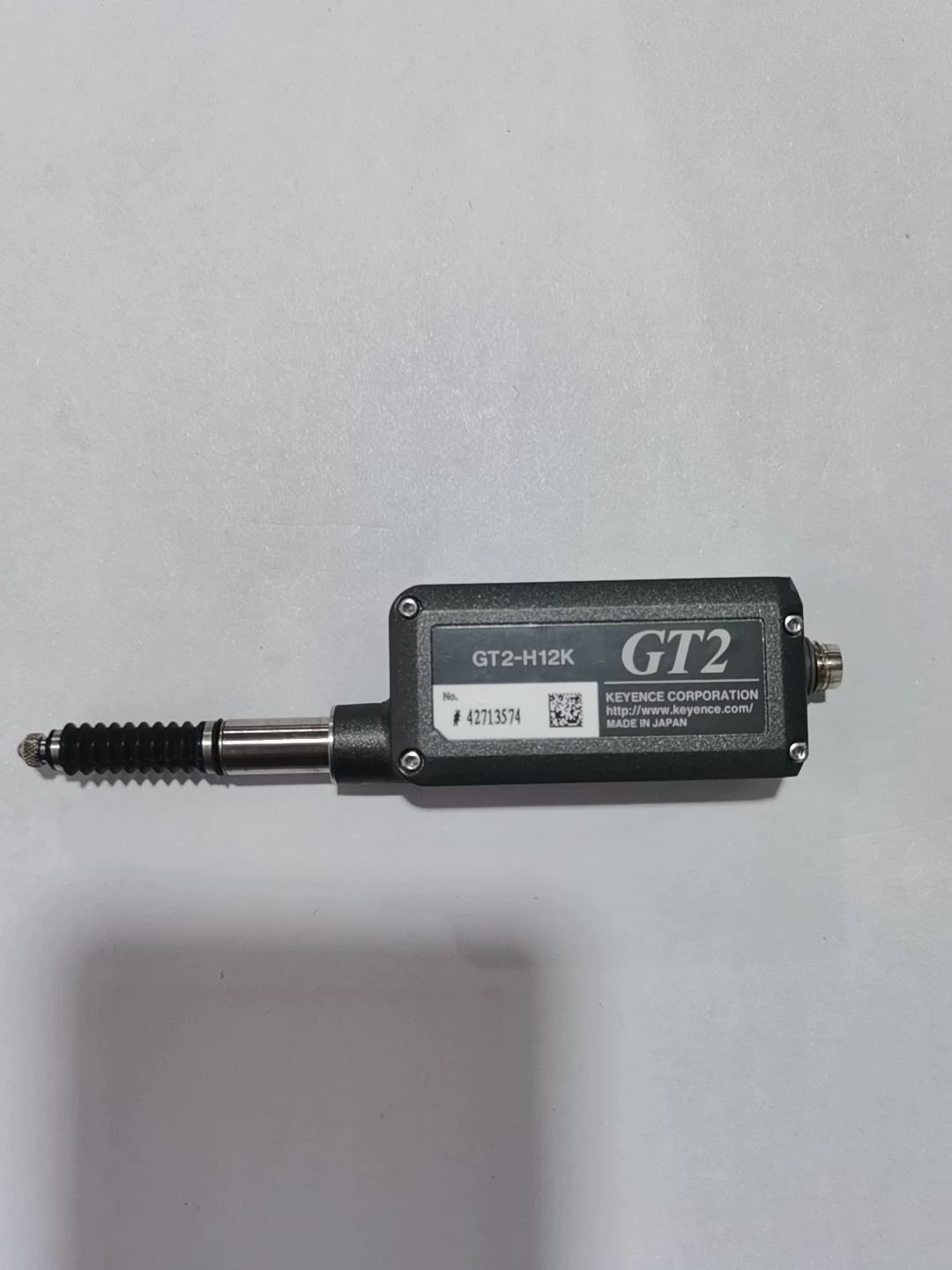

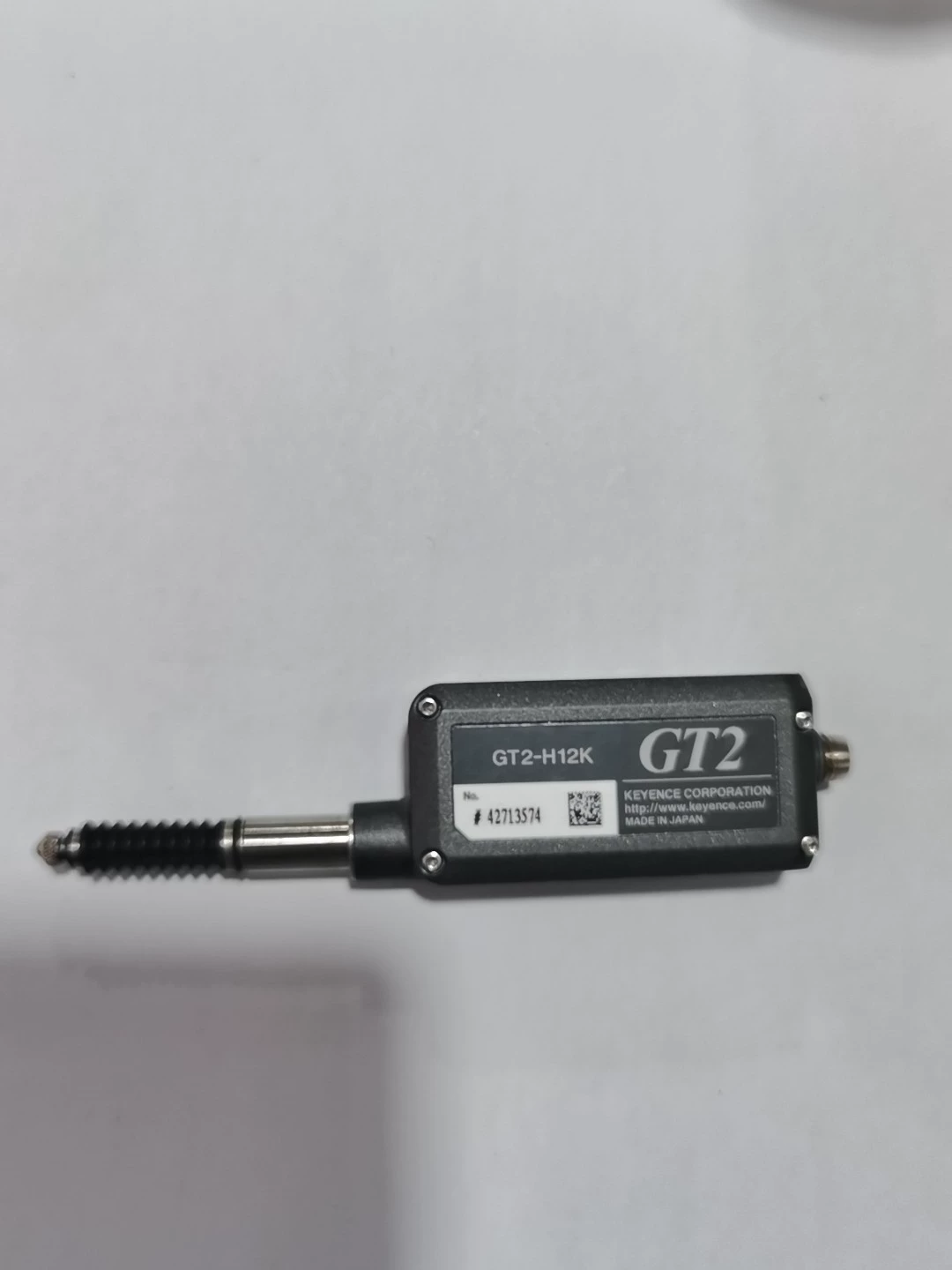

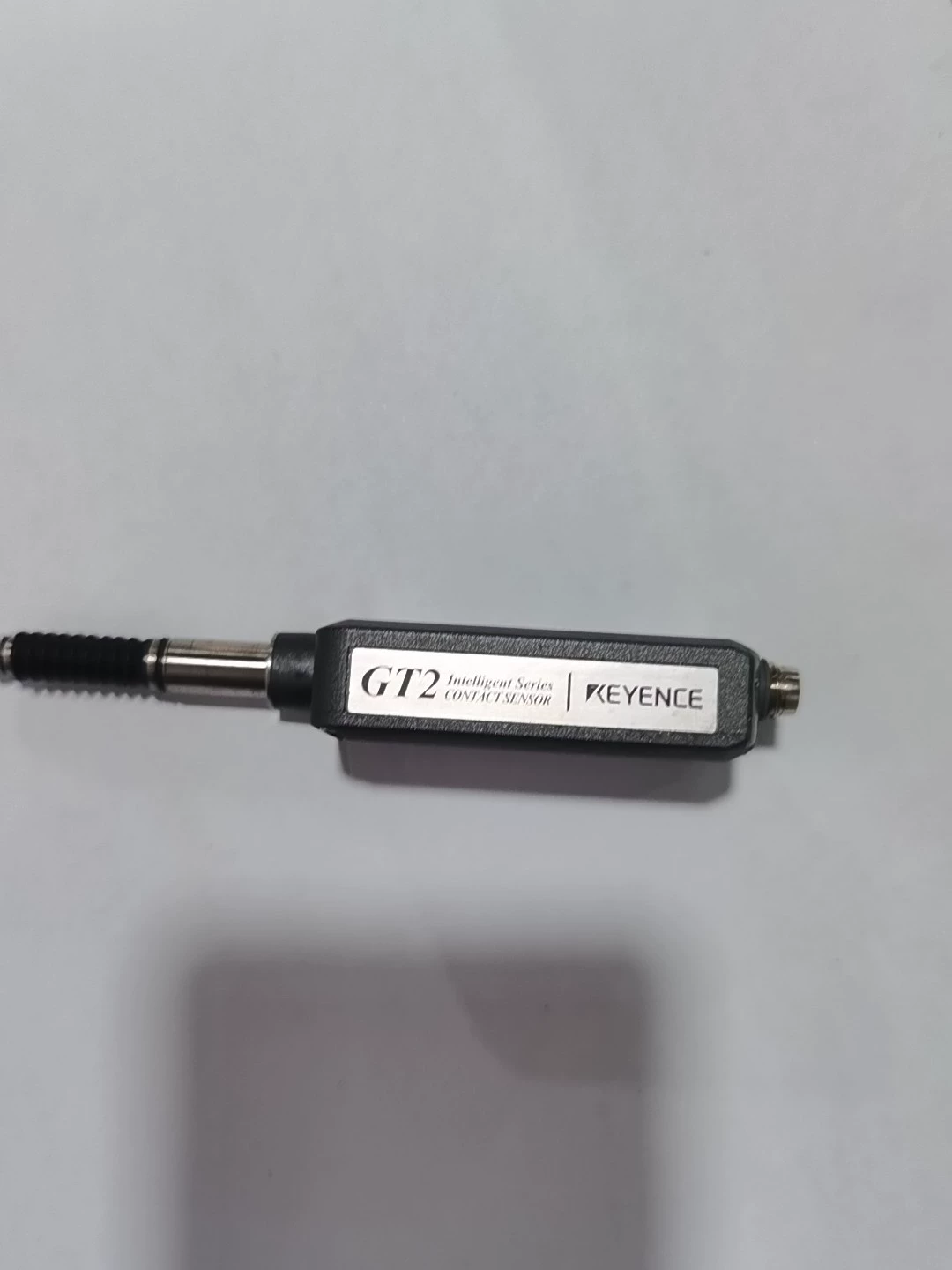

Sensor Keyence GT2-H12K usado. Removido de equipamento, com sinais mínimos de uso visíveis.
Especificacoes
| Brand | Keyence |
|---|---|
| Model | GT2-H12K |
| Origin | Japan |
| Resolution | 0.1 μm 0.004 Mil |
| Measuring range | 12 mm 0.47" |
| Weight | Approx. 95 g (excluding cable) |
| Ambient temperature | -10 to +55 °C (14 to 131 °F); no freezing |
| Relative humidity | 35 to 85 % RH (No condensation) |
| Downward mounting | 1.0 N *2 |
| Side mounting | 0.9 N *2 |
| Upward mounting | 0.8 N *2 |
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm (0.06 in); 2 h each in X, Y, Z directions |
| Contact | TYPE304 Stainless steel, super-tough tungsten alloy *3 |
| Detection system | Quartz glass scale, CMOS image sensor projection system, Absolute type (without tracking error) |
| Dust boot | NBR |
| Enclosure rating | IP67 |
| Indicated accuracy | 1 µm 0.04 Mil (p-p) *1 |
| Main body | Main body cast: Zinc die-casting, Indicator: Polyarylate, Dust boot: NBR |
| Mechanical response | 10 Hz *1 |
| Operation indicator light | 2-color LED (red, green) |
| Sampling cycle | 1 ms |
| Sensor head cable | Optional (connect to the M8 connector) |
| Shock resistance | 1,000 m/s² (IEC60068-2-27) |
