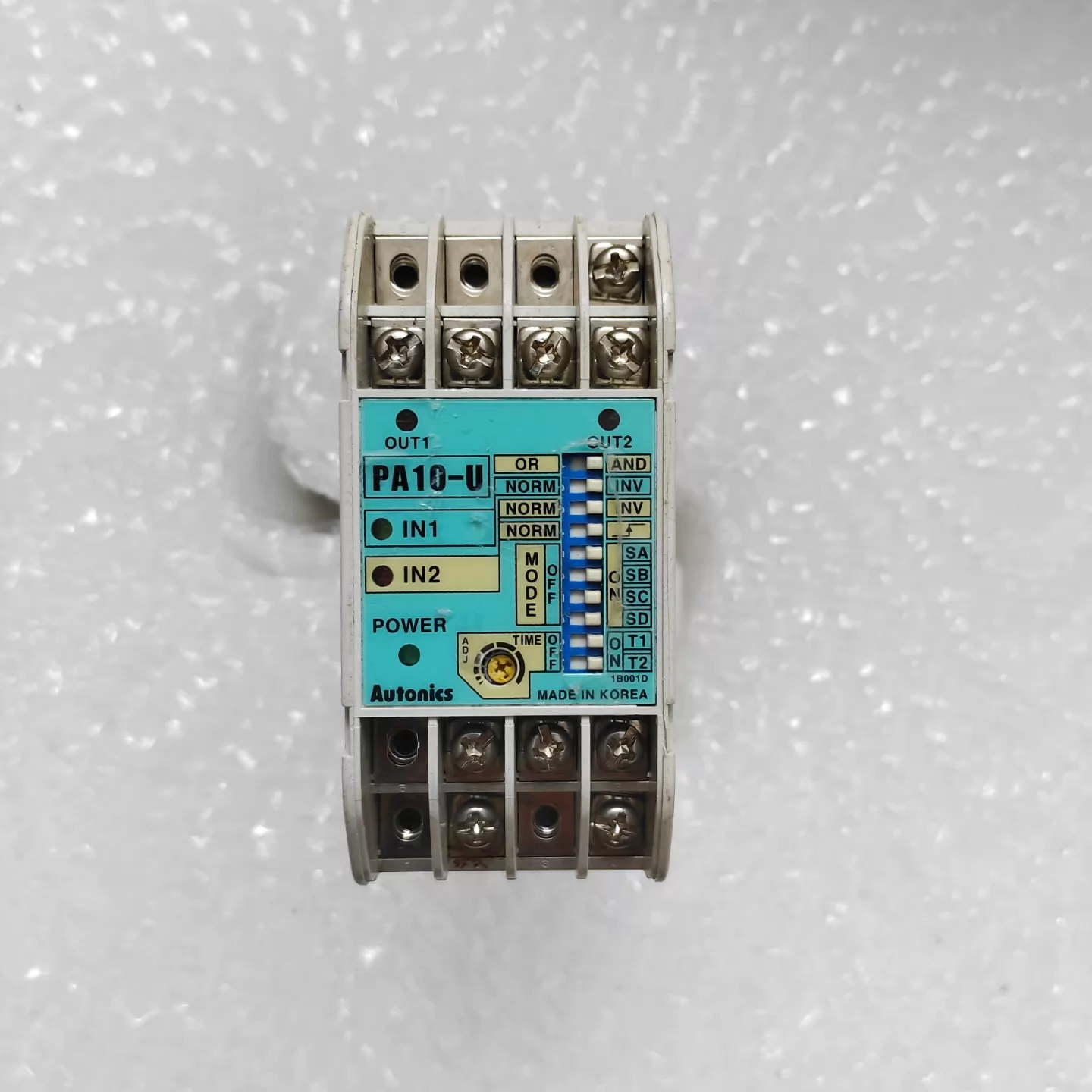

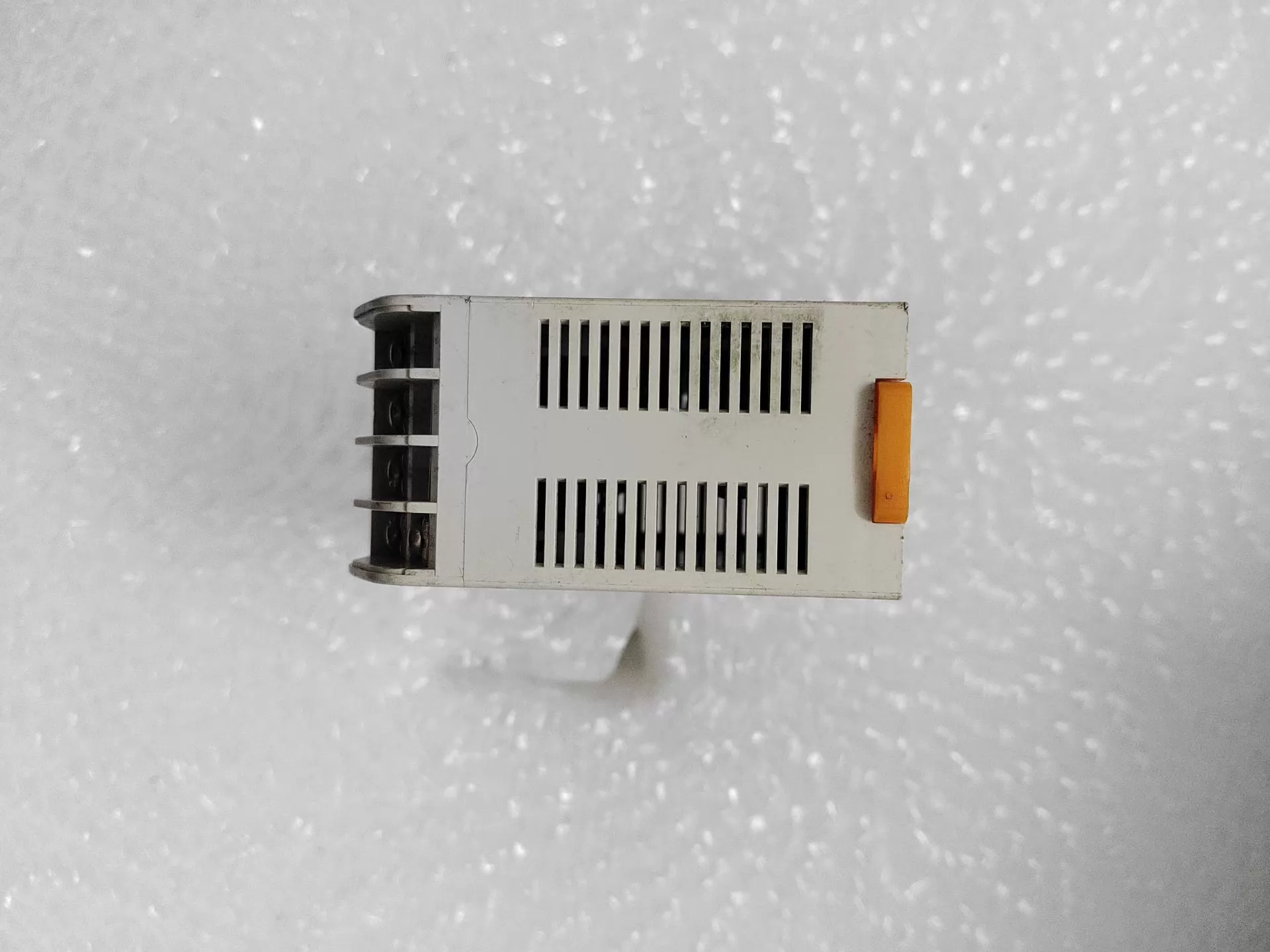

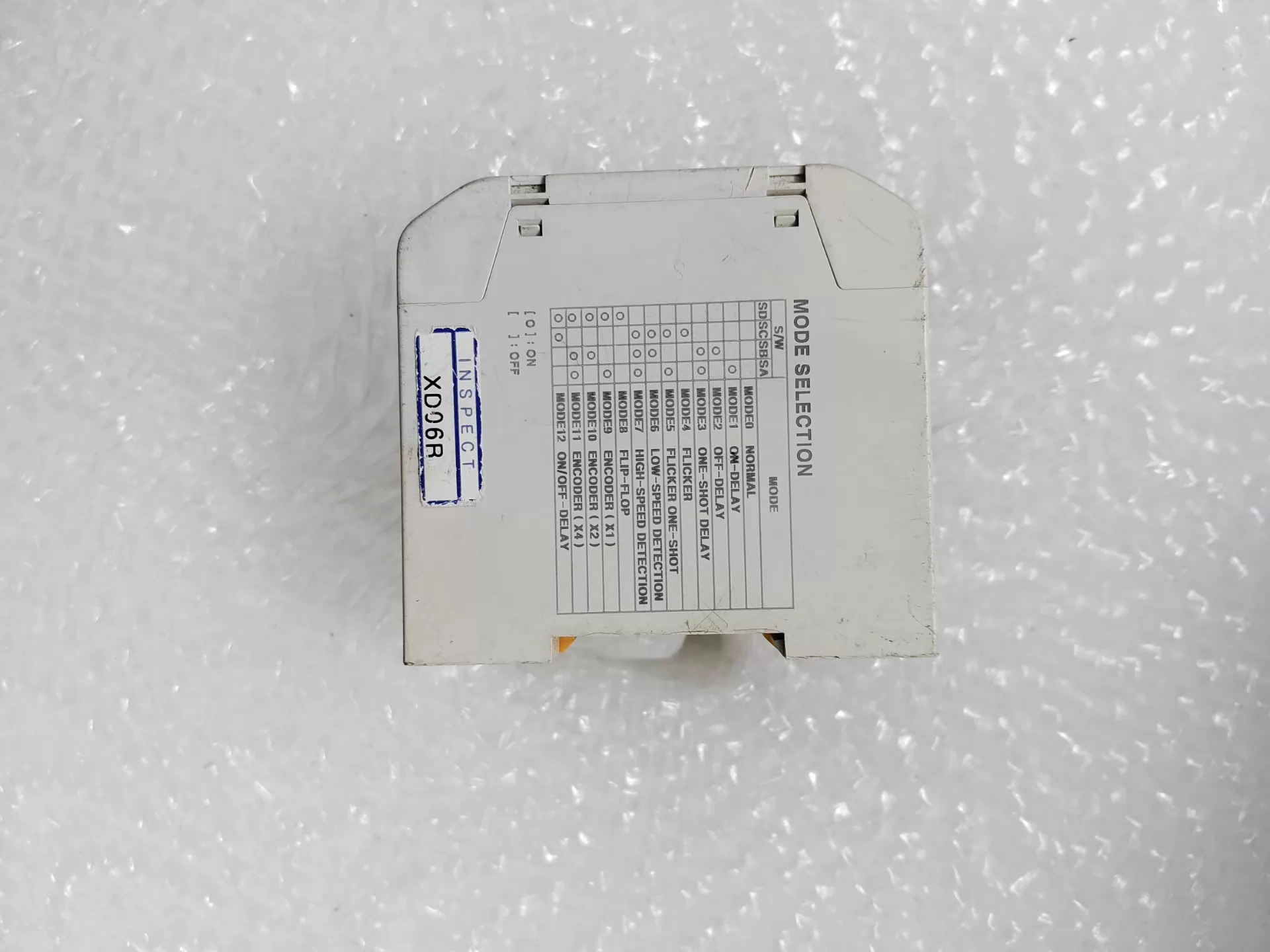

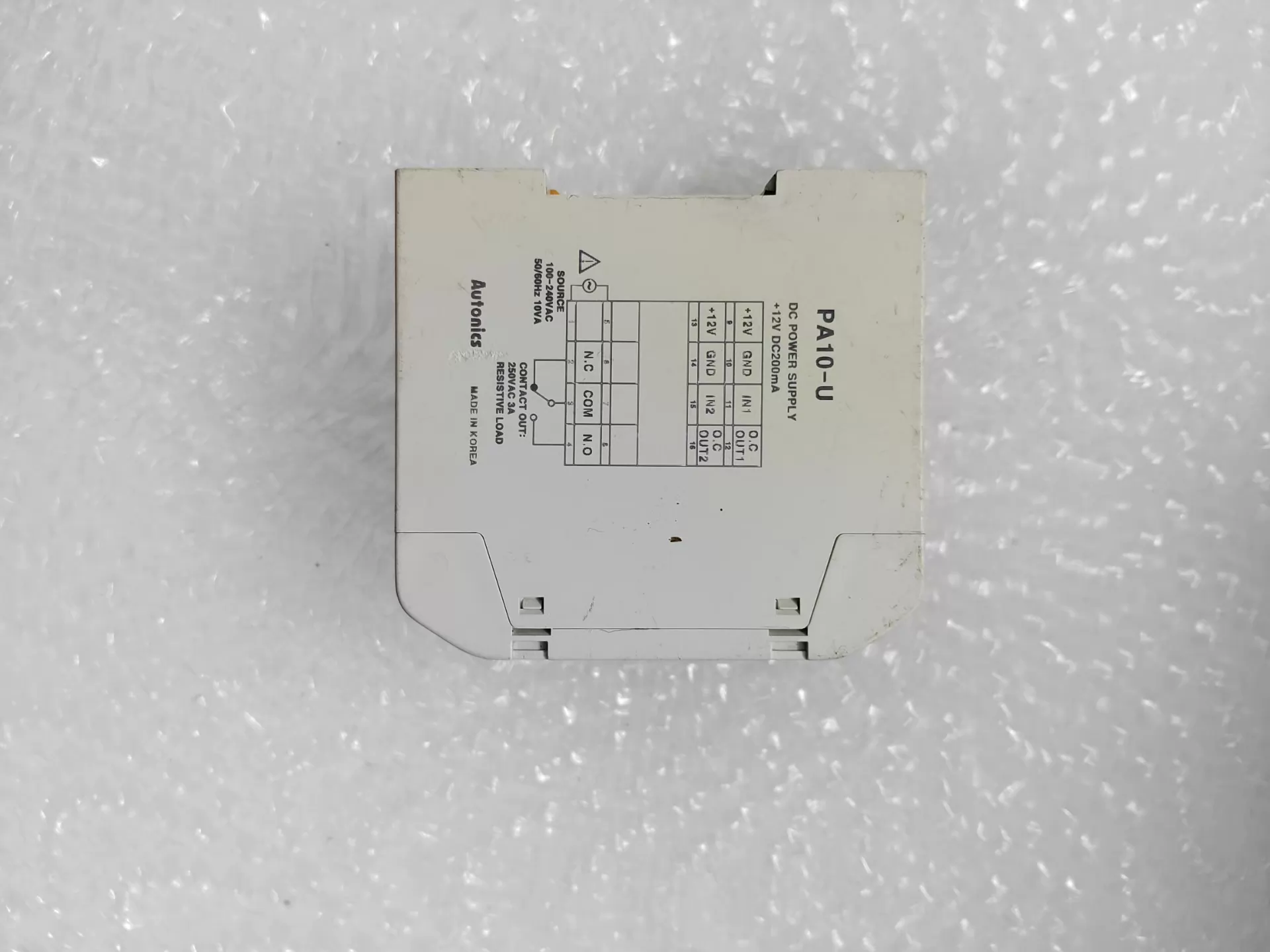

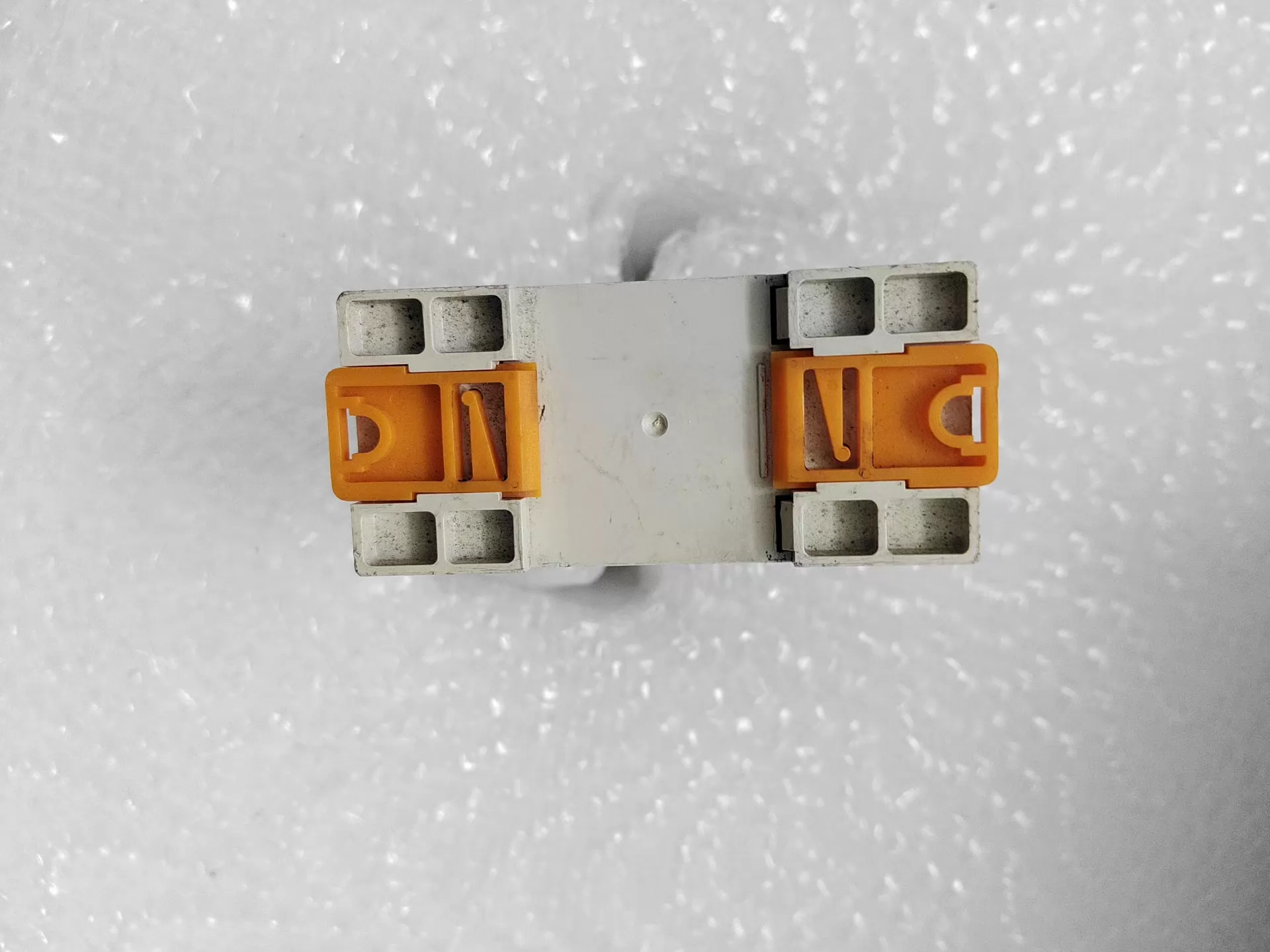

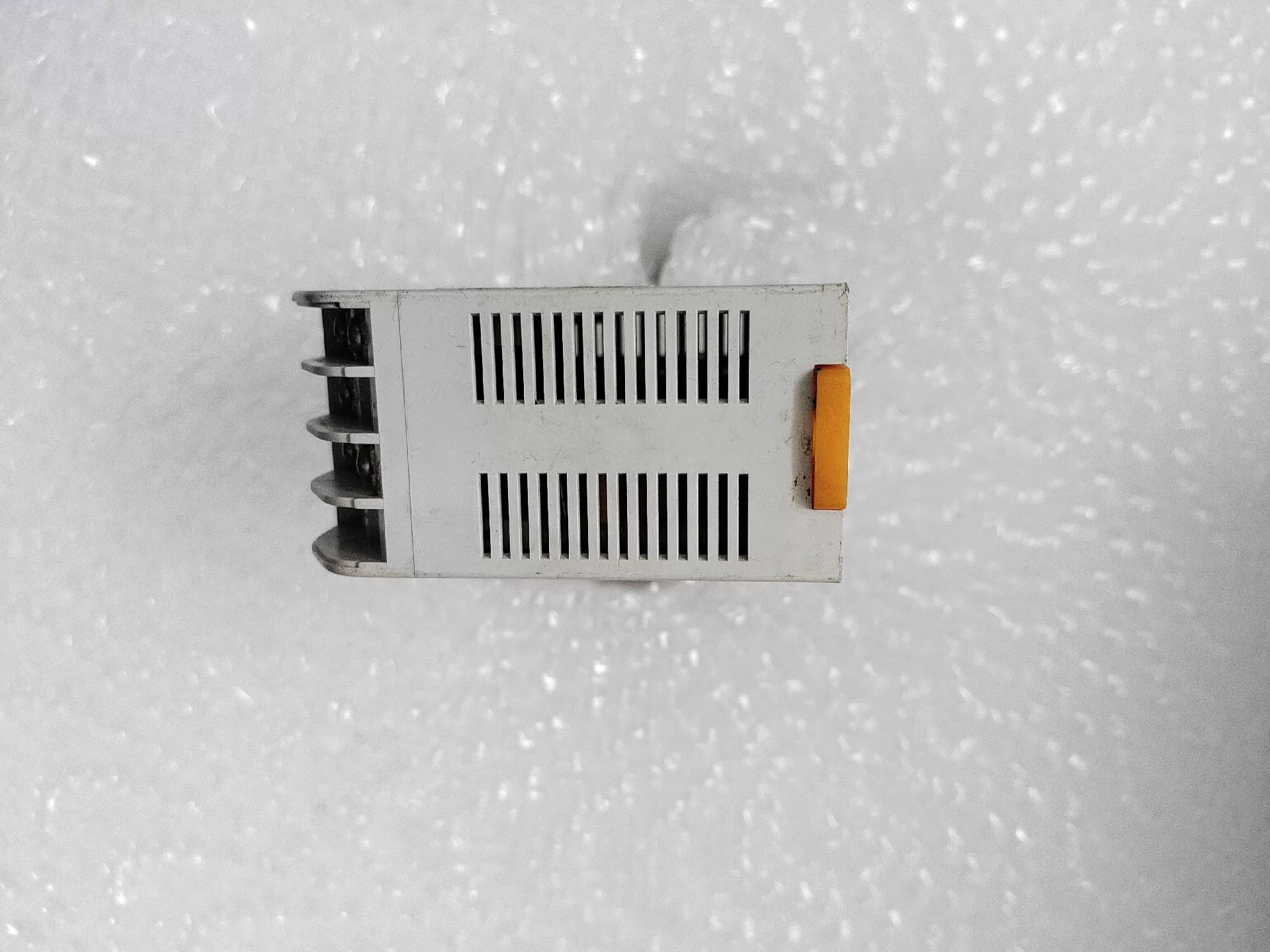

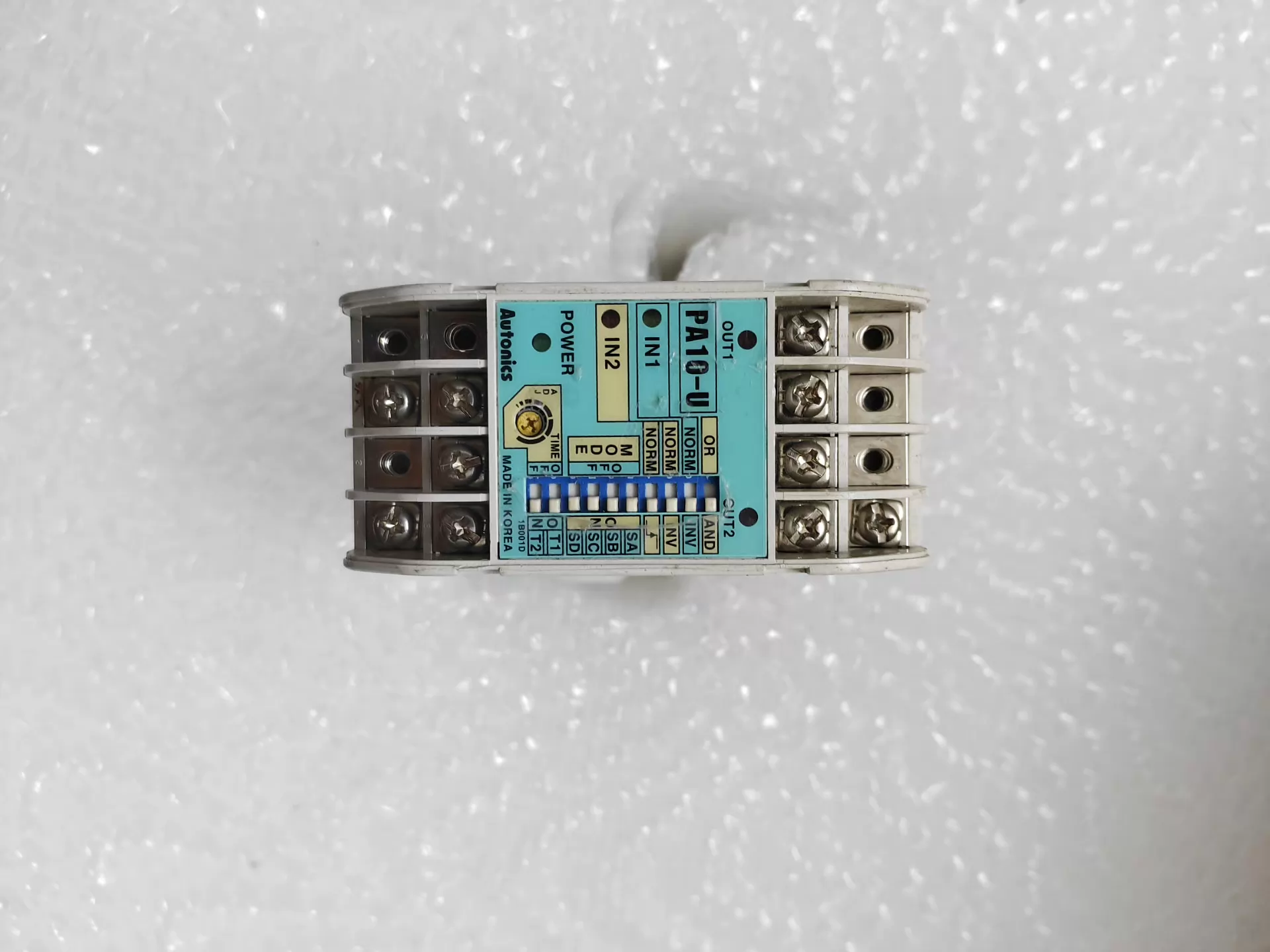

Controlador de sensor Autonics PA10-U - Usado
Descricao
Controlador de sensor Autonics PA10-U usado, com leves marcas de uso, removido de equipamento. Consumo: máx. 10 VA.
Especificacoes
| Brand | Autonics |
|---|---|
| Model | PA10-U |
| Origin | South Korea |
| Power consumption | Max.10VA |
| Power for external sensor | 12 VDC @(=)(approx. 200 mA) |
| Power for external sensor | 12 VDC @(=) ±10% Approx. 200 mA |
| Power voltage | 100-240 VAC~ 50/60 Hz |
| Weight | Approx. 150g |
| Ambient temperature | 10 to 55℃ |
| Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Control output | Relay SPDT(1c): 1, NPN open collector: 2 |
| DC output | +12 V DC 200 mA |
| Input logic | NPN open collector |
| Input operation | Input signal reverse, OR/AND, IN2 derivative action |
| Number of connected sensors | 2 units |
| Operation mode | 11(ON delay mode, OFF delay mode, one-shot delay mode, fl icker mode, fl icker one-shot mode, low-speed detection mode, high-speed detection mode, ON/OFF delay mode, normAl mode, fl ip-fl op mode, encoder mode) |
