Siemens SINAMICS V20 6SL3210-5BE17-5UV0 variable frequency drive - Used
Description

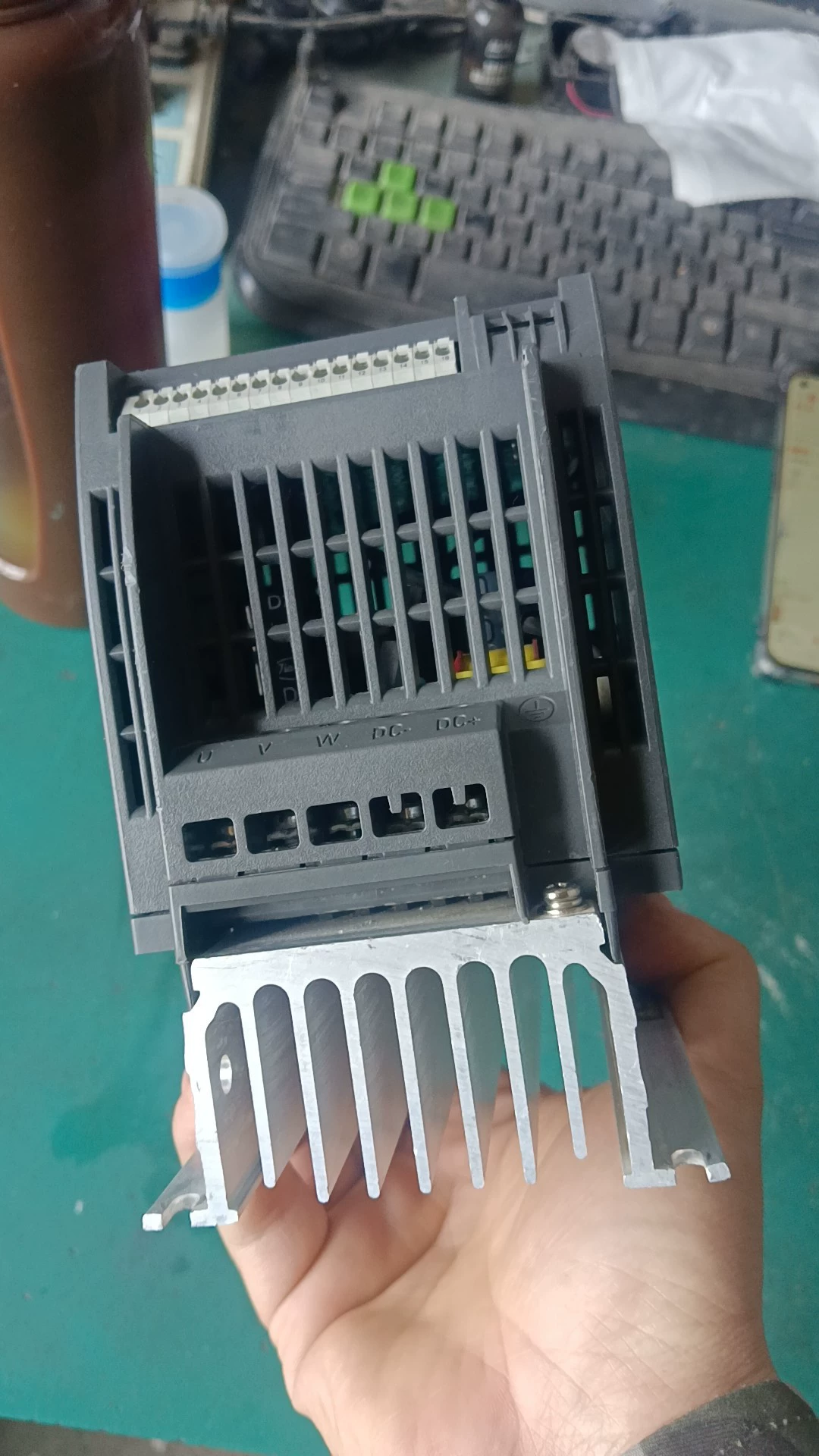

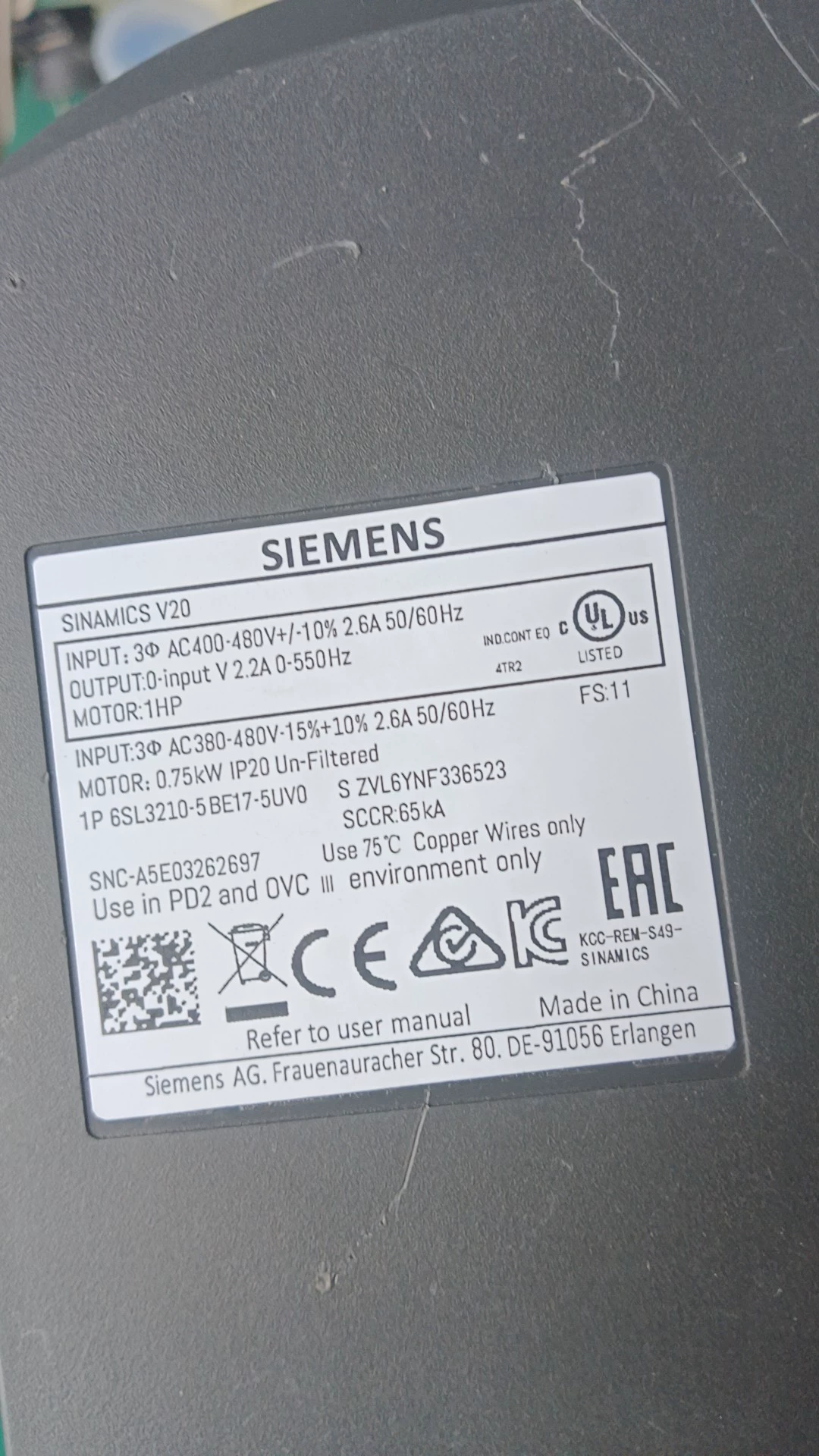

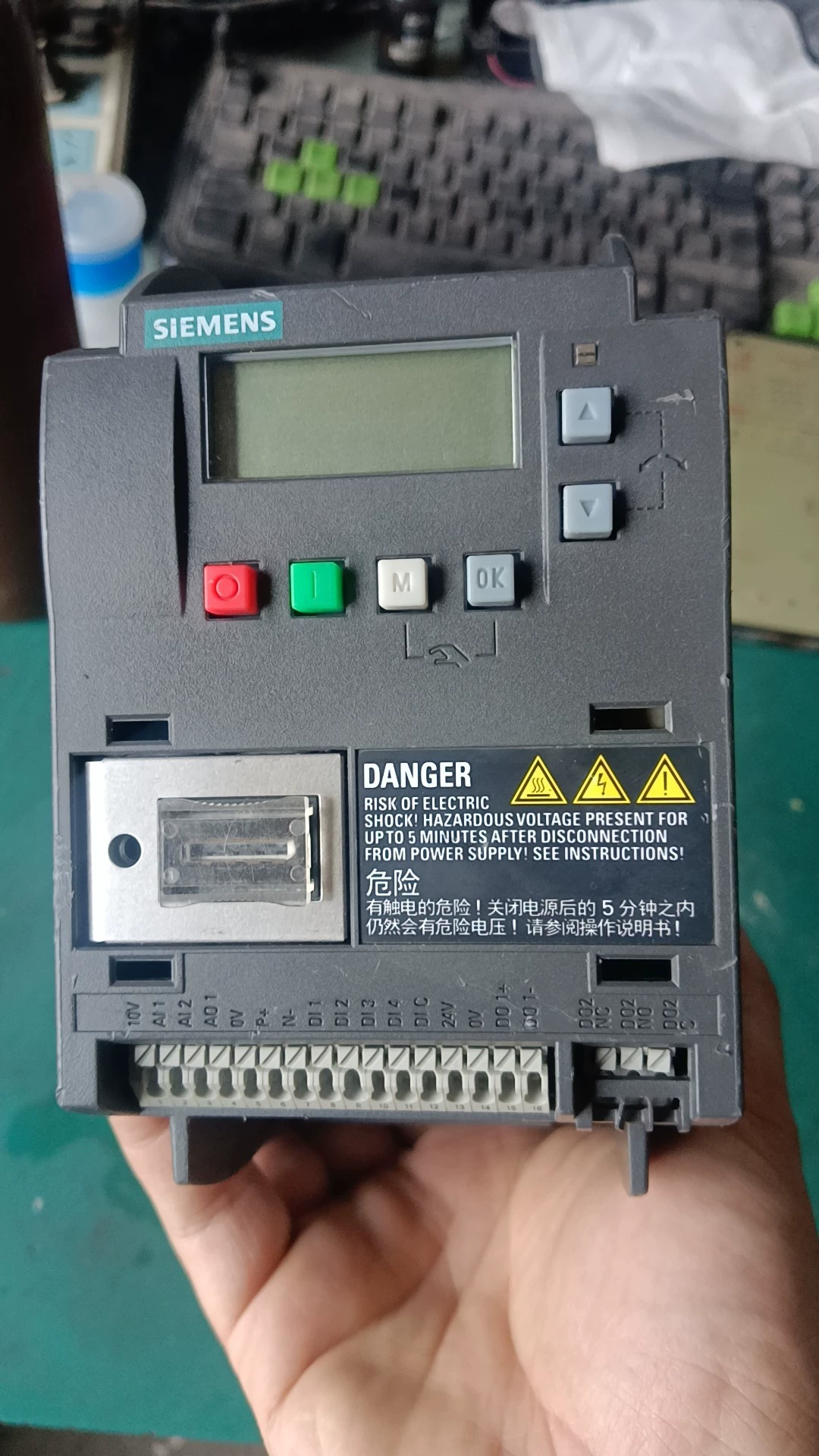

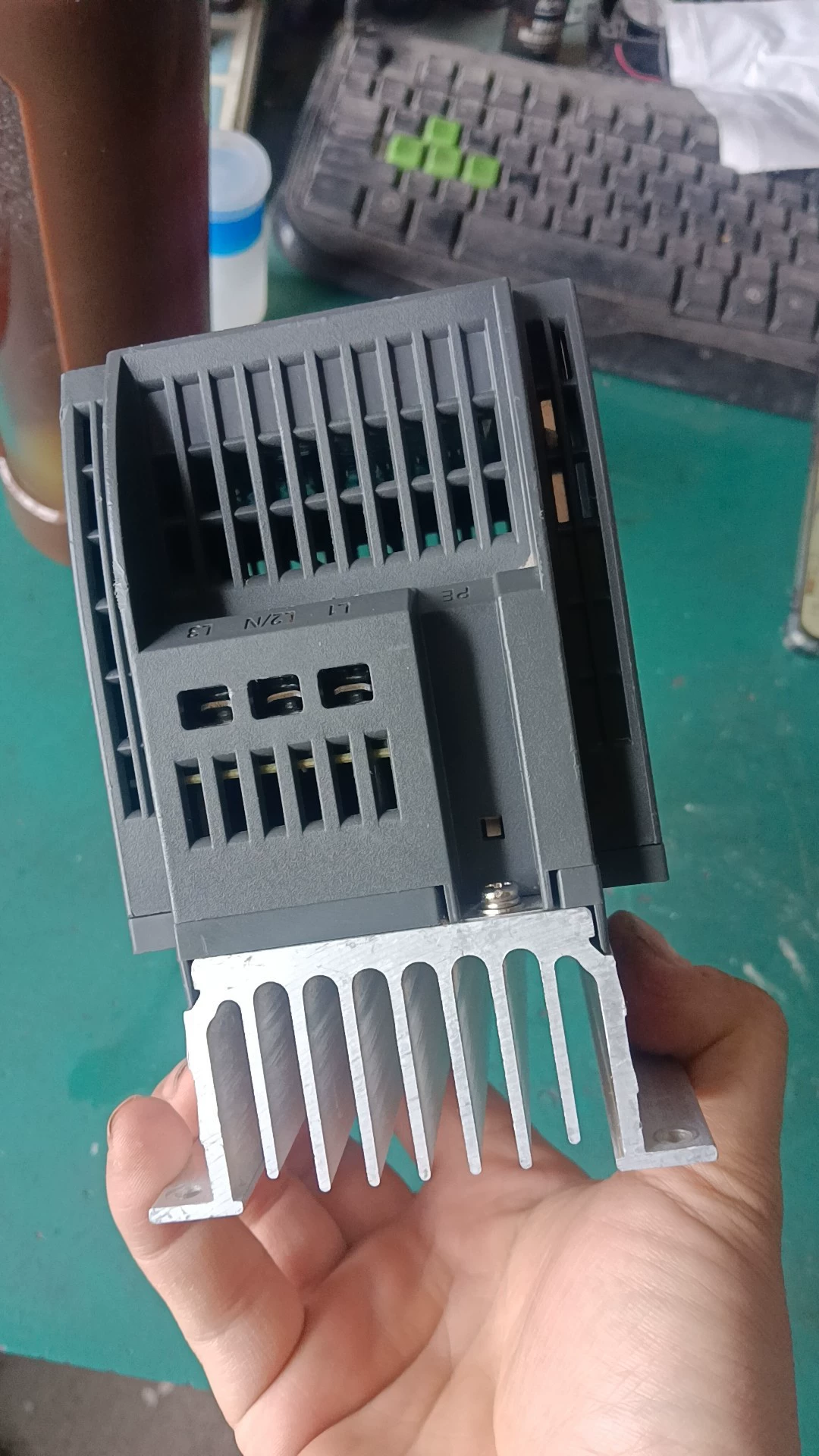

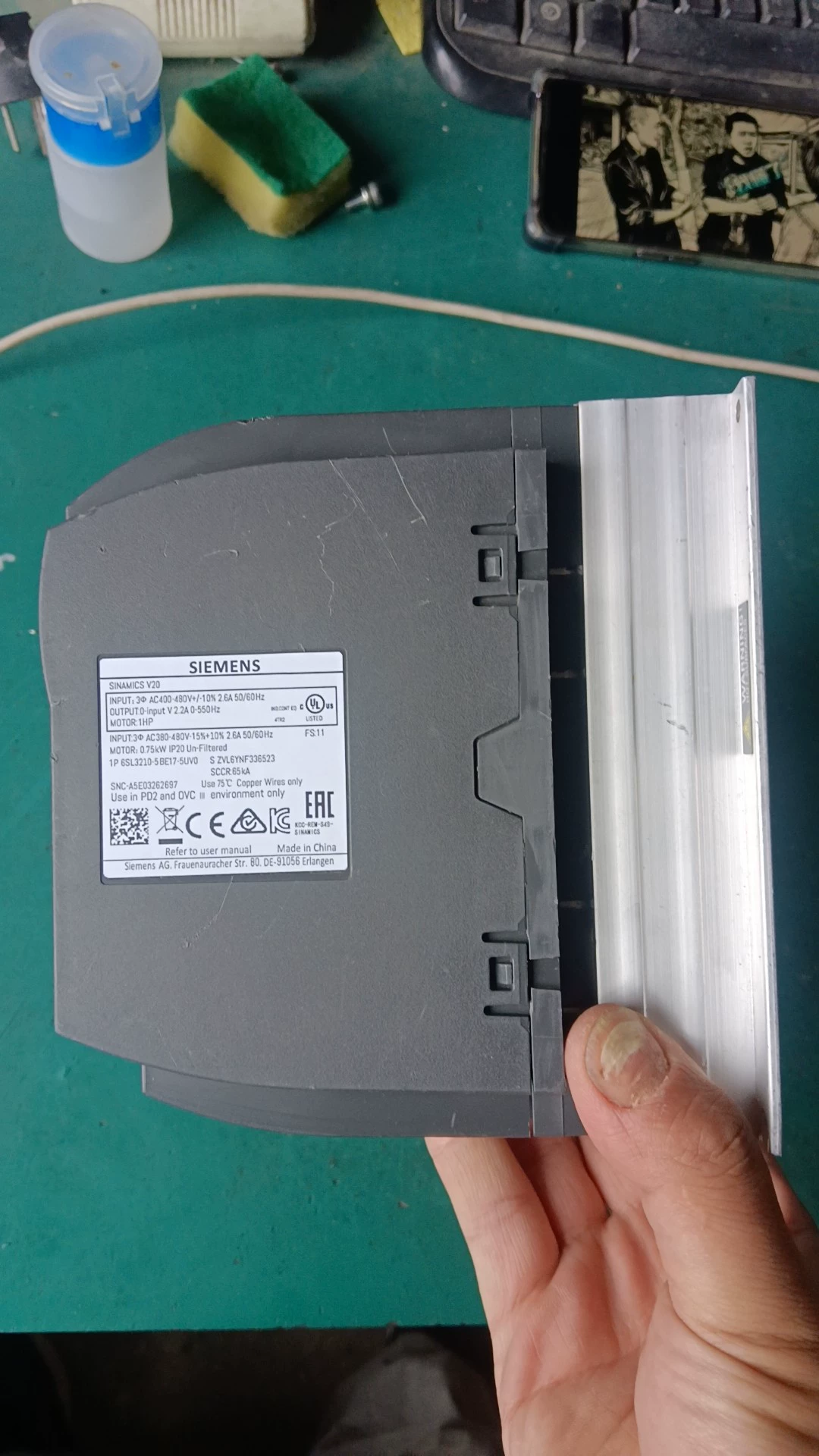

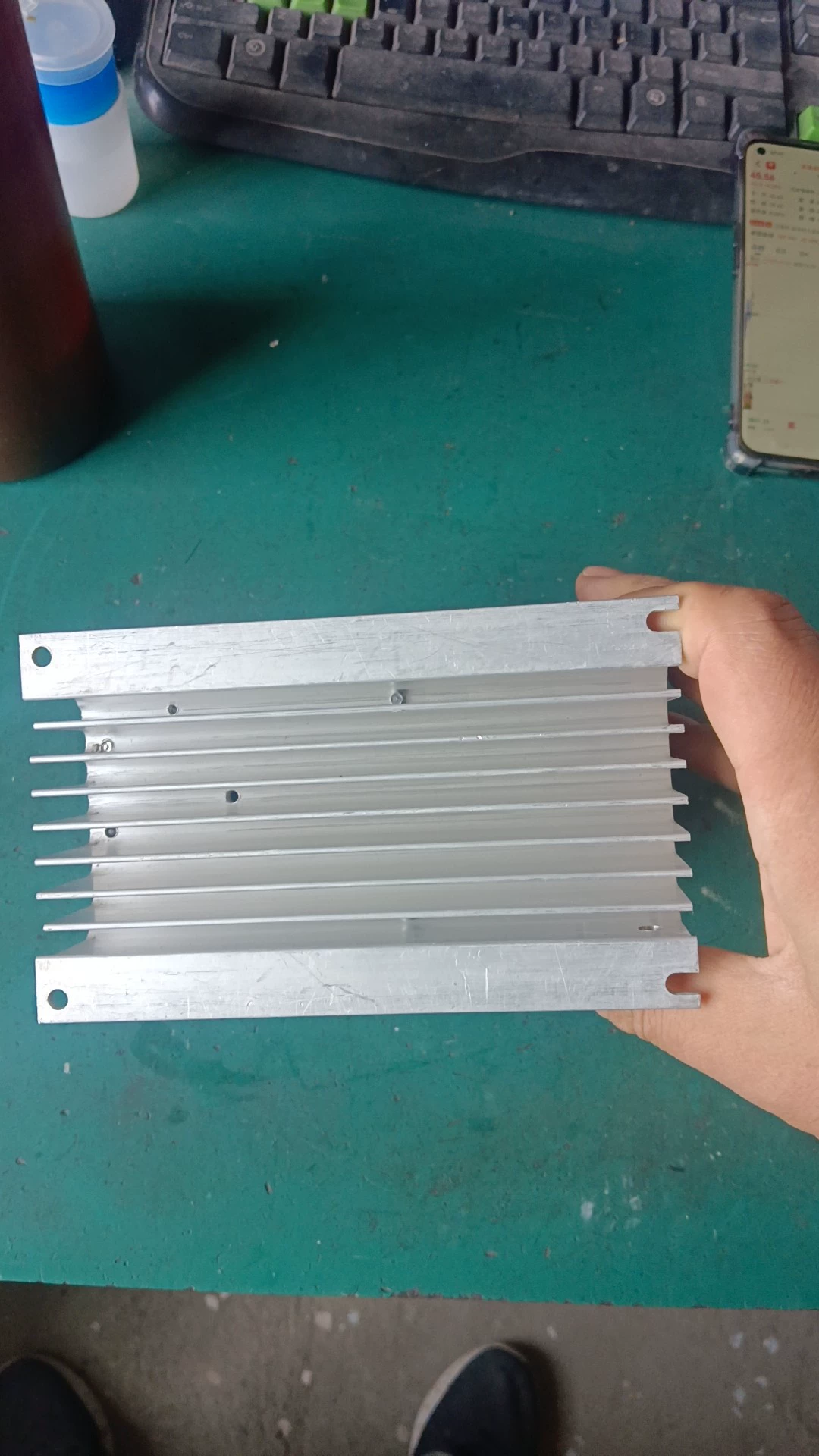

Used Siemens SINAMICS V20 variable frequency drive, model 6SL3210-5BE17-5UV0. Rated at 0.75 kW with 380-480 V 3 AC input. Has some scratches, as shown in the photos.
Specifications
| Brand | Siemens |
|---|---|
| Model | SINAMICS V20 |
| Order Number | 6SL3210-5BE17-5UV0 |
| Origin | China |
| Fieldbus | USS/MODBUS RTU |
| Rated power | 0.75 kW |
| Input Frequency | 50/60 Hz |
| Input voltage | 380-480 V 3 AC |
| Input Current | 2.6 A |
| Output Current | 2.2 A |
| Input Voltage Range | 3Φ AC 380-480 V -15% +10% 2.6 A 50/60 Hz |
| Output Frequency | 0-550 Hz |
| Wire Temperature | 75°C |
| Filter | unfiltered |
| Frame size | A |
| I/O | 4 DI, 2 DO,2 AI, 1 AQ |
| Input 2 | 3Φ AC 380-480 V-15%+10% 2.6 A 50/60 Hz |
| Input Current 3ph | 2.6 A |
| Input Voltage 3ph | AC 400-480 V+/-10% |
| IP Rating | IP20 |
| Motor 2 | 0.75kW IP20 Un-Filtered |
| Motor Power | 0.75 kW IP20 Un-Filtered |
| Motor Power Hp | 1HP |
| Motor Power Kw | 0.75 kW |
| Output | 0-input V 2.2 A 0-550 Hz |
| output_voltage | 0-input V |
| Protection | IP20/ UL open |
| Protection Rating | IP20 |
| Sccr | 65kA |
| Wire | Use 75℃ Copper Wires only |
