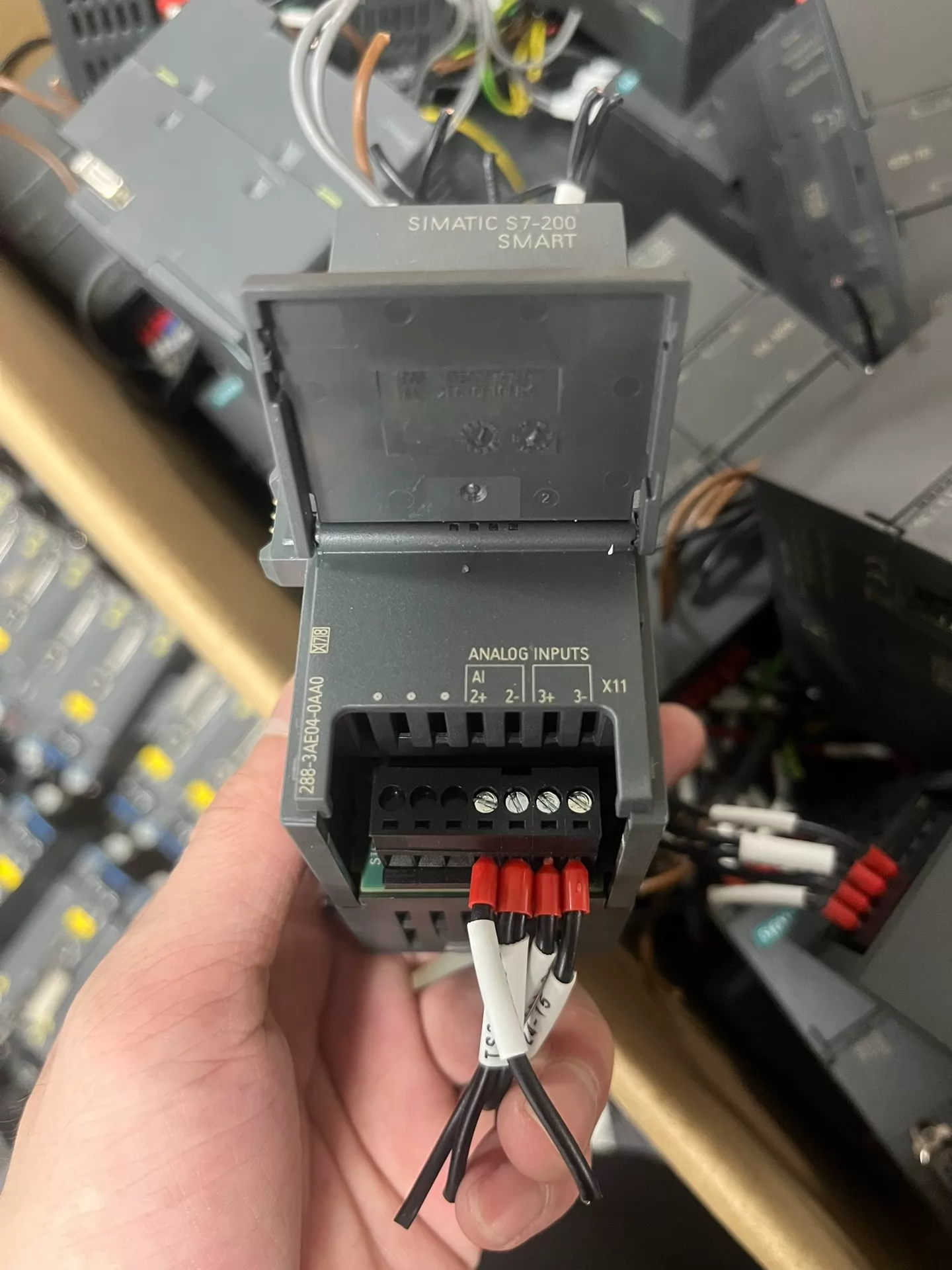

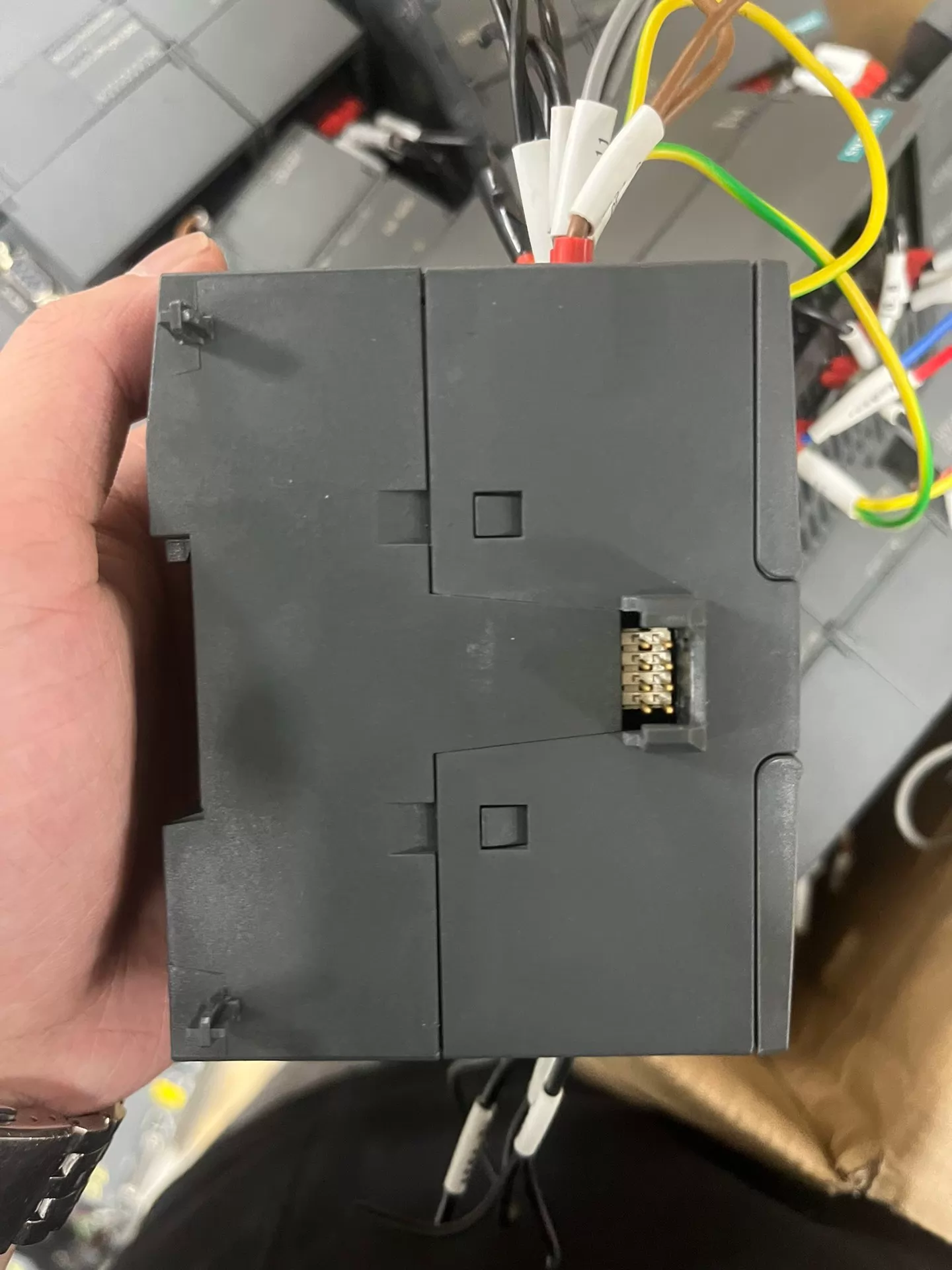

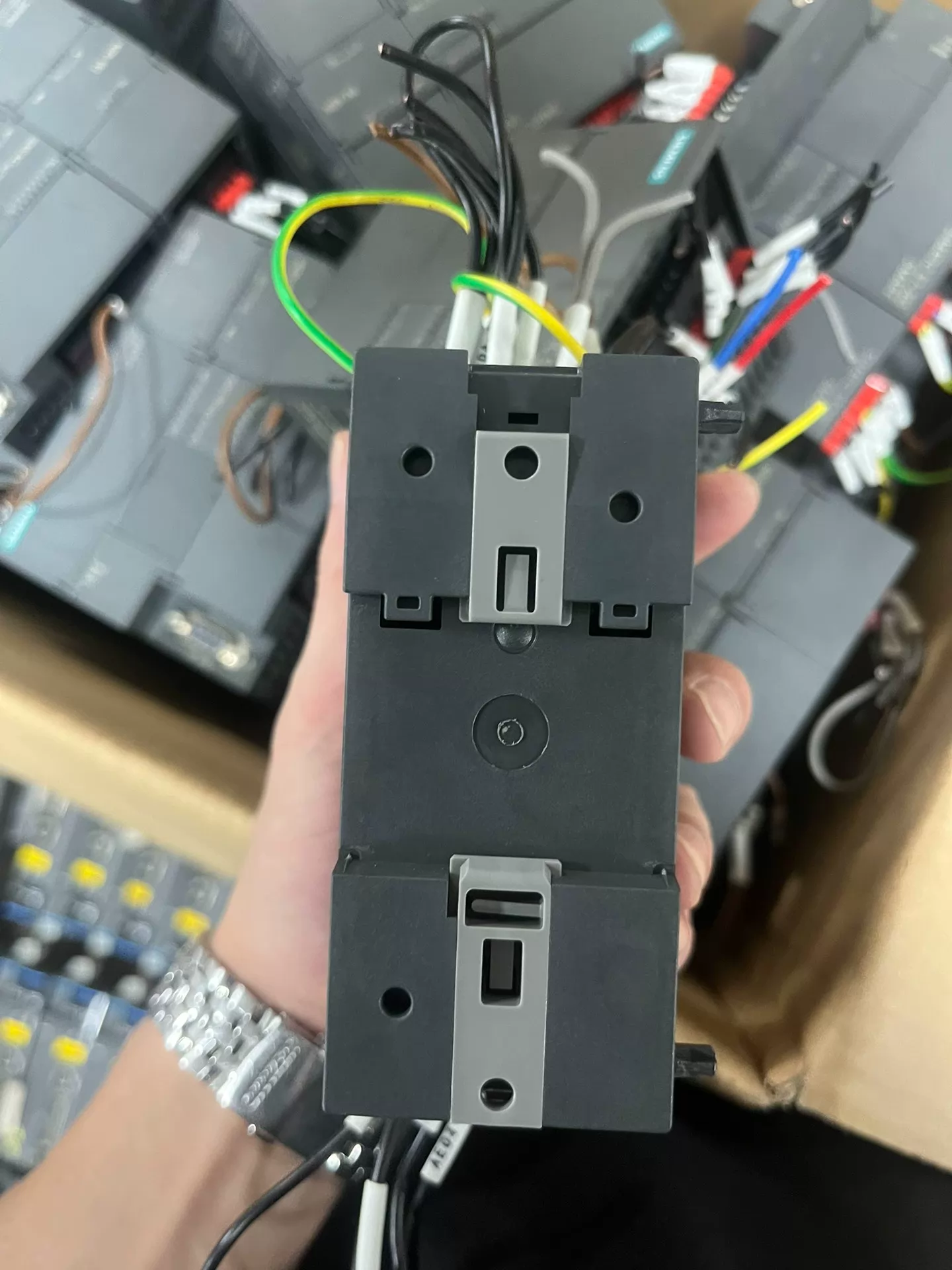

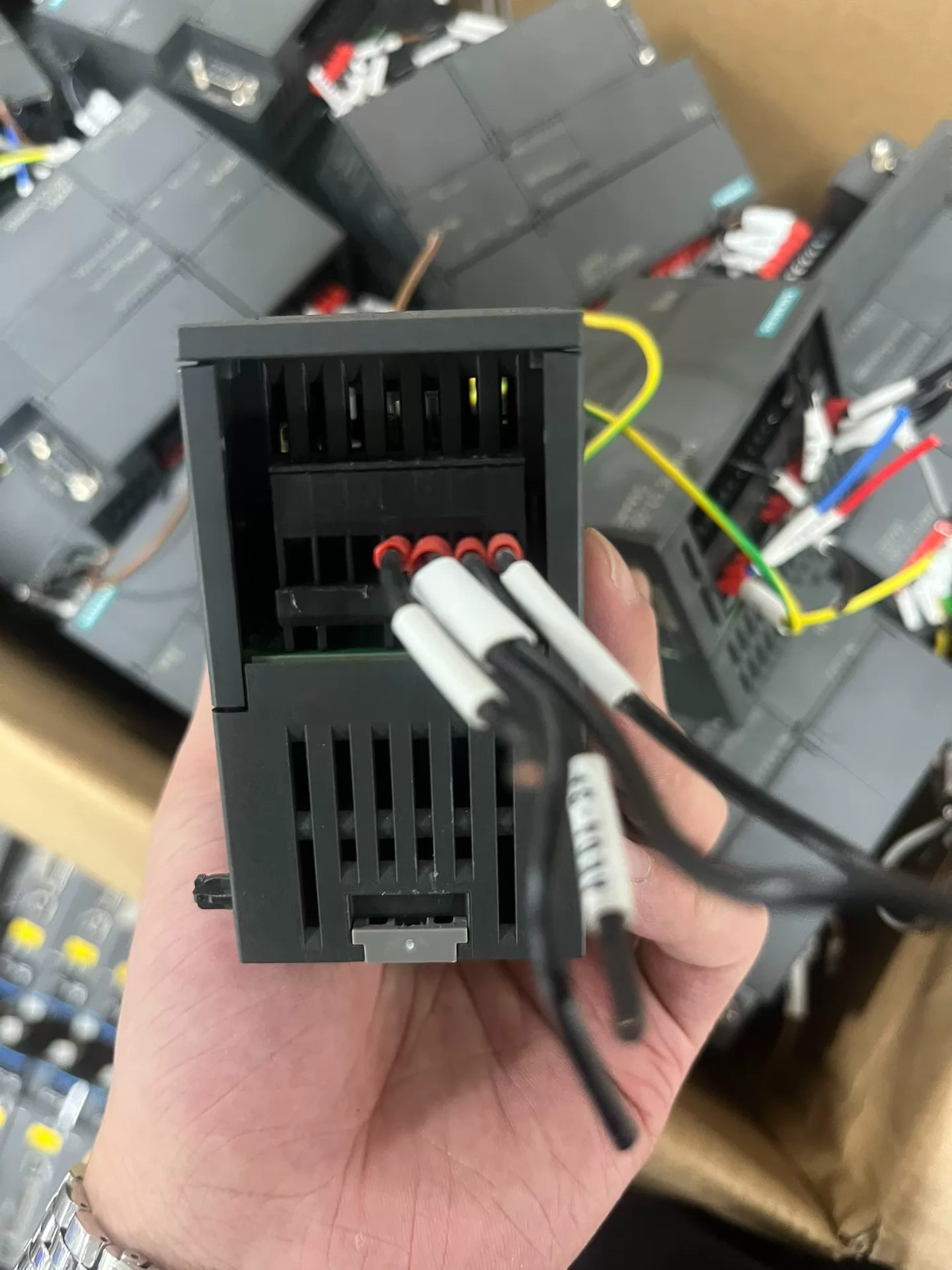

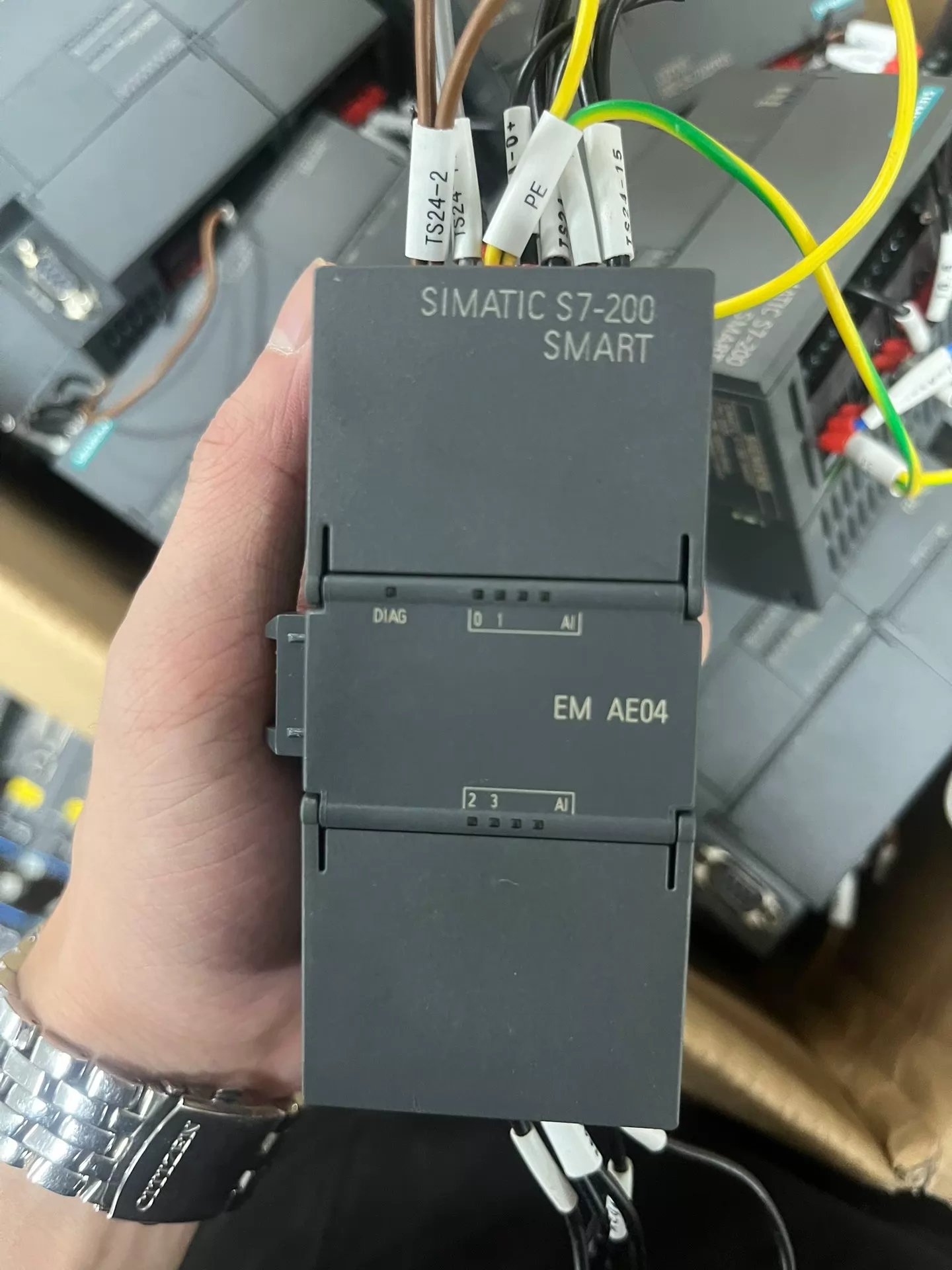

Siemens EM AE04 6ES7288-3AE04-0AA0 - Used
Description

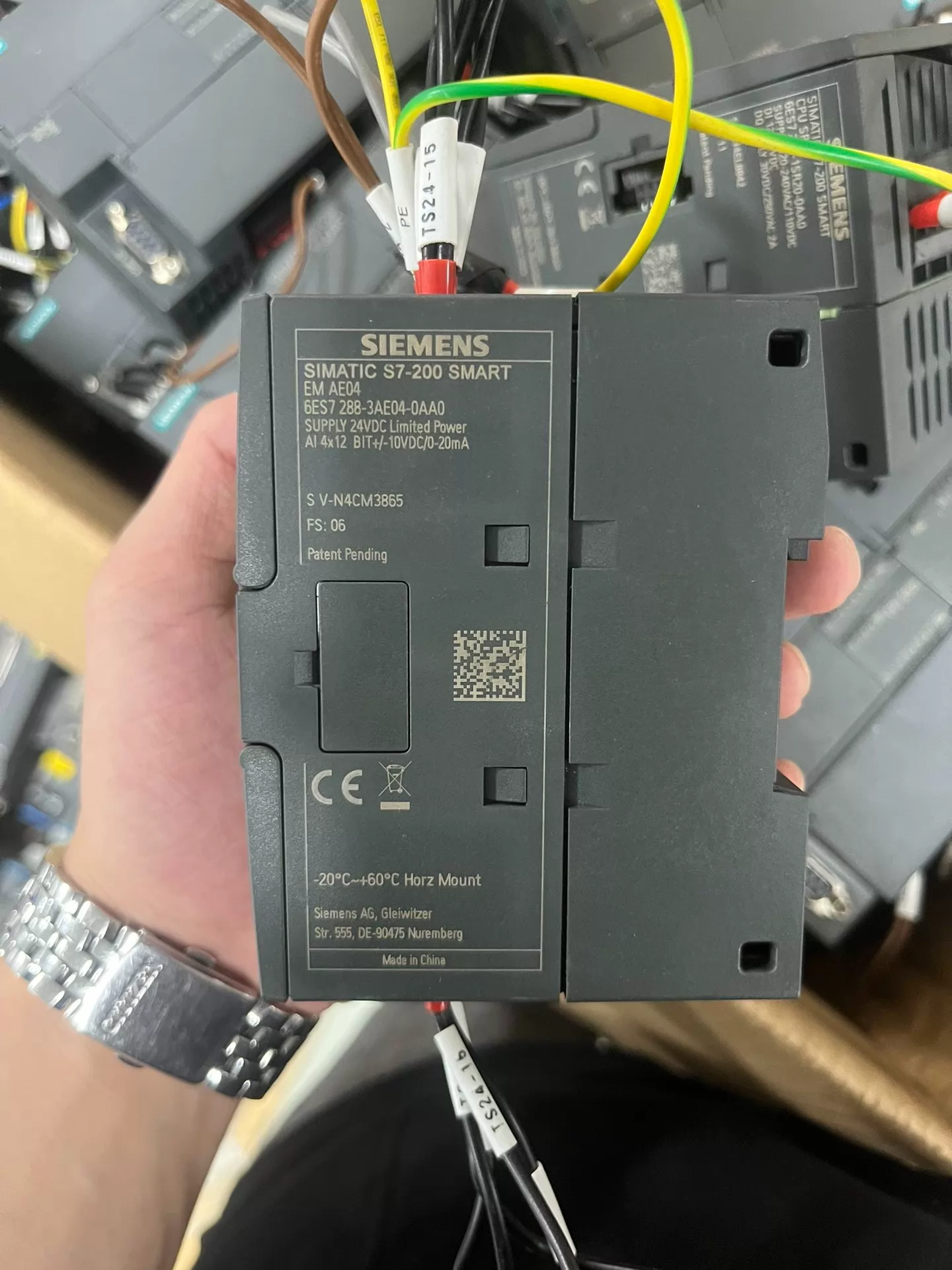

Used Siemens EM AE04 analog input module, model 6ES7288-3AE04-0AA0. 4 analog inputs (12-bit, -10 V DC or 0-20 mA), 24 V DC supply. Removed from equipment, with some signs of use; nameplate parameters are clear.
Specifications
| Brand | Siemens |
|---|---|
| Model | EM AE04 |
| Input ranges (Current) | Yes; 0 to 20 mA |
| Interference voltage suppression for interference frequency f1 in Hz | 10 / 50 / 60 / 400 Hz |
| Input ranges (Voltage) | Yes; ±10 V, ±5 V, ±2.5 V |
| Power loss, typ. | 1.5 W |
| Weight, approx. | 147 g |
| IP degree of protection | IP20 |
| Current consumption, typ. | 40 mA |
| Depth | 81 mm |
| from backplane bus 5 V DC, typ. | 80 mA |
| Height | 100 mm |
| Input ranges (Resistance thermometer) | No |
| Input ranges (Resistance) | No |
| Input ranges (Thermocouple) | No |
| Number of analog inputs | 4 |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| Product type designation | SM AI04, AI 4x12 bit |
| Rated value (DC) | 24 V; -15 / +20 % |
| Resolution with overrange (bit including sign), max. | 12 bit; voltage mode: 11 bit + sign bit, current mode: 11 bit |
| Smoothing of measured values (Parameterizable) | Yes; In 4 stages: 1x, 4x, 16x, 32x cycle time |
| Type of supply voltage | DC |
| Width | 45 mm |
