SICK WT12L-2B550 1 017 904 - Used
Description

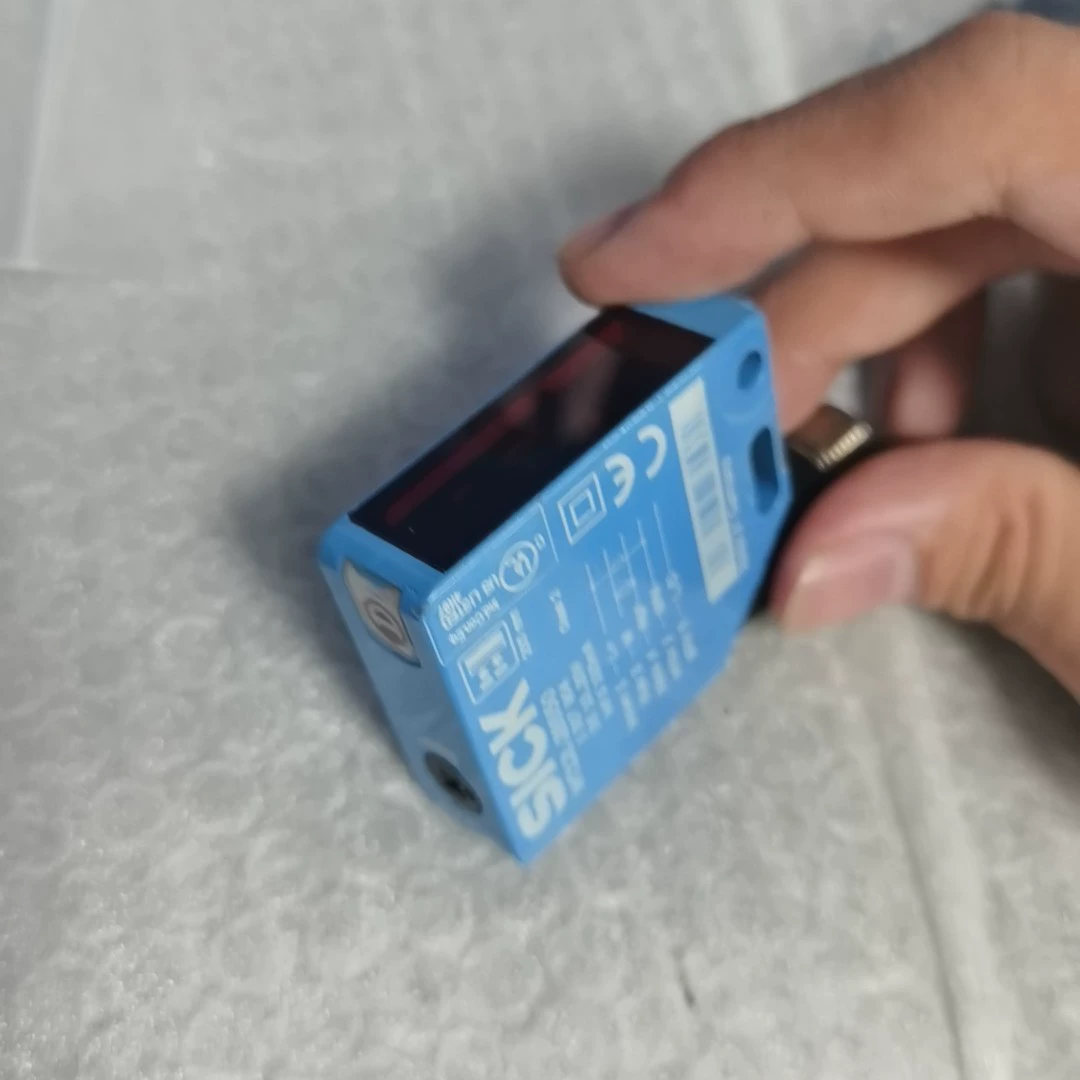

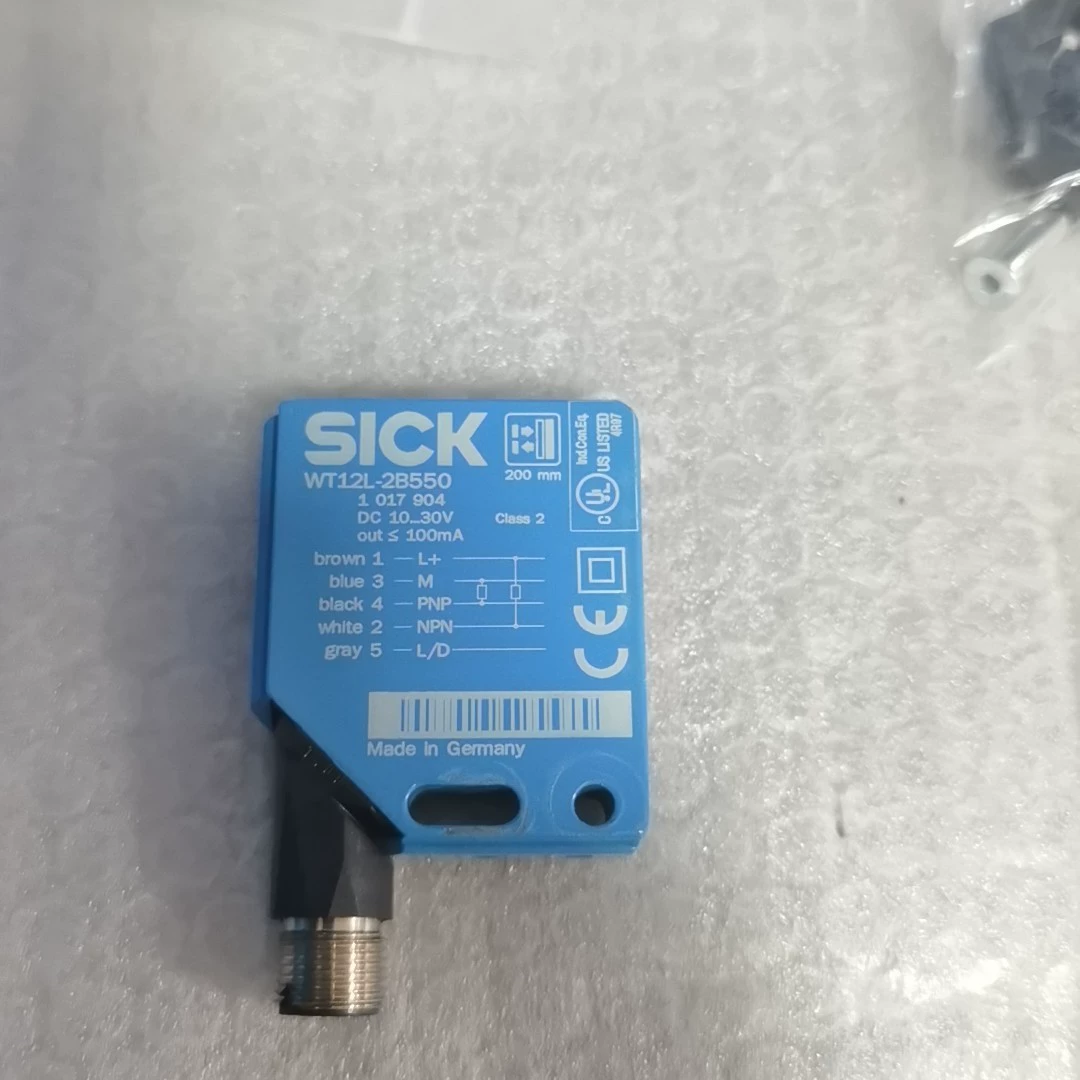

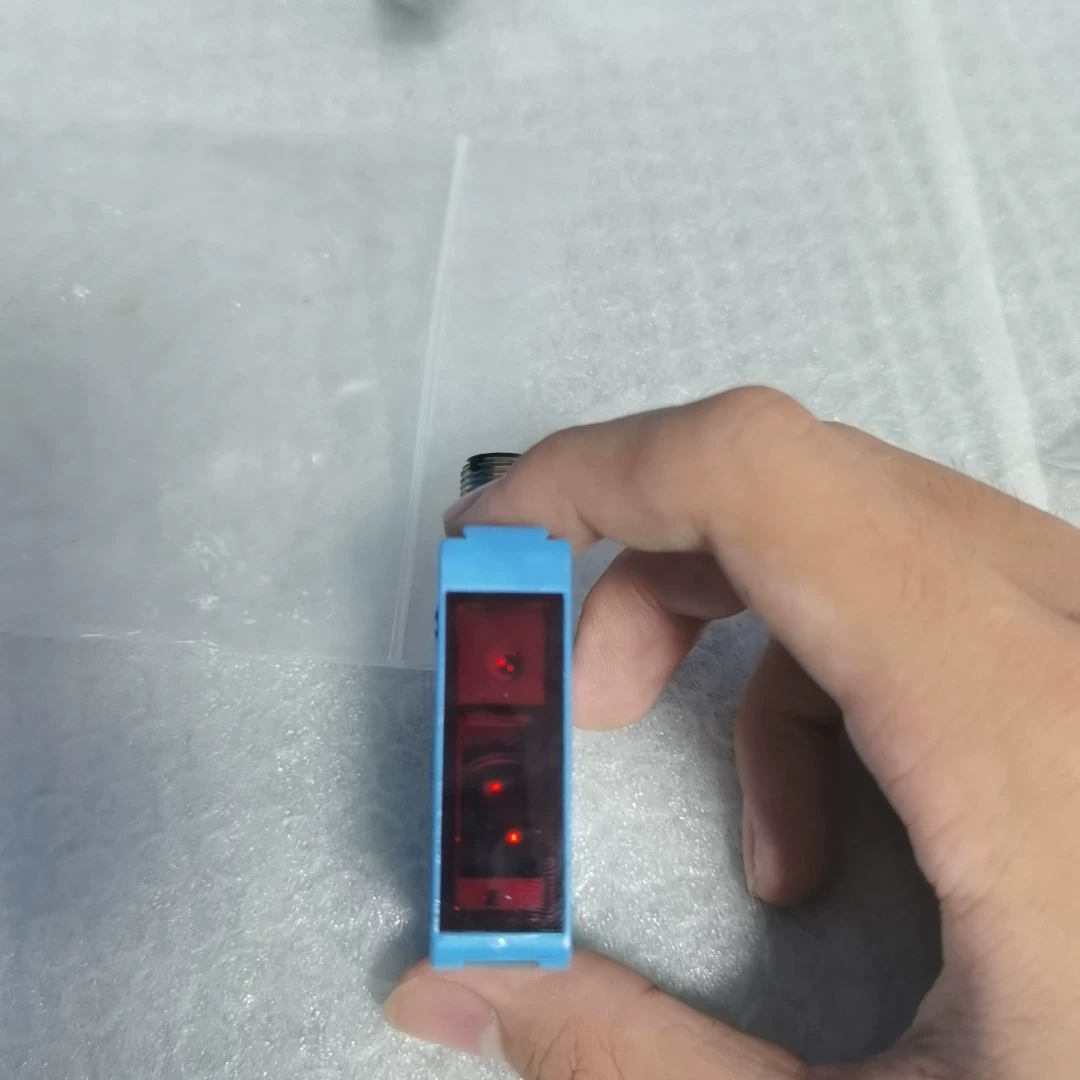

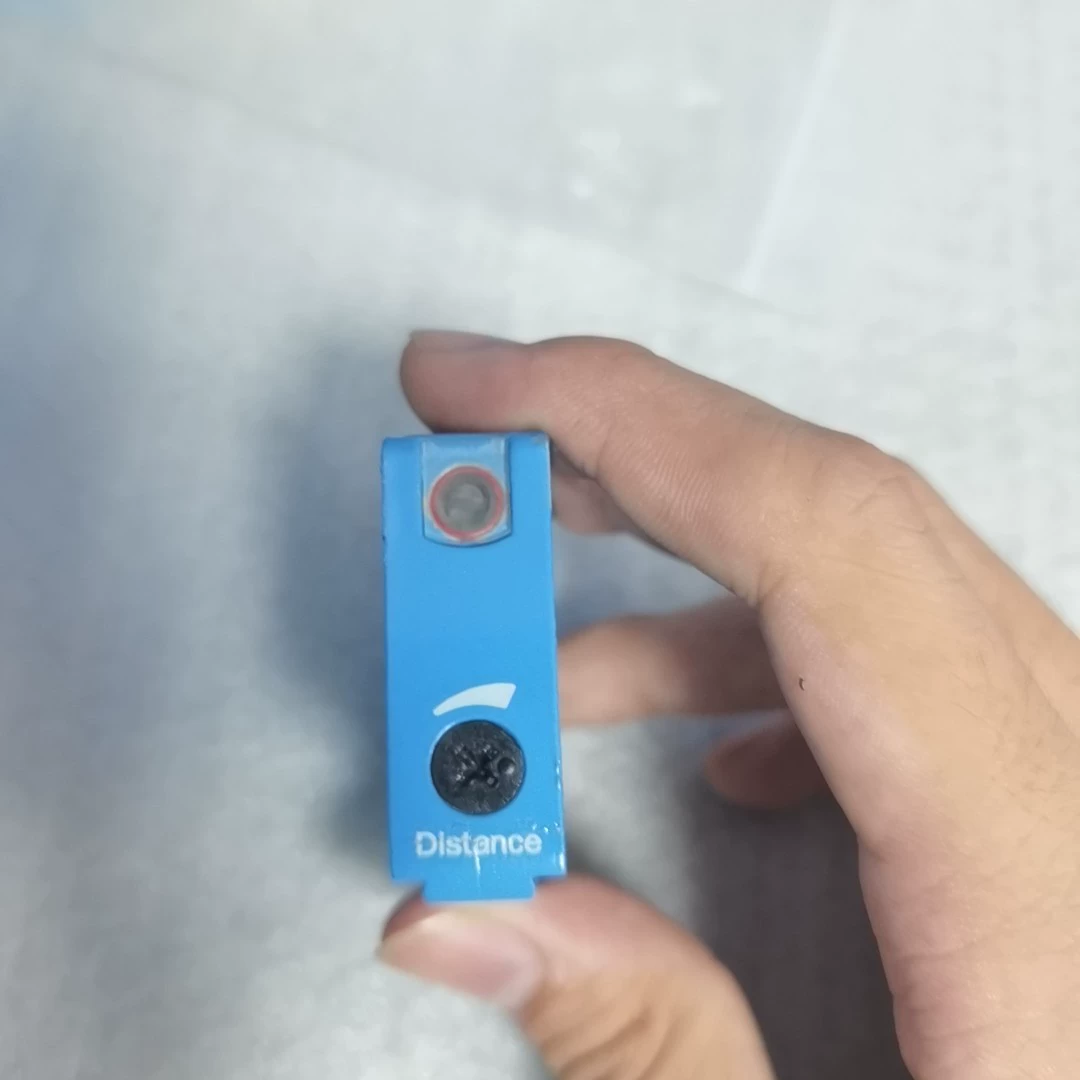

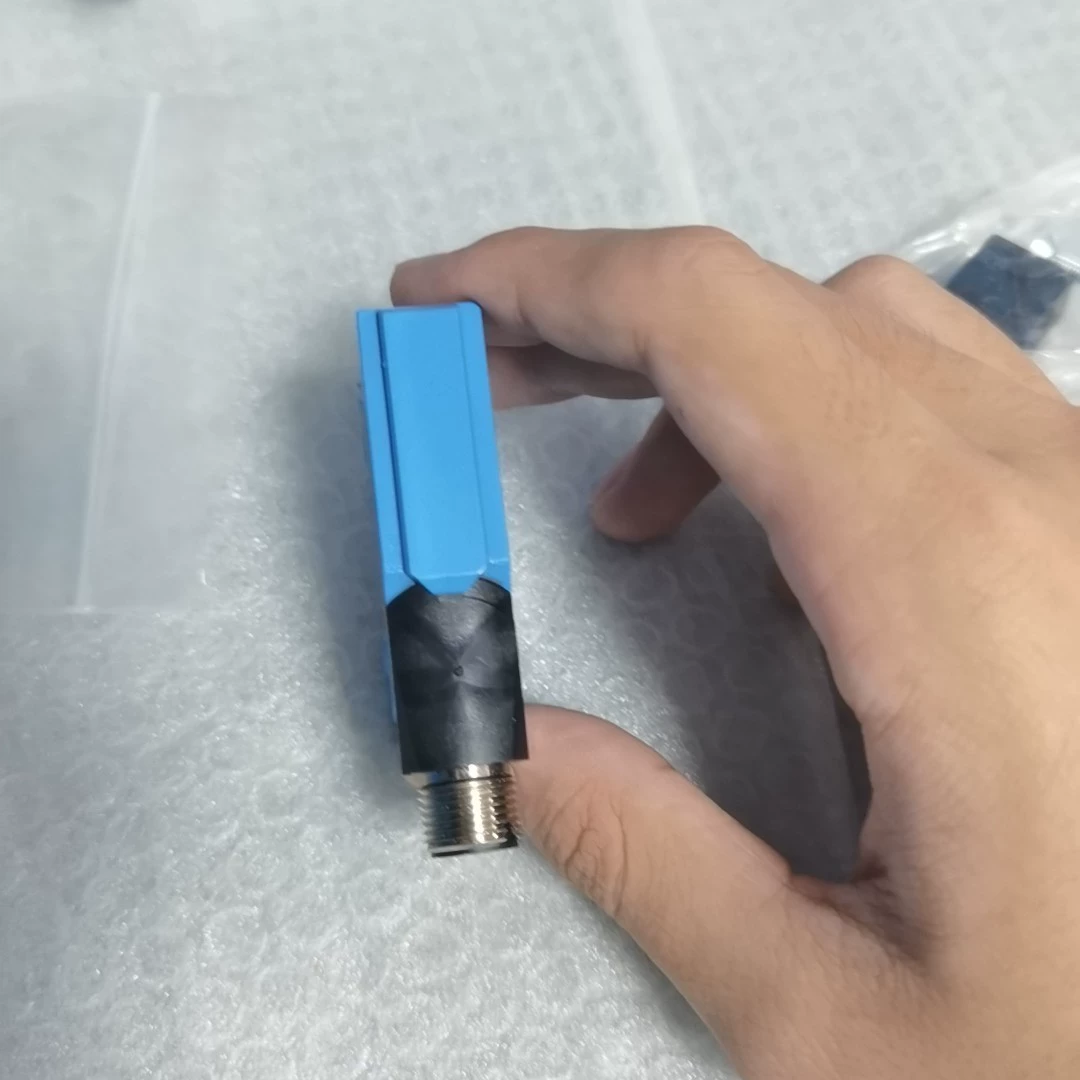

Used SICK WT12L-2B550 laser sensor. Supply voltage: DC 10–30 V.
Specifications
| Brand | SICK |
|---|---|
| Model | WT12L-2B550 |
| MPN | 1 017 904 |
| Origin | Germany |
| Connection type | male connector |
| Supply Voltage | DC 10–30 V |
| Response time | ≤ 200 µs |
| Output Current | out ≤ 100 mA |
| Switching frequency | 2500 Hz |
| Sensing Range | 200 mm |
| Weight | 130 g |
| Ambient operation temperature max. | 50 °C |

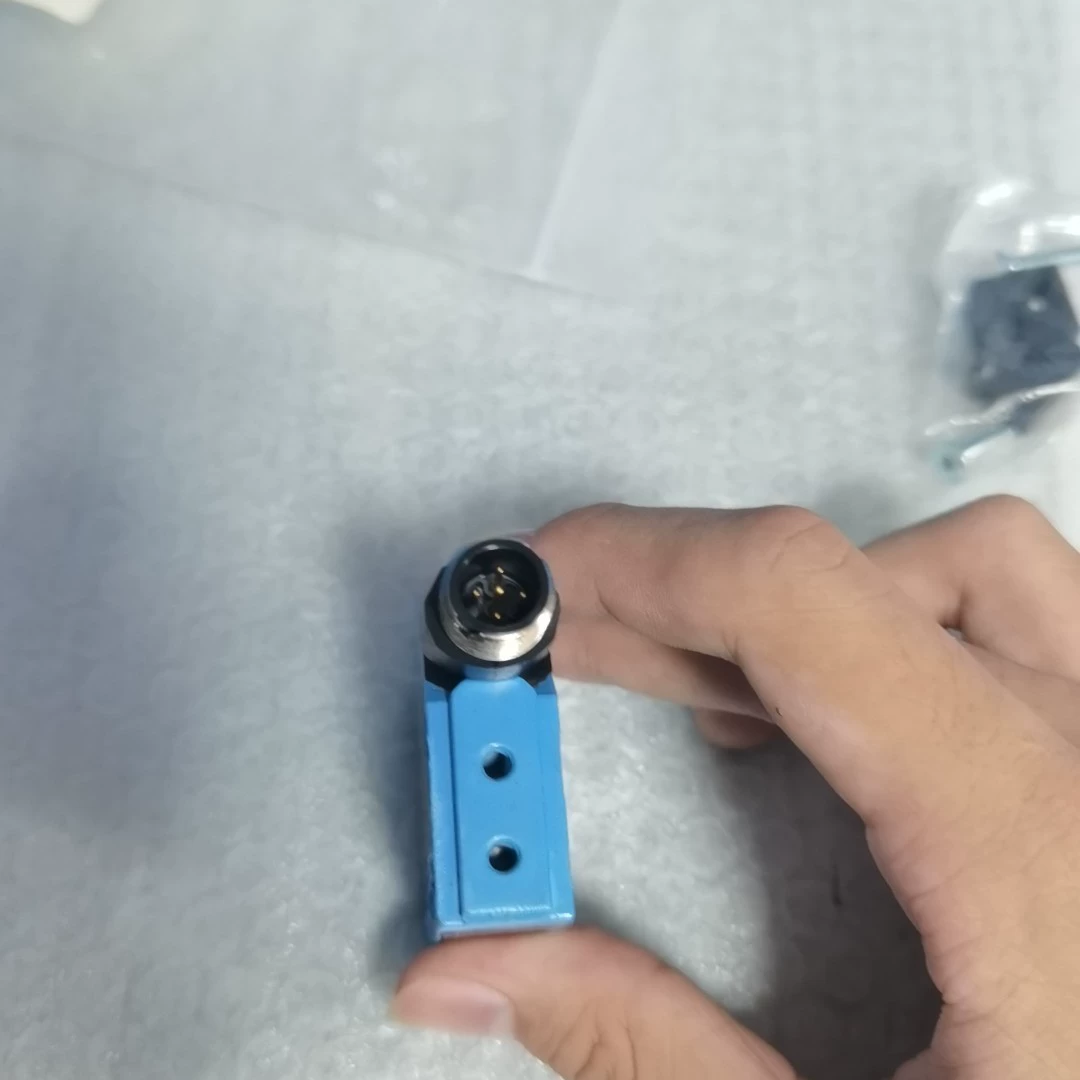

| Connection type detail | Plug, M12, 5-pin |
| Dimension length | 49 mm |
| Dimension width | 15 mm |
| Enclosure rating | IP67; IP69K |
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Housing | rectangular |
| Light source | laser |
| Object distance max. | 200 mm |
| Object distance min. | 30 mm |
| Protection Class | Class 2 |
| SICK article code | p241345 |
| SICK type | WT12L-2B550 |
| Switching mode | Light switching; Dark switching |
| Switching output | PNP; NPN |
| Type of light | visible red light |
