SICK WLA26P-24862130A00 1115760 - Used
Description
Used SICK WLA26P-24862130A00 photoelectric sensor. It operates on DC 10–30 V supply voltage and has an output current of ≤100 mA.
Specifications
| Brand | SICK |
|---|---|
| Model | WLA26P-24862130A00 |
| MPN | 1115760 |
| Origin | Germany |
| Connection type | male connector |
| Supply Voltage | DC 10–30 V |
| Response time | ≤ 500 µs |
| Output Current | out ≤ 100 mA |
| Switching frequency | 1000 Hz |
| Weight | ca. 80 g |
| ambient_temperature | 60°C |
| Ambient operation temperature max. | 60 °C |

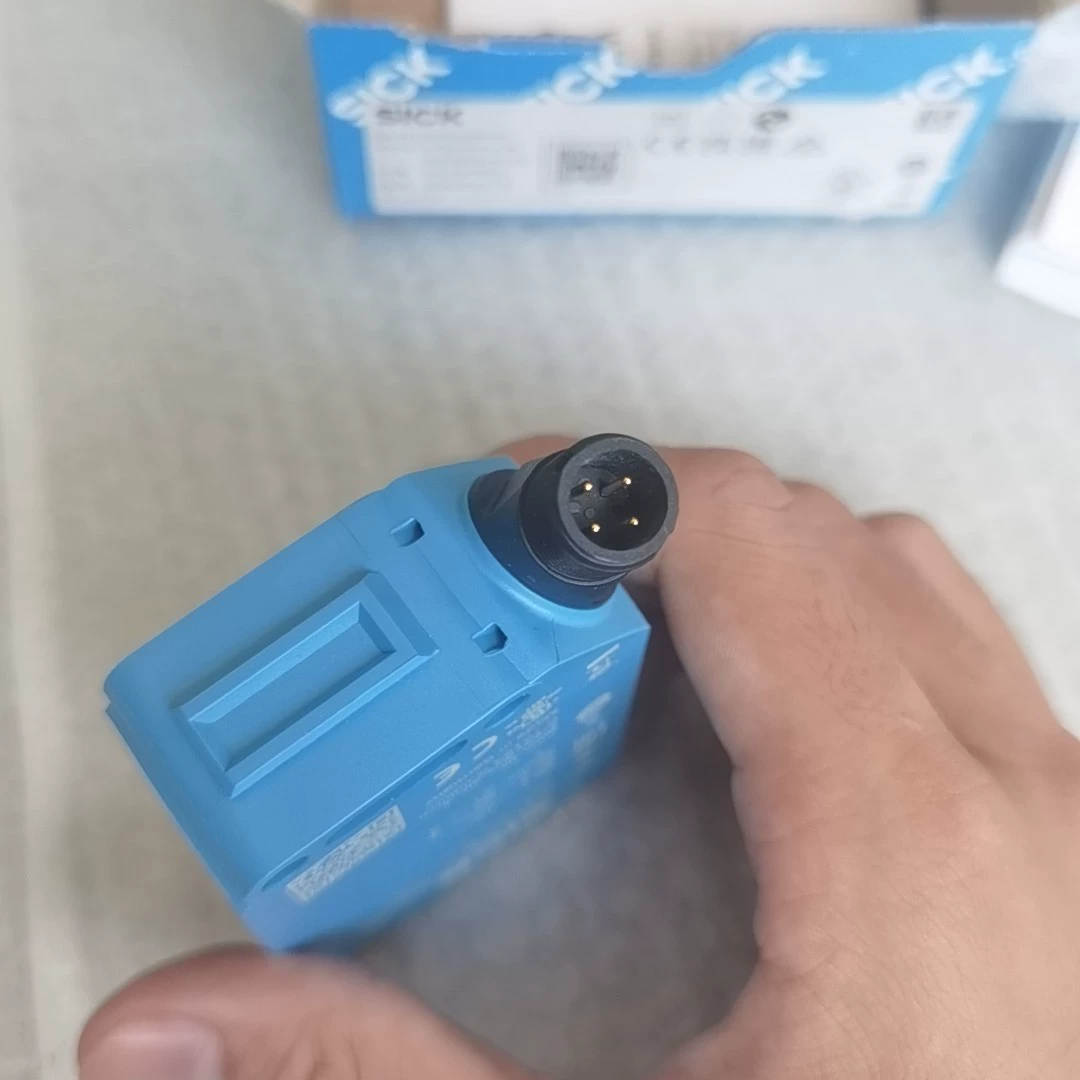

| Connection type detail | male connector M12, 4-pin |
| Dimension length | 82.5 mm |
| Dimension width | 24.6 mm |
| Enclosure rating | IP66; IP67; IP69 |
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | Without reflector minimum distance (autocollimation/coaxial optics) |
| Housing | rectangular |
| Housing material detail | VISTAL® |
| Light source | LED |
| Object distance max. | 18000 mm |
| Object distance min. | 0 mm |
| SICK article code | p662317 |
| SICK type | WLA26P-24862130A00 |
| Switching mode | Light/dark switching |
| Switching output | PNP |
| Type of light | visible red light |
