Schneider Electric LXM16DU07M2X - Used
Description

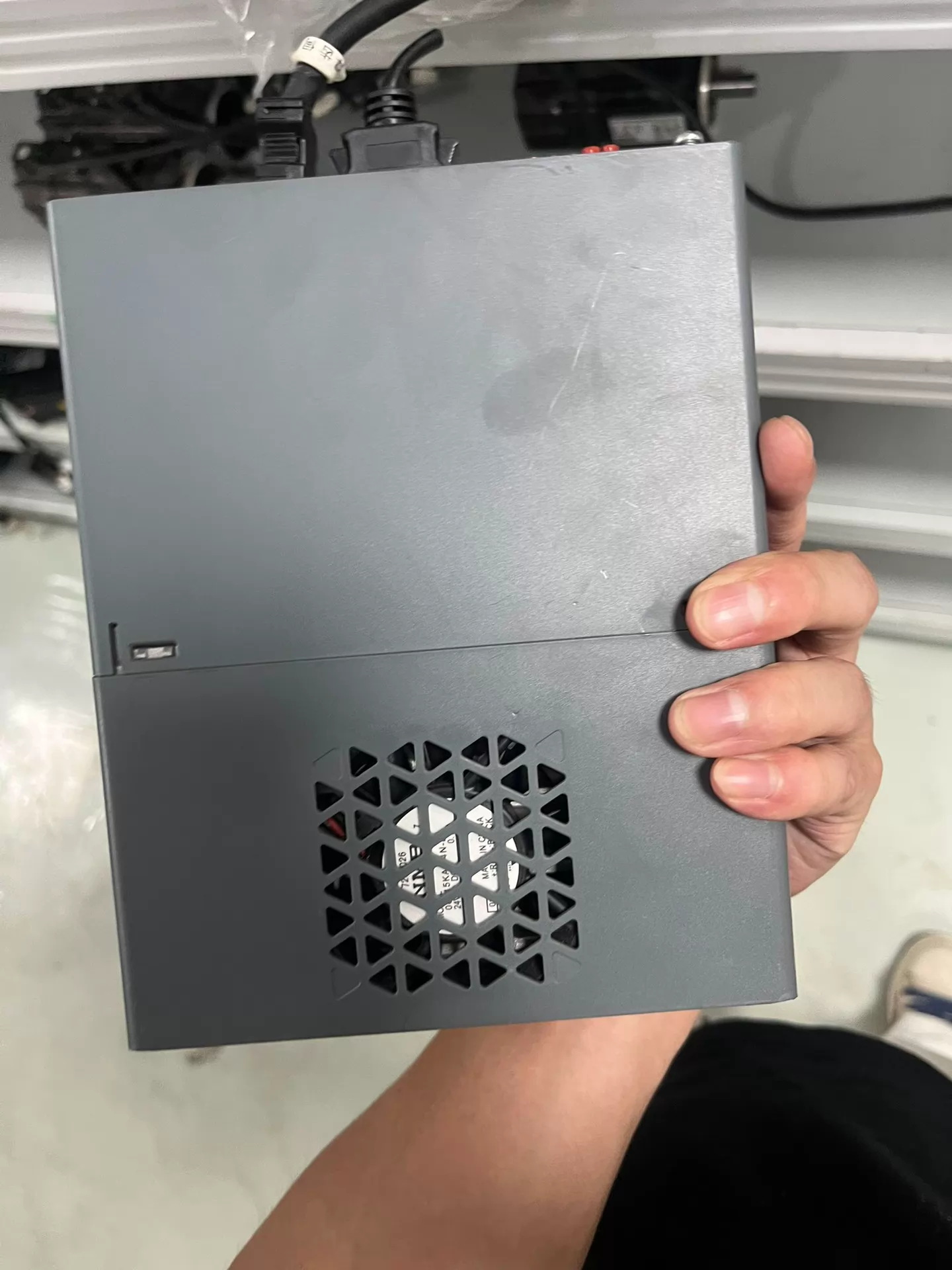

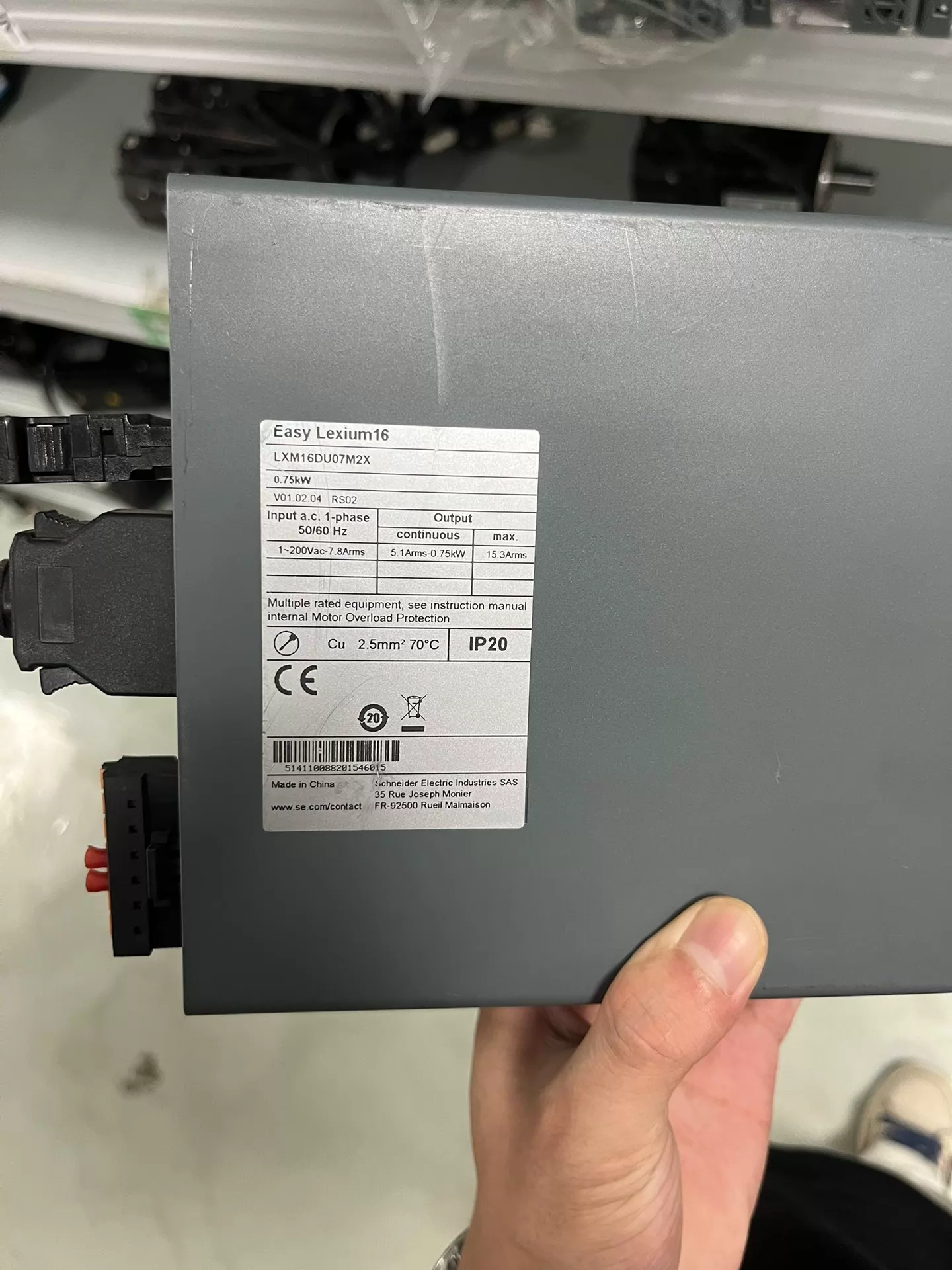

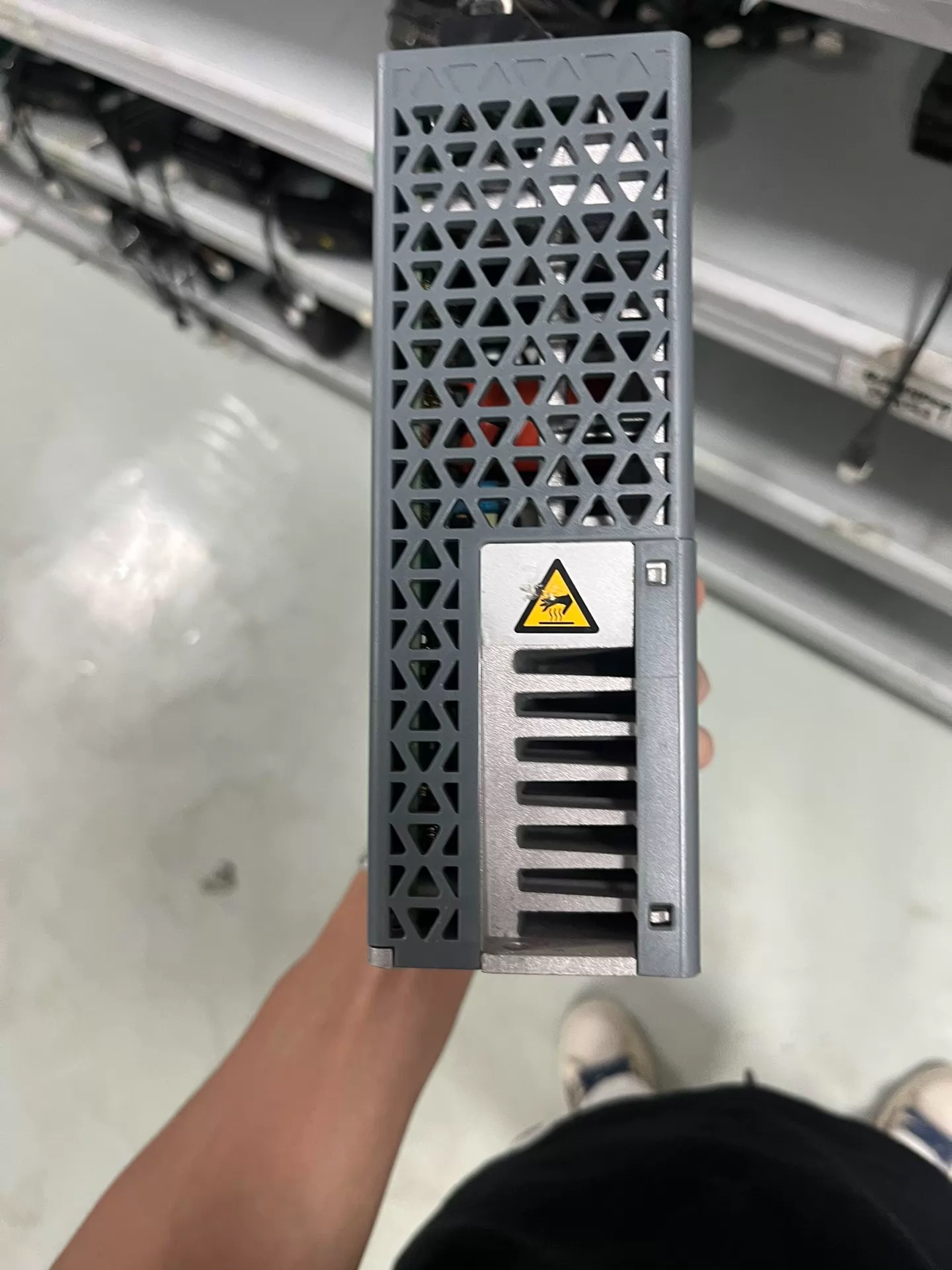

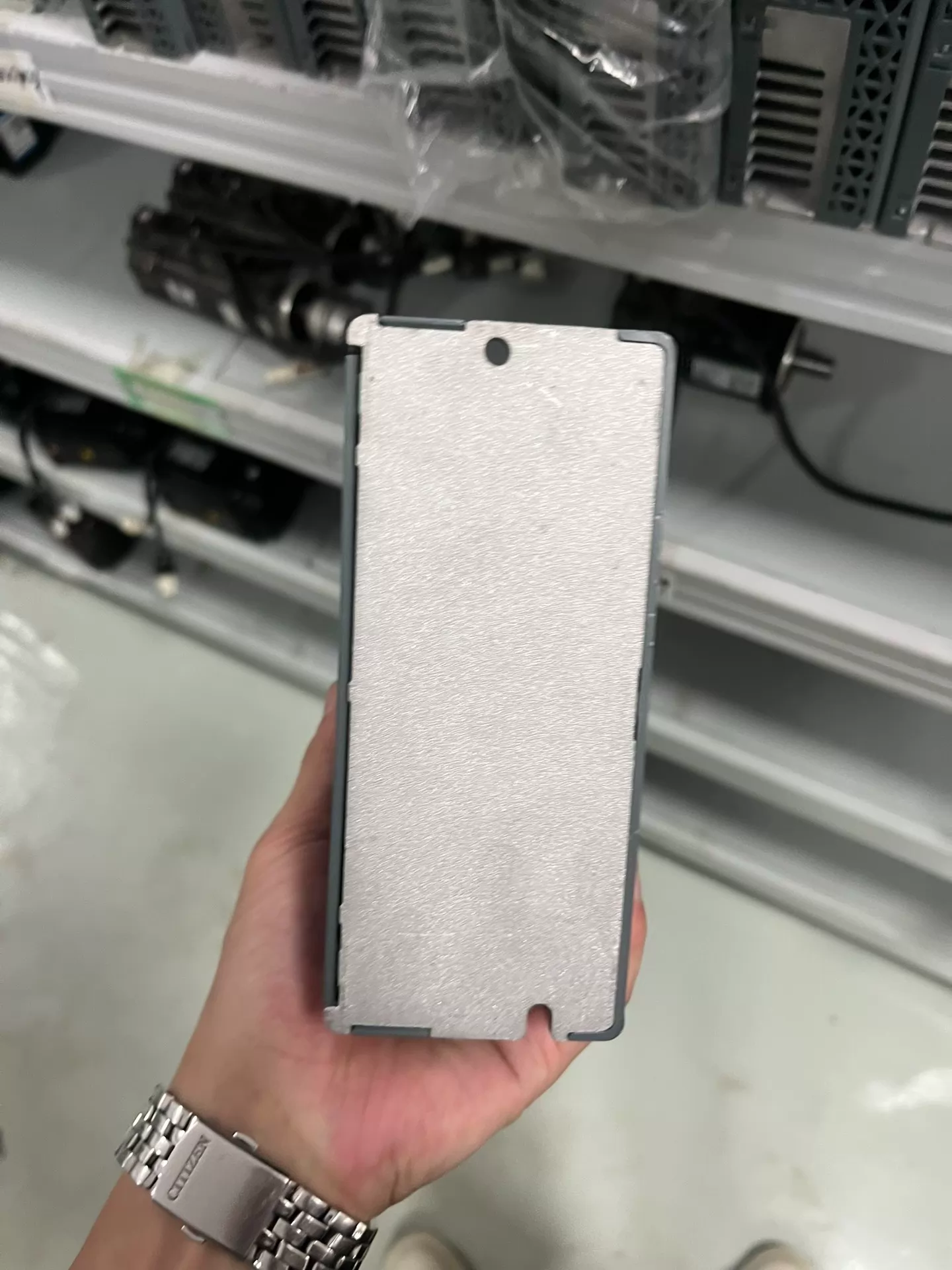

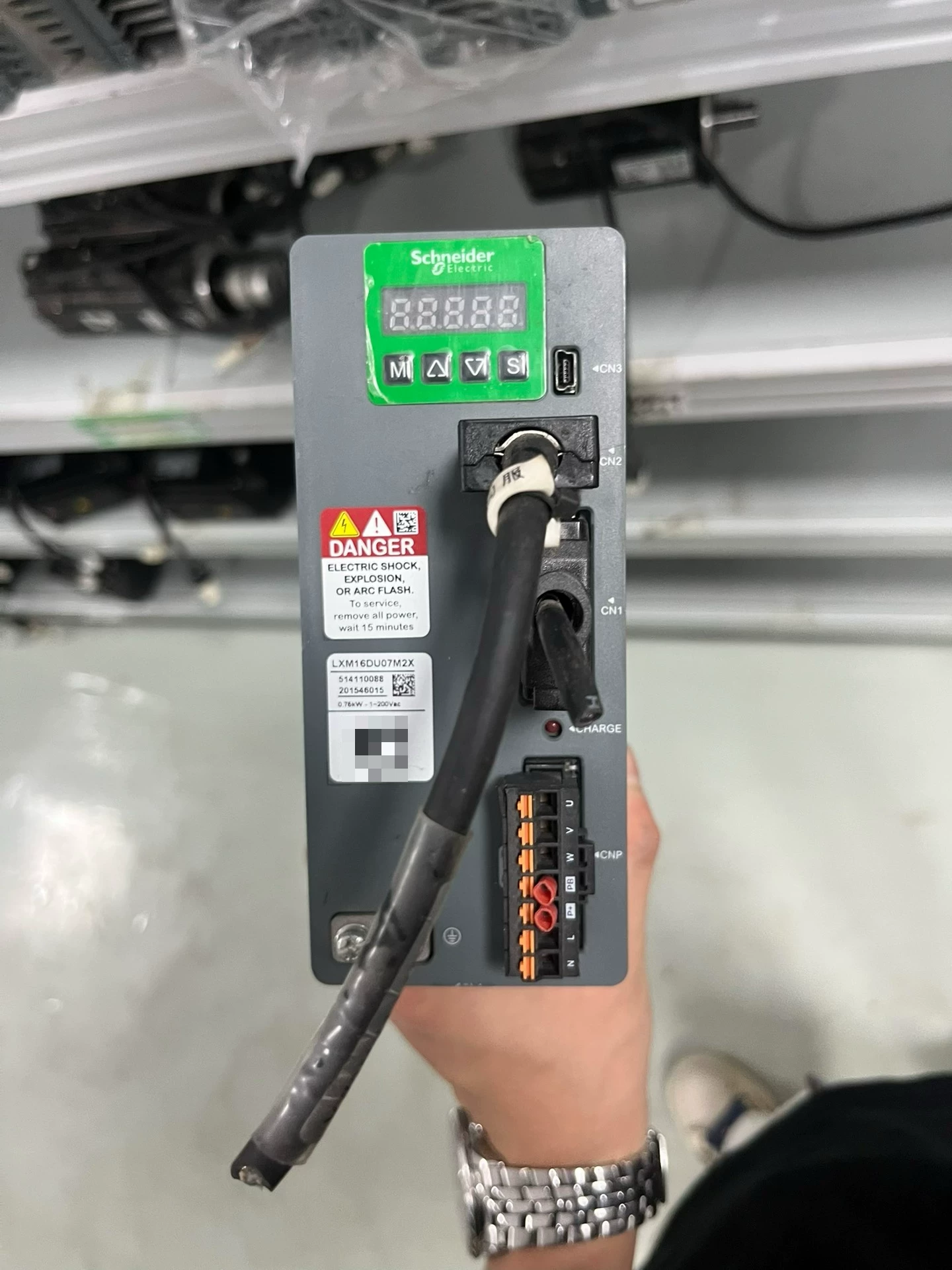

Used Schneider Electric LXM16DU07M2X servo drive. It has a power rating of 0.75 kW, single-phase AC 1-200V input, 5.1A output, IP20 protection, copper wire 2.5mm² 70°C, with LCD display and USB communication support.
Specifications
| Brand | Schneider Electric |
|---|---|
| Catalog Number | LXM16DU07M2X |
| Origin | China |
| Communication interface | I/O interface, PTI, PTO |
| Supply voltage | Single phase 220 Vac, 200 Vac -15%...240 Vac +10% |
| Voltage | 1-200Vac |
| Input voltage | 200Vac |
| Input current | 7.8Arms |
| Continuous output current | 5.1Arms |
| Max output current | 15.3Arms |
| Weight | 1.500 kg |
| Continuous output power | 0.75 kW |
| Depth | 185.2 mm |
| Firmware version | V01 02 04 |
| Hardware version | RS02 |
| Height | 150 mm |
| Housing size | Size 2 |
| IP rating | IP20 |
| Output power | 0.75/1.01 kW/hp |
| Temperature rating | 70°C |
| Width | 65 mm |
