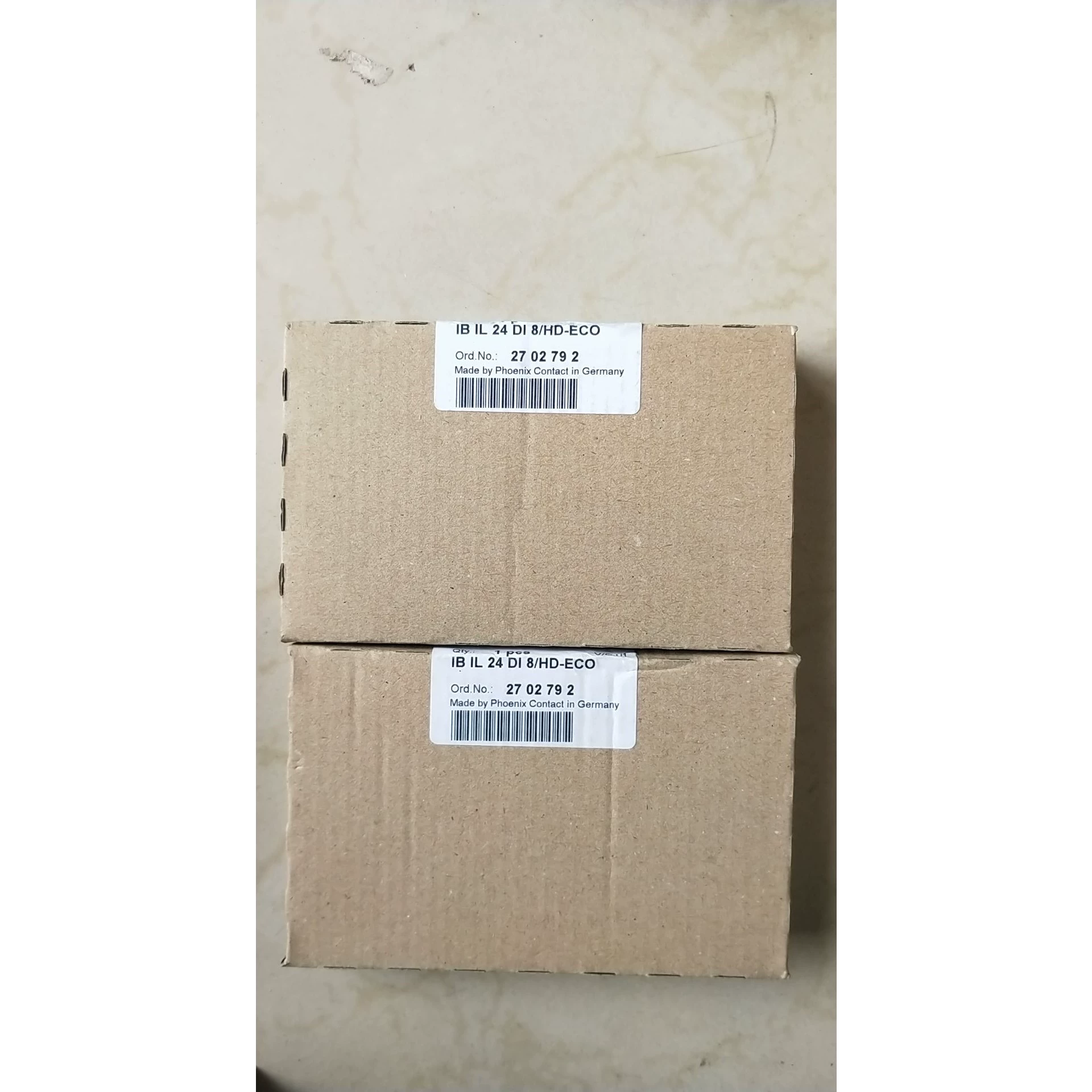

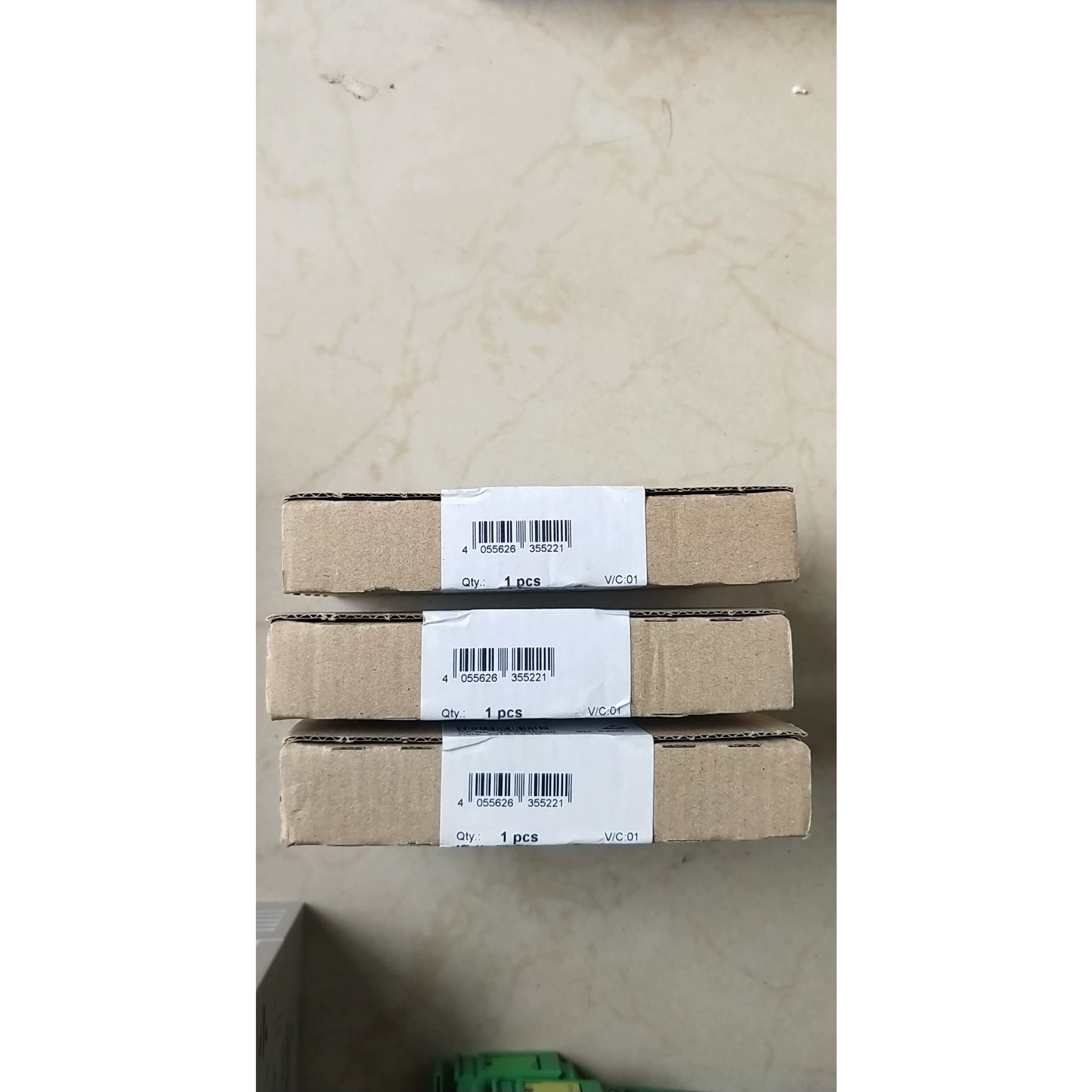

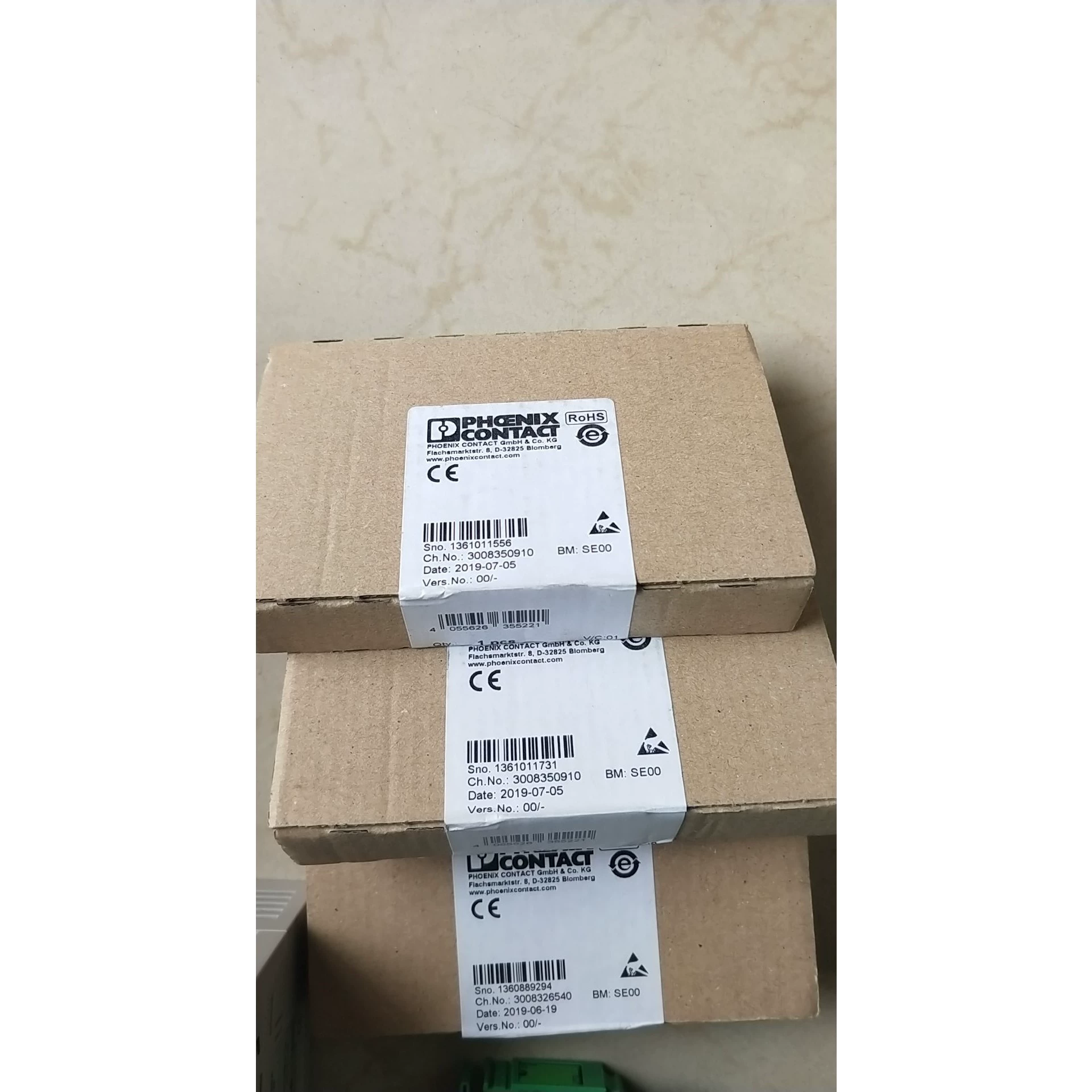

Phoenix Contact IB IL 24 DI 8/HD-ECO 27 02 79 2 Digital input module - New
Description
Phoenix Contact IB IL 24 DI 8/HD-ECO digital input module, part number 27 02 79 2. New I/O component with 24 V DC input voltage.
Specifications
| Brand | Phoenix Contact |
|---|---|
| Model | IB IL 24 DI 8/HD-ECO |
| Order Number | 2702792 |
| Supply voltage | 7.5 V DC (via voltage jumper) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Input voltage | 24 V DC |
| Transmission speed | 500 kbps |
| Degree of protection | IP20 |
| Vibration resistance in accordance with EN 60068-2-6/IEC 60068-2-6 | 5g |
| REACH candidate substance (CAS No.) | Lead (CAS: 7439-92-1) |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (operation) | 0 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| CO2e kg | 2.14 kg CO2e |
| Color (Housing) | green (RAL 6021) |
| Conductor cross-section AWG | 28 ... 16 |
| Conductor cross-section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross-section, rigid | 0.08 mm² ... 1.5 mm² |
| Connection method | Inline data jumper |
| Connection method | Spring-cage connection |
| Connection name | Inline connector |
| Connection technology | 1-conductor |
| Current draw | max. 30 mA |
| Current draw | max. 5.5 mA |
| Delay at signal change from 0 to 1 | 1 ms |
| Delay at signal change from 1 to 0 | 1 ms |
| Depth | 71.5 mm |
| Description of the input | EN 61131-2 types 1 and 3 |
| ECLASS-13.0 | 27242604 |
| ECLASS-15.0 | 27242604 |
| Environment friendly use period (EFUP) | EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required. |
| ETIM 10.0 | EC001599 |
| Exemption | 7(a), 7(c)-I |
| Fulfills EU RoHS substance requirements | Yes |
| Height | 119.8 mm |
| ID code (dec.) | 190 |
| Input address area | 1 Byte |
| Input name | Digital inputs |
| Input voltage range "0" signal | -3 V DC ... 5 V DC |
| Input voltage range "1" signal | 11 V DC ... 30 V DC |
| Length code (dec) | 129 |
| Length code (hex) | 81 |
| Maximum power dissipation for nominal condition | 0.8 W |
| Minimum order quantity | 1 pc |
| Mounting type | DIN rail mounting |
| No. of channels | 8 |
| Nominal input current at U IN | typ. 2.4 mA |
| Nominal input voltage U IN | 24 V DC |
| Number of inputs | 8 |
| Number of interfaces | 2 |
| Operating mode | Process data mode with one byte |
| Output address area | 0 Byte |
| Overvoltage category | II (IEC 60664-1, EN 60664-1) |
| Packing unit | 1 pc |
| Parameter channel (PCP) | 0 Byte |
| Permissible conductor length to the sensor | 30 m |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Pollution degree | 2 (IEC 60664-1, EN 60664-1) |
| Process data channel | 8 bit |
| Product key | DRI131 |
| Product type | I/O component |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Register length (bus) | 8 bit |
| Required configuration data | 4 Byte |
| Required parameter data | 1 Byte |
| Scip | 885efc74-a0b4-4a8a-a15c-ed2f481a9574 |
| Scope of supply | including Inline connector |
| Shock in accordance with EN 60068-2-27/IEC 60068-2-27 | 25g |
| Special properties | The product is being prepared for compliance with the Cyber Resilience Act (CRA) |
| Stripping length | 8 mm |
| Supply voltage | 24 V DC (via voltage jumper) |
| Test voltage | 500 V AC, 50 Hz, 1 min |
| Test voltage | 500 V AC, 50 Hz, 1 min |
| Test voltage | 500 V AC, 50 Hz, 1 min |
| Type | modular |
| Typical input current per channel | 2.4 mA |
| Typical response time | 1 ms |
| UNSPSC 21.0 | 32151600 |
| Weight per piece (excluding packing) | 60 g |
| Weight per piece (including packing) | 74 g |
| Width | 12.2 mm |
