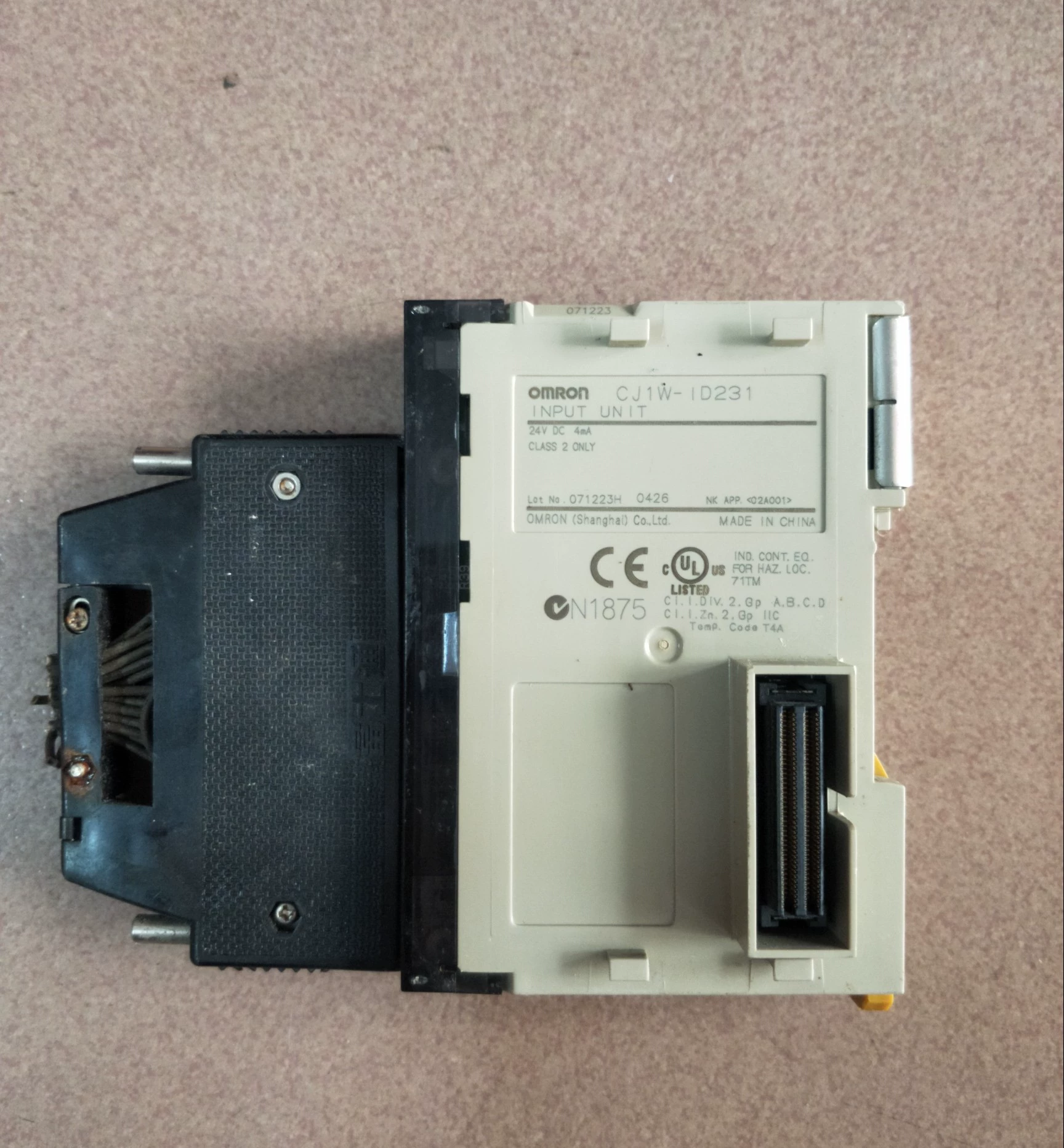

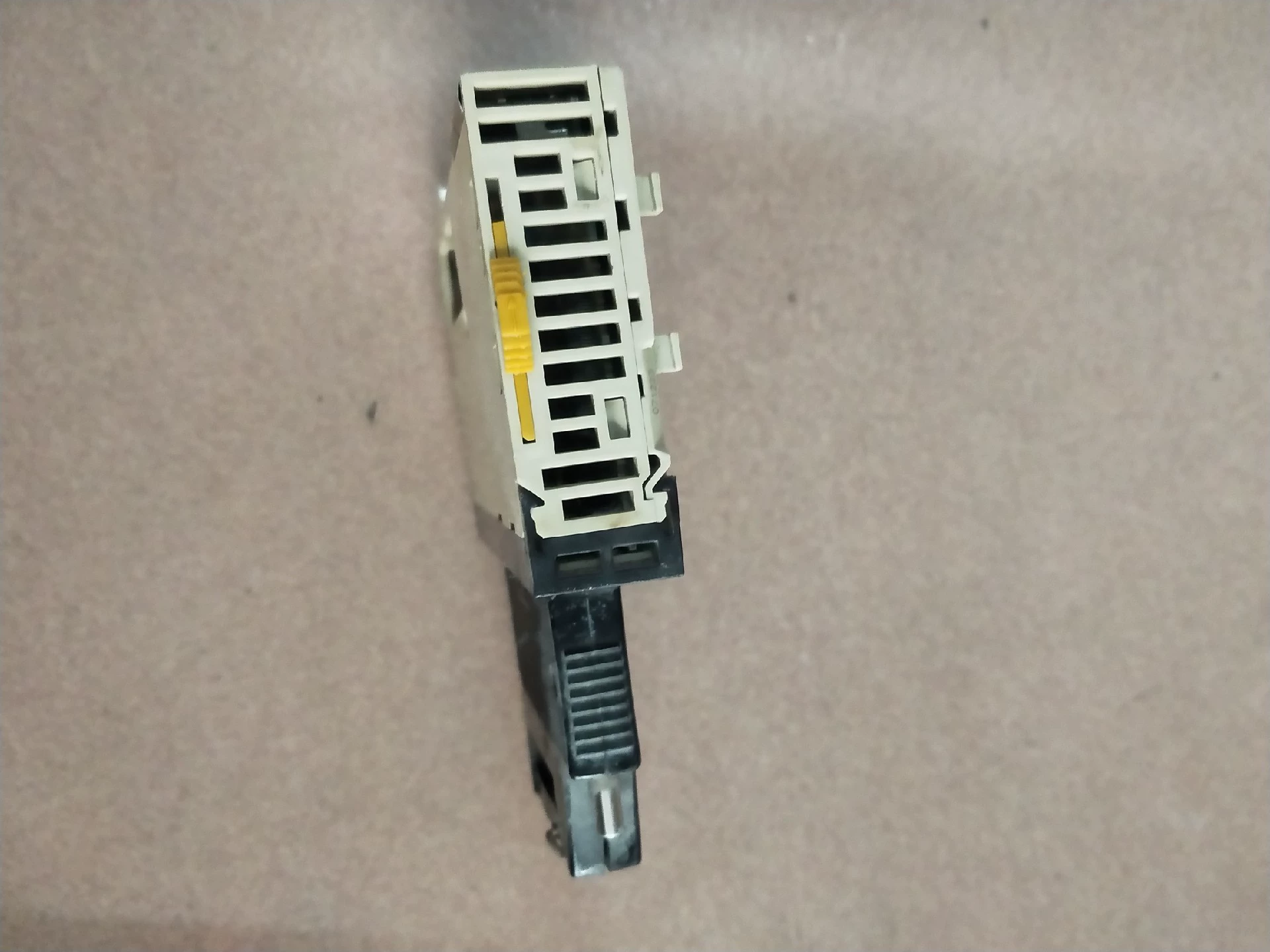

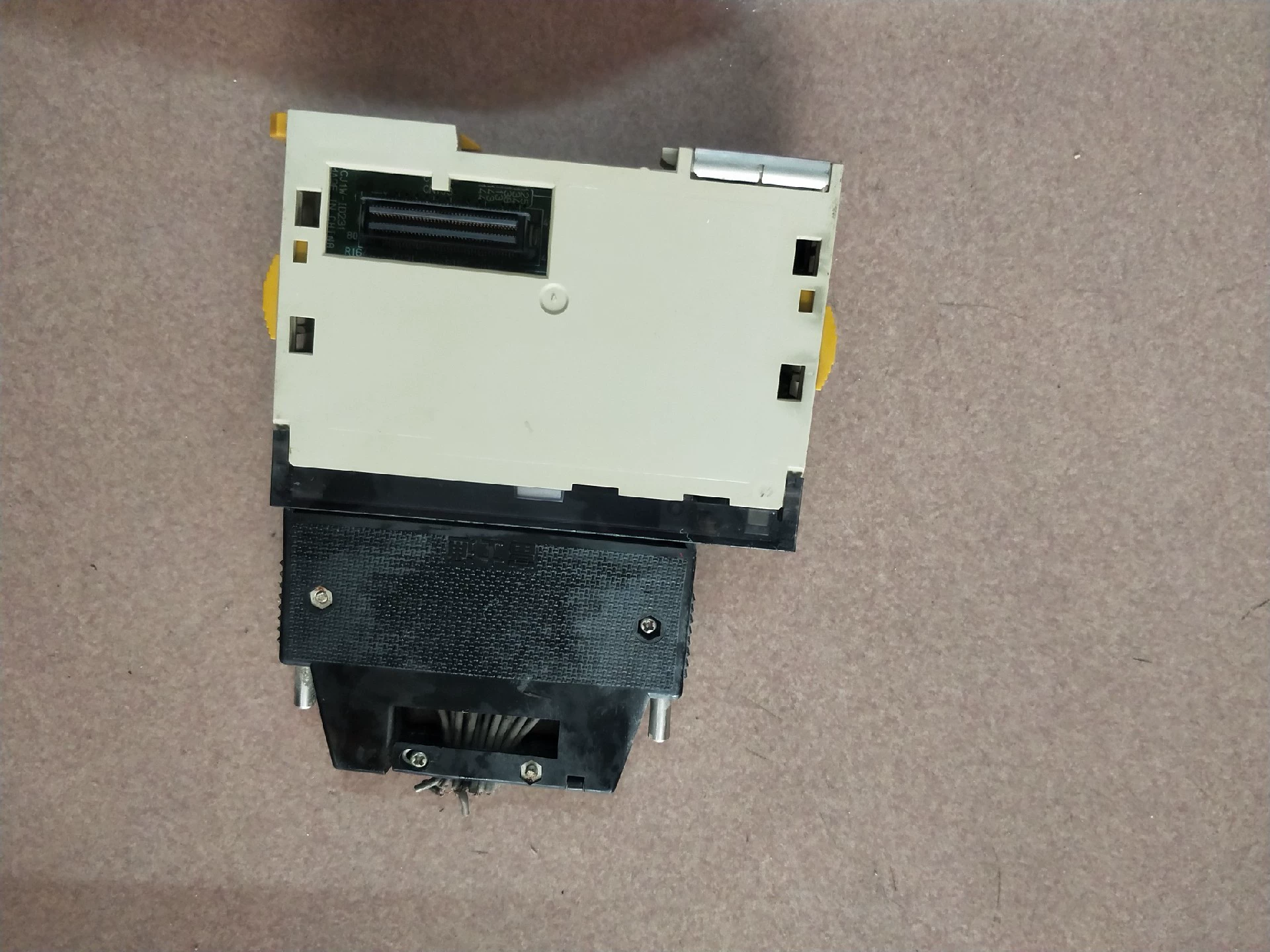

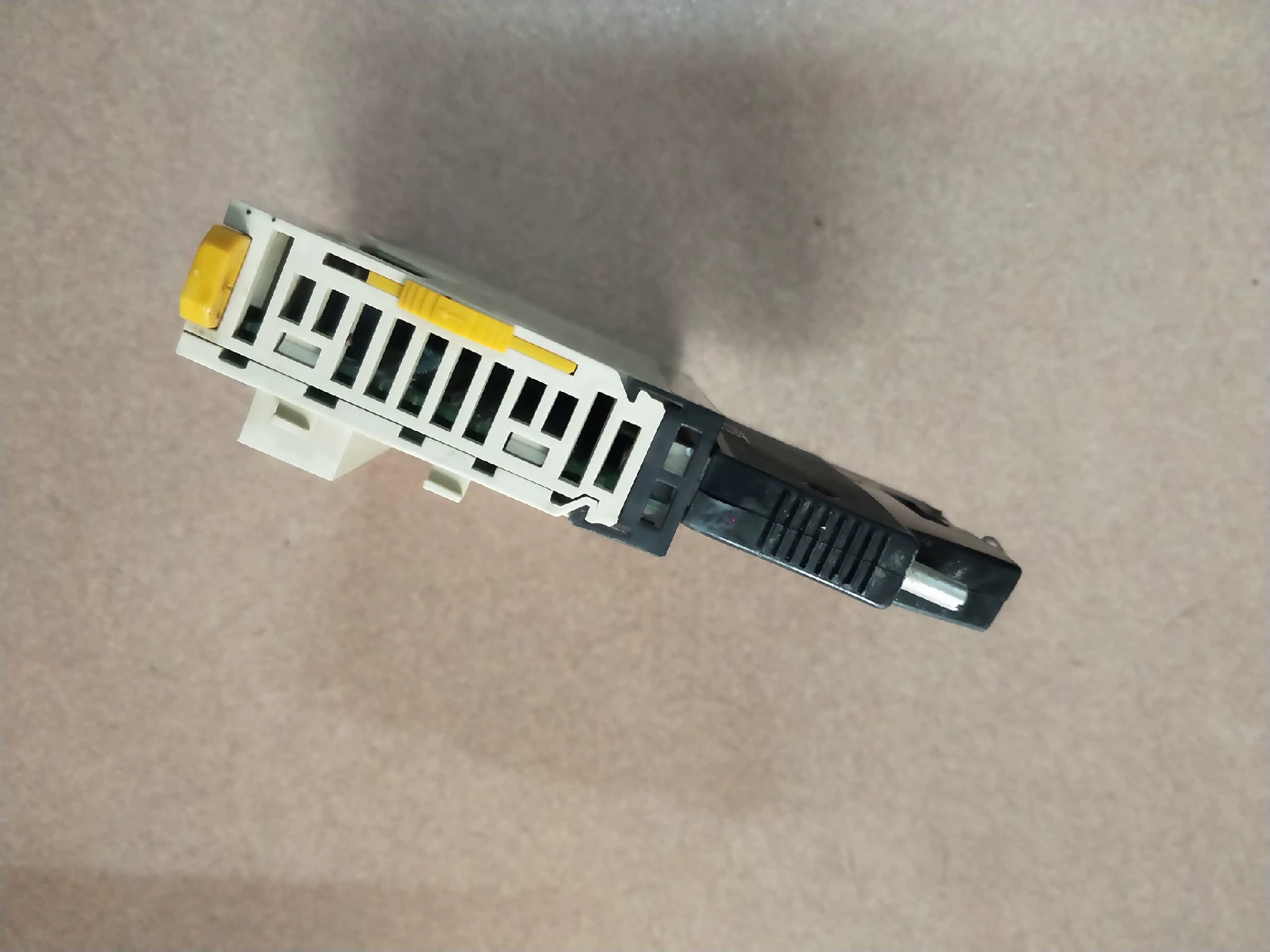

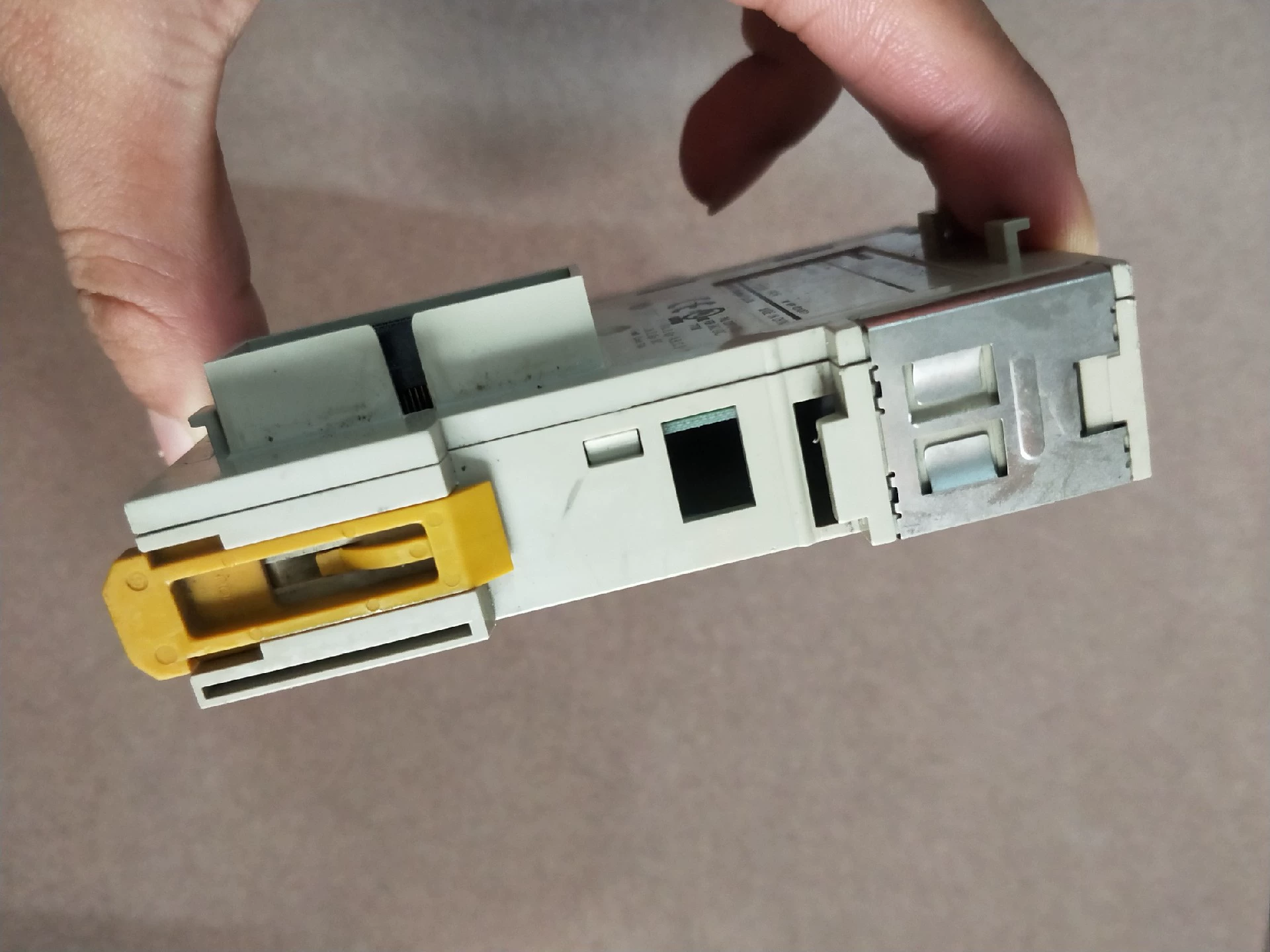

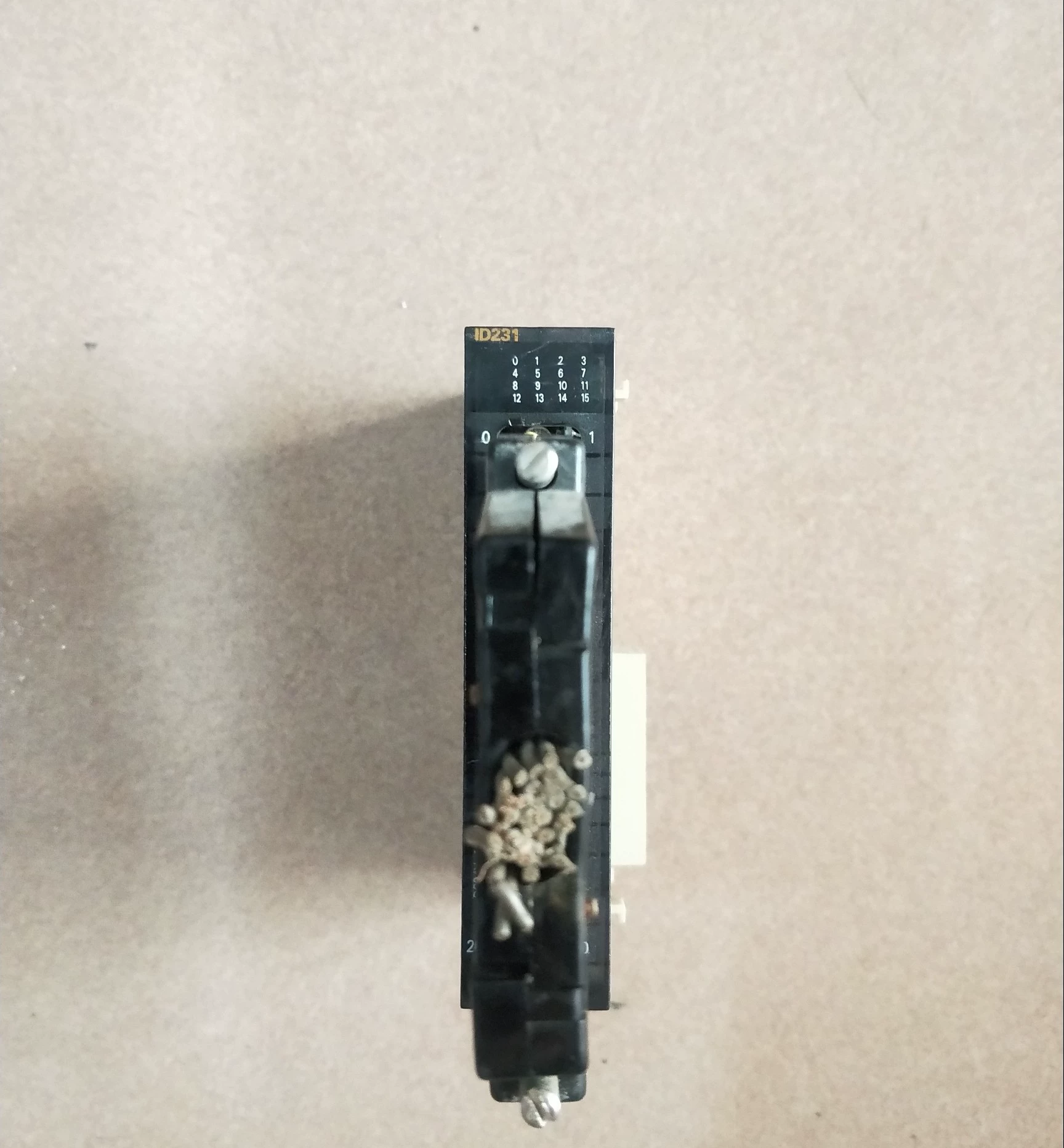

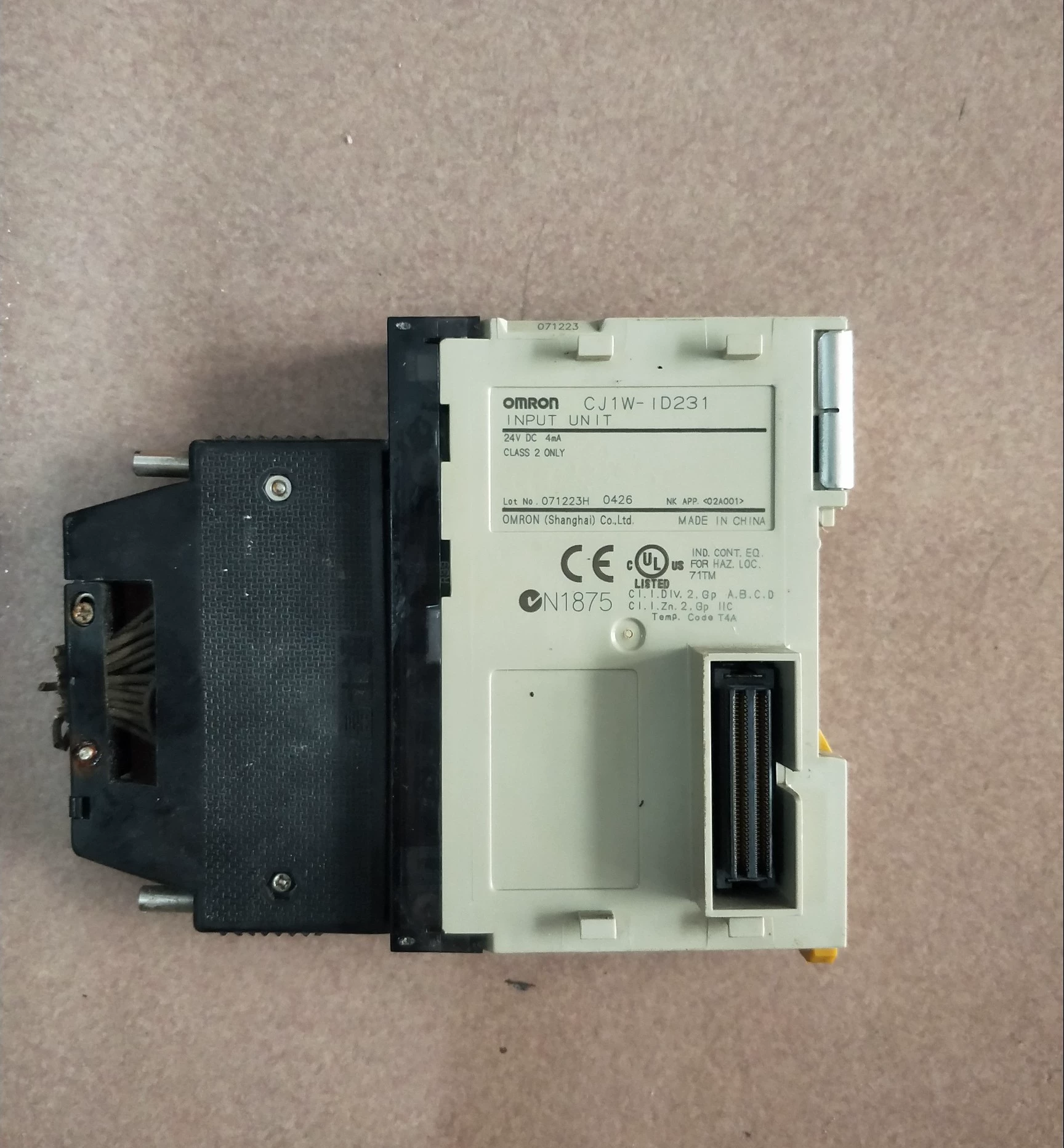

Omron CJ1W-ID231 - Used
Description
Used Omron CJ1W-ID231 input module, removed from equipment. Supports 24 VDC input.
Specifications
| Brand | Omron |
|---|---|
| Model | CJ1W-ID231 |
| Origin | China |
| Input Voltage | 24 VDC |
| Rated Input Voltage Range | 20.4 to 26.4 VDC |
| Input Current | 4.1 mA typical (at 24 VDC) |
| OFF Voltage/OFF Current | 5 VDC max./1 mA max. |
| ON Voltage/ON Current | 19.0 VDC min./3 mA min. |
| Power Class | CLASS 2 ONLY |
| Rated Input Voltage | 24 VDC |
| Weight | 70 g |
| Dielectric Strength | 1,000 VAC between the external terminals and the GR terminal for 1 minute at a leakage current of 10 mA max. |
| I/O capacity | 32 |
| Input Impedance | 5.6 kΩ |
| Inputs per Common | 16 |
| Insulation Resistance | 20 MΩ min. between external terminals and the GR terminal (100 VDC) |
| Internal Current Consumption | 90 mA |
| IO Connection Terminal Type | 1 x Fujitsu |
| Number of Circuits | 32 (16 points/common, 2 circuits) |
| Number of Input Points | 32 |
| Number of Simultaneously ON Points | 75% (12 points/common) simultaneously ON (at 24 VDC) |
| OFF Response Time | 8.0 ms max. (Can be set to between 0 and 32 in the Setup.) * |
| ON Response Time | 8.0 ms max. (Can be set to between 0 and 32 in the Setup.) * |
| SKU type | PLC digital I/O-module |
