NI 9244 Voltage Input Module
Description

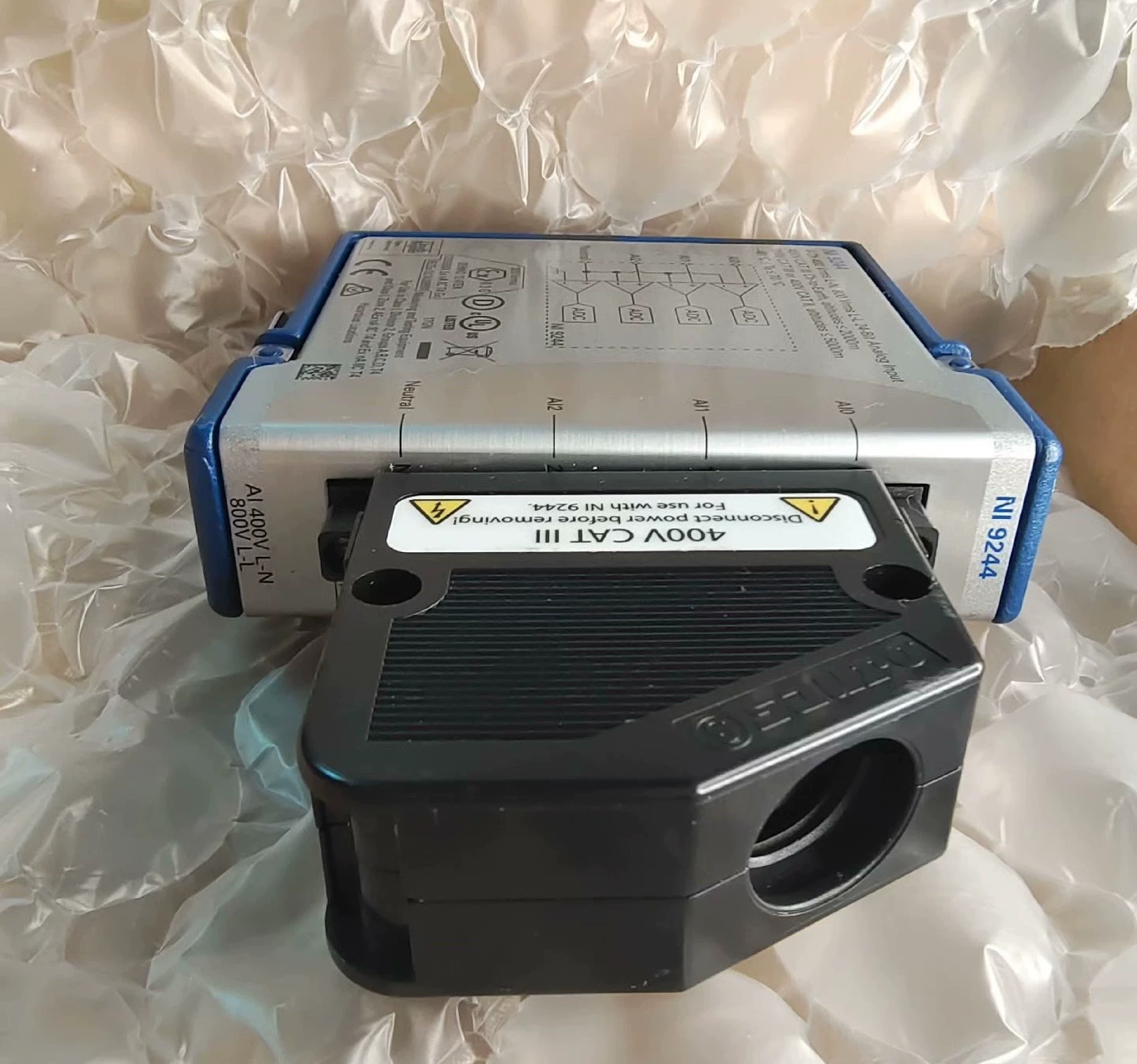

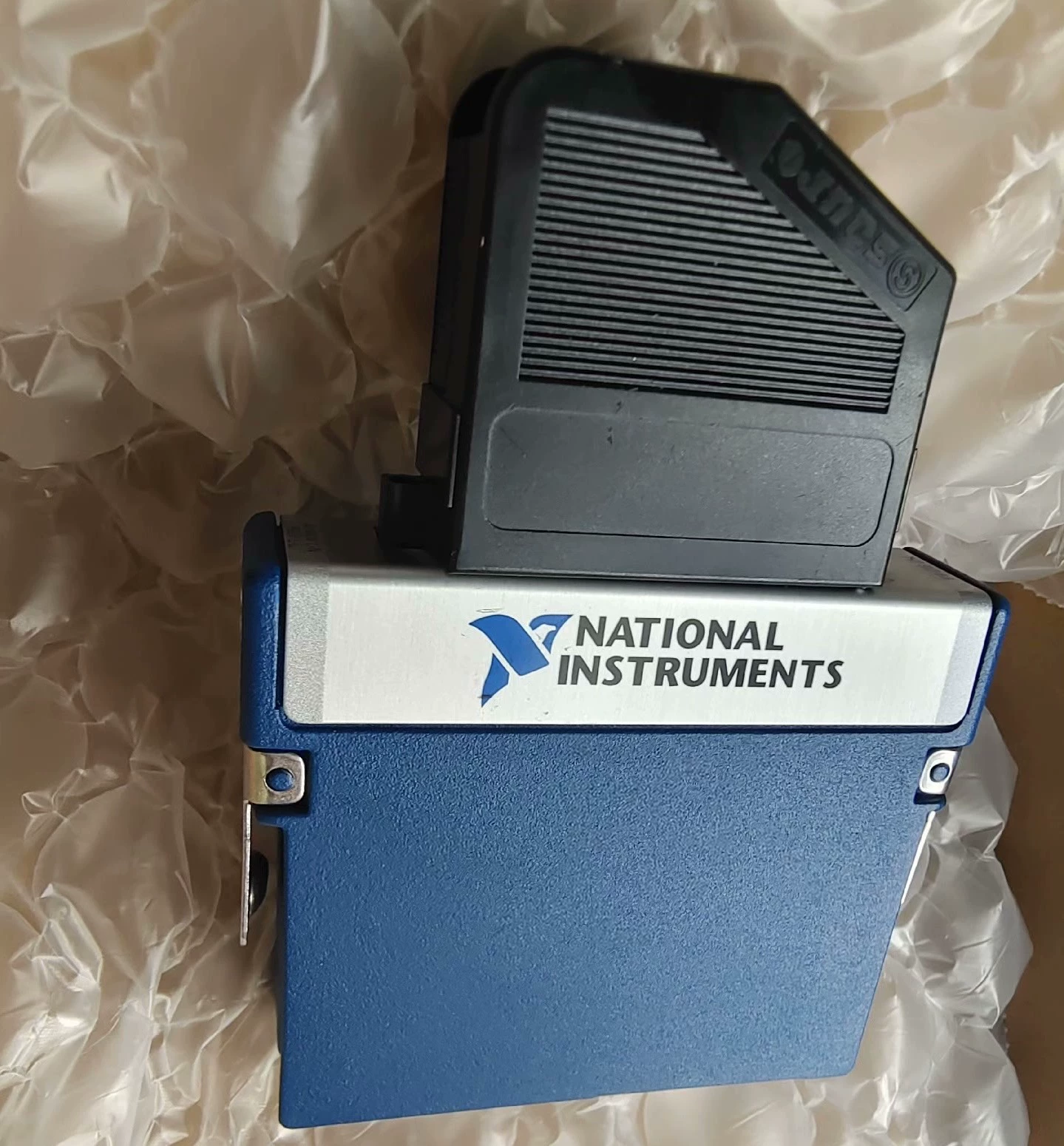

This used NI 9244 is a voltage input module for industrial measurement systems, insertable into a compatible NI modular acquisition platform for voltage signal acquisition. The module body in the photo is marked NI 9244; wiring method, range, and chassis compatibility should be checked according to the target system configuration.
Specifications
| Brand | NI |
|---|---|
| Model | NI 9244 |
| Origin | Hungary |
| Resolution | 24 Bit |
| Operating Temperature | -40 °C to 70 °C |
| 800V L-L | 800V L-L |
| Ai | 400V L-N |
| Altitude | ≤ 5000m |
| Analog Inputs | 3 AI/1 Neutral |
| Isolation | 300 Vrms |
| Maximum Voltage Line-to-Line | 690 Vrms |
| Maximum Voltage Line-to-Neutral | 400 Vrms |
| Overvoltage category | 300V CAT III or 400V CAT II |
| Sample Rate | 50 kS/s/ch |
