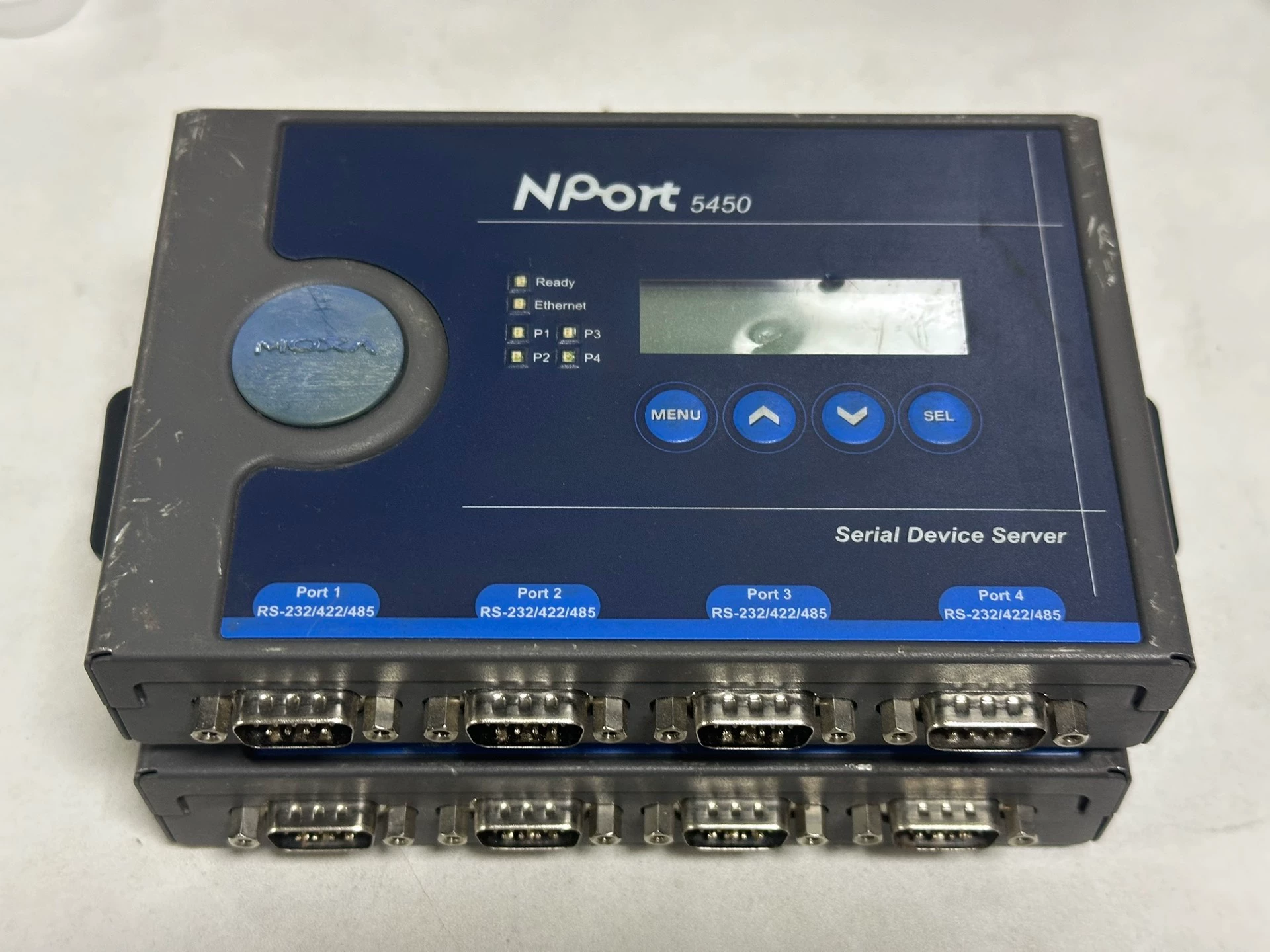

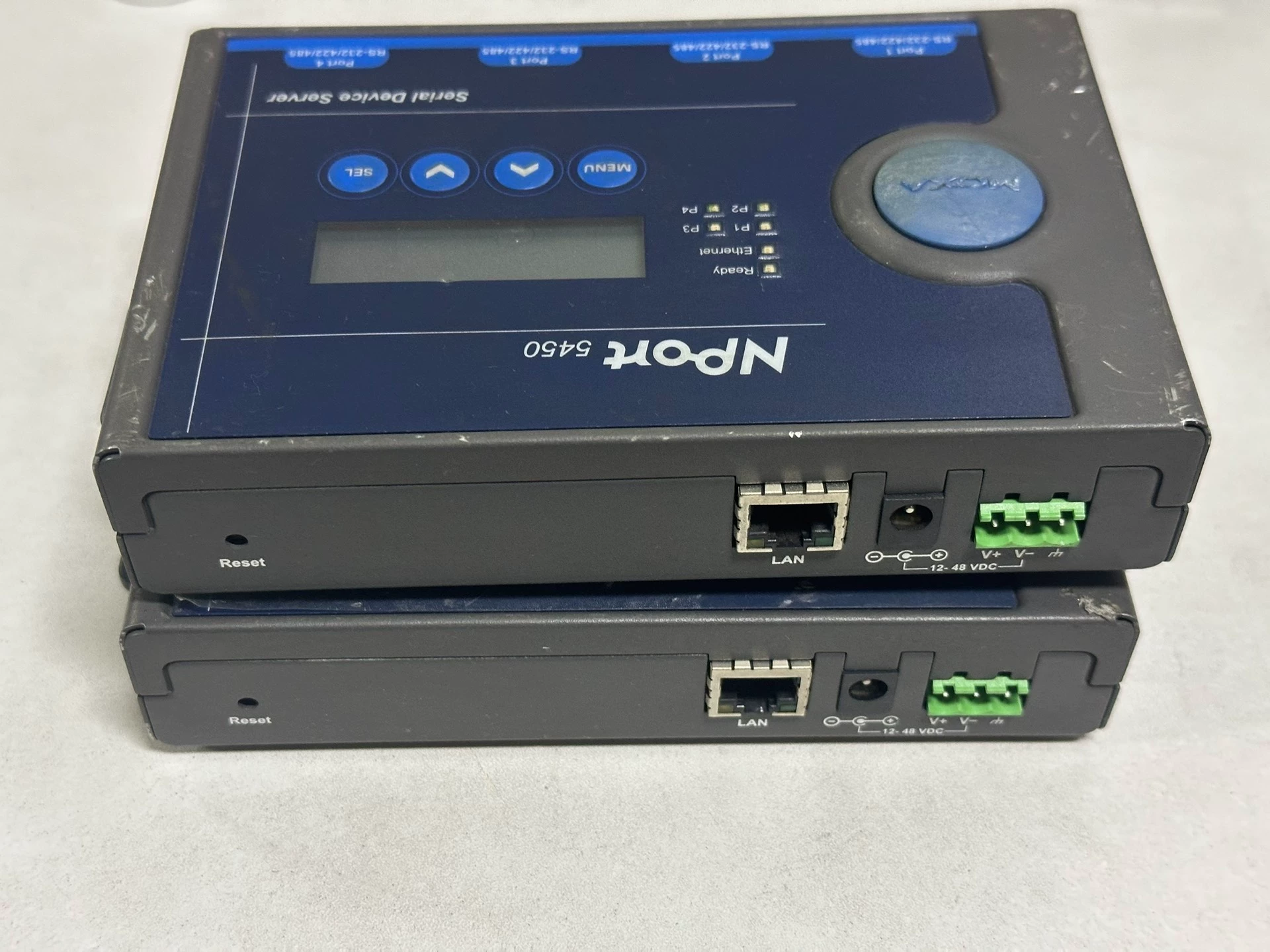

Moxa NPort 5450 serial device server - Used
Description
Used Moxa NPort 5450 serial device server. Connects serial devices to an Ethernet network for industrial networking applications.
Specifications
| Brand | Moxa |
|---|---|
| Model | NPort 5450 |
| Origin | Taiwan |
| Physical Characteristics — Interactive Interface | LCD panel display | Push buttons for configuration |
| Input Voltage | 12 to 48 VDC, 24 VDC for DNV V |
| Serial Interface | RS-232/422/485 |
| Input Current | 365 mA @ 12 VDC |
| Power Parameters — Input Current | 365 mA @ 12 VDC |
| Power Parameters — Input Voltage | 12 to 48 VDC, 24 VDC for DNV |
| Power Parameters — No. of Power Inputs | 2 |
| Power Parameters — Power Connector | 1 removable 3-contact terminal block(s) | Power input jack |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Environmental Limits — Operating Temperature | 0 to 55°C (32 to 131°F) |
| Ethernet Interface — Magnetic Isolation Protection | 1.5 kV (built-in) |
| Physical Characteristics — Weight | 740 g (1.63 lb) |
| Default IP | 192.168.127.254 |
| Environmental Limits — Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Environmental Limits — Storage Temperature (package included) | -40 to 75°C (-40 to 167°F) |
| Ethernet Interface — 10/100BaseT(X) Ports (RJ45 connector) | 1 |
| Ethernet Ports | 1 |
| Ethernet Software Features — Android API | Android 3.1.x and later |
| Ethernet Software Features — Arm®-based Platform Support | Linux Kernel 5.x/4.x |
| Ethernet Software Features — Configuration Options | Telnet Console | Windows Utility | Web Console (HTTP/HTTPS) |
| Ethernet Software Features — Filter | IGMP v1/v2 |
| Ethernet Software Features — Fixed TTY Drivers | macOS Versions: 10.12 to 10.15, 11.x | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Ethernet Software Features — Linux Real TTY Drivers | Kernel Versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x |
| Ethernet Software Features — Management | ARP | BOOTP | DHCP Client | DNS | HTTP | HTTPS | ICMP | IPv4 | LLDP | Rtelnet | SMTP | SNMPv1/v2c | TCP/IP | Telnet | UDP |
| Ethernet Software Features — Time Management | SNTP |
| Ethernet Software Features — Virtual Machine | VMWare ESXi (Windows 11 / 10) | VMware Fusion (Windows on macOS 10.12 to 11.x) | Parallels Desktop (Windows on macOS 10.12 to 11.x) |
| Ethernet Software Features — Windows Real COM Drivers | Windows 11/10/8.1/8/7/Vista/XP/ME/98/95 | Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003/2000/NT | Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| MTBF — Standards | Telcordia (Bellcore) Standard TR/SR |
| MTBF — Time | 773,682 hrs |
| Physical Characteristics — Dimensions (with ears) | 181 x 103 x 33 mm (7.14 x 4.06 x 1.30 in) |
| Physical Characteristics — Dimensions (without ears) | 158 x 103 x 33 mm (6.22 x 4.06 x 1.30 in) |
| Physical Characteristics — Housing | Metal |
| Physical Characteristics — Installation | Desktop | DIN-rail mounting (with optional kit) | Wall mounting |
| Reliability — Alert Tools | Built-in buzzer and RTC (real-time clock) |
| Reliability — Automatic Reboot Trigger | Built-in WDT |
| Security Functions — Authentication | Local database |
| Security Functions — Encryption | HTTPS | AES-128 | RSA-1024 | SHA-1 | SHA-256 |
| Security Functions — Security Protocols | HTTPS (TLS 1.2) | SNMPv3 |
| Serial Interface — Baudrate | Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k |
| Serial Interface — Connector | DB9 male |
| Serial Interface — Data Bits | 5, 6, 7, 8 |
| Serial Interface — Flow Control | RTS/CTS (RS-232 only) | DTR/DSR (RS-232 only) |
| Serial Interface — No. of Ports | 4 |
| Serial Interface — Operation Modes | Real COM | TCP Server | TCP Client | UDP | Ethernet Modem | Pair Connection | Reverse Telnet | Disabled |
| Serial Interface — Parity | None, Even, Odd, Space, Mark |
| Serial Interface — Pull High/Low Resistor for RS-485 | 1 kilo-ohm, 150 kilo-ohms |
| Serial Interface — RS-485 Data Direction Control | ADDC (automatic data direction control) |
| Serial Interface — Serial Standards | RS-232 | RS-422 | RS-485 |
| Serial Interface — Stop Bits | 1, 1.5, 2 |
| Serial Interface — Terminator for RS-485 | 120 ohms |
| Serial Ports | 4 |
| Serial Signals — RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| Serial Signals — RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| Serial Signals — RS-485-2w | Data+, Data-, GND |
| Serial Signals — RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| Serial Standards | RS-232, RS-422, RS-485 |
| Standards and Certifications — EMC | EN 55032/35 |
| Standards and Certifications — EMI | CISPR 32, FCC Part 15B Class A |
| Standards and Certifications — EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV | IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m | IEC 61000-4-4 EFT: Power: 2 kV; Signal: 0.5 kV | IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV | IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m | IEC 61000-4-8 PFMF | IEC 61000-4-11 |
| Standards and Certifications — Maritime | DNV |
| Standards and Certifications — Medical | EN 60601-1-2 Class B, EN 55011 |
| Standards and Certifications — Safety | UL 62368-1 |

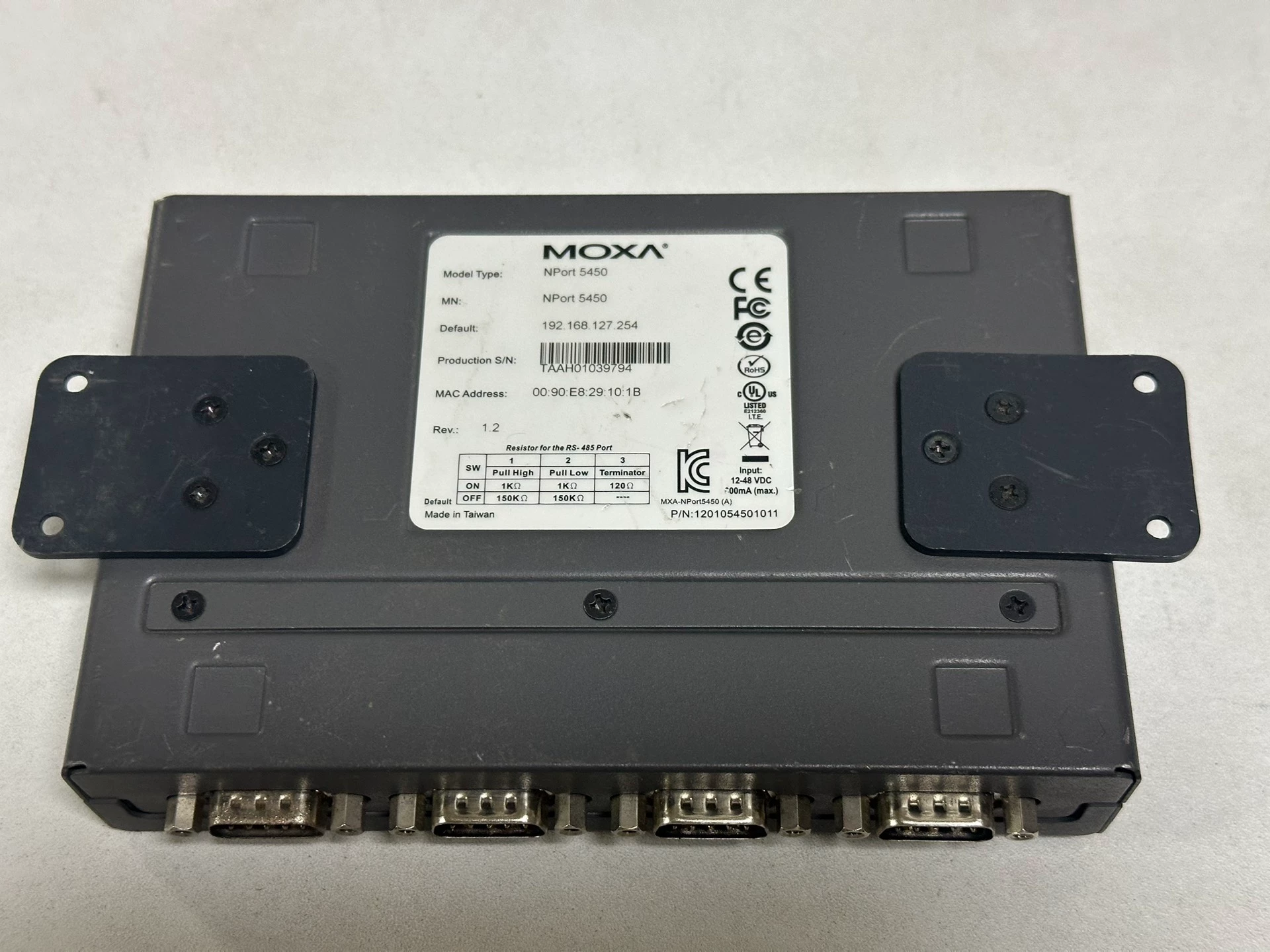

| SW1 OFF resistor | 150KΩ |
| SW1 ON resistor | 1KΩ |
| SW2 OFF resistor | 150KΩ |
| SW2 ON resistor | 1KΩ |
| SW3 ON resistor | 120Ω |
| Warranty — Details | See | www.moxa.com/warranty |
| Warranty — Warranty Period | 5 years |
