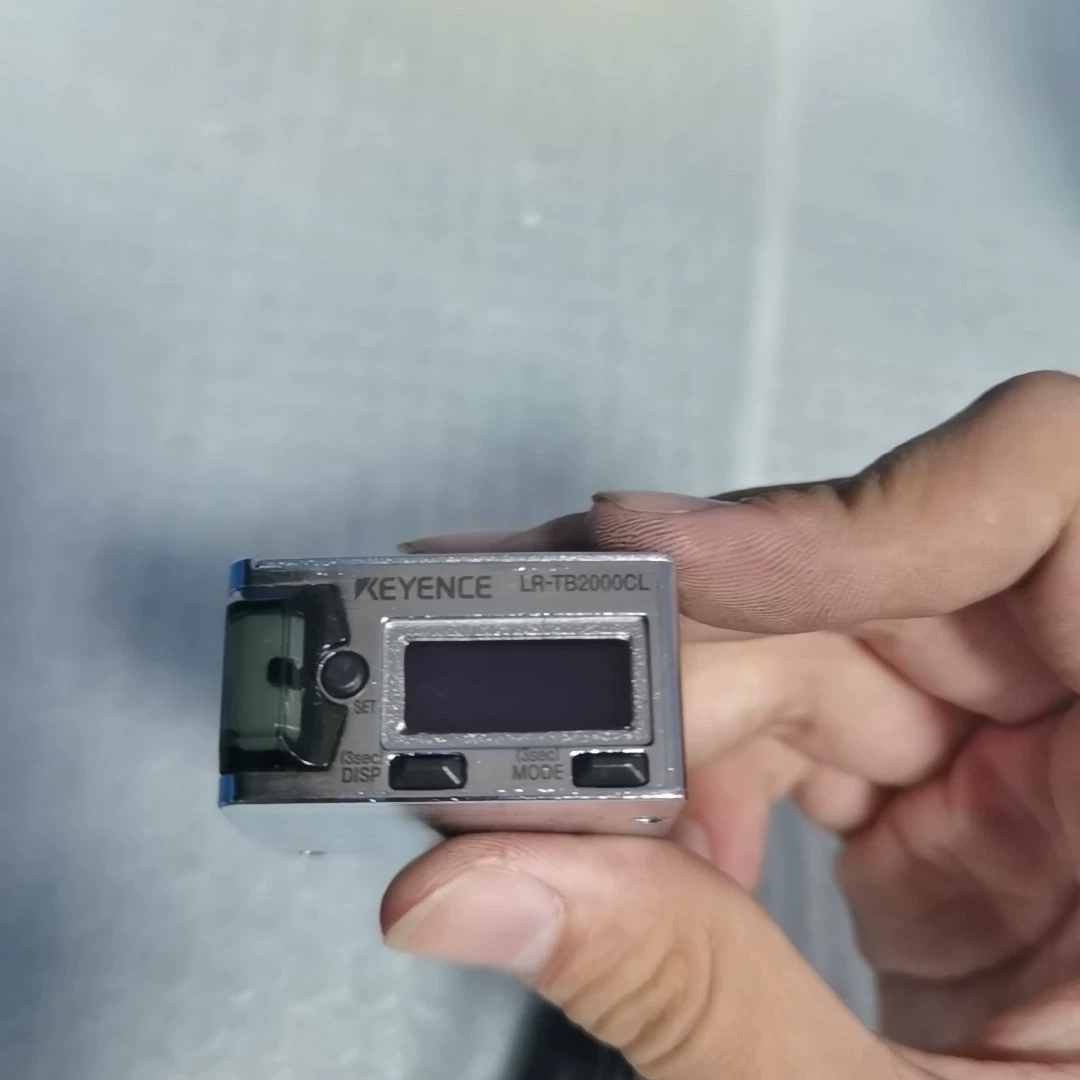

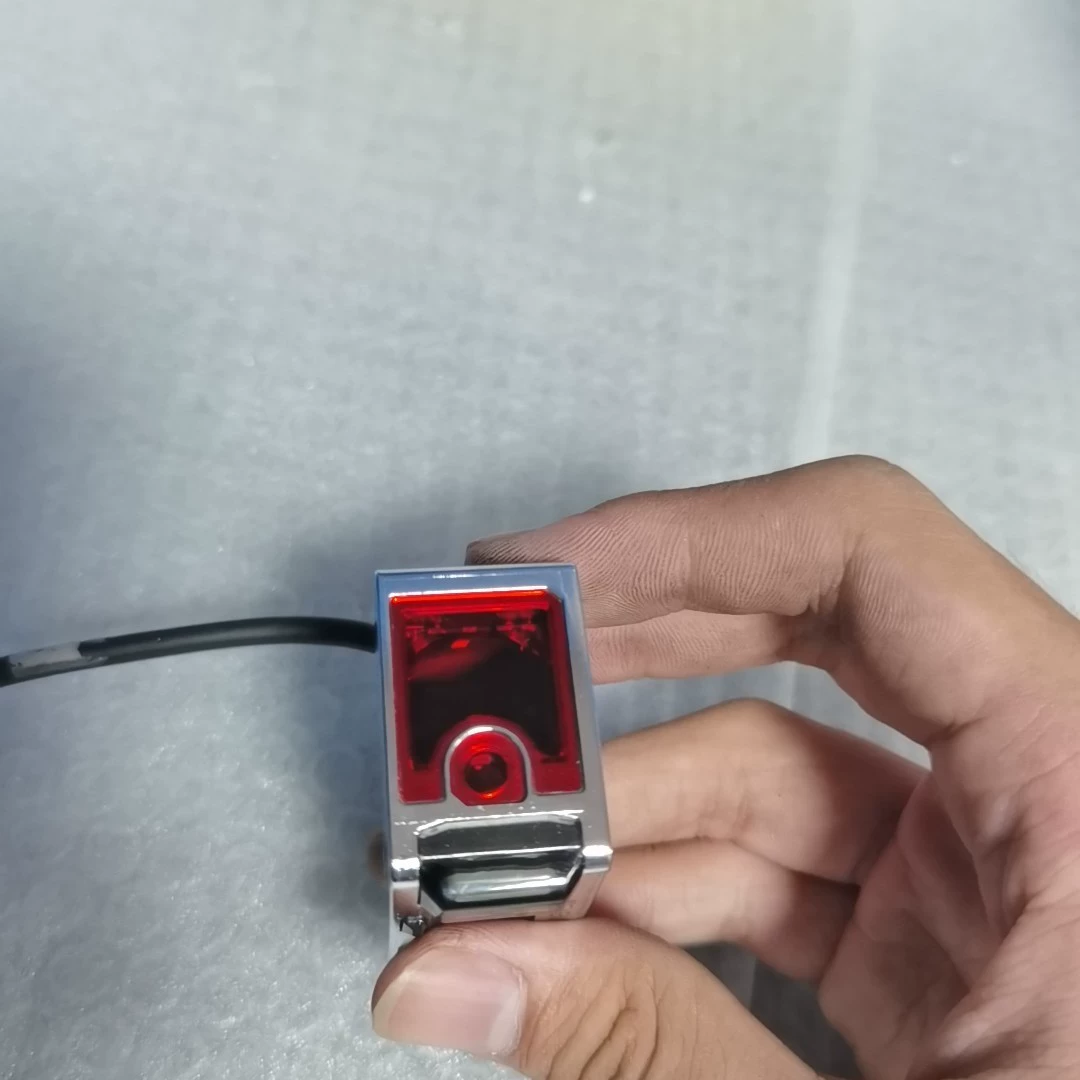

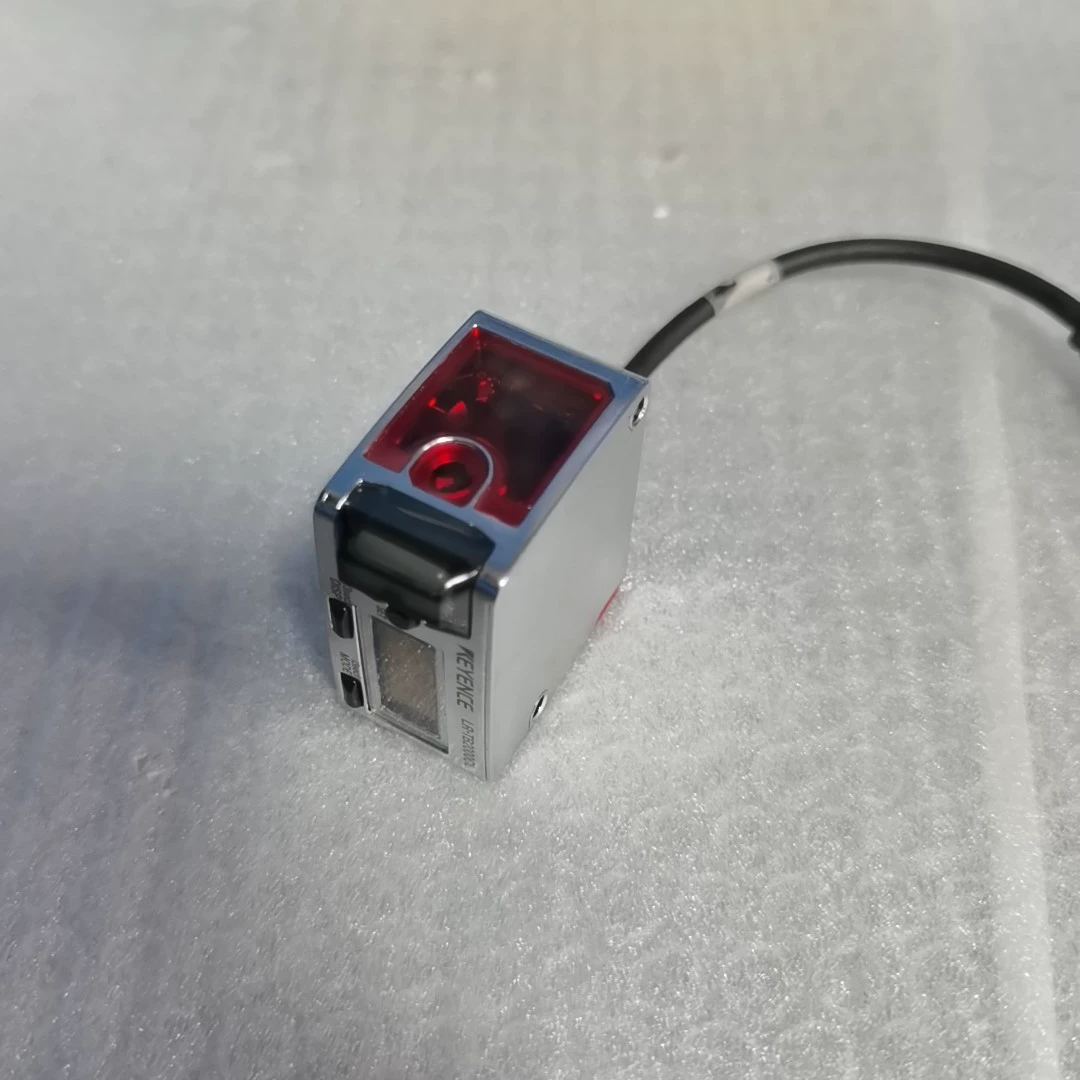

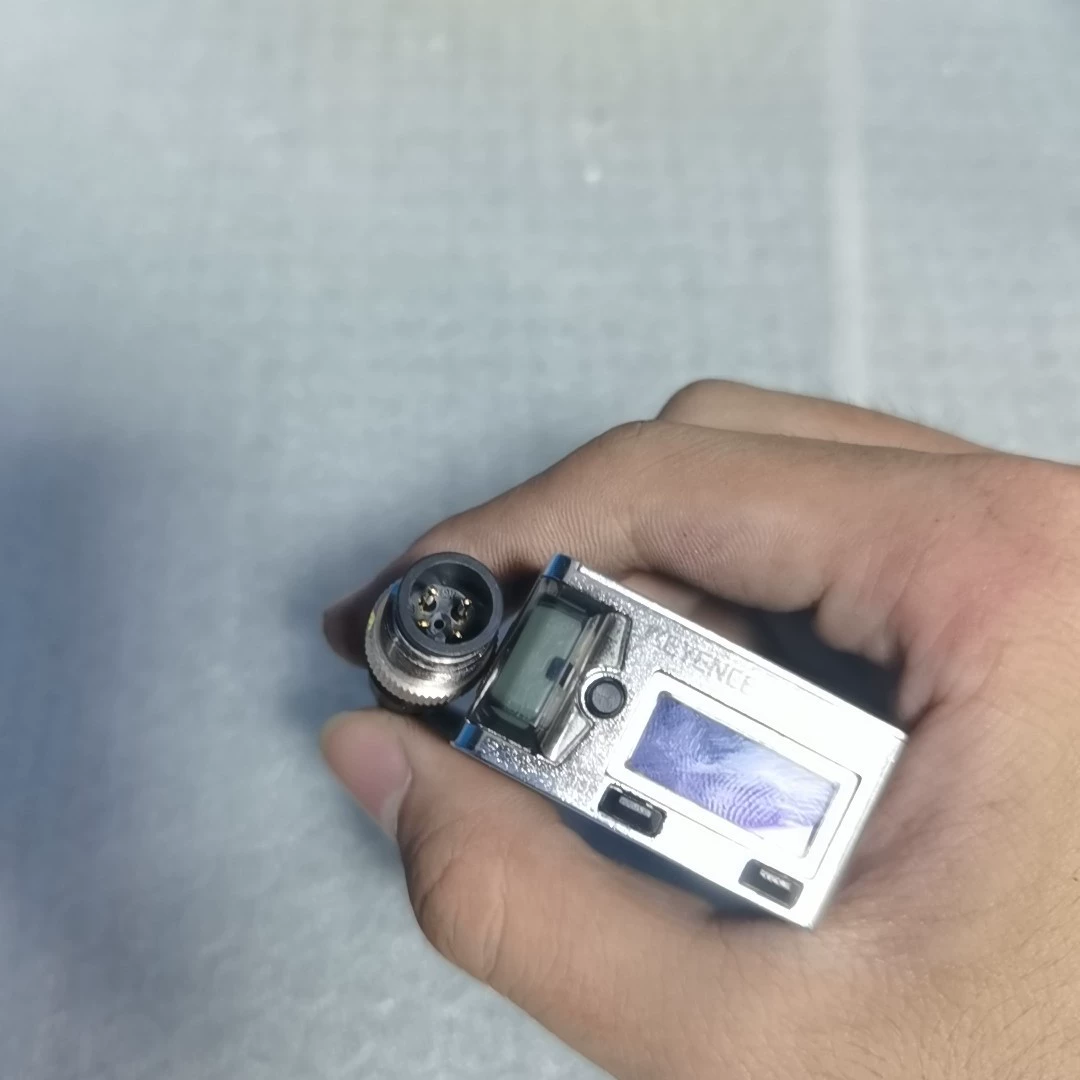

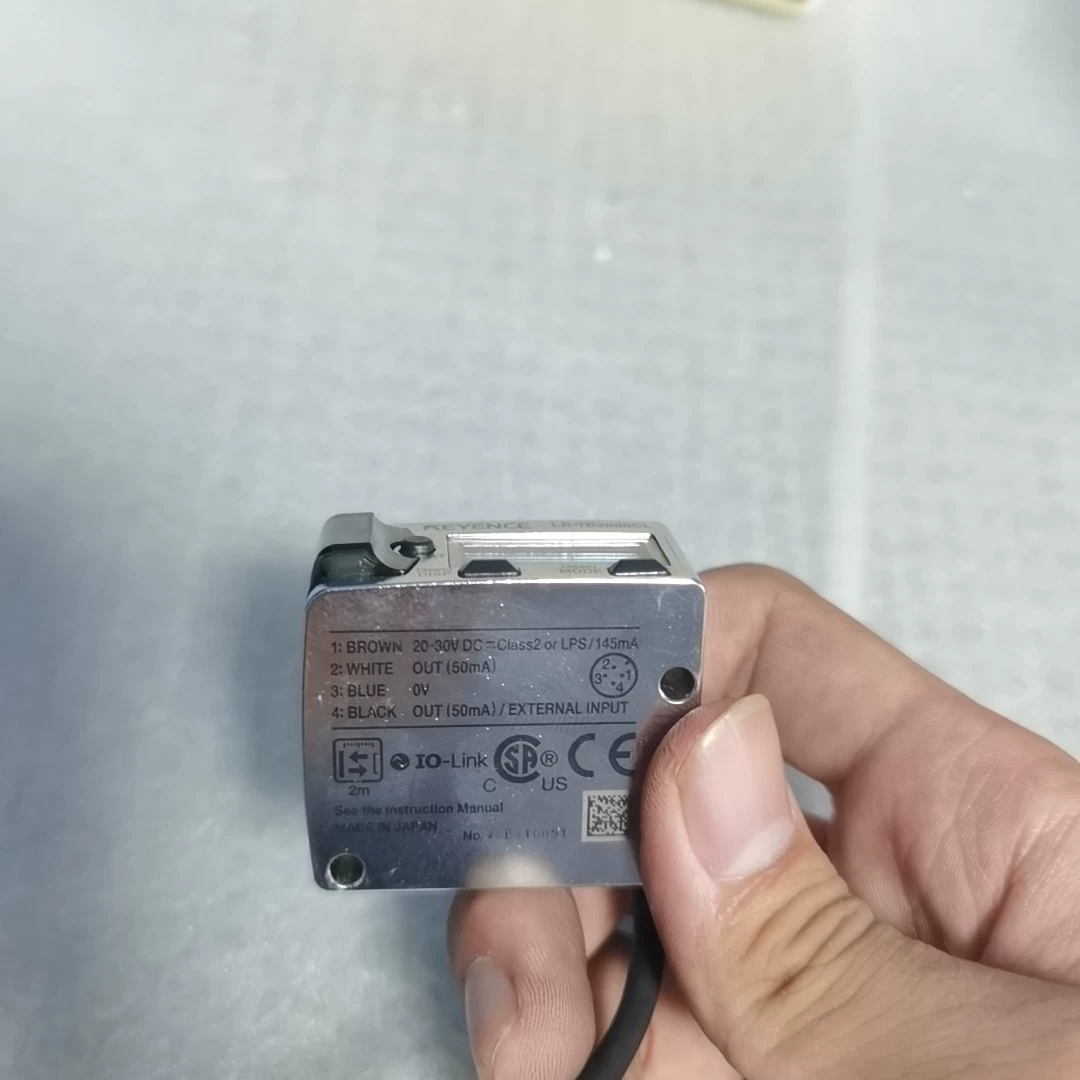

Keyence LR-TB2000CL laser sensor - Used
Description
Used Keyence LR-TB2000CL laser sensor. Supports 20-30 V DC Class2 or LPS input voltage.
Specifications
| Brand | Keyence |
|---|---|
| Model | LR-TB2000CL |
| Input Voltage | 20-30 V DC Class2 or LPS |
| Response time | 2 ms/20 ms/50 ms/200 ms/2000 ms selectable |
| Output Current | 50 mA |
| Power voltage | 20 to 30 VDC, including 10% ripple (P-P), Class 2 or LPS |
| Weight | Approx. 85 g |
| Ambient temperature | -20 to +55 °C (-4 to 131 °F); no freezing |
| Relative humidity | 35 to 85 % RH (No condensation) |
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm (0.06 in); 2 h each in X, Y, Z directions |
| Ambient light | Incandescent lamp/Sunlight: 10,0000 lux or less |
| Control output | NPN open collector/PNP open collector selectable 30 VDC or less, ≤50 mA, residual voltage: ≤2 V, N.O./N.C. selectable *3 *4 |
| Current consumption | ≤45 mA (without load) *5 |
| Detectable distance | 60 to 2000 mm 2.36" to 78.74" *1 |
| Enclosure rating | IP65/IP67 (IEC60529) |
| Laser class | Class 1 laser product (IEC60825-1,FDA (CDRH) Part1040.10 *2 ) |
| Material | Case: Zinc die cast (Nickel chrome plating), Indicator cover and buttons: PES, Lens cover and display: PMMA (scratch-resistant coating specifications), Cable bushing: PBT, Cable: PVC, M12 connector: TPE, PBT, Nickel-plated brass |
| Mutual interference prevention function | 4 units (when using the interference prevention function) |
| output_voltage | 0 V |
| Protection circuit | Protection against reverse power connection, power supply surges, output overcurrent, reverse output connection, and output surge |
| Shock resistance | 1,000 m/s²; 6 times each in X, Y, Z directions |
| Spot diameter | Approx. ø4 mm ø0.16" |
| Timer | OFF/OFF delay/ON delay/One-shot |
| Type | Cable with connector M12 |
| Type | Red laser (660 nm) |
