Keyence LK-G80 laser displacement sensor head - Used
Description

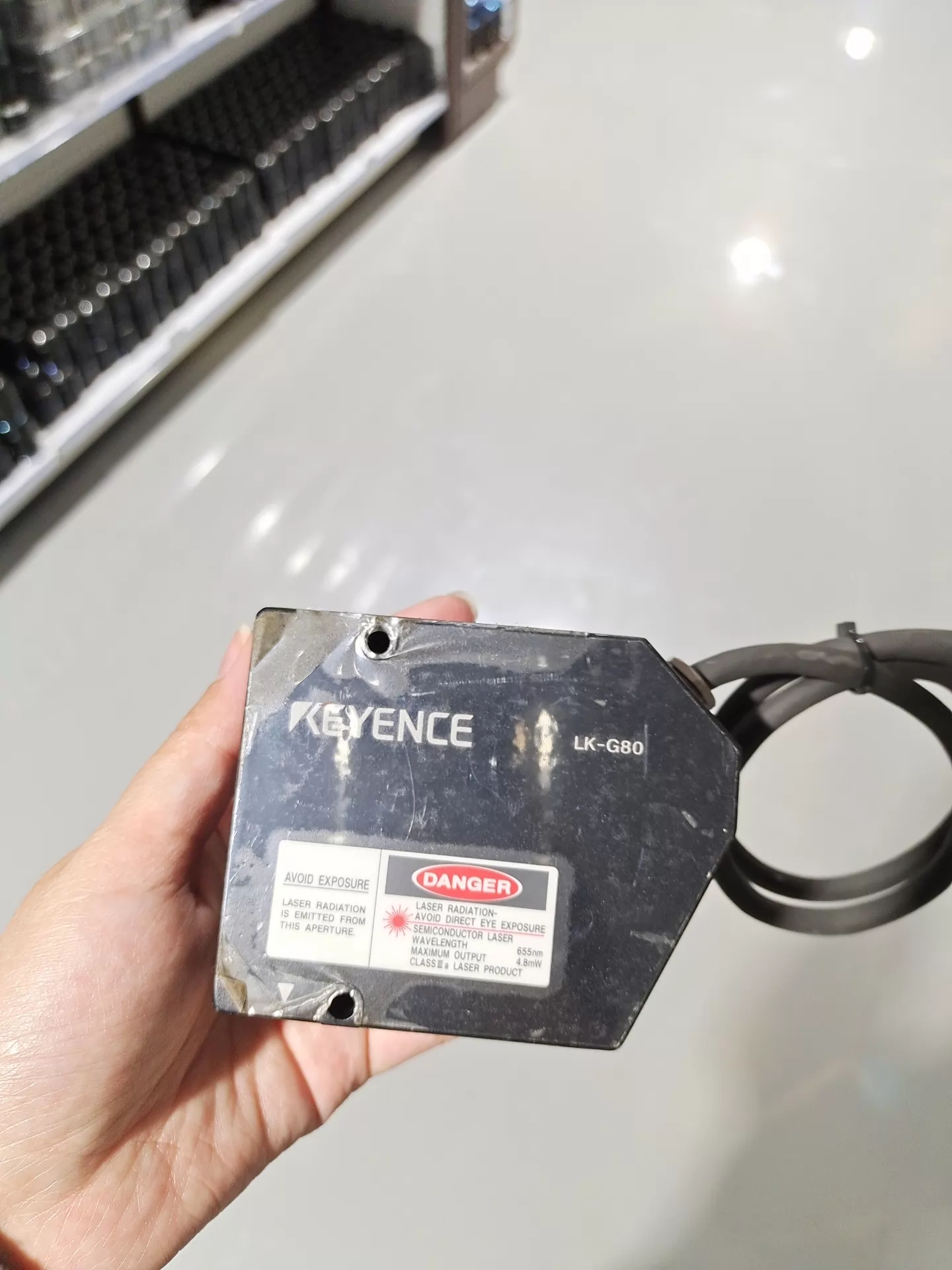

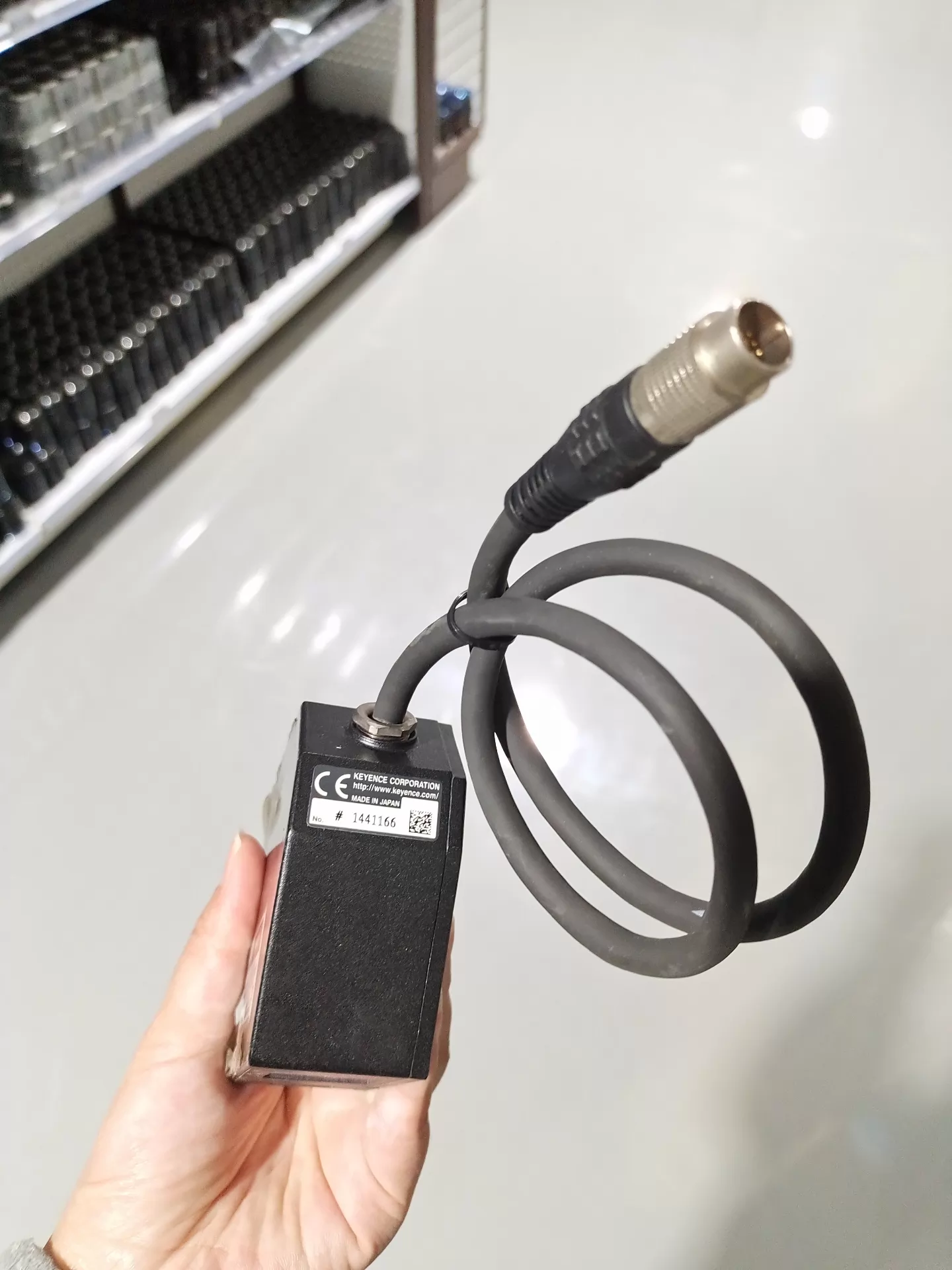

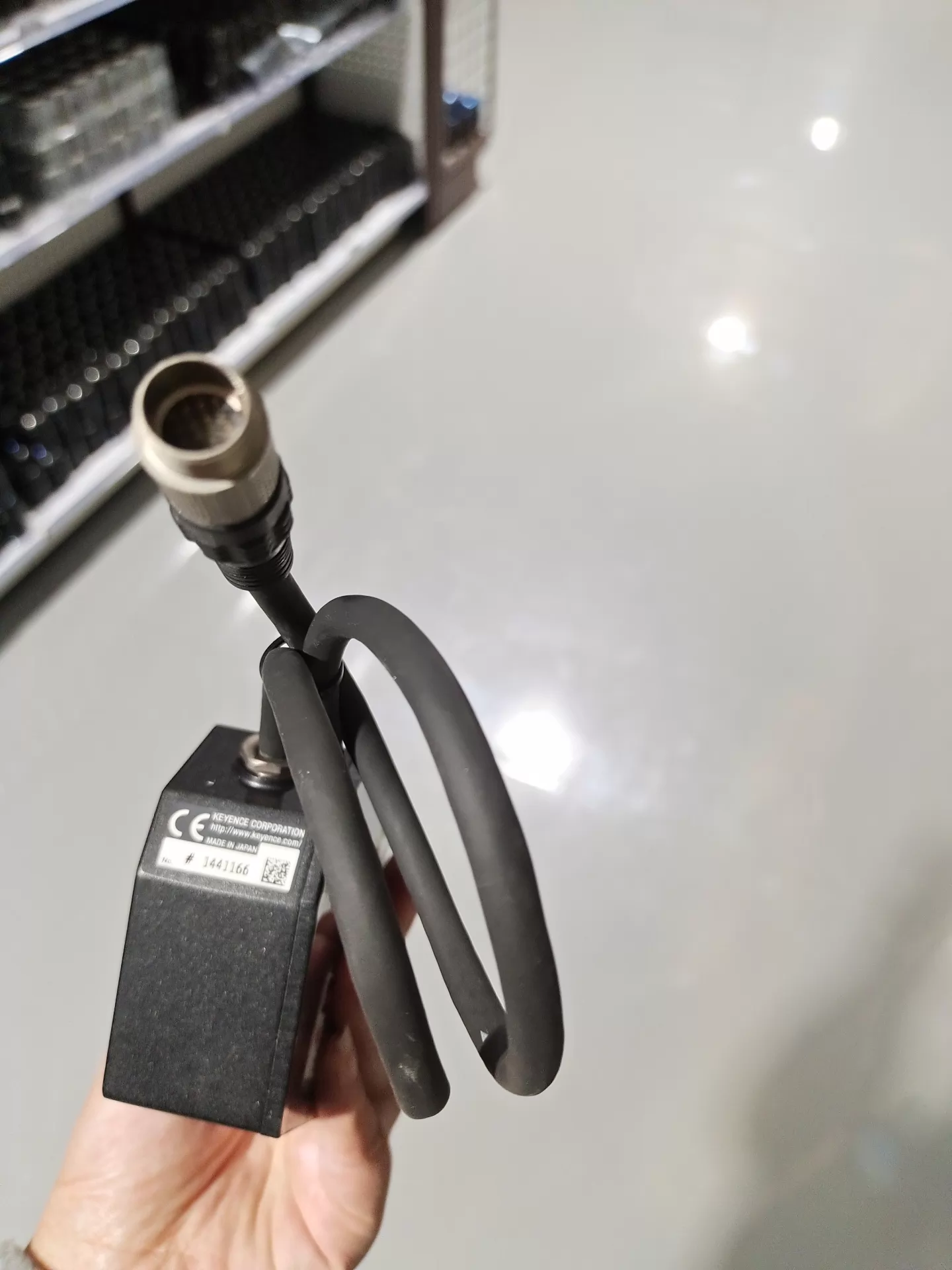

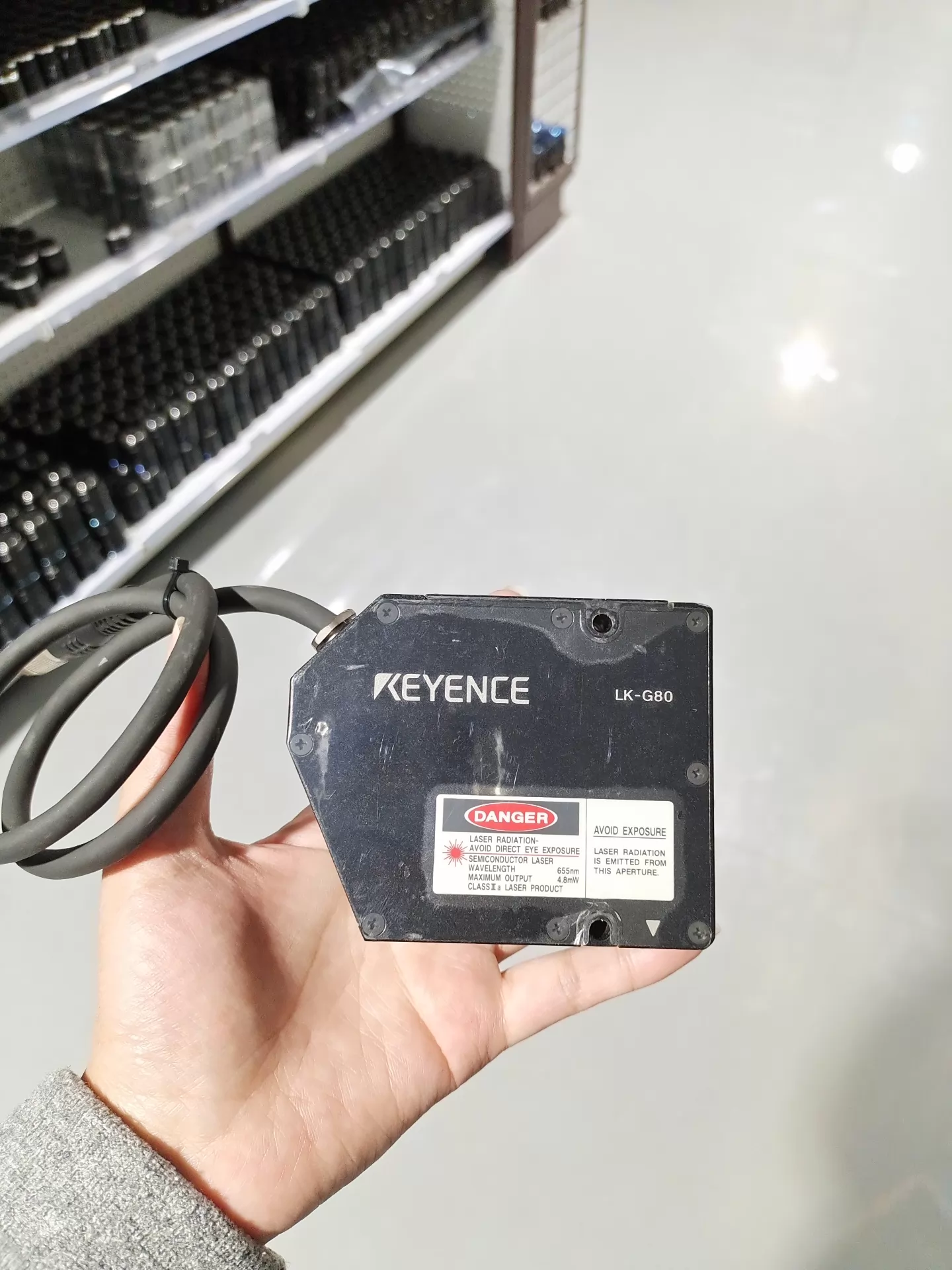

Removed from equipment, this Keyence LK-G80 laser displacement sensor head has its cable connection points present. Its 655 nm laser has a maximum output of 4.8 mW.
Specifications
| Brand | Keyence |
|---|---|
| Model | LK-G80 |
| Measuring range | ±15 mm (Diffuse reflection), ±14 mm (Specular reflection) |
| Sampling frequency | 20/50/100/200/500/1,000 µs ?Selectable from 6 levels? |
| Weight | Approx. 380 g (including the cable) |
| Ambient temperature | 0 to +50 °C |
| Relative humidity | 35 to 85 % RH (No condensation) |
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm; 2 h each in X, Y, Z directions |
| Ambient light | Incandescent lamp or Fluorescent lamp: 10,000 lux max. |
| Enclosure rating | IP67 (IEC60529) |
| Laser class | Class 3R (IEC 60825-1), Class IIIa (FDA CDRH Part 1040.10) |
| Light source type | Red semiconductor laser |
| Linearity | ±0.05% of F.S. (F.S.= ±15 mm) |
| Material | Aluminum die-cast |
| Maximum Output | 4.8mW |
| Output | 4.8 mW |
| Reference distance | 80 mm (Diffuse reflection), 75.2 mm (Specular reflection) |
| Repeatability | 0.2 µm |
| Spot diameter at reference distance | Approx. ø70 µm |
| Temperature characteristics | 0.01% of F.S./°C (F.S.= ±15 mm) |
| Wavelength | 655nm (Visible light), Class 3R laser product (JIS C6802) |
