Keyence KV-NC16EXE input module - Used
Description

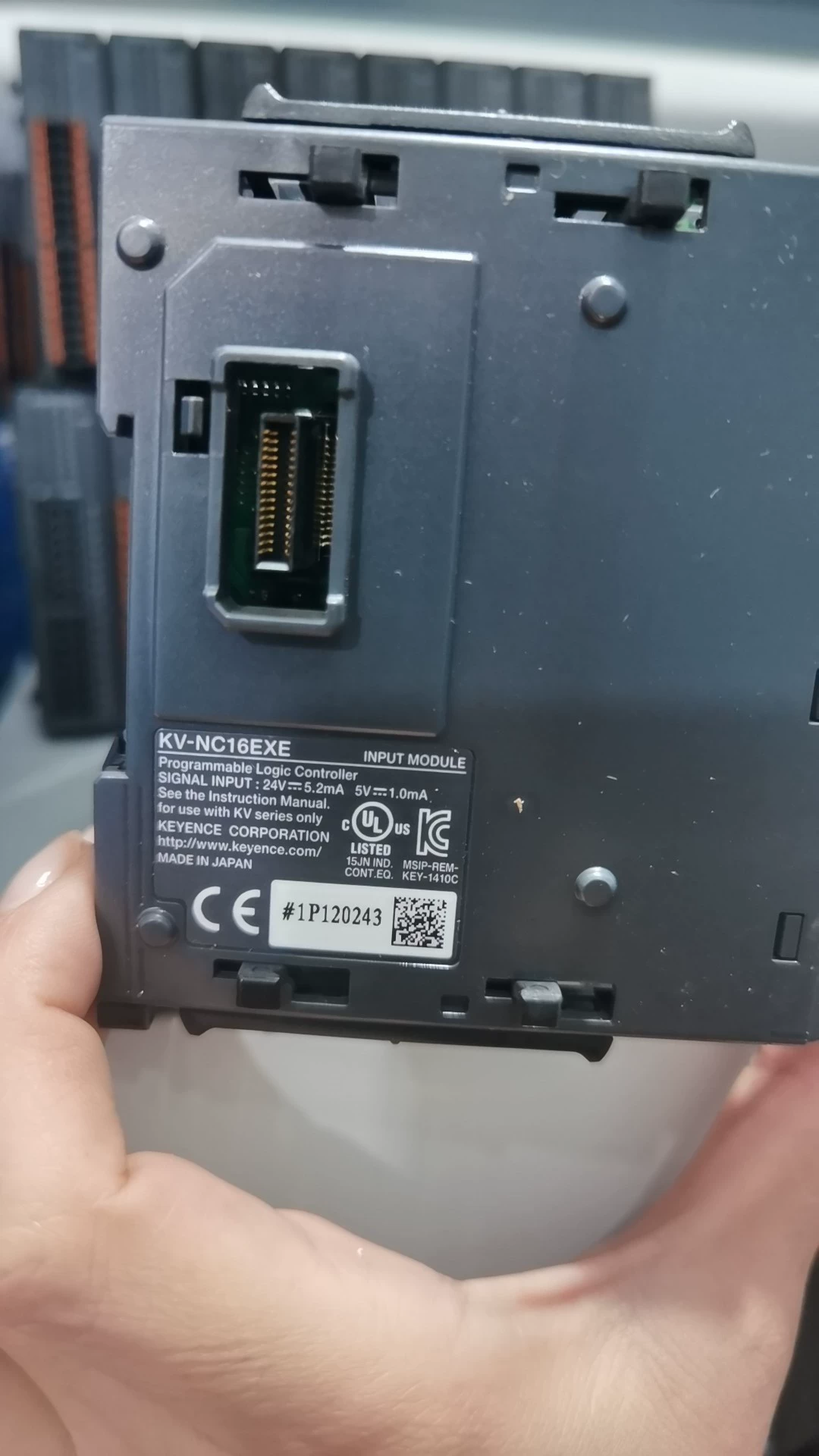

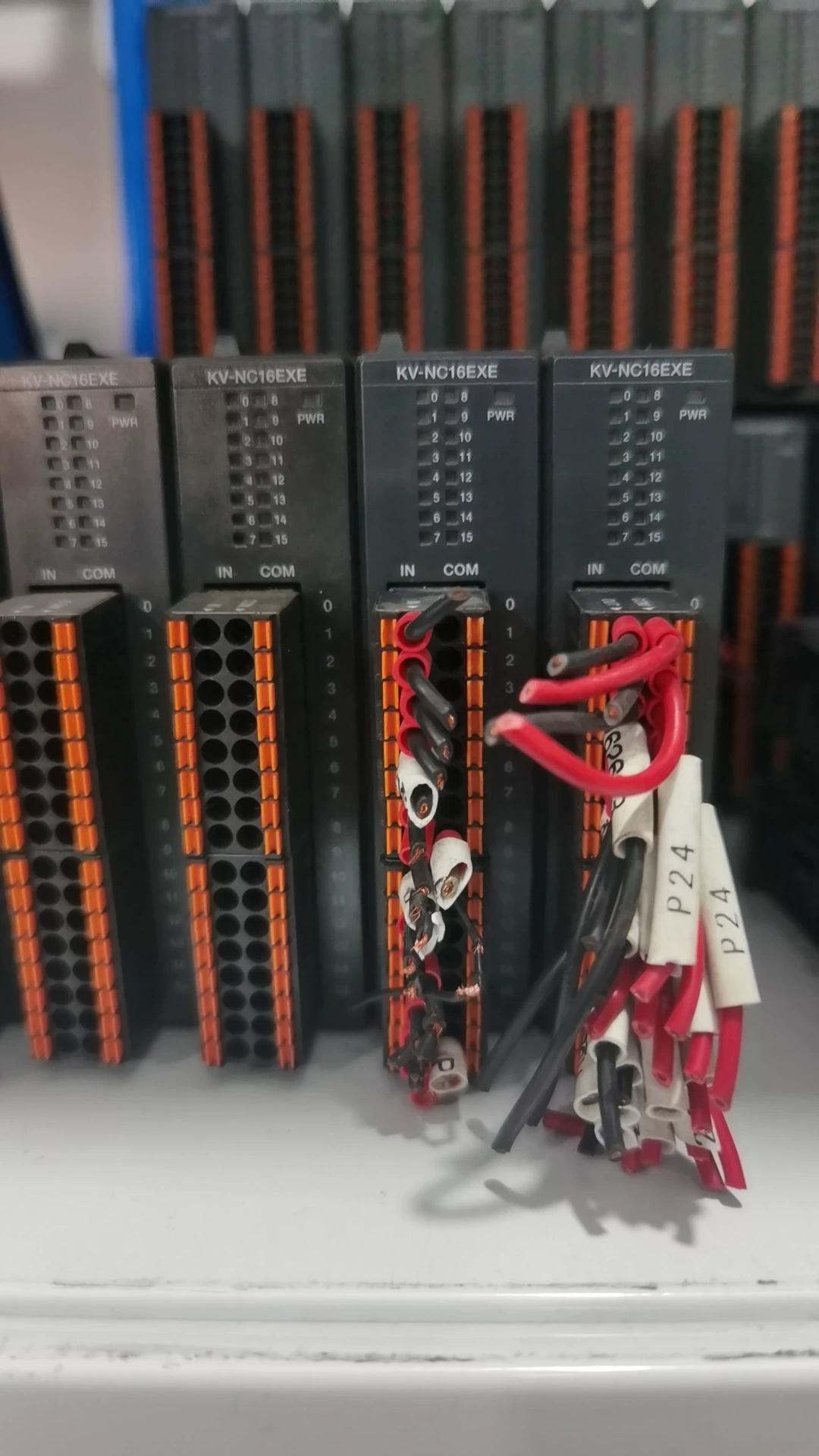

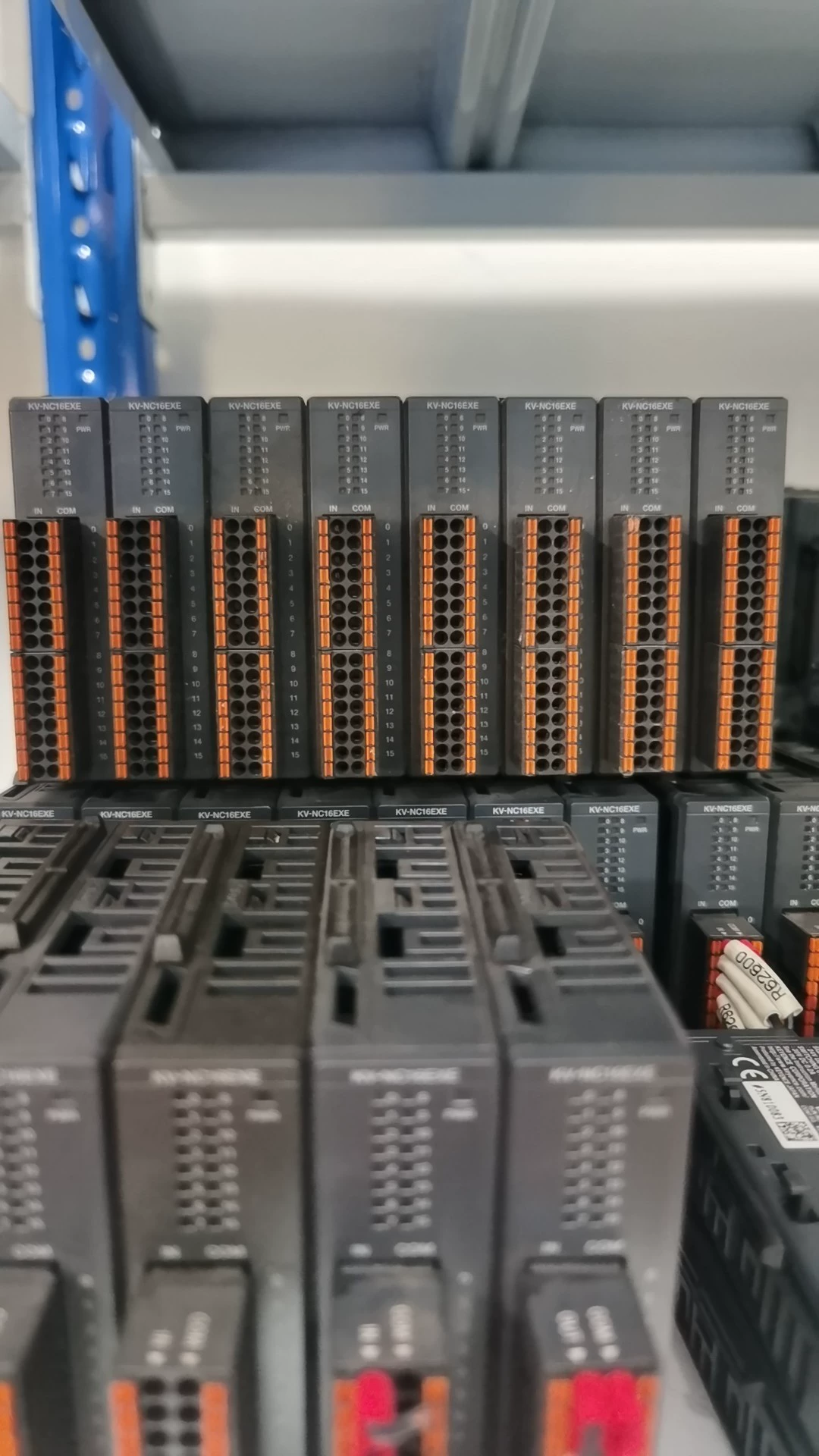

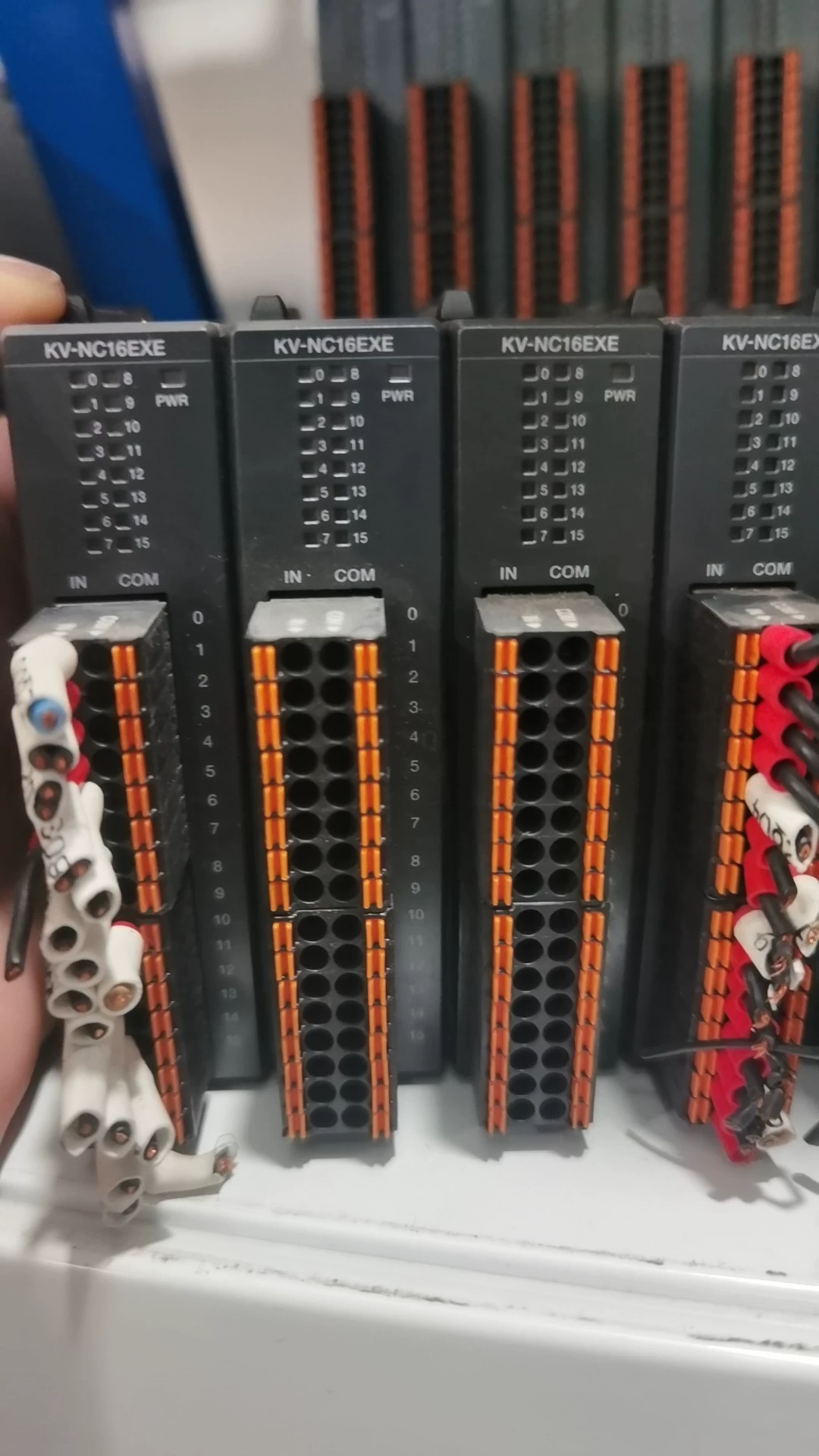

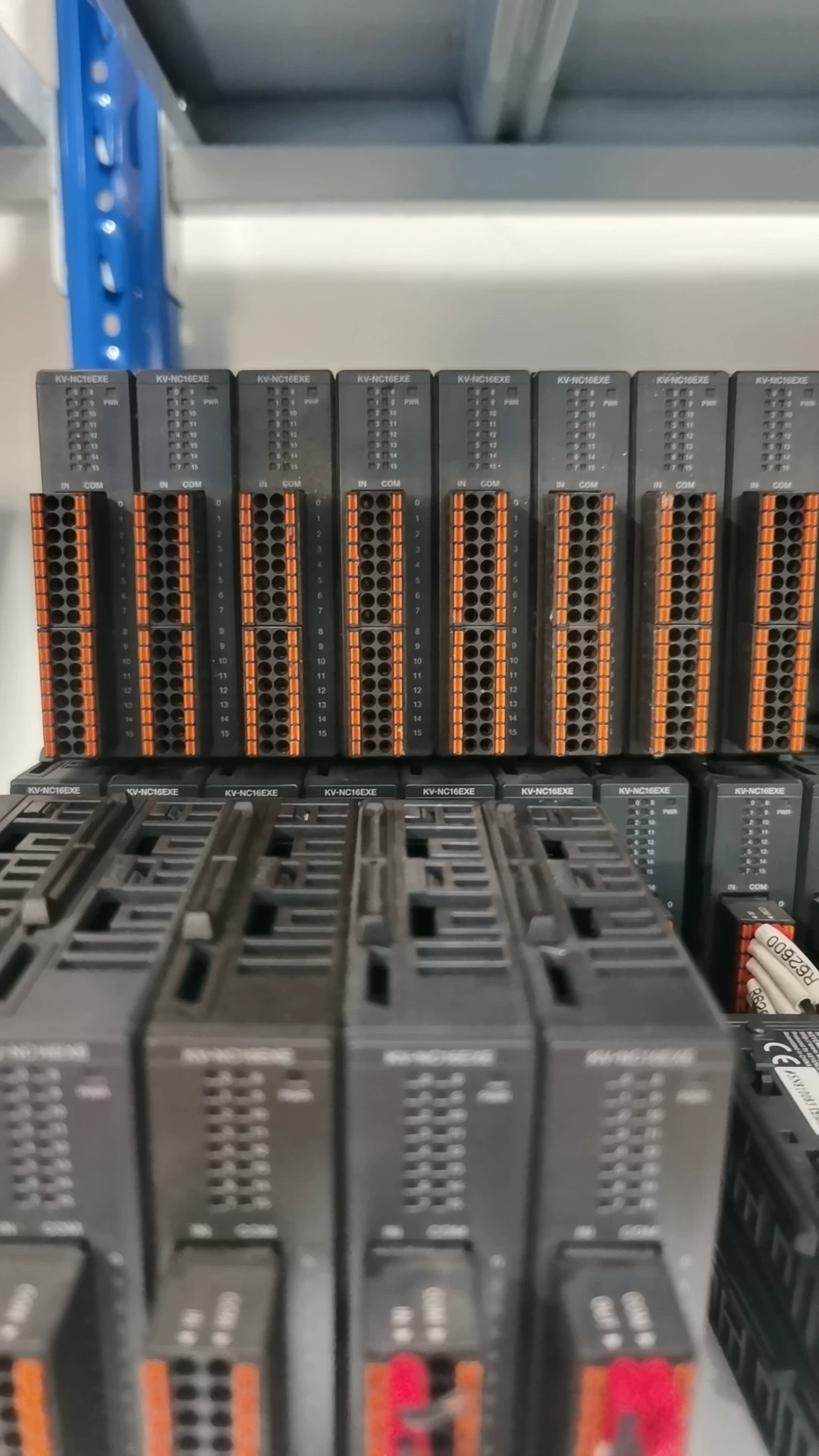

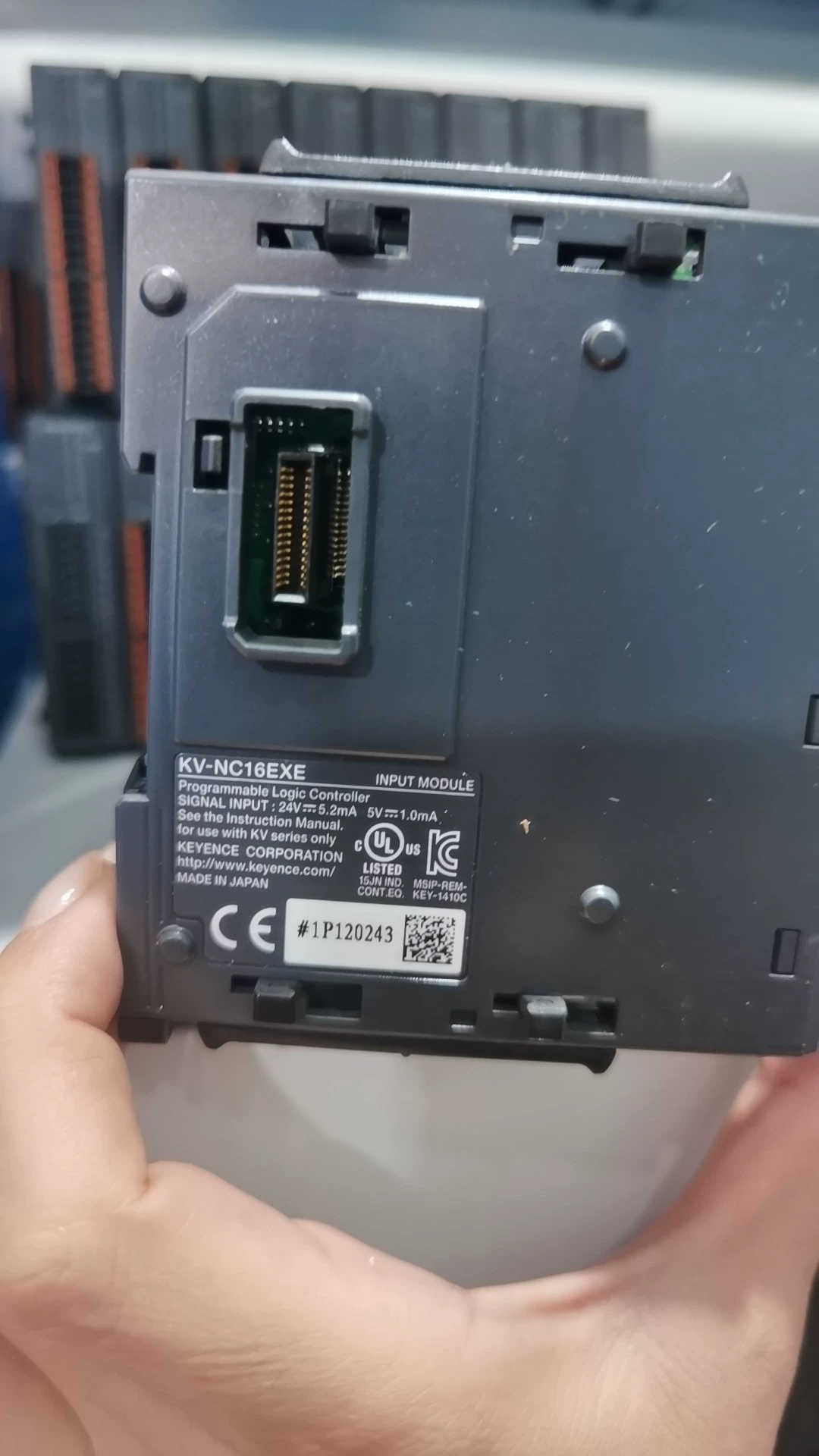

Used Keyence KV-NC16EXE input module, removed from equipment, with intact connectors.
Specifications
| Brand | Keyence |
|---|---|
| Model | KV-NC16EXE |
| Maximum input voltage | 26.4 VDC |
| Weight | Approx. 120 g |
| Common method | 16 points/1 common (16 terminals) *2 |
| External connection method | European terminal block |
| Input impedance | 4.4 kΩ |
| Input Points | 16 points |
| Input rated voltage | 1 mA |
| Input rated voltage | 5.2 mA |
| Input terminals | 24 VDC mode, 5 VDC mode |
| Internal current consumption | ≤20 mA |
| Maximum OFF current | 1.5 mA |
| Maximum OFF voltage | 1.5 V |
| Minimum ON voltage | 3.5 V |
| Minimum ON voltage | 19 V |
| OFF to ON: Max. | 25 µs : 50 µs 300 µs : 290 µs 1 ms : 1.2 ms 10 ms : 11 ms |
| OFF to ON: Typ. | 25 µs : 10 µs 300 µs : 240 µs 1 ms : 1 ms 10 ms : 10 ms |
| ON to OFF: Max. | 25 µs : 150 µs 300 µs : 390 µs 1 ms : 1.2 ms 10 ms : 11 ms |
| ON to OFF: Typ. | 25 µs : 50 µs 300 µs : 280 µs 1 ms : 1 ms 10 ms : 10 ms |
