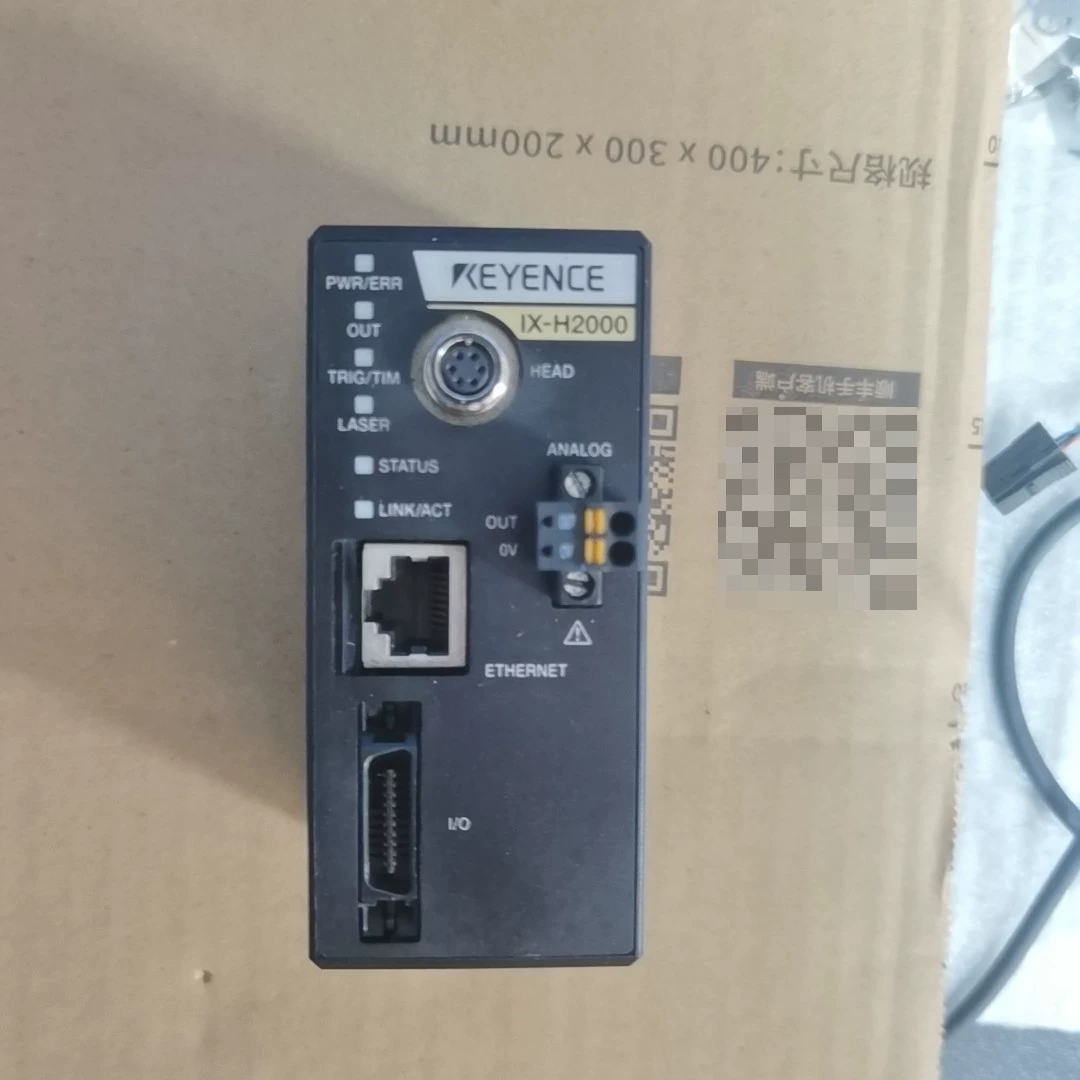

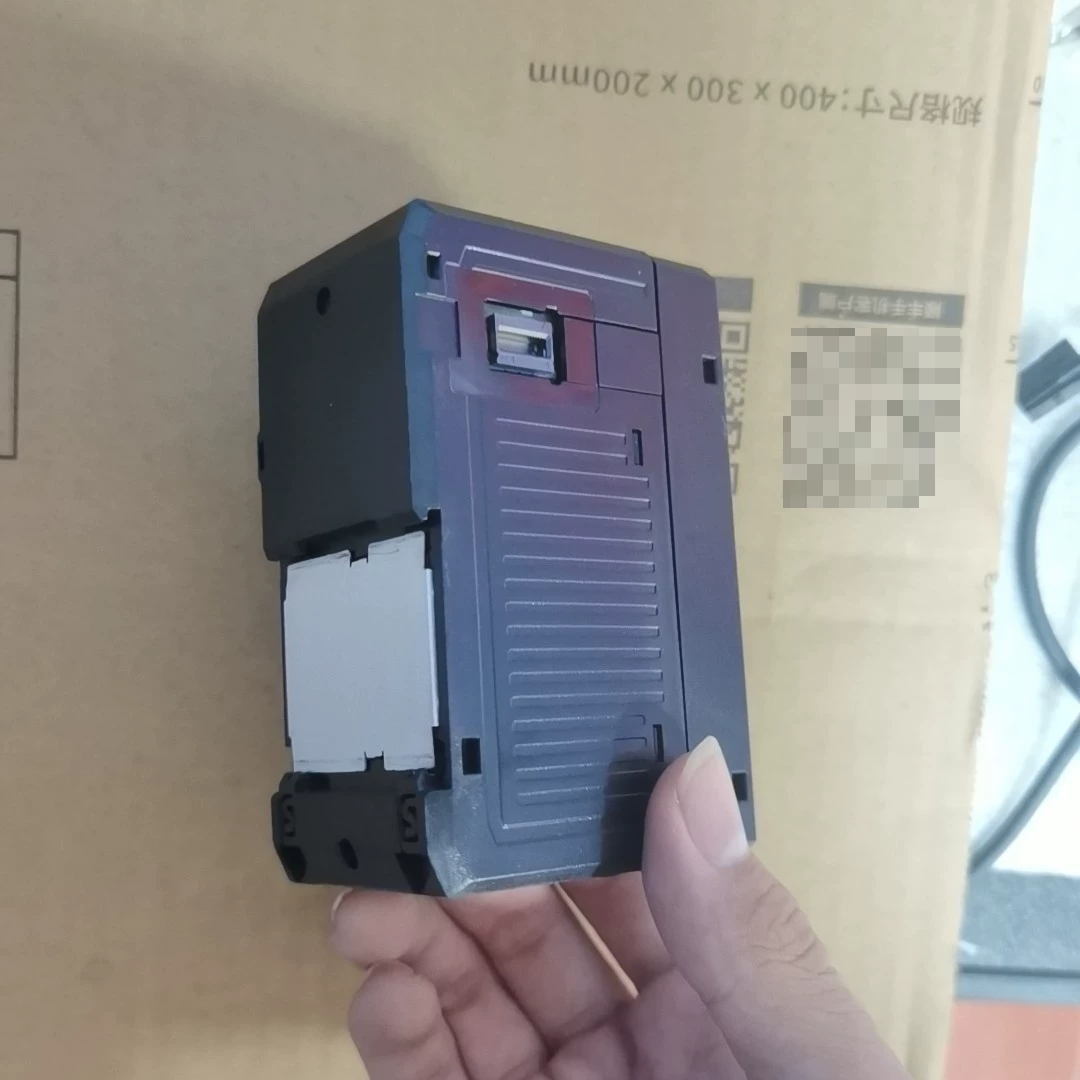

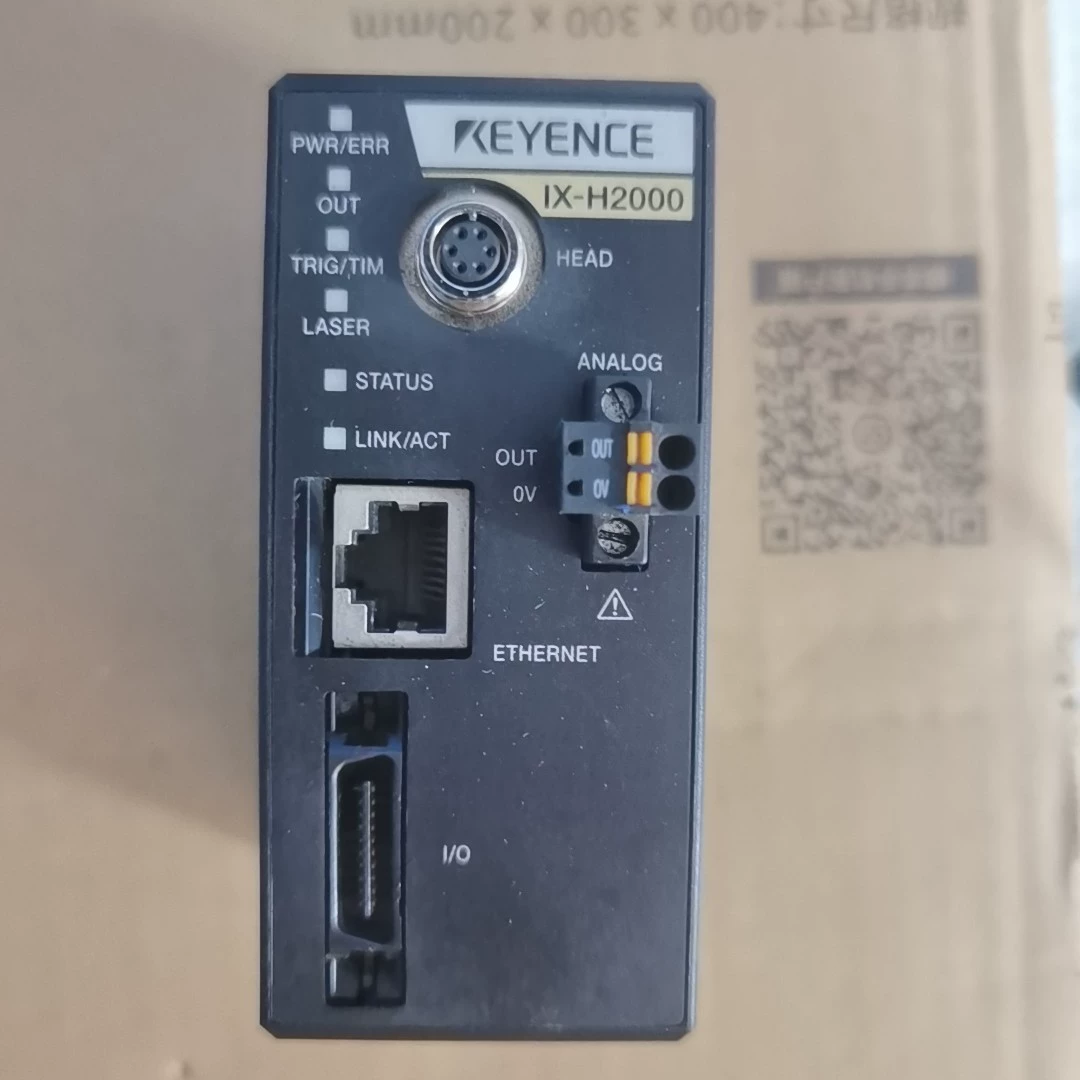

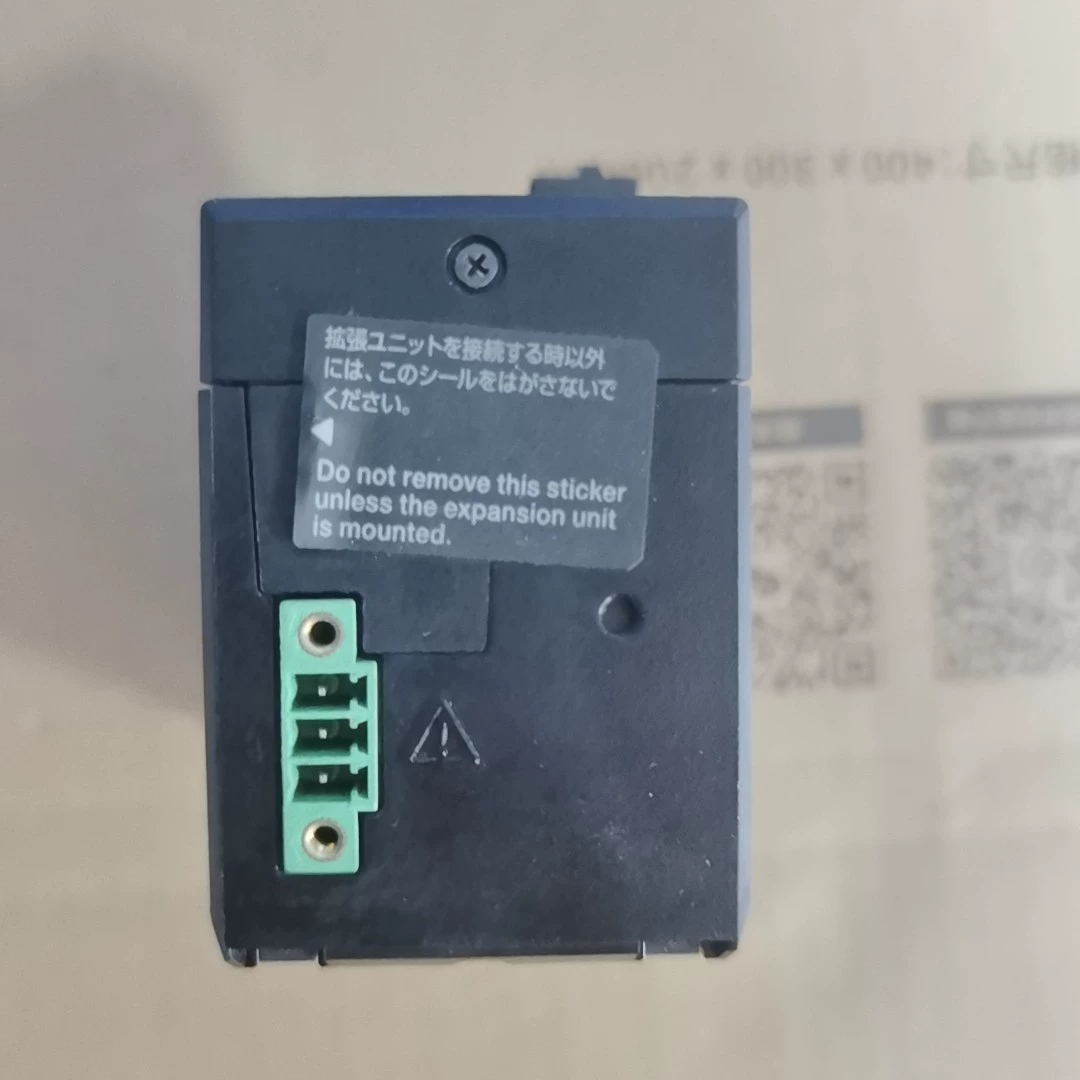

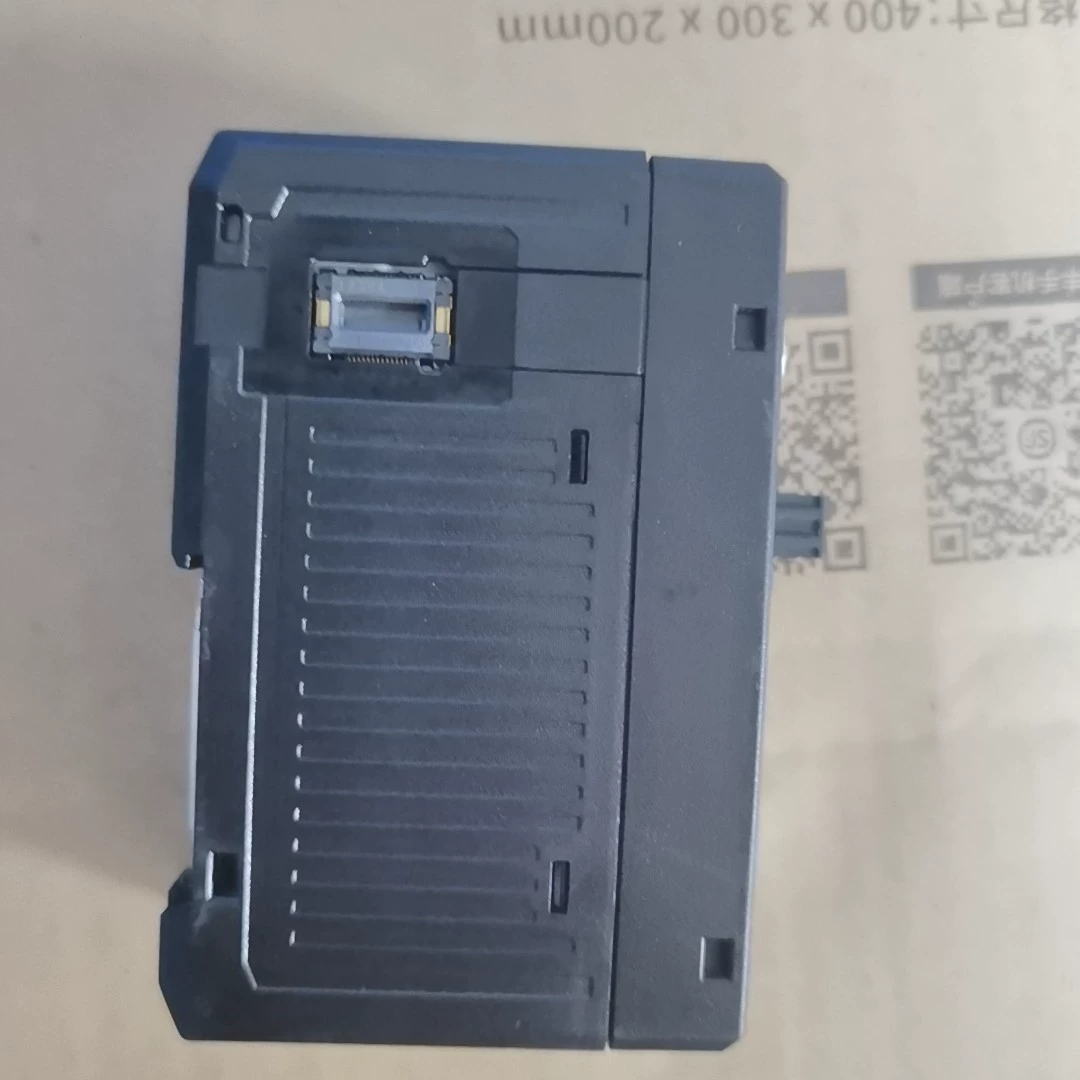

Keyence IX-H2000 Laser Controller - Used
Description
Keyence IX-H2000 laser controller, removed from equipment.
Specifications
| Brand | Keyence |
|---|---|
| Model | IX-H2000 |
| Origin | Japan |
| Power voltage | 24 VDC ±10% (including ripple) |
| Weight | Approx. 210 g |
| Ambient temperature | 0 to +50°C |
| Relative humidity | 35 to 85% RH (No condensation) |
| Analog current output | 4 to 20 mA, Max. load resistance: 350 Ω |
| Analog voltage output | ±5 V, 1 to 5 V, 0 to 5 V, Output impedance: 100 Ω |
| Current consumption | Max. ≤1.9 A (With main unit only: ≤0.8 A, With unit expansion: ≤1.9 A) (Excluding output load) |
| Display range (X axis) | ±999.95 to ±999 mm |
| Display range (Z axis) | ±999.99 to ±999 mm |

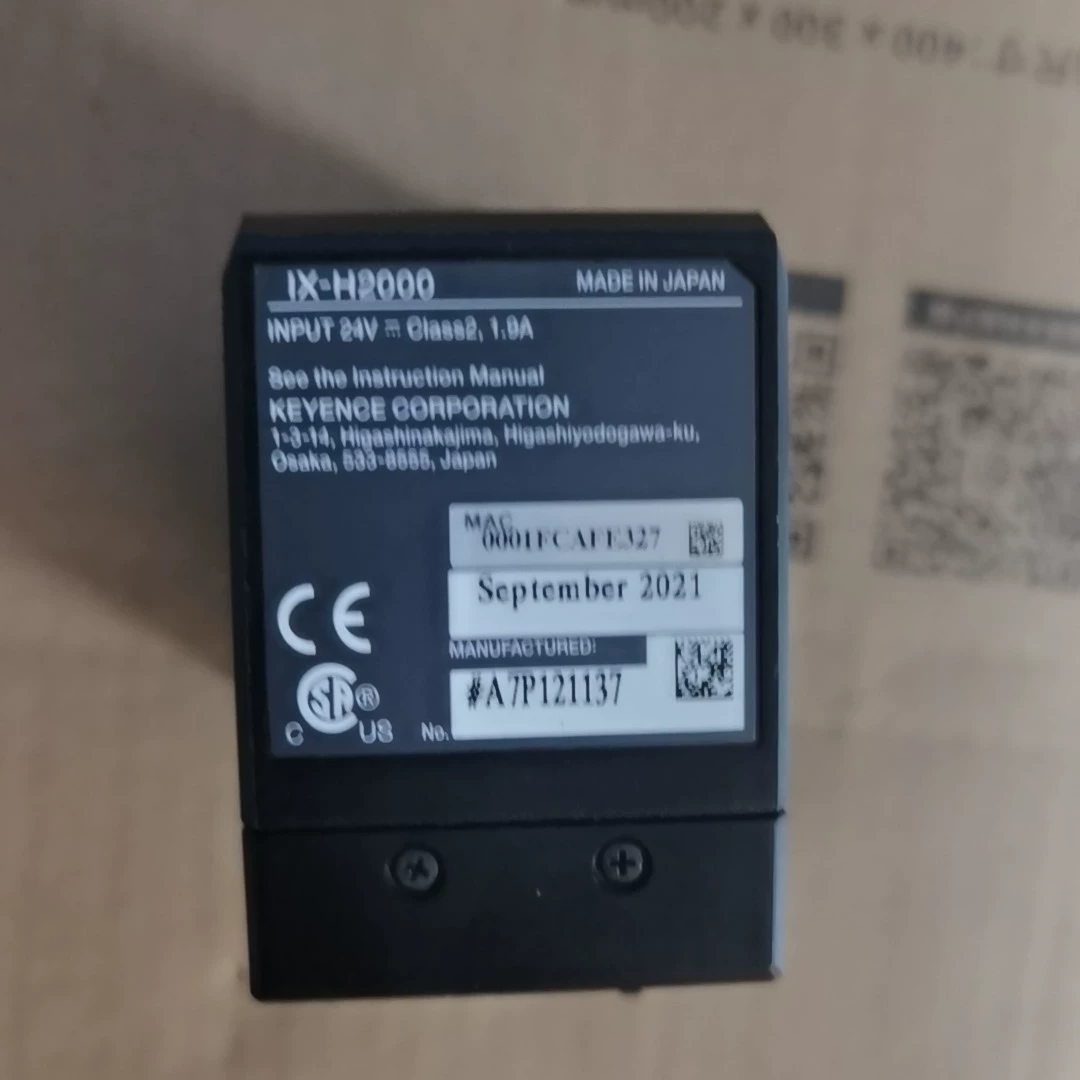

| Input Rating | 24 V Class2, 1.0 A |
| Input type | Switchable between non-voltage input and voltage input |
| Min. display unit (X axis) | 50 μm |
| Min. display unit (Z axis) | 10 μm |
| Number of inputs | 8 (IN1 to IN8) |
| Number of outputs | 10 (OUT1 to OUT10) |
| Number of programs | 32 |
| Output type | Open collector output; NPN/PNP switchable, N.O./N.C. switchable |
| Tools (Line mode) | Height (Ave./Max./Min.), Step (Ave./Max./Min.), Edge position, Width/diameter, Step/width calculation, Thickness calculation, Position adjustment, Tilt adjustment |
| Tools (Scan mode) | Height, Step, Average height, Pin height, MAX/MIN, Height area, Monochrome area, Width, Step calculation, Thickness calculation, Position adjustment, 1-axis adjustment, 2-axis adjustment |
