Keyence IV2-G30F Vision Sensor - Used
Description

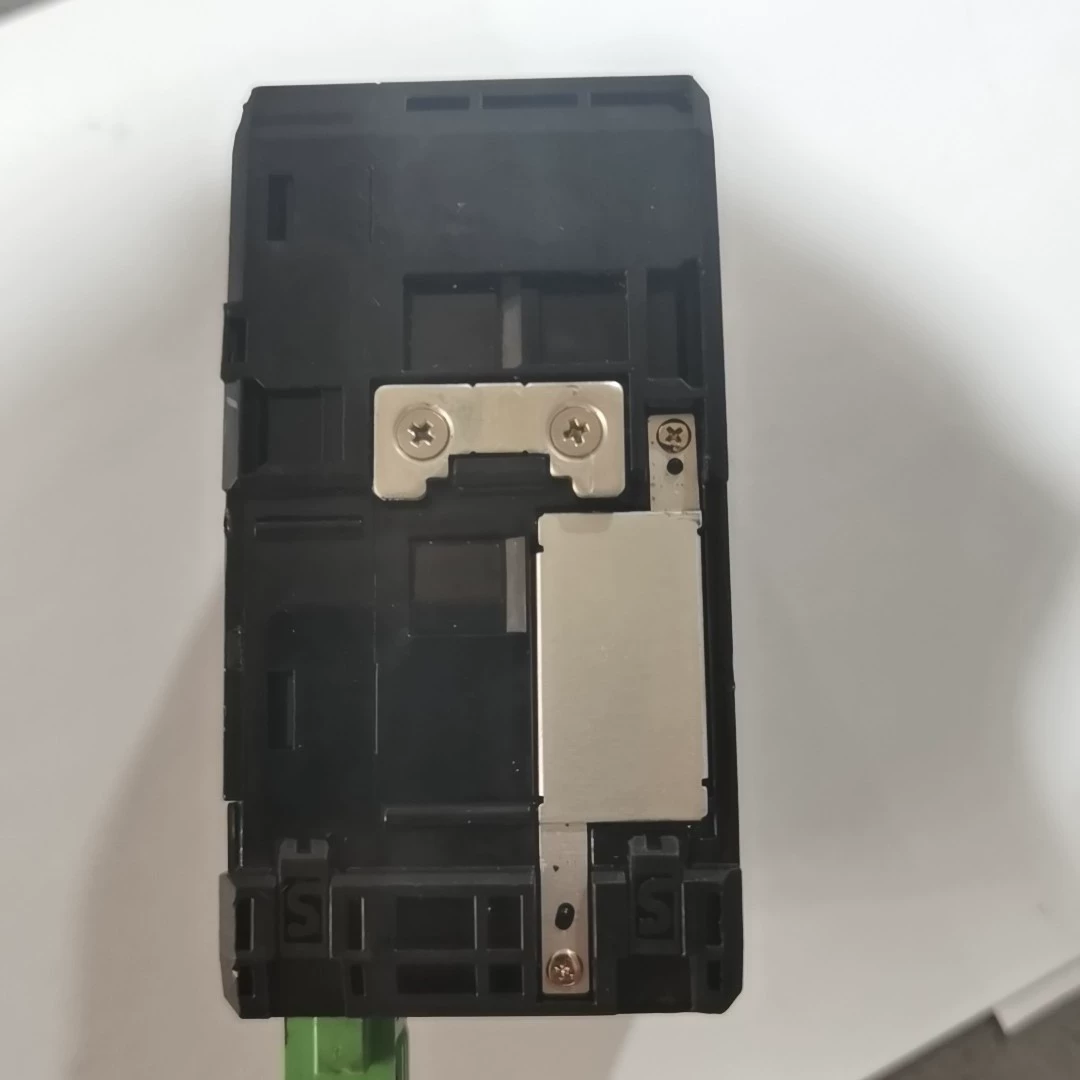

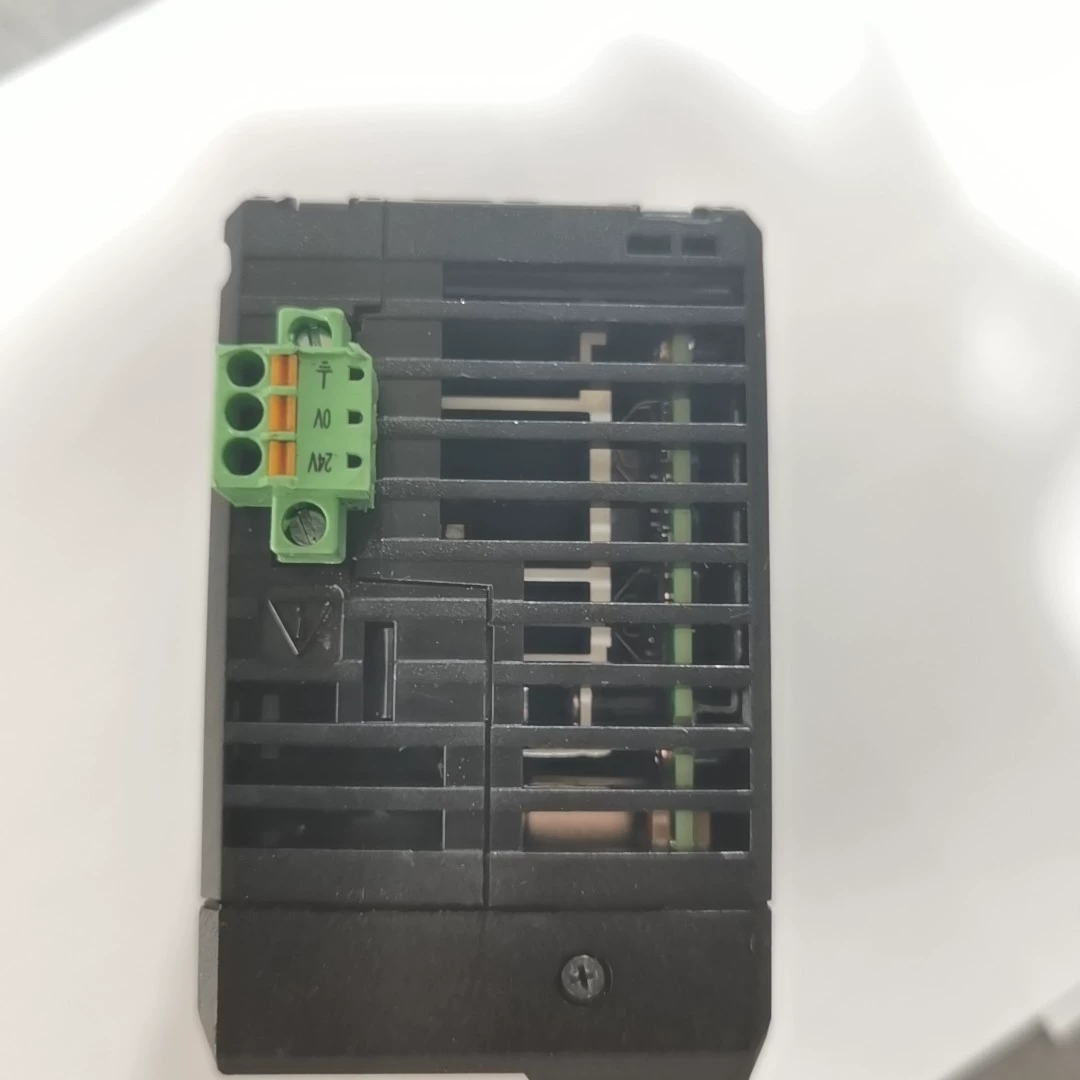

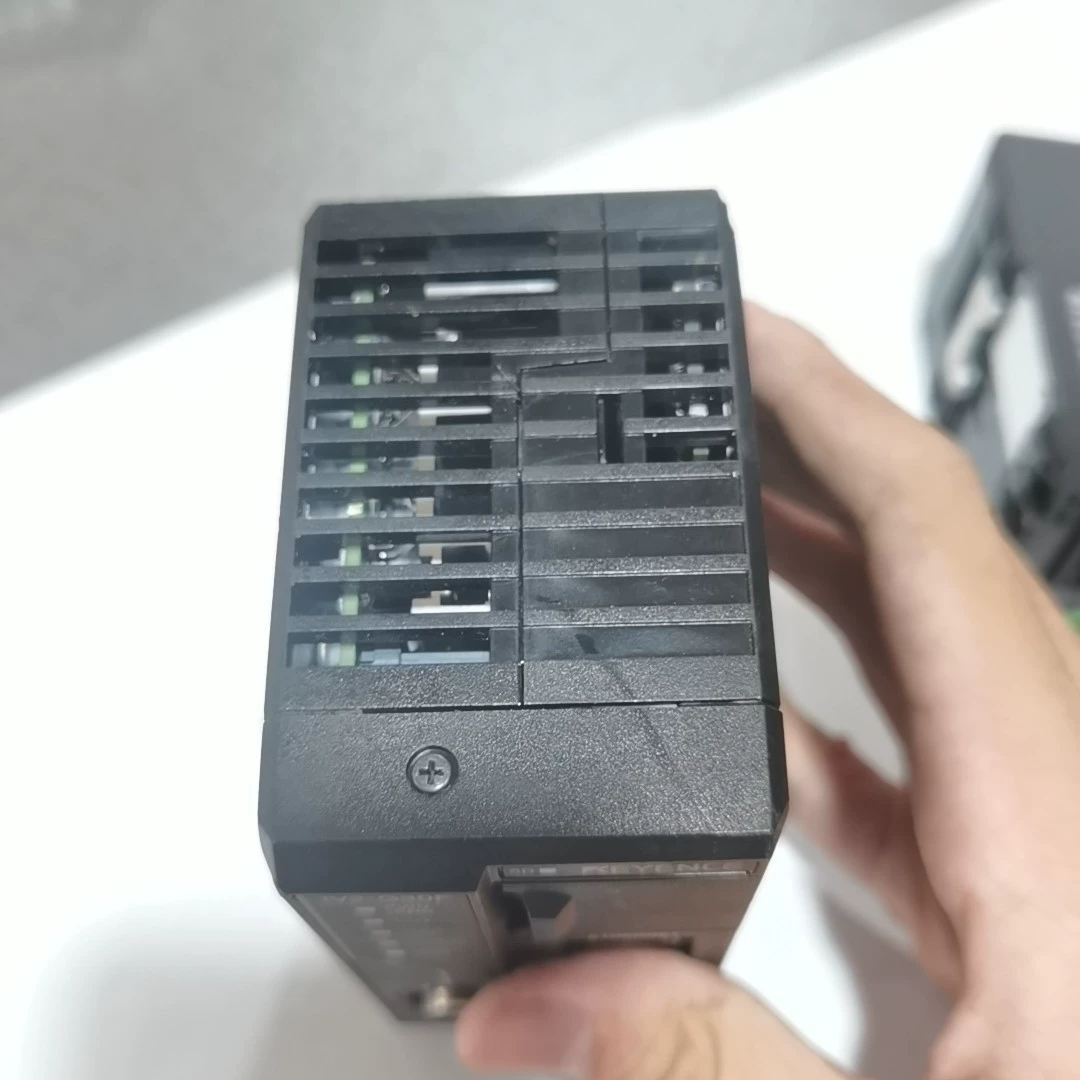

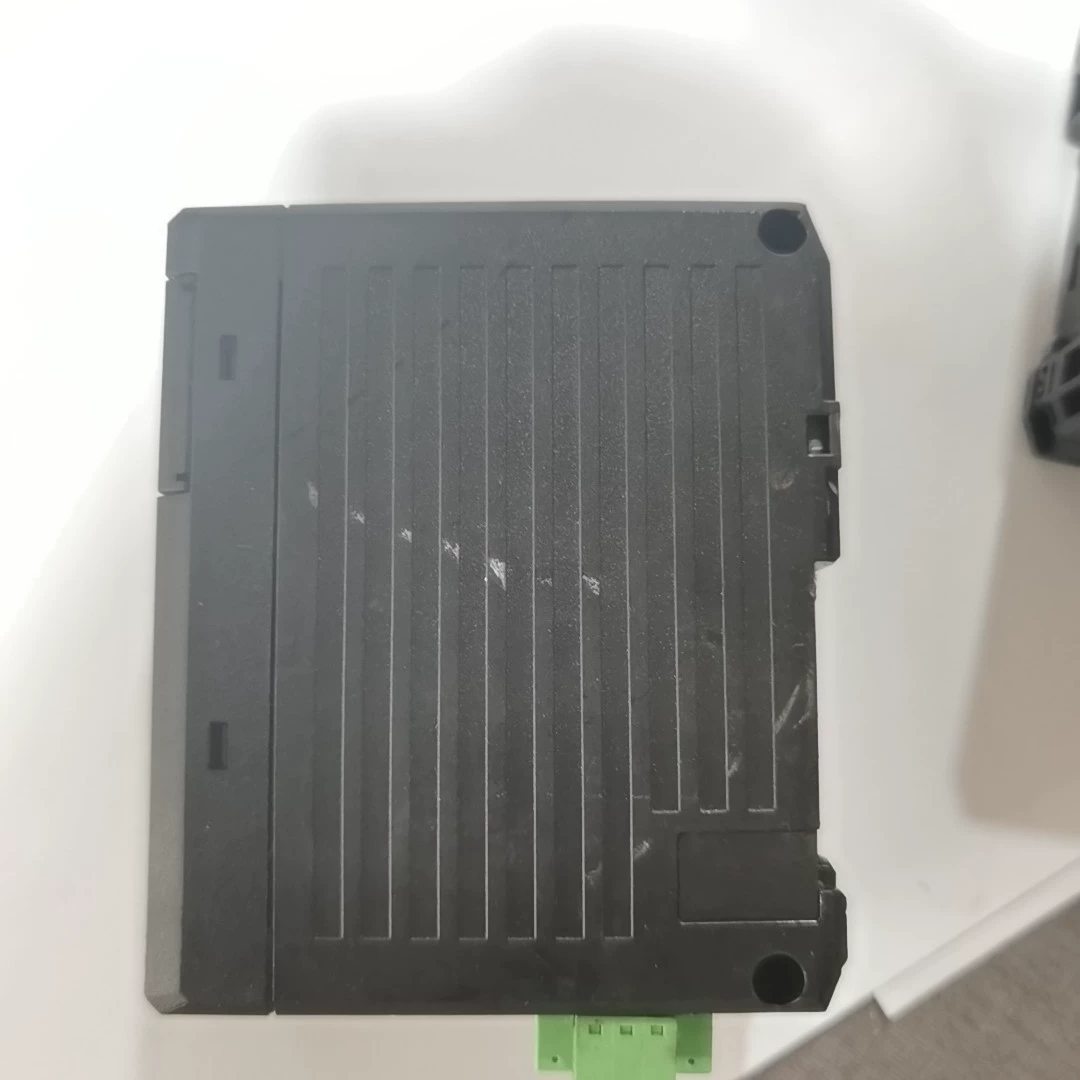

Used Keyence IV2-G30F vision sensor, removed from equipment. Condition is used.
Specifications
| Brand | Keyence |
|---|---|
| Model | IV2-G30F |
| Origin | Japan |
| Power voltage (rating) | 24 VDC ±10% (including ripple) |
| Weight | Approx. 330 g |
| Ambient temperature | 0 to +50°C (32 to 122°F); no freezing |
| Relative humidity | 35 to 85% RH (No condensation) |
| Available modes | Learning mode / Standard mode |
| Built-in Ethernet | EtherNet/IP™, PROFINET, TCP/IP non-procedure communication |
| Communication unit | EtherCAT Ⓡ, CC-Link, DeviceNet Ⓡ, PROFIBUS, RS-232C *8 |
| Connector | RJ45 8-pin connector |
| Current consumption | ≤1.8 A (including communication unit and output load) |
| Expanded memory | SD card (SD/SDHC) *9 |
| Function | IN1: External trigger, IN2 to IN8: Enable by assigning optional functions Assignable functions: Program switching, Clear error, External master image registration, SD card save cancel |
| Function | Enable by assigning optional functions Assignable functions: Total judgment (OK/NG), Run, Busy, Ready, Strobe, Position adjustment result, Judgment result of each tool, Result of the logical operation of each tool, Error, SD card error |
| Image capture function | Image buffer, Image capture range, Digital zoom (2×, 4×), HDR, High gain, Color filter *1, White balance *1, Brightness correction |

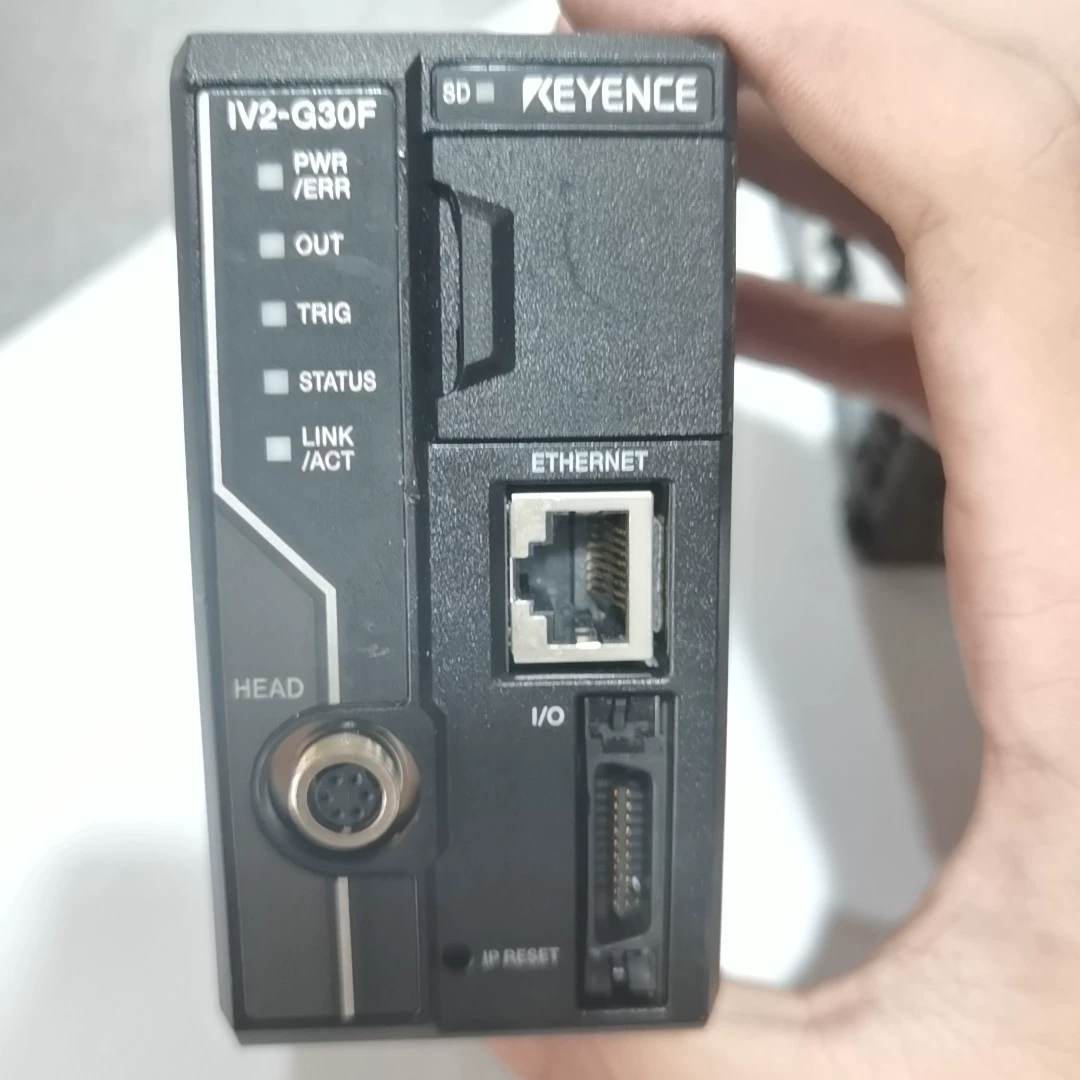

| Indicators | PWR/ERR, OUT, TRIG, STATUS, LINK/ACT, SD |

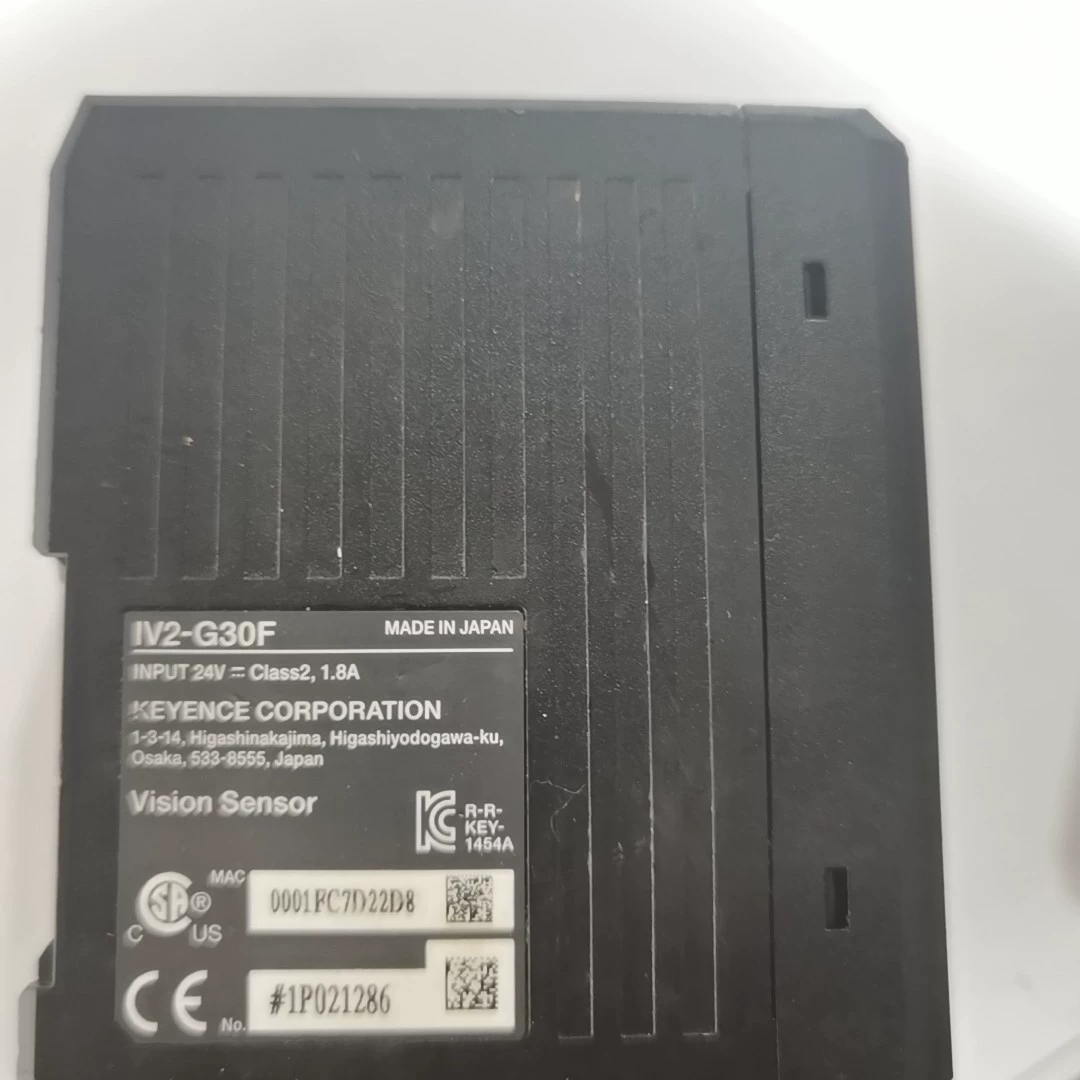

| Input Rating | 24 V = Class2, 1.8 A |
| Material | Main unit case: PC, Power connector: PA/POM, I/O connector: PA, Sensor head connector: Zinc + Ni plating/PA, Ethernet connector: Copper alloy + Ni plating, Main unit rear heat sink: Aluminum, Main unit rear DIN rail fixing tab: POM, Nameplate: PC |
| Network function | FTP client, SNTP client |
| Number of inputs | 8 (IN1 to IN8) |
| Number of outputs | 8 (OUT1 to OUT8) |
| Number of storable images | 1000 images *4 |
| Number of tools | Detection tools: 16 tools, position adjustment tool: 1 tool *3 |
| RUN display | Tools list (Judgment results, degree of similarity, or degree of similarity bar display) *6 |
| Save conditions | Selectable between NG only, NG and OK near threshold *5, and All *4 |
| Standard | 100BASE-TX/10BASE-T |
| Standard mode built-in tools | Outline, Color area *1, Area *2, Edge pixels, Color average *1, Brightness average *2, Width, Diameter, Edge presence, Pitch, OCR, Color/brightness prohibit, Position adjustment, High-speed position adjustment (1-axis edge/2-axis edge) |
| Switch settings (programs) | 128 programs (when using SD card) / 32 programs (when not using SD card) |
| Tool functions | Learning mode: Additional learning Standard mode: Mask outline, Masking function, Color extraction/exclusion *1, Color histogram function *1, Monochrome histogram function *2, Scaling function |
| Transfer conditions | Selectable between NG only, NG and OK near threshold *5, and All |
| Transfer destination | Selectable between SD card and FTP server |
| Transfer format | Selectable between bmp, jpeg, iv2p, and txt |
| Type | Learning/standard type |
| Utilities | Failing sensor list, Failure hold, Test run, I/O monitor, Security settings, Simulator *7 |
