Keyence IV-HG10 Image Recognition Sensor Controller - Used
Description

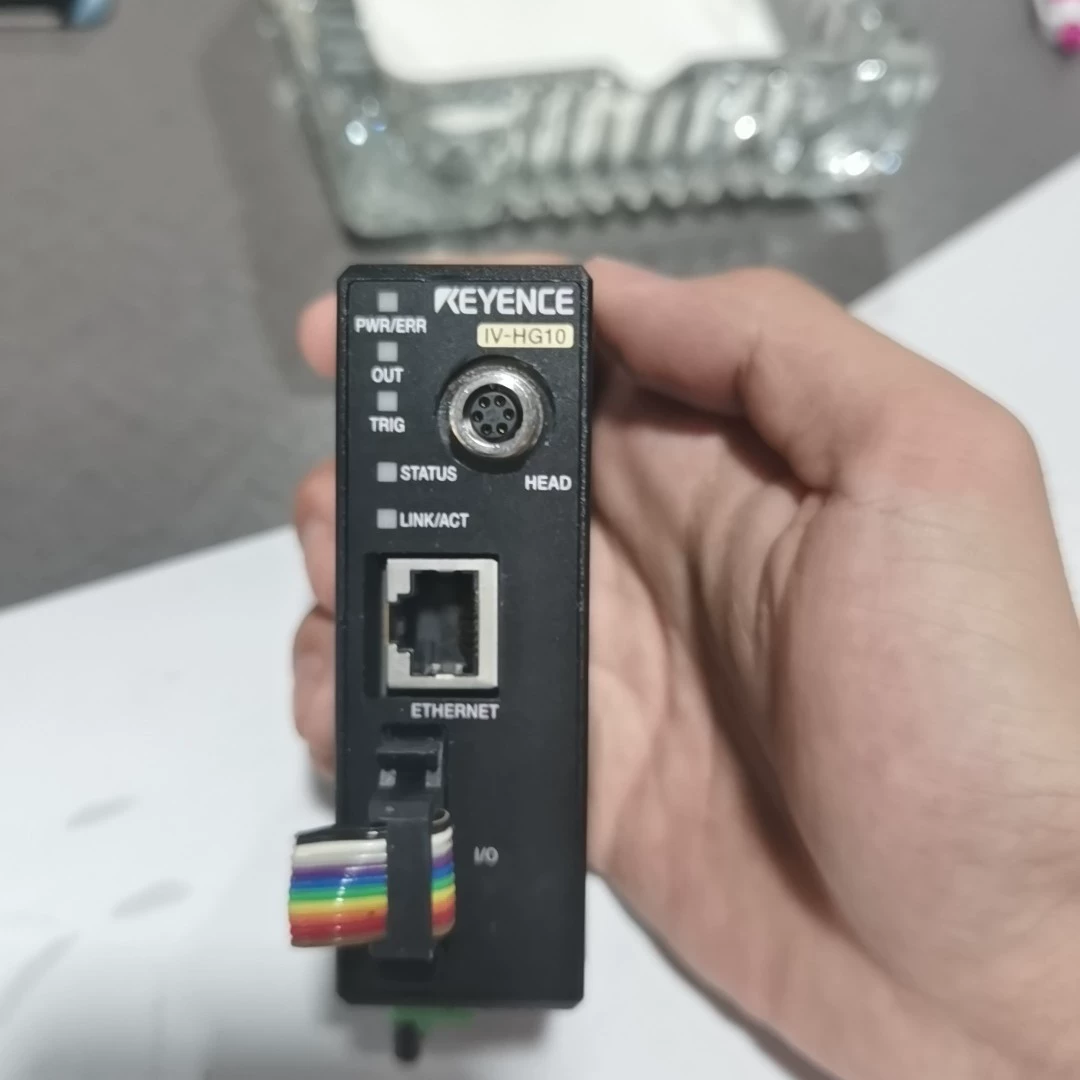

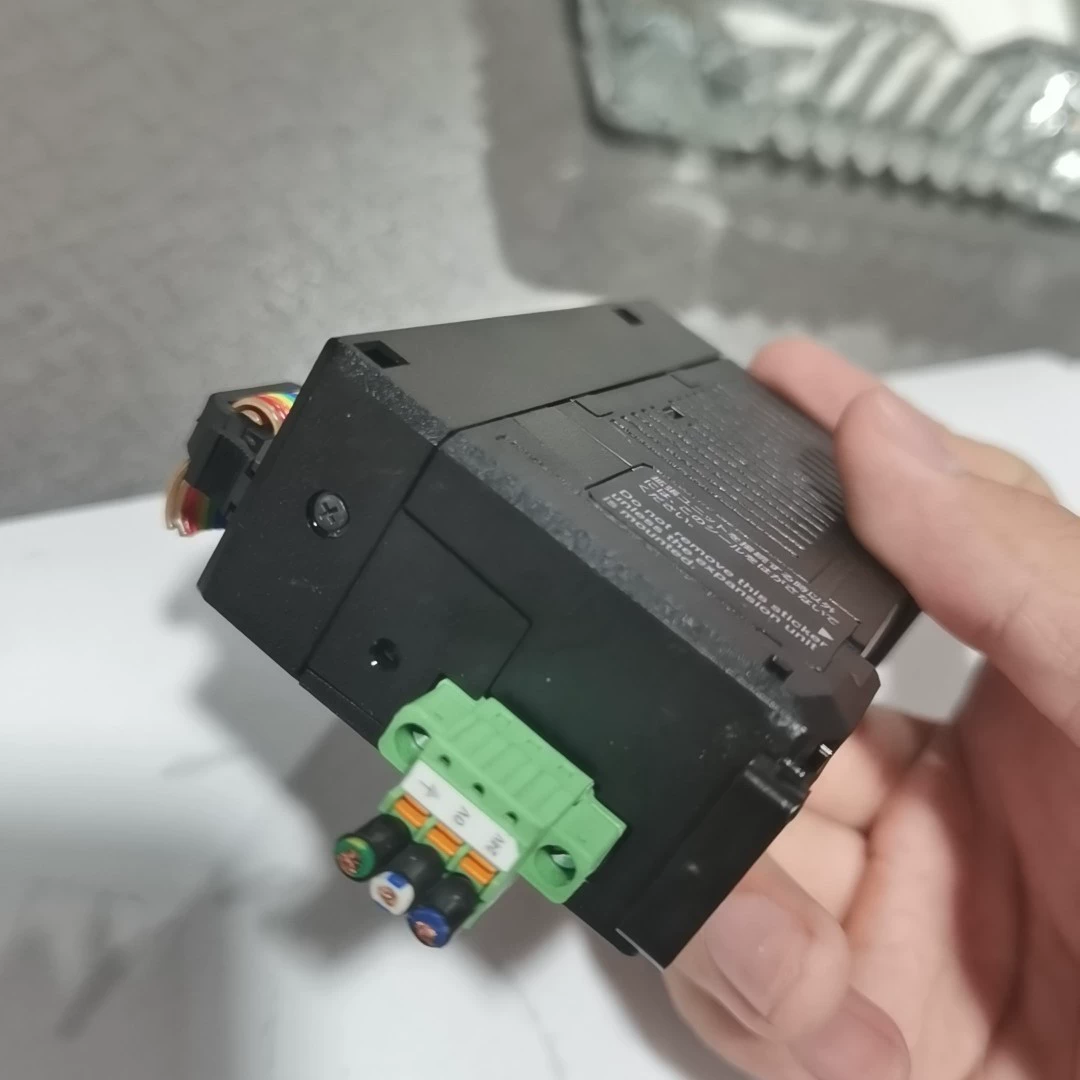

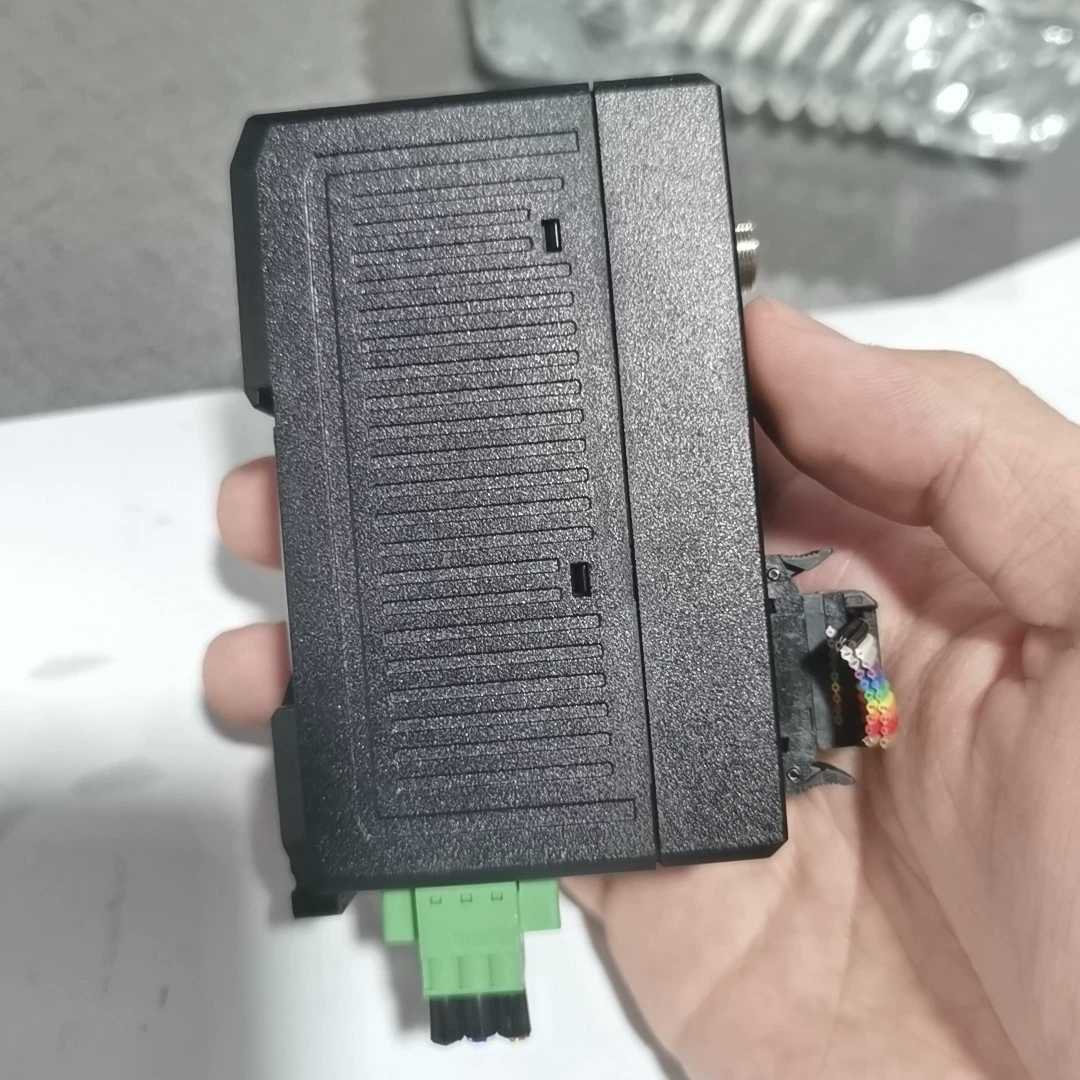

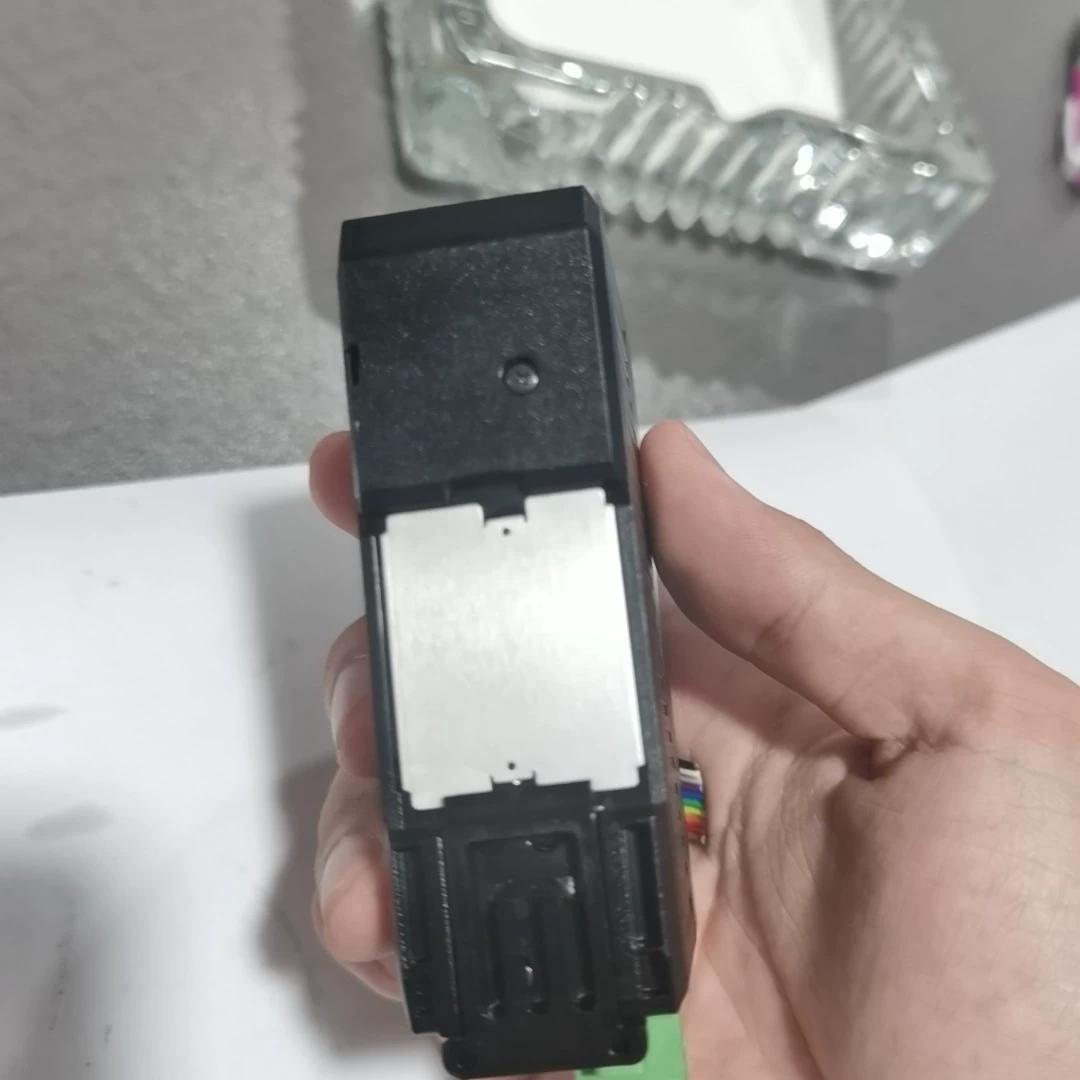

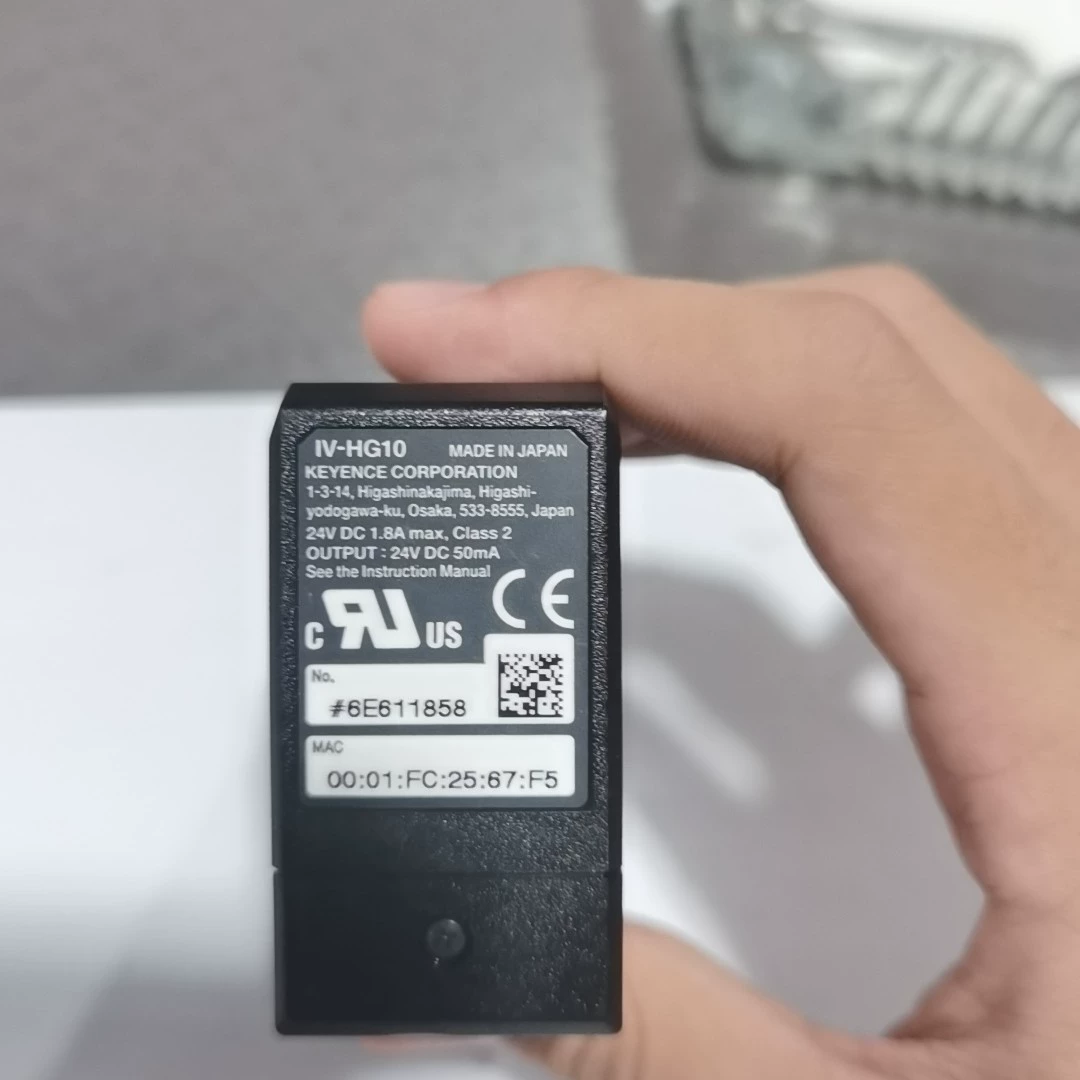

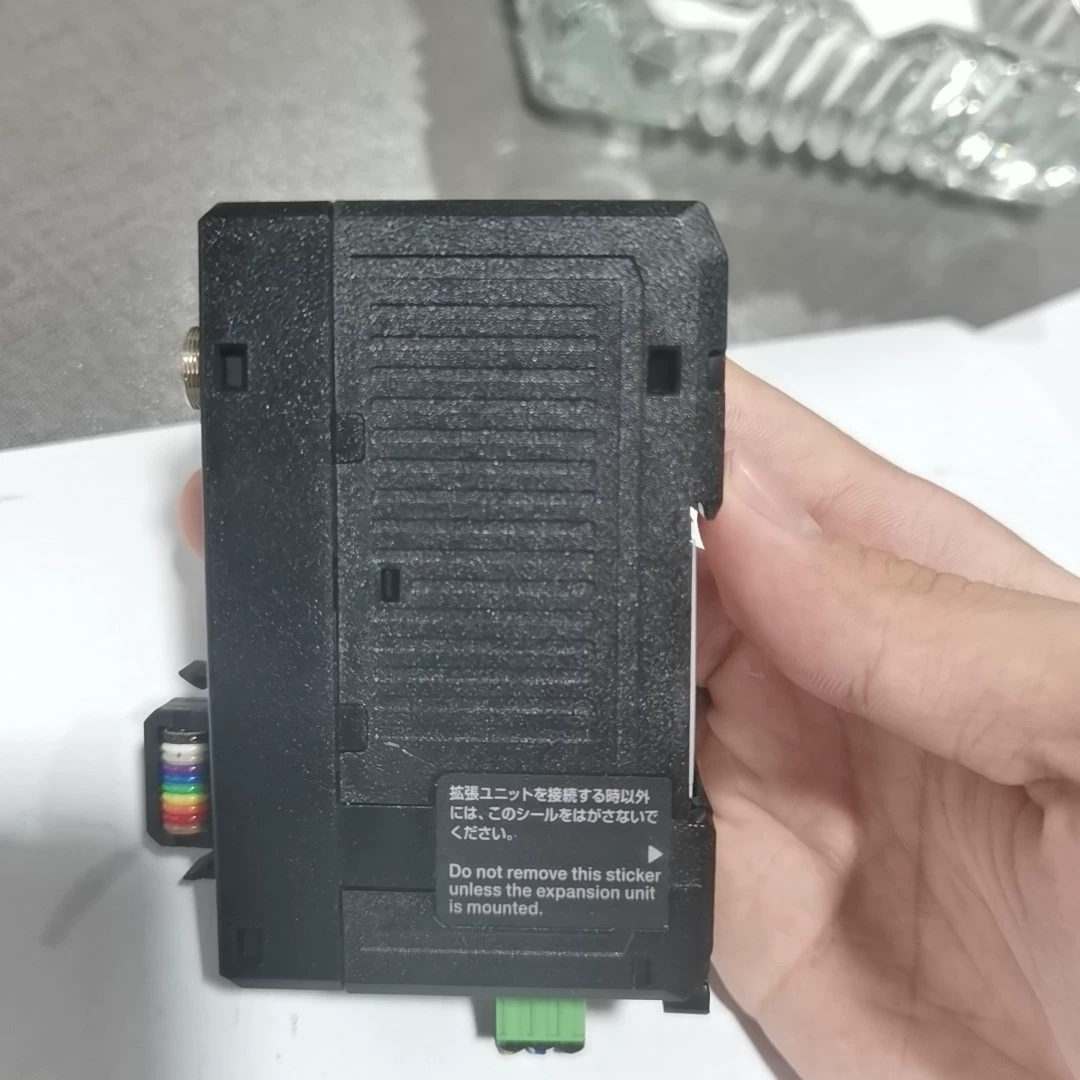

Used Keyence IV-HG10 image recognition sensor controller. Removed from equipment, with minor signs of use on the exterior.
Specifications
| Brand | Keyence |
|---|---|
| Model | IV-HG10 |
| Origin | Japan |
| Power voltage (rating) | 24 VDC ±10 % (including ripple) |
| Weight | Approx. 150 g |
| Ambient temperature | 0 to +50 °C (32 to 122 °F); no freezing |
| Relative humidity | 35 to 85 % RH (No condensation) |
| Condition | NG only/All is selectable *7 |
| Connector | RJ-45 8pin connector *10 |
| Current consumption | ≤0.8 A. ≤1.5 A when also using an expansion unit (IV-HG15). (The output load is excluded.) |
| Function | IN1: External trigger, IN2 to IN6: Enable by assigning the optional functions Assignable functions: Program switching, Clear error, External master image registration, Main unit/expansion unit simultaneous input |
| Function | Enable by assigning the optional functions Assignable functions: Total judgment result, RUN, BUSY, Error, Position adjustment result, Judgment result of each tool, Result of the logical operation of each tool, Main unit/expansion unit logical output |
| Indicators | PWR/ERR, OUT, TRIG, STATUS, LINK/ACT |
| Inputs | 6 inputs (IN1 to IN6) |
| Material | Main unit case: Polycarbonate |
| Network function | FTP client, EtherNet/IP™, PROFINET |
| Number | Detection tools: 16 tools, position adjustment tool: 1 tool *4 |
| Numbers | When using a color type head: 100 images *5, when using a monochrome type head: 300 images *6 *7 |
| Outputs | 8 outputs (OUT1 to OUT8) |
| Standard | 100BASE-TX/10BASE-T *10 |
| Switch settings (programs) | 32 programs |
| Type | Main unit |
| Type | Shape Detection, Color Area *1, Area *2, Edge Pixels, Width/Height, Diameter, Edge Presence, Pitch, Position Adjustment, High Speed Position Adjustment (1-Axis/2-Axis Adjustment), OCR *3 |
