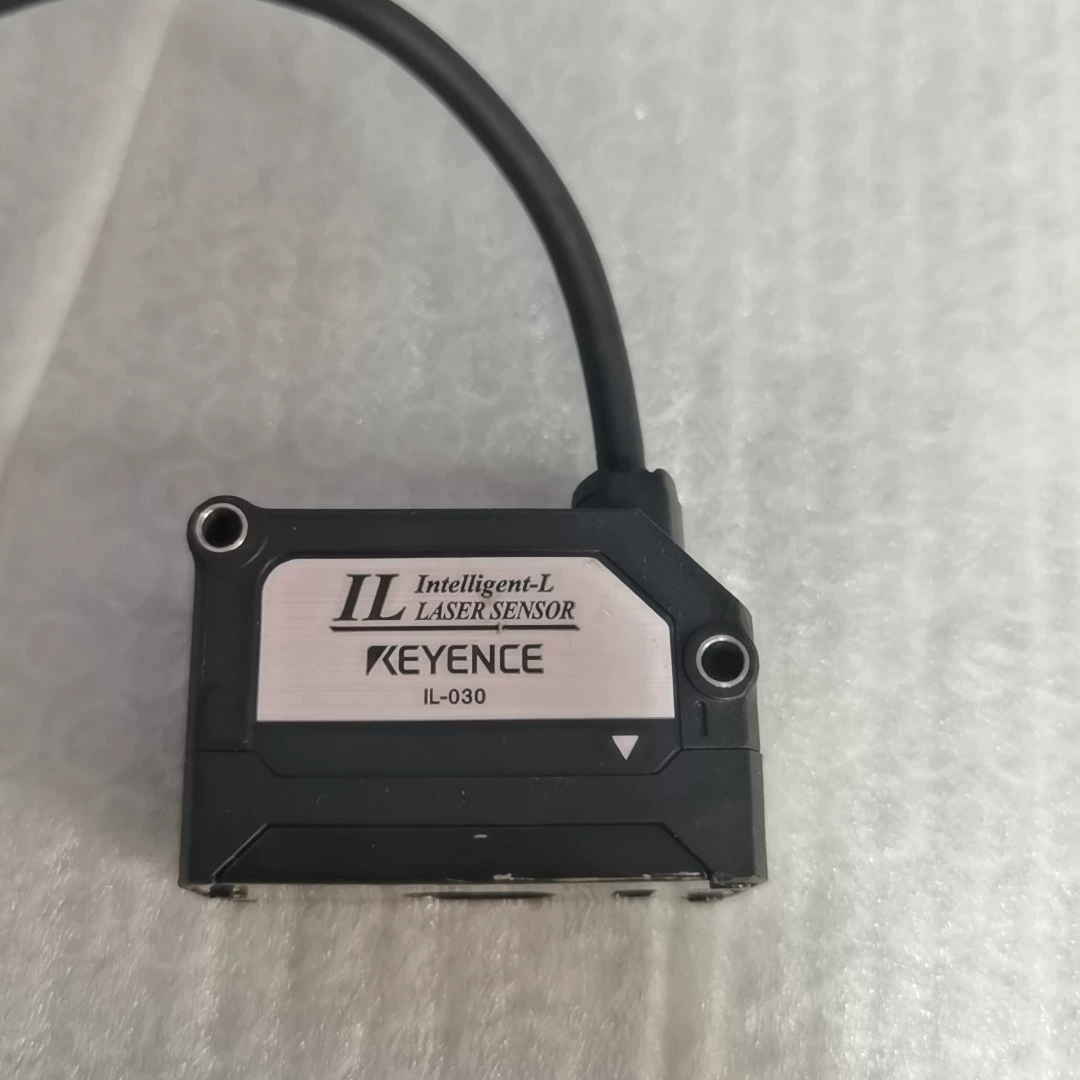

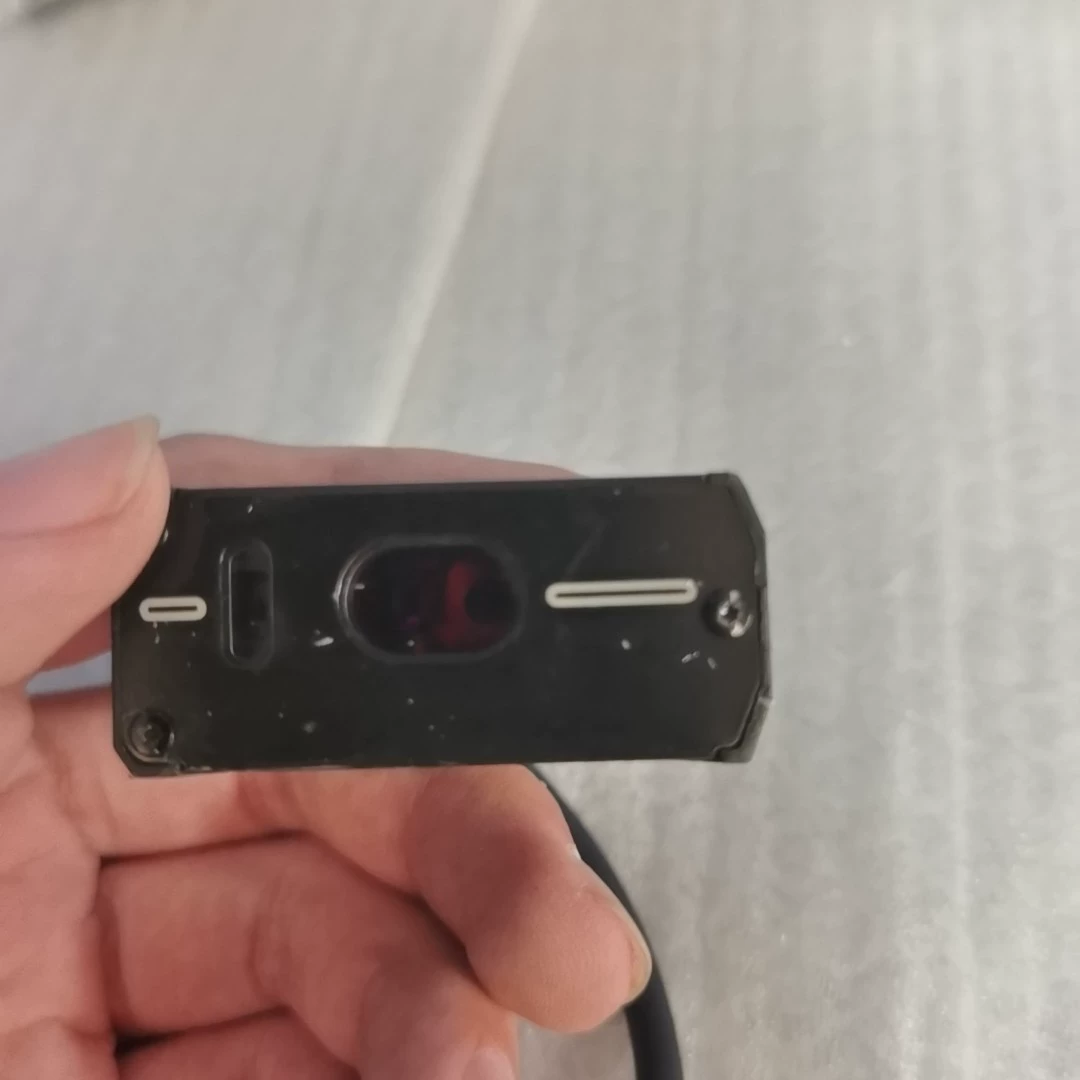

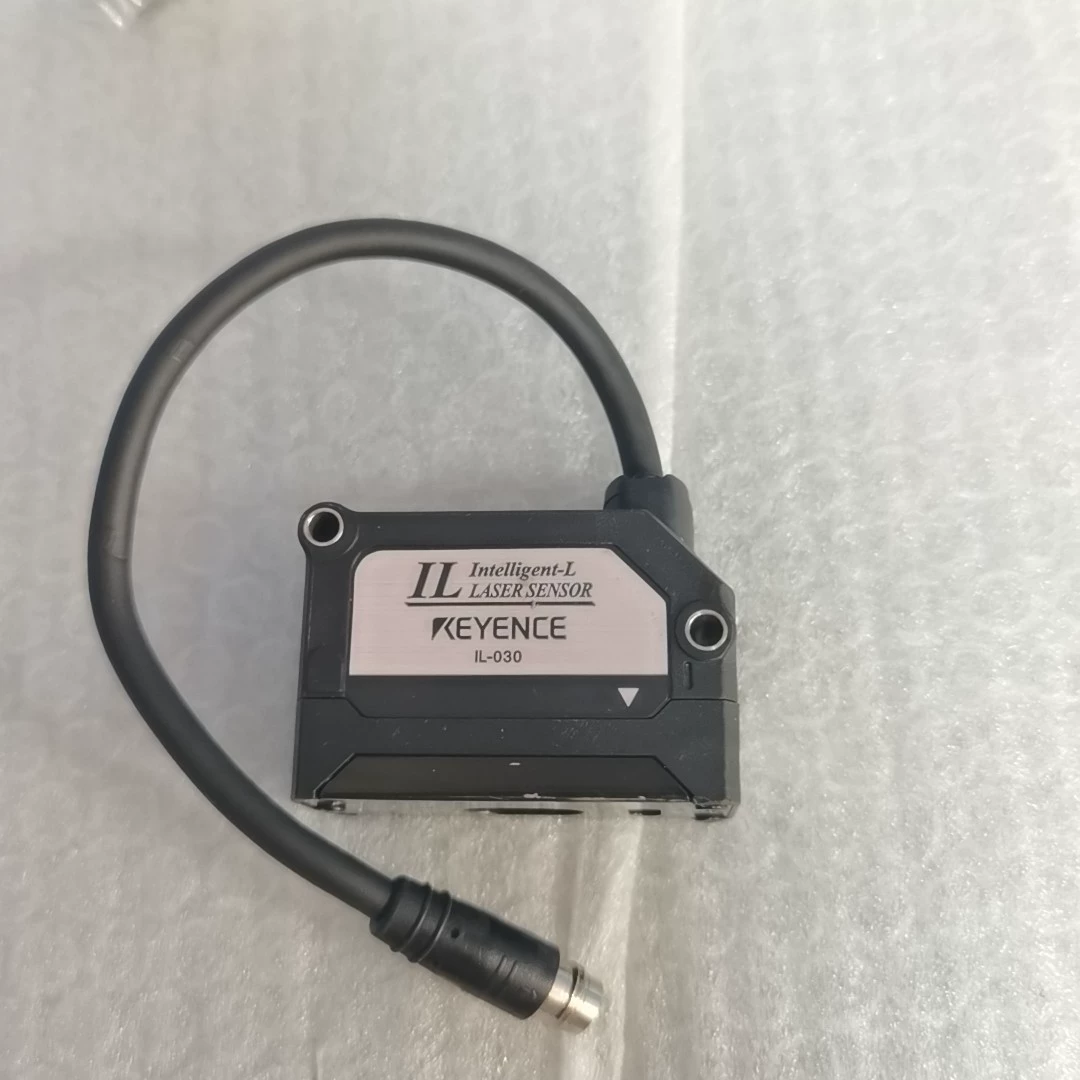

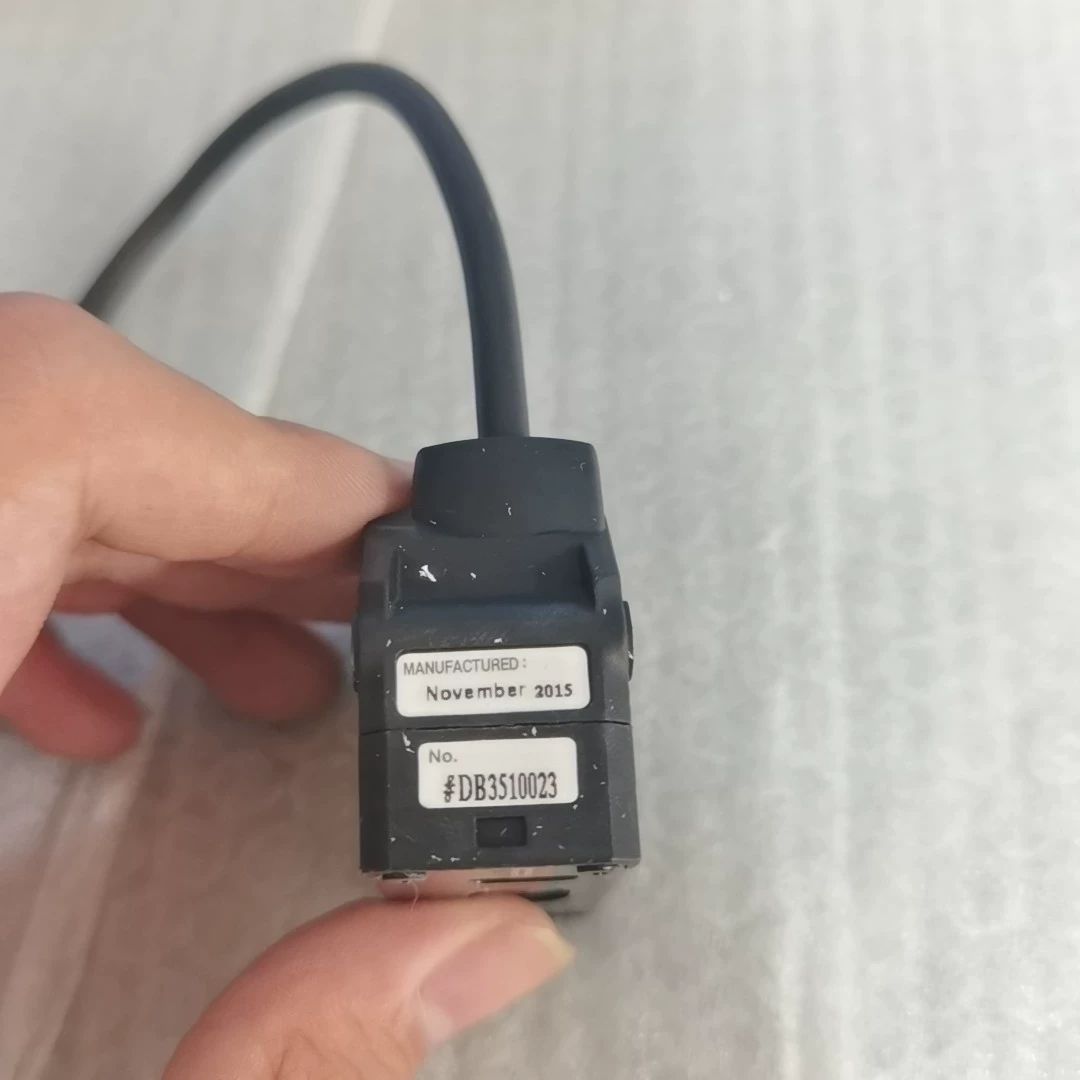

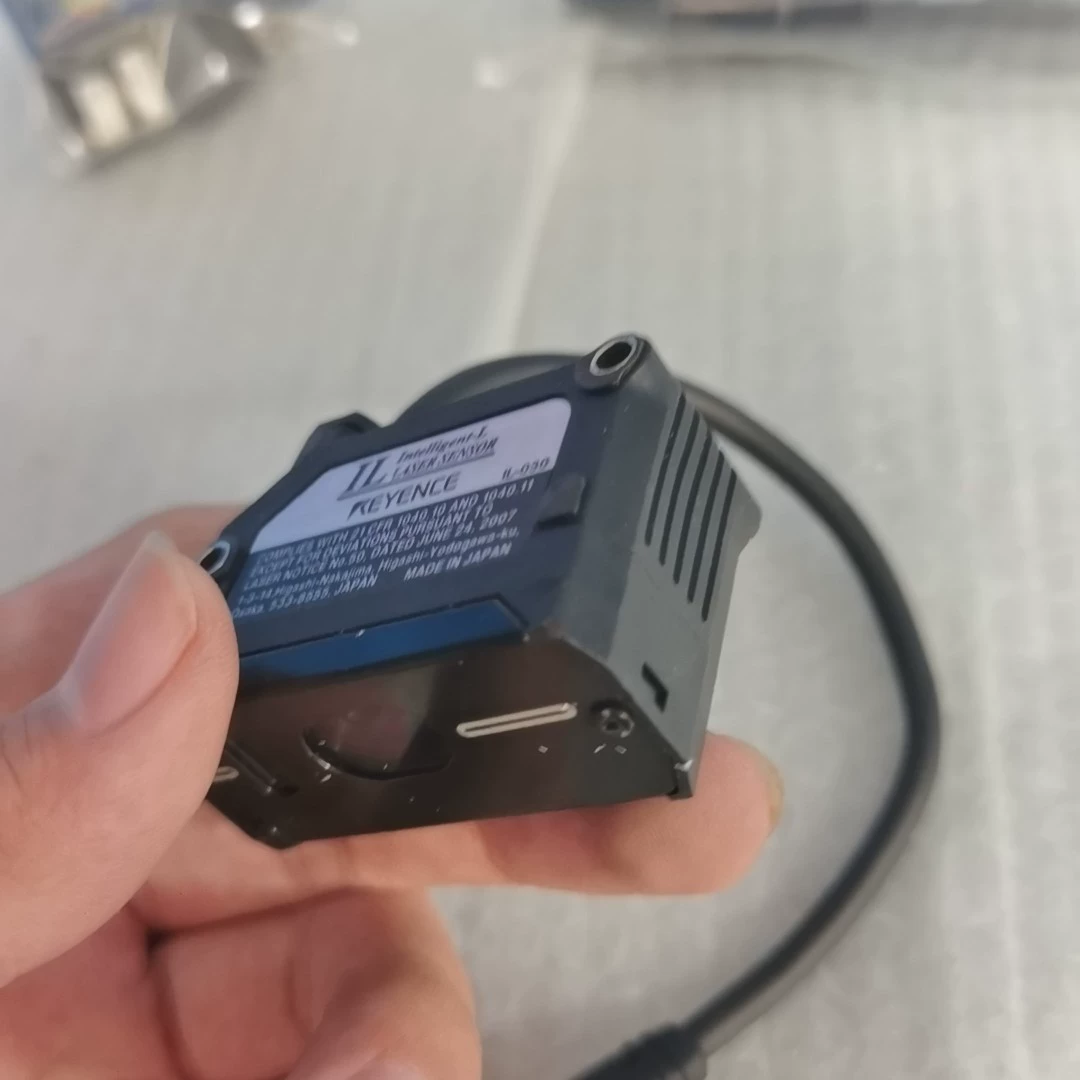

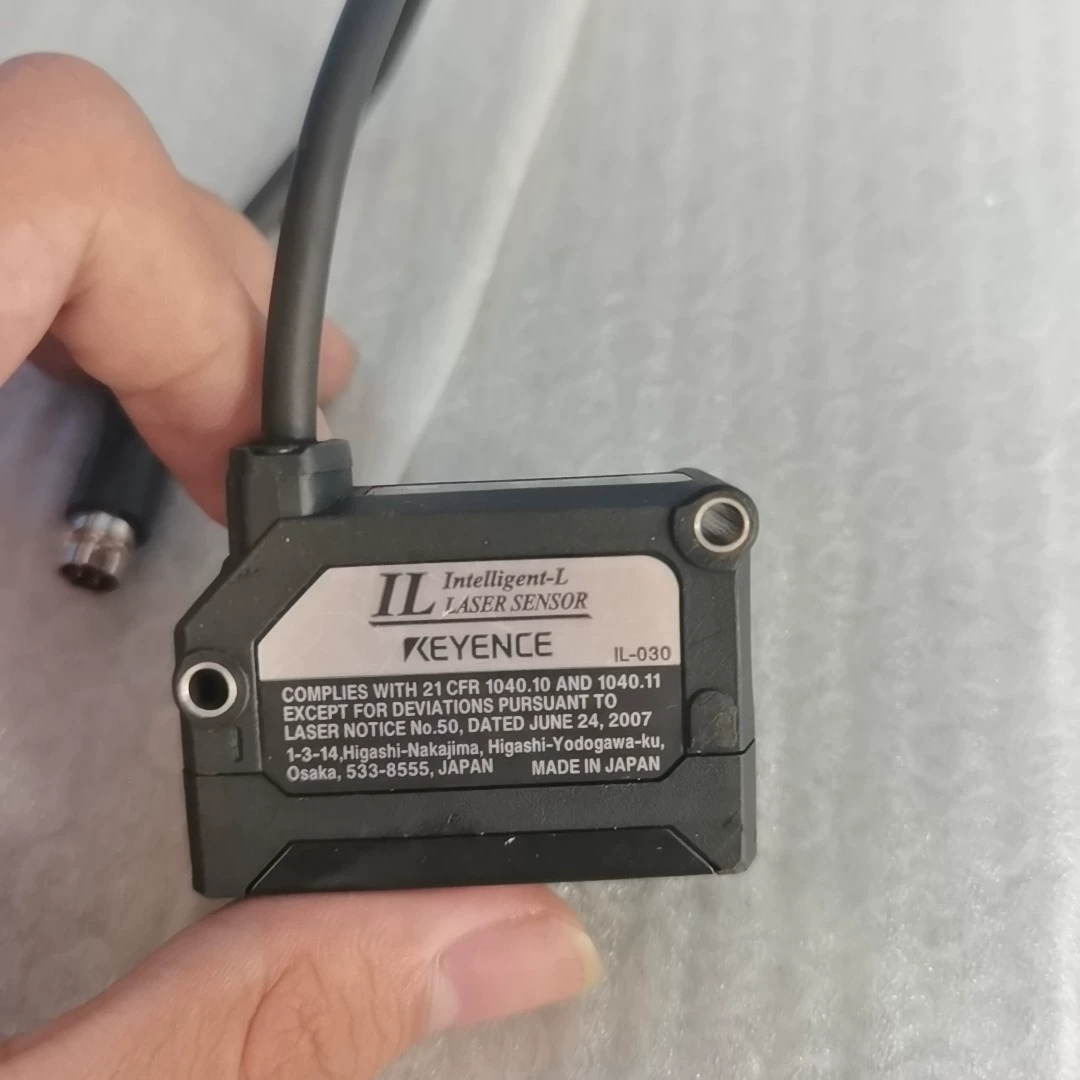

Keyence IL-030 laser displacement sensor head - Used
Description
The Keyence IL-030 is a compact laser displacement sensor head for non-contact distance measurement in an IL-series system. It is designed to connect to a compatible amplifier. This used sensor head was removed from equipment.
Specifications
| Brand | Keyence |
|---|---|
| Model | IL-030 |
| Origin | Japan |
| Measurement range | 20 to 45 mm |
| Weight | Approx. 60 g |
| Ambient temperature | -10 to +50 °C (14 to 122 °F) (No condensation or freezing) |
| Relative humidity | 35 to 85 % RH (No condensation) |
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm (0.06 in); 2 h each in X, Y, Z directions |
| Ambient light | Incandescent lamp: 5,000 lux *6 |
| Enclosure rating | IP67 |
| Laser class | Class 1 (FDA (CDRH) Part1040.10), Class 1 (IEC 60825-1) |
| Laser class | Class 1 (FDA (CDRH) Part1040.10) *1 Class 1 (IEC 60825-1) |
| Light source | Red semiconductor laser, wavelength: 655 nm (visible light) |
| Light source type | Red semiconductor laser, wavelength: 655 nm (visible light) |
| Linearity | ±0.1% of F.S. (25 to 35 mm) |
| Material | Housing material: PBT, Metal parts: SUS304, Packing: NBR, Lens cover: Glass, Cable: PVC |
| Operation status indicators | Laser emission warning indicator: Green LED, Analog range indicator: Orange LED, Reference distance indicator: Red/Green LED |
| Output | 220 µW |
| Output | 220 µW |
| Pollution degree | 3 |
| Reference distance | 30 mm |
| Repeatability | 1 µm |
| Sampling rate | 0.33/1/2/5 ms |
| Spot diameter (at standard distance) | Approx. 200 × 750 µm |
| Spot diameter (at standard distance) | Approx. 200 × 750 µm |
| Temperature characteristics | 0.05% of F.S./°C 1/°C |
