Keyence IG-1000 - Used
Description

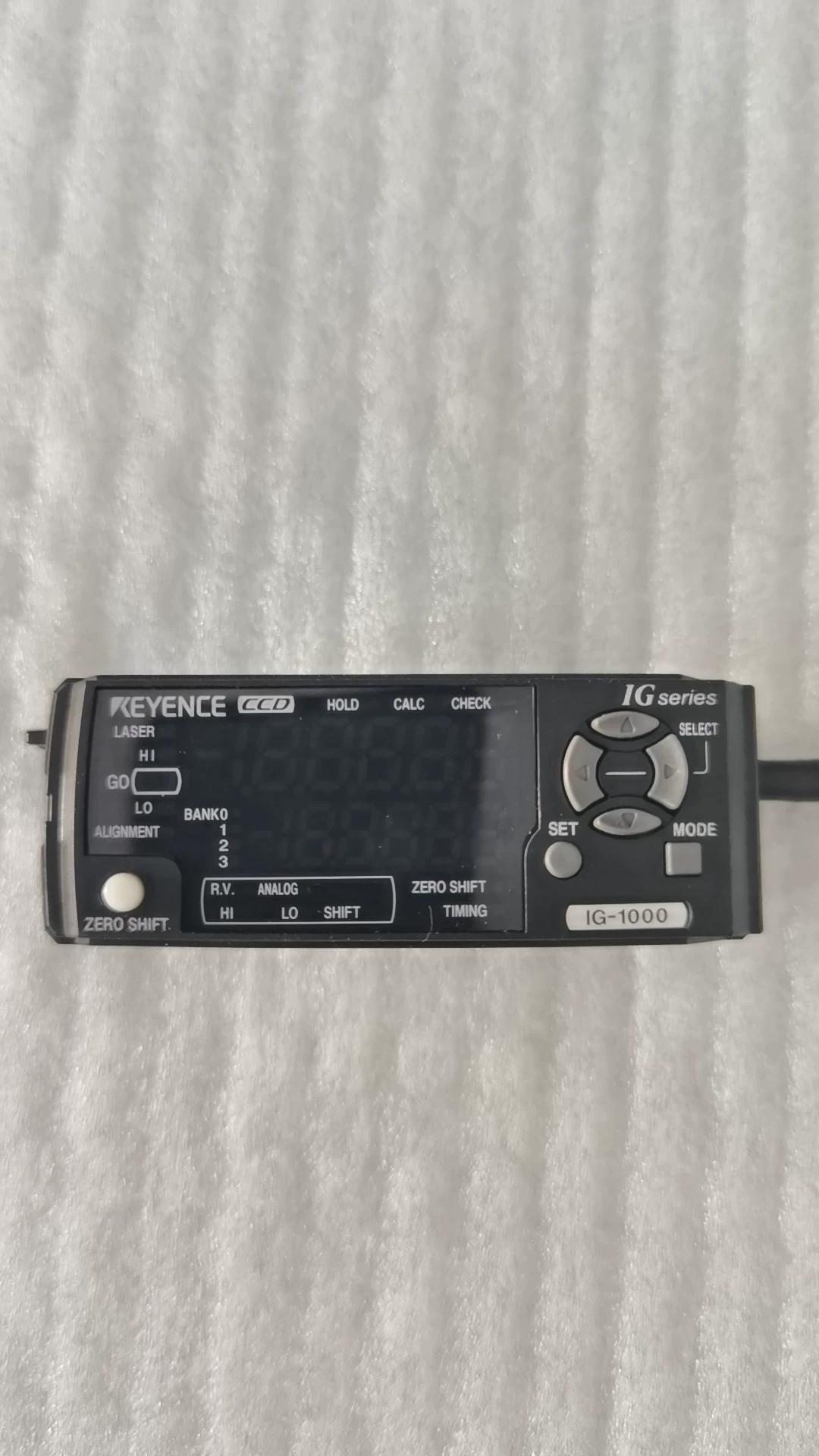

Used Keyence IG-1000 laser sensor amplifier, removed from engineering equipment. Requires 10-30 V DC Class 2/LPS power supply.
Specifications
| Brand | Keyence |
|---|---|
| Model | IG-1000 |
| Origin | Japan |
| Power Supply | 10-30 V DC, Class2 or LPS |
| Display range | -99.999 to +99.999, -99.99 to +99.99, -99.9 to +99.9, -99 to +99 (selectable) |
| Output Current | 50 mA max, Class2 |
| Control Voltage | 30 VDC |
| Normal | ≤2700 mW (at 30 V: ≤90 mA) *1 |
| Power saving function (ALL) | 2200 mW (at 30 V: ≤74 mA) *1 |
| Power saving function (HALF) | 2300 mW (at 30 V: ≤77 mA) *1 |
| Power voltage (rating) | 10 to 30 VDC, including Ripple (P-P) 10 %, Class 2 or LPS |
| Output range | 4-20 mA (full scale 16 mA) |
| Output range | ±5 V (full scale 10 V) |
| Weight | Approx. 150 g (including supplied items) |
| Ambient temperature | -10 to +50 °C (14 to 122 °F); no freezing |
| Relative humidity | 35 to 85 % RH (No condensation) |
| Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z axis |
| Analog output | Yes |
| Bank A input/Bank B input | Input time: 20 ms or more, Response delay time: 20 ms or less *3 |
| Digital display method | Dual 7-seg display Upper level: Red, 5 digits Lower level: Green, 5 digits |
| Display accuracy | ±0.25% of F.S. |
| Display accuracy | ±0.05% of F.S. |
| Display resolution | 1 µm 0.04 Mil, 10 µm 0.39 Mil, 100 µm 3.94 Mil, 1,000 µm 39.37 Mil (selectable) |
| Edge check output (selectable between NPN and PNP) | NPN (PNP) open collector x1ch, 30 VDC (Power supply voltage) or less, residual voltage 1 V (2 V) or less, N.O./N.C. selectable Max. 50 mA, *2 response time 20 ms |
| Gain input | Input time: 20 ms or more, Response delay time: 120 ms or less (Nonvolatile memory (EEPROM) 1.5 s or less) |
| Judgement output (selectable between NPN and PNP) | NPN (PNP) open collector x3ch, 30 VDC (Power supply voltage) or less, residual voltage 1 V (2 V) or less, N.O./N.C. selectable Max. 50 mA/ch *2 |
| Laser emission stop input | Input time: 2 ms or more, Response delay time: 2 ms or less |
| Main unit/Expansion unit | Main unit |
| Material | Main unit case/Front sheet: Polycarbonate, Key top: Polyacetal, Cable: PVC |
| Maximum load resistance | 350 Ω |
| Output resistance | 100 Ω |
| Pollution degree | 2 |
| Repetition accuracy | ±1.5 µA |
| Repetition accuracy | ±1 mV |
| Reset input | Input time: 20 ms or more, Response delay time: 20 ms or less |
| Response time | Same as Response time (judgement output) |
| Response time | Same as Response time (judgement output) |
| Response time (judgement output) | 1.96 to 4031.72 ms *3 |
| Temperature characteristics | ±0.01% of F.S./°C |
| Temperature characteristics | ±0.005% of F.S./°C |
| Time constant | 30 µs (90 % response) *4 |
| Time constant | 10 µs (90 % response) *4 |
| Timing input | Input time: 2 ms or more, Response delay time: 2 ms or less |
| Type | DIN rail mount |
| Update cycle | Same as sensor head sampling cycle |
| Update cycle | Same as sensor head sampling cycle |

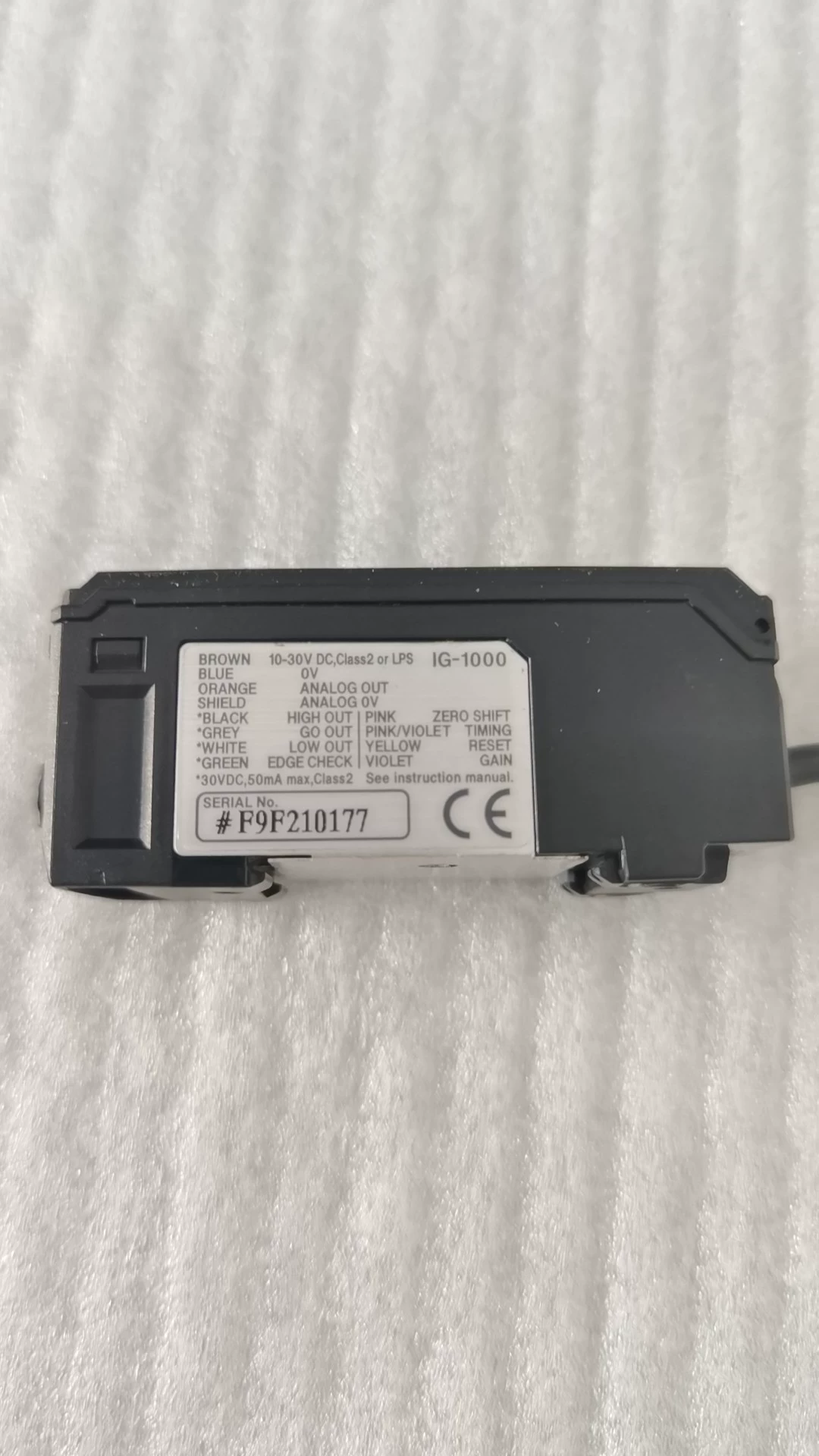

| Wire Color Blue | 0V |
| Wire Color Brown | 10-30V DC, Class2 or LPS |
| Zero shift input | Input time: 20 ms or more, Response delay time: 20 ms or less |
