Keyence IG-028 Laser Distance Sensor - Used
Description

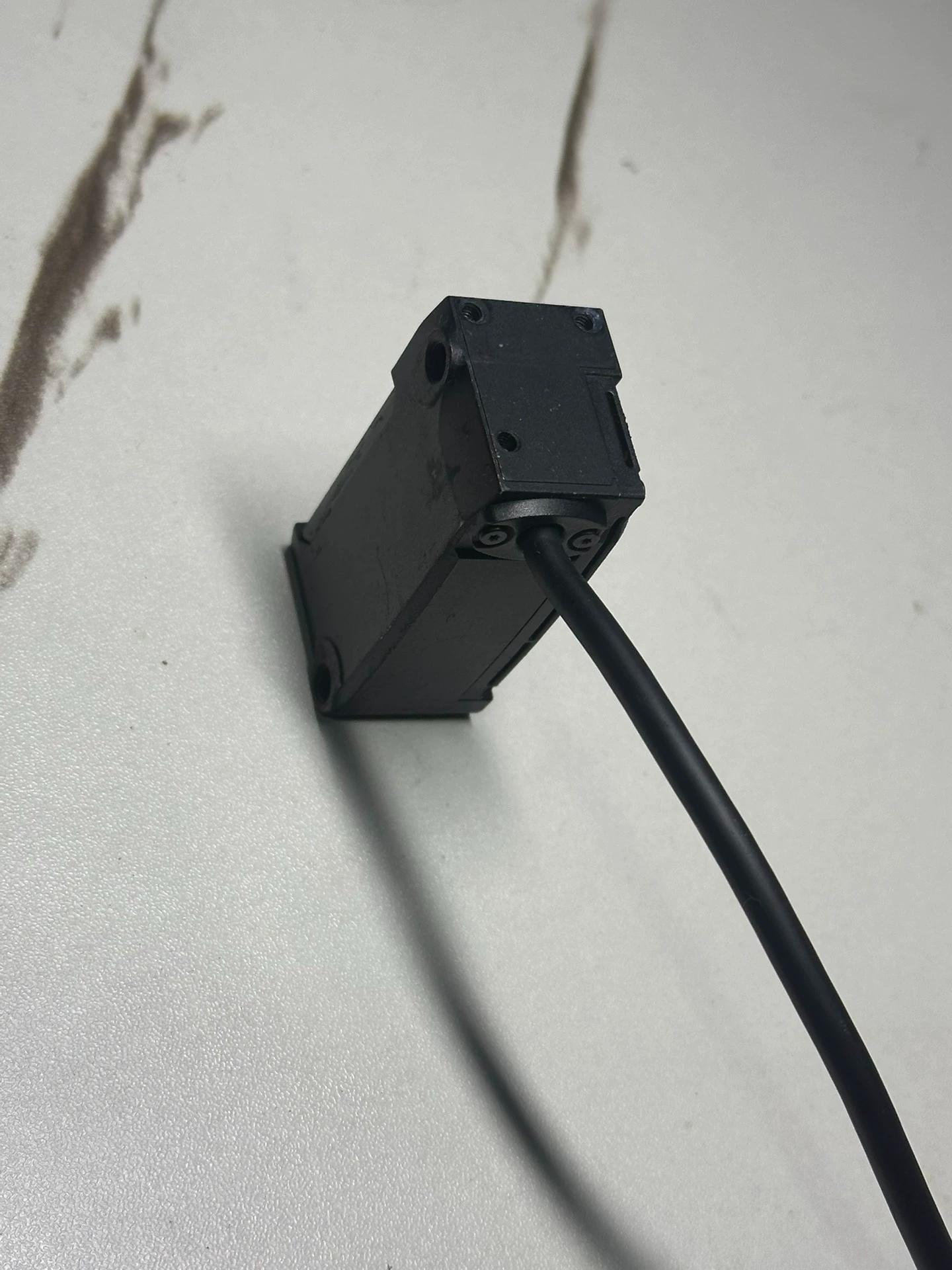

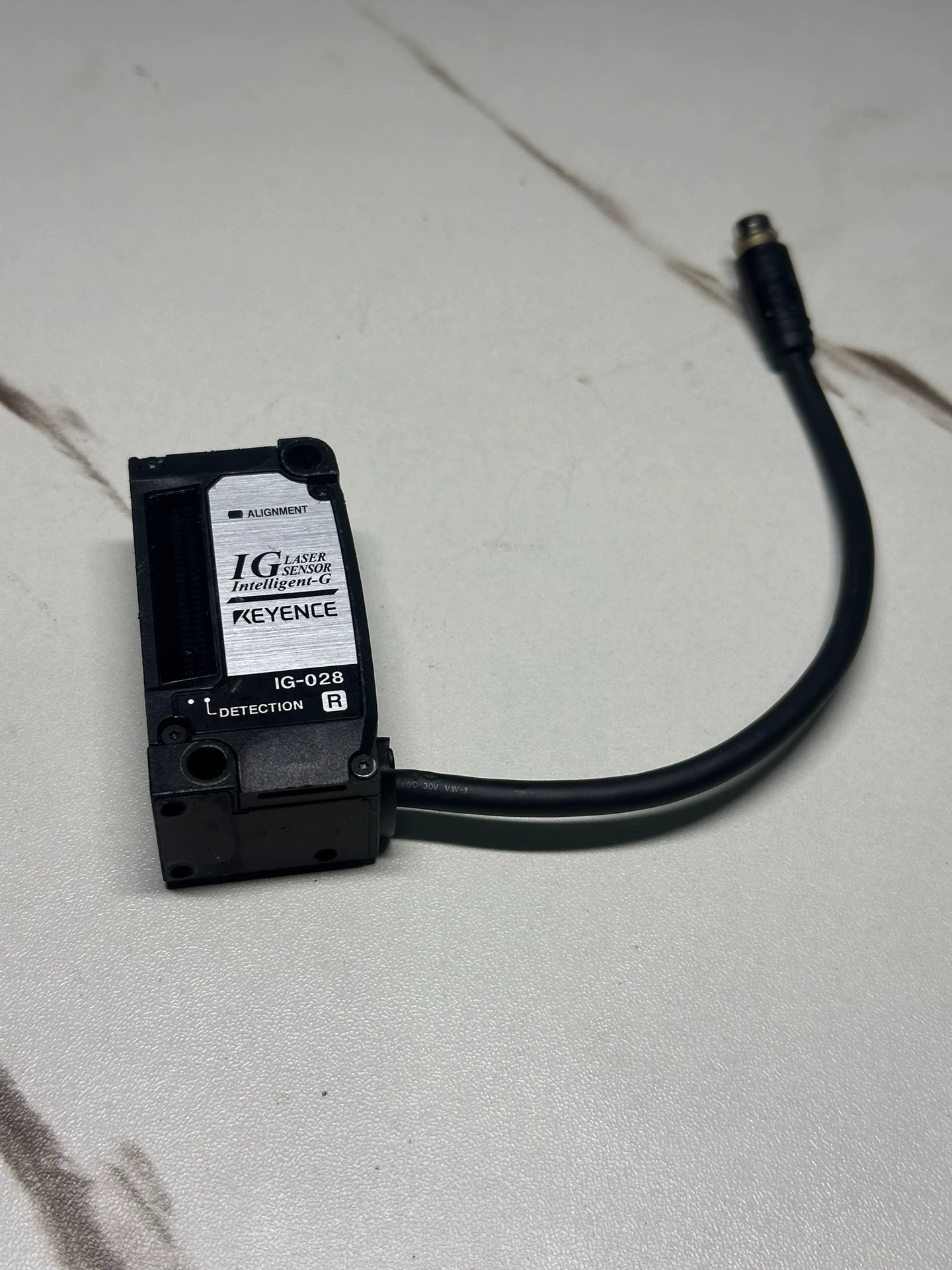

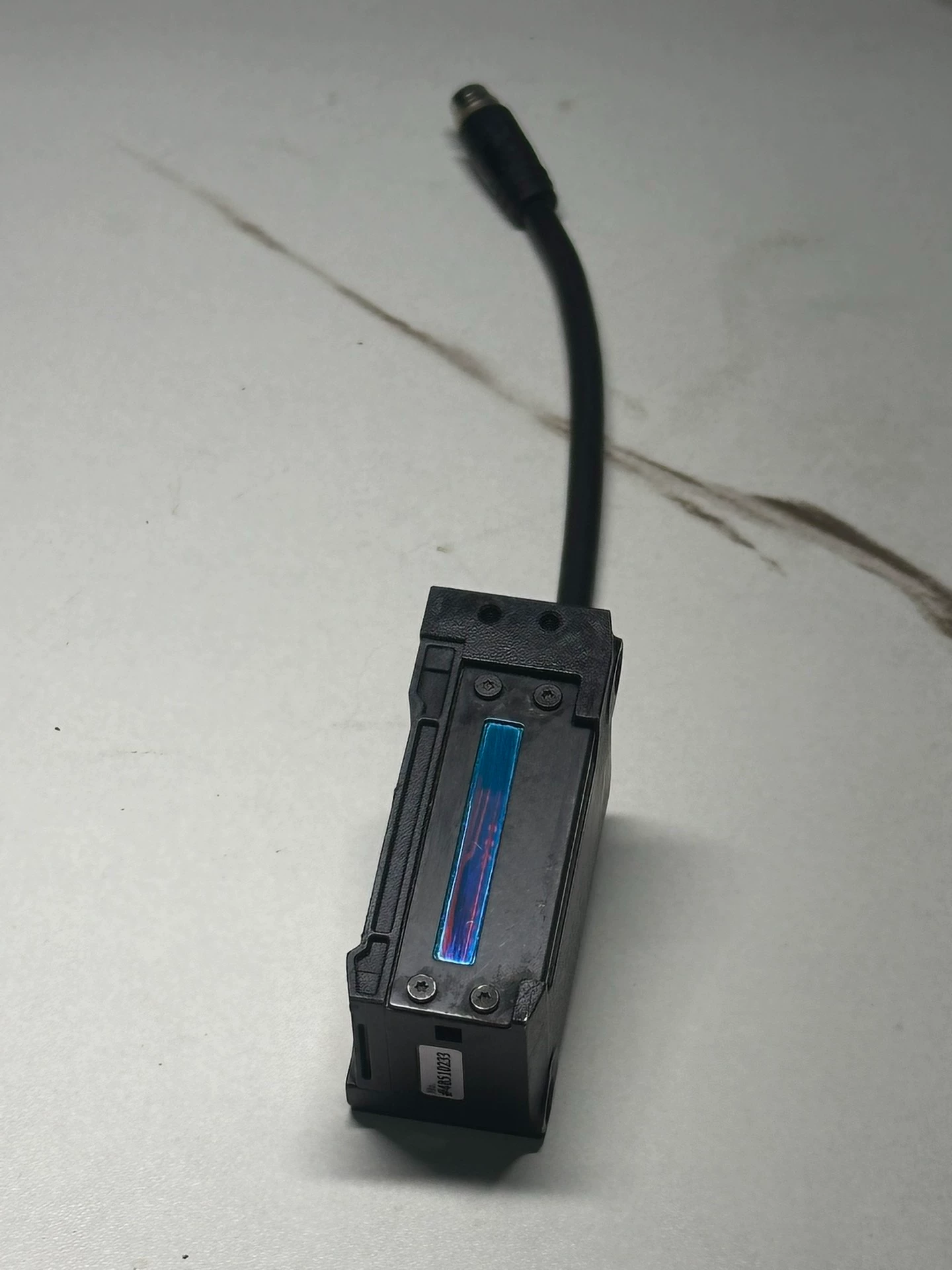

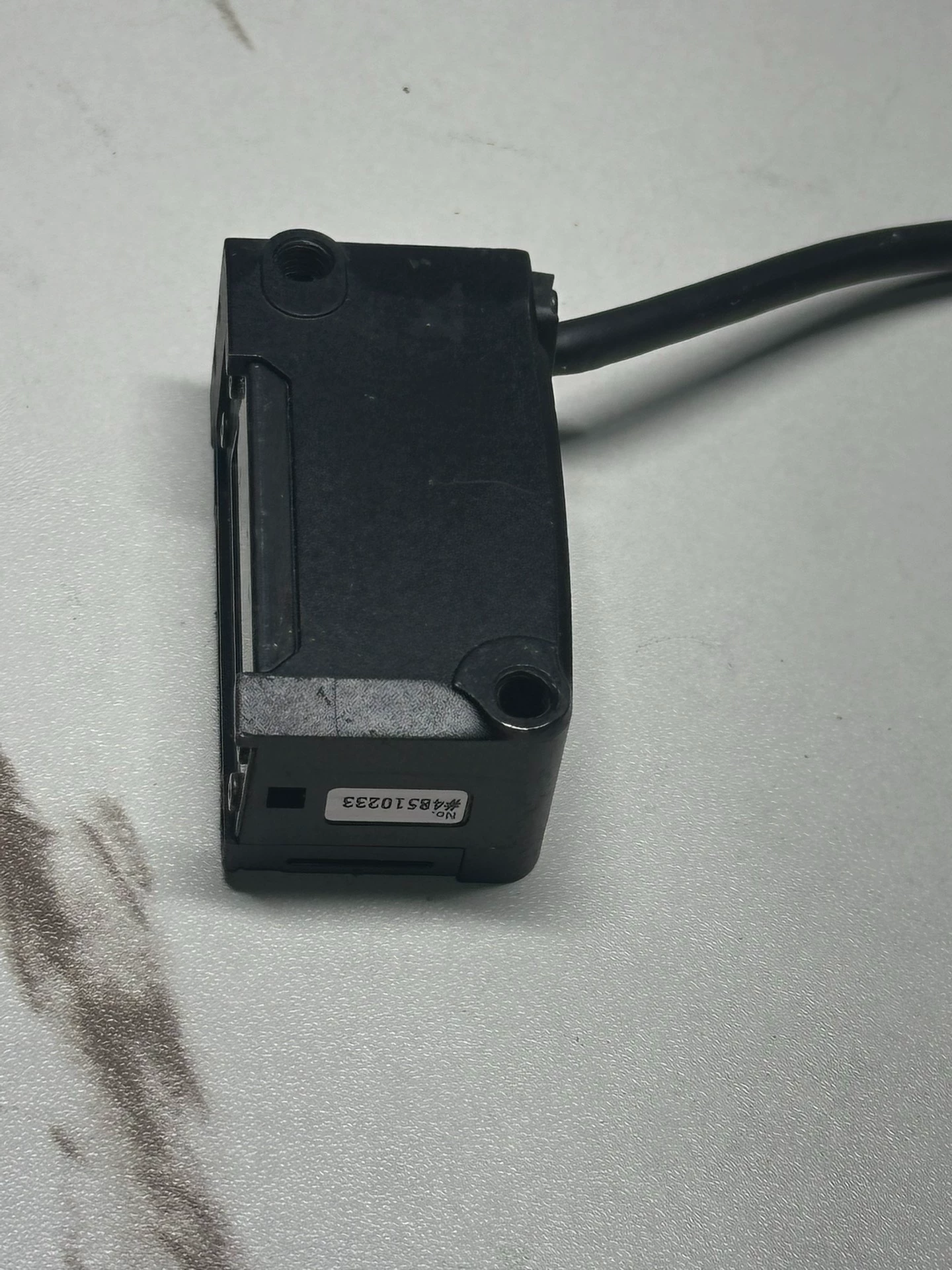

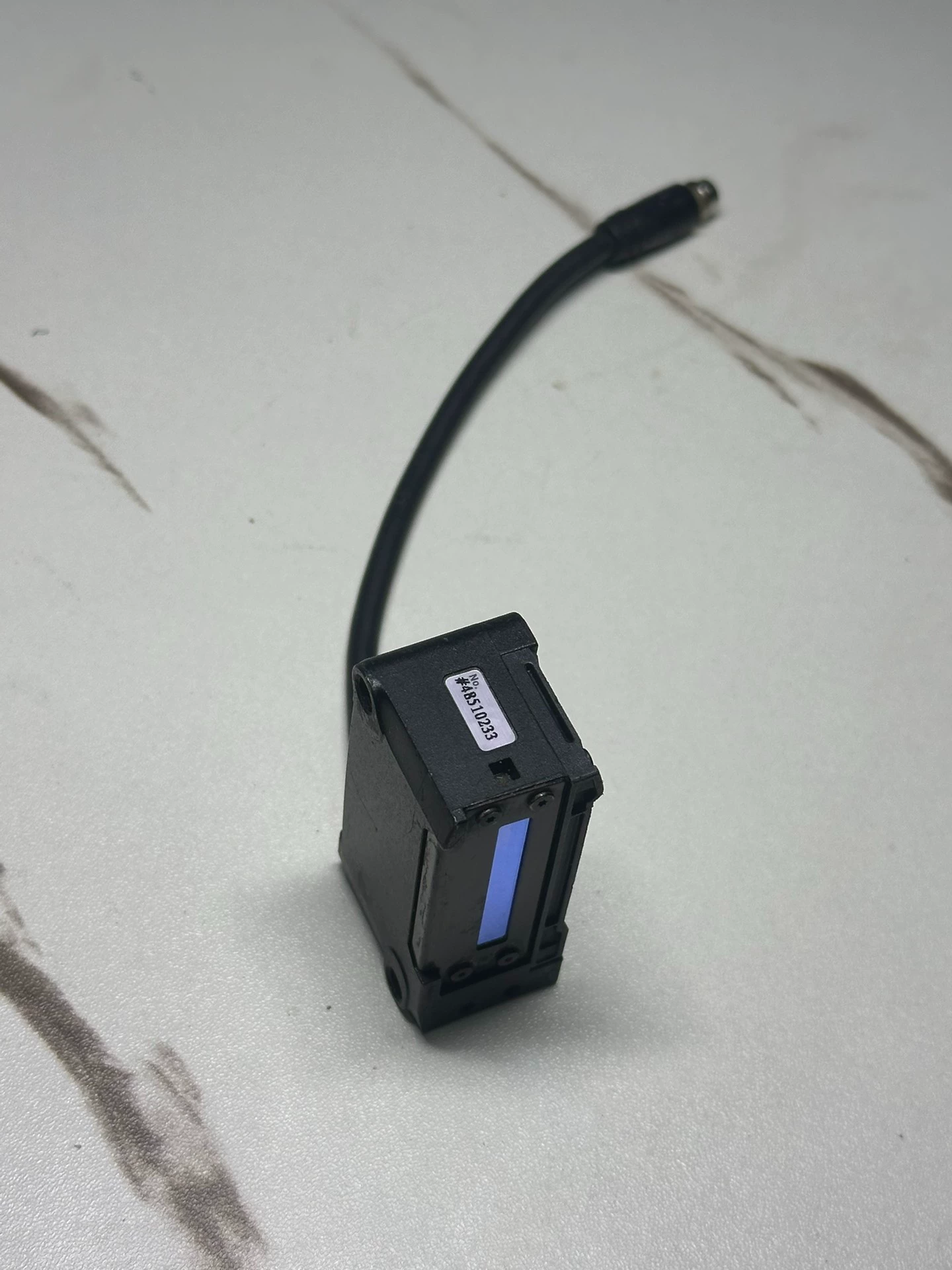

Used Keyence IG-028 laser distance sensor.
Specifications
| Brand | Keyence |
|---|---|
| Model | IG-028 |
| Measurement range | 28 mm 1.10" |
| Weight | Approx. 500 g (including supplied items) |
| Ambient temperature | -10 to +45 °C (14 to 113 °F); no freezing |
| Relative humidity | 35 to 85 % RH (No condensation) |
| Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z axis |
| Ambient light | Incandescent lamp: 5,000 lux, Sunlight: 5,000 lux *6 |
| Cable | PVC |
| Case | Zinc die-cast (Lower case), PBT (Upper case), Polyarylate (PAR) (Display part), SUS304 (Metallic part) |
| Enclosure rating | IP67 |
| FDA | Class 1 *1 |
| High sensitivity mode | ø0.1 mm ø0.003" (Setting distance: 100 mm 3.94" ) *2 |
| IEC/JIS | Class 1 |
| Lens cover | Glass |
| Linearity | ±0.1 % of F.S. (±28 µm ±1.10 Mil ) *4 |
| Mounting distance | 0 to 1500 mm 59.06" |
| Operation principle | CCD method |
| Receiver | Optical axis alignment indicator: Green LED, Position monitor: Dual bar LED (Red, Green) |
| Repeatability | 5 µm 0.20 Mil (Setting distance: 100 mm 3.94" ) 10 µm 0.39 Mil (Setting distance: 500 mm 19.68" ) 80 µm 3.15 Mil (Setting distance: 1,000 mm 39.37" ) 140 µm 5.51 Mil (Setting distance: 1,500 mm 59.06" ) *3 |
| Sampling cycle | 980 µs (When the number of times for averaging is set to [hsp]: 490 µs) |
| Standard mode | ø0.2 mm ø0.007" (Setting distance: 50 mm 1.97" or less), ø0.5 mm ø0.02" (Setting distance: 500 mm 19.68" ) *2 |
| Temperature characteristics | ±0.01 % of F.S./°C (±3 µm ±0.12 Mil /°C) *5 |
| Transmitter | Optical axis alignment indicator: Green LED, Power indicator: Green LED |
| Wavelength | 660 nm (Visible light semiconductor laser) |
