Keyence GT2-A32 displacement sensor - Used
Description

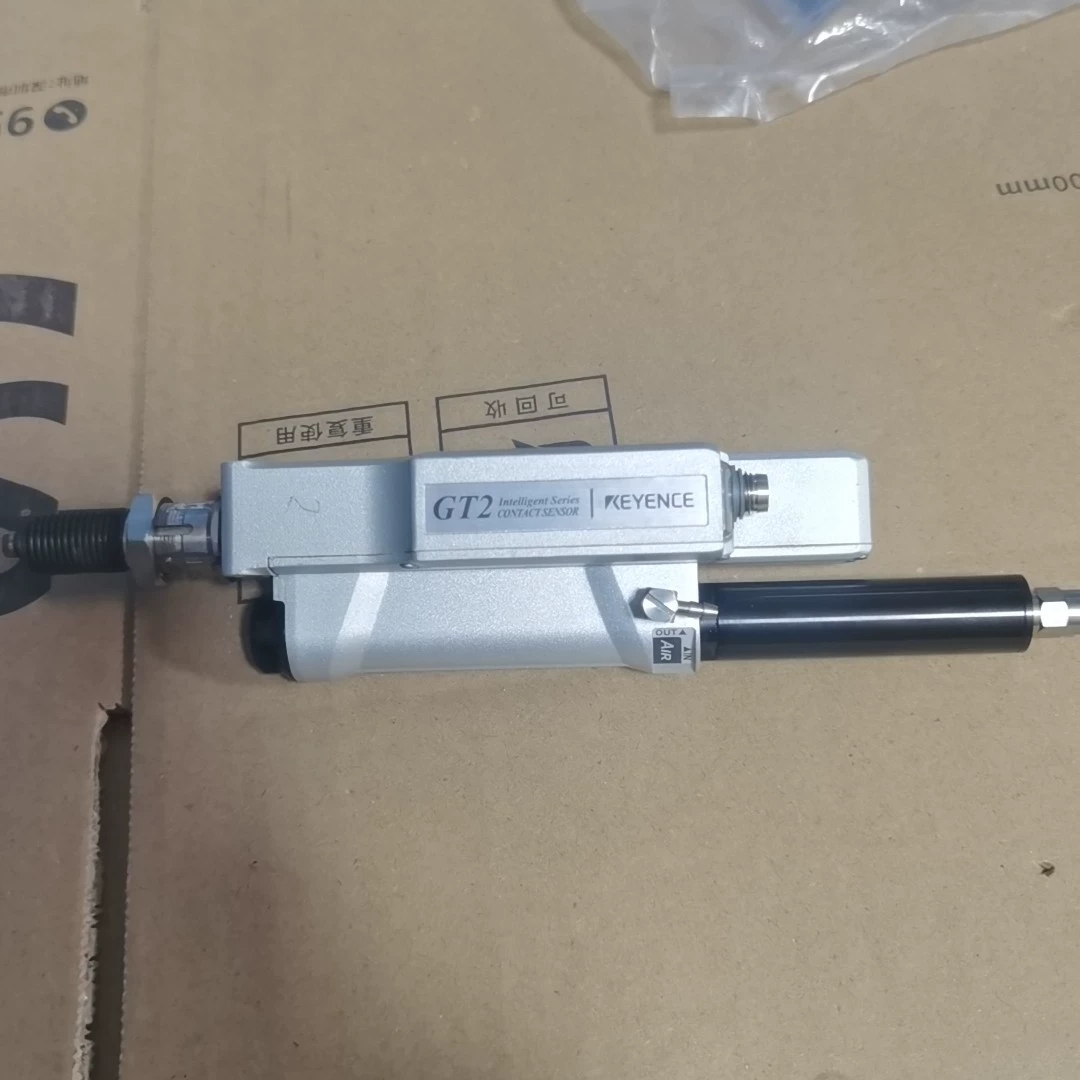

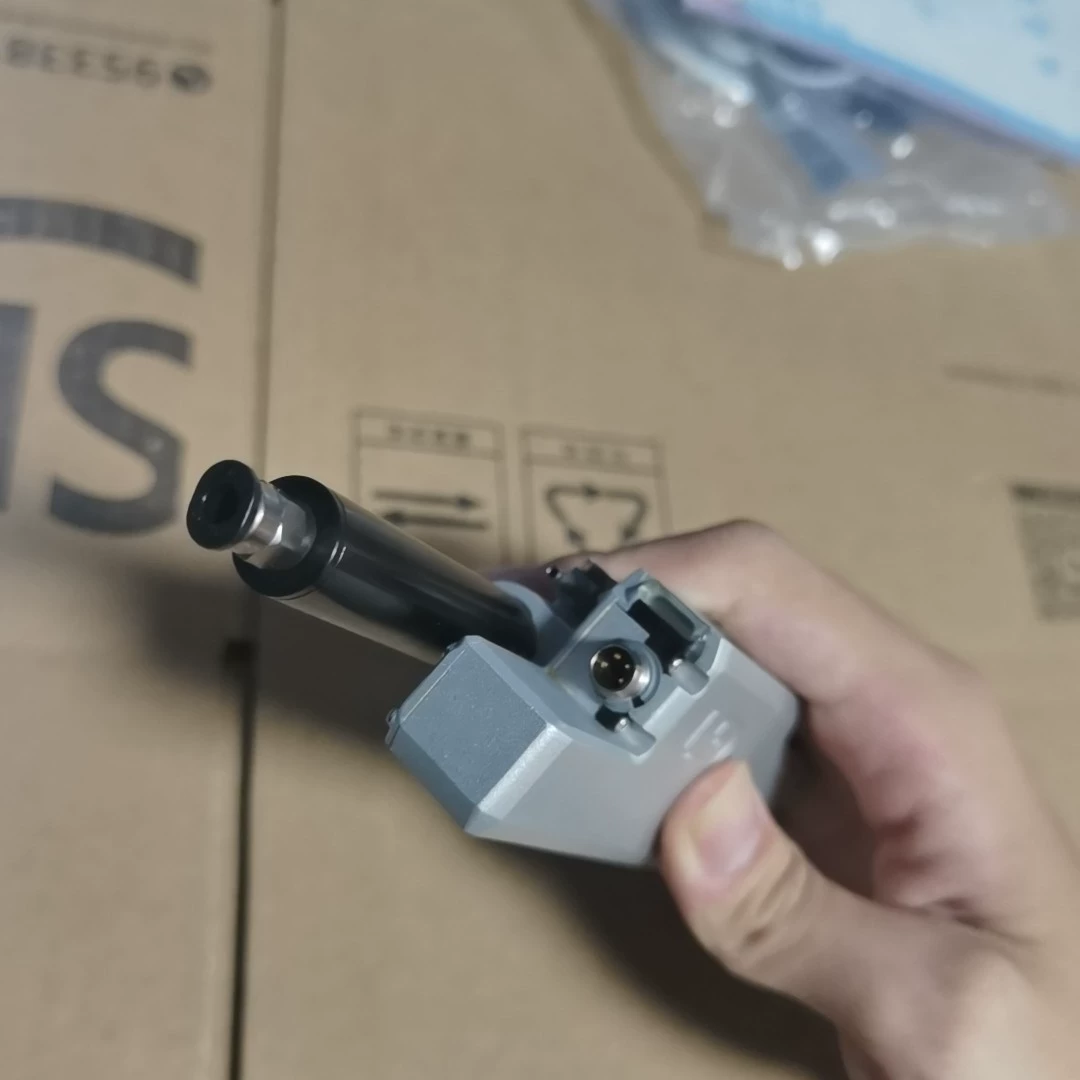

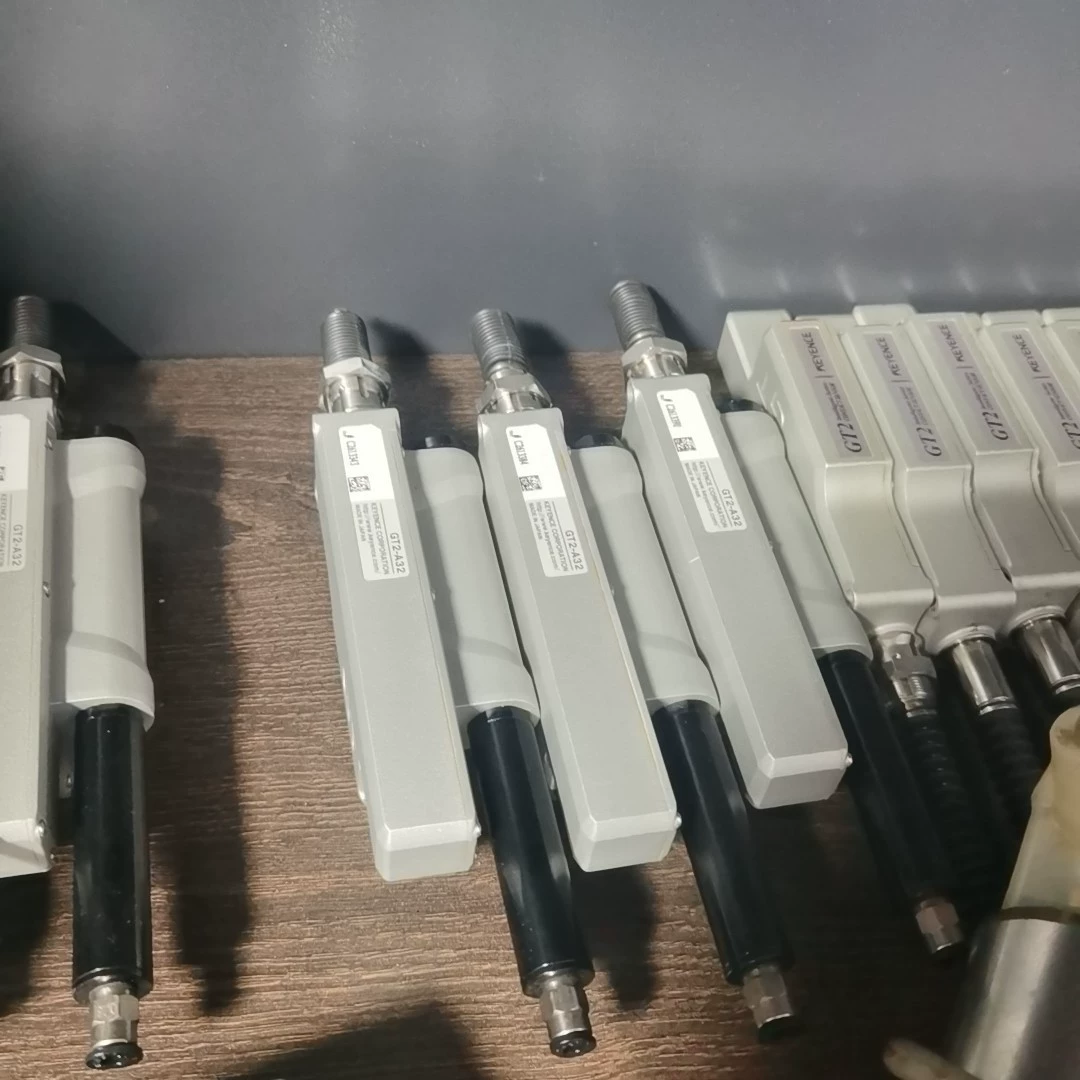

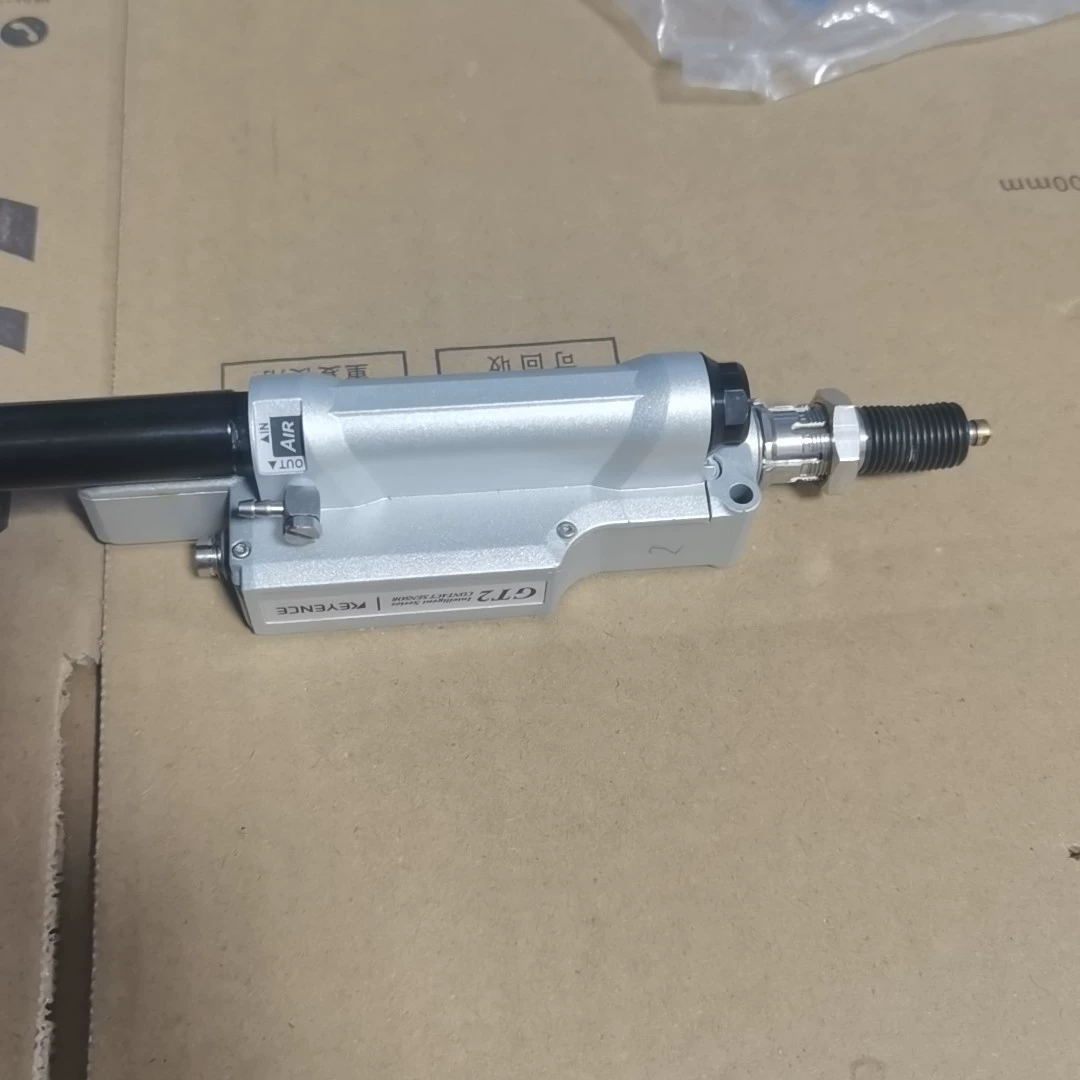

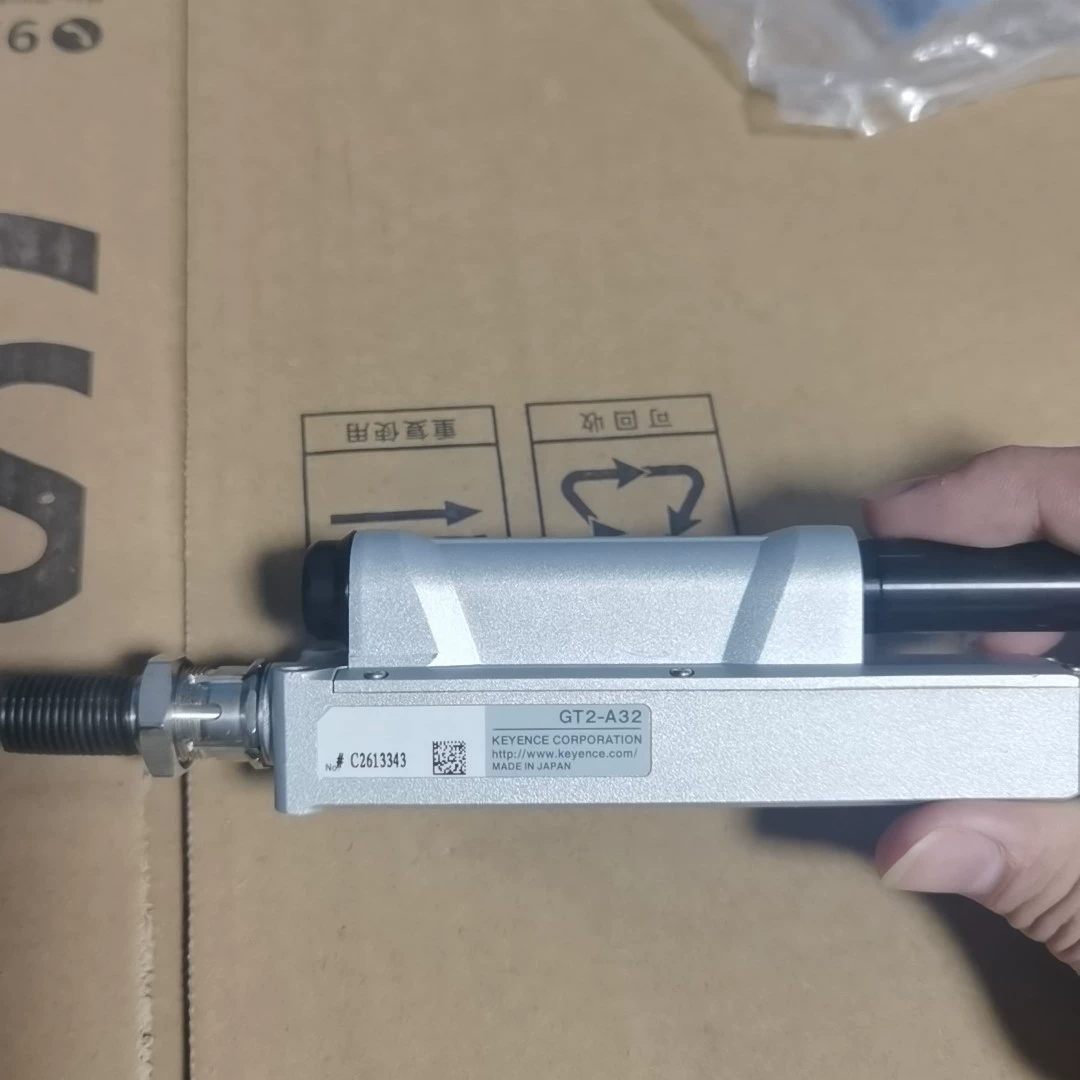

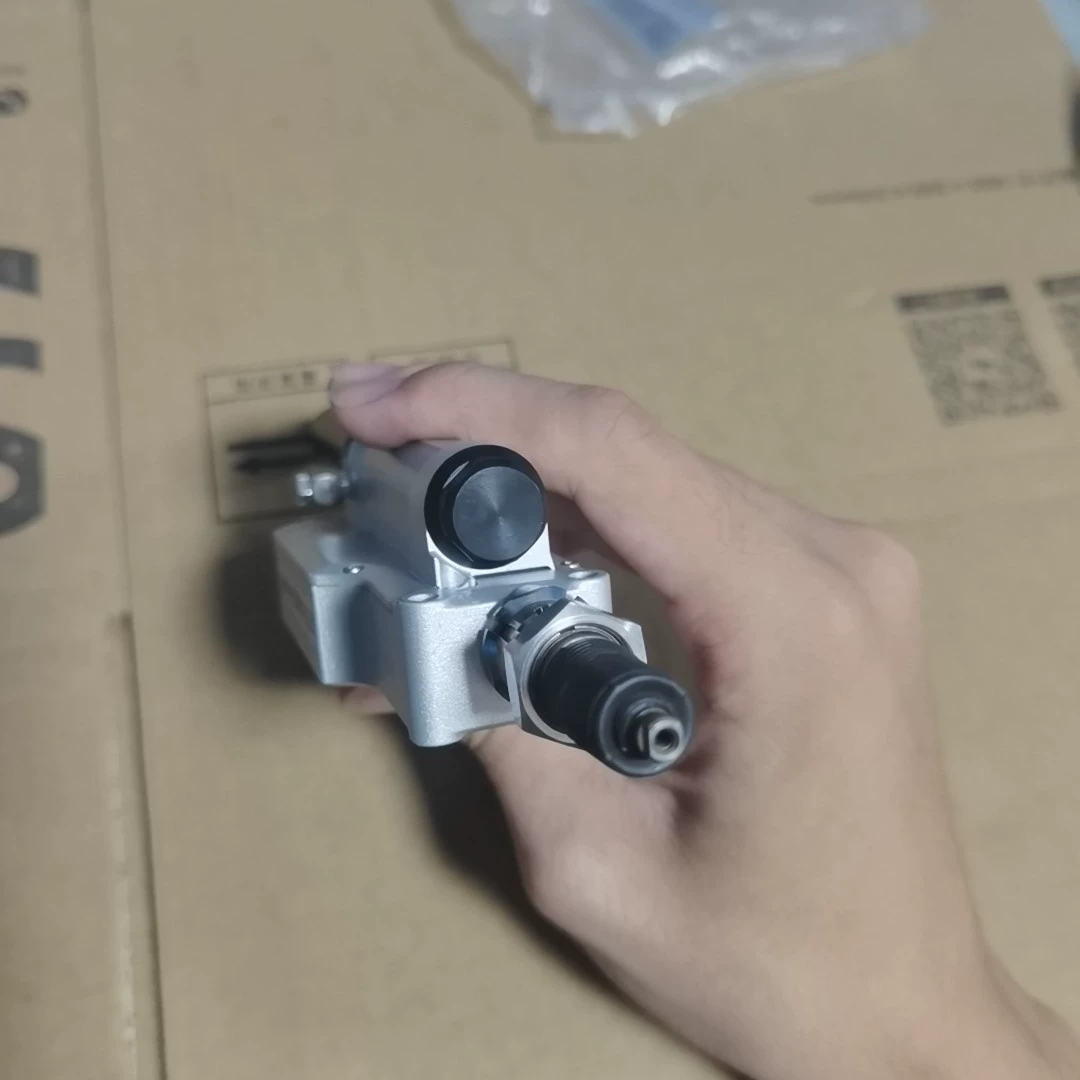

Used Keyence GT2-A32 displacement sensor, removed from equipment in Japan.
Specifications
| Brand | Keyence |
|---|---|
| Model | GT2-A32 |
| Origin | Japan |
| Resolution | 0.5 μm 0.02 Mil |
| Applied pressure range | 0.25 to 0.5 MPa |
| Measuring range | 32 mm 1.26" |
| Weight | Approx. 340 g (excluding cable) |
| Ambient temperature | 0 to +55 °C (32 to 131 °F); no freezing |
| Relative humidity | 35 to 85 % RH (No condensation) |
| Downward mounting | 2.1 N *2 |
| Side mounting | 1.8 N *2 |
| Upward mounting | 1.5 N *2 |
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm (0.06 in); 2 h each in X, Y, Z directions *4 |
| Contact | TYPE304, 440C Stainless steel *5 |
| Detection system | Quartz glass scale, CMOS image sensor projection system, Absolute type (without tracking error) |
| Dust boot | NBR |
| Enclosure rating | IP67 *3 |
| Indicated accuracy | 3 µm 0.12 Mil (p-p) *1 |
| Main body | Main body case: Zinc die-casting; Cylinder part: Aluminium alloy; Air joint resin part: Polyacetal; Air joint metal part: Brass nickel plating; Indicator: Polyarylate |
| Operation indicator light | 2-color LED (red, green) |
| Pressure resistance | 1 MPa |
| Sampling cycle | 1 ms |
| Sensor head cable | Optional (connect to the M8 connector) |
