Keyence GT2-71N smart amplifier - Used
Description

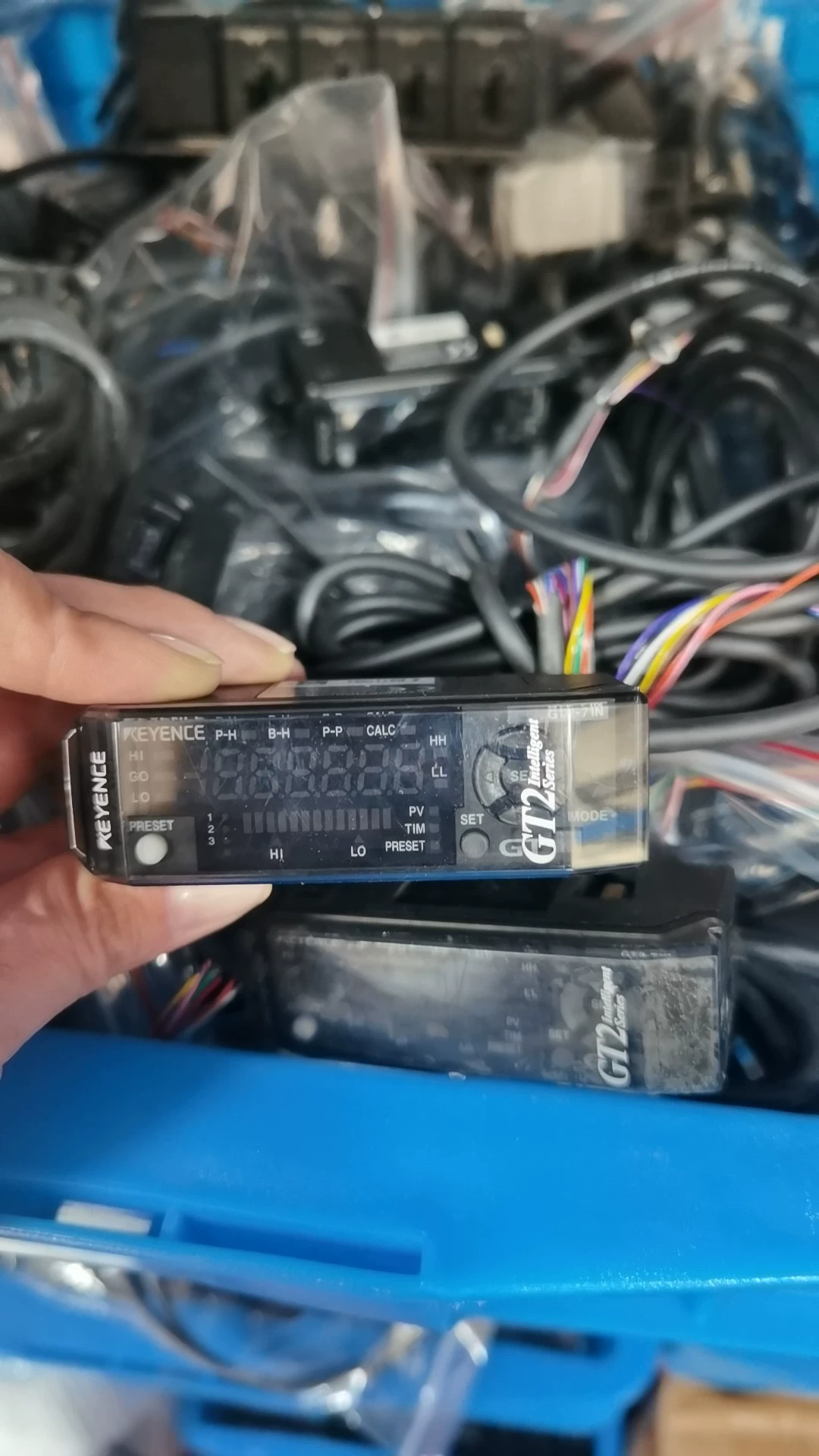

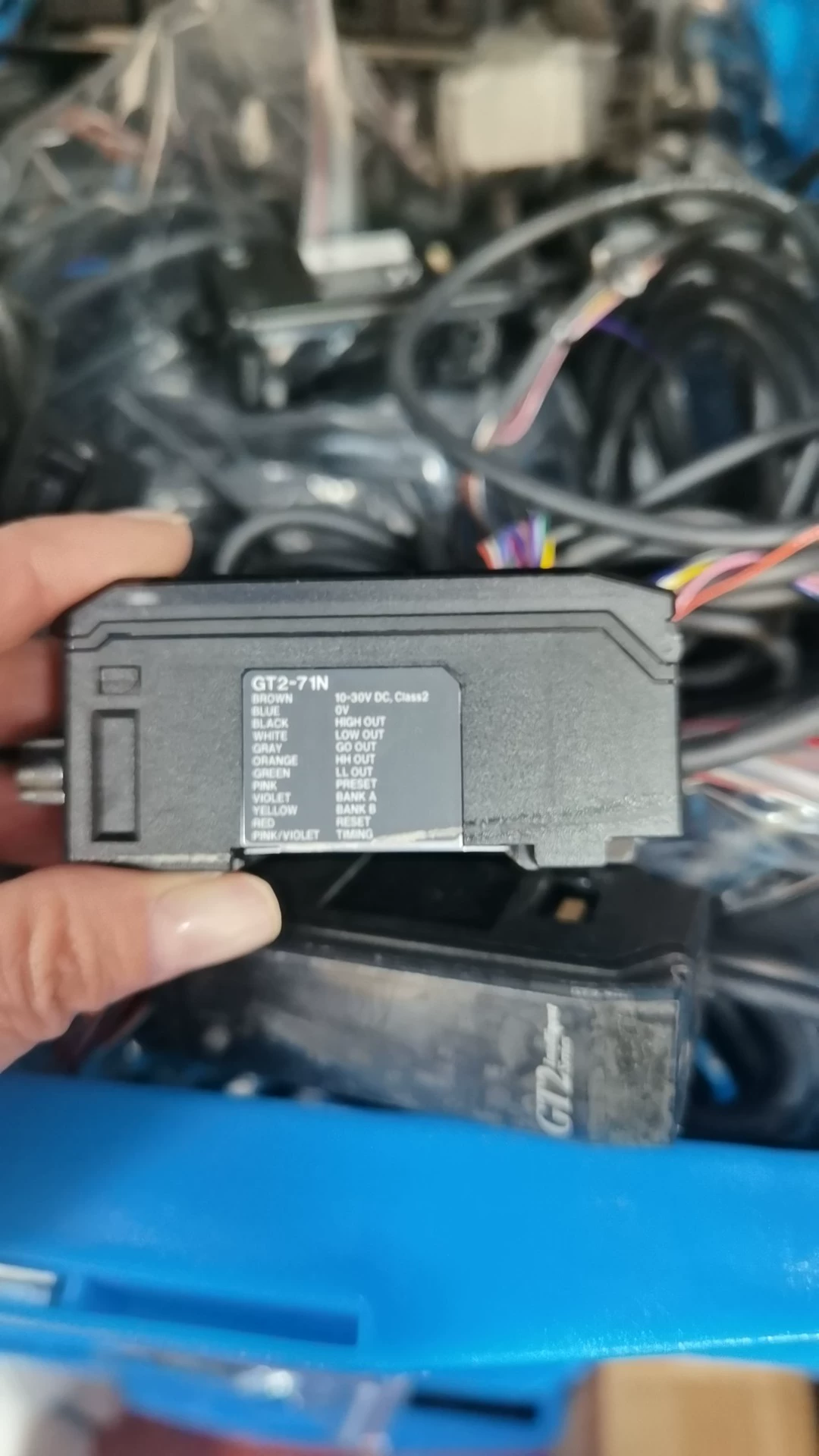

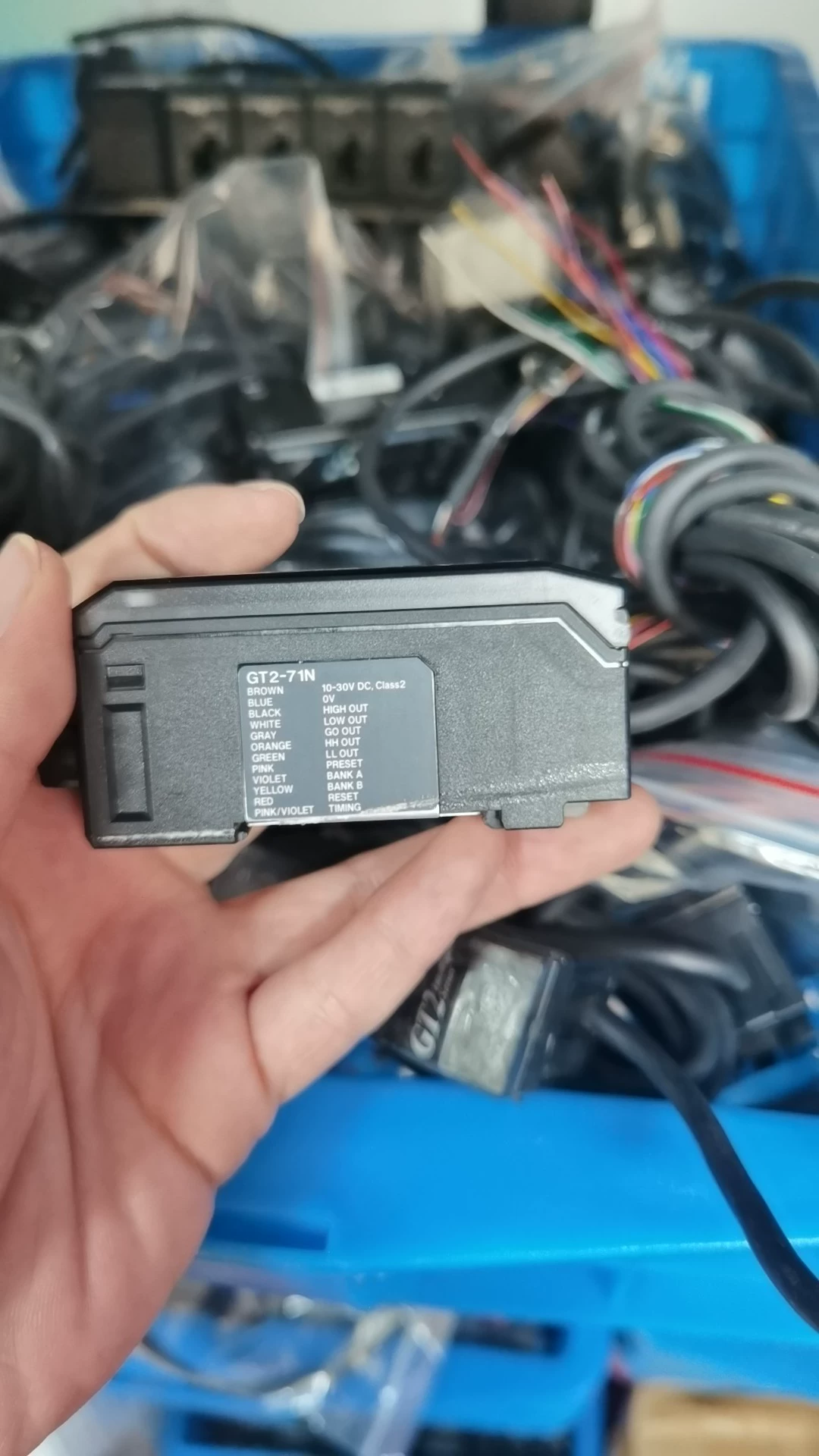

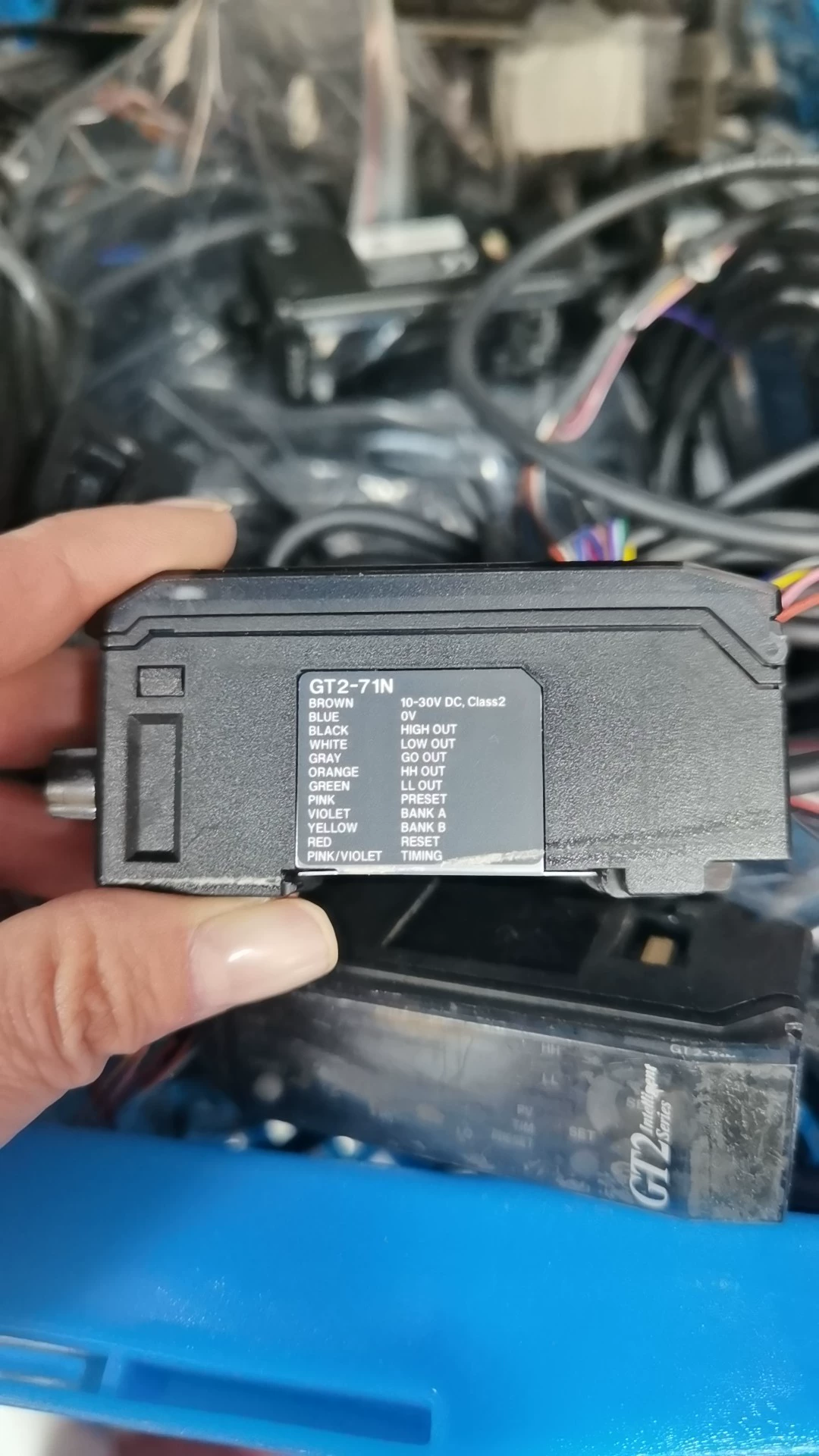

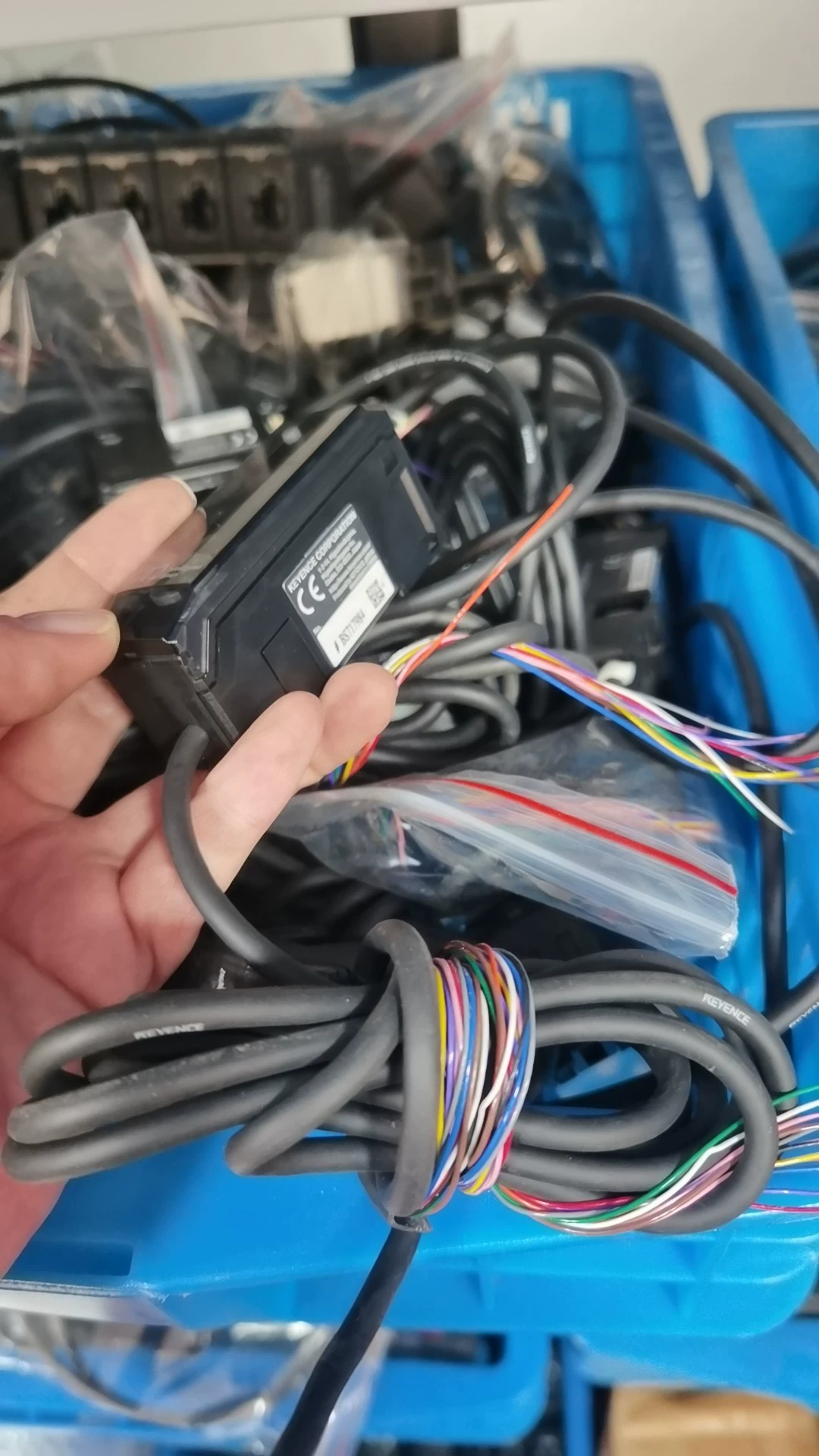

Used Keyence GT2-71N smart amplifier.
Specifications
| Brand | Keyence |
|---|---|
| Model | GT2-71N |
| Power Supply | 10-30 V DC, Class2 |
| Response time | hsp(3)/5/10/100/500/1,000 ms (When using GT2-Pxxx, hsp(12)/20/40/400/2,000/4,000 ms) |
| Normal | 2,200 mW max. (30 V, 73.3 mA max.) |
| Power saving (Eco) | 1,700 mW max. (30 V, 56.7 mA max.) |
| Power supply voltage | 10 to 30 VDC, including 10 % ripple (P-P), Class 2 *1 |
| Display range | -199.999.9 to 199.999.9 |
| Weight | Approx. 140 g (including power cable) |
| Ambient temperature | -10 to +50 °C (14 to 122 °F) (GT2-71MCN/71MCP: -10 to +45 °C (14 to 113 °F) when expansion unit (s) is connected) |
| Relative humidity | 35 to 85 % RH (No condensation) |
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm (0.06 in); 2 h each in X, Y, Z directions |
| Display resolution | 0.1 μm 0.004 Mil |
| HH/HI/GO/LO/LL | NPN open collector, 40 V ≤50 mA, residual voltage ≤1 V *1 *2 |
| Main unit/expansion unit | Main unit |
| Material | Main body case: Polycarbonate, Key top: Polyacetal, Front sheet: PET, Cable: PVC |
| Measured value display | 6 + 1/2-digit 7-segment LED (red) |
| Mounting method | DIN-rail mount |
| Other displays | 2-color, 13-level bar LED display (red, green), indicators (red, green) |
| Output | NPN output |
| Timing/preset/ reset/bank input | No-voltage input |
