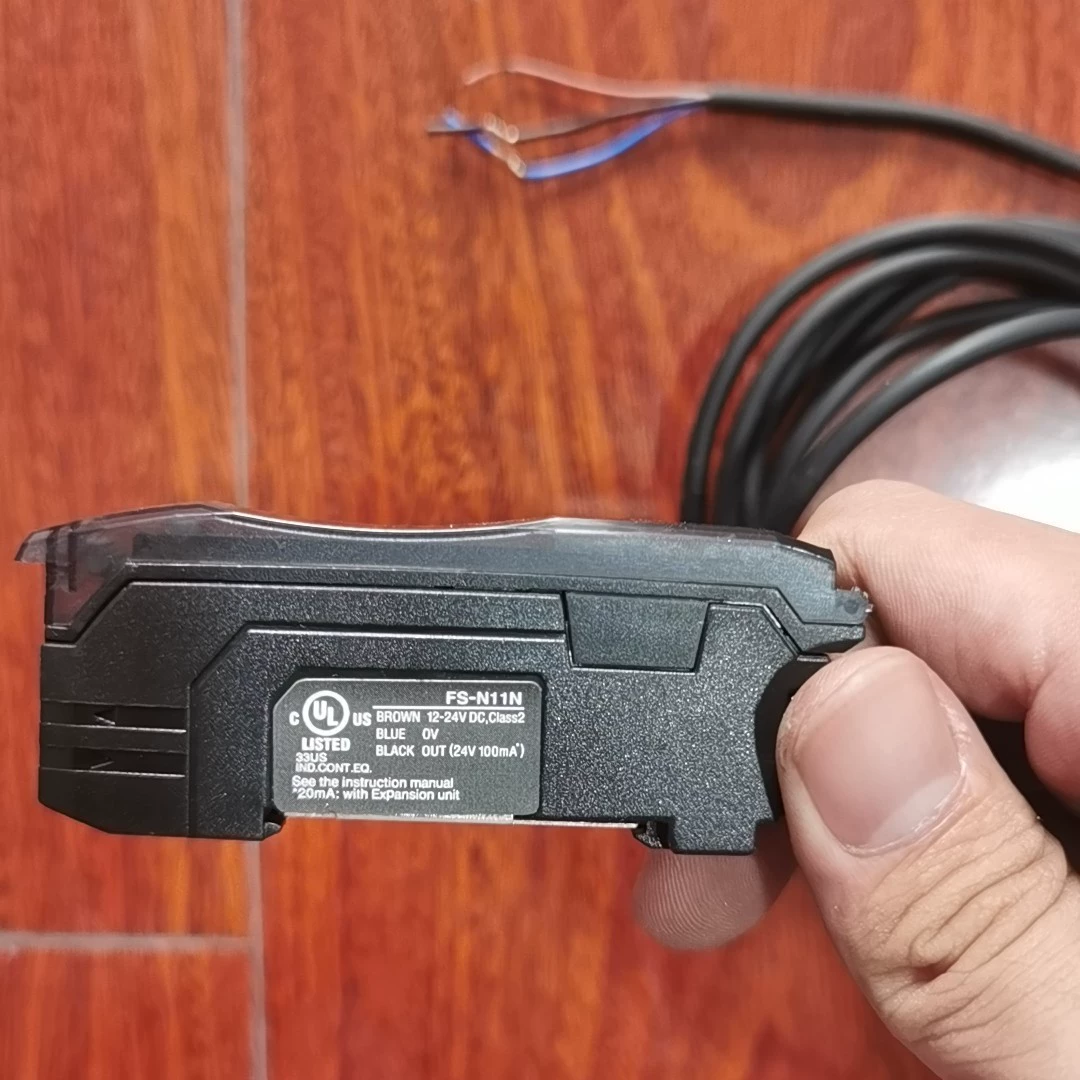

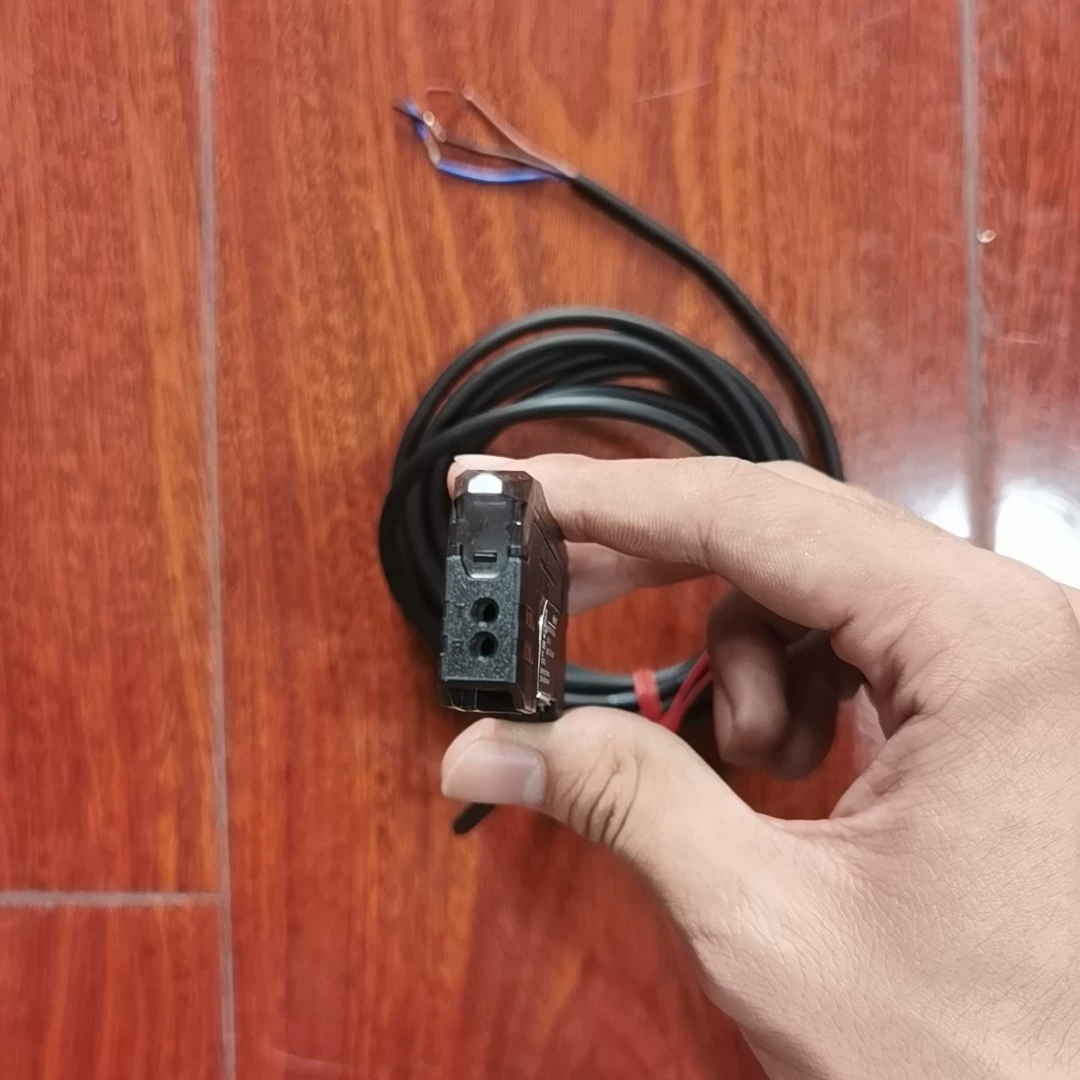

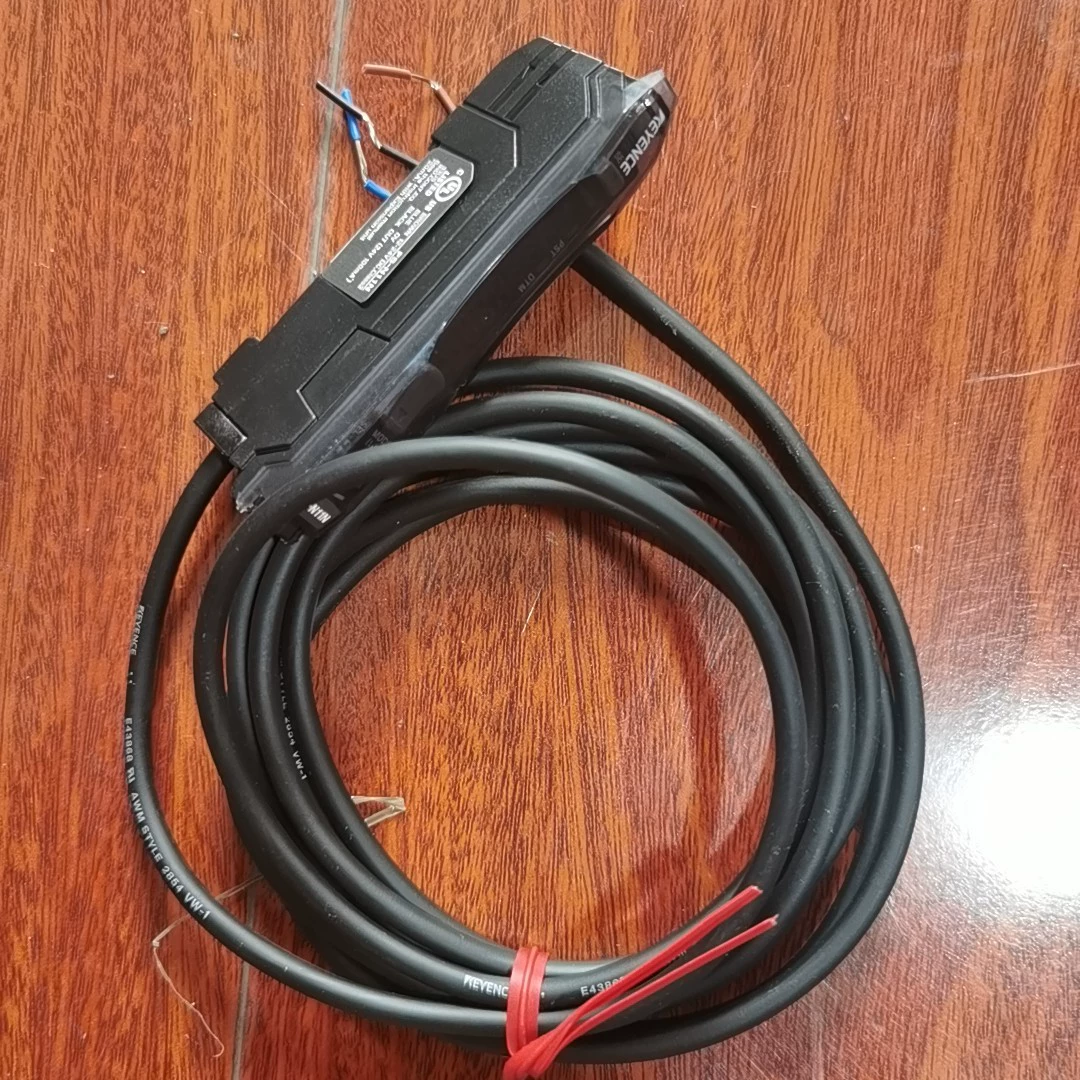

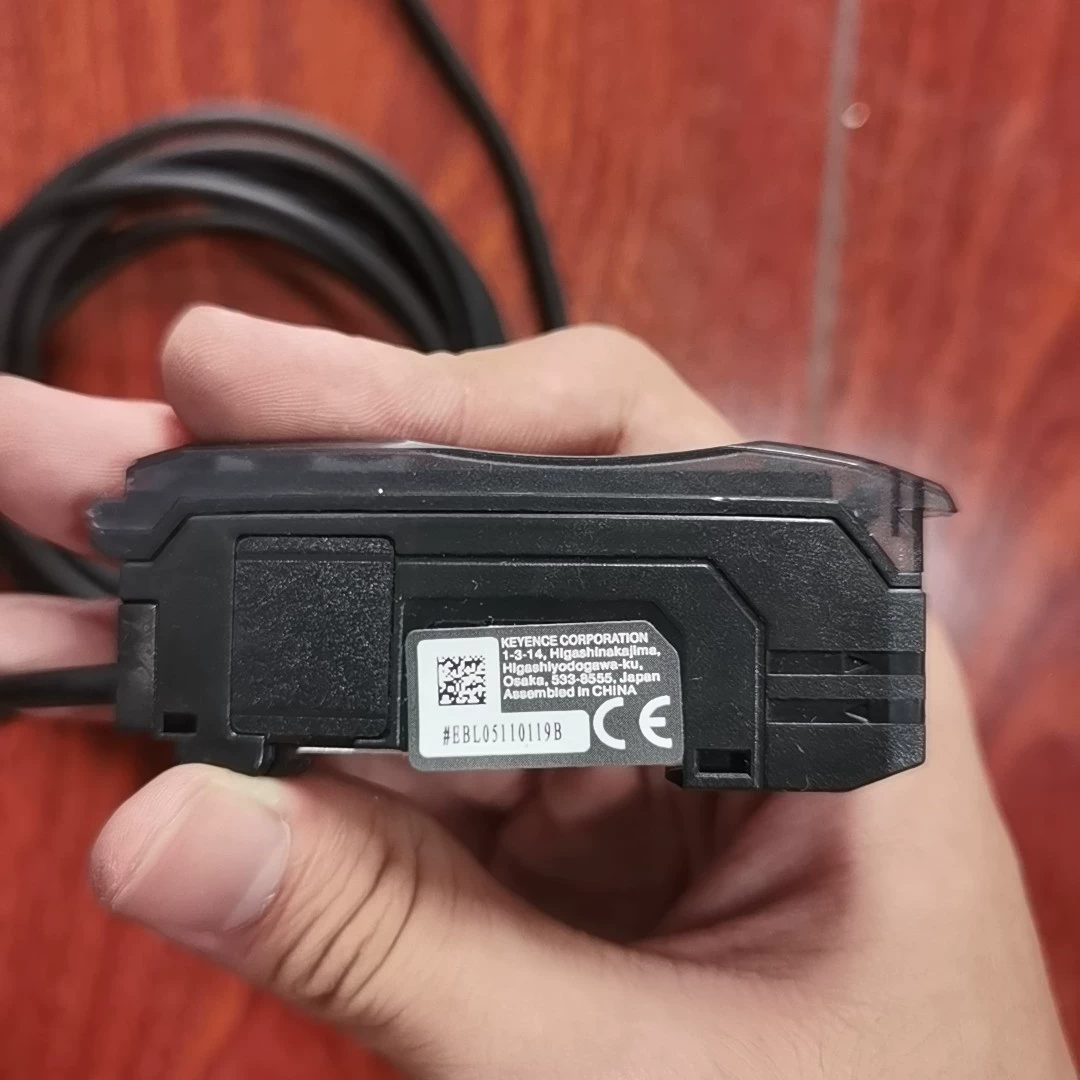

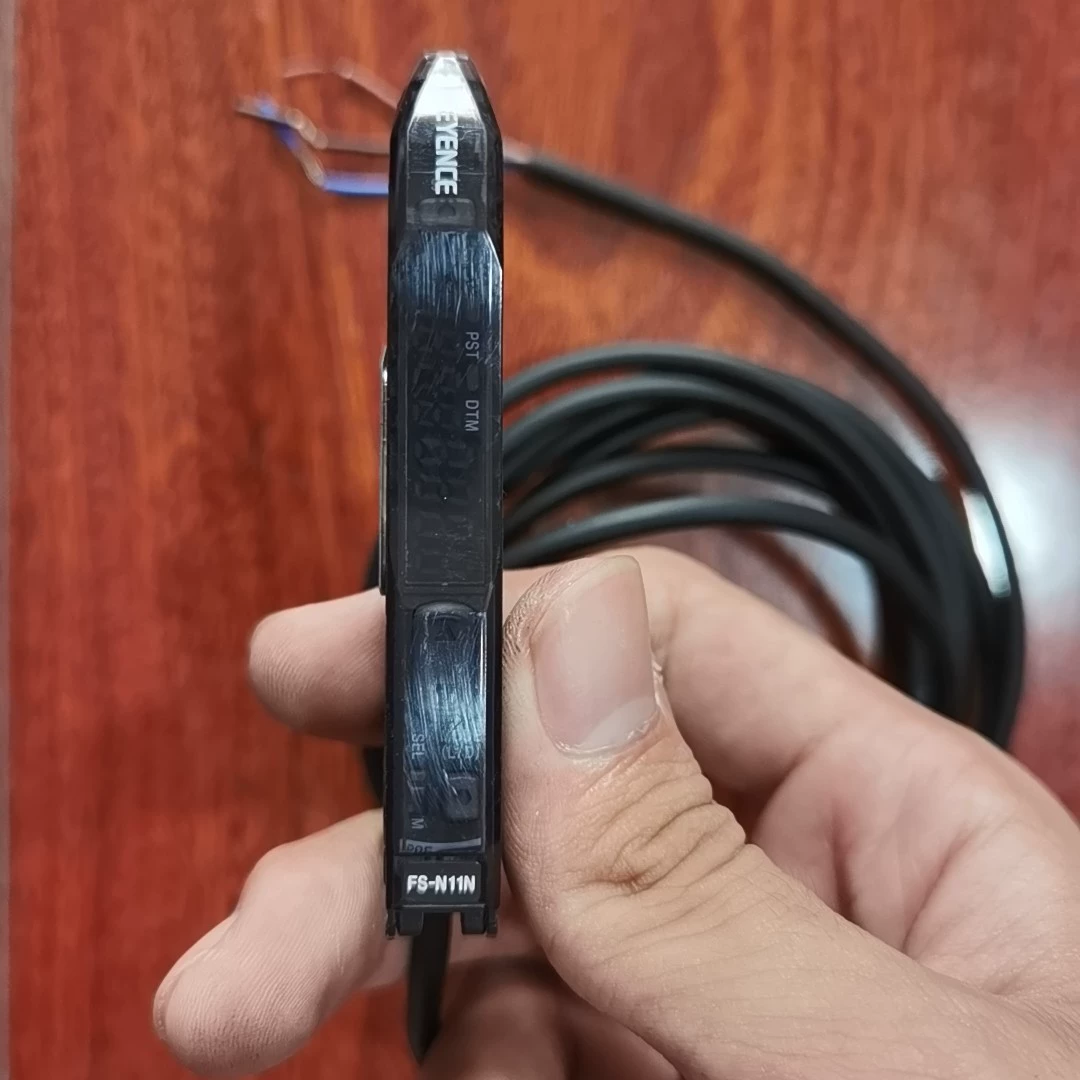

Keyence FS-N11N fiber optic sensor amplifier - Used
Description
The Keyence FS-N11N is a fiber optic sensor amplifier for use with a compatible fiber head. It runs on a 12–24 V DC Class 2 supply and provides a local display and adjustment controls. This used amplifier was removed from industrial equipment.
Specifications
| Brand | Keyence |
|---|---|
| Model | FS-N11N |
| Supply Voltage | 12-24 V DC, Class2 |
| Response Time | HIGH SPEED: 50 µs; FINE: 250 µs; TURBO: 500 µs; SUPER: 1 ms; ULTRA: 4 ms; MEGA: 16 ms |
| Power voltage | 12 to 24 VDC ±10 %, Ripple (P-P) ≤10 % |
| Power voltage (rating) | 12 to 24 VDC ±10 %, Ripple (P-P) ≤10 % |
| Weight | Approx. 75 g |
| Ambient temperature | -20 to +55 °C (-4 to +131 °F); no freezing |
| Relative Humidity | 35 to 85 % RH (No condensation) |
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm (0.06 in); 2 h each in X, Y, Z directions |
| Ambient light | Incandescent lamp: ≤20,000 lux, Sunlight: ≤30,000 lux |
| Apc | ON/OFF switchable (Factory setting: OFF) |
| Cable | Cable |
| Case material | Polycarbonate |
| Control output | 1 |
| Current Consumption | Normal: ≤900 mW (≤36 mA at 24 V, ≤48 mA at 12 V); Eco on: ≤800 mW (≤32 mA at 24 V, ≤39 mA at 12 V); Eco Full: ≤470 mW (≤19 mA at 24 V, ≤23 mA at 12 V) |
| Current consumption (rating) | Normal: ≤900 mW (≤36 mA at 24 V, ≤48 mA at 12 V); Eco on: ≤800 mW (≤32 mA at 24 V, ≤39 mA at 12 V); Eco Full: ≤470 mW (≤19 mA at 24 V, ≤23 mA at 12 V) |
| Light Source LED | Red, 4-element LED |
| Main unit/expansion unit | Main unit |
| Number of interference prevention units | HIGH SPEED: 0; FINE: 4; TURBO/SUPER/ULTRA/MEGA: 8 |
| Output | NPN |
| Shock resistance | 500 m/s^2, 3 times in each of the X, Y, and Z directions |
| Type | Standard 1 output |
| Unit expansion | Up to 16 connected units (two-output type counts as two units) |
| Wire Color Brown | 12-24V DC, Class2 |
