Keyence EV-112M proximity switch - Used
Description

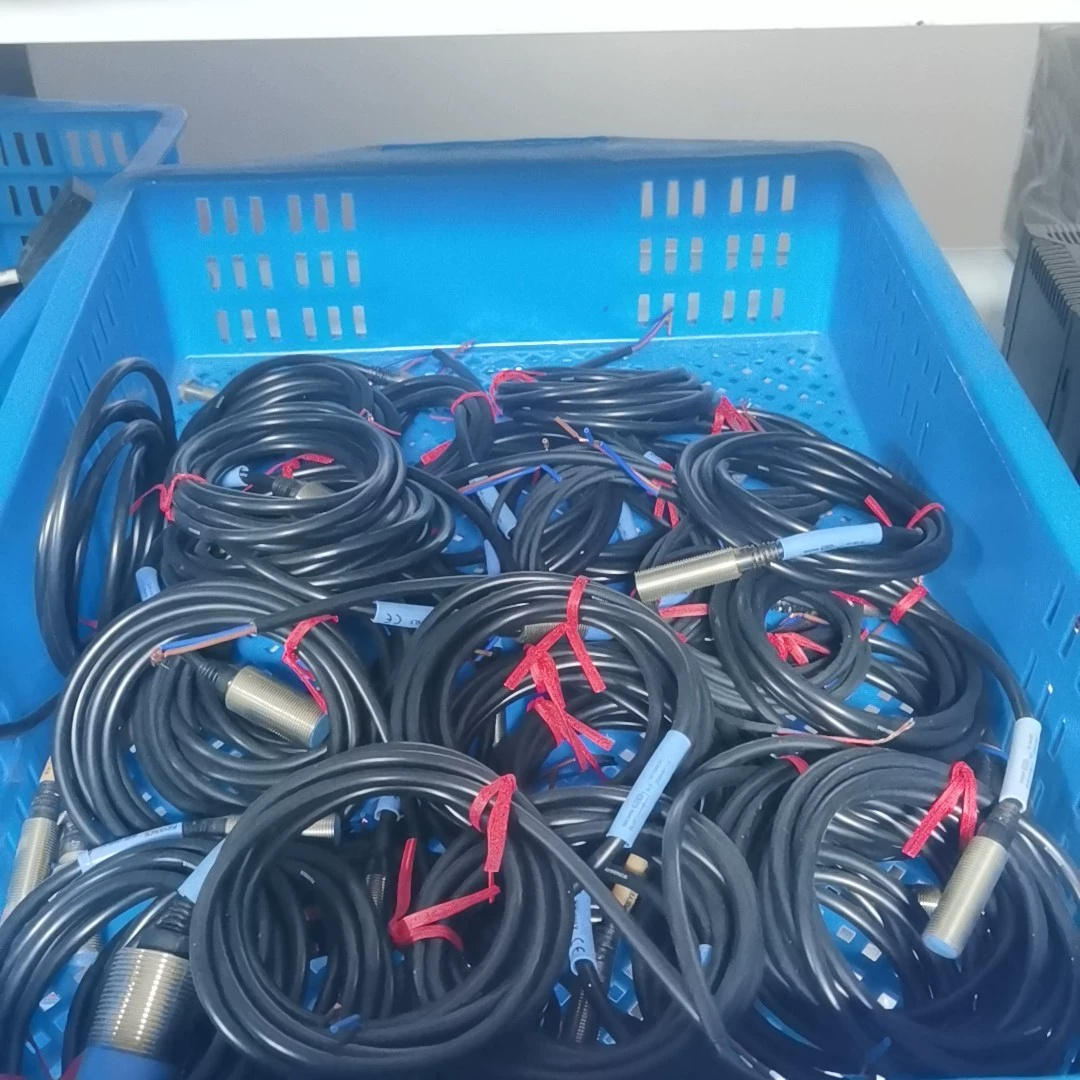

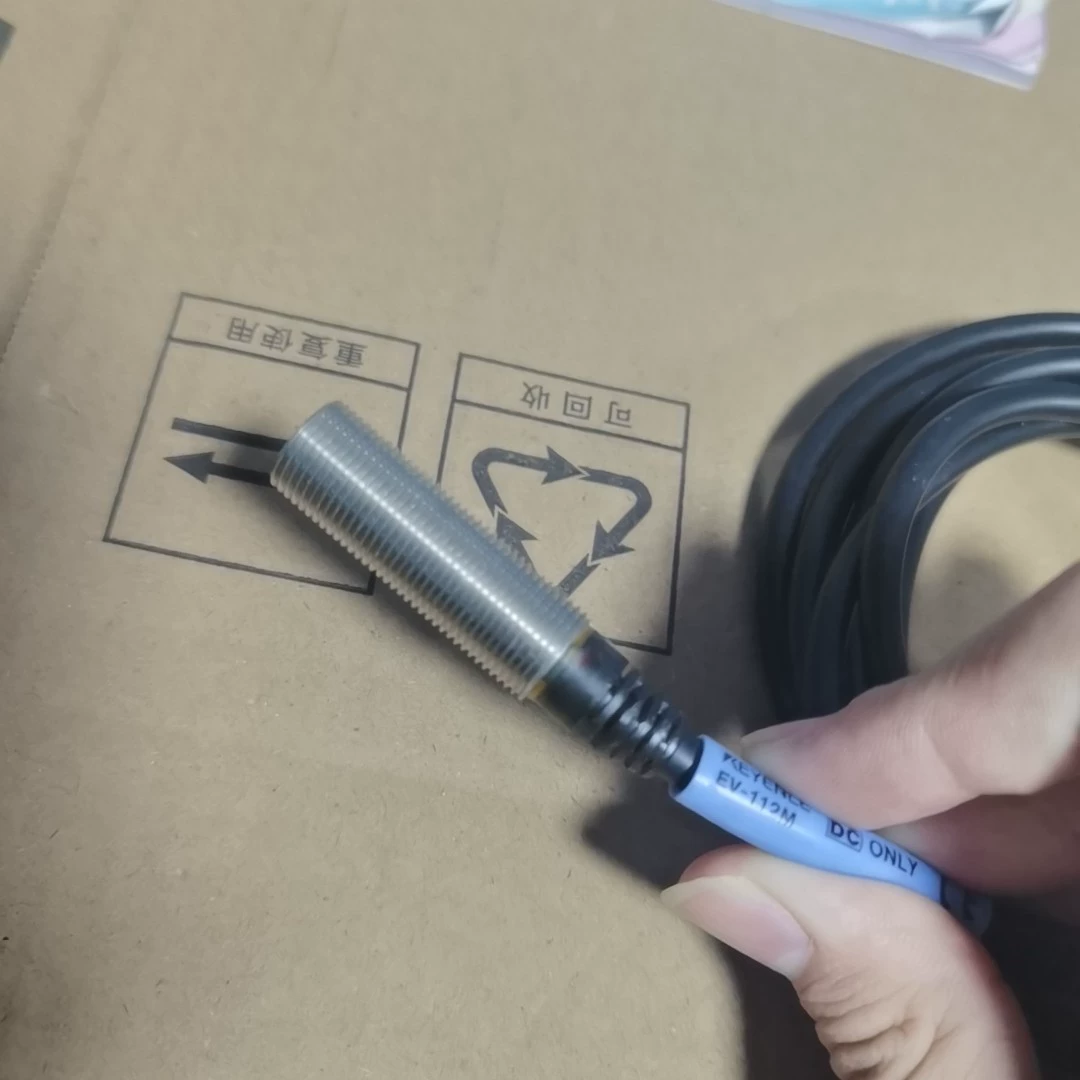

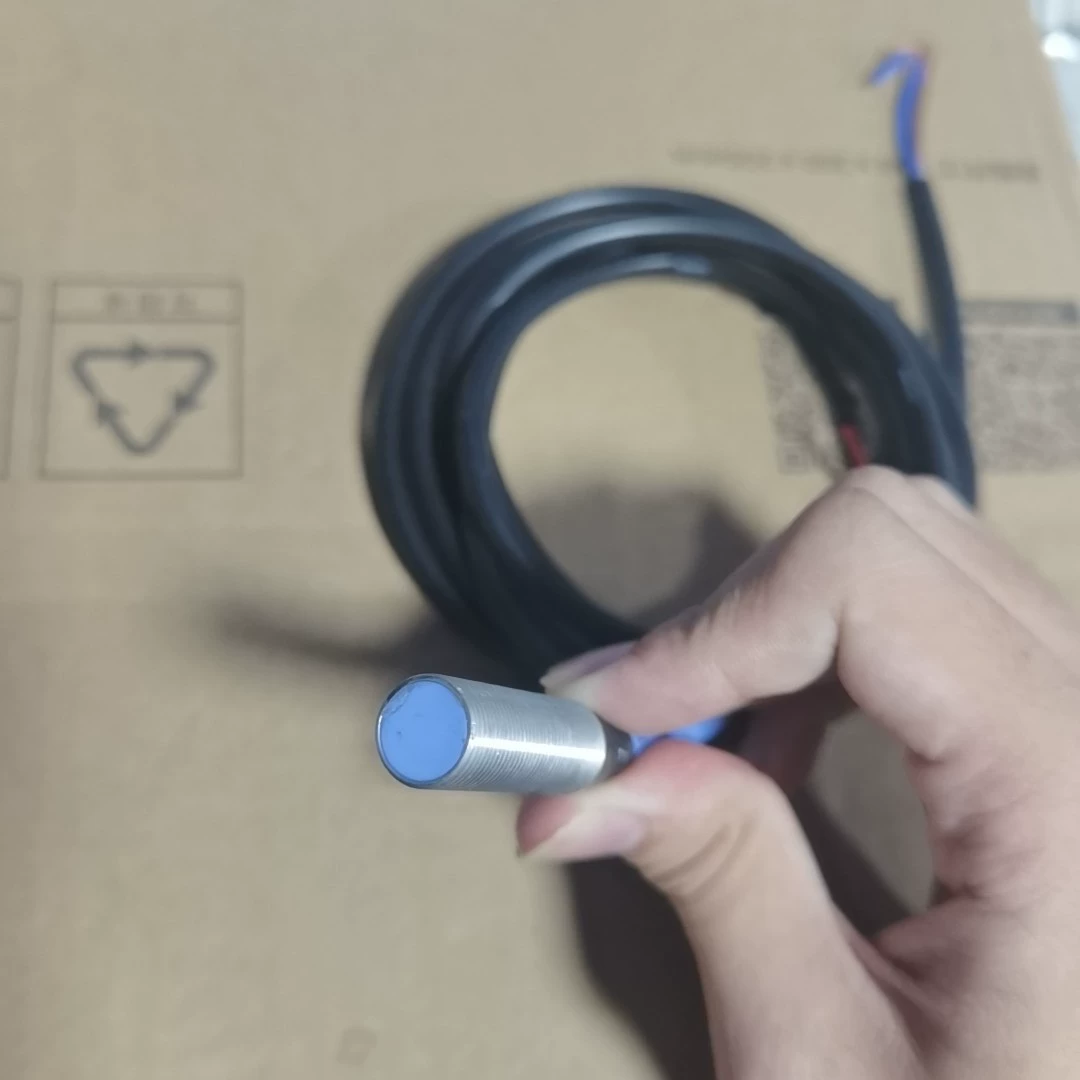

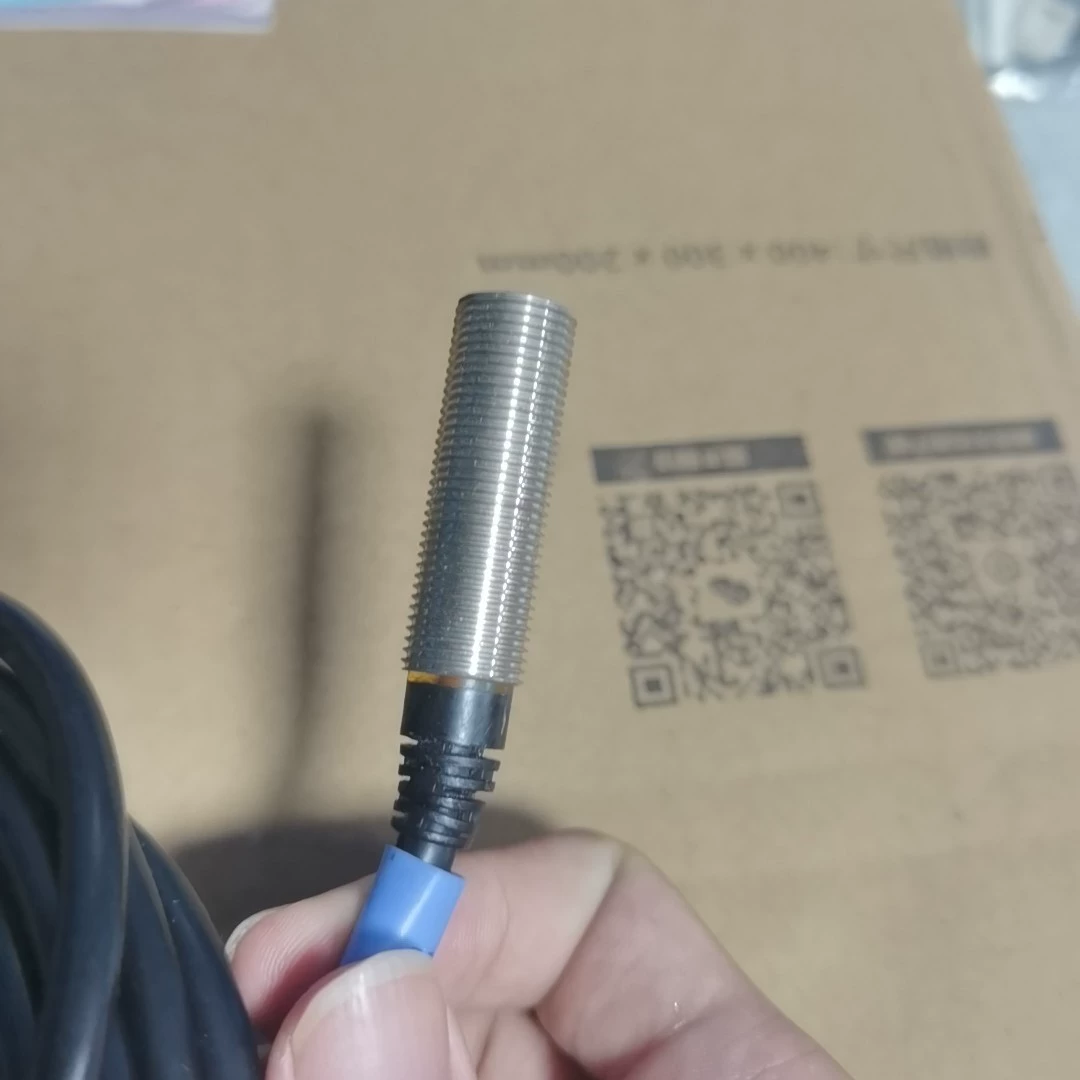

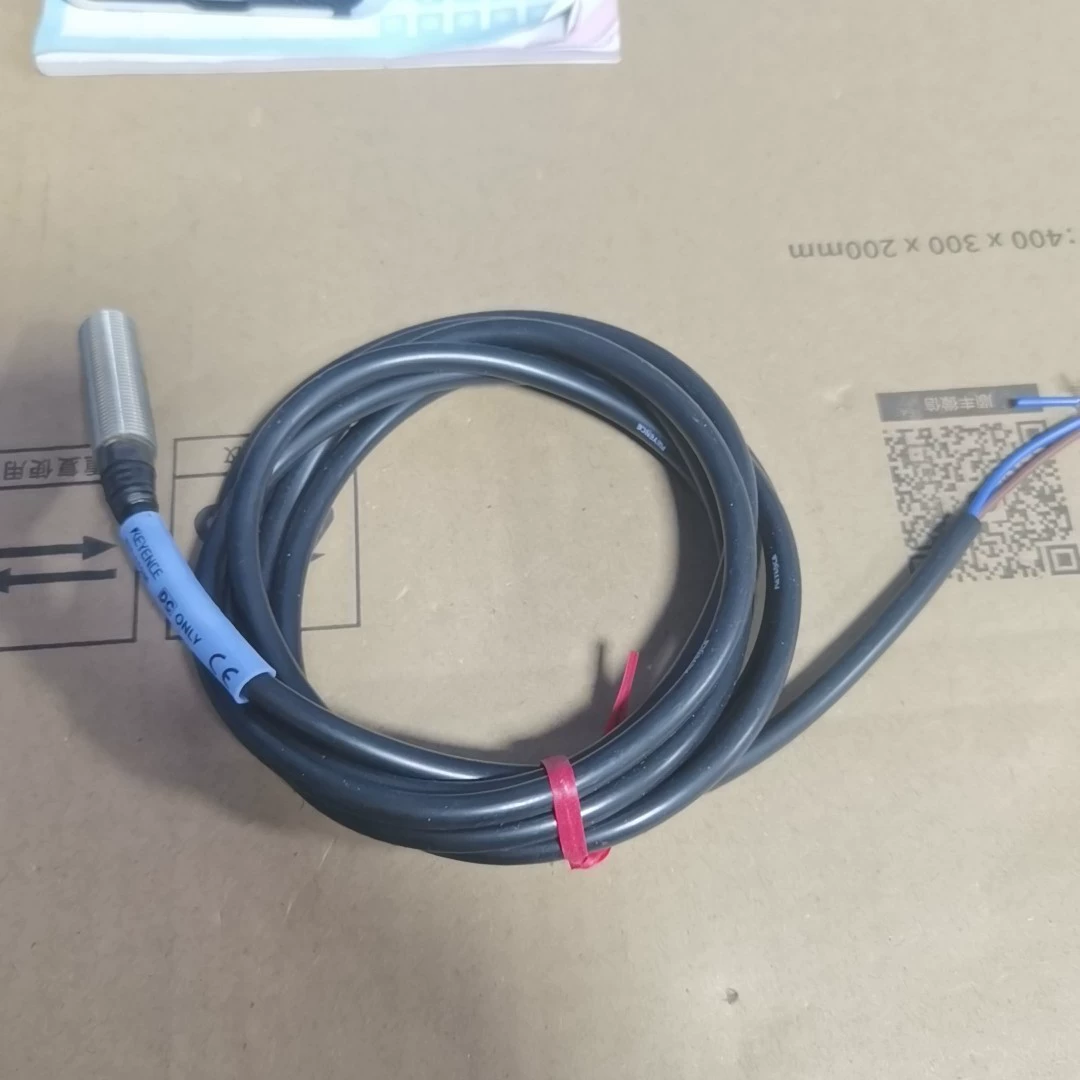

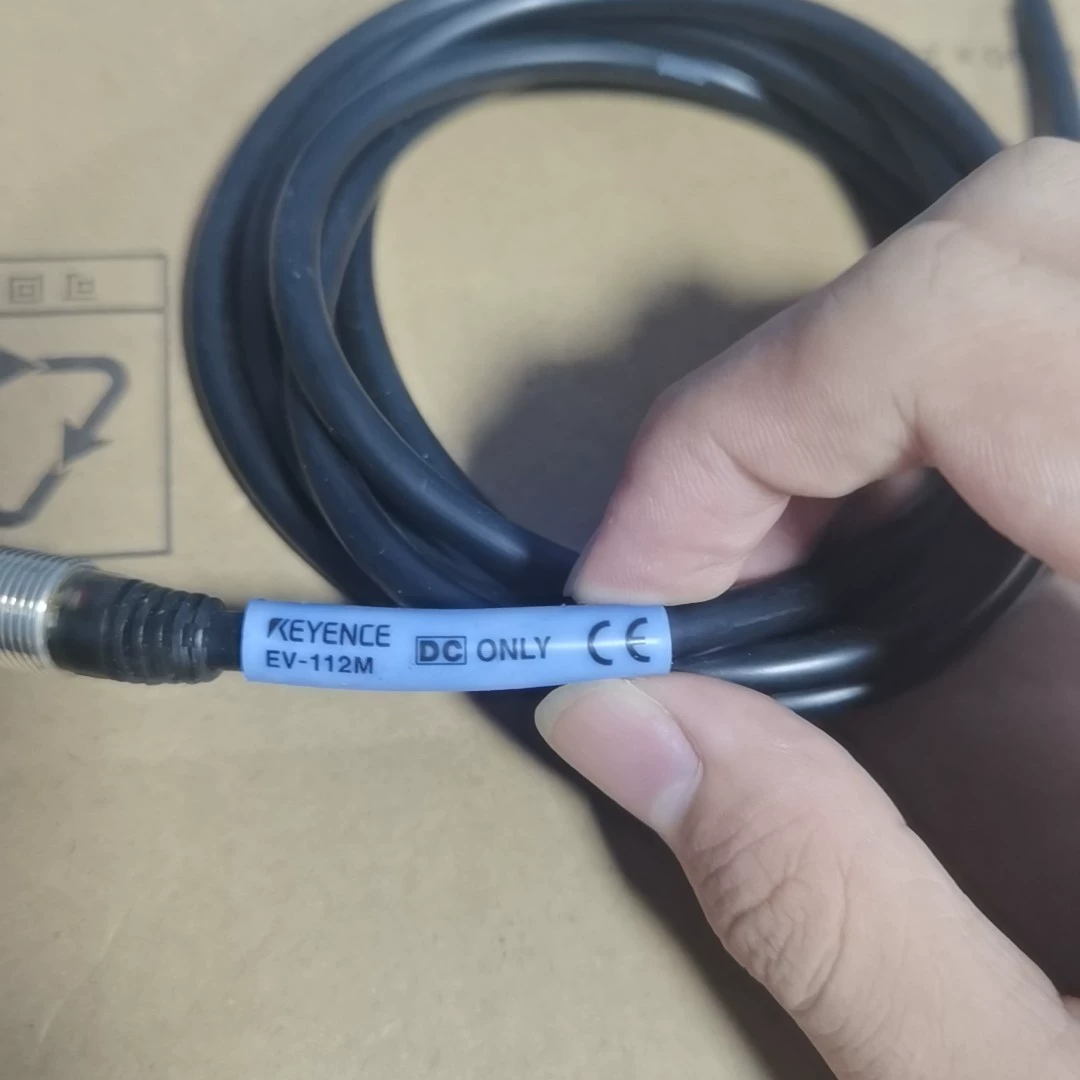

Keyence EV-112M proximity switch, used. Removed from equipment.
Specifications
| Brand | Keyence |
|---|---|
| Model | EV-112M |
| Current consumption (leakage current) | 1.0 mA max. |
| Response frequency | 600 Hz |
| Power voltage | 12 to 24 VDC, Ripple (P-P) ≤20 % |
| Residual voltage | 3.6 V max. (with 2-m cable) V |
| Weight | Approx. 110 g |
| Ambient temperature | -25 to +80 °C; no freezing |
| Relative humidity | 35 to 95 % RH (No condensation) |
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm; 2 h each in X, Y, Z directions |
| Cable length | 2 m |
| Case material | Nickel-plated brass |
| Control output (switching capacity) | 5 to 200 mA |
| Detectable object | Ferrous metals (see Characteristics for nonferrous metals) |
| Detecting distance | 2.5 mm ±10% |
| Enclosure rating | IP67 |
| Hysteresis | 10% max. of detecting distance |
| Operation mode | N.O. |
| Protection circuit | Reversed polarity, short-circuit, surge voltage |
| Shape | M12 |
| Shock resistance | 500 m/s²; 3 times each in X, Y, Z directions |
| Standard target | (iron, t=1 mm) 12 x 12 mm |
| Temperature characteristics | ±10% max. of detecting distance at 23°C, within -25 to +70°C |
| Type | Shielded |
