Festo CMMT-AS-C2-3A-MP-S1 8143163 - Used
Description

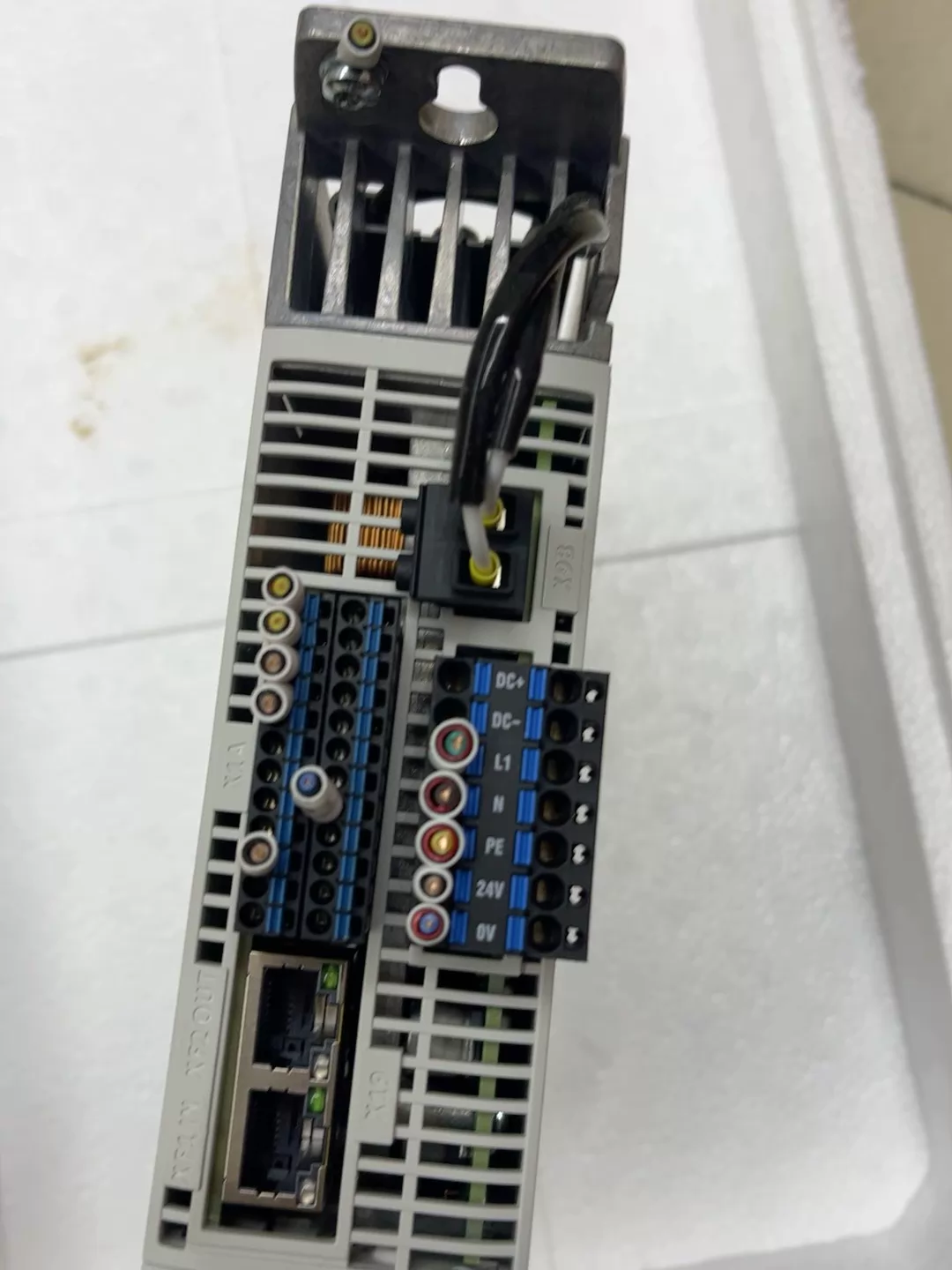

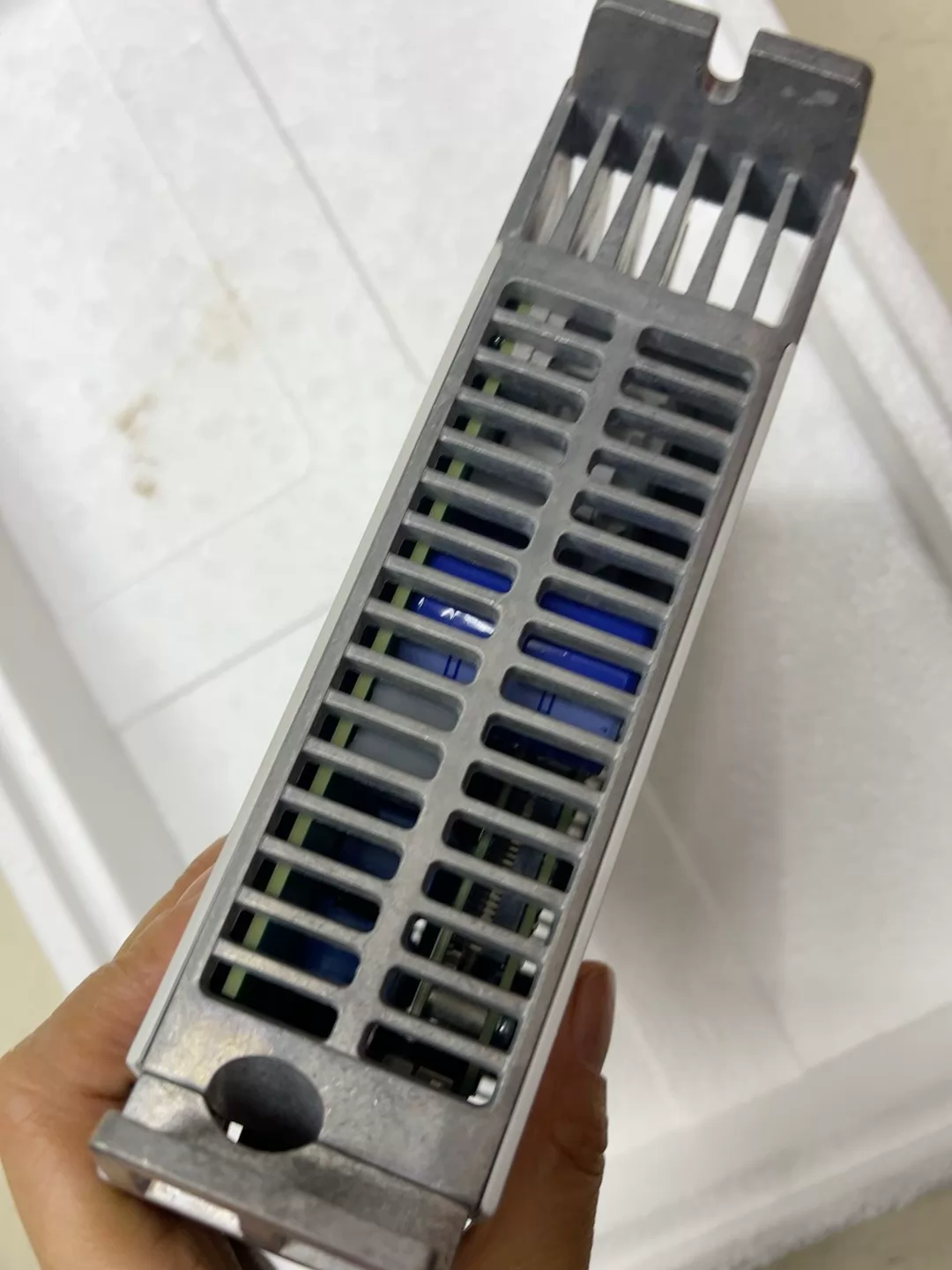

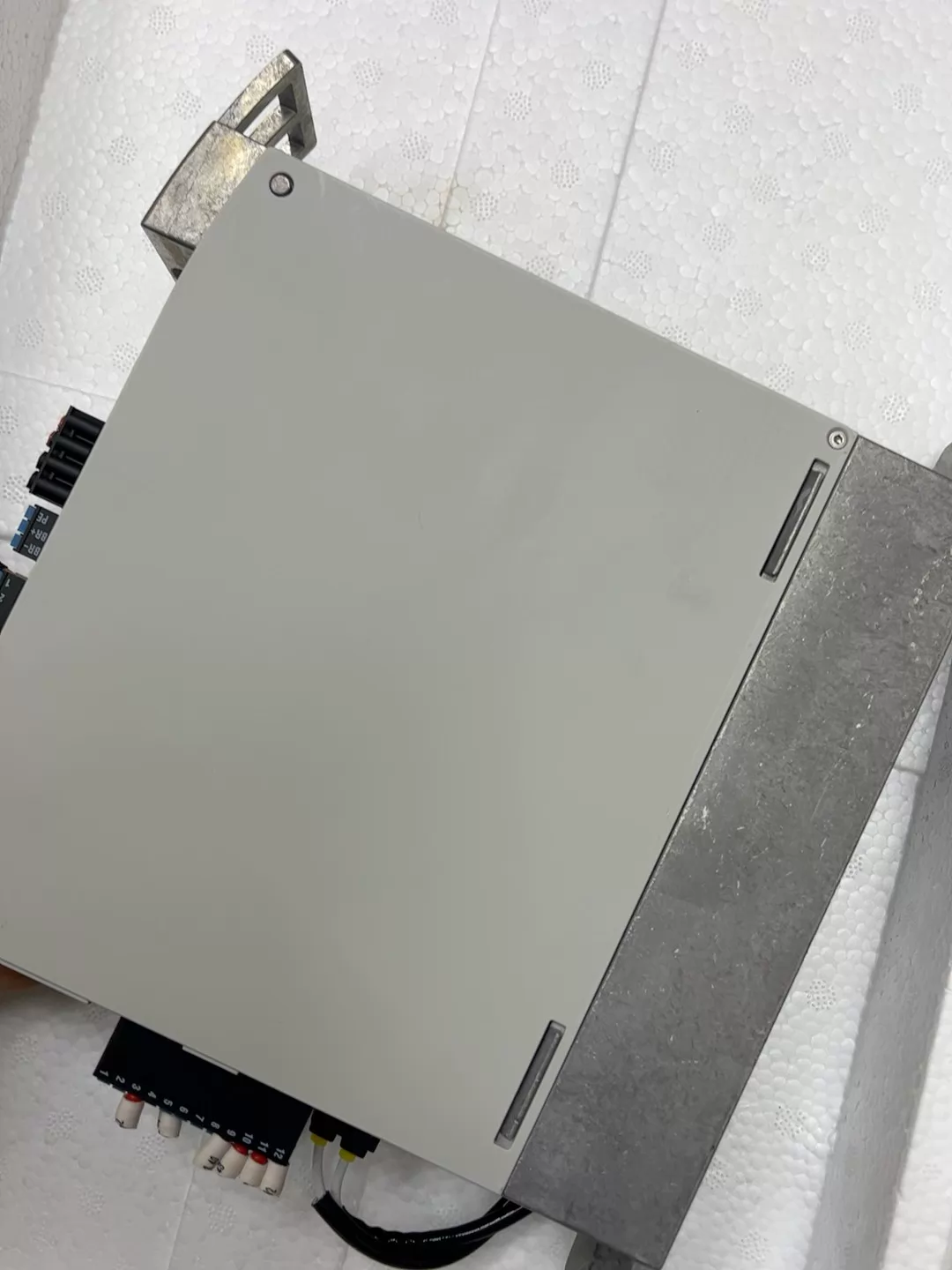

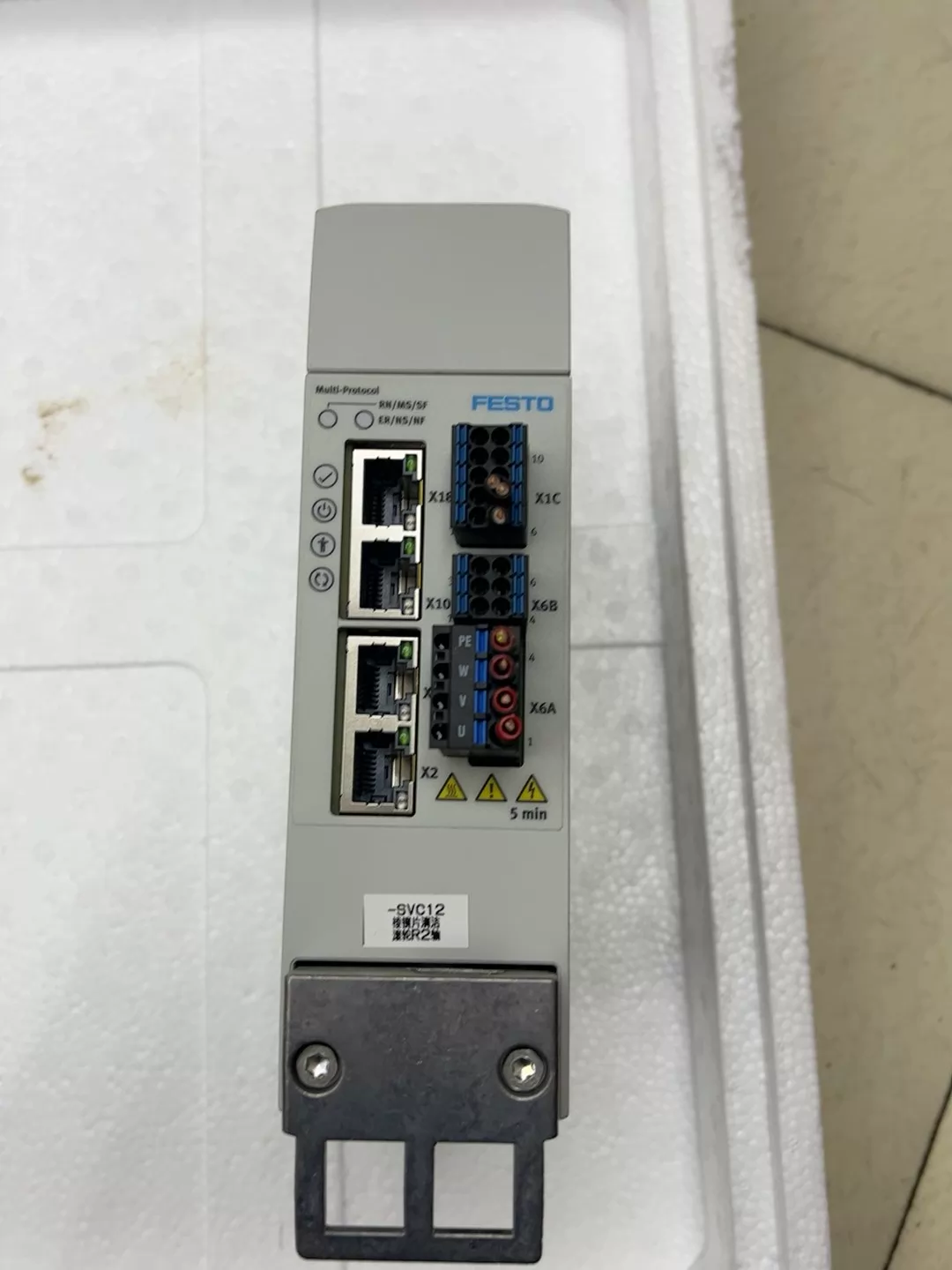

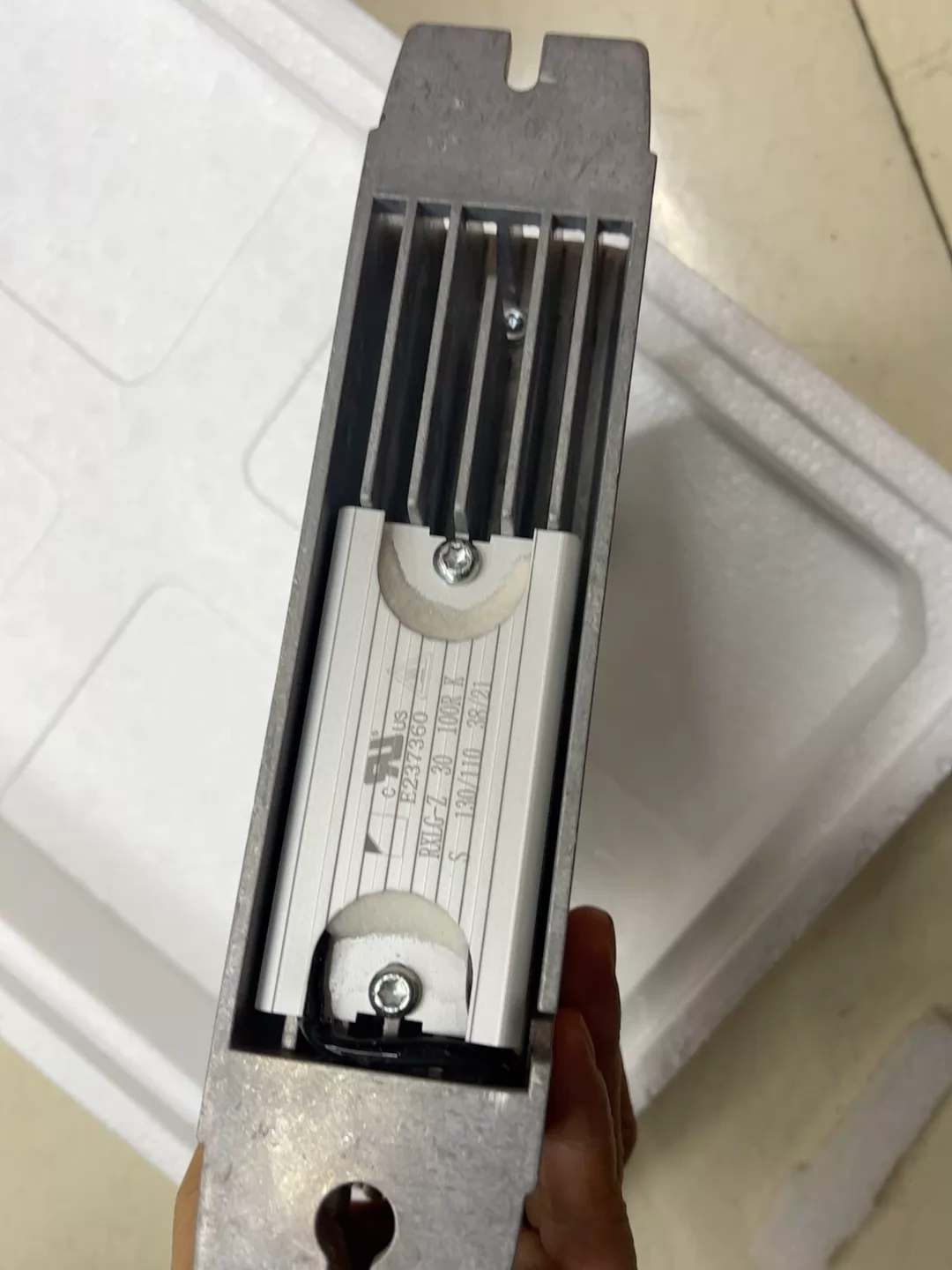

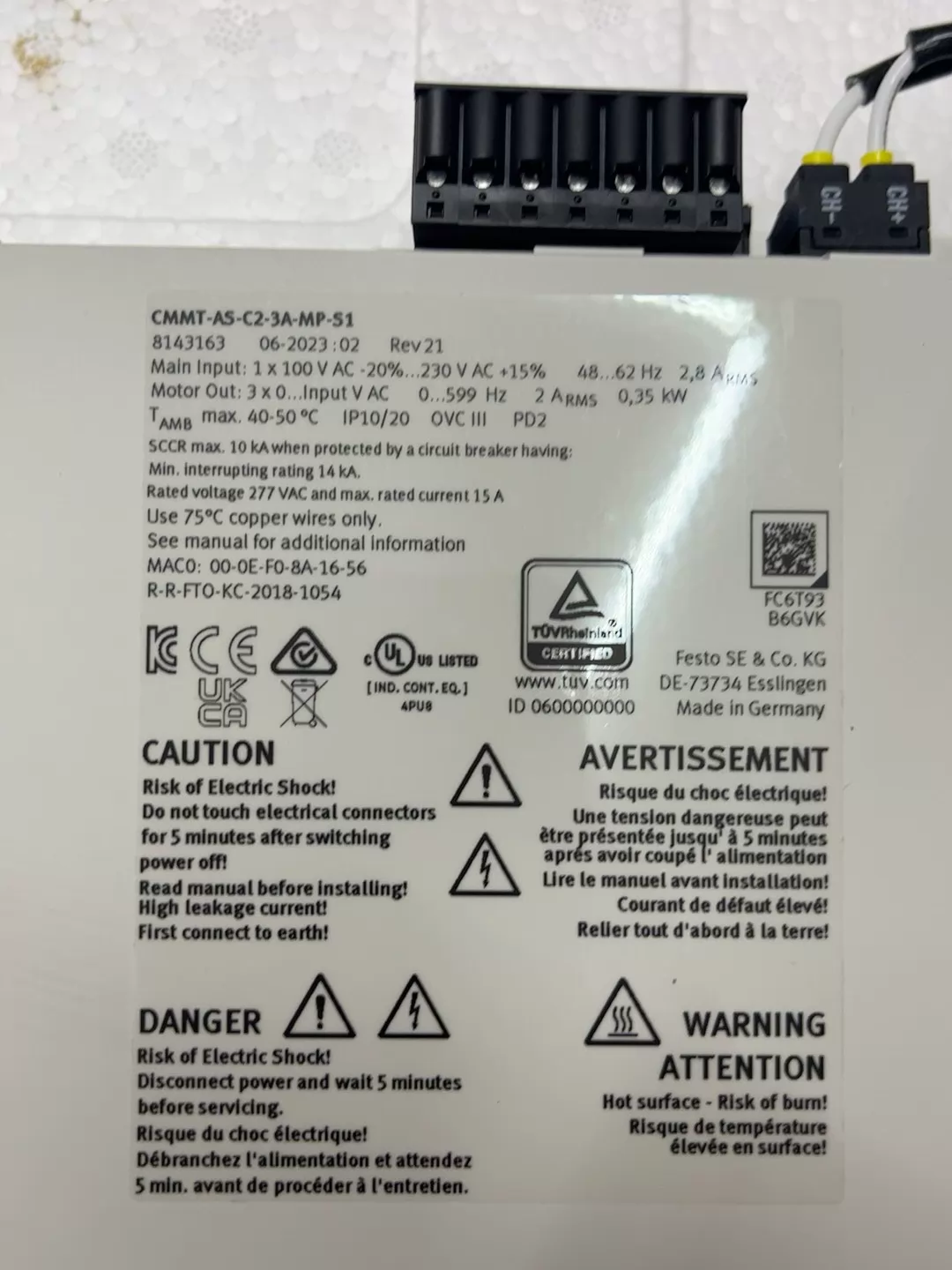

Used Festo CMMT-AS-C2-3A-MP-S1 servo drive, part number 8143163, rated at 0.35 kW with 100-230 V AC input and 3-phase 220 V AC output. It includes a PROFINET communication interface and has an IP10/20 protection rating.
Specifications
| Brand | Festo |
|---|---|
| Model | CMMT-AS-C2-3A-MP-S1 |
| Order Number | 8143163 |
| Origin | Germany |
| Rated Voltage | 277 VAC |
| Frequency | 48–62 Hz |
| Max Rated Current | 15 A |
| ambient_temperature | max. 40-50 °C |
| Mac Address | 00-0E-F0-8A-16-56 |
| Main Input | 1 x 100 V AC -20%...230 V AC +15% |
| Min Interrupting Rating | 14 kA |
| Motor Output | 3 x 0...Input V AC 0–599 Hz |
| Pollution Degree | PD2 |
| port X10 | X10 |
| port X18 | X18 |
| port X1C | 10 |
| port X2 | X2 |
| port X6B | 6 |
| Protection Rating | IP10/20 |
| safety waiting time | 5 min |
| Sccr | max. 10 kA |
| Wire Temperature Rating | 75°C |
