Beckhoff EL6751 - Used
Description

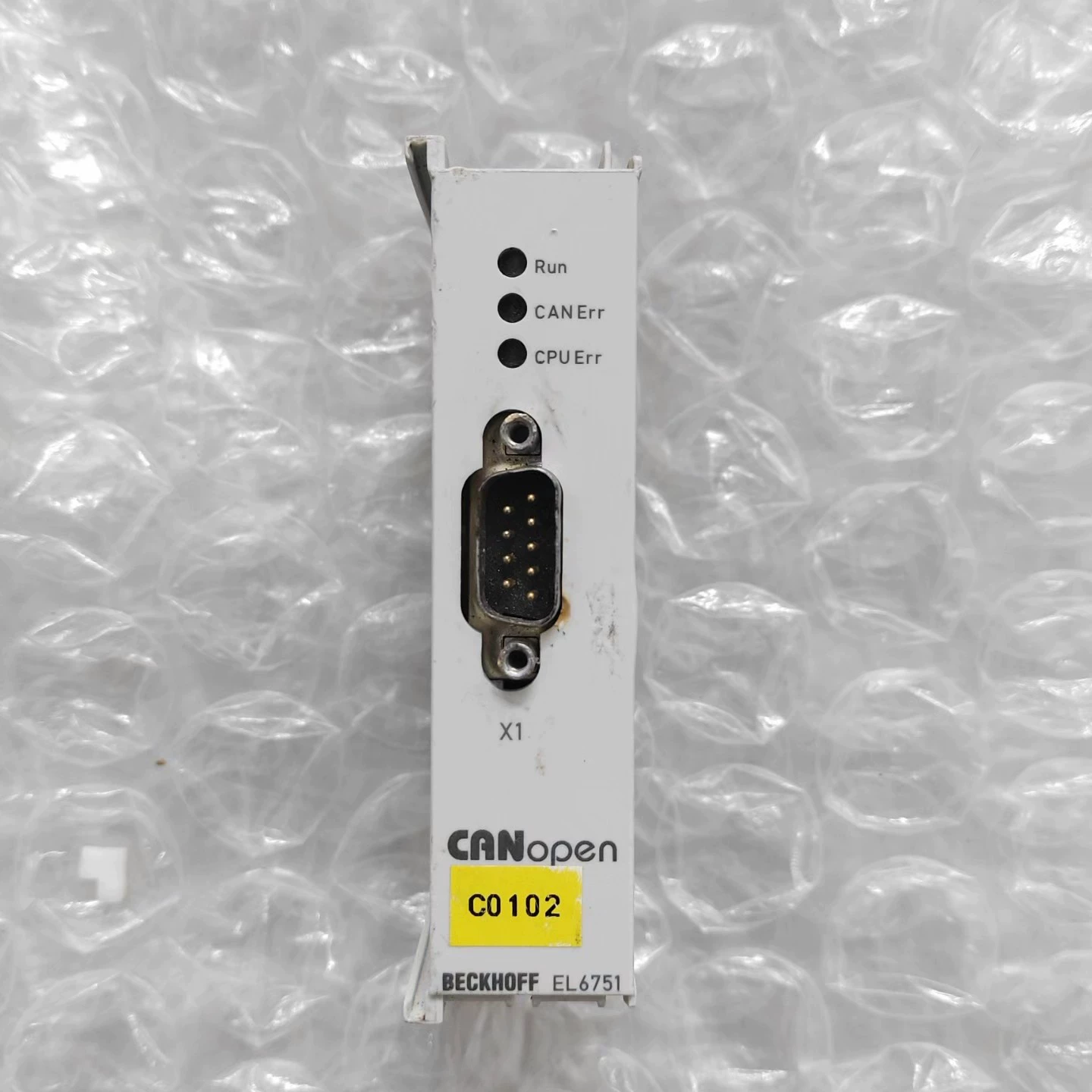

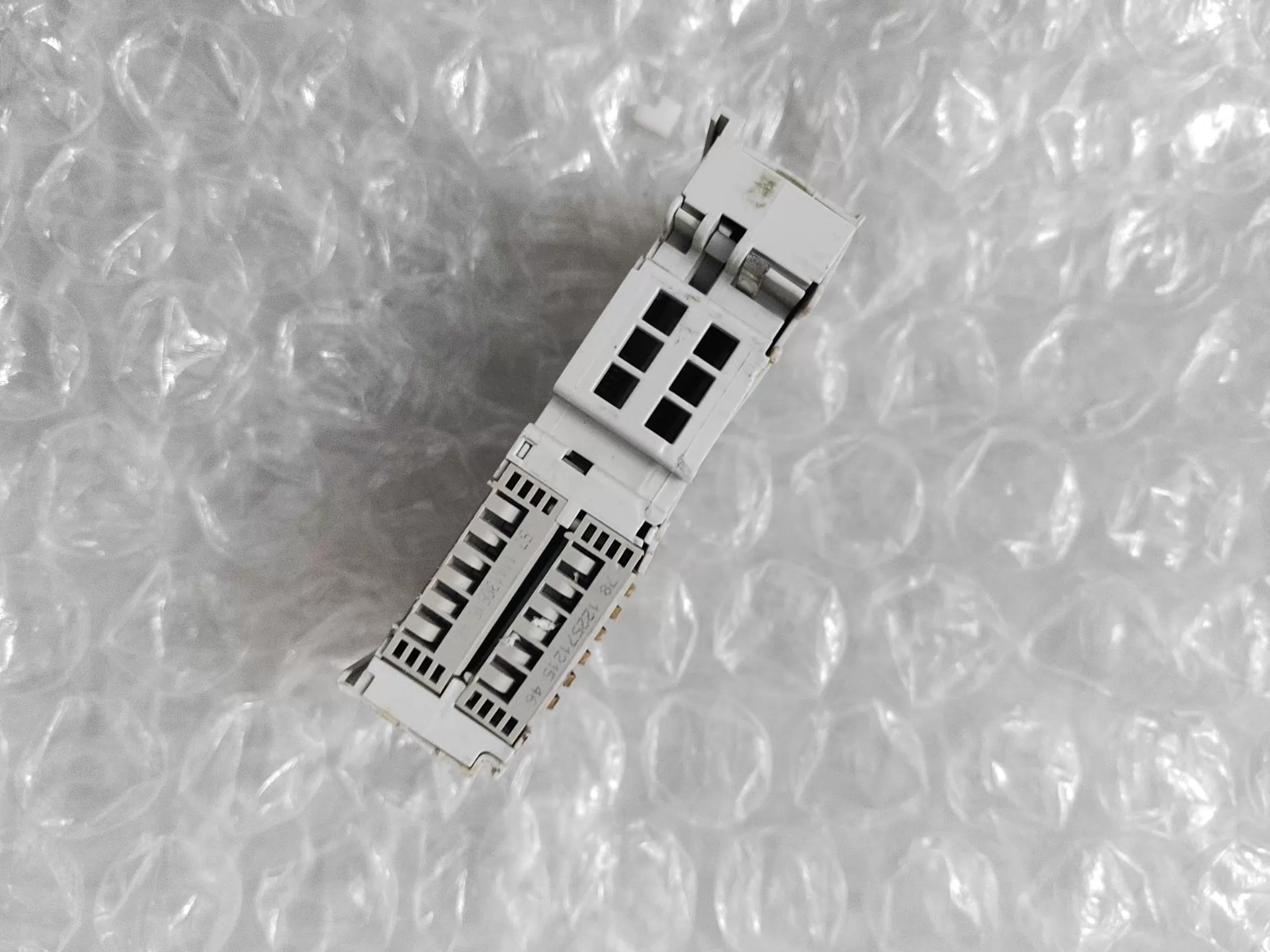

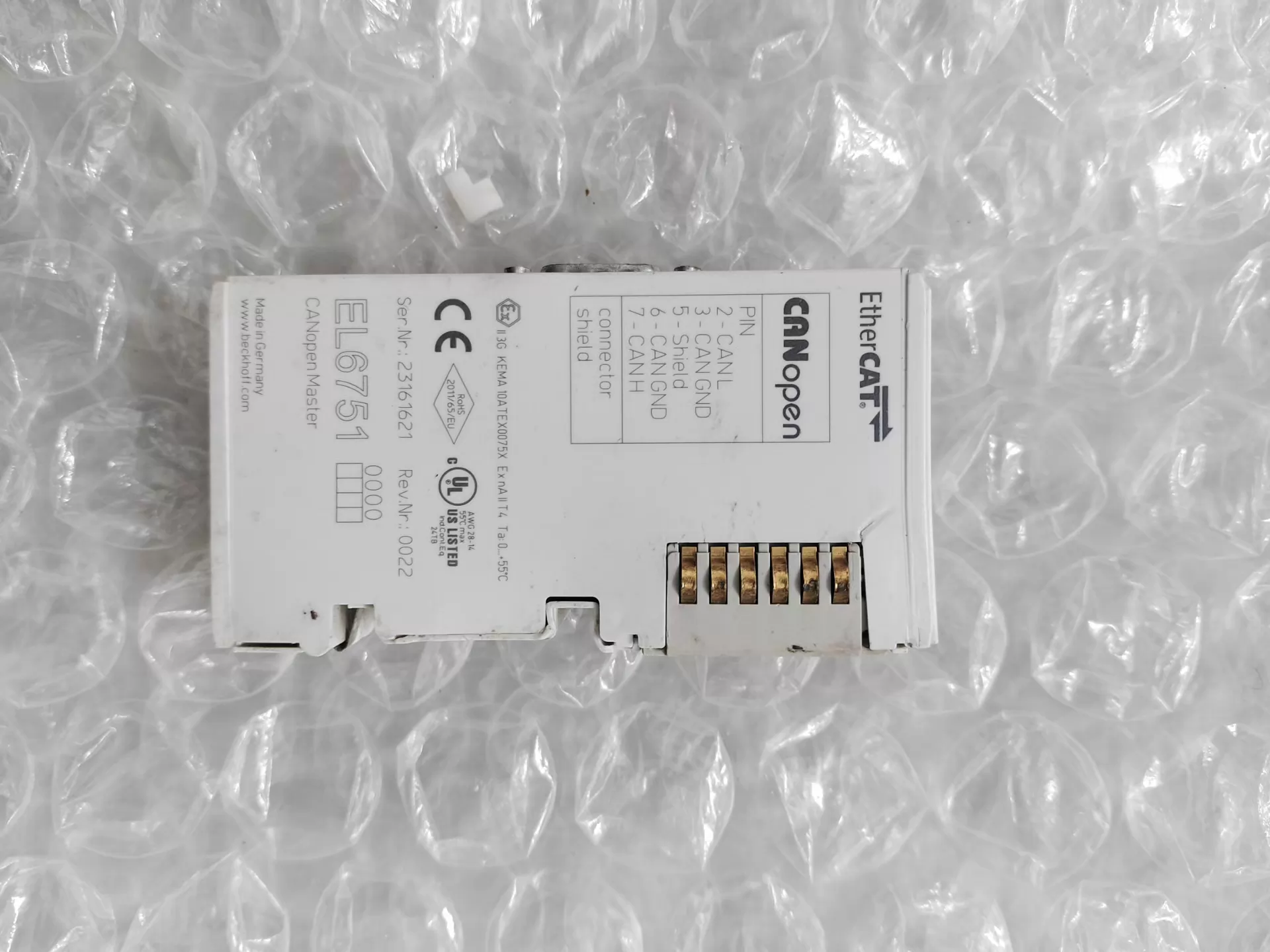

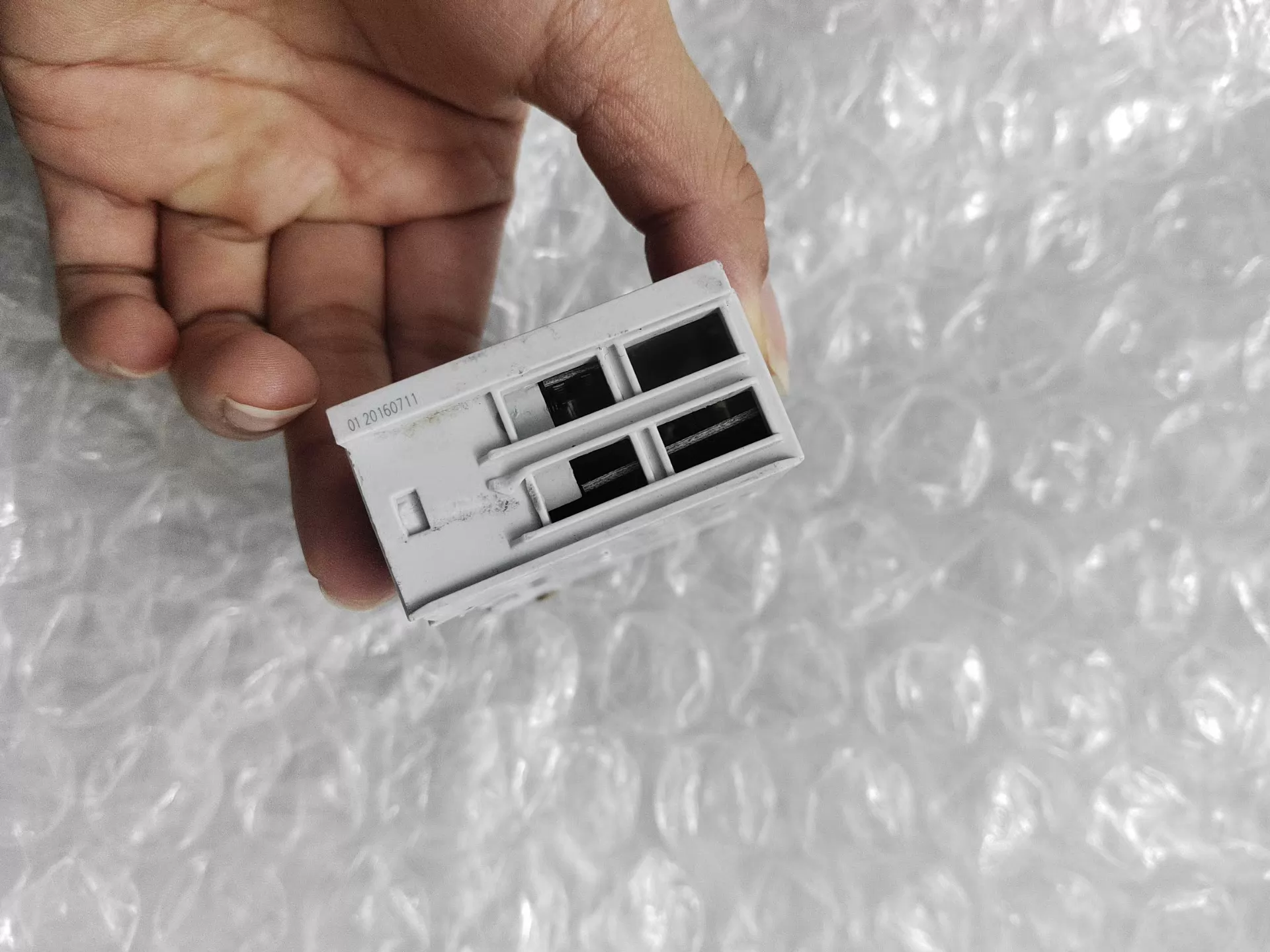

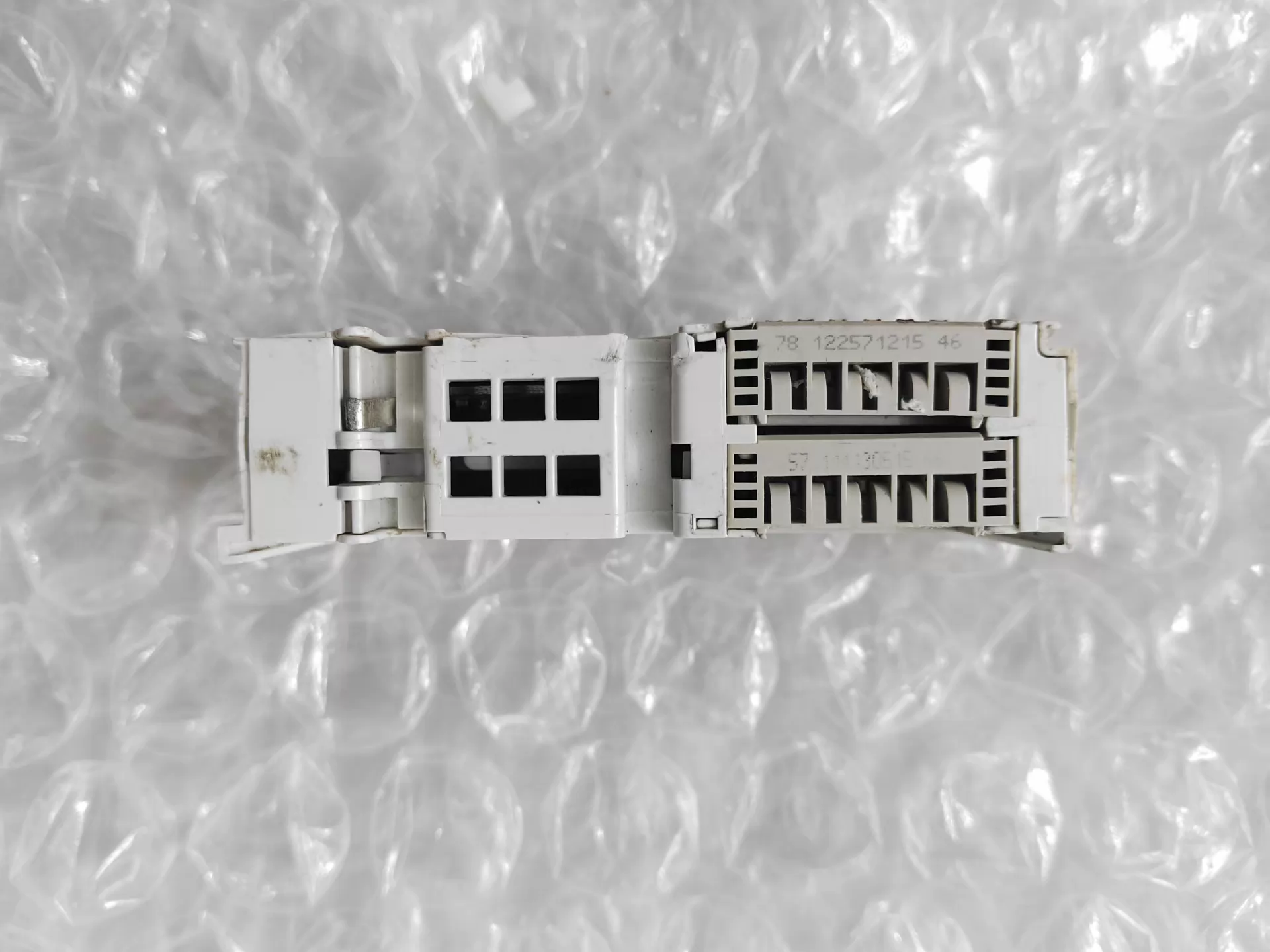

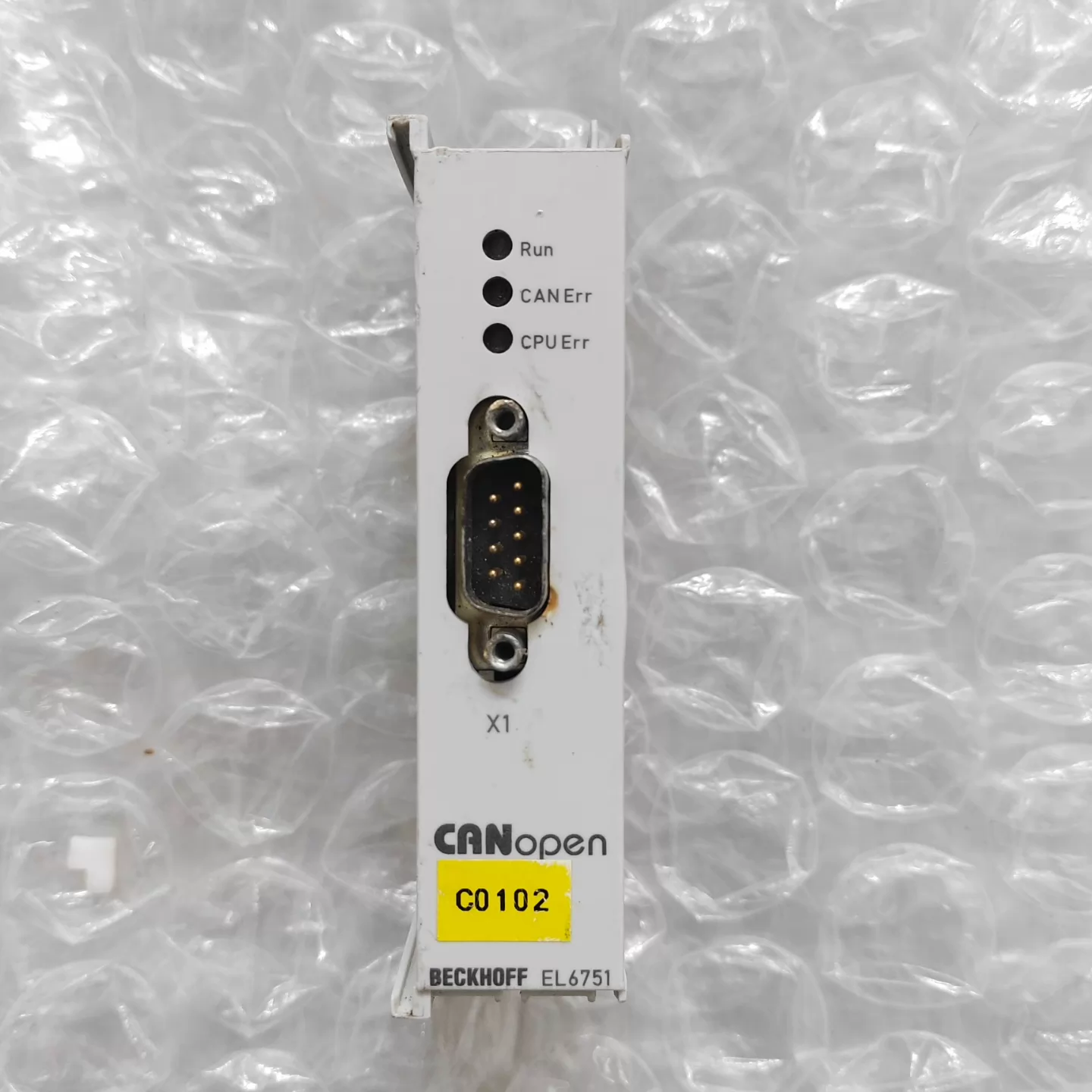

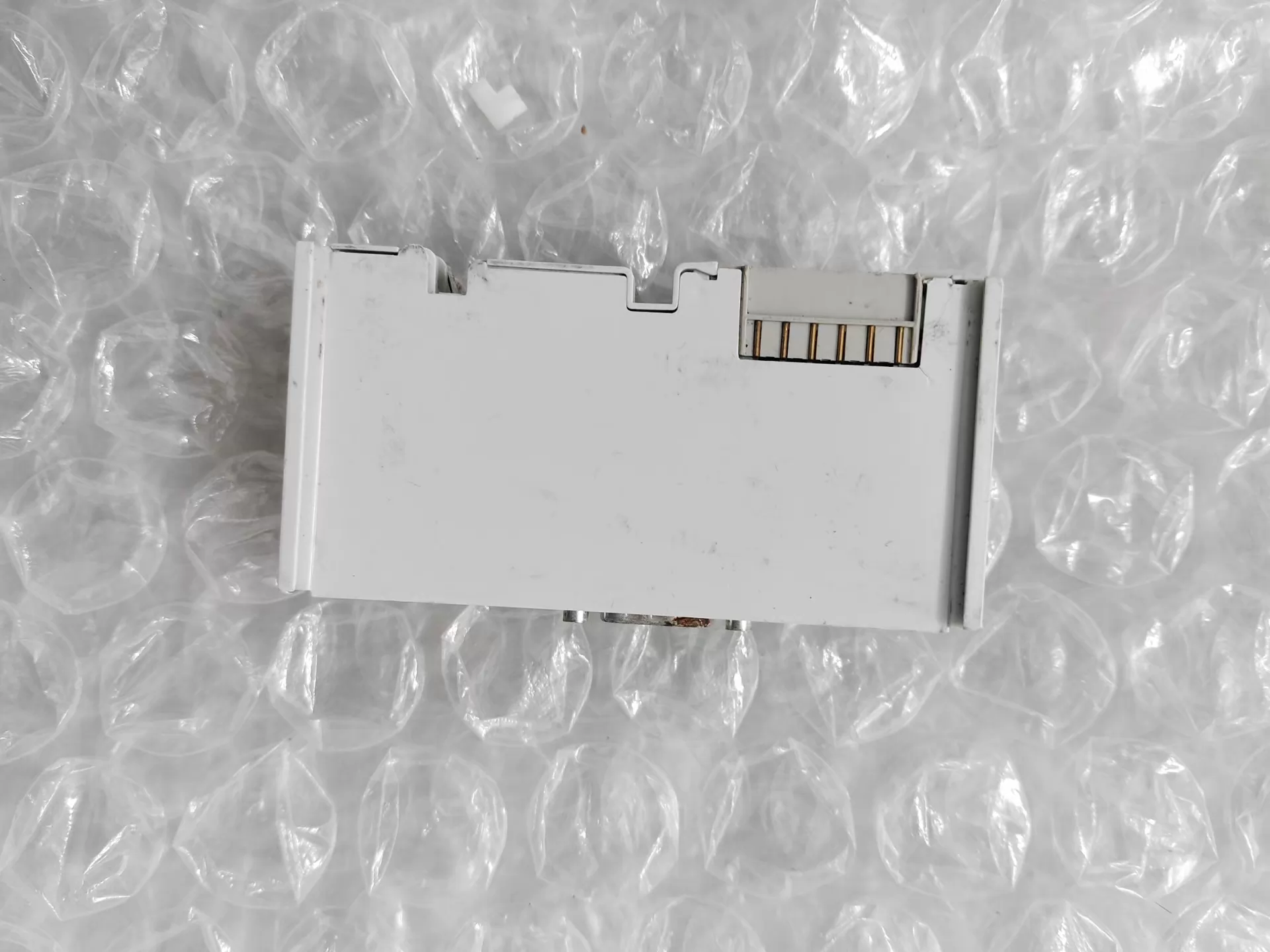

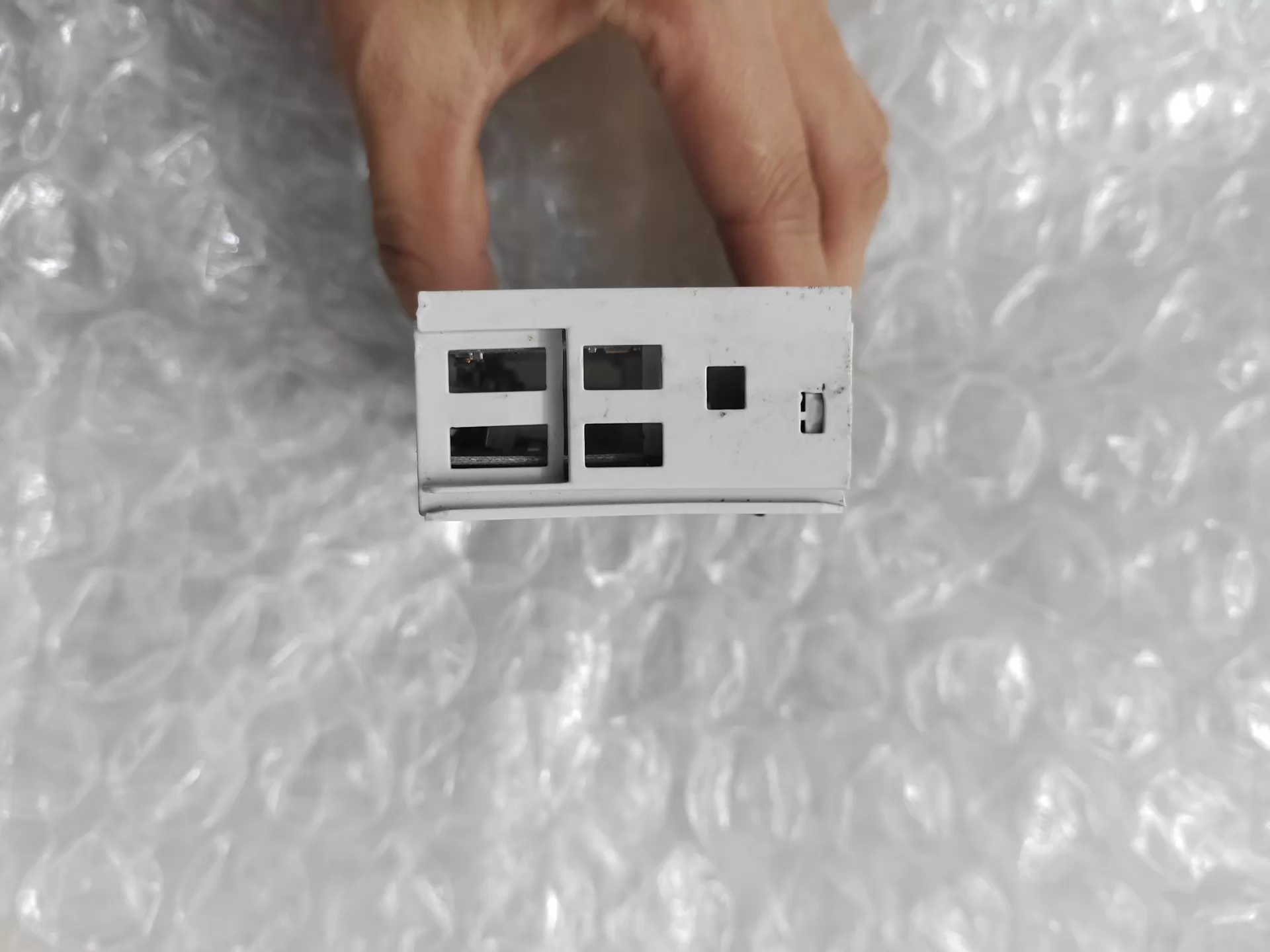

Used Beckhoff EL6751 CANopen master EtherCAT terminal, removed from equipment. Supports EtherCAT communication and features indicator lights.
Specifications
| Brand | Beckhoff |
|---|---|
| MPN | EL6751 |
| Origin | Germany |
| Fieldbus | CANopen |
| Transmission rate | 10, 20, 50, 100, 125, 250, 500, 800, 1000 kbaud |
| Weight | approx. 70 g |
| Operating temperature | -25…+60 °C |
| Storage temperature | -40…+85 °C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| CAS No. | 7439-92-1 |
| Ex marking | ATEX: II 3G Ex ec IIC T4 Gc; IECEx: Ex ec IIC T4 Gc; cFMus: Class I, Division 2, Groups A, B, C, D; Class I, Zone 2, AEx ec IIC T4 Gc |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx, DNV, cFMus |
| Communication | CANopen network master and CANopen manager, optionally CANopen slave |
| Current consumption E-bus | typ. 230 mA |
| Hardware diagnostics | status LEDs |
| Interfaces | D-sub connector, 9-pin according to CANopen specification, galvanically decoupled |
| Number of channels | 1 |
| Number of devices | max. 127 slaves |
| Protect. rating/installation pos. | IP20/variable |
| revision number | 0022 |
| Special features | status LEDs, CANopen network master, CANopen Manager, supports RAW-CAN |
| Technology | CANopen master/slave terminal |
