Beckhoff EL2008 - Used
Description

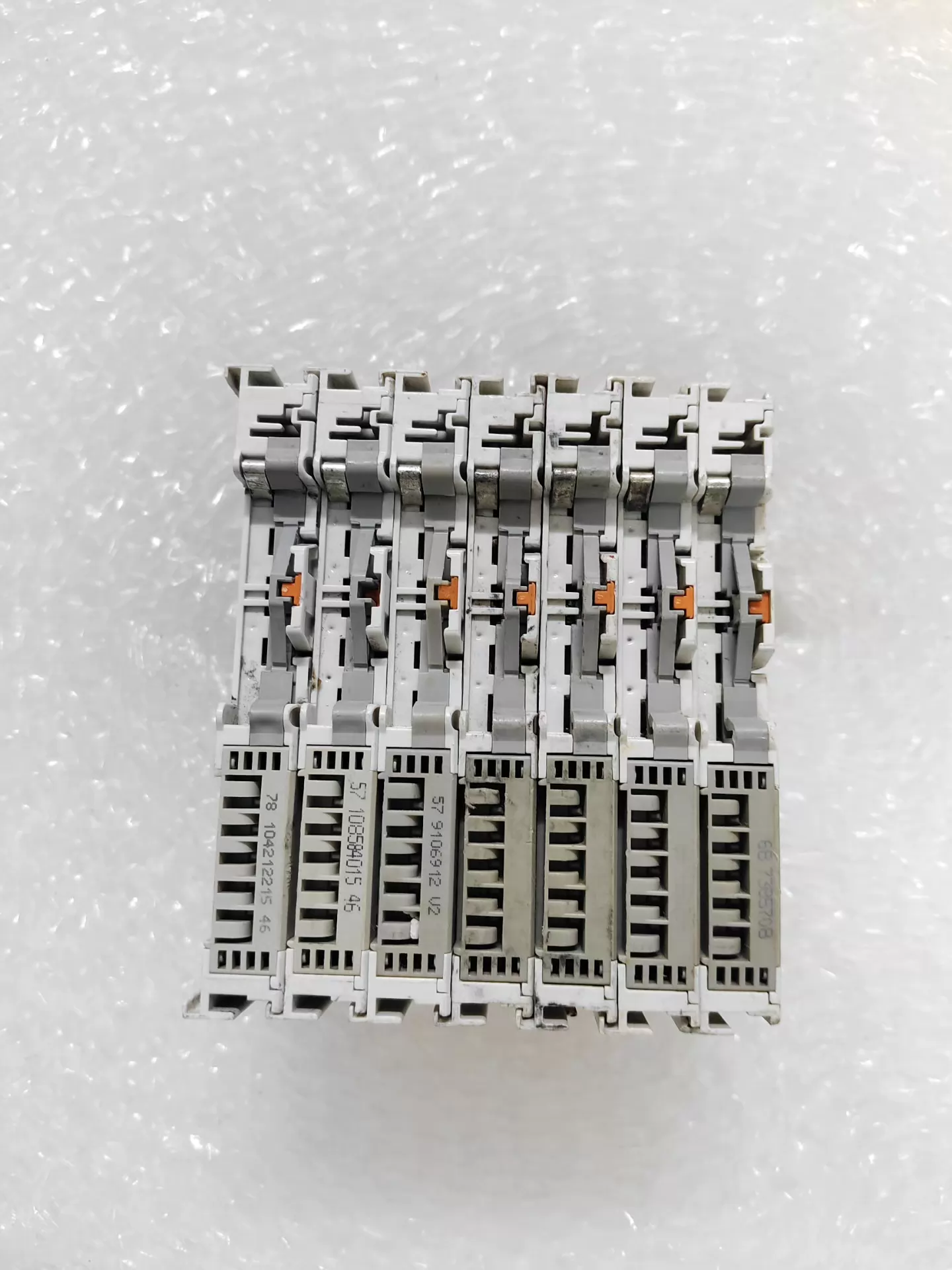

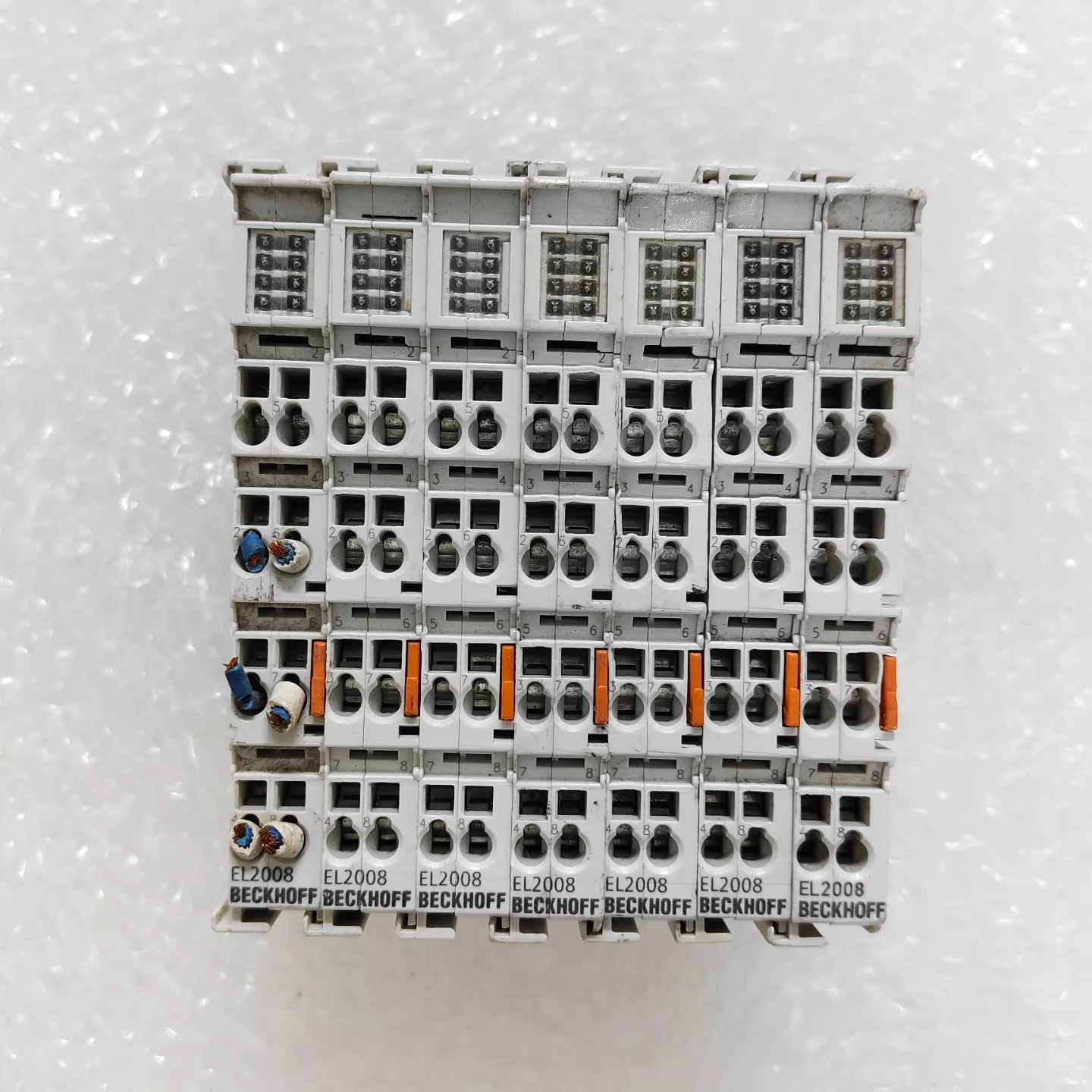

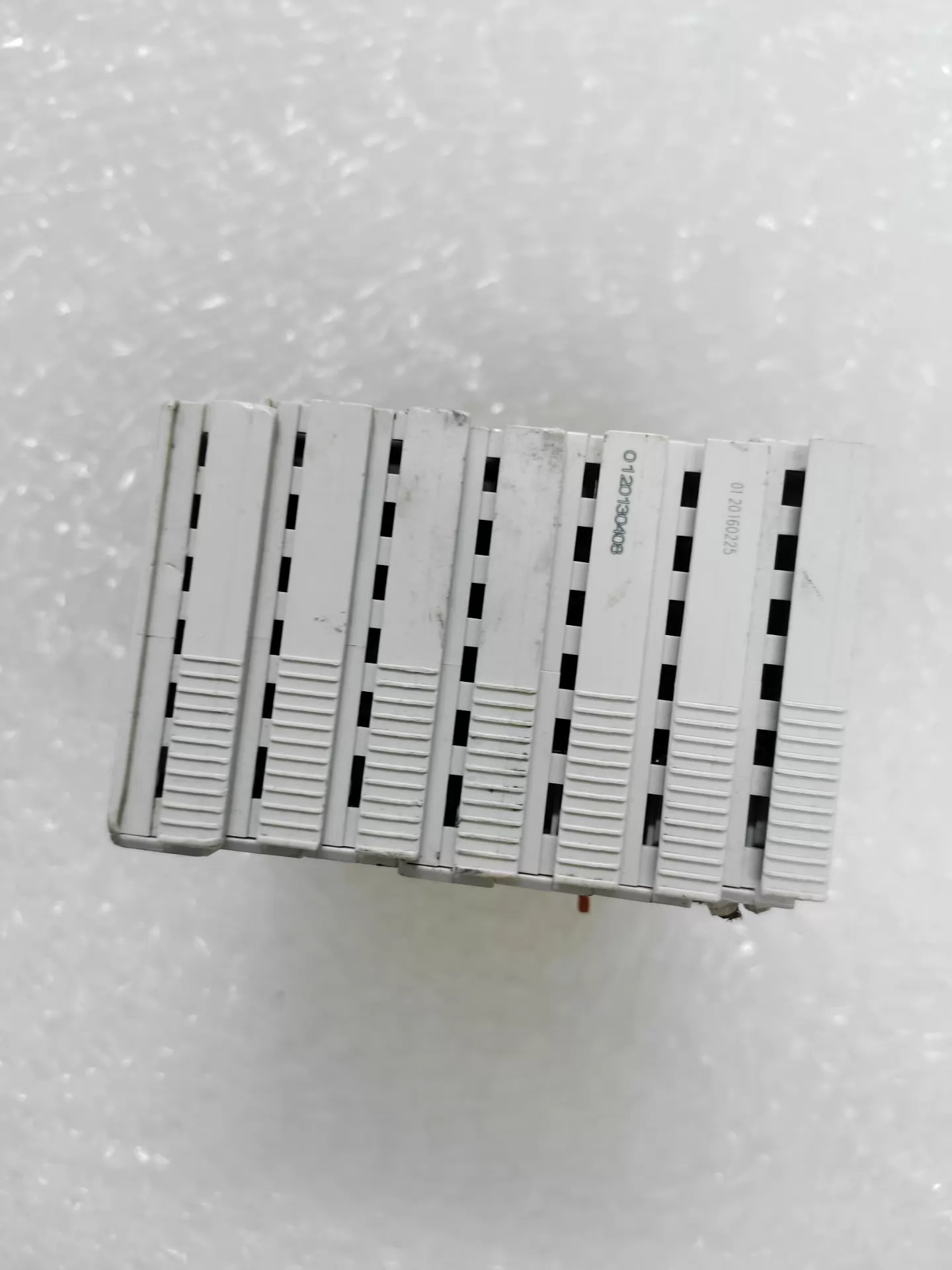

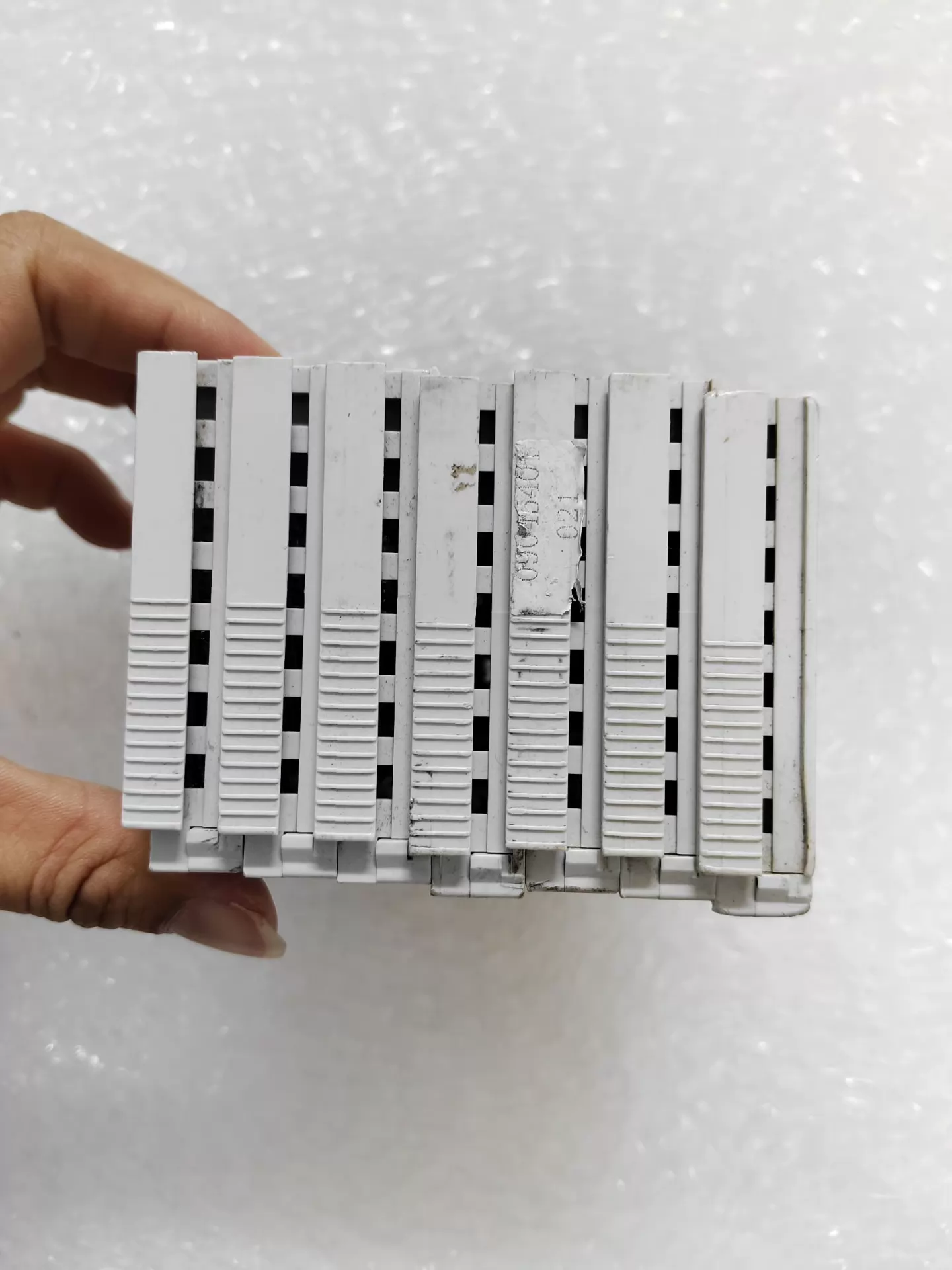

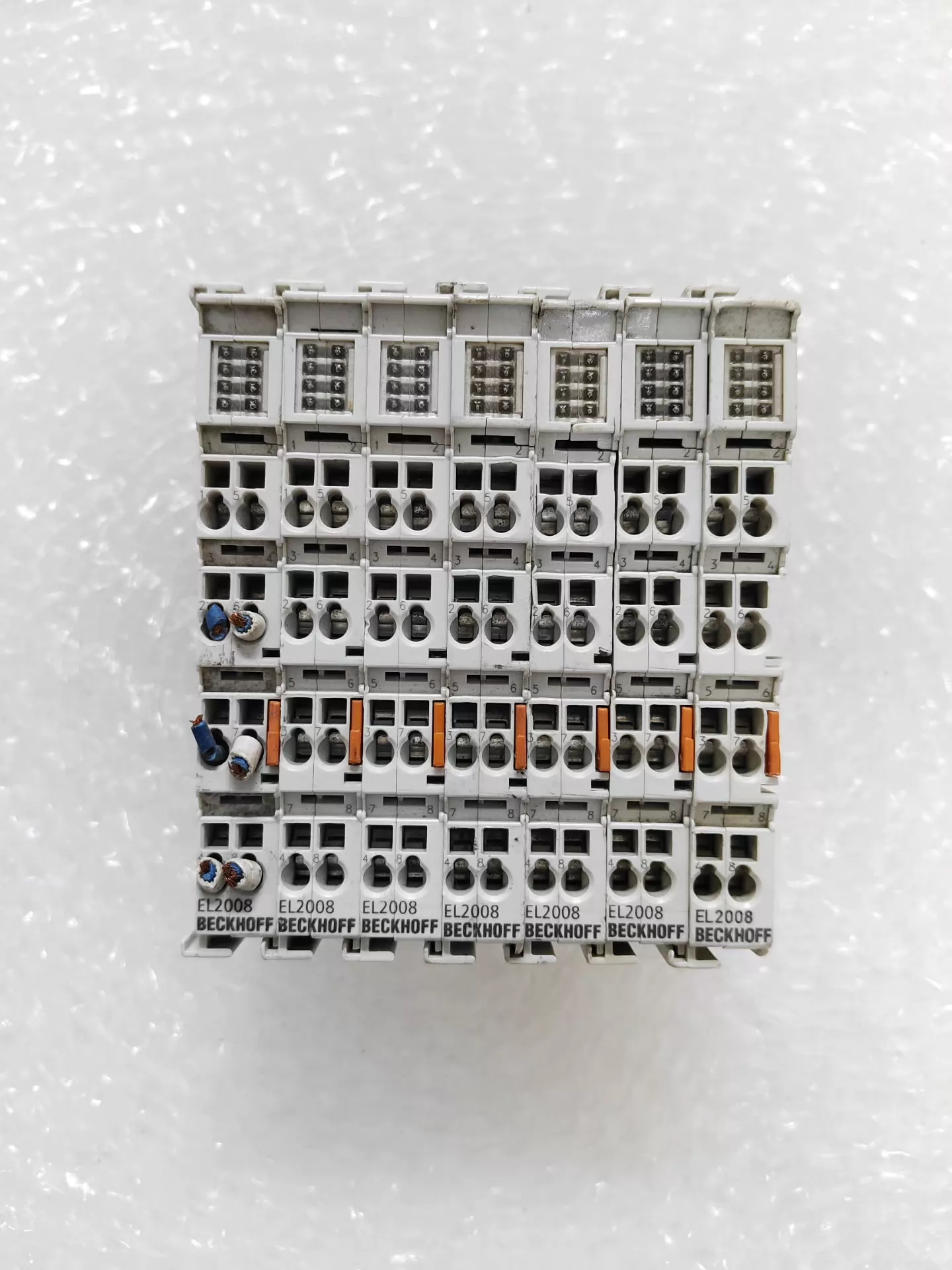

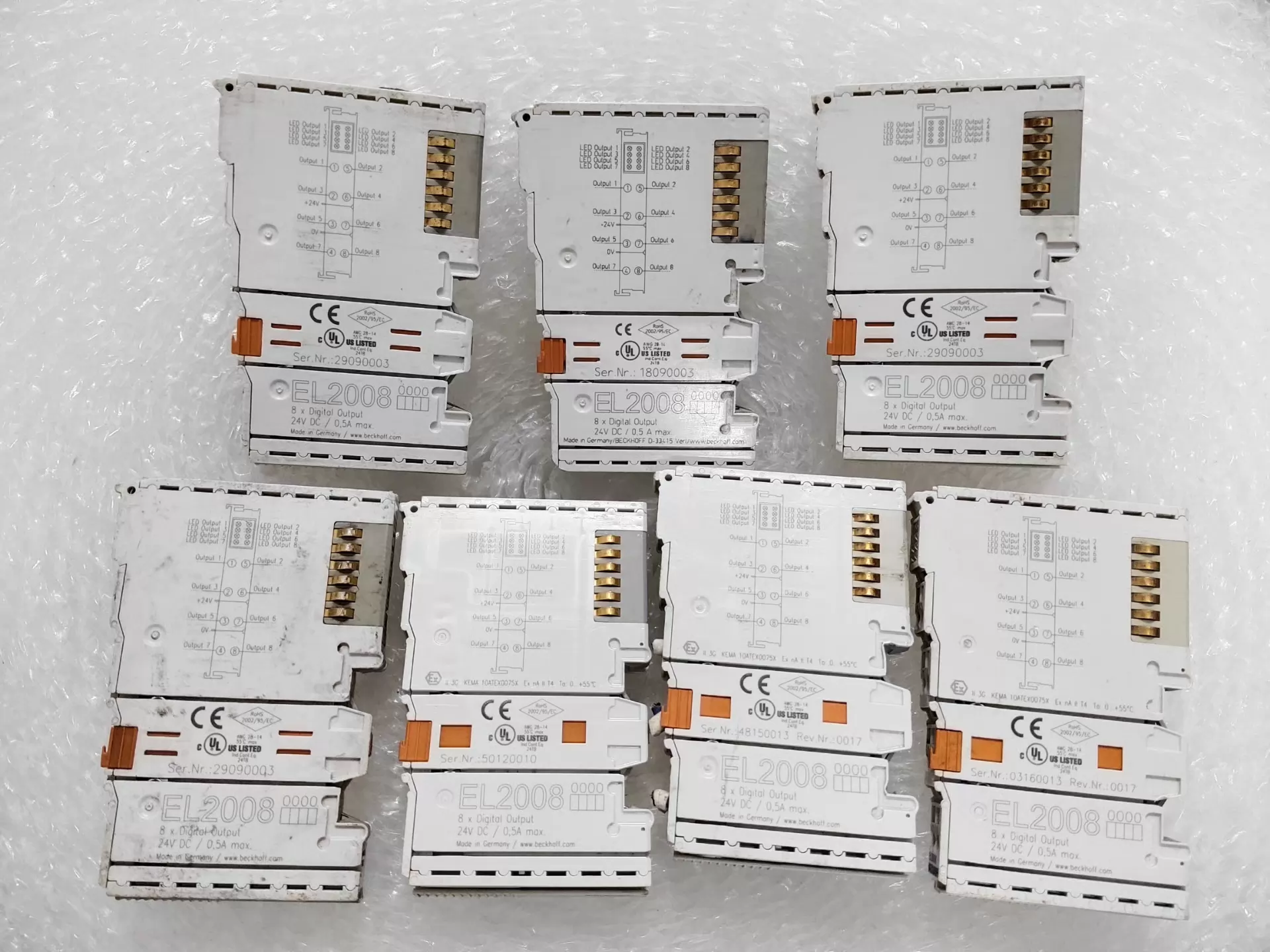

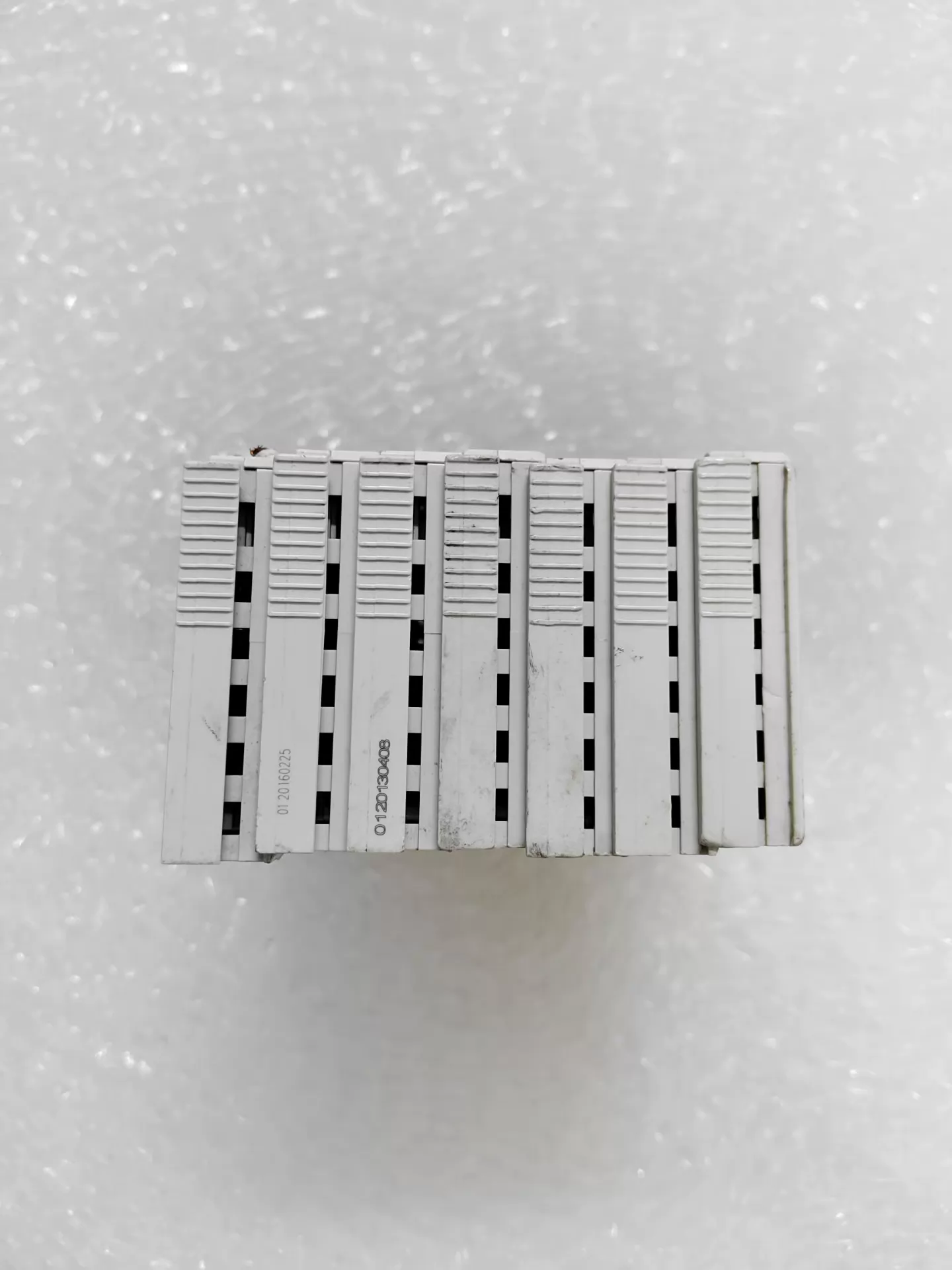

Used Beckhoff EL2008 module. Removed from equipment, with light use marks and no obvious damage. Output current: 0.5 A max. Protection rating: IP20.
Specifications
| Brand | Beckhoff |
|---|---|
| Model | EL2008 |
| Origin | Germany |
| Output Current | 0.5 A max |
| Max. output current | 0.5 A per channel |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Short-circuit current | typ. < 2 A |
| Weight | 55 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85 °C |
| Relative humidity | 95%, no condensation |
| Reverse polarity protection | yes |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Ex marking | ATEX: II 3G Ex ec IIC T4 Gc; IECEx: Ex ec IIC T4 Gc; cFMus: Class I, Division 2, Groups A, B, C, D; Class I, Zone 2, AEx ec IIC T4 Gc |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx, DNV, cFMus |
| Bit width in the process image | 8 outputs |
| Configuration | no address or configuration setting |
| Connection technology | 1-wire |
| Current consumption E-bus | 110 mA |
| Current consumption power contacts | typ. 15 mA + load |
| Distributed clocks | – |
| Electrical isolation | 500 V (E-bus/field potential) |
| Load type | resistive, inductive, lamp load |
| Number of outputs | 8 |
| output_voltage | 24 V DC |
| Outputs | 8 x Digital Output |
| Pluggable wiring level | for all ESxxxx terminals |
| Protect. rating/installation pos. | IP20/see documentation |
| Protection rating | IP20 |
| Switching times | typ. T ON : 60 µs, typ. T OFF : 300 µs |
| Switching-off energy | < 150 mJ/channel |
