Beckhoff EL1904-0000 EL1904 4-channel digital input terminal - Used
Request a Quote
Tell us what you need and we will follow up about availability and pricing.
Start requestDescription

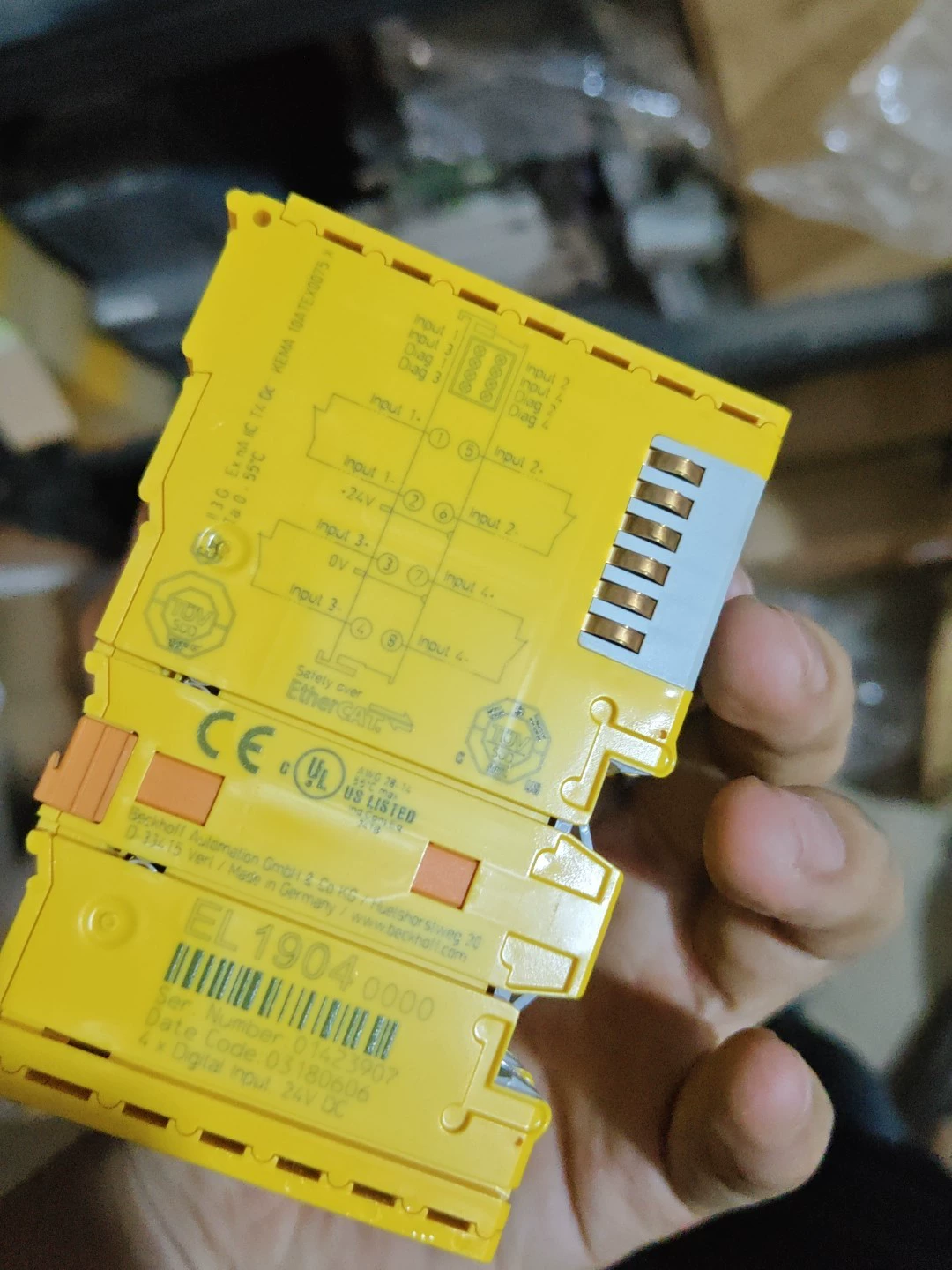

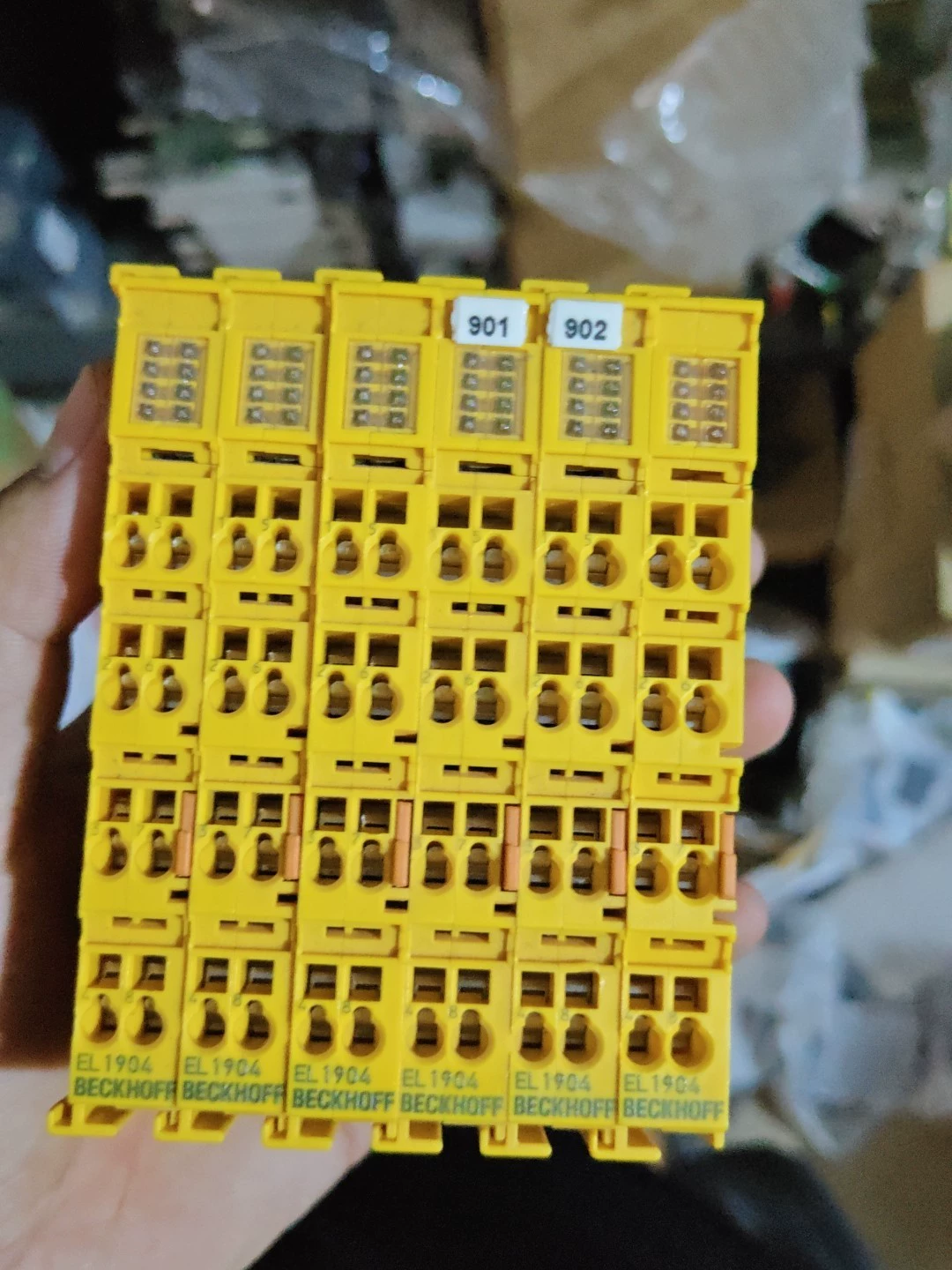

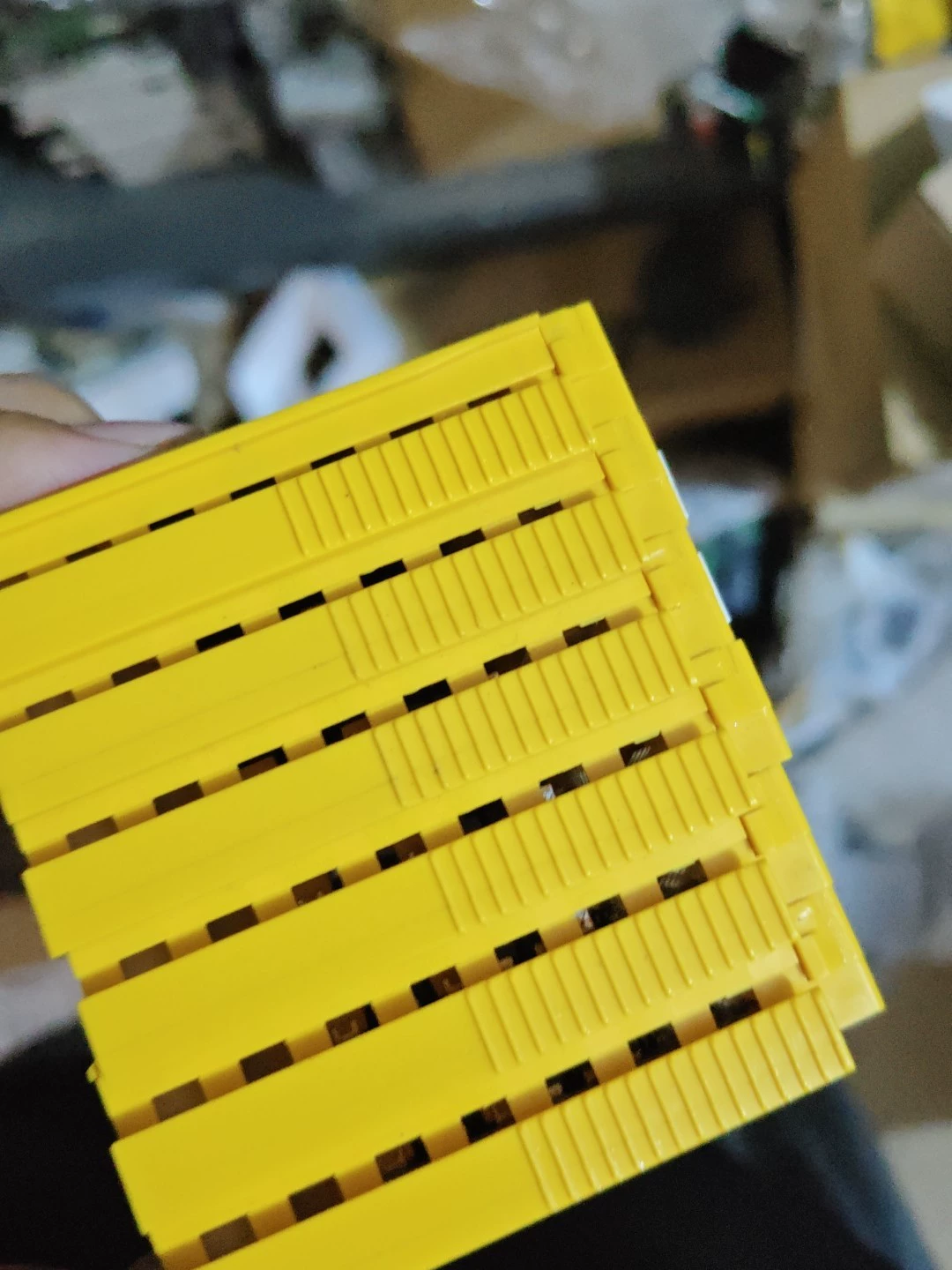

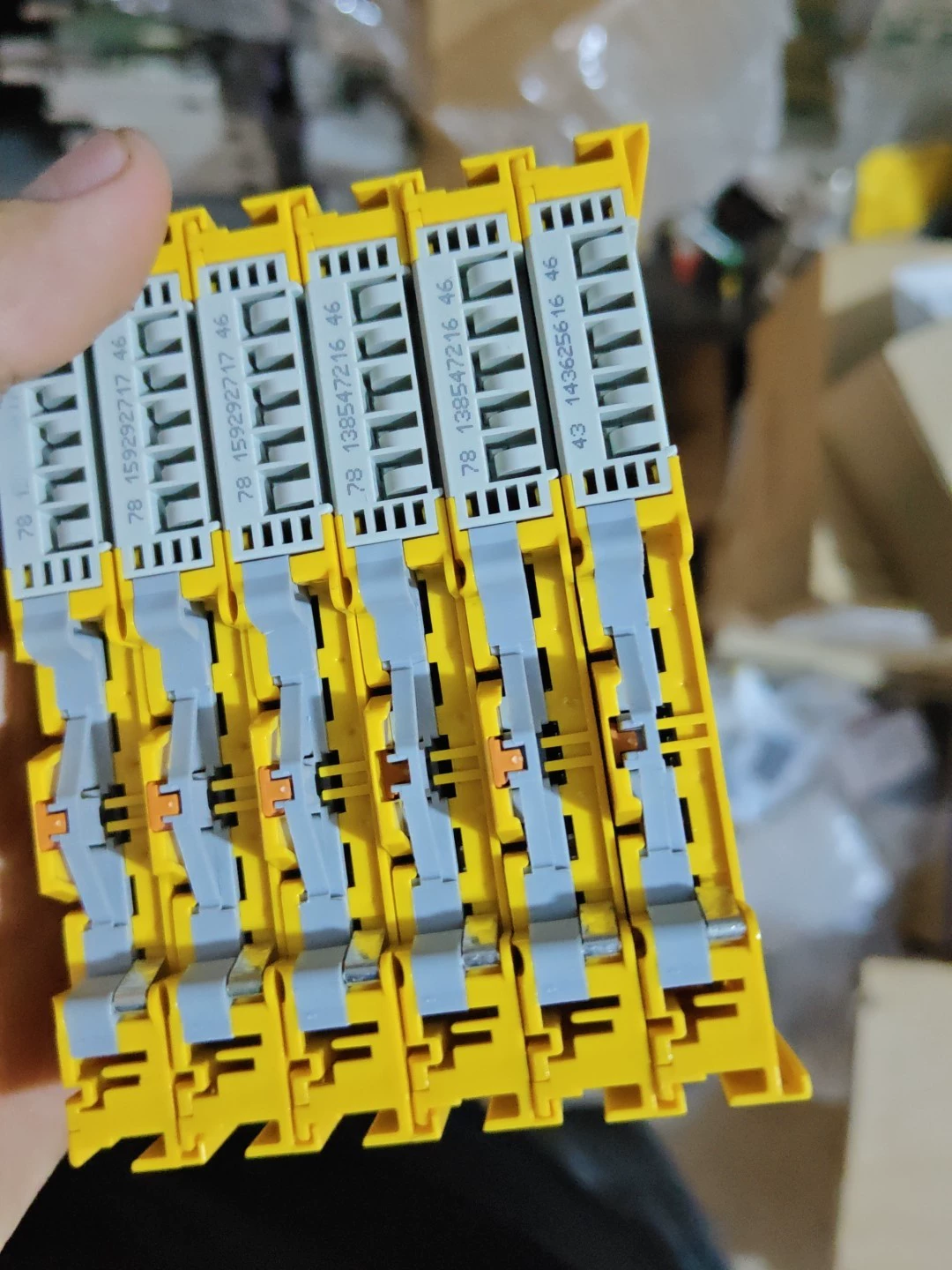

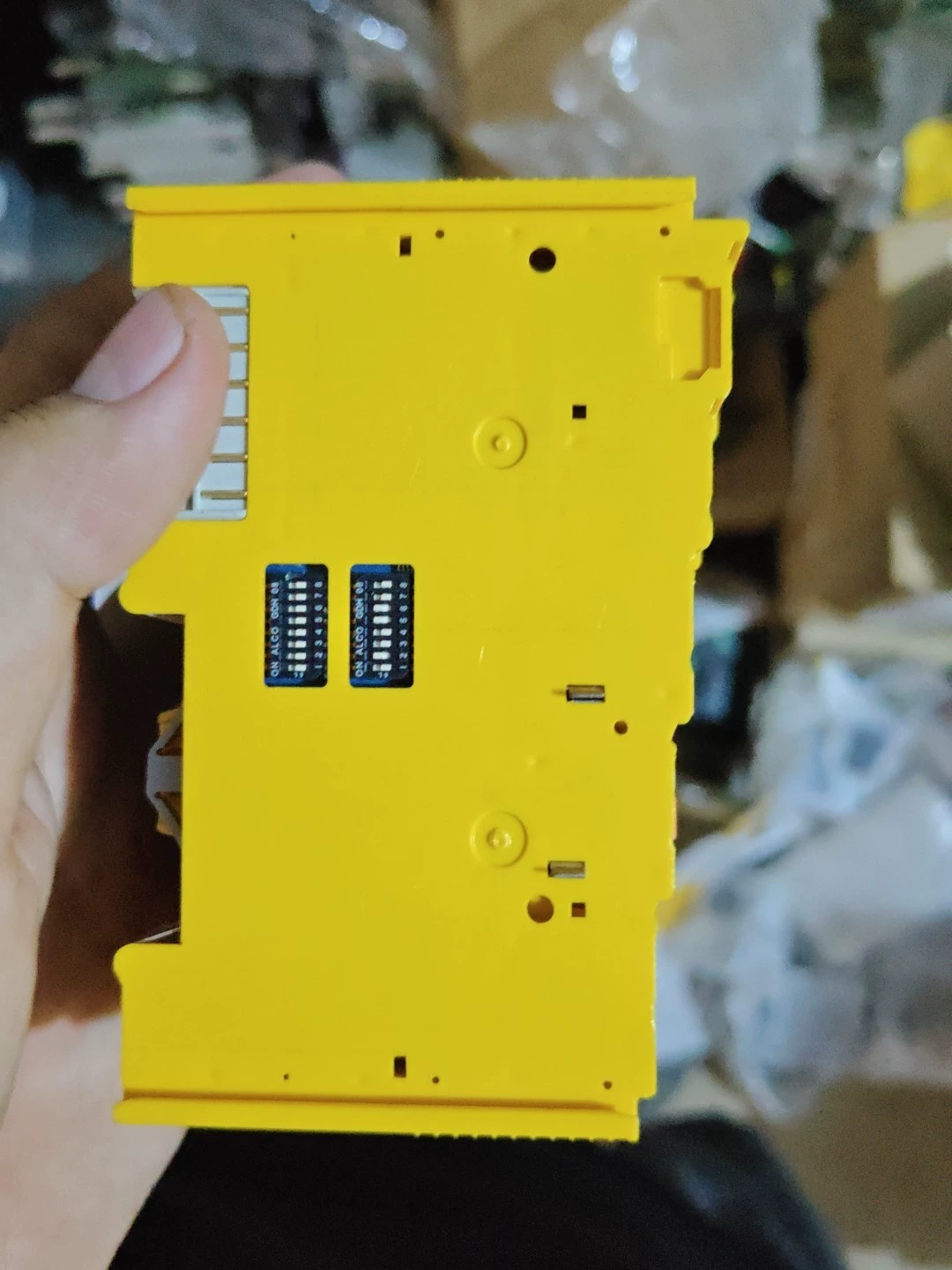

Beckhoff EL1904-0000 (EL1904) is a used 4-channel digital input terminal providing 24V DC inputs. It is German made and features 4 digital input channels.
Specifications
| Brand | Beckhoff |
|---|---|
| Model | EL1904-0000 |
| MPN | EL1904 |
| Origin | Germany |
| Weight | approx. 50 g |
| Protocol | TwinSAFE/Safety over EtherCAT |
| Ex marking | ATEX: II 3G Ex ec IIC T4 Gc; IECEx: Ex ec IIC T4 Gc; cFMus: Class I, Division 2, Groups A, B, C, D; Class I, Zone 2, AEx ec IIC T4 Gc |
| Response time | typ. 4 ms (read input/write to E-bus) |
| Safety standard | DIN EN ISO 13849-1:2008 (Cat. 4, PL e) and EN 61508:2010 (SIL 3) |
| Number of inputs | 4 |
| Protection rating | IP20 |
| Fault response time | ≤ watchdog time (parameterizable) |
| Connection technology | 1-/2-wire |
| Installation position | horizontal |
| Current consumption E-bus | typ. 200 mA |
| Current consumption power contacts | see documentation |
