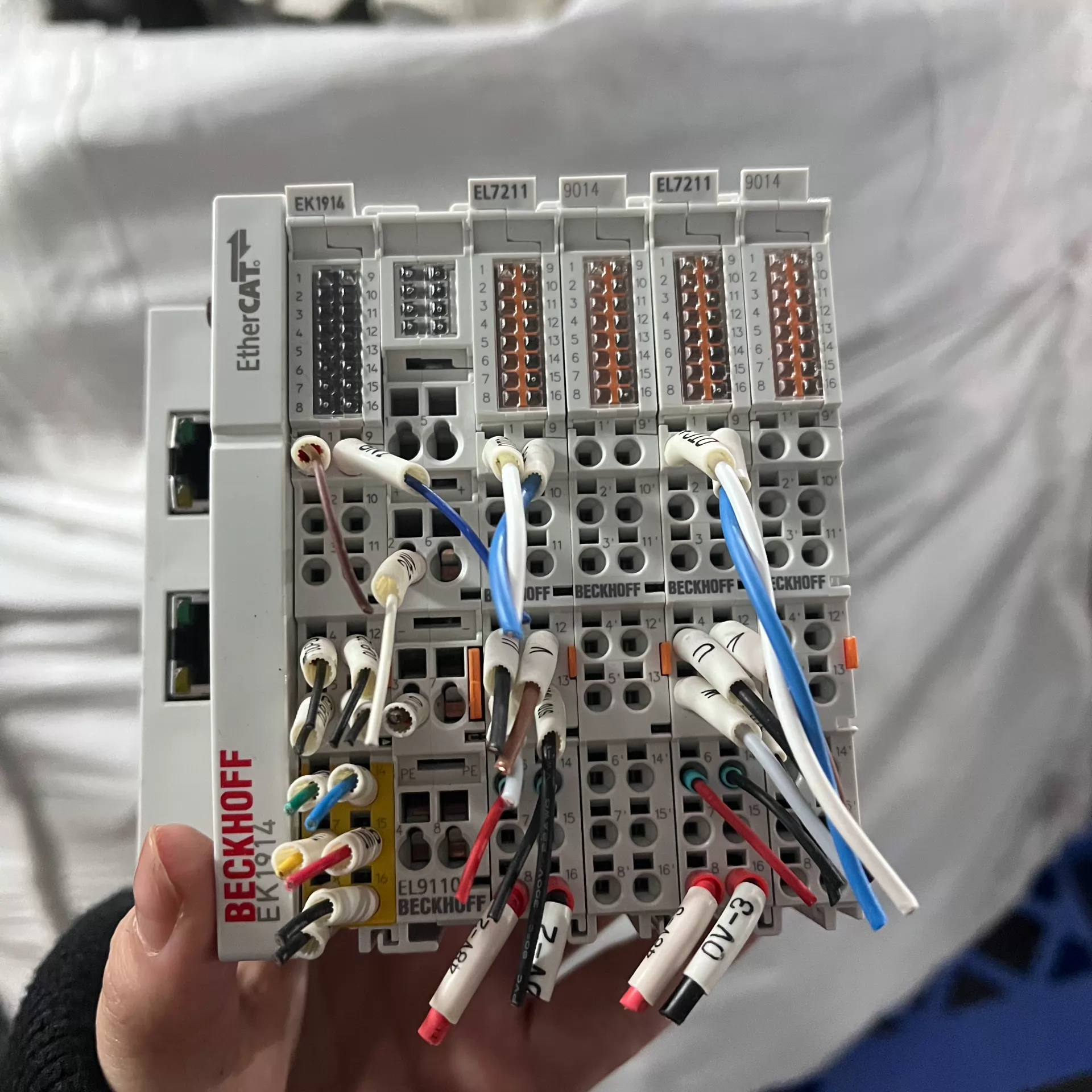

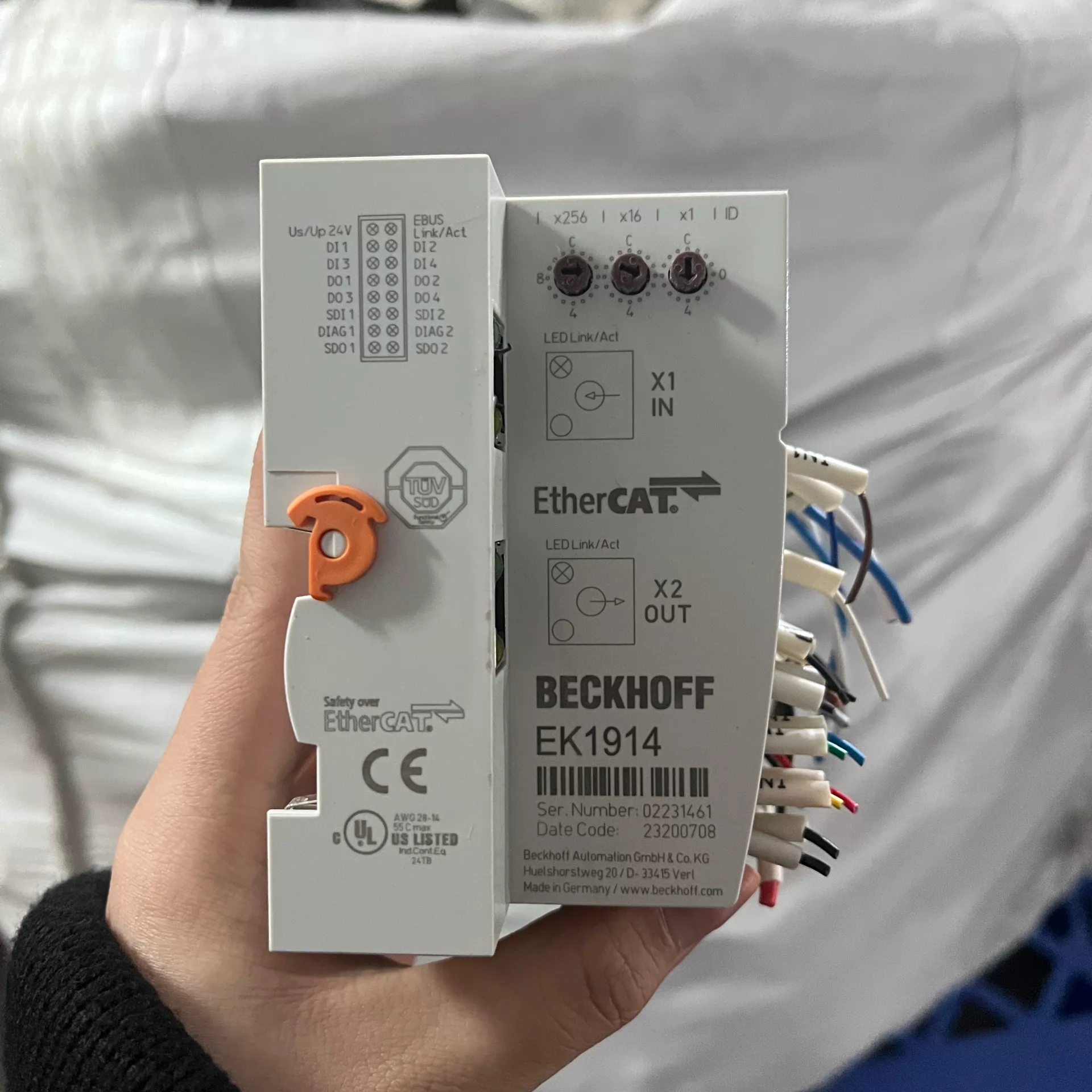

Beckhoff EK1914 EtherCAT Coupler - Used
Request a Quote
Tell us what you need and we will follow up about availability and pricing.
Start requestDescription
Beckhoff EK1914 is a used EtherCAT coupler with integrated standard and safety digital I/O. It provides 6 digital inputs and 6 digital outputs, including 2 fail-safe inputs and 2 fail-safe outputs.
Specifications
| Brand | Beckhoff |
|---|---|
| Model | EK1914 |
| MPN | EK1914 |
| Origin | Germany |
| Us/Up | 24V |
| Weight | approx. 123 g |
| Protocol | EtherCAT |
| Specification | EtherCAT Coupler with standard and safety I/Os |
| Safety standard | DIN EN ISO 13849-1:2008 (Cat. 4, PL e) |
| Number of inputs | 6 digital inputs, 2 of which are fail-safe inputs |
| Number of outputs | 6 digital outputs, 2 of which are fail-safe outputs |
| Protection rating | IP20 |
| Max. output current | per standard output: 0.5 A, per safe output: 0.5 A, min. 20 mA |
| Fault response time | ≤ watchdog time |
| Connection technology | 1-/2-wire |
| Installation position | horizontal |
