Beckhoff C6015-0010 industrial PC - Used
Request a Quote
Tell us what you need and we will follow up about availability and pricing.
Start requestDescription

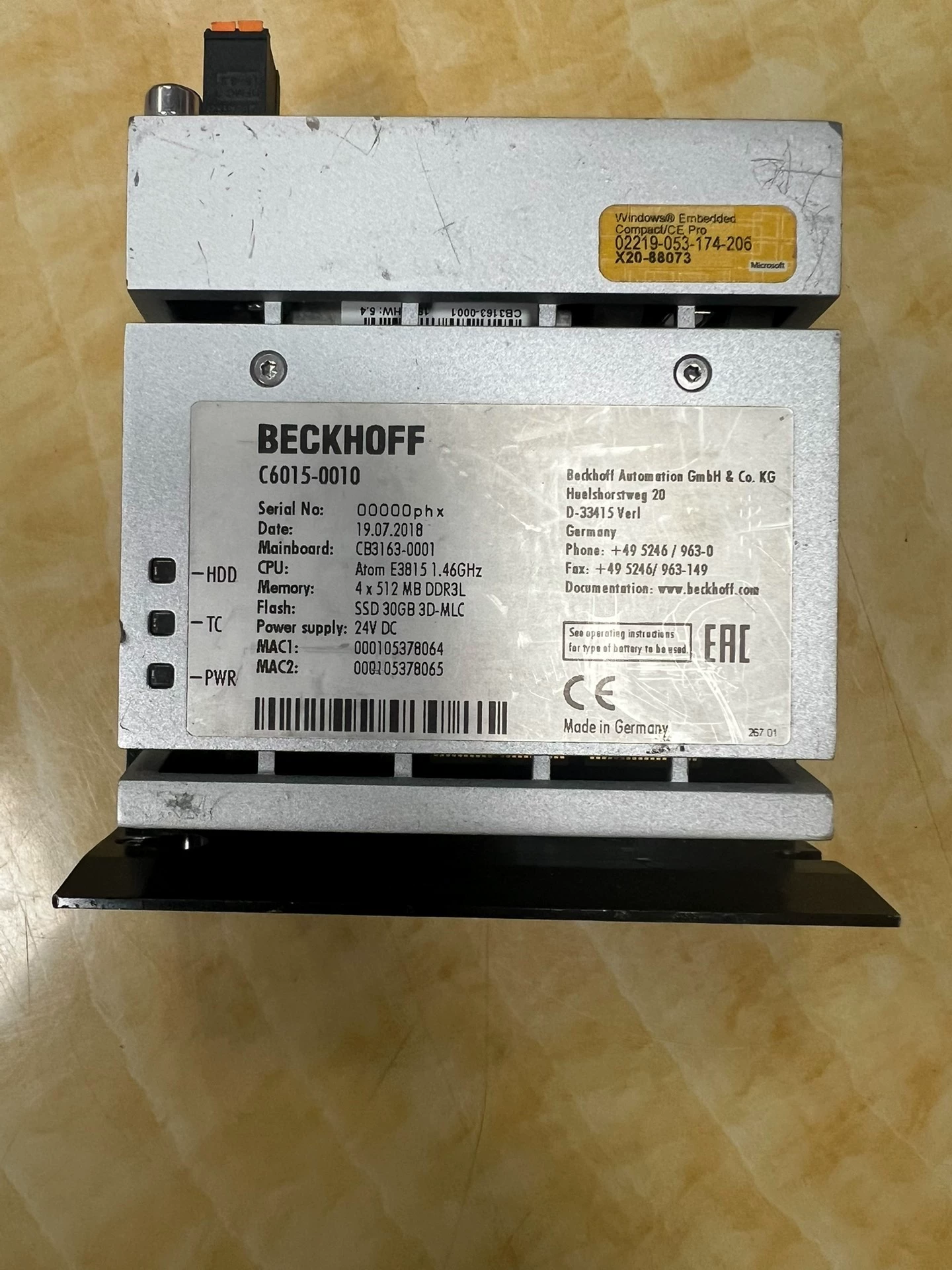

Beckhoff C6015-0010 industrial PC. Used, removed from service. Shows slight signs of use.
Specifications
| Brand | Beckhoff |
|---|---|
| MPN | C6015-0010 |
| Origin | Germany |
| HW | 5.4 |
| Var | 000001924 |
| MAC1 | 0001054C398E |
| CAS No. | 7439-92-1, 110-71-4 |

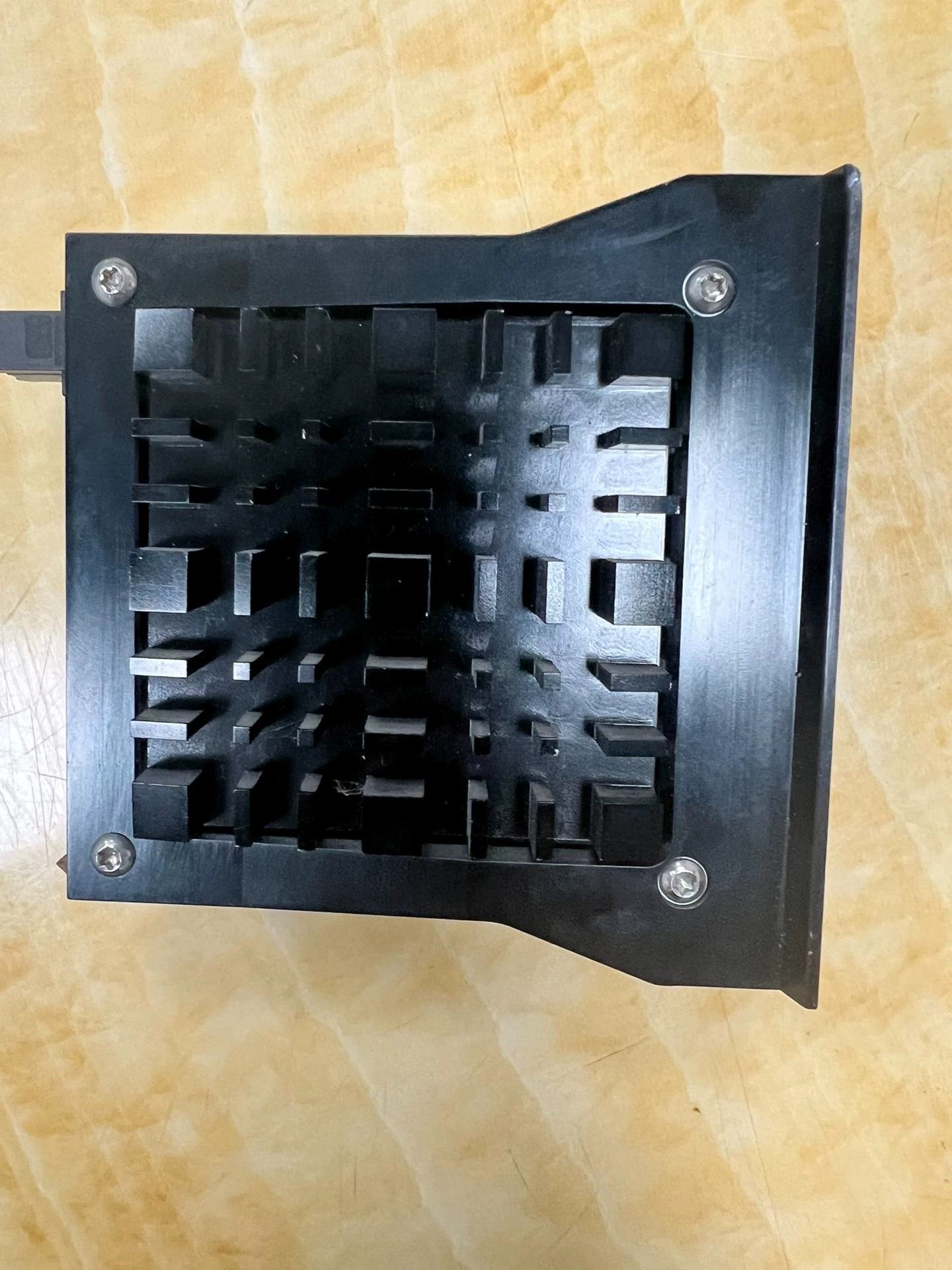

| Cooling | passive with single side cooling plate |
| Graphic | integrated in the processor |
| Housing | aluminum zinc die-cast housing |
| Ethernet | 2 x 100/1000BASE-T on-board |
| LAN1 port | X102 |
| LAN2 port | X103 |
| Interfaces | 1 x USB 3.0, 1 x USB 2.0, 1 x DisplayPort |
| Device type | Ultra-compact control cabinet PC |
| DP out port | X104 |
| Motherboard | compact motherboard for Intel Atom ® E38xx |
| USB2.0 port | X105 |
| USB3.0 port | X106 |
| Power supply | 24 V DC |
| Protection rating | IP20 |
| Dimensions (W x H x D) | 82 x 82 x 40 mm (3.2" x 3.2" x 1.6"), without mounting plate |
| Operating temperature | 0…55 °C |
| Slots for hard disk/flash | 1 slot for M.2 SSD |
| Free space for air circulation | 5 cm (2") on top and bottom of the PC required |
